USER MANUAL KHA 10524 Koenic

Product photo of hair styling tools including a brush, bulb, and clip (no text or symbols visible)

Covex-3-9
Ingev 10-5
spade 15-76
Fianca 23-26
Vogor 31-15
Talco 39-42
estevande 43-49
Inkola 50-55
Famaguda 57-63
TGope 64-69

Intron GmbH

H_1 ^c a b c d
E.C. Incentor
1.0% FTE/DCI
WANQ:148-148

P_0510234H1024C+39011-704

CE

Product diagram showing various hair styling tools with labeled parts and a detailed image of a curling iron.

Instructional images showing cable tool application steps with red arrows indicating movement or change

Sicherheitshinweise

Read this instruction manual carefully before using the appliance. Familiarise yourself with the operation, adjustments and functions of switches. Internalise and follow the safety and operation instructions in order to avoid possible risks and hazards.

Caution! Hot surface! Risk of burning! Do not touch the product's hot surfaces. Heat rises from the product during use.

Warning! Do not use this product near bathtubs, showers, basins or other vessels containing water.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have received instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be carried out by children without supervision. Keep the appliance and its cord out of reach of children less than 8 years.
• Danger of electric shock! Do not attempt to repair the appliance yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.
• Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a danger or injury.
• When the appliance is used in a bathroom, unplug it after every use as the proximity of water presents a hazard even when the appliance is switched off.

Safety instructions

• Warning! During cleaning or operation do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.
• Let the product cool down completely before storing it.
• For additional protection, we recommend the use of a residual current device (RCD) with a tripping current not exceeding 30 mA in the electrical circuit supplying power to your appliance. The installation should be done by an experienced electrician.
• Burning hazard! Keep the appliance out of the reach of young children while it is switched on or cooling down.
• Do not leave the appliance unattended while it is connected to the mains.
• If the appliance is placed on a surface with its stand, it must be ensured that this surface is stable, flat and heat-resistant.

• Follow the instructions in the chapter Cleaning and care.

• Observe all safety instructions to avoid damage through improper use! Follow all safety warnings on the appliance and in this instruction manual.

• Keep this instruction manual for future use. Should this appliance be passed on to a third party, then this instruction manual must be included.
• No liability will be accepted for damage resulting from improper use or non-compliance with these instructions.
• Only use this appliance for its intended use. The appliance is not suitable for commercial use. This appliance is only suitable for indoor and household use.

- Before connecting the appliance to the power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the appliance rating label.

- Never use a damaged appliance!

Disconnect the appliance from the electrical outlet and contact your supplier if it is damaged.

- To avoid damaging to the power cord, do not squeeze, bend or rub it on sharp edges. Keep it away from hot surfaces and open flames as well.

- Place the cord in such a way that no unintentional pulling or tripping over it is possible. Keep the appliance and its cord out of reach of children.

English

Safety instructions

• If an extension cord is used, its capacity needs to be suitable for the power consumed by the appliance.
• Do not operate the appliance with wet hands or while standing on a wet floor. Do not touch the power plug with wet hands.
• Do not open the appliance casing under any circumstances. Do not insert any foreign objects into the inside of the casing.
• Never use accessories which are not recommended by the manufacturer. They could present a safety risk to the user and might damage the appliance. Only use original parts and accessories.
• Do not place heavy objects on top of the appliance. Do not place objects with open flames, e.g. candles, beside the appliance. Do not place objects filled with water, e.g. vases, near the appliance.
• Keep the appliance away from any hot surfaces and open flames. Protect the appliance against heat and cold, dust, direct sunlight, moisture, dripping and splashing water.
• Do not wrap the power cord around the appliance.
• Connect the power plug to an easily reachable electrical outlet so that in case of an emergency the appliance can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch off the appliance. Use the power plug as the disconnection device.

• Disconnect the power plug from the electrical outlet when not in use and before cleaning.

• Should the appliance fall into water, unplug the power plug first before reaching into the water.

• Do not use the appliance barefoot.
• Do not leave the appliance unattended, if it is in use or the power plug is connected to an electrical outlet.
• Danger of burns! Parts of the appliance become very hot during use. Hold the appliance by its handle only.
• During use, do not use hair spray, water vaporisers or other vaporisers close to the appliance. Only use them when the appliance is switched off and the power plug is disconnected.
• Do not use the appliance if you are sleepy or if there is a possibility that you will fall asleep.
• Do not allow your skin to come into contact with the hot surfaces of the straightening plates; pay particular care to your face, neck, and hands.
• Place the appliance on heat-resistant surfaces only. Do not place on carpets, bedding, towels etc.
• Use a comb with shorter hair and place it between the appliance and scalp.
• Before use make sure that the hair is clean, dry and combed.
• Do not use the appliance too close to the scalp.
• Important! Check to ensure that the product is in a serviceable condition before use. The product shall not be used if it shows any signs of damage or if it's suspected to be defect.

Congratulations!

Thanks for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is only suitable for hair styling. Any other use can lead to damage to the product or injuries. This product is designed for household use only and not intended for commercial use. Any other use may result in damage to the product or injuries. Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for future storage. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately. After unpacking, please refer to chapter Cleaning and care.

Content

1 x Hot Air brush
5 x Attachments
1 x User manual

Controls and components

A Hair curler attachment
B Round Brush
c Long hair styling brush
D Air nozzle
Round brush large
F Release button for attachment
G Warm/cold air switch with lock button
H Control switch
Operation light
Air intake grille
K Hanging loop
L Power cord with plug

Technical Data

Rated voltage: 220 - 240 V\~ Rated input power: 1000 W Rated frequency: 50/60 Hz

Styling attachment		Usage
A	Hair curler attachment	Gives the hair waves and curls. Suitable for straightened hair.
B	Round Brush	For smaller curls. Suitable especially for short hair or for layered hairstyle.
C	Long hair styling brush	For straight hair
D	Air nozzle For	drying hair
E	Large Round Brush	For smooth cascading curls. Suitable especially for mid-length to long hair.

English

Mounting and dismounting of attachments

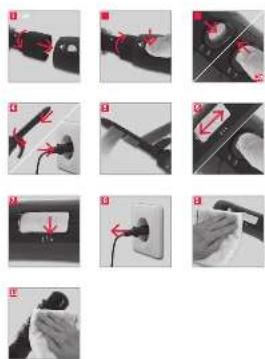

Fig. 1 Put the desired brush attachment and rotate it until it locks into place. Note the markings on the attachment and product.

Note

Always attach an attachment before you insert the mains plug in the wall socket.

Fig. 2 To remove the attachment, hold the Release/Lock button and turn the attachment before you pull it off.

Warm air and cold air

Fig. 3a For warm-air styling, switch to Care.

Fig. 3b For cold-air styling, choose Cool. Press on the lock release button and slide the switch to Cool.

A Styling with the Hair curler attachment

Fig. 4 Put on the hair curler attachment and plug the power cord in the wall socket.

Fig. 5 Press down the lever and place a strand of hair between the curling iron and clamp tongue. Rotate the curling iron in order to wrap the hair around the rod.

Fig. 6 Switch on the product by moving the Control switch to the desired setting. 2 - Warm airflow for fast styling 1 - Gentle airflow for simple styling 0 - Off

Note

• Thinner streak for smaller curls
• Larger streak for broader waves

Finish off with a cool airflow (only in warm air styling) to fix your style.

Unwind the strands of hair from the curling attachment and open the clamp tongue. Allow the hair to cool before styling.

Fig. 7 Switch off the product, when you have finished your hair styling.

B E Styling with the round and natural bristle brush

1. Put on the corresponding brush attachment and plug the power cord in the wall socket.
2. Place the brush in the hair.
3. Switch on the product by moving the Control switch to the desired setting. 2 - Warm airflow for fast styling 1 - Gentle airflow for simple styling 0 - Off

Note

Make brushing movements from top of the head downwards while you slightly turn the brush.

Finish off with a cool airflow (only in warm air styling) to fix your style.

1. Switch off the product, when you have finished your hair styling.

Styling with long hair styling brush

1. Put on the corresponding brush attachment and plug the power cord in the wall socket.
2. Divide the hair before styling. Start the styling with the underlying strands.
3. Switch on the product by moving the Control switch to the desired setting. 2 - Warm airflow for fast styling 1 - Gentle airflow for simple styling 0 - Off Finish off with a cool airflow (only in warm air styling) to fix your style.
4. Switch off the product, when you have finished your hair styling.

D Drying hair

Attach the air nozzle. Dry your hair with the desired airflow setting.

Cleaning and care

Note

Never use solvents or abrasive cleaning agents, metal, or pointy objects for cleaning.

Fig. 8 Unplug and allow the product to cool off prior to cleaning.

Fig. 9 Clean the exterior surfaces of the product with a small brush or dry cloth.

Fig. 10 Clean the attachments with a moist cloth.

Caution

• Never submerge the product in water or any other liquid while cleaning.
• Ensure that no water enters into the interior of the product (around the switch), in the inlet grille and air outlet.
