USER MANUAL KFF 45322 M Koenic

Close-up of a metallic multi-panel air conditioner fan with visible blades and mounting base (no text or symbols)

Deutsch 3-7

regis B

Español 12-15

Français 26-9

Емгико 20 - 23

Magyar 24-27

Union 28-31

Nordland, 32–35

Polish 36 - 50

30181640 43

Swensø 44 - 47

Tikc 48 51

valga GmbH

wenkestraFe

B:Umbingostadt

Germany

2024年1月1日

www.sseinfo.com

M KFF45322M 211129 V04

CE

A B C D E F C

Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been instructed concerning use of the product in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children unless they are supervised.
• Keep the product and its cord out of reach of children aged less than 8 years.
• A damaged power cord may only be replaced by an authorised service agent in order to avoid hazards.
• Once the fan is assembled, it is forbidden to disassemble the guard.

Safety instructions

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
• Never leave the product unsupervised while it is switched on.
• Do not place any objects on top of the product.
• Never immerse electrical parts of the product in water or any other fluid during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt (e.g. damaged power cord, product has been dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
• The mains voltage must match the information on the rating label of the product.
• Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.
• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and

• before cleaning the product.

• Use this product in dry indoor areas only and never outdoors.

• Place the product on a flat, sturdy and slip-resistant surface.
• Never use, expose or put the product near to:
• direct sunlight and dust;
• fire (fireplace, grill, candles), water (water splashes, vases, bath tube) or heavy moisture.
• This product is not intended for commercial use. It is designed for household use only.
• Do not remove the guard or insert any object during operation.
• Before cleaning, always let the product come to a complete stop and disconnect it from the mains.
• In order to avoid overheating, do not cover the product.
• Small children, children and older people should not be exposed to cold air currents for a long time.
• Keep the product away from loose objects such as plants, curtains, etc.
• The product may only be connected to the mains once it has been completely assembled.
• Follow the instructions in the chapter Cleaning and care.
• Important! Check to ensure that the product is in a serviceable condition before use. The product shall not be used if it shows any signs of damage or it's suspected to be defect.

Congratulations!

Thank you for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The product is only intended for circulating room air. Only us the product according to these instructions. Any other use can lead of the damages of the product or injuries. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately. After unpacking, please refer to chapter Cleaning and care.

Disposal

The symbol of the crossed-out wheeled bin shown on the product or its packaging means that the device must not be disposed of with other household waste but requires separate collection. You can dispose of the device free of charge at your local waste return and collection system. The addresses can be obtained from your responsible city council or local government. Alternatively, you can return small waste electrical and electronic equipment (WEEE) with an edge length of up to 25 cm free of charge to any retailer with a sales area relating to electrical and electronic equipment (EEE) of at least 400 m2 or to a food retailer that offers EEE at least several times a year with a total sales area of 800 m2. Larger WEEE can be returned to a respective retailer free of charge when buying a new product of the same type. Regarding the modalities of the collection of WEEE in case of shipment of the newly bought product, please contact your retailer. If possible, please remove all batteries and accumulators as well as all removable lamps before disposing of the device. Please note that you are responsible for deleting all personal data on the device to be disposed of.

Delivery contents

1 x Metal fan
1 x User manual

Technical data

Rated voltage: 220 - 240 V\~, 50Hz

Rated power: 125 W

Protection class : I

Fan dimension: approx. 54 x 25 x 53 cm

Weight: approx. 4.6 kg

Product information according to (EU) No 206/2012

Description Symbol Value Unit
Maximum fan flow rate	F 106.16 m		3/min
Fan power input P 115.2 W
Service value S	v	0.92 (m)	3/min)/W
Standby power consumption	PSB	0	W
Fan sound power level	LWA	66.73	dB(A)
Maximum air velocity	c	3.46	m/s
Measurement standard for service value	EN 50564:2011EN 60704-1:2010+A11:2012EN 60704-2-7:1998EN 60879:2019
Contact details for obtaining more information	Imtron GmbHWankelstraße 5, 85046Ingolstadt, Germany

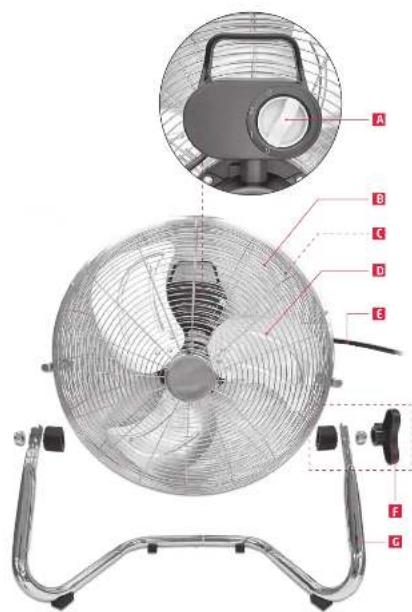

Controls and components

A Speed control
B Front guard
c Rear guard
D Fan blade
ε Supply cord
F Fixing knob
G Stand

Assembly

Follow the picture instructions in the given order.

Installation

Fig. 1 Place on a stable, level surface.

Fig. 2 Connect the power plug to a suitable electrical outlet

Caution

The product may never be operated without the stand or in a horizontal position.

Operation

Fig. 3 To switch on the fan, turn the speed control to 1-3. To switch off, turn to 0.

0 off

1 Low speed

2 Medium speed

3 High speed

Fig. 4 Adjust the desired angle.

Caution

The guard must be completely closed when operating the product. During operation, do not insert fingers or any other objects in the guard.

Cleaning and care

Caution

Before cleaning, always let the product come to a complete stop and disconnect it from the mains.

Fig. 5 Use a soft piece of cloth for cleaning. If the dirt or contamination proves hard to remove, use mild detergent.

Note:

• Do not use solvents or abrasives, metal utensils or hard brushes for cleaning.
• Do not immerse the fan in water or other liquid. Do not allow water to drip on or into the fan motor housing.

Store the product in a cool, dry and clean place, out of the reach of children and pets.
