USER MANUAL KHF 22322 Koenic
Video Scan Trace 1
ST. 1890
10^x - 10^y = 5
2.4010 min
2019.28.27 2019.30
图 1-24
KOENIC
Mini USB Hand Fan
KUH224215F
(1) 《董事会报告》全文
- 对股东大会的议案
网址: gobhuatstvoujing
2014年1月1日
电话：0516188888
四、备查文件
图1A.
图 1-59
图FStockPrice
图 1-6(4.5)（1×）
1.5 Gebu: 203604.28
[Unreadable]
图 1-2
[Unreadable]
图 6.10.2.2
| Tetra412-13 | — |
| Vagl16-17 | — |
| Lysin27-27 | — |
| Lysin28-30-31 | — |
| Vagl25-35-10 | — |
| Lysin42-41-16 | — |
| Lysin43-47-32 | — |
| Pala13-18 | — |
| Pala25-25-04 | — |
| Sorana63-70 | — |
| Tuber7-79 | — |
M_0H2222_22105_V01_H14_nB 15110222 23917A
Folded Size - At
Sicherheitshinweise
- This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been instructed concerning use of the product in a safe way and understand the hazards involved.
- Children shall not play with the product. - Cleaning and user maintenance shall not be carried out by children unless they are supervised.
- Warning! Keep the product dry.
- Warning! For the purposes of recharging the battery, only use the detachable sup KH6-050100EUL provided appliance.
Detachable adaptor
• The power supply unit shall not be used, if pins of the plug part are damaged.
Safety instructions
- Make sure the battery are correctly inserted. Observe the polarity (+) plus / (-) negative on the battery and the housing. Improperly inserted battery can lead to leakage or, in extreme cases, a fire or an explosion.
- DO NOT use non-rechargeable batteries. Non-rechargeable batteries must not be recharged.
- The connections must not be short-circuited.
- Remove the batteries from the product before disposal.
- If the batteries leak, remove them with a cloth and dispose of them accordingly. Prevent battery fluid from coming into contact with skin and eyes. If you do get battery fluid in your eyes, flush them thoroughly with lots of water and consult a physician immediately. If battery fluid comes into contact with your skin, wash the affected area with lots of water and soap.
English
Safety instructions
Battery
- Never expose rechargeable batteries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The rechargeable batteries could explode.
- Never short-circuit the contacts of the rechargeable battery. Be aware not to short-circuit by metal objects. Do not throw the rechargeable battery or the product into fire. There is a danger of fire an explosion!
- Never charge the rechargeable battery of the product unattended.
- Keep batteries out of reach of small children. If batteries have been swallowed, seek immediate medical attention.
Safety instructions
Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
- Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
- Never leave the product unsupervised while it is switched on.
- Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
- Do not under any circumstances attempt (e.g. product has been dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
- Use this product in dry indoor areas only and never outdoors.
- Never use, expose or put the product near to:
- direct sunlight and dust;
- fire (fireplace, grill, candles), water (water splashes, vases, bath tube) or heavy moisture.
- This product is not intended for commercial use. It is designed for household use only.
- Follow the instructions in the chapter Cleaning and care.
-
Do not leave the appliance unattended, if it is in use or the power plug is connected to an electrical outlet.
-
Do not remove the guard or insert any object during operation.
- Before cleaning, always let the product come to a complete stop and disconnect it from the mains.
- In order to avoid overheating, do not cover the product.
- Small children, children and older people should not be exposed to cold air currents for a long time.
- Important! Check to ensure that the product is in a serviceable condition before use. The product shall not be used if it shows any signs of damage or it's suspected to be defect.
English
Congratulations!
Thank you for your purchase of KOENIC product Please read this manual carefully and keep it for future reference.
Intended use
This product is only suitable for circulating air indoors and outdoors.
Any other use may result in damage to product or injuries. This product is not intended for commercial use. It is designed for household use only.
Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.
Before first time use
Remove the product and accessories carefully from the original packaging. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.
Note
- For first time use, charge the product for at least 4 hours. The general charging time is about 4 hours which also depends on the condition of the battery.
- When the battery is fully charged, the product can be used for 10 hours. The time may vary (depending on the battery condition).
Content
1 x Mini USB Hand Fan
1 x USB cord
1 x Charging adaptor
1 x User manual

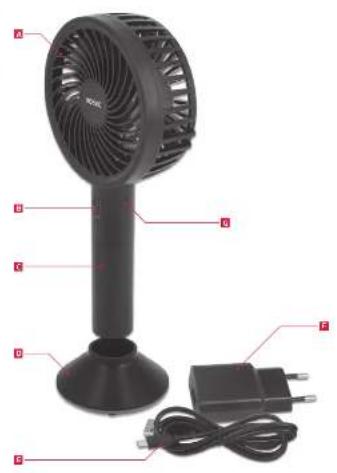

Controls and Components
A Protective cover
B On / off and fan level switch with operation LED
C Handle with battery compartment
DStand
€ USB charging cable
F Charging adaptor
G Charging socket
Charging battery
Warning
Do not turn on and / or use the product while it is connected to a powerbank.

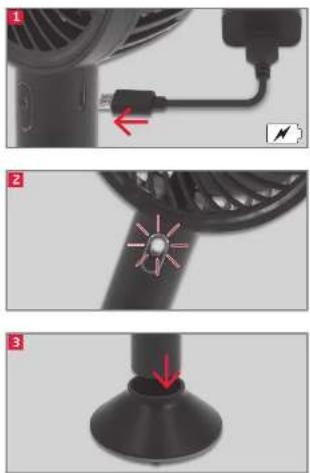

Fig. 1 Connect one end of the USB cable to the supplied adaptor and the other end to the USB charging socket on the fan. During charging the indicator LED is red and turns green when the battery is fully charged. Charge the battery for at least 4 hours before first use.
Note! Low battery warning:
There is no warning for low battery status. When the battery is empty the fan switches off automatically or cannot be switched on again respectively.
Operation
Fig. 2 Switch on and off, fan speed
- Press the on / off and fan level switch to turn on the fan. The operation LED lights up white.
• Repeatedly press the on / off and fan speed switch to select the desired fan speed (low, medium, high). - Press the on / off and fan level switch again and, if necessary, several times to switch off the fan. The operating LED turns off.
English
You can also use the fan with the supplied stand. Place the handle in the base.
Change/remove the rechargeable battery
Note:
The delivered re-chargeable battery can be replaced when it reaches its end of useful life. Replace the re-chargeable battery only with the same type as mentioned in Technical data.
Fig. 4 Unscrew the safety screw and open the battery compartment cover. Take out the exhausted battery.
Cleaning and care
Warning
When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
- Clean the outside of the product with a slightly damp cloth and dry well.
- Keep the product in a dry, cool location which is protected against moisture and direct sunlight. Keep this product out of the reach of children.
Technical Data
Battery operated : 3.7 V Rated input voltage/current : 5 V , 1.0 A Re-chargeable battery : Li-Ion, 3.7 V 2200 mA Protection class : III
Adaptor
Manufacturer : Ningbo KAM HOI Electronic Appliance Co., Ltd.
Imported by : Imtron GmbH
Media-Saturn-Straße 1,85053 Ingolstadt, Germany.
Commercial registration number : HRB 4580
Model : KH6-050100EUL
Input voltage : 100 - 240 V\~
Input AC frequency : 50/60 Hz
Output voltage : 5.0 V
Output current : 1.0 A
Output power : 5.0 W
Average active efficiency : 74.6 %
Efficiency at low load (10 %) : --
No-load power consumption : 0.06 W
Protection class : II
Troubleshooting
If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution, please contact your sales agent.
| Problem | Possible causes | Solution |
| Product does not work | Interrupted power supplyBatteries empty | Check the power supplyRe-charge batteries |
| LED indicator does not light on during charging batteries | No power supplyCharging cord is not connected to product | Check the power supplyCheck the charging cord connection |
