Sicherheitshinweise

• This product is not intended for commercial use.
• Children of less than 3 years should be kept away unless continuously supervised.
- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- Caution! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the product.

- Cleaning and user maintenance shall not be carried out by children unless they are supervised.

Safety instructions

• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
• Caution! In order to prevent hazards from unintentional resetting of the protective temperature limiter, this product must not be powered by an external switching device such as a timer, or connected to a circuit which is regularly switched on and off by a device.
  • In order to avoid overheating, do not cover the product.
• The heater must not be located immediately below a socket outlet.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Warning! This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
• Caution! There is danger of explosion from improper replacement of the batteries. Replace batteries only with the same or equivalent type of batteries.

English

Safety instructions

• Always exchange the entire set of batteries.
- Make sure the batteries are correctly inserted. Observe the polarity (+) plus / (-) negative on the battery and the housing. Improperly inserted batteries can lead to leakage or, in extreme cases, a fire or an explosion.
- Remove used batteries. Remove the batteries if you know that the product will not be used for a longer period of time. Otherwise, the batteries could leak and cause damage.
• Non-rechargeable batteries must not be recharged.
- The connections must not be short-circuited.
- Remove the batteries from the product before disposal.
- Never expose batteries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The batteries could explode.
- Warning: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.
- Do not use this heater if is has been dropped.
- Do not use if there are visible signs of damage to the heater.
- Use this heater on a horizontal and stable surface.
- Follow the instructions in the chapter Cleaning and care.

Safety instructions

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
• Never leave the product unsupervised while it is switched on.
• Do not place any objects on top of the product.
• Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt to repair the product yourself (e.g. damaged power cord, product has been dropped, etc.). For servicing and repairs, please consult an authorised service agent.
• The mains voltage must match the information on the rating label of the product.
• Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.

- Unplug the product ...

• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and

• before cleaning the product.

• Use this product in dry indoor areas only and never outdoors.

• This product is not intended for commercial use. It is designed for household use only.
• Do not allow the product to operate unsupervised.
• Make sure that the motor unit and supply cord do not become wet.
• Use accessories supplied with the device or recommended by the manufacturer only!
• This product is suitable only for private use.
  • Always switch the product off before disconnecting it from mains supply.
• Let the product cool down sufficiently before storing.
• Do not cover the product while in use. Fire hazard!
• Keep batteries out of reach of small children. If batteries have been swallowed, seek immediate medical attention.

WARNING

KEEP OUT OF REACH OF CHILDREN

Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.

English

Safety instructions

• If the batteries leak, remove them with a cloth and dispose of them accordingly. Prevent battery fluid from coming into contact with skin and eyes. If you do get battery fluid in your eyes, flush them thoroughly with lots of water and consult a physician immediately. If battery fluid comes into contact with your skin, wash the affected area with lots of water and soap.
• Warning! Do not ingest the battery, Chemical Burn Hazard.
• This product (remote control) contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
• Remove used batteries from the device immediately and dispose of them properly and in accordance with legal regulations.
• Do not heat batteries. Do not weld or solder directly to batteries. Do not disassemble batteries. Do not deform batteries.
• A lithium battery with a damaged case should not come into contact with water.
• Do not encapsulate and / or modify batteries.

- Important! Check to ensure that the product is in a serviceable condition before use. The product shall not be used if it shows any signs of damage or it's suspected to be defect.

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The product is intended for providing room heating and ventilation only. Using it for anything else can damage the device or cause injury.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Note

When the product is used for the first time or after a long period of rest it may emit an odor for a short time. This is normal and will disappear shortly.

Content

1 x Fan heater

1 x Remote control

1 x User manual

1 x Warranty card

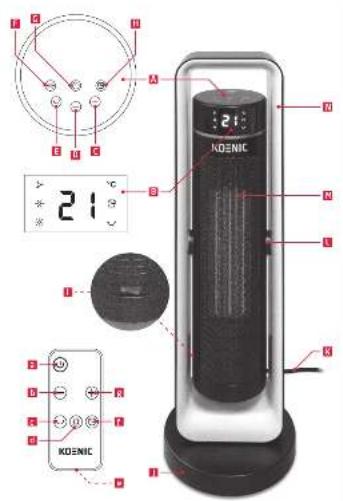

Controls and components

A Control panel

B Display with indicator symbols

c Button +

D Button -

E Oscillation button

F Heating mode button

G On / standby button

H Timer button

Mains switch

J Base

K Power cord with plug

L Tilting joint

M Air inlet grille

N Stand with handle

Remote control

a On / standby button

b Button -

c Oscillation button

d Heating mode button

e Battery compartment with lid

f Timer button

g Button +

English

Placing the product

Warning!

• Never locate the appliance directly below a or near a socket outlet.
• Do not use the product in rooms smaller than 4 ~m^2 .
• Ensure that there is a clearance of at least 1 m in front of and behind the product.
• Never cover the air inlet or air outlet grilles - Danger of overheating!

Changing Battery

One battery is already inserted. Remove the battery protection before the first time use.

Fig. 1 Open the battery compartment. Insert 1 x battery of type CR2025 observing the + and - polarities as indicated on the battery and inside the battery compartment.
Fig. 2 Place the product on a stable and even surface.
Fig. 3 Plug the power plug into an easily accessible power outlet.

Operation

Fig. 4 Press the on / standby button to switch the device on and off. When switching it off, from level 1 or 2 heating mode, the fan continues to run for 30 seconds.

Heating

Functions

With the heating mode button ⚙️ you can select between the types of functions:

: Fan function only

: Heating level 1

: Heating level 2

5 Set the desired function by pressing the heating mode button

Note

The heating power is:

• 1500 W for function
• 2200 W for function

Temperature control knob

6 By pressing the ☑ button you can set the desired room temperature from 10 to 35°C in 1°C steps. The set temperature flashes 4 times and then the display switches to room temperature display.

Oscillation function

Fig. 7 To turn the oscillation function on and off, press the oscillation button ⚙ When the oscillation function is activated, the device swivels by approx. 40°. The activated oscillation function is shown in the display by the symbol ⚙

Fan (without heating)

Press the heating mode button repeatedly until the heating symbols - button off and only the fan symbol is shown in the display. The appliance is now operating in fan mode and the heating function is turned off.

Fig. 8 For timer operation, press the timer button. Press the timer button repeatedly to set the time in 1 hour steps from 1 to 12 hours after which the heater should turn off. The preset time flashes 4 times and then the display switches to room temperature display. The activated timer is indicated by the symbol ⓄTo deactivate the timer, set its time to 00 hours.

Fig. 9 You can tilt the radiator up and down by 30°.

Overheat protection

If the product overheats, the product switches off automatically. In this case, disconnect the product from the power supply and let it cool down completely

Overturning safety switch off

If the product tips over during operation, it will be automatically switched off by the safety switch. When the heater is placed upright again the product switches to standby mode.

Cleaning and care

Warning

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

• Never immerse any electrical parts of the product in water or in other liquids during cleaning. Never place it under running water.

• Warning! Unplug the product and let it cool down completely before cleaning. Never immerse electrical parts of the product in water during cleaning or operation. Carefully remove dust from the protective guards with a vacuum cleaner.

• Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly.
  • Make sure that no water enters the product interior (for example, through the switches).
• Keep the product in a dry, cool location which is protected against moisture and direct sunlight. Keep this product out of the reach of children.

English

Troubleshooting

If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution, please contact your sales agent.

Problem Possible causes Solution
Product does not work • Interrupted power supply • Check the power supply
Product does not heat • Heating function is not set• Temperature set to minimum		• Check the function setting• Check the temperature setting and increase if necessary

Technical data

Rated Voltage : 220 - 240 V\~, 50 Hz

Rated input power : 2200 W

Protection class : II

Information requirements for electric local space heaters according to commission regulation (EU) 2015/1188

Model identifier(s) KFH 22222
Item Symbol Value	Unit Item	Unit
Heat output Type of heat input, for electric				storagelocal space heaters only (select one)
Nominal heat output	P_nom	2.2 kW		manual heat charge control, with integrated thermostat	no
Minimum heat output (indicative)	P_min	1.5 kW		manual heat charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output P	maxc	2.2 kW		electronic heat charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption fan assisted				heat output no
At nominal heat output	eI_max	0,000 kW		Type of heat output/room temperature control (select one)
At minimum heat output	eI_min	0,000 kW		single stage heat output and no room temperature control	no
In standby mode	eI_SB	0,000 kW		two or more manual stages, no room temperature control	no
Remark:For electric local space heaters, the measured seasonal space heating energy efficiency ns cannot be worse than the declared value at the nominal heat output of the unit.The seasonal space heating energy efficiency of all local space heaters except commercial local space heaters, ns (%): 36				with mechanic thermostat room temperature control	no
				with electronic room temperature control	yes
				electronic room temperature control plus day timer	no
				electronic room temperature control plus week timer	no
				Other control options (multiple selections possible)
				room temperature control, with presence detection om temperature control, with presence detection	no
				room temperature control, with open window detection	no
				with distance control option no
				with adaptive start control no
				with working time limitation yes
				with black bulb sensor no
Contact details	Imtron GmbHWankelstraße 5, 85046 Ingolstadt, Germany.
