Brand	HOTPOINT
Model	HNB 9.6 LMI X/HA
Product type	Kitchen hood
Dimensions (W x D x H)	89.9 x 50 x (61-82) cm
Connection diameter	150 mm
Total power	176 W
Lighting	LED, 2 x 3 W
Voltage	230 V
Number of speeds	3 speeds + booster (4 total)
Timer	Yes, delayed shut-off in 5-minute steps
Filter saturation indicator	Yes (grease and charcoal filters)
Installation type	External extraction or recirculation (optional kit)
Grease filter	Metal, dishwasher safe
Charcoal filter	Non-washable, replace every 20 months
Minimum distance (gas)	65 cm
Minimum distance (electric)	55 cm
Automatic shut-off	Yes (via timer)
Filter counter reset	Press T4 for 3 seconds
Bulb replacement	By technical support service

Frequently Asked Questions - HNB 9.6 LMI X/HA HOTPOINT

How to clean the grease filter?

Remove the grease filter by pulling the spring handle. Wash it at least once a month with a non-aggressive detergent, by hand or in the dishwasher at low temperature and on a short cycle. Possible discoloration does not affect performance.

When to replace the charcoal filter?

The charcoal filter gradually becomes saturated. It must be replaced at most every 20 months, or more often depending on usage. This filter cannot be washed or regenerated.

How to set the timer?

Press the T5 button. Each press delays the automatic shut-off by 5 minutes. The countdown is displayed on the screen (on models with display). The timer works only in manual speeds.

What to do if the hood does not turn on?

Check that there is no power outage, that a speed has been selected, and that the circuit breaker has not tripped. If the problem persists, unplug the appliance for 5 seconds and plug it back in.

What distance should be maintained between the hood and the cooktop?

The minimum distance is 65 cm for a gas cooktop and 55 cm for an electric cooktop. Also refer to your cooktop's manual.

How to switch the hood to recirculation mode?

You need to install the accessory kit intended for this purpose (charcoal filter and deflector). Then set the hood to recirculation mode by pressing T5 for 6 seconds (appliance off) and selecting the T3 icon.

How to reset the filter saturation indicator?

With the hood on, press the T4 button for 3 seconds. The indicator flashes three times. If both filters are saturated, repeat the operation: the first reset clears the grease filter, the second the charcoal filter.

What to do in case of abnormal noise?

Check that the exhaust duct is not blocked or too small in diameter. Make sure the filters are clean and the installation is correct. If the noise persists, contact the support service.

How to replace the LED bulb?

The LED bulbs are integrated. For replacement, call an authorized technical support service. Do not attempt to replace them yourself.

How to configure the evacuation type?

With the appliance off, press T5 (or T4 depending on model) for 6 seconds. The T2 icon flashes for external extraction, T3 for recirculation. Press the same button cyclically to change, then confirm with T1.

USER MANUAL HNB 9.6 LMI X/HA HOTPOINT

Operating Instructions

COOKER HOOD

Contents

Operating Instructions,1

Warnings, 10

Assistance,28

Installation,35

TBOX controls,36

Maintenance and care,37

Troubleshooting,38

PT

Portuguese

Troubleshooting and repair methods,66

UA

In Ukrainian

Keep this manual for reference. If you sell, transfer or move the unit to another location, make sure to keep the manual with the product.

Read the instructions carefully - they contain important installation, user and safety information. Do not tamper with the electrical or mechanical equipment of the product or its exhaust ducts.

General safety information

• The distance between the cookware support surface on top of the cooking appliance and the lowest part of the cooker hood must be at least:

65 cm if the hood is installed over a gas cooktop; 55 cm if the hood is installed over an electric cooktop.

If the installation instruction manual for the gas cooking appliance specifies a greater distance, this measurement should be taken into account.

• The cooker hood comes with anchor plugs which are suitable for use with most walls/ceilings. However, you must contact a qualified technician to check the suitability of the materials in relation to the type of wall/ceiling, which must be strong enough to support the weight of the unit.
• Caution! Do not hook the unit up to its electrical power supply until the installation has been completed.
• Before cleaning or servicing the unit, disconnect it from the mains by pulling the power plug or disconnecting the main circuit breaker.
• Always wear work gloves when installing and servicing the unit.
• It is not intended for use by children or persons with sensory or mental disability and lack of experience or familiarity, except under the supervision or instruction of a person responsible for their safety.
• Make sure children do not play with the unit.
• Never operate the unit without its grease filter installed!
• NEVER use the hood as a support, unless expressly instructed to do so.
• The room must be adequately ventilated if the hood is used at the same time with other equipment burning gas or other fuels.
• Extracted air must not be conveyed into a duct used for exhausting combustion fumes from gas or other fuel-fired equipment.
• Observe all regulations in relation to air extraction.
• NEVER cook food with an open flame under the hood; open flames will damage the filters and may cause fires. Never do this.
• Always supervise frying to make sure the heated oil does not catch fire.
• Strictly observe all local regulations in relation to the technical and safety measures to be employed in fumes extraction.
• Clean the product frequently, inside and out (AT LEAST ONCE A MONTH, and in observance of the maintenance instruction given in this manual).
• Failure to observe the hood cleaning and filter cleaning/replacement instructions can result in fires.
• Never use the hood without its bulbs properly installed - electrocution hazard.
• The manufacturer is not liable for any inconvenience, damage or fire caused by the unit as a result of failure to observe the instructions given in this manual.
• Caution! The unit's accessible parts can get very hot when used with cooking equipment.

Warnings

Do not allow children to play with the device.

Never use the device without the correctly installed filter.

Never use the device without the filter, except for the accessories when explicitly indicated.

The device must be used only with the hood operating together with other appliances on gas or other fuel.

• The exhaust air must not be discharged into a flue used for exhausting fumes from appliances burning gas or other fuel.
• Follow all regulations regarding the discharge of fumes.

It is strictly forbidden to cook food on an open flame with the hood; open flames damage the filters and may cause a fire. Therefore, it must be avoided in any case. - It is recommended to keep the cooking process under constant control with short frying, to prevent overheated oil from catching fire. - Strictly follow the technical and safety dimensions that must be applied for the discharge of fumes, as well as the regulations of local competent authorities. The hood must be cleaned both internally and externally (at least once a month, following the instructions in the maintenance manual, or as directed by the manufacturer). Failure to follow the rules for cleaning the hood and for replacing and cleaning the filters may lead to a fire. Do not use the hood without securely installed lamps, as this is unsafe due to the risk of electric shock. The manufacturer declines any responsibility in connection with possible malfunctions of the device, damages, or fires caused by failure to follow the instructions given in this manual. - Attention! Parts with open access may heat up to high temperatures if they are used together with kitchen stoves.

CZ

Warning

ASSISTANCE - SPARE PARTS, ACCESSORIES

199.199.199

UNIQUE NUMBER

! Never use the services of an unauthorised technician.

Please have the following information to hand:

The type of problem encountered. The appliance model (Mod.). The serial number (S/N).

The latter two pieces of information can be found on the data plate located on the appliance.

Assistance

Do not contact unauthorized technicians.

When contacting the Technical Service Centre, please provide:

This data can be found on the rating plate located on the appliance.

Assistance

! Contact only authorised technicians.

Please provide the following information:

Reliability; - Device model (Mod.) Serial number (S/N)

HNB 9.6 LMI X/HA - HNB 9.5S AM X/HA

HNB 6.5S AM X/HA

T1

T2

T3

T4

T5

T1 Reset motor

HNB 6.5S CB X/HA - HNB 9.5S CB X/HA

T1

T2

T3

T4

T5

T6

T1 Motor reset

HNB 6.7 AD X/HA - HNB 9.8 ADI X /HA

T1

T2

T3

T4

T5

T6

T1 Motor ON/OFF

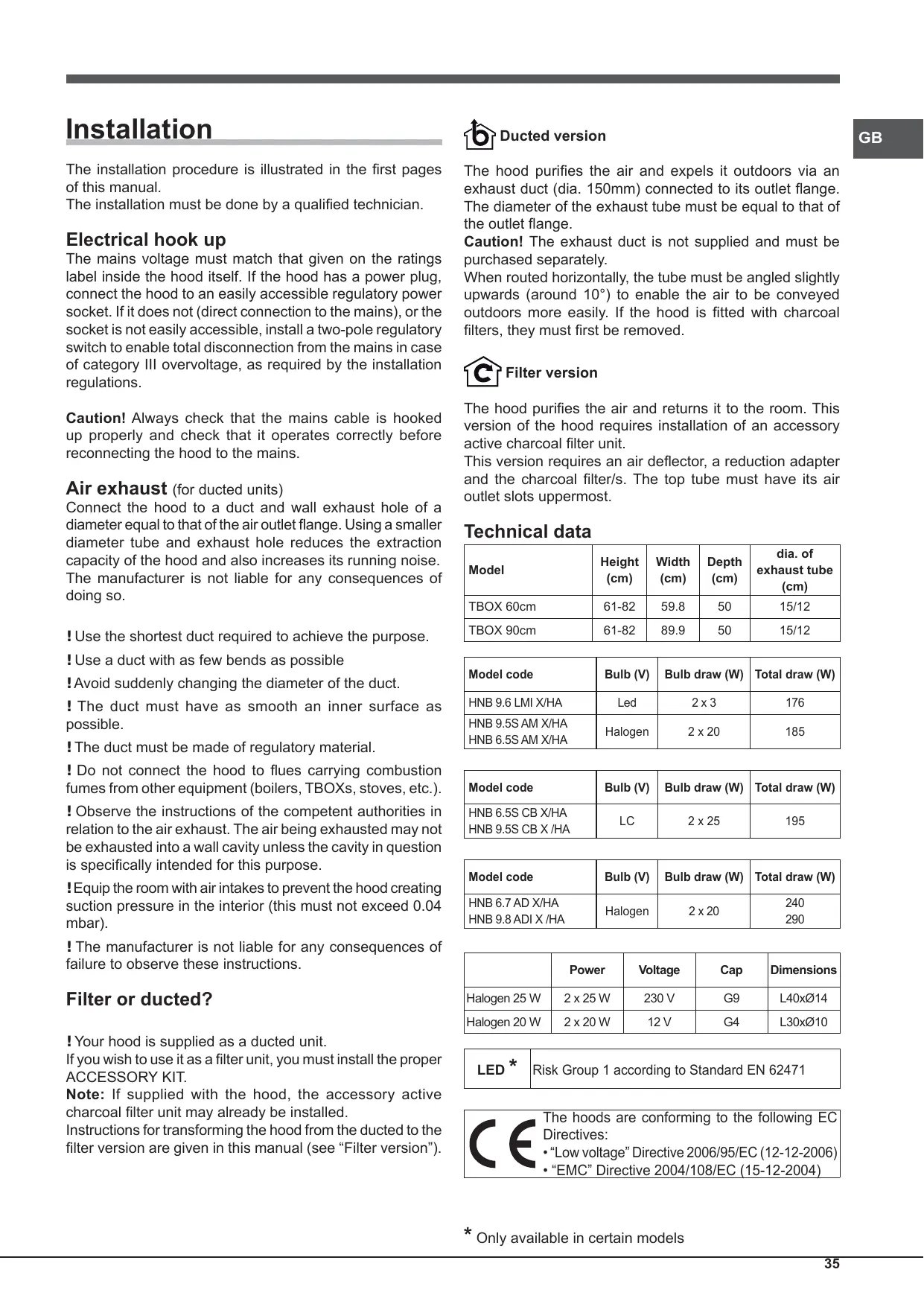

The installation procedure is illustrated in the first pages of this manual.

The installation must be done by a qualified technician.

Electrical hook up

The mains voltage must match that given on the ratings label inside the hood itself. If the hood has a power plug, connect the hood to an easily accessible regulatory power socket. If it does not (direct connection to the mains), or the socket is not easily accessible, install a two-pole regulatory switch to enable total disconnection from the mains in case of category III overvoltage, as required by the installation regulations.

Caution! Always check that the mains cable is hooked up properly and check that it operates correctly before reconnecting the hood to the mains.

Air exhaust (for ducted units)

Connect the hood to a duct and wall exhaust hole of a diameter equal to that of the air outlet flange. Using a smaller diameter tube and exhaust hole reduces the extraction capacity of the hood and also increases its running noise. The manufacturer is not liable for any consequences of doing so.

! Use the shortest duct required to achieve the purpose.

! Use a duct with as few bends as possible

! Avoid suddenly changing the diameter of the duct.

! The duct must have as smooth an inner surface as possible.

! The duct must be made of regulatory material.

! Do not connect the hood to flues carrying combustion fumes from other equipment (boilers, TBOXs, stoves, etc.).

! Observe the instructions of the competent authorities in relation to the air exhaust. The air being exhausted may not be exhausted into a wall cavity unless the cavity in question is specifically intended for this purpose.

! Equip the room with air intakes to prevent the hood creating suction pressure in the interior (this must not exceed 0.04 mbar).

! The manufacturer is not liable for any consequences of failure to observe these instructions.

Filter or ducted?

! Your hood is supplied as a ducted unit.

If you wish to use it as a filter unit, you must install the proper ACCESSORY KIT.

Note: If supplied with the hood, the accessory active charcoal filter unit may already be installed.

Instructions for transforming the hood from the ducted to the filter version are given in this manual (see "Filter version").

Ducted version

GB

The hood purifies the air and expels it outdoors via an exhaust duct (dia. 150 mm) connected to its outlet flange. The diameter of the exhaust tube must be equal to that of the outlet flange.

Caution! The exhaust duct is not supplied and must be purchased separately.

When routed horizontally, the tube must be angled slightly upwards (around 10°) to enable the air to be conveyed outdoors more easily. If the hood is fitted with charcoal filters, they must first be removed.

Filter version

The hood purifies the air and returns it to the room. This version of the hood requires installation of an accessory active charcoal filter unit.

This version requires an air deflector, a reduction adapter and the charcoal filter/s. The top tube must have its air outlet slots uppermost.

Technical data

Model	Height (cm)	Width (cm)	Depth (cm)	dia. of exhaust tube (cm)
TBOX 60cm	61-82	59.8	50	15/12
TBOX 90cm	61-82	89.9	50	15/12

Model code	Bulb (V)	Bulb draw (W)	Total draw (W)
HNB 9.6 LMI X/HA	Led	2 x 3	176
HNB 9.5S AM X/HA	Halogen	2 x 20	185
HNB 6.5S AM X/HA

Model code	Bulb (V)	Bulb draw (W)	Total draw (W)
HNB 6.5S CB X/HA	LC	2 x 25	195
HNB 9.5S CB X /HA

Model code	Bulb (V)	Bulb draw (W)	Total draw (W)
HNB 6.7 AD X/HA	Halogen	2 x 20	240
HNB 9.8 ADI X /HA			290

	Power	Voltage	Cap	Dimensions
Halogen 25 W	2 x 25 W	230 V	G9	L40xØ14
Halogen 20 W	2 x 20 W	12 V	G4	L30xØ10

LED*

Risk Group 1 according to Standard EN 62471

The hoods are conforming to the following EC Directives:

"Low voltage" Directive 2006/95/EC (12-12-2006) - "EMC" Directive 2004/108/EC (15-12-2004)

• Only available in certain models

TBOX controls

Models with mechanical keypad

HNB 9.6 LMI X/HA - HNB 9.5S AM X/HA

HNB 6.5S AM X/HA

T1

T2

T3

T4

T5

T1 Motor reset

Pressing the button while the hood is in operation turns it OFF.

T2 Speed 1

Pressing the button sets the hood to speed 1.

T3 Speed 2

Pressing the button sets the hood to speed 2.

T4 Speed 3

Pressing the button sets the hood to speed 3.

T5 Lights ON/OFF

Models with soft button keypad

HNB 6.5S CB X/HA - HNB 9.5S CB X /HA

T1

T2

T3

T4

T5

T6

T1 Motor reset

Pressing the button while the hood is in operation turns it OFF.

T2 Speed 1

Pressing the button sets the hood to speed 1.

T3 Speed 2

Pressing the button sets the hood to speed 2.

T4 Speed 3

Pressing the button sets the hood to speed 3.

T5 Booster

Pressing the button sets the hood to high speed. After 5 minutes, the hood returns to the previous speed; pressing a speed button (T2, T3 or T4) quits booster mode and sets the selected speed.

T6 Lights ON/OFF

Grease/odour filter warnings

The T2 icon flashes to indicate that the grease filter is saturated, while T3 flashes to indicate that the odour filter is saturated, and if both are flashing then both filters are saturated. You must then clean/replace the grease filter (A) or odour filter (B) or both, accordingly (see "Maintenance and care").

To reset the filter counter:

Hold down T4 for three seconds while the hood is on.

The warning led flashes three times, then returns to its normal mode. If both filter warnings are active at the same time, you must reset each separately.

The first sequence resets the grease filter, while the second sequence resets the odour filter.

Hood configuration:

To set the operating mode of the hood, hold down T5 for 6 seconds while the product is off. Icons T2 or T3 will light up to show the type of installation: T2 ventilation, T3 filtering. You can change the type of installation by pressing T4 cyclically.

To save the new configuration, press T1 individually.

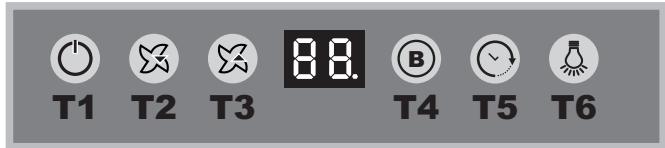

Models with soft button keypad and display

HNB 6.7 AD X/HA - HNB 9.8 ADI X /HA

T1

T2

T3

T3

T4

T5

T6

1 Motor ON/OFF

Press the button with the hood off to set speed 1. Pressing the button while the hood is in operation turns it OFF.

T2 Speed -

Pressing the button returns the hood to the previous speed.

T3 Speed +

Pressing the button returns the hood to the next speed. If the hood is off, pressing these buttons sets speed 1.

T4 Booster

Pressing this button sets the hood to high speed; the letter "b" flashes slowly on the display. After 5 minutes, the hood returns to its previous speed; this can also be done while booster mode is on by pressing either speed button (T2 or T3).

T5 Timer

Pressing this button delays the hood turning off automatically by 5 minutes. The timer counts down on the display in minutes. The timer can only be set for manual speeds, not for booster mode.

T6 Lights ON/OFF

Grease/odour filter warnings

The bar at the top left flashes to indicate that the grease filter is saturated.

The bar at the top right flashes to indicate that the odour filter is saturated.

If both bars are flashing, then both filters are saturated.

You must then clean/replace the grease filter (A) or odour filter (B) or both, accordingly (see "Maintenance and care"). The latter only applies to the filter version.

To reset the filter counter:

Hold down T4 for three seconds while the hood is on. If both filter warnings are active at the same time, you must reset each separately. The first sequence resets the grease filter, while the second sequence resets the odour filter.

Configuring the hood

To set the operating mode of the hood, hold down T4 for 6 seconds while the product is off. After a long beep, the type of installation displays:

Ducted

(square at bottom left flashing).

Filter

(square at bottom right flashing).

You can change the type of installation by pressing T4. To quit configuration mode, press T1 once; this switches the unit off and saves the last displayed setting.

Maintenance and care

Caution! Before cleaning or servicing the unit, disconnect it from the mains by pulling the power plug or disconnecting the main circuit breaker.

First cleaning

• Remove the protective film
• Clean with a damp sponge and a little neutral soap
• Rinse off with a damp cloth
• Dry with a soft cloth; if the hood is stainless steel, dry along the metal's grain

Periodic cleaning

The hood must be cleaned frequently (at least as often as you service the grease filter), inside and out. Use a damp cloth and a neutral liquid detergent with lukewarm water. Do not use abrasive or corrosive products.

Warning: Failure to observe the hood cleaning and filter cleaning/replacement instructions can result in fires. Follow the instructions carefully. The manufacturer is not liable for any damage to the motor or fires caused by incorrect care or failure to follow the above instructions.

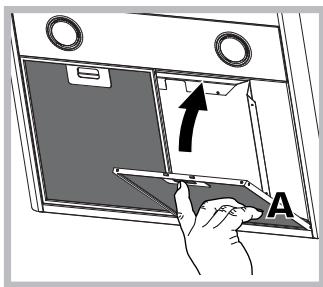

Servicing the grease filter (A)

The grease filter retains the particles of grease produced during cooking; it must be cleaned at least once a month with a non-aggressive detergent, either by hand or with a low temperature, short dishwasher cycle.

To extract the grease filter, pull the spring loaded handle.

If washed in a dishwasher, the metal filter may change colour, but this does not affect its performance.

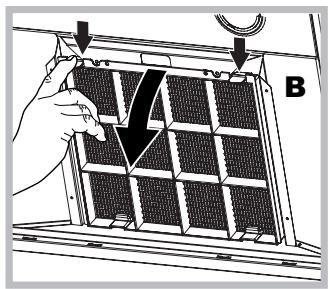

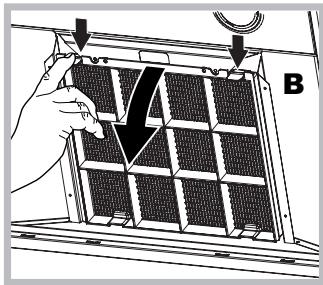

Servicing the charcoal filter (B)

The charcoal filter retains unpleasant cooking odours. The filter saturates after a variable time, depending on the type of cooking and how often the grease filter is cleaned. The cartridge must be replaced at least once every twenty months.

This filter can NOT be washed or regenerated

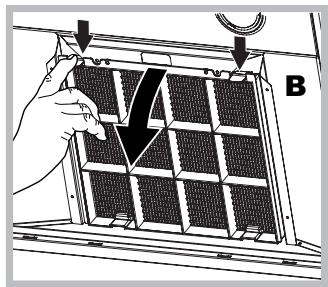

Disassembly: Remove the activated-carbon filter by pressing the two front levers which secure it to the hood.

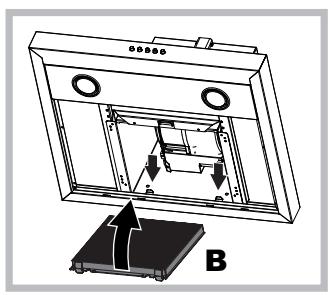

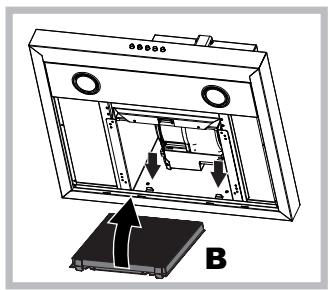

Assembly: Secure the activated-carbon filter first in the back using the hood's metal tabs and then in the front by pressing the two levers.

Replacing the bulbs

Disconnect the unit from the mains and remove the grease filter.

Caution! Make sure the bulbs are cool before touching them.

1. Extract the guard by prising it out with a small flat head screwdriver or something similar.
2. Replace the faulty bulb. Use only bulbs of the same type (for details, see the technical data in the following manual).
3. Refit the guard (push it in).

Replacing the LED lights *

The hood is fitted with a lighting system based on LED technology. The LEDs ensure optimal lighting, longer life and lower consumption compared with traditional lights. To replace them please contact the assistance service.

Electrical cable

If the power cable is damaged, it can be replaced by the manufacturer or his technical service, to prevent any attendant risks.

SCRAPPING

The unit is marked for conformity with European Directive 2012/19/EC, Waste Electrical and Electronic Equipment (WEEE). By ensuring that the unit is scrapped properly, the user contributes to safeguarding the environment and public health.

The symbol on the product or on its accompanying documents indicates that the product may not be treated as domestic waste but must be handed over to a sorting centre for electrical and electronic waste. Dispose of it in accordance with local waste disposal regulations. For further information on the handling, recovery and recycling of this product, contact the local authority, domestic waste disposal service or the reseller from whom you purchased it.

Troubleshooting

If something does not work, make the following simple checks before contacting Technical Service:

If the hood does not operate:

Check that:

the unit is powered up. - a speed has been set.

If the hood is not working effectively:

Check that:

• the selected motor speed is sufficient to handle the amount of smoke and steam being produced.
• the kitchen is adequately ventilated for the unit to take air in.
• the charcoal filter is not exhausted (filter version).

If the hood turns off during normal operation:

Check that:

the unit is powered up. - the circuit breaker has not tripped.

In case of faulty operation, before contacting Technical service, first disconnect the machine from the mains for at least 5 seconds by pulling its plug, then reconnect it. If the fault persists, contact Technical Service.

Installation

HNB 9.6 LMI X/HA - HNB 9.5S AM X/HA

HNB 6.5S AM X/HA

T1

T2

T3

T4

T5

HNB 6.5S CB X/HA - HNB 9.5S CB X/HA

T1

T2

T3

T4

T5

T6

HNB 6.7 AD X/HA - HNB 9.8 ADI X /HA

T1

T2

T3

T4

T5

T6

"Low voltage" Directive 2006/95/EC (12-12-2006) EMC "Directive 2004/108/EC (15-12-2004)

HNB 9.6 LMI X/HA - HNB 9.5S AM X/HA

HNB 6.5S AM X/HA

T1

T2

T3

T4

T5

T1 Reset motor

HNB 6.5S CB X/HA - HNB 9.5S CB X/HA

T1

T2

T3

T4

T5

T6

T1 Reset motor

HNB 6.7 AD X/HA - HNB 9.8 ADI X /HA

T1

T2

T3

T4

T5

T6

T1 ON/OFF motor

HNB 9.6 LMI X/HA - HNB 9.5S AM X/HA

HNB 6.5S AM X/HA

T1

T2

T3

T4

T5

T1 Reset motor

HNB 6.5S CB X/HA - HNB 9.5S CB X /HA

T1

T2

T3

T4

T5

T6

T1 Reset motor

HNB 6.7 AD X/HA - HNB 9.8 ADI X /HA

T1

T2

T3

T3

T4

T5

T6

1 ON/OFF motor

HNB 9.6 LMI X/HA - HNB 9.5S AM X/HA

HNB 6.5S AM X/HA

T1

T2

T3

T4

T5

T1 Reset motor

HNB 6.5S CB X/HA - HNB 9.5S CB X /HA

T1

T2

T3

T4

T5

T6

T1 Reset motor

HNB 6.7 AD X/HA - HNB 9.8 ADI X /HA

T1

T2

T3

T3

T4

T5

T6

T1 ON/OFF motor

HNB 9.6 LMI X/HA - HNB 9.5S AM X/HA

HNB 6.5S AM X/HA

T1

T2

T3

T4

T5

T1 Engine reset

HNB 6.5S CB X/HA - HNB 9.5S CB X /HA

T1

T2

T3

T4

T5

T6

T1 Engine reset

HNB 6.7 AD X/HA - HNB 9.8 ADI X /HA

T1

T2

T3

T4

T5

T6

T1 Motor on/off

HNB 9.6 LMI X/HA - HNB 9.5S AM X/HA

HNB 6.5S AM X/HA

T1 Motor reset

When the hood is running, pressing the button turns the unit off (OFF).

T2 Speed 1

HNB 6.5S CB X/HA - HNB 9.5S CB X/HA

T1 Motor reset

When the hood is running, pressing the button turns the unit off (OFF).

T2 Hiz 1

HNB 6.7 AD X/HA - HNB 9.8 ADI X/HA

1 Motor AÇI K/KAPALI

HNB 9.6 LMI X/HA - HNB 9.5S AM X/HA

HNB 6.5S AM X/HA

T1 OctaHobka DnIraTeJra

HNB 6.5S CB X/HA - HNB 9.5S CB X/HA

T1 OctahOBka DnIraTeJIa

HNB 6.7 AD X/HA - HNB 9.8 ADI X/HA

T1

T2

T3

T3

T4

T5

T6

T1 On/Off button

When pressing this button, the hood is turned on and the first speed is set. When pressing the button during operation, the hood switches to the off mode.

T2 Speed -

When pressing this button, the hood switches to the previous speed.

T3 Speed +

When pressing this button, the hood switches to the next speed. If the hood is off, pressing this button sets the 1st speed.

T4 Boost device

When pressing this button, the hood switches to the maximum speed; the letter "b" flashes on the display. After 5 minutes, the hood switches back to the previously set speed, which can also be done in boost mode by using the speed buttons (T2 or T3).

T5 Timer

When pressing this button, the automatic shutdown of the hood is delayed by 5 minutes. The remaining minutes of the timer are shown on the display. The timer can be programmed only for speeds set manually, not for boost mode.

T6 On/Off lighting

Signal for clogged grease filters and carbon filters

If the hood does not work:

* There is a fuse in some models

Check:

• Our electric fan
• was set and speed.

Fan efficiency check:

Check:

• That the set engine speed is sufficient for the required exhaust volume. - To ensure that the fan has sufficient capacity for air intake. Not for coal filters (filter version exhaust).

If the exhaust is switched off during operation:

Check:

• Our electric fan did not trip multiple times.

In case of possible malfunctions, before contacting service, disconnect the exhaust for about 5 sec. From the mains, pulling the power plug from the socket, then reconnect. If the malfunction is not resolved, contact service.

HNB 9.6 LMI X/HA - HNB 9.5S AM X/HA

HNB 6.5S AM X/HA

T1

T2

T3

T4

T5

T1 Press the button

Pressing the button during operation will lead to the consequences described.

T2 Speed 1

When the button is pressed, the device switches to the state previously set for speed 1.

T3 Speed 2

When the button is pressed, the device switches to the state previously set for speed 2.

T4 Speed 3

When the button is pressed, the device switches to the state previously set for speed 3.

T5 Switching on the light

Using the soft button panel

HNB 6.5S CB X/HA - HNB 9.5S CB X/HA

T1

T2

T3

T4

T5

T6

T1 Pre-set speed

Pressing the button during operation will lead to the activation of the function.

T2 Speed 1

When the button is pressed, the valve switches to the state, previously set as speed 1.

T3 Speed 2

When the button is pressed, the valve switches to the state, previously set as speed 2.

T4 Speed 3

When the button is pressed, the valve switches to the state, previously set as speed 3.

T5 Buzzer

Pressing this button switches from the previous state to intensive speed. After 5 minutes, the valve returns to the speed that was previously set; when pressing the speed button (T2, T3 or T4), the exit from the function is ensured with the set speed.

T6 Turn off the light

The blinking of the LEDs, from the first to the second speed T2, indicates contamination of the carbon filter. The blinking of the LEDs, corresponding to the third speed T3, indicates contamination of the coal filter. The blinking of both LEDs T2 and T3 indicates contamination of both filters. Therefore, it is necessary to replace the carbon filters "A" and/or the coal filters against unpleasant odors "B" (see "Operation and Maintenance").

To reset the filters:

Press and hold the T4 button for three seconds. The LED will blink three times, then return to the normal operation display. In case of simultaneous signaling of both filters, it is necessary to perform the reset. The first procedure is for the carbon filter, the second for the coal filter against unpleasant odors.

Configuration of the hood:

To set the hood to ducting mode, press and hold T5 for 6 seconds. While T2 or T3 are blinking, it indicates the configuration: T2 for recirculation, T3 for ducting. You can change the configuration by pressing the T5 button sequentially.

To save the new configuration, press the T1 button.

HNB 6.7 AD X/HA - HNB 9.8 ADI X /HA

T1

T2

T3

T3

T4

T5

T6

T1 Exhaust/Retract

Pressing the button after retraction will cause the first speed to be set. Pressing the button during operation will cause the retraction of the exhaust.

T2 Speed

When pressing the button, the exhaust switches to the previous speed.

T3 Speed+

When pressing the button, the exhaust switches to the next speed. If the exhaust is retracted, pressing the button will set speed 1.

T4 Booster

Pressing the booster button switches to the previous stage at the current speed; the display shows the letter "b". After 5 seconds, the booster switches back to the speed that was previously set. The result can be obtained during booster operation by pressing the speed button (T2 or T3).

T5 Timer

Each time this button is pressed, the automatic exhaust retraction is delayed by 5 minutes. The remaining minutes are shown on the display. The timer is for one-time use and is not available for the booster.

T6 Exhaust/Retract Lighting

The filter is activated by the rotary knob and the charcoal filter for unpleasant odors.

This filter does not require washing or replacement.

Removal: Remove the activated charcoal filter by pressing the two clips that secure it to the exhaust.

Installation: Place the activated charcoal filter first behind the metal clips of the exhaust, then in front, pressing on the two clips.

Replacing the lamp

Before replacing the lamp, disconnect the power supply and let the lamp cool down.

Remove the lamp cover by turning it counterclockwise.

1. Remove the lamp after it has cooled down. Use a dry cloth or a similar tool to grip it. 2. Replace the lamp. Use only lamps with the same characteristics as the original (for detailed technical data, see
2. Close the lamp cover (secure it with the locking screw).

Replacing LED lamps*

The device is equipped with an LED lighting system. LEDs provide optimal lighting, a long service life, and energy savings compared to traditional lamps. For replacement, contact the service department.

Electrical switch

In case of a faulty switch, it can be replaced by contacting the manufacturer or its service department. This will prevent any danger.

DISPOSAL

This device is marked with the WEEE symbol in accordance with European Directive 2012/19/EC: Waste Electrical and Electronic Equipment (WEEE). Please dispose of this product properly, using the collection systems available, to prevent potential negative effects on the environment and human health that could result from improper disposal.

The symbol on the product or in the accompanying documentation indicates that this device must not be treated as household waste. It should be handed over to a designated collection point for the recycling of electrical and electronic equipment. Dispose of the device in accordance with local regulations regarding waste recycling and disposal. For more information on recycling, reuse, and recycling of this product, contact your local municipal waste disposal service or the store where you purchased the device.

Malfunctions and remedies

Maintenance

If any problems occur during the operation of the device, before contacting the service department for assistance, perform the following simple checks

If the hood does not work:

Check:

• The power plug is not inserted into the electrical outlet.
• The fuse has blown.

If the hood works poorly:

Check:

• The charcoal filter is saturated. It must be replaced with a new one of the appropriate type. The kitchen is not sufficiently ventilated to ensure the removal of fumes. The hood is not installed at the recommended height (see installation instructions).

If the hood is switched on during normal operation:

Check:

• The power plug is not inserted into the electrical outlet. The hood has not been switched on.

In case of malfunction, before contacting the after-sales service, disconnect the appliance from the mains for 5 seconds, then plug it back in. If the fault persists, contact the after-sales service.

Installation

HNB 9.6 LMI X/HA - HNB 9.5S AM X/HA

HNB 6.5S AM X/HA

T1

T2

T3

T4

T5

HNB 6.5S CB X/HA - HNB 9.5S CB X /HA

T1

T2

T3

T4

T5

T6

HNB 6.7 AD X/HA - HNB 9.8 ADI X /HA

T1

T2

T3

Therefore, m = 3/11

T4

T5

T6

T1 Motor ON/OFF

HNB 9.6 LMI X/HA - HNB 9.5S AM X/HA

HNB 6.5S AM X/HA

T1

T2

T3

T4

T5

T1 Motor reset

After pressing this button during operation, the extractor will switch OFF.

T2 Speed 1

HNB 6.5S CB X/HA - HNB 9.5S CB X /HA

T1

T2

T3

T4

T5

T6

T1 Motor reset

After pressing this button during operation, the extractor will switch OFF.

T2 Speed 1

HNB 6.7 AD X/HA - HNB 9.8 ADI X /HA

T1

T2

T3

1/2

T4

T5

T6

T1 ON/OFF motor

After pressing this button when the extractor is off, the first speed is set. After pressing this button during operation, the extractor turns OFF.

T2 Speed -

After pressing this button, the extractor switches to the previous speed.

T3 Speed +

HNB 9.6 LMI X/HA - HNB 9.5S AM X/HA

HNB 6.5S AM X/HA

T1

T2

T3

T4

T5

T1 current transformer

The primary winding is wound on the toroidal core, and it is

T2 secondary winding 1

The secondary winding 1 is wound on the toroidal core.

T3 secondary winding 2

The secondary winding 2 is wound on the toroidal core.

T4 secondary winding 3

The secondary winding 3 is wound on the toroidal core.

T5 connection diagram

Models with sensor panel

HNB 6.5S CB X/HA - HNB 9.5S CB X /HA

T1

T2

T3

T4

T5

T6

T1 MoToPdBi TOKTaTy

CopfbiXymbicictenTypfaHda6acblica,on ΘUJEJI

T2 Xbɪnʌmʌbɪk 1

TуIMe 6acbIJaHda copfbiU 1-KbIJaMdIbIka opHaTbIaIbI.

T3 Kbldaamdbik 2

TуIMe 6acbIiFaHda copfblu2-ЖblIaMdIbIka opHaTbIaIbI.

T4 KblДamdbiK 3

TуIMe 6acbIiFaHda copfblu3-ЖblIaMdIbIka opHaTbIaIbI.

T5 KyweeTkiu

TуиmeбасылfaHда copfblshжorapblжblДмblkka opHaTbIaIbI.5MHyTTahн KeiH,copfblsh anDbIHfbI kbldAmblkKa opanaIbI;KbldAmblk TsyMeci bacblca (T2,T3 Hemece T4),copfbls KUweHTkiW pexmimHeH sbIfbIn, TaHdaJFaH kbldAmblkTbI opHaTaIbI.

T6 ⅢaMdapdbI KOCY/ΘUIPY

Ma/nc cy3rilepiin h eckepTuJIepi

T2 6enriweci kblbIbIKtaca, demek man cy3ric KaHbIKKaH, an T3 6enriweci kblbIbIKtaca, on nic cy3ricin H KaHbIKKaHbIH biDipei, an ekeyi de kblbIKtaca, demek eki cy3ri De KaHbIKKaH. Ohdai JkaFda, MaJ cy3rici (A) a nic cy3rici (B) Hemece ekeyi De ta3aay/aybcIbpy KaKet («TexnkaJIbIK Kbl3Met Kepcety XHe KYTim Kepcety» 6eimih KapaHbI3).

Control valve:

The valve is controlled by pressing T4 for 6 seconds.

The expert must be consulted before adjusting.

To adjust the valve, press and hold T4, then adjust the pressure.

The first pressure, the second pressure, and the control valve.

Valve configuration:

To set the valve operating mode, press and hold T4 for 6 seconds. The operating mode is indicated by T2 and T3: T2 - open, T3 - closed.

Press T4 repeatedly to change the operating mode.

To set the configuration, press T1 again.

Models with sensor panel and display

HNB 6.7 AD X/HA - HNB 9.8 ADI X /HA

T1

T2

T3

T4

T5

T6

1. Timer on/off

The timer can be set to turn on or off, or to operate in 1-hour intervals. The timer can be set to turn on or off, or to operate in 1-hour intervals.

T2 Delay -

When the timer is set, the delay can be adjusted.

T3 Delay +

When the timer is set, the delay can be increased. If the timer is on, these timers can be set in 1-hour intervals.

T4 Boost

When the timer is set, the boost can be adjusted; the display shows "b" and the boost is activated. After 5 minutes, the boost is adjusted; the boost mode is on, and the timer (T2 or T3) can be adjusted via the boost.

T5 Timer

When this timer is set, the automatic timer will turn on after 5 minutes. The timer displays minutes, and the seconds are shown. The timer can only be adjusted manually for the timers, and it is not possible for the boost mode.

T6 Timer on/off

Maintenance instructions

If the display shows an error, the maintenance is required.

If the water is hot, it can cause burns, do not touch it with your hands.

If the water is too hot, it means both words are hot.

In this case, the user (A) and the user (B) or both need to be careful/avoid (see "Technical Service and Maintenance" section). The last word is only for this version.

To bring the water to the desired temperature:

While the burner is on, press the T4 button and hold for three seconds.

If the users press the button at the same time, they should be careful not to do so.

The first user, then the second user, should bring it to the desired temperature.

End of operation

To turn off the burner, press the T4 button and hold for three seconds. After the long signal, the operation will stop:

Water supply version

(For models with cold water supply).

Water version

(For models with hot water supply).

Press the T4 button to start the operation. To end the operation, press the T4 button once; it will turn off and the parameters will be saved.

Technical Service and Maintenance

If the product is not working, it must be disconnected from the power supply and the plug must be removed from the socket before any maintenance work is carried out.

Cleaning

Before cleaning, unplug the appliance and let it cool down. To clean the outer surface, use a soft damp cloth. If the dirt is stubborn, use a mild detergent.

Cleaning the interior

The interior and exterior of the appliance should be cleaned regularly (at least once a month). Use a soft damp cloth with a mild detergent, then wipe with a dry cloth.

Do not use abrasive cleaners or sharp objects. Warning: If cleaning and maintenance instructions are not followed, the appliance may be damaged. Do not use steam cleaners. Do not use harsh chemicals or solvents on the motor housing or other parts.

Maintenance (A)

The appliance should be inspected regularly by a qualified technician. It should be cleaned at least once a year with a dry cloth or a soft brush at a low temperature.

To remove the filter

Turn off the appliance. If the filter is dirty, it can be cleaned with a vacuum cleaner, but do not use water.

Maintenance (B)

The filter should be replaced regularly. The filter should be replaced at least once a year or when it is visibly dirty. Use only original spare parts.

Do not immerse the appliance in water or any other liquid.

Warning: Before cleaning, always unplug the appliance and let it cool down.

Caution: Do not use abrasive cleaners or sharp objects on the appliance. Use a soft damp cloth and mild detergent, then dry thoroughly.

The contact is dirty, the mass is oily.

Warning! The installation is dirty, check the terminals.

1. Clean the contact surfaces: wipe with a dry cloth or a slightly damp cloth. 2. Do not use abrasive cleaners. Do not touch the terminals with bare hands (for this, use the technical gloves provided). 3. Replace the contact surfaces in their place (insert, replace).

Cleaning LED*

The device is based on LED technology. It is designed for efficient lighting, with low energy consumption and long service life. It is not intended for use in emergency lighting.

Power cable

If the power cable is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

DISPOSAL

This product contains electrical and electronic components (WEEE) and must be disposed of in accordance with the European Directive EC/2012/19. The separate collection of waste electrical and electronic equipment is intended to minimize the environmental and health impacts of hazardous substances.

The product or its packaging must not be disposed of as unsorted municipal waste, but must be collected separately for recycling of electrical and electronic equipment. Please contact your local waste collection service or the place where you purchased the product for information on how to dispose of it correctly.

Technical data

If the device does not work, contact the technical service or check the following points:

The device does not work:

Check the following points:

Dry cleaning fluid. Do not use flammable substances.

For the first type of device:

Necessary spare parts:

The engine must be disconnected from the power supply before any maintenance work. The device has a ventilation system. Check the water level (water level).

If the device is in operation, the first step is:

Necessary spare parts:

Dry cleaning fluid. Do not use corrosive substances.

If the device malfunctions, contact the technical service center before attempting any repairs. Do not disconnect the device from the power supply for at least 5 seconds. If the malfunction persists, contact the technical service center.
