USER MANUAL TE-MS 254 T EINHELL

GB Original operating instructions Crosscut and mitre saw with table

Close-up of a hand operating a mechanical power tool with a labeled component (no text or symbols visible)

6a 37 35

6b 37 32 35

37 33 1 32

7b 1 37 32 33

1 2 3 37 32 23

8b 1 37 33

37 32 35

9b 37 3732 32 35

Mechanical assembly diagram showing a hand operating a workbench with labeled parts (no readable text or symbols)

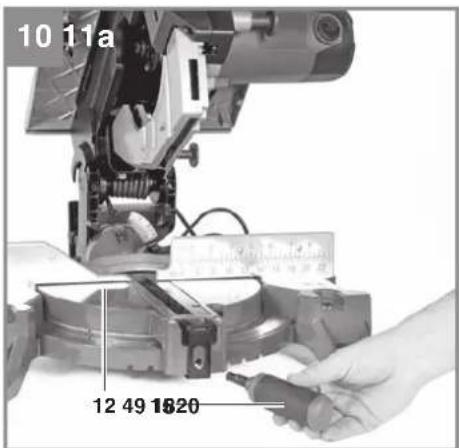

10 11a 12 49 1820

Technical diagram showing a hand operating a mechanical clamp with labeled parts '5' and measurement tools

11b 12 49 5 19 18 5

5 48 5

13 14 46 49

8 7 49

15a 2 9

Close-up of a mechanical assembly with hands operating a cutting tool (no visible text or symbols)

15c 6 9

8 6 9 50 7 49

17a 41 49

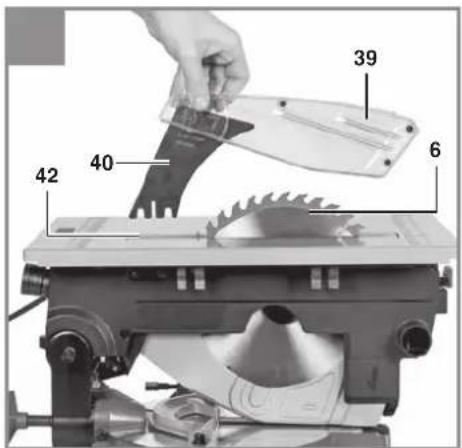

39 40 6 42

17c 39 40 49 6 41

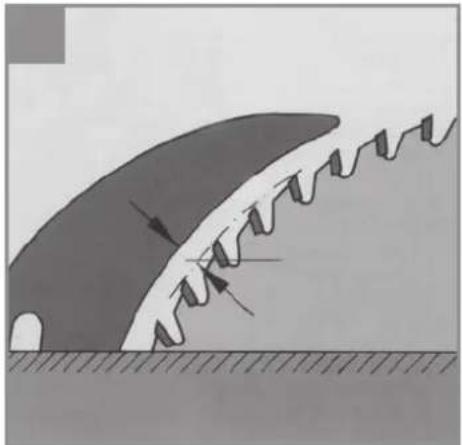

Diagram of a wave interacting with a curved surface, showing directional arrows and wavy patterns (no text or symbols)

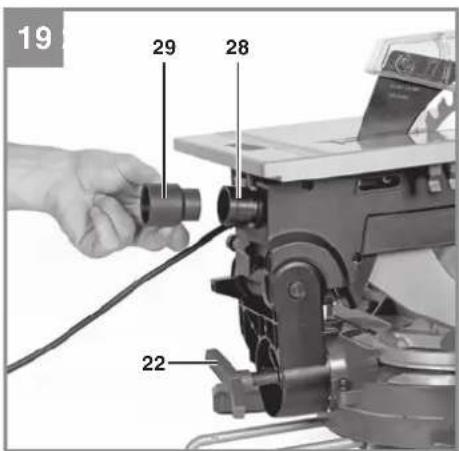

19 29 28 22

Close-up of a hand operating a mechanical device with labeled parts (29 and 47), no readable text or symbols beyond labels.

21 22 24 23 14 15 17 16 12

22 10 a 12 16 6

23a 23b

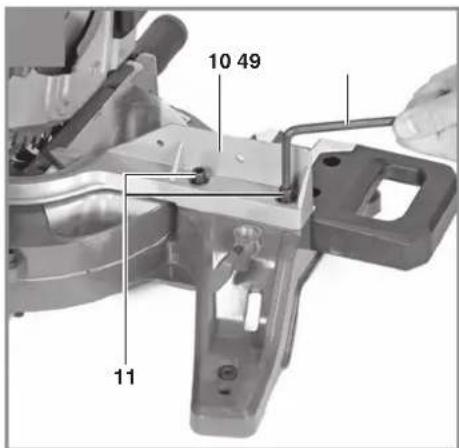

10 49 11

24 25 26 23 24 25 27

22 a 12 6

26 27 6 b 12

30 31

28 29 33 34

37 36 35

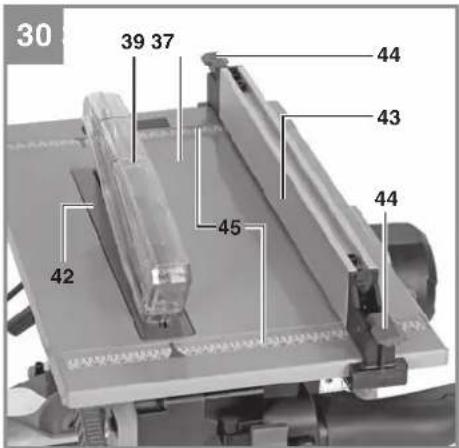

30 39 37 44 43 42 45 44

2 38 3 4

32 21

Mechanical assembly with a mounted device and clamping tool (no visible text or symbols)

Mechanical cutting machine with a flat blade and workpiece, no visible text or symbols

Mechanical assembly diagram showing a cutting tool and housing with a numbered component (21), no visible text or symbols.

46

1 2 3

4 5 6

-11-

D

Gefahr!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

Explanation of the symbols used (see Fig. 39)

1. Danger! - Read the operating instructions to reduce the risk of injury.
2. Caution! Wear ear-muffs. The impact of noise can cause damage to hearing.
3. Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!
4. Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
5. Caution! Risk of injury! Do not reach into the running blade.
6. On/Off switch for laser

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Warning!

Read all the safety information, instructions, illustrations and technical data provided on or with this power tool. Failure to adhere to the following instructions may result in electric shock, fi re and/or serious injury.

Keep all the safety information and instructions in a safe place for future use.

Special information about the laser

Caution! Laser radiation

Do not look into the beam Laser class 2

• Never look directly into the laser path.
- Never direct the laser beam at reflecting surfaces or persons or animals. Even a low output laser beam can inflict injury on the eye.
- Caution - It is vital to follow the work procedures described in these instructions. Using the equipment in any other way might result in hazardous exposure to laser radiation.
• Never open the laser module.
- It is prohibited to carry out any modifications to the laser to increase its power.
- The manufacturer cannot accept any liability for damage due to non-observance of the safety information.

2. Layout and items supplied

2.1 Layout (Fig. 1-31)

1. Machine head
2. Release button for machine head
3. Handle
4. On/Off switch for crosscut mode
5. Fastening hole
6. Blade
7. Blade screw
8. Outer fl ange
9. Blade guard for crosscut mode
10. Stop rail
11. Socket head screw for stop rail
12. Turntable
13. Table insert for crosscut mode
14. Release button for turntable
15. Locking screw for turntable
16. Scale (turntable)
17. Pointer (turntable)
18. Fixed saw table
19. Workpiece supports
20. Socket head screw for the workpiece support
21. Clamping device

GB

1. Locking grip for miter angle
2. Scale (miter)
3. Pointer (miter)
4. Adjustment screw for angle stop 90°
5. Adjustment screw for angle stop 45°
6. Lock nut for angle stop
7. Extractor socket for crosscut mode
8. Extractor adapter
9. Laser
10. On/Off switch for laser
11. Motor unit
12. Retaining pin for machine head
13. Stop screw
14. Latching pin for motor unit
15. Stop screw
16. Saw table for table mode
17. On/Off switch for table mode
18. Blade guard for table mode
19. Splitter
20. Socket head screw for splitter
21. Table insert for table mode
22. Parallel stop
23. Clamp lever
24. Scale for parallel stop
25. Push stick
26. Extractor socket for table mode
27. Tilt guard
28. Hex key 5/6 mm
29. Face spanner

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of

swallowing or suff ocating!

• Crosscut and miter saw with table
Blade
- Locking screw for turntable
• Workpiece supports (2x)
- Clampingdevice
- Extractoradapter
• Splitter together with blade guard
- Parallelstop
- Pushstick
• Hex key 5/6 mm
- Facespanner
• Original operating instructions
- Safetyinstructions

3. Proper use

The crosscut and miter saw with table is designed for crosscutting wood and wood-type materials which are appropriate for the machine's size (crosscut mode).

In addition you can also use this saw to make longitudinal cuts in all types of timber commensurate with the machine's size (table mode).

You are not allowed to use the saw to make cuts in any type of round timber. The saw is not designed for cutting fi rewood.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Only blades suitable for the saw are allowed to be used. It is prohibited to use any type of cutting-off wheel.

To use the saw properly you must also observe the safety information, the assembly instructions and the operating instructions to be found in this manual.

All persons who operate and service the machine must be acquainted with these instructions and must be informed about potential hazards. It is also imperative to observe the accident preven-

GB

tion regulations in force in your area. The same applies for the general rules of health and safety at work.

The manufacturer will not be liable for any changes made to the machine nor for any damage resulting from such changes. Even when the machine is used as prescribed it is still impossible to eliminate certain residual risk factors.

The following hazards may arise in connection with the machine's construction and design:

• Contact with the blade in the uncovered saw zone.
  • Reaching into the running blade (cut injuries).
• Kick-back of workpieces and parts of workpieces.
• Bladefracturing.
• Catapulting of faulty carbide tips from the blade.
• Damage to hearing if essential ear-muffs are not used.
• Harmful emissions of wood dust when used in closed rooms.

4. Technical data

AC motor: 220-240 V \~ 50 Hz

Power: 2000 W

Operating mode: S1

Idle speed n_0 : 5,000 min ^-1

Carbide blade: 254 x 30 x 2.8 mm

Number of teeth: 36

Dust extraction connector: 36 mm

Weight: 17.3 kg

Laser class: 2

Wavelength of laser: 650 nm

Laser output: ≤ 1 mW

Protection class:

For use as a bench-type saw:

Table 481 x 289 mm

Cutting depth max. 50 mm

Maximum cross-section of the workpiece 170 x 50 mm

Minimum size of the workpiece 30 x 10 x 100 mm

Thickness of the splitter 2.3 mm

For use as a crosscut saw:

Pivoting range -45^/0^/+45^

Miter cut 0° to 45° to the left

Sawing width at 90° .....130 x 74 mm

Sawing width at 45° ....65 x 74 mm

Sawing width at 2 x 45° to the left

(double miter cut) 35 x 50 mm

Sawing width at 2 × 45^ to the right

(double miter cut) 85 x 50 mm

Minimum size of the workpiece 50 x 10 x 180 mm

Danger!

Noise

The noise emission values were measured in accordance with EN 61029.

L_pA sound pressure level 103 dB(A)

K_pA uncertainty 3 dB(A)

L_WA sound power level 116 dB(A)

K_WA uncertainty 3 dB(A)

Wear ear-muff s.

The impact of noise can cause damage to hearing.

The stated noise emission values were measured in accordance with a set of standardized criteria and can be used to compare one power tool with another.

The stated noise emission values can also be used to make an initial assessment of exposure.

Warning:

The noise emission levels may vary from the level specified during actual use, depending on the way in which the power tool is used, especially the type of workpiece it is used for.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

GB

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

5. Before starting the equipment

Before you connect the tool to the power supply make sure that the data on the rating plate is the same as the mains data.

Warning!

Always pull out the power plug before making adjustments to the equipment.

• All covers and safety devices must be properly fitted before the machine is switched on.
  • It must be possible for the blade to run freely.
• When working with wood that has been previously processed, watch out for foreign bodies such as nails or screws, etc.
  Before you actuate the On/Off switch, make sure that the blade is correctly fitted and that the tool's moving parts run smoothly.

5.1 Important information to observe before setting up the machine (Fig. 3/4)

This saw can be operated in two different settings. Depending on the job in hand you can carry out cuts in either

• crosscut and miter saw mode (referred to below simply as crosscut mode, see Fig. 3),
- or in table-type circular saw mode (referred to below simply as table mode, see Fig. 4).

The saw is delivered already set for table mode. To assemble the saw it must be converted from table mode to crosscut mode.

Caution! Pay special attention to the order of steps required for converting the operating mode. The saw is equipped with blocking mechanisms in order to ensure safe operation. Proceed carefully and follow the steps listed out below in order not to damage any innerlying components.

5.2 Switching from table mode to crosscut mode (Fig. 5-7)

Important! When you start up for the first time you must begin by pulling out the polystyrene inlay - as shown in Fig. 5 - so that you can swing out the motor unit (32).

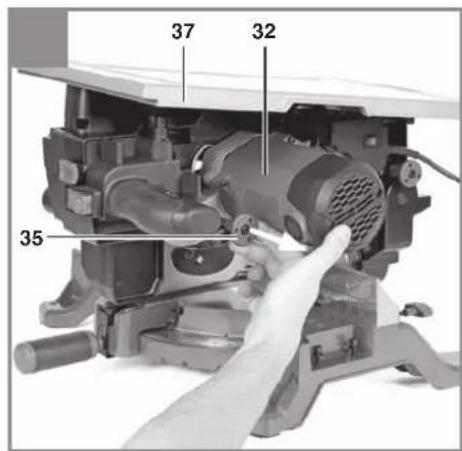

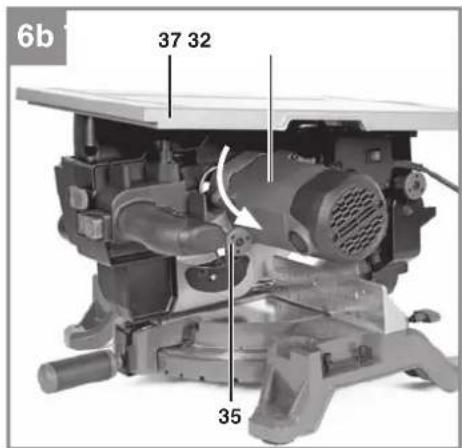

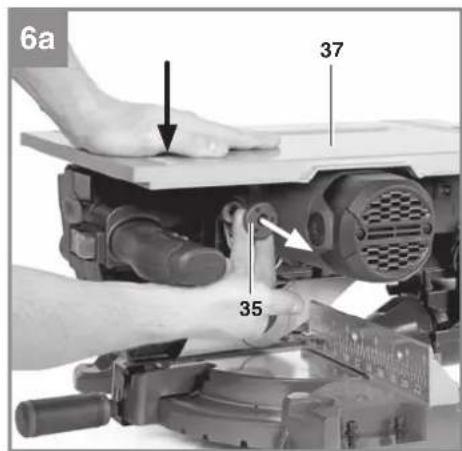

Swinging out the motor unit (Fig. 6)

1. Use one hand to apply a little downward pressure on the saw table (37).
2. At the same time use the other hand to pull out the latching pin (35) and hold it in its outermost position.
3. Now reduce the pressure on the saw table (37). The spring tension causes the saw table (37) to rise, enabling the motor unit (32) to swing out from underneath.
4. Let go of the latching pin (35) and raise the saw table (37) while applying a little counter-pressure.
5. Make sure that the latching pin (35) engages in the bottom position.

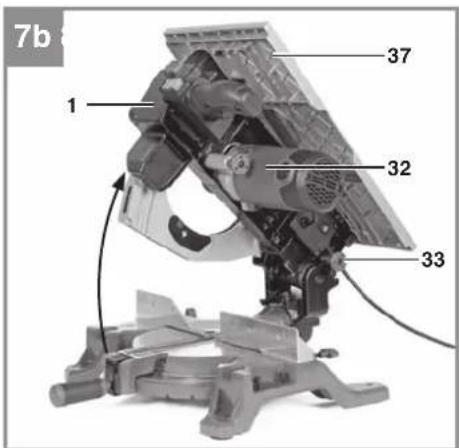

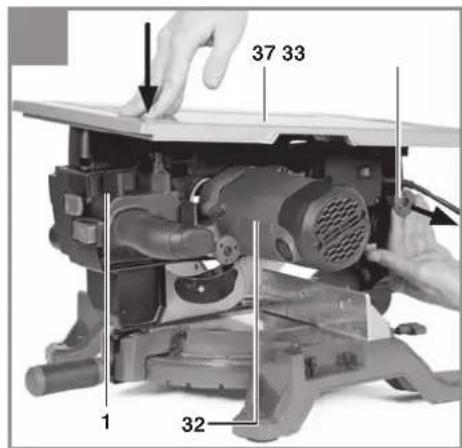

Raising the machine head and the saw table (Fig. 7)

Important! You must first swing out the motor unit (32) in order to be able to raise the machine head (1) / saw table (37).

1. Use one hand to apply a little downward pressure on the saw table (37).
2. At the same time use the other hand to pull out the retaining pin (33).
3. Now reduce the pressure on the saw table (37). The return spring causes the saw table (37) to rise.
4. Important! The retaining pin (33) remains in the outer position.
5. Caution! The return spring will automatically lift the machine, i.e. do not let go of the saw table (37) but guide it slowly upwards while applying a little counterpressure.

5.3 Switching from crosscut mode to table mode (Fig. 8/9)

Caution! You can switch the saw to table mode only when the miter angle (23) equals 0^ .

Important! To be able to swing in the motor unit (32) you must first lower the machine head (1) / saw table (37).

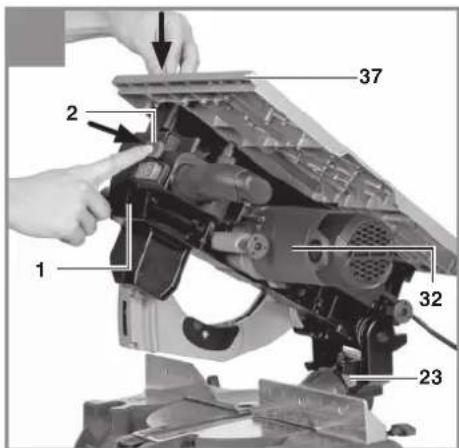

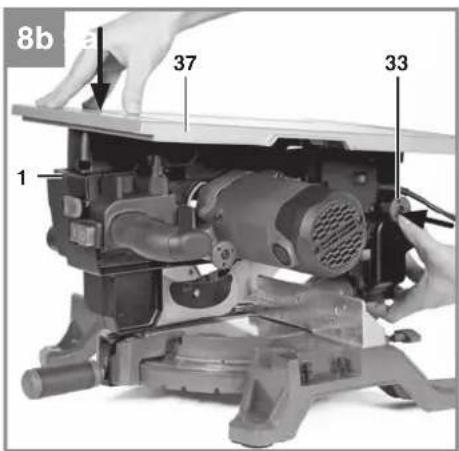

Lowering the machine head and the saw table (Fig. 8)

1. Press the release button (2) with one hand in order to release the machine head (1).
2. Use the other hand to apply a little counter-pressure on the saw table (37) while lowering the machine head (1).
3. Push the saw table (37) as far as the stop.
4. Secure this position by pressing in the retai-

GB

ning pin (33).

1. Important! If you fail to press in the retaining pin (33) or succeed only by applying high force, you can readjust the depth stop (see section 6.6).

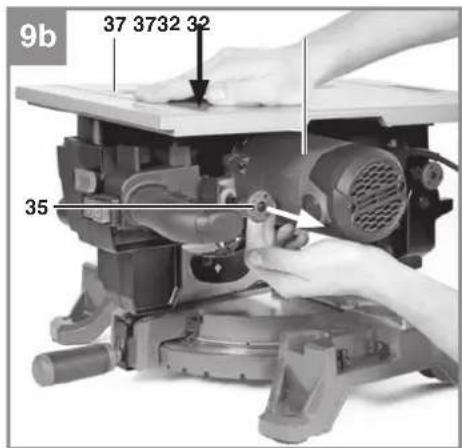

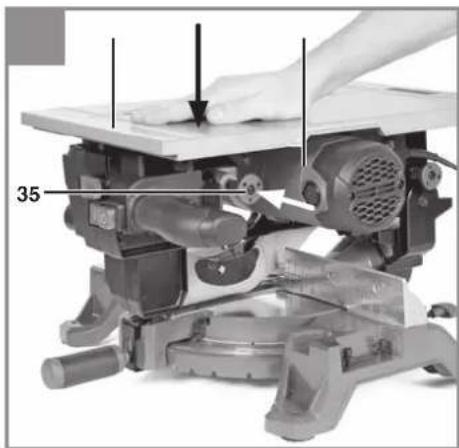

Swinging in the motor unit (Fig. 9)

1. Use one hand to pull out the latching pin (35). Hold the latching pin (35) in the outermost position.
2. Press the saw table (37) downwards so that the motor unit swings in (32).
3. Let go of the latching pin (35) and make sure that latching pin (35) engages in the top position.
4. Important! If you fail to press in the latching pin (35) or succeed only by applying high force, you can readjust the depth stop (see section 6.6).

5.4 Assembling the saw (Fig. 1-3, 10-13)

• Operate the saw only on a level surface where it can stand firmly. Use the 4 mounting holes (5) to fasten the saw on a workbench for example. (Suitable fasteners are available from your your specialist dealer.)

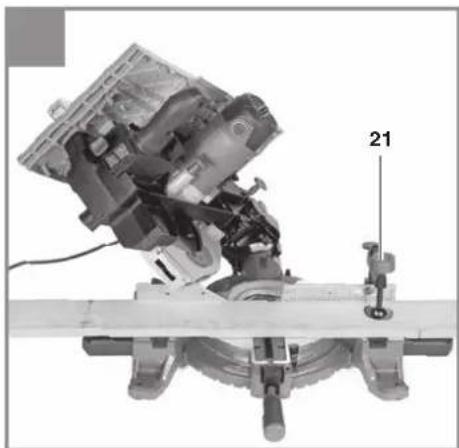

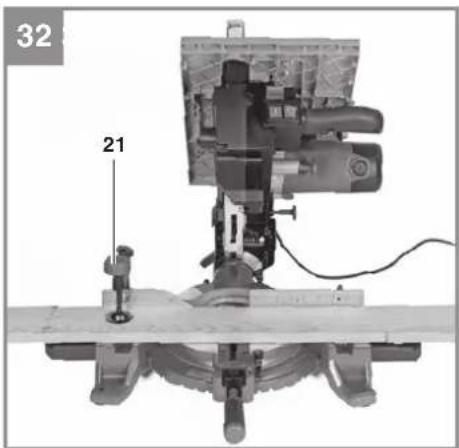

• The clamping device (21) can be fitted on the left or right side of the fixed saw table (18).
  • Fit the locking screw (15) to the turntable (12).

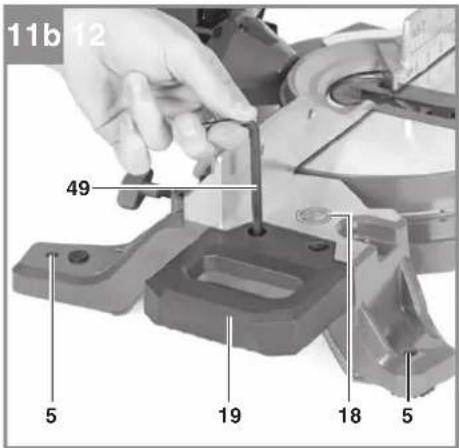

• Fit the workpiece supports (19) on the left and right side of the fixed saw table (18). To do so, use the socket head screws (20) and the hex key (49).

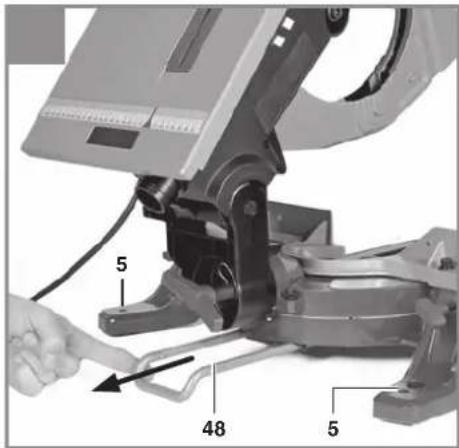

• To prevent the saw from tilting backwards, pull out the tilt guard (48) as far it will go at the rear of the machine.

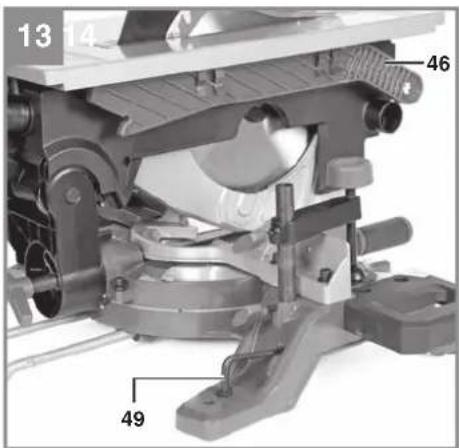

• When not in use, the push stick (46) and the hex key (49) can both be fastened to the saw as shown in Fig. 13.

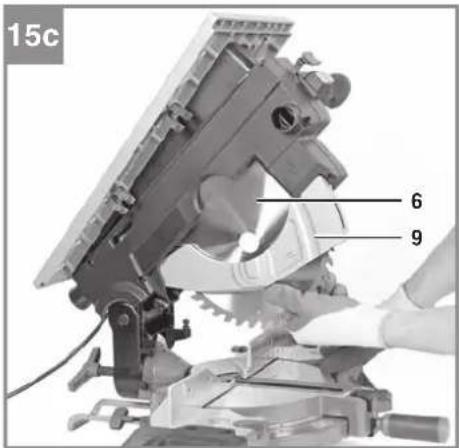

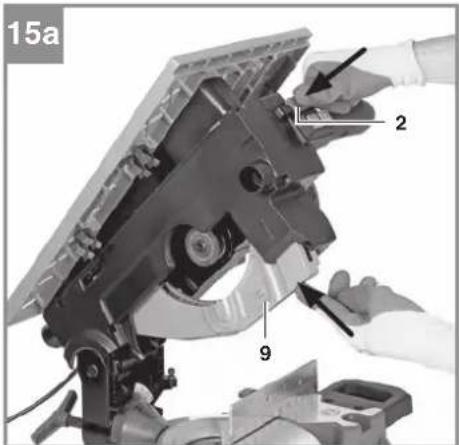

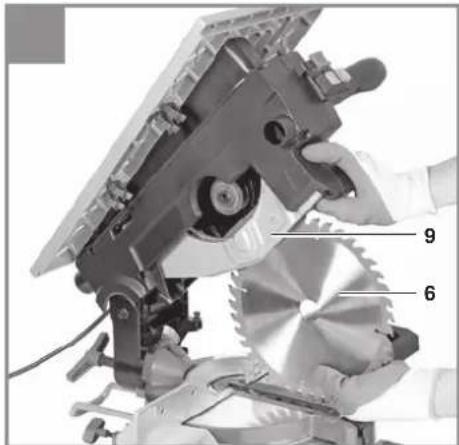

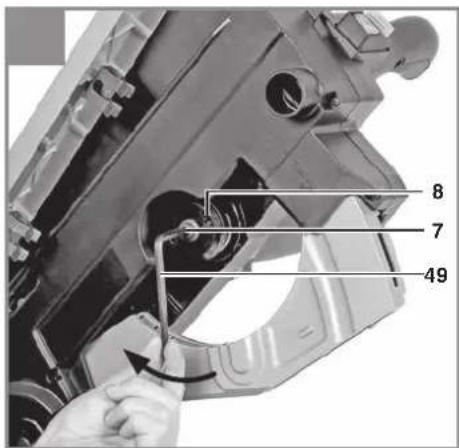

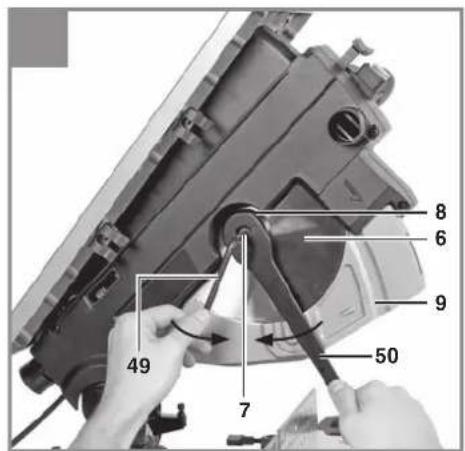

5.5 Fitting / changing the blade (Fig. 14-16)

• Danger! Before you change the blade (6): Pull out the power plug!
• Wear work gloves to prevent injury when changing the blade!
  • Set the saw to crosscut mode (see 5.2).
• Undo the blade screw (7) by placing the face spanner (50) on the outer flange (8) and the hex key (49) on the blade screw (7).
• Important! Turn the blade screw (7) in the direction of rotation of the blade (see the arrow on the lateral cover).
• Remove the blade screw (7) and the external flange (8).
  • Clean the blade flange thoroughly before fit-

ting the new blade.

• To enable replacement, the blade (6) must be passed down and out through the blade guard for crosscut mode (9). This requires you to press the release button (2) and lift the blade guard (9) upwards.
• Now pass out the old blade (6) and then pass in the new blade through the blade guard (9) and onto the inner blade flange.
• Warning! Note the running direction: the cutting angle of the teeth must point in running direction, i.e. forwards (see the arrow on the lateral cover).
• Refit the outer flange (8) and the blade screw (7).
• Tighten the blade screw (7) with the face spanner (50) and the hex key (49).

Check that all safety devices are in good working order before you begin working with the saw again. (Fig. 3/4)

• Warning! Every time you change the blade, check that the blade guard for crosscut mode (9) opens and closes again in accordance with requirements. Also check that the blade (6) runs freely in the blade guard (9).
• Warning! Every time that you change the blade (6), check to see that it spins freely in the table insert for crosscut mode (13) in both perpendicular and 45° angle settings.
• Warning! A worn or damaged table insert must be replaced immediately.
  • Set the saw to table mode (see 5.3).
• Warning! Every time you change the blade, check that the splitter (40) is positioned centrally behind the blade (6). Check also that the gap between the blade (6) and the splitter (40) is set as described in 5.6.
• Warning! Every time you change the blade (6), check that it runs freely in the blade guard for table mode (39).
• Warning! Every time you change the blade (6), check that it runs freely in the table insert for table mode (42).

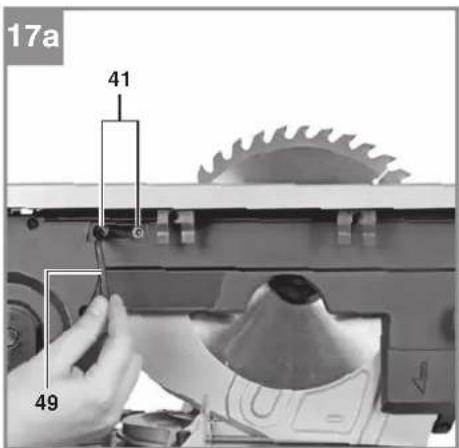

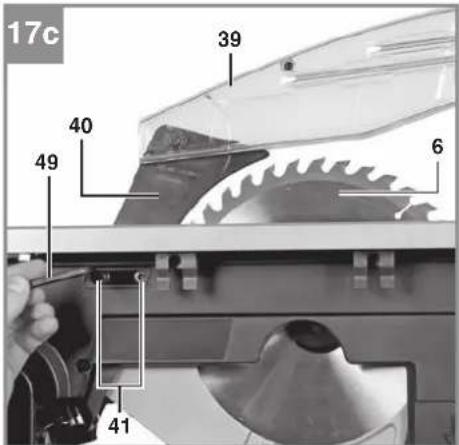

5.6 Fitting / removing the splitter together with the blade guard (Fig. 17/18)

• Set the saw to table mode (see 5.3).
- Use the hex key (49) to loosen the two socket head screws (41) by approx. 2 turns.
- Insert the splitter (40) together with the blade guard (39) into the gap of the table insert (42) and down to the very bottom.
• Make sure that the recesses in the splitter (40) rest exactly on the two socket head

GB

screws (41).

• Fasten the splitter (40) by using the hex key (49) to tighten the two socket head screws (41).
  • Make sure that the splitter (40) is fitted straight and does not wobble.
• The splitter (40) must be positioned in the center along an imaginary line extending behind the blade (6) so that it is not possible for the cut material to get jammed.
• The gap between the blade (6) and the splitter (40) should measure 3 to 8 mm. (See Fig. 18)
  • To dismantle, proceed in reverse order.

5.7 Connection for a sawdust extractor (Fig. 19/20)

A connection for extracting the sawdust is provided with the extractor socket for crosscut mode (28) and with the extractor socket for table mode (47). (Diameter information can be found in section 4 Technical data)

In crosscut mode (Fig. 19):

• Fasten the extractor adapter (29) to the extractor socket (28) on the back of the machine.
• Then connect, for example, a wet&dry vac to the extractor adapter (29).

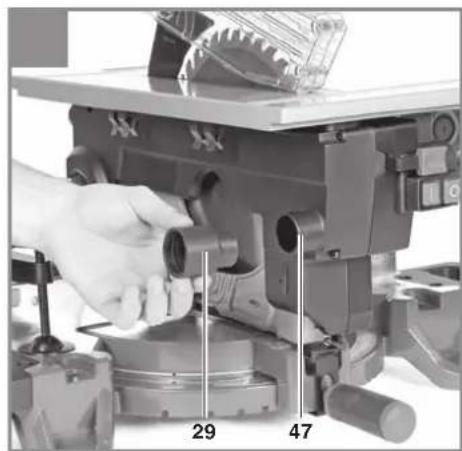

In table mode (Fig. 20):

• Fasten the extractor adapter (29) to the extractor socket (47) on the side of the machine head (1).
• Then connect, for example, a wet&dry vac to the extractor adapter (29).

6. Operation and fi ne adjustment

Set the saw to crosscut mode (see 5.2).

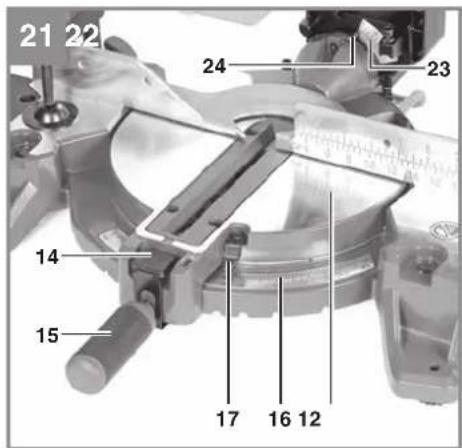

6.1 Adjusting the crosscut saw (Fig. 1 - 3, 21)

• To adjust the turntable (12) slacken the locking screw (15) by approx. 2 turns. Only then is it possible to adjust the turntable while holding the release button (14) pressed down.
• Turn the turntable (12) and scale pointer (17) to the desired angular setting on the scale (16). (See Fig. 21)
• The saw has locking positions at angles of -45^ , -31.6^ , -22.5^ , -15^ , 0^ , 15^ , 22.5^ , 31.6^ and 45^ , at which the turntable (12) audibly clicks into position. Once the turntable is engaged, the setting must be additionally secu

red by tightening the locking screw (15).

• If different angle settings are required, the turntable (12) must be secured in position by using only the locking screw (15).
• The machine head (1) can be lowered by pressing the release button (2).
• You can tilt the machine head (1) to the left by up to 45° when the locking grip (22) is released.
• After the angle selected with the pointer (24) on the scale (23) is reached, secure the machine head (1) again with the locking grip (22). (See Fig. 21)

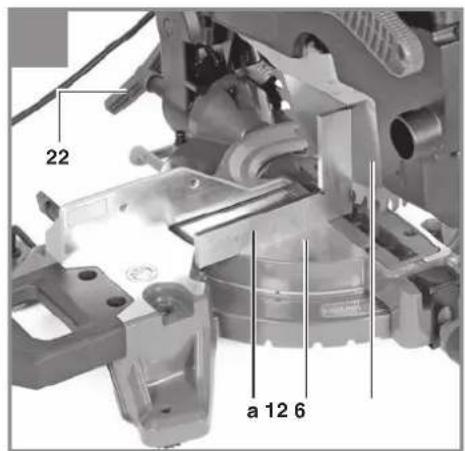

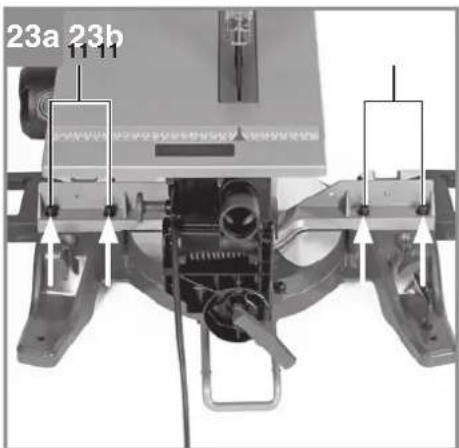

6.2 Precision adjustment of the stop rail (Fig. 22/23)

• Lower the machine head (1) and fasten in place with the retaining pin (33).
  • Fasten the turntable (12) in 0° position.
• Place the 90° stop angle (a) between the blade (6) and the stop rail (10).
• Slacken the four socket head screws (11) using the hex key (49), set the stop rail (10) to 90° in relation to the blade (6), and retighten the socket head screws (11).
• Finally, check the position of the pointer (17). If necessary release the pointer (17) with a crosstip screwdriver, move it to the 0° position on the scale (16), and fasten the pointer again.
  • There is no angle stop (a) or crosstip screwdriver supplied with this product.

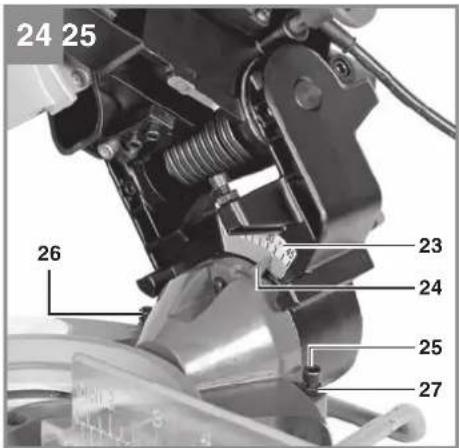

6.3 Precision adjustment of the angle stop for 90° crosscuts (Fig. 24/25)

• Lower the machine head (1) and fasten in place with the retaining pin (33).
  • Fasten the turntable (12) in 0° position.
• Undo the locking grip (22) and tilt the machine head (1) to the right to 0° using the handle (3).
• Place the 90° angle stop (a) between the blade (6) and the turntable (12).
• Slacken the lock nut (27) and adjust the adjustment screw (25) until the angle between the blade (6) and the turntable (12) equals 90°.
• Retighten the lock nut (27) to secure this setting.
• Finally, check the position of the pointer (24). If necessary release the pointer (24) with a crosstip screwdriver, move it to the 0^ position on the scale (23), and fasten the pointer (24) again.
  • There is no angle stop (a) or crosstip

GB

screwdriver supplied with this product.

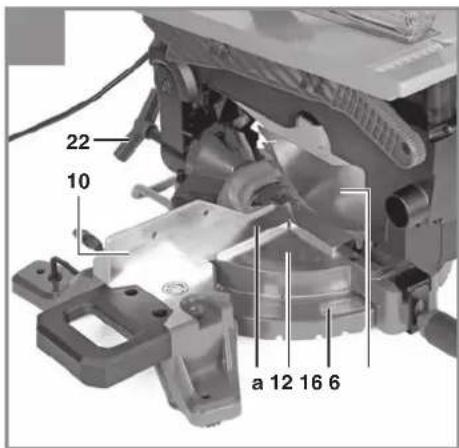

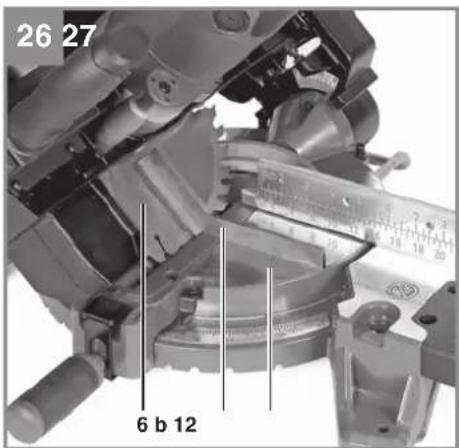

6.4 Precision adjustment of the angle stop for 45^ miter cuts (Fig. 24/26)

• Lower the machine head (1) and fasten in place with the retaining pin (33).
• Fasten the turntable (12) in 0° position.
- Undo the locking grip (22) and tilt the machine head (1) all the way to the left to 45° using the handle (3).
- Place the 45° stop angle (b) between the blade (6) and the turntable (12).
- Slacken the lock nut (27) and adjust the adjustment screw (26) until the angle between the blade (6) and the turntable (12) equals exactly 45°.
- Retighten the lock nut (27) to secure this setting.
- There is no angle stop (b) supplied with this product.

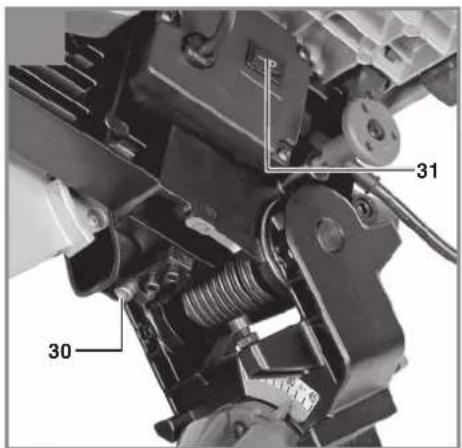

6.5 Laser for crosscut mode (Fig. 27)

Switching on: Move the laser On/Off switch (31) to the “*” position to switch on the laser (30). A laser line will be projected onto the workpiece you want to process, providing an exact guide for the cut.

Switching off: Move the On/Off laser switch (31) to the "OFF" position.

Important! The laser function is designed only for crosscut mode. Switch off the laser (30) before you convert the saw for table mode.

Set the saw to table mode (see 5.3).

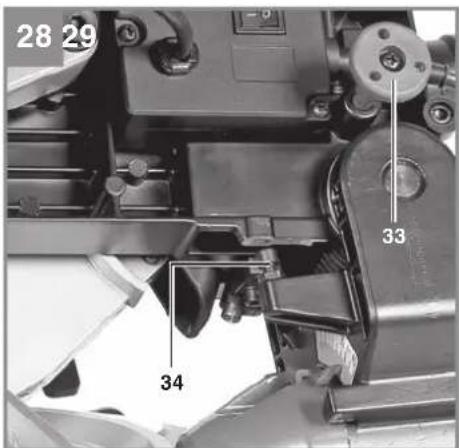

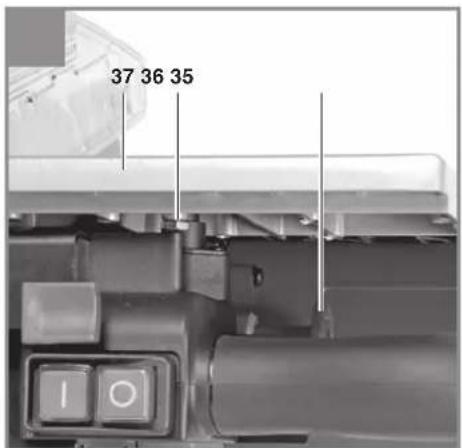

6.6 Precision adjustment of the saw table lock (Fig. 28/29)

During table mode the saw table (37) must be fastened as securely as possible in order to ensure safe operation. If necessary you can use the two depth stops to readjust the play for the saw table (37):

• Use the stop screw (34) to limit the play caused by the retaining pin (33).
• Use the stop screw (36) to limit the play caused by the latching pin (35).
• Caution! Adjust the stop screws (34, 36) only to the point where you can still engage the retaining pin (33) or the latching pin (35) without any additional force.
• The lock of the saw table (37) must be checked regularly.

6.7 Parallel stop (Fig. 30)

The parallel stop (43) must be used when making longitudinal cuts in wooden workpieces. Warning! When you mount or adjust the parallel stop (43) you must always make sure that it is aligned parallel to the blade (6).

• The parallel stop (43) can be mounted on either side of the saw table (37).
• Fit the parallel stop (43) on the saw table (37) from the side.
• Use the two scales (45) on the saw table (37) to adjust the parallel stop (43) to the required dimension.
• You can clamp the parallel stop (43) in the required position by pressing the clamping lever (44).

7. Operation

Warning!

• After every new adjustment we recommend you to make a trial cut in order to check the new settings.
• After switching on the saw, wait for the blade to reach its maximum speed of rotation before commencing with the cut.
  • Take extra care when starting the cut!
• Never use the machine without the suction function.
• Check and clean the suction channels regularly.
• Never try to combine crosscut mode and table mode.

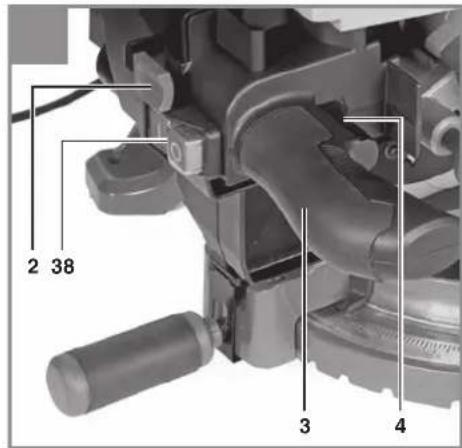

7.1 On/Off switch (Fig. 31)

For crosscut mode:

• Press the On/Off switch (4) to start up the saw.
• The On/Off switch (4) must be held during crosscut mode.
• Let go of the On/Off switch (4) to switch off the saw.

For table mode:

• Press the green button „I” of the On/Off switch (38) to switch on the saw.
• To switch off the saw again, press the red "O" button.

GB

7.2 Use as a crosscut saw and as a miter saw (Fig. 1)

Set the saw to crosscut mode (see 5.2).

7.2. 1 Crosscut 90° and turntable 0° (Fig. 1-3, 32)

• Place the piece of wood to be cut against the stop rail (10) and on the turntable (12).
• Use the clamping device (21) to secure the workpiece on the fixed saw table (18) so that it will not move during the cutting operation.
• Press and hold the On/Off / switch (4) to switch on the saw.
• When you have switched on the saw, wait for the blade (6) to reach its maximum speed.
• Press the release button (2) and, using the handle (3), apply uniform and light pressure to move the machine head (1) down through the workpiece.
• When the cutting operation is completed, move the machine head (1) back to its upper (home) position and let go of the On/Off switch (4).
• Warning! The integral resetting springs will automatically lift the machine head. Do not simply let go of the handle (3) after cutting, but allow the machine head (1) to rise slowly, applying slight counterpressure as it does so.

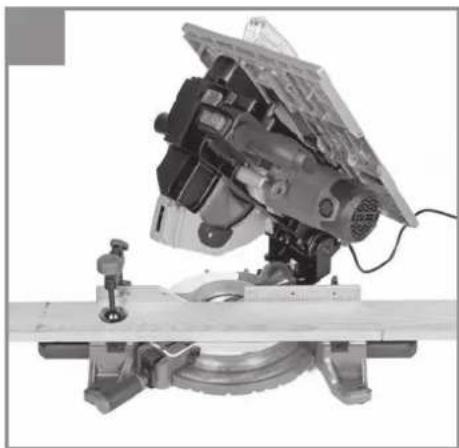

7.2.2 Crosscut 90° and turntable 0°-45° (Fig. 1-3, 33)

You can use the saw to make angular cuts of 0^-45^ to the left and right in relation to the stop rail.

• Move the machine head (1) to its upper position.
• Release the turntable (12) by slackening the locking screw (15).
• While holding down the release button (14), turn the turntable (12) and the pointer (17) to the desired angle on the scale (16).
• Retighten the locking screw (15) to secure the turntable (12) in place.
  • Make the cut as described in section 7.2.1.

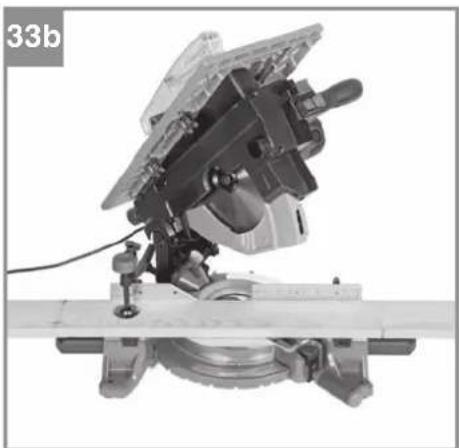

7.2.3 Miter cut 0°-45° and turntable 0° (Fig. 1-3, 34)

The saw can be used to make miter cuts of 0^ - 45^ in relation to the work face.

• Move the machine head (1) to its upper position.
  • Fasten the turntable (12) in 0° position.
• Release the locking grip (22) and use the handle (3) to tilt the machine head (1) to the left until the pointer (24) coincides with the required angle on the scale (23).

- Retighten the locking grip (22) and make the cut as described in section 7.2.1.

7.2.4 Miter cut 0°-45° and turntable 0°-45° (Fig. 1-3, 35)

The saw can be used to make miter cuts to the left of 0^-45^ in relation to the work face and, at the same time, bevel cuts of 0^-45^ in relation to the stop rail (double miter cut).

• Move the machine head (1) to its upper position.
• Release the turntable (12) by slackening the locking screw (15).
• While you are holding down the release button (14), turn the turntable (12) to the desired angle.
• Retighten the locking screw (15) to secure the turntable (12) in place.
• Release the locking grip (22) and use the handle (3) to tilt the machine head (1) to the left to the desired angle.
• Retighten the locking grip (22) and make the cut as described in section 7.2.1.

7.3 Use as a bench-type circular saw (Fig. 4)

Set the saw to table mode (see 5.3).

Warning! For table mode the machine head (1) is not allowed to be tilted to the left, i.e. the miter angle on the scale (23) must equal 0°.

7.3.1 Making longitudinal cuts (Fig. 4, 36)

This entails cutting through the workpiece in its longitudinal direction.

Press one edge of the workpiece against the parallel stop (43) while the fl at side lies on the saw table (37).

The blade guard (39) must always be lowered over the workpiece.

When you make a longitudinal cut, never adopt a working position that is in line with the cutting direction.

• Adjust the parallel stop (43) in accordance with the required width and clamp securely. (See 6.7.)
• Press the green button „I“ of the On/Off switch (38) to switch on the saw.
• With your fingers closed, place your hands flat on the workpiece and push the workpiece along the parallel stop (43) and into the blade (6).
• Guide at the side with your left or right hand (depending on the position of the parallel stop) only as far as the front edge of the gu-

GB

ard hood.

• Always push the workpiece through to the end of the splitter (40).
- Switch off the saw by pressing the red button „O“.
- The offcut piece will remain on the saw table (37) until the blade (6) is back in its position of rest.
- Secure long workpieces against falling off at the end of the cut! (Use e.g. a roller table.)

7.3.2 Cutting narrow workpieces (Fig. 37)

It is imperative to use a push stick (46) when making longitudinal cuts in workpieces smaller than 150 mm in width. A push stick is supplied with this saw. Replace a worn or damaged push stick immediately.

7.3.3 Cutting very narrow workpieces (Fig. 38)

• It is imperative to use a push block when making longitudinal cuts in very narrow workpieces with a width of 50 mm and less.
• There is no push block supplied with this this saw! (Ask your our specialist dealer.)
• Replace the push block without delay when it becomes worn.

7.4 Transport (Fig. 1-4)

• Fasten the turntable (12) with the locking screw (15).
• Adjust the machine head (1) so that it is straight (0° on the scale (23)) and secure the setting with the locking grip (22).
  • Set the saw to table mode (see 5.3).
• To transport the machine, lift it by the trough handles of the workpiece supports (19).
• Never use safety devices such as the blade guard or the stops far for handling or transporting purposes.
• Make allowance for the weight of the machine and have a second person help you if required.

8. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

9. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

9.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

9.2 Carbon brushes

In case of excessive sparking, have the carbon brushes checked only by a qualified electrician. Danger! The carbon brushes should not be replaced by anyone but a qualified electrician.

9.3 Maintenance

• There are no parts inside the equipment which require additional maintenance.
• Lubricate all moving parts at regular intervals.

9.4 Ordering spare parts and accessories

Please provide the following information when ordering spare parts:

• Type of unit
  • Article number of the unit
  • ID number of the unit
• Spare part number of the required spare part For our latest prices and information please go to www.Einhell-Service.com

Tip! For good results we recommend high-quality accessories from !kwb www.kwb.eu [e-mail]

10. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

11. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

Please note that batteries and lamps (e.g. light bulbs) must be removed from the tool before it is disposed of.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.

Subject to technical changes

• The product meets the requirements of EN 61000-3-11 and is subject to special connection conditions. This means that use of the product at any freely selectable connection point is not allowed.
• Given unfavorable conditions in the power supply the product can cause the voltage to fluctuate temporarily.
• The product is intended solely for use at connection points that a) do not exceed a maximum permitted supply impedance Z_ = 0,117 , or b) have a continuous current-carrying capacity of the mains of at least 100 A per phase.
• As the user, you are required to ensure, in consultation with your electric power company if necessary, that the connection point at which you wish to operate the product meets one of the two requirements, a) or b), named above.

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Carbon brushes
Consumables* Saw blade, Push stick
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.Einhell-Service.com. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

F

Danger!

7.4 Transport (figures 1 - 4)

7.4 Transport (obr. 1 - 4)

7.4 Transport (afb. 1 - 4)

7.4 Transport (sl. 1-4)

7.4 Transport (rys. 1 - 4)

Subject to change without notice

Archive-File/Record: NAPR024384

Documents registrar: Korbinian Wasmeier

Wiesenweg 22, D-94405 Landau/Isar

* GN Crossout and redra saw with table - Sfc Transpomnase a angiot & teila supérieure - Tlncratina o piano superolor - OKR Kap-goringsaev med avapilade - S Kap-och-goringsaev med avamors - CZ Kapovat i pokosva pila a homim stolem - SK Kapovat a pokosva pila a homine stolem - ML Kep-en versteknaq met bovetati - E Sierra ingletada - FIN Katalsultitrisa yptäpsytäml - SLO Cetina in zajeraltia zaga z namijum - H Jepelö-sarköle fürtser tõtsasztalat - RO Fēstirduo de rotoral pibminal ta coli tu masii supiorariā - GR Alonomplao με μήνοκ σραγασία - P Serra di coris transversal e meia-uspeduania con mesa superior - HM ZBM Pila za proruzevan j koso rezeane s gormij stolem - RS Tesera za proruzevan j koso rezeane sa gormij stolem - PL Pls uksina ze stolem - TT Talbali Gyne Kesne - LUS Turoso-usperenai nana so cistolom - EE Ninga- ja järkansissag preinise insuga - LV Sagarībasanas zága - lejckága ze virešte gātu - LT Komūbiakis žentmi pezniem valda na ativitru – GR Čirukurdo se gra ve nekolončen sra čeren plot - OKR Turkobavani ala stovnom - MK Grotena tena

Declaration of conformity

We, Einhell UK Ltd

Champions Business Park, First Floor Unit 10, Arrowe Brook Rd, Upton, Wirral CH49 0AB, United Kingdom

declare the conformity to UK standards and legislation was assessed for:

Crosscut and mitre saw with table TE-MS 254 T (Einhell)

UK legislation

□ Simple Pressure Vessels (Safety) Regulation
□ Electrical Equipment (Safety) Regulation
□ Radio Equipment Regulation
□ Personal Protective Equipment Regulation
□ The Ecodesign for Energy-Related Products and Energy Information Regulation
X The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation
□ Noise Emission in the Environment by Equipment for use Outdoors Regulation

Annex V

Annex VI

Noise:measuredL. ^BB = dB(A) ; guaranteed L. ^BB = dB(A)
P = kW; L/∅ = cm
UK Approved Body:

X Supply of Machinery (Safety) Regulation

X Annex IV

Approved Body: TÜV Rheinland LGA Products GmbH, Tillystr. 2D, 90431 Nürnberg (Notified Body No.: 0197)

Certifi cate No.: BM 50574460 0001

Standard References: EN 61029-1; EN 61029-2-11; EN 60825-1; EN IEC 55014-1; EN IEC 55014-2; EN IEC 61000-3-2; EN IEC 61000-3-11

Tom Chambers, Managing Director Einhell UK Ltd.

Wirral, 2023.02.22

Article Number: 43.003.41 I.-No.: 21012

Subject to change without notice Wiesenweg 22, 94405 Landau/Isar, Germany

Archive-File/Record: NAPR024384

Documents registrar: Korbinian Wasmeier

EH 05/2023 (01)
