USER MANUAL S_VC507DC Vonroc

White icon of a vacuum cleaner on a black background (no text or symbols)

EN Original Instructions 04

Labeled diagram of a vacuum cleaner with numbered parts for identification

B

B 2 14 15 1

C

14 17 16 19 19 18

VONROC

12 13 D

E-1 E-2 5

F 3 9 G 4 9

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Class II machine - Double insulation - You don't need any earthed plug.

Time-lag miniature fuse-link.

Max temperature 45°C.

For cold ash only! There is a risk of fire if the suction material exceeds a temperature of 40^ C ( 104^ F)!

If the temperature of the material exceeds 40^ C, there is a risk of fire.

Do not throw the battery into fire.

Do not throw the battery into water.

Separate collection for Li-ion battery.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

SAFETY NOTES

THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING

AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN WITHOUT SUPERVISION.

• The ash cleaner should be properly assembled before use.
• Do not leave the machine running without supervision.
• Keep the nozzles and filters clean and functional to ensure that the machine works safe and has optimal performance.
• The user of the device is responsible for the safety of others while using it.
• The machine should only be used for its intended purposes.
• Only use the machine in areas that are dry and protected from bad weather. Do not use it outside when it is raining.
• Remove the battery pack from the vacuum cleaner before maintaining or cleaning, making any adjustments, changing accessories or placing the vacuum cleaner aside. This safety measure prevents accidental starting of the vacuum cleaner.
• Provide good ventilation at the working place.
• Have the machine repaired only through qualified specialists and only using original spare parts. This ensures that the safety of your vacuum cleaner is maintained.
• When the machine is not in use, store it securely.
• The storage place must be dry and lockable. This prevents the vacuum cleaner being damaged when it is stored or being used by inexperienced people.

SAFETY WARNINGS SPECIFIC FOR VACUUMING ASHES

• The vacuum cleaner must not be used for the separation of hazardous substances.
• Do not vacuum up soot!
• Do not vacuum liquids.
• Only vacuum up the ash of permitted fuels!
• Do not vacuum up hot or burning objects or embers (e.g. cigarettes, charcoal, ashes, etc.). The temperature of the material must be below 40°C.
• Caution! If the temperature of the material exceeds 40°C, there is a risk of fire.

• Attention! Material that appears to have cooled down from the outside may still be very hot inside. This can be determined by combing the ashes with a metal tool before using the device. There will no longer be noticeable heat radiating from the cold ash.

• Hot ash particles may ignite again in the airflow.

• Temperatures exceeding 40°C may damage the vacuum cleaner, the hoses and the filter.
• Please make sure that the oven is cold before you vacuum clean ovens.
• Continuously check tubes, filter and vacuum cleaner for excessive temperatures during the vacuum cleaning.
• If you notice a temperature rise, switch off the vacuum cleaner immediately. Remove the filter and remove the material from the filter. Let the vacuum cleaner cool down under supervision.
• Completely empty the vacuum cleaner after vacuuming.

SAFETY WARNINGS SPECIFIC FOR BLOWING

• Direct air discharge at work area only. Never at people or animals.
• Risk of flying objects. Keep bystanders away from the work area.
• Always wear safety goggles before using the blowing function.

SAFETY WARNINGS FOR BATTERY

a) Do not open the battery. Danger of shortcircuiting.
b) Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.
c) In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
d) Use the battery only in conjunction with your Vonroc product. This measure alone protects the battery against dangerous overload.
e) The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.

SAFETY WARNINGS FOR CHARGER

Intended use

Charge only CD801AA and CD803AA type rechargeable Battery packs with the charger. Other types of batteries may burst causing personal injury and damage.

a) Do not recharging non-rechargeable batteries!

b) During charging, batteries must be placed in the well ventilated area!

2. MACHINE INFORMATION

Intended use

The vacuum cleaner is intended for domestic coldash vacuuming, for example, cleaning a fireplace, barbeque or other ash residue. The vacuum cleaner is equipped with a blowing function. It can be used to blow dust and debris out of garages or of patios and driveways. The device is not suitable for commercial or industrial use.

TECHNICAL SPECIFICATIONS

This manual has been drawn up for different sets / article numbers. Check the corresponding article number in below specifications table for the correct composition and contents of your set.

Model No.	Batteries included	Chargers included
VC507DC	-	-
S_VC507DC	CD801AA CD802AA
S2_VC507DC	2 x CD801AA CD802AA
S3_VC507DC	CD803AA CD802AA

Machine information
Voltage battery 20V	---
Suction force 10 kPA, 0.6m^3/min
Container capacity Approx. 12L
Tube diameter ∅ 35mm
Filter HEPA
Recommended filter VC808AA
Hose length	1.0m
Weight (incl. accessories)	2.4 kg

Model No.	CD801AA
Battery Type	Lithium-Ion
Voltage	20V=
Capacity	2.0 Ah
Recommended charger	CD802AA
Weight	0.3 kg
Model No. CD802AA
Charger input 220-240V, 50Hz 0.4A
Charger output 21V	—— 2.5A
Charging time 2Ah battery 60 minutes
Charging time 4Ah battery 120 minutes
Recommended batteries CD801AA, CD803AA
Weight 0.36 kg

Model No. CD803AA
Battery Type Lithium-Ion
Voltage 20V	——
Capacity 4.0 Ah
Recommended charger CD802AA
Weight 0.65 kg

Only use the following batteries VONROC VPOWER 20V battery platform. Using any other batteries could cause serious injury or damage the tool. CD801AA 20V, 2Ah Lithium-Ion CD803AA 20V, 4Ah Lithium-Ion

The following charger of the can be used to charge these batteries. CD802AA Quick charger

The batteries of the VONROC VPOWER 20V battery platform are interchangeable with all the VONROC VPOWER 20V battery platform tools.

DESCRIPTION

The numbers in the text refer to the diagrams on page 2-3.

1. On/Off switch
2. Carrying handle
3. Vacuum port
4. Blowing port
5. Metal locking clamp
6. Nozzles storage
7. Container
8. Top section
9. Hose
10. Aluminium round nozzle
11. Aluminium crevice nozzle
12. HEPA Filter
13. Filter holder

14. Battery

15. Battery unlock button

16. Battery LED indicators button
17. Battery LED indicators
18. Charger
19. Charger LED indicators

3. ASSEMBLY

Before any work on the power tool, remove the battery.

The battery must be charged before first use.

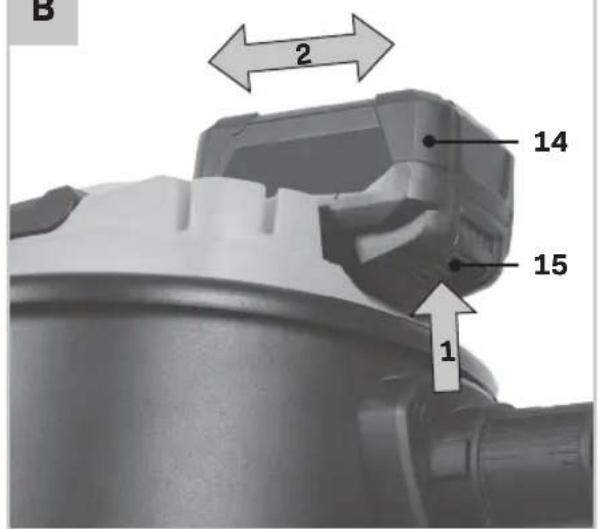

Inserting the battery into the machine (Fig. B)

Ensure that the exterior of the battery is clean and dry before connecting to the charger or machine.

1. Insert the battery (14) into the base of the machine as shown in Fig. B.
2. Push the battery further forward until it clicks into place.

Removing the battery from the machine (Fig. B)

1. Push the battery unlock button (15).
2. Pull the battery out of the machine like shown in Fig. B.

Checking the battery charging status (Fig. C)

• To check the battery charge status, push the button (16) on battery shortly.
• The battery has 3 lights indicating the charge level, the more lights that burn, the more charge the battery has left.
• When the lights are not burning it means the battery is empty and must be charged immediately.

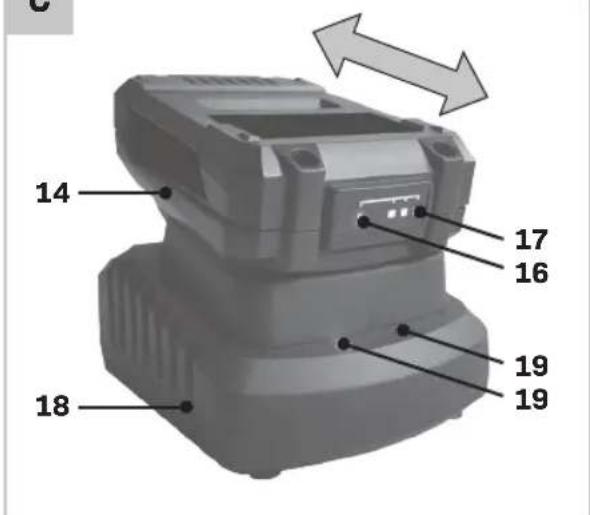

Charging the battery with the charger (Fig. C)

1. Take the battery (14) from the machine.
2. Turn the battery (14) to upside down position and slide it onto the charger (18) as shown in Fig. C.
3. Push the battery until it is fully pushed into the slot.
4. Plug the charger plug into an electrical outlet and wait for a while. The LED indicators on the charger (19) will lighten up and show the charger status.

The charger has 2 LED indicators (19) which indicate the status of the charging process:

Red LED Status	Green LED status	Charger status
Off Off No power
Off On		Standby mode:- No battery is inserted or,- Battery inserted but charging has finished
On Off		Battery charging in progress

• Fully charging the 2Ah battery may take up to 60 minutes.
• Fully charging the 4Ah battery may take up to 120 minutes.

After the battery is fully charged remove the charger plug from the outlet and remove the battery from the charger.

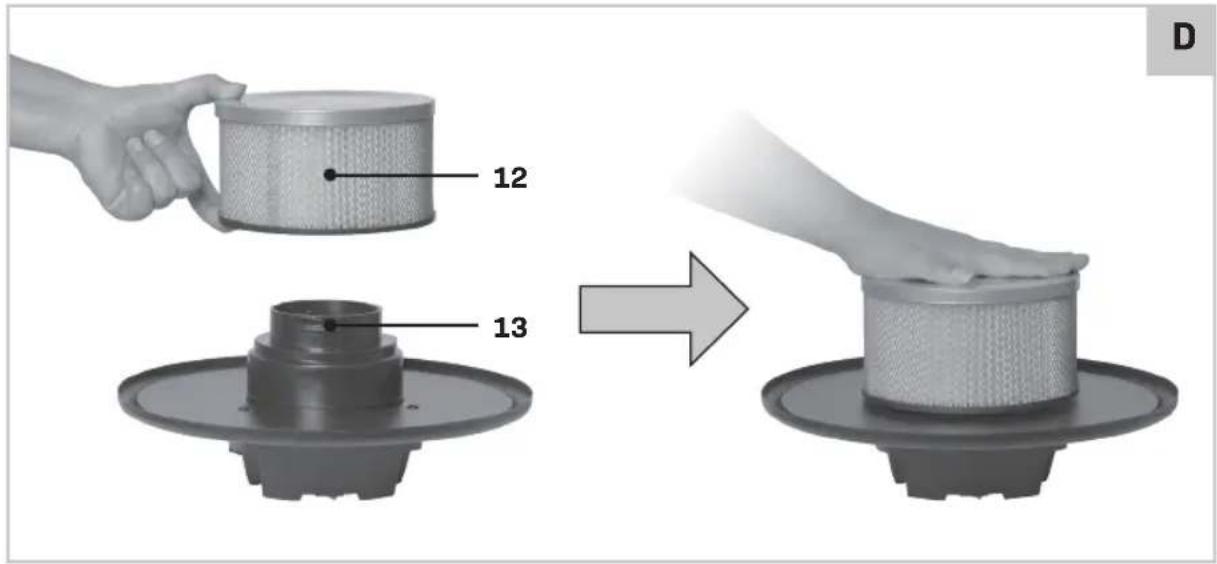

- Slide the HEPA filter (12) over the filter holder(13) as shown in Fig. D.

Clean the HEPA filter (12) regularly and after every heavy use to maintain the suction power.

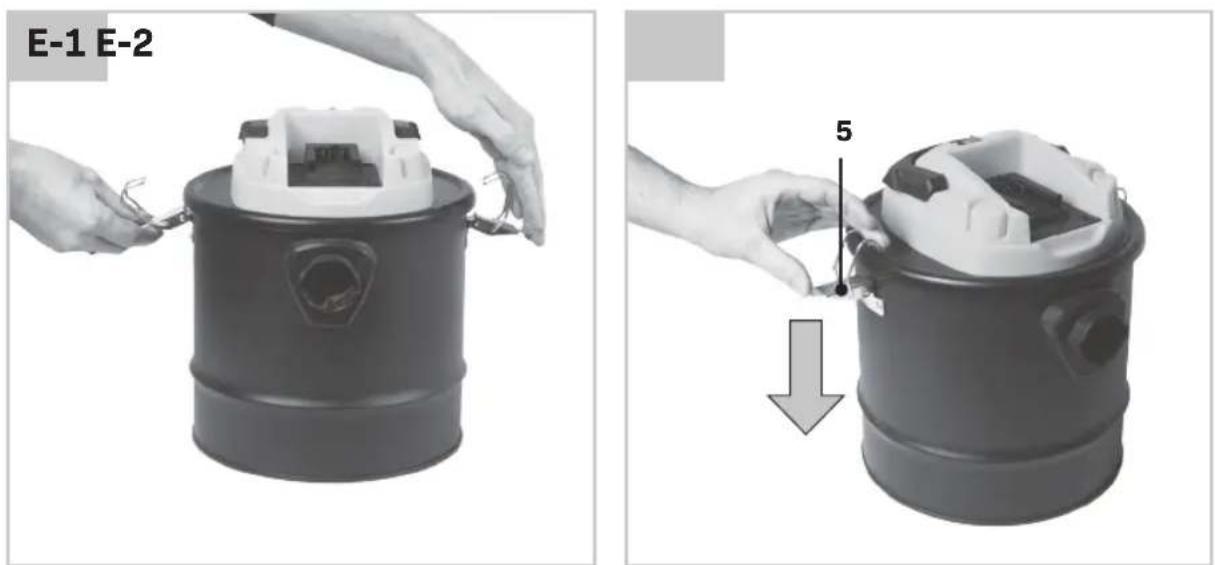

• Place the top section (8) on the container (7) as shown in Fig. E-1.
• Secure the metal locking clamps (5) of the container to the top section (8) as show in Fig. E-2.
• Close the metal locking clamps (5) by pushing them downwards.

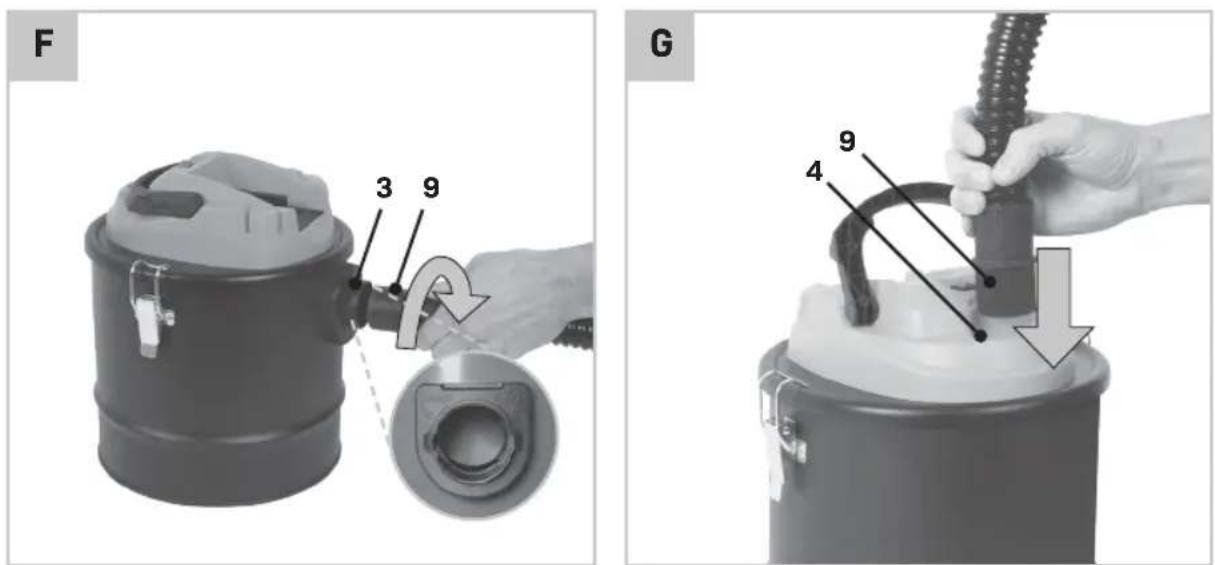

• Connect the suction hose (9). For vacuuming (Fig. F): Connect the suction hose (9) to the vacuum port (3). For blowing (Fig. G): Connect the suction hose (9) to the blowing port (4).
• Connect the round nozzle (10) or the crevize nozzle (11) to the hose (9).

4. OPERATION

Switching the machine on/off (Fig.A)

Do not vacuum without a Hepa filter!

• To switch on the vacuum cleaner, move the On/Off switch (1) forwards (direction ON).
• To switch off the vacuum cleaner, move the On/Off switch (1) backwards (direction OFF).

Vacuuming (Fig. D, E-1, E-2, F)

Clean the HEPA filter (12) regularly and after every heavy use to maintain the suction power.

Fine dust, such as dust from cement, soot and plaster are too fine to be used. Risk for getting into the motor and damaging it.

1. Switch off (1) the machine and remove the battery (14).
2. Unlock the metal locking clamps (5) and remove the top section (8).
3. Before vacuuming, remove all dirt and debris from the container (7).
4. Fit the filter. Carefully slide the HEPA filter (12) over the filter holder (13) as shown in Fig. D.
5. Place the top section (8) on the container (7) as shown in Fig. E-1.
6. Reattach the top section (8) again and lock the locking clamps (5). Fig E-2.
7. Insert one end of the hose (9) into the vacuuming port (3).
8. Place the battery (14).
9. Press the power switch (1) into the "ON/1" position to start your ash cleaner.
10. The machine now is ready to use for vacuum cleaning.
11. Press the power switch (1) into the “OFF/0” position to switch off your ash cleaner.

Blow function (Fig. E-1, E-2, G)

Operation without the use of a filter is recommended.

Remove all dirt and debris from the container(7) before you use the blow function.

Always wear safety goggles before using the blowing function.

Risk of flying objects. Keep bystanders away from the work area.

Your ash cleaner is equipped with a blowing function. This function can be used to blow ash remains and dust out of corners and crevices which are difficult to access with vacuuming.

1. Switch off (1) the machine and remove the battery (14).
2. Unlock the locking clamp (5) and remove the top section (8).
3. Before blowing, remove the filter (12) and remove all dirt and debris from the container (7).
4. Reattach the top section (8) again and lock the locking clamps (5). Fig. E-1, E-2.
5. Insert one end of the hose (9) into the blowing port (4) on top of machine. Fig. G.
6. Place the battery (14).
7. Press the power switch (1) into the "ON/1" position to start your ash cleaner.
8. The machine is now ready for blowing ashes and dust.
9. Press the power switch (1) into the "OFF/0" position to switch off your machine.

Finish operation (Fig. F)

1. Turn off (1) the machine and remove the battery (14).
2. Remove the top section (8) and empty the container (7).
3. Clean the machine with a soft cloth.
4. Disconnect hose, tube and container.
5. Clean hose connectors, hose and tube after use, and keep them unblocked.
6. Stow away the hose and accessory at the machine. Store the appliance in a dry room.

5. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the battery pack from the machine.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

Filters (Fig. B)

For optimal performance it is recommended to regularly change the filter (12) depending on level of use.

1. Carefully remove HEPA filter (12).
2. Clean the dust on the HEPA filter (12) with a brush, and if necessary, wash it.
3. Do not use cleaning products, solvents or sharp objects for any cleaning of the appliance, this includeds the washable HEPA filter
4. Allow filter to air dry before installing and using again.
5. Reinstall the filter.

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
• Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.
