Montage

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow

the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

36 | English

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Machine-specific Safety Warnings

• Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
• Keep your workplace clean. Blends of materials are particularly dangerous. Dust from light alloys can burn or explode.
  ▶ Never leave the machine before it has come to a complete stop. Cutting tools that are still running can cause injuries.
  ▶ Never use the machine with a damaged cable. Do not touch the damaged cable and pull the mains plug when the cable is damaged while working. Damaged cables increase the risk of an electric shock.
  ▶ Never make warning signs on the machine unrecognisable.
  ▶ Never stand on the power tool. Serious injuries can occur when the power tool tips over or when inadvertently coming into contact with the saw blade.
  ▶ Make sure that the guard operates properly and that it can move freely. Never lock the guard in place when opened.

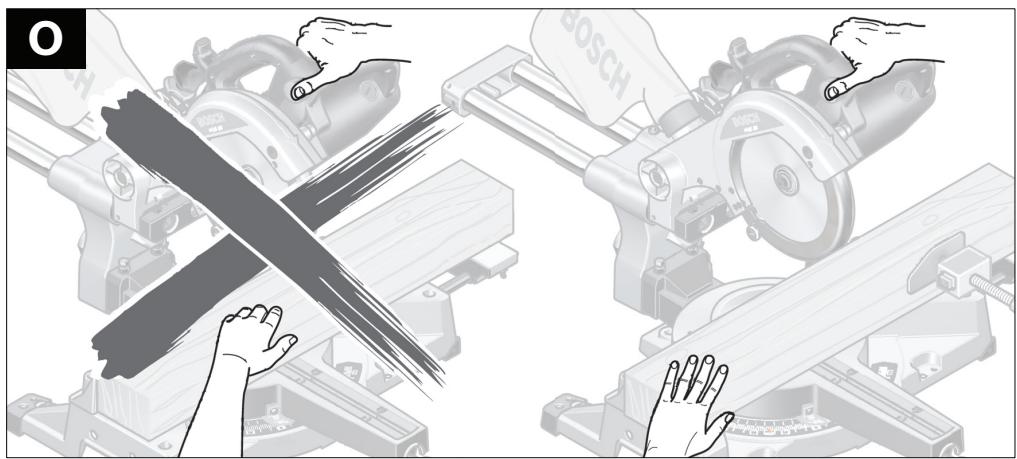

  ▶ Keep hands away from the cutting area while the machine is running. Danger of injury when coming in contact with the saw blade.
  ▶ Never remove cutting remainders, wood chips, etc. from the sawing area while the machine is running. Always guide the tool arm back to the neutral position first and then switch the machine off.

▶ Guide the saw blade against the workpiece only when the machine is switched on. Otherwise there is damage of kickback, when the saw blade becomes wedged in the workpiece.
▶ Operate the power tool only when the work area to the workpiece is clear of any adjusting tools, wood chips, etc. Small pieces of wood or other objects that come in contact with the rotating saw blade can strike the operator with high speed.
▶ Always firmly clamp the piece to be worked. Do not saw workpieces that are too small to clamp. Otherwise, the clearance of your hand to the rotating saw blade is too small.
▶ Operate the machine only for materials mentioned under “Intended Use”. Otherwise, the machine can be subject to overload.
▶ Do not use dull, cracked, bent or damaged saw blades. Unsharpened or improperly set saw blades produce narrow kerf causing excessive friction, blade binding and kickback.

▶ Always use saw blades with correct size and shape (diamond versus round) of arbor holes. Saw blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
▶ Do not use high speed steel (HSS) saw blades. Such saw blades can easily break.
▶ Do not touch the saw blade after working before it has cooled. The saw blade becomes very hot while working.
▶ Never operate the machine without the insert plate. Replace a defective insert plate. Without flawless insert plates, injuries are possible from the saw blade.
▶ Do not direct the laser beam at persons or animals and do not stare into the laser beam yourself, not even from a distance. This power tool produces laser class 2 laser radiation according to EN 60825-1. Other persons could be blinded unintentionally.
▶ Do not allow children unsupervised use of the power tool with laser. They could blind other people.
▶ Do not replace the installed laser with another laser type. A laser that does not fit to this power tool could pose dangers for other persons.

Symbols

The following symbols can be important for the operation of your power tool. Please memorise the symbols and their meanings. The correct interpretation of the symbols helps you operate the power tool better and more secure.

Symbol

Meaning

▶ Do not direct the laser beam at persons or animals and do not stare into the laser beam yourself, not even from a distance. This power tool produces laser class 2 laser radiation according to EN 60825-1. Other persons could be blinded unintentionally.

Only for EC countries:

Do not dispose of power tools into household waste! According to the European Directive 2002/96/EC on waste electrical and electronic equipment and its incorporation into national law, power tools that are no longer suitable for use must be separately collected and sent for recovery in an environmental-friendly manner.

38 | English

Symbol

Meaning

▶ Wear safety goggles.

▶ Wear a dust respirator.

▶ Wear hearing protection. Exposure to noise can cause hearing loss.

▶ Danger area! Keep hands, fingers or arms away from this area.

Observe the dimensions of the saw blade. The hole diameter must match the tool spindle without play. Do not use reducers or adapters.

Delivery Scope

Functional Description

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Intended Use

The power tool is intended as a stationary machine for making straight lengthways and crossways cuts in wood. Horizontal mitre angles of -50^ to +58^ as well as vertical bevel angles of 0^ to 45^ are possible.

The machine is designed with sufficient capacity for sawing hard and softwood as well as press and particle board.

Product Features

The numbering of the components shown refers to the representation of the power tool on the graphic pages.

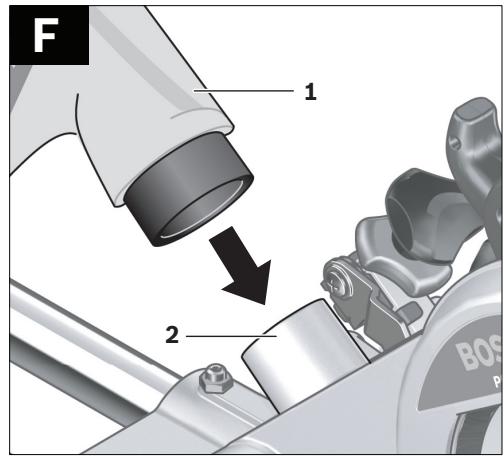

1 Dust bag
2 Sawdust ejector
3 Cable holder

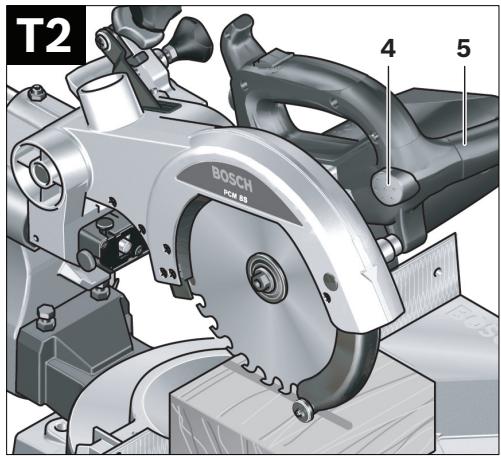

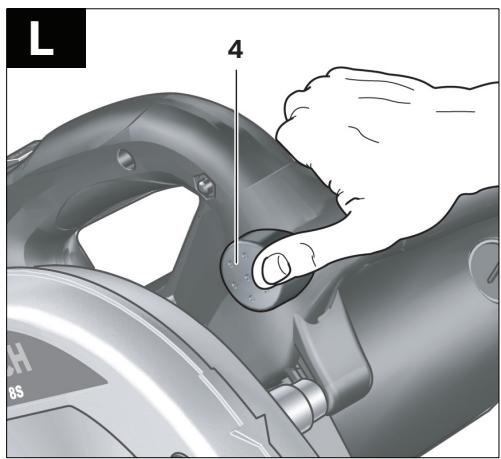

4 Button for releasing the tool arm
5 Handle
6 Blade guard

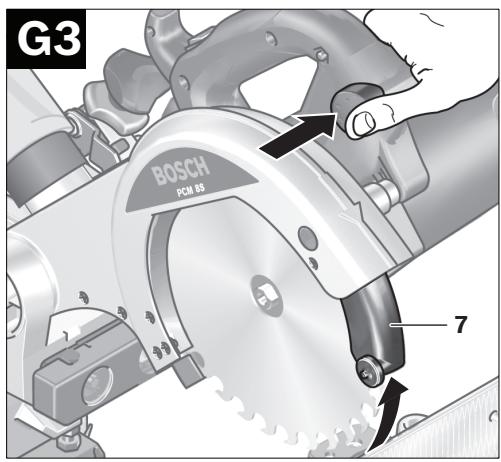

7 Retracting blade guard
8 Saw blade
9 Roller
10 Fence
11 Holes for quick-action clamp
12 Insert plates
13 Locking knob for various mitre angles (horizontal)

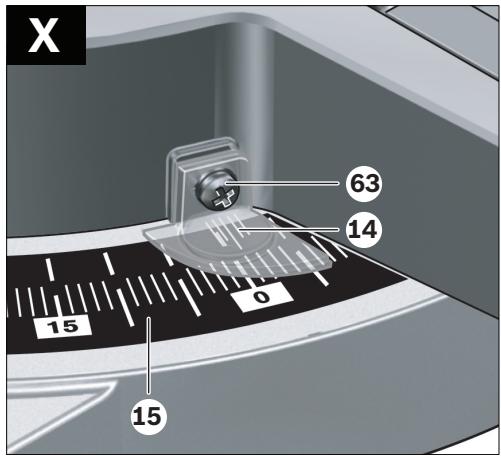

14 Angle indicator (horizontal)
15 Scale for mitre angle (horizontal)

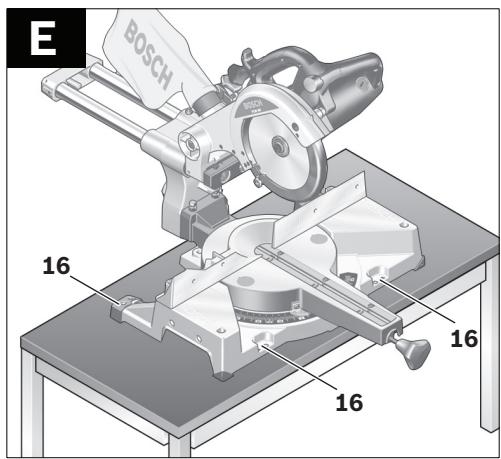

16 Mounting holes
17 Saw table
18 Drill holes for extension bars
19 Extension bar
20 Allen key (size 6 mm)/Phillips screwdriver

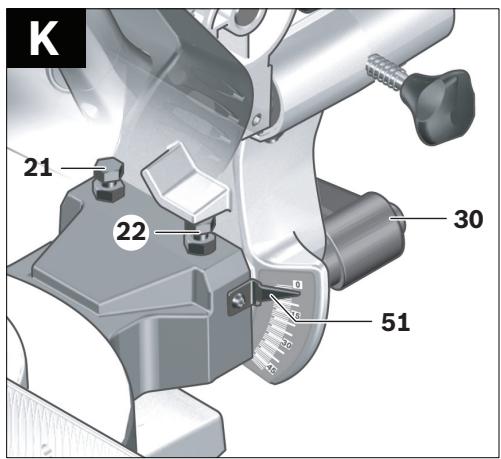

21 Stop screw for 45° bevel angle (vertical)

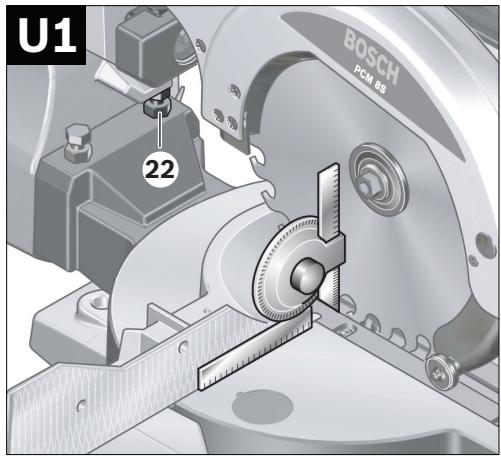

22 Stop screw for 0° bevel angle (vertical)
23 Laser unit

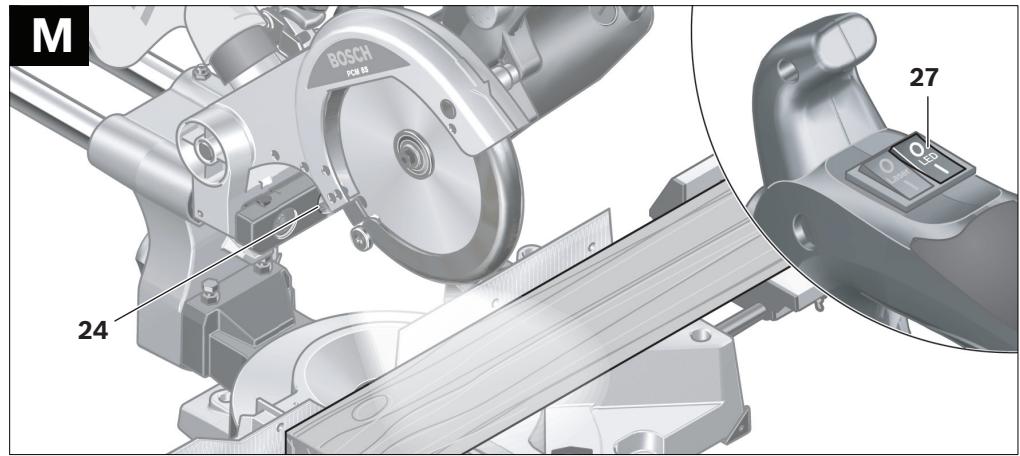

24 Lighting unit (Power Light)
25 Slide device
26 Transport handle
27 Switch for light ("LED")

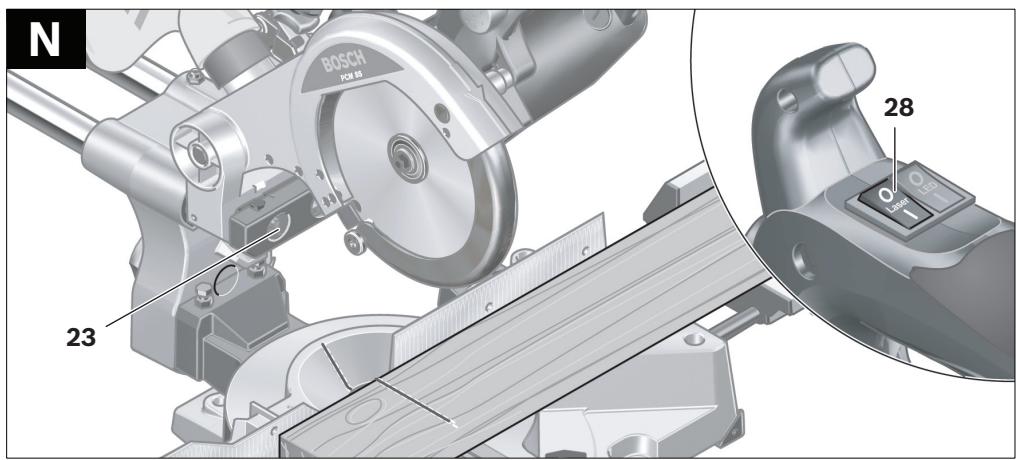

28 Switch for marking of cutting line ("Laser")
29 Depth stop
30 Clamping lever for various bevel angles (vertical)

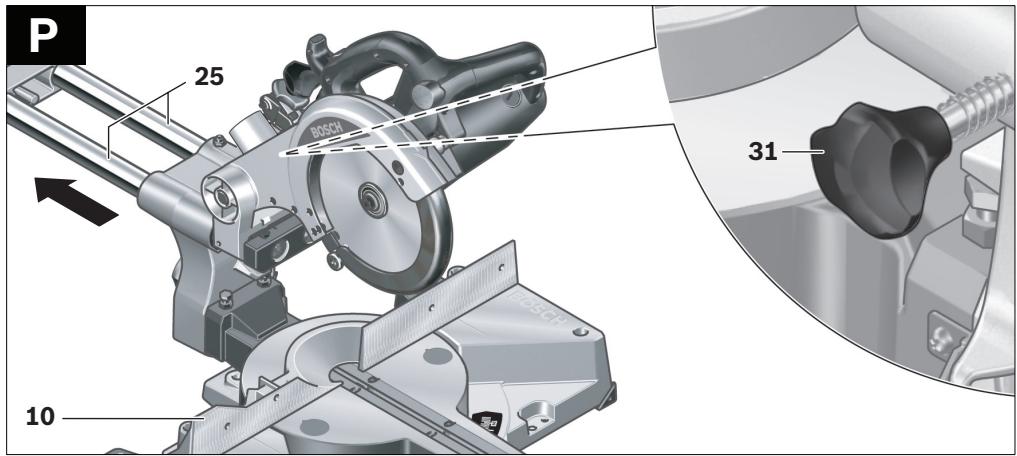

31 Locking screw for slide device

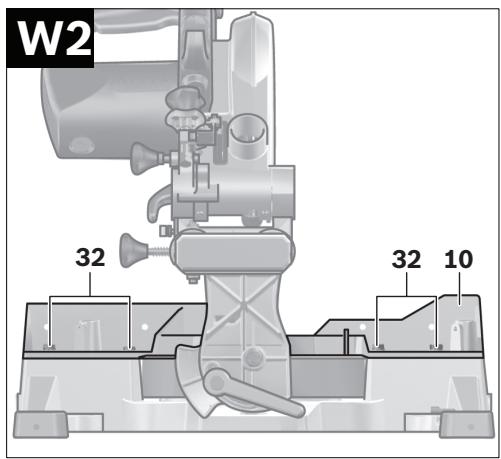

32 Allen screws (6 mm) of the fence

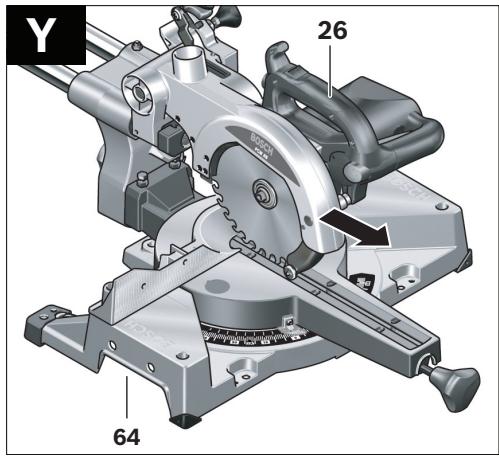

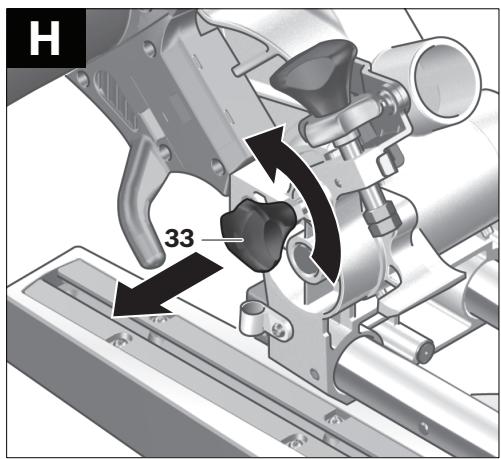

33 Transport safety-lock
34 Battery compartment
35 On/Off switch
36 Length stop
37 Saw table extension
38 Fastening kit for extension bar
39 Casing fin

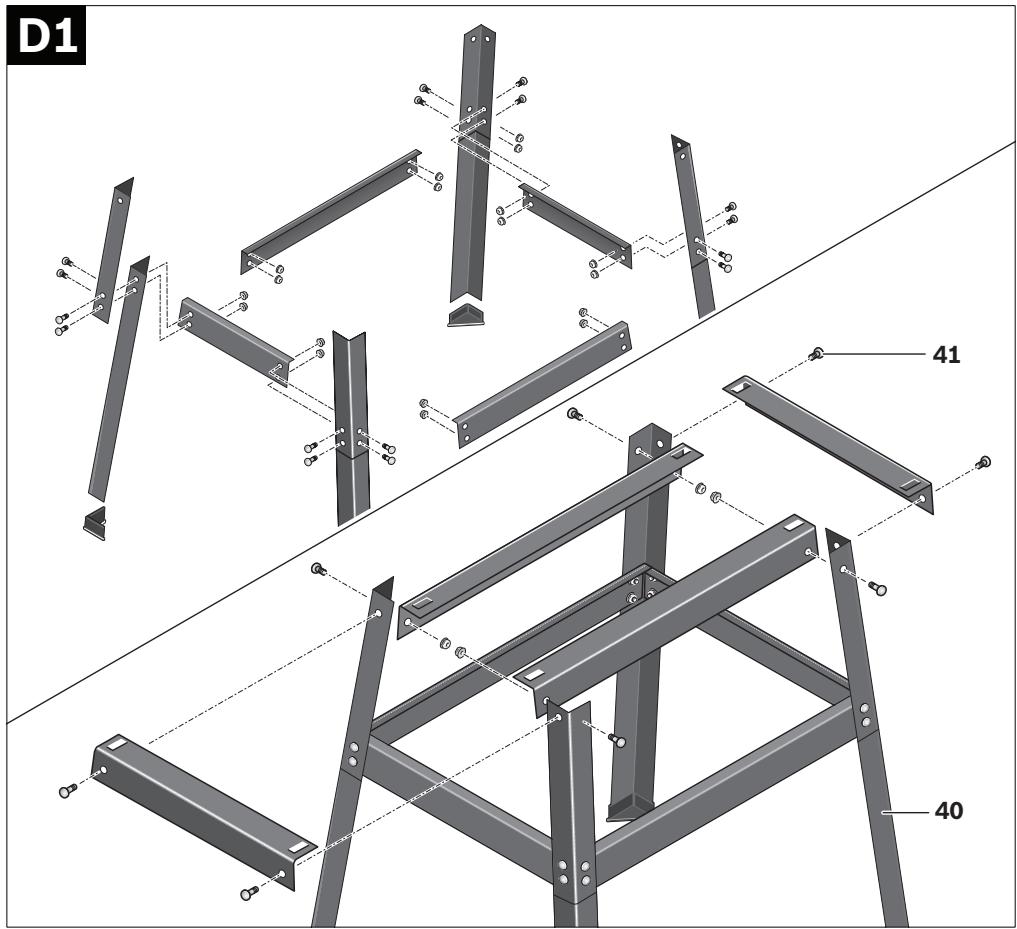

40 Base unit*
41 Fastening kit for "base unit"*

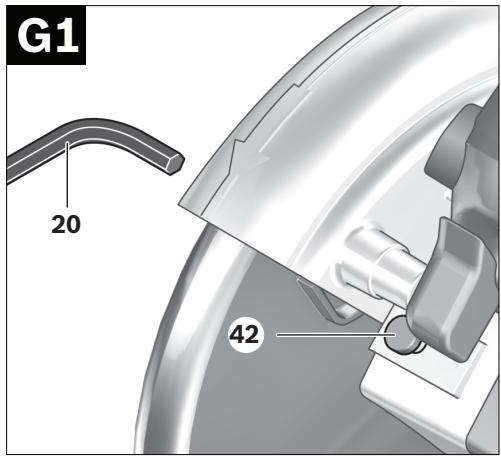

42 Spindle lock

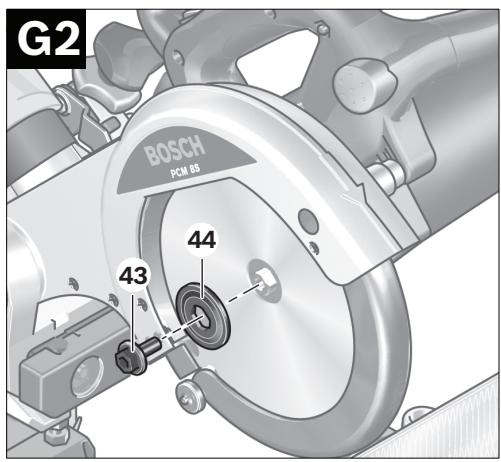

43 Allen screw (size 6 mm) for mounting of saw blade
44 Clamping flange

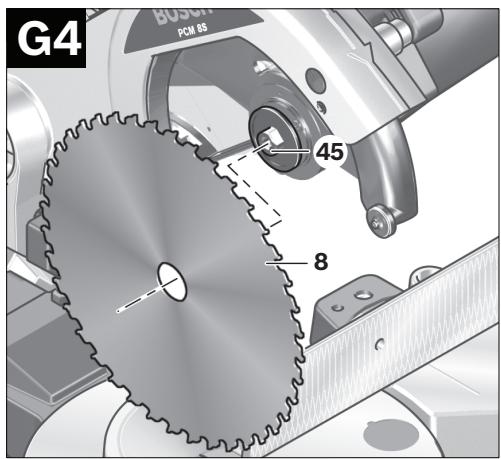

45 Interior clamping flange

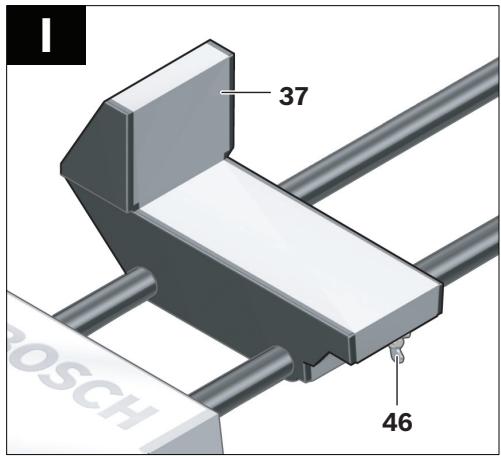

46 Wing nut for locking of the saw-table extension

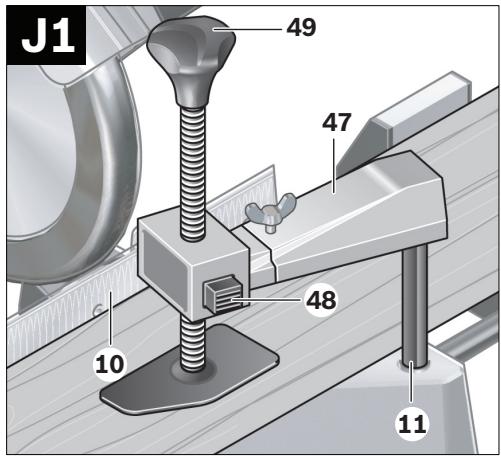

47 Quick-clamping fixture
48 Quick-release button
49 Locking knob of the quick-action clamp

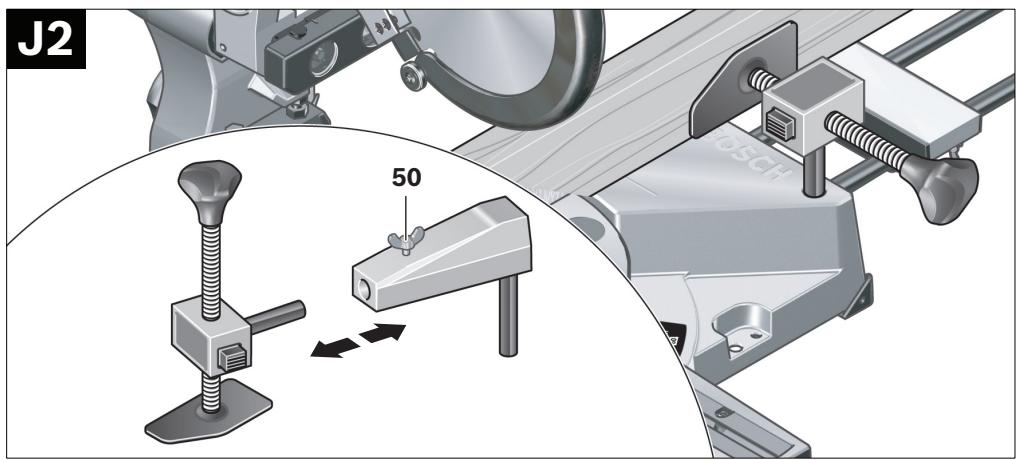

50 Wing nut of the quick-action clamp
51 Angle indicator (vertical)

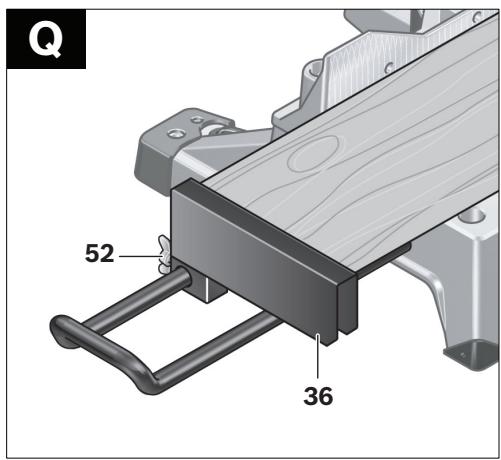

52 Wing nut for locking of the length stop

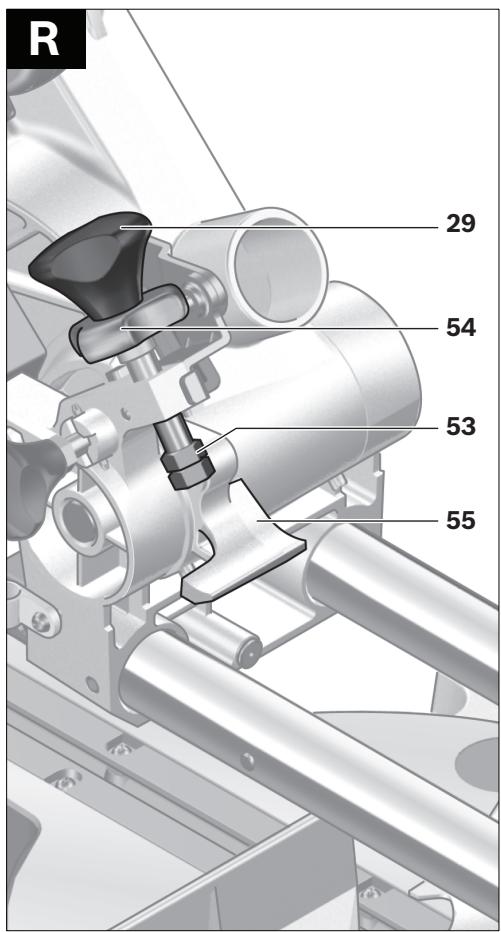

53 Lock nuts of the depth stop
54 Stop nut of the depth stop
55 Casing stop for depth stop

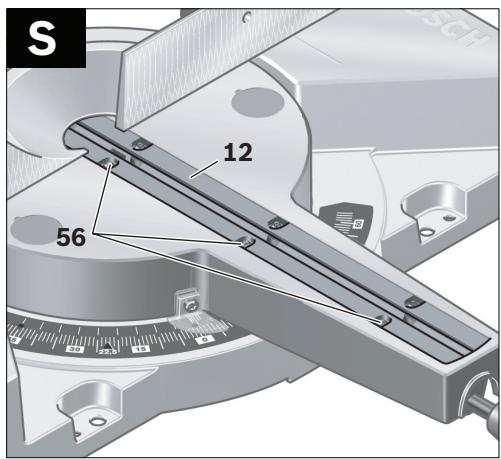

56 Screws for insert plate

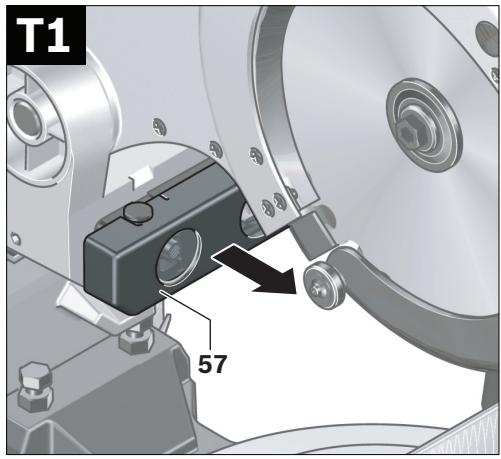

57 Cover
58 Knurled screw

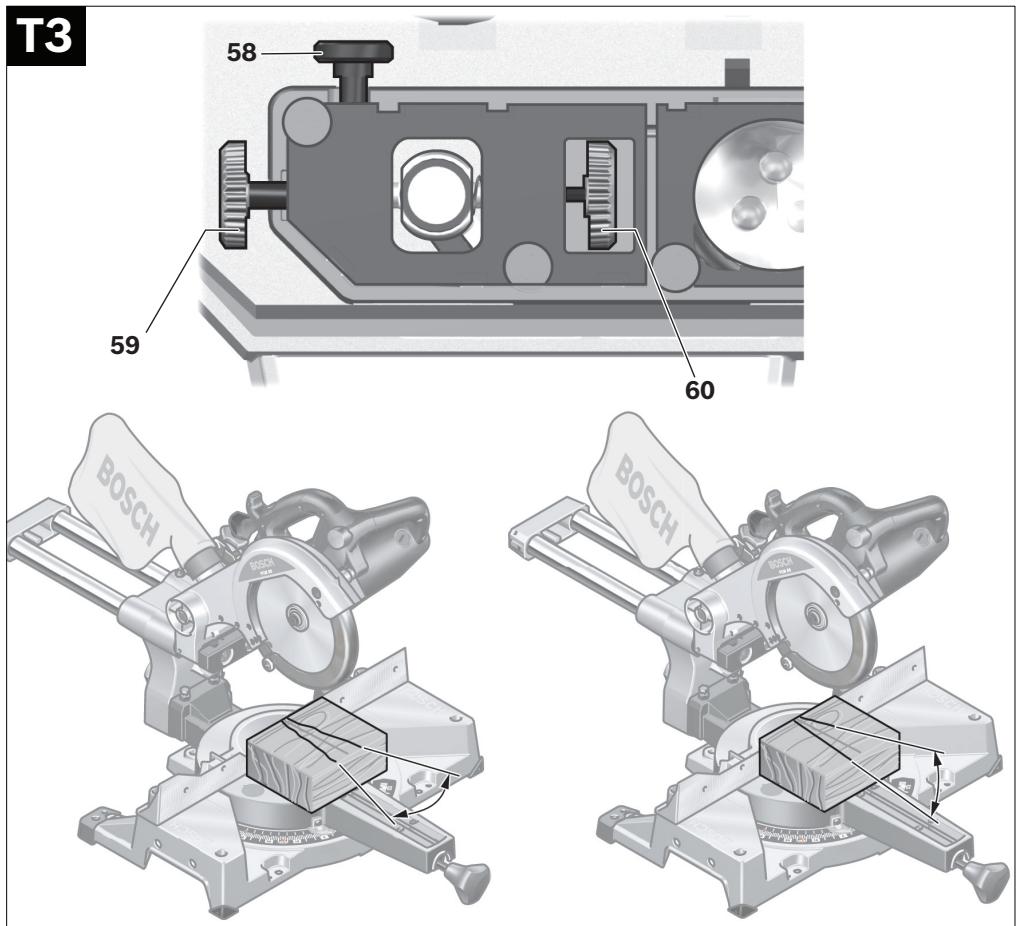

59 Set screw for horizontal laser positioning
60 Set screw for vertical laser positioning

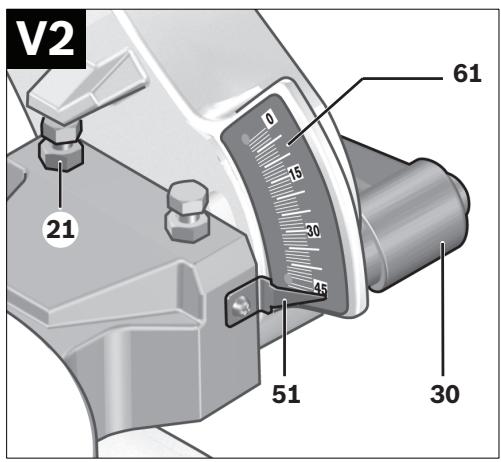

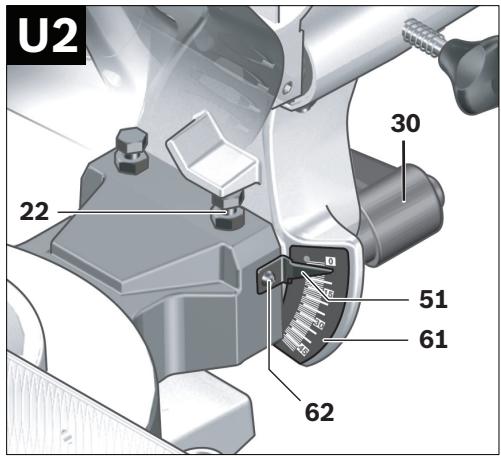

61 Scale for bevel angle (vertical)
62 Screw for angle indicator (vertical)
63 Screw for angle indicator (horizontal)
64 Recessed grips

*The accessories illustrated or described are not included as standard delivery.

40 | English

Technical Data

Sliding Mitre Saw		PCM 8 S
Article number		3 603 L02 0..
Rated power input	W	1200
Rated voltage	V	230
Frequency	Hz	50
No-load speed	rpm	5200
Laser type		650 nm, < 1mW
Laser class		2
Weight according to EPTA-Procedure 01/2003	kg	18.7
Protection class		/II

Maximum workpiece dimensions, see page 45.

Starting cycles generate brief voltage drops. Interference with other equipment/machines may occur in case of unfavourable mains system conditions. Malfunctions are not to be expected for system impedances below 0.24 ohm.

The values given are valid for nominal voltages [U] of 230/240 V. For lower voltage and models for specific countries, these values can vary.

Please observe the article number on the type plate of your machine. The trade names of the individual machines may vary.

Dimension of suitable saw blades

Saw blade diameter	mm	210
Blade thickness	mm	1.4-2.0
Saw blade mounting hole	mm	30

Noise/Vibration Information

Measured values determined according to EN 61029.

Typically the A-weighted noise levels of the product are: Sound pressure level 98 dB(A); Sound power level 111 dB(A). Uncertainty K = 3 dB.

Wear hearing protection!

The hand-arm acceleration is typically below 2.5 m/s^2 .

Declaration of Conformity CE

We declare under our sole responsibility that the product described under “Technical Data” is in conformity with the following standards or standardization documents: EN 61029, EN 60825-1 according to the provisions of the directives 2004/108/EC, 98/37/EC (until Dec. 28, 2009), 2006/42/EG (from Dec. 29, 2009 on).

Technical file at:

Robert Bosch GmbH, Dept. PT/ESC, D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Macaca i.v. Nuoyen

27.11.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Assembly

▶ Avoid unintentional starting of the machine. During assembly and for all work on the machine, the power plug must not be connected to the mains supply.

Delivery Scope

Please also observe the representation of the delivery scope at the beginning of the operating instructions.

Before starting the operation of the machine for the first time, check if all parts listed below have been supplied:

• Sliding mitre saw with premounted saw blade
• Dust bag 1
• Locking knob 13
• Extension bar 19 (2x)
• Fastening kit for extension bar 38 (2 U-profiles with screws)
• Saw-table extension 37
• Length stop 36
• Quick-action clamp 47
• Allen key/Phillips screwdriver 20
• Batteries (3x, size AAA, 1,5 V)

for machine versions with base unit:

• Base unit 40 (16 Profiles, 4 end caps)
• Fastening kit for base unit 41 (24 screws with nuts for assembly, 4 screws with nuts for fastening of the machine, 4 washers)

Note: Check the power tool for possible damage.

Before further use of the machine, check that all protective devices are fully functional. Any lightly damaged parts must be carefully checked to ensure flawless operation of the tool. All parts must be properly mounted and all conditions fulfilled that ensure faultless operation.

Damaged protective devices and parts must be immediately replaced by an authorised service centre.

Mounting Individual Components

• Carefully remove all parts included in the delivery from their packaging.
• Remove all packaging material from the machine and the accessories provided.
• For easier working when mounting the supplied product features, please observe that the machine is in the transport position.

Additionally required tools (not in delivery scope):

• Phillips screwdriver
• Angle gauge
• Box-end or open-end spanner (size 12 mm) for assembly of the base unit
• Box-end or open-end spanner (size 14 mm) for the lock nuts of the depth stop
• Box-end or open-end spanner (size 10 mm) for basic adjustment of the bevel angles (vertical)

Mounting the Saw Table Extension and the Length Stop

(see figure A)

The saw table extension 37 and the length stop 36 can be positioned left or right from the machine.

• Mount the saw table extension and the length stop to the requested extension bar 19 as required and tighten the corresponding wing nut.

Mounting the Extension Bars

(see figure A)

For mounting, use the extension-bar fastening kit 38. (2 U-profiles with screws)

• Tilt the power tool in such a manner that the extension bars can be affixed to the bottom side of the saw-table casing.
• Hold a U-profile over a casing fin 39 so that the drill holes of both parts are in alignment.
• Insert an extension bar through the drill holes 18, the U-profile and the casing fins to the stop.
• Tighten the screw of the U-profile to secure the extension bar.
• Repeat the work steps for the second extension bar on the other side of the saw-table casing.

42 | English

Mounting the Locking Knob

(see figure B)

• Screw the locking knob 13 into the corresponding threaded hole below the insert plates 12.
  ▶ Always tighten the locking knob 13 firmly before sawing. Otherwise the saw blade can become wedged in the workpiece.

Inserting the Batteries

(see figure C)

• Open the battery compartment 34.
• Insert the batteries provided according to the specified polarity.
• Close the battery compartment.

Stationary or Flexible Mounting

▶ To ensure safe handling, the machine must be mounted on a level and stable surface (e.g., workbench) prior to using.

Mounting with Base Unit

(see figures D1–D2)

For mounting, use the base-unit fastening kit 41. (24 screws with nuts for assembly, 4 screws with nuts for fastening of the machine, 4 washers)

• Screw the base unit 40 together. Tighten the screws firmly.
• Fasten the power tool to the supporting surface of the base unit. For this, use the mounting holes 16 of the power tool as well as the slots in the base unit.

Mounting without Base Unit

(see figure E)

- Fasten the power tool with suitable screw fasteners to the working surface. The holes 16 serve for this purpose.

Dust/Chip Extraction

Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health. Touching or breathing-in the dusts can cause allergic reactions and/or lead to respiratory infections of the user or bystanders.

Certain dusts, such as oak or beech dust, are considered as carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists.

• Use dust extraction whenever possible.
• Provide for good ventilation of the working place.
• It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the materials to be worked.

Integrated Dust Extraction

(see figure F)

- Mount the dust bag 1 onto the sawdust ejector 2.

During sawing, the dust bag must never come into contact with the movable machine parts.

Always empty the dust bag in good time.

External Dust Extraction

For dust extraction, a vacuum hose (size ∅ 36 mm) can also be connected to the dust ejector.

The vacuum cleaner must be suitable for the material being worked.

When vacuuming dry dust that is especially detrimental to health or carcinogenic, use a special vacuum cleaner.

Changing the Tool

(see figures G1–G4)

- When mounting the saw blade, wear protective gloves. Danger of injury when touching the saw blade.

Use only saw blades whose maximum permitted speed is higher than the no-load speed of the power tool.

Use only saw blades that correspond with the characteristic data given in these operation instructions and that are tested and marked in accordance with EN 847-1.

Removing the Saw Blade

• Bring the power tool into the working position.
• Pull the transport safety-lock 33 all the way outward and turn it by 90^ . Allow the transport safety-lock to engage in this position.

The tool arm is now locked in the working position.

• Turn the Allen screw 43 with the Allen key 20 provided while at the same time pressing the spindle lock 42 until it engages.
• Hold the spindle lock 42 pressed and unscrew the Allen screw 43 in clockwise direction (left-hand thread!).
• Remove the clamping flange 44.
• Press button 4 and tilt back the retracting blade guard 7 to the stop.
• Hold the retracting blade guard in this position and remove the saw blade 8.
• Slowly guide the retracting blade guard downward again.

Mounting the Saw Blade

If required, clean all parts to be mounted prior to assembly.

• Press button 4, tilt back the retracting blade guard 7 to the stop and hold it in this position.
• Place the new saw blade onto the interior clamping flange 45.

When mounting the saw blade, pay attention that the cutting direction of the teeth (arrow direction on the saw blade) corresponds with the direction of the arrow on the blade guard!

- Slowly guide the retracting blade guard downward again.

- Place on the clamping flange 44 and the Allen screw 43. Press the spindle lock 42 until it engages and tighten the Allen screw turning in anticlockwise direction.

- For working afterwards, the tool arm must be released again. For this, loosen the transport-safety lock 33 by pulling it outward and turning by 90^ .

Operation

▶ Before any work on the machine itself, pull the mains plug.

Transport Safety

(see figure H)

The transport safety-lock 33 enables easier handling of the machine when transporting to various working locations.

Releasing the Machine (Working Position)

• Push the tool arm by the handle 5 down a little in order to relieve the transport safety-lock 33.
• Pull the transport safety-lock 33 all the way outward and turn it by 90^ . Allow the transport safety-lock to engage in this position.
  – Guide the tool arm slowly upward.

Securing the Machine (Transport Position)

• Loosen the locking screw 31 if tightened. Pull the tool arm completely to the front and tighten the locking screw again.
• Screw the depth stop 29 completely to the top. (see “Adjusting the Depth Stop”, page 46)
• To lock the saw table 17, tighten the locking knob 13.
• Press button 4 and tilt down the tool arm by the handle 5.
• Pull the transport safety-lock 33 all the way outward and turn it by 90^ . Allow the transport safety-lock to engage in this position.
• The tool arm is now securely locked for transport.

Extending the Saw Table

(see figure 1)

Long workpieces must be underlaid or supported at their free end.

- Loosen the wing nut 46 and pull the saw table extension 37 on the extension bar outward to the distance required.

- Tighten the wing nut again.

44 | English

Clamping the Workpiece

To ensure optimum working safety, the workpiece must always be firmly clamped.

Do not saw workpieces that are too small to clamp.

Vertical Clamping

(see figure J1)

• Insert the quick-action clamp 47 provided into one of the holes 11 intended for this purpose.
• Press the workpiece firmly against the fence 10.
• Press the quick-release button 48 and adapt the quick-action clamp to the workpiece.
• Afterwards, turn the locking knob 49 in clockwise direction to clamp the workpiece.

Horizontal Clamping

(see figure J2)

• Loosen wing nut 50 and pull the quick-action clamp apart.
• Insert the now “reduced” quick-action clamp 47 into one of the holes 11 intended for this purpose.
• Press the workpiece firmly against the saw table 17.
• Press the quick-release button 48 and adapt the quick-action clamp to the workpiece.
• Afterwards, turn the locking knob 49 in clockwise direction to clamp the workpiece.

Loosening the Workpiece

• To release the quick-action clamp, firstly turn the loosening knob 49 in anticlockwise direction.
• Now press on the quick-release button 48 and pull the threaded rod away from the workpiece.

Adjusting the Cutting Angle

To ensure precise cuts, the basic adjustment of the machine must be checked and adjusted as necessary after intensive use (see “Checking and Adjusting the Basic Adjustment”, page 48).

▶ Always tighten the locking knob 13 firmly before sawing. Otherwise the saw blade can become wedged in the workpiece.

Adjusting Horizontal Mitre Angles

The horizontal mitre angle can be set in the range from 50^ (left side) to 58^ (right side).

• Loosen the locking knob 13 in case it is tightened.
• Turn the saw table 17 left or right by the locking knob until the angle indicator 14 indicates the requested mitre angle.
• Tighten the locking knob 13 again.

For quick and precise setting of often used mi-tre angles, the saw table 17 engages at the detents of the following standard angles:

Left	Right
0°
15°; 22,5°;30°; 45°	15°; 22,5°;30°; 45°

• Loosen the locking knob 13 in case it is tightened.
• Turn the saw table 24 left or right by the locking knob until the requested standard mitre angle engages.

Adjusting Vertical Bevel Angles

(see figure K)

The vertical bevel angle can be set in the range from 0^ to 45^ .

• Loosen the clamping lever 30.
• Tilt the tool arm by the handle 5 until the angle indicator 51 indicates the desired bevel angle.
• Hold the tool arm in this position and retighten the clamping handle 30.

For quick and precise setting of the standard angles 0^ and 45^ factory-set stop screws are provided.

- For this, tilt the tool arm by the handle 5 to the stop toward the right (0°) or to the stop toward the left (45°).

Starting Operation

Switching On

- For starting operation, pull the On/Off switch 35 in the direction of the handle 5.

Note: For safety reasons, the On/Off switch 35 cannot be locked; it must remain pressed during the entire operation.

The tool arm can be guided down only after pressing button 4.

- For sawing, button 4 must be pressed in addition to pulling the On/Off switch. (see figure L)

Switching Off

- To switch off the machine, release the On/Off switch 35.

Working Advice

General Sawing Instructions

For all cuts, it must first be ensured that the saw blade at no time can come in contact with the fence, screw clamps or other machine parts. Remove possibly mounted auxiliary stops or adjust them accordingly.

Protect the saw blade against impact and shock. Do not subject the saw blade to lateral pressure.

Do not saw warped/bent workpieces. The workpiece must always have a straight edge to face against the fence.

Illuminating the Work Area (Power Light)

(see figure M)

Provide for sufficient lighting of the direct working area.

- For this, switch on the lighting unit 24 with the switch 27.

Marking the Cutting Line

(see figure N)

A laser beam indicates the cutting line of the saw blade. This allows for exact positioning of the workpiece for sawing, without having to open the retracting blade guard.

• For this, switch the laser beam on with the switch 28.
• Align the cutting mark on your workpiece with reference to the right-hand edge of the laser line.

Before sawing, check if the cutting line is still indicated correctly (see “Adjusting the Laser”, page 48). The laser beam, as an example, can misadjust due to vibrations after intensive use.

Hand Positioning

(see figure O)

Keep hands, fingers and arms away from the rotating saw blade.

Do not cross your arms when operating the tool arm.

Maximum Workpiece Dimensions

Mitre/Bevel Angle		Height x Width [mm]
Horizontal	Vertical
90°	90°	70 x 282
45°	90°	70 x 200
90°	45°	35 x 282

Sawing without Slide Movement (Cutting Off) (see figure P)

• For cuts without slide movement (small workpieces), loosen the locking screw 31 in case it is tightened. Slide the tool arm to the stop in the direction of the fence 10 and retighten the locking screw 31.
• Firmly clamp the workpiece as appropriate for its dimensions.
• Set the desired mitre angle.
• Switch on the machine.
• Press button 4 and guide the tool arm slowly downward with handle 5.
• Saw through the workpiece applying uniform feed.
• Switch off the machine and wait until the saw blade has come to a complete stop.
• Guide the tool arm slowly upward.

46 | English

Sawing with Slide Movement

• For cuts using the slide device 25 (wide workpieces), loosen the locking screw 31 in case it is tightened.
• Firmly clamp the workpiece as appropriate for its dimensions.
• Set the desired mitre angle.
• Pull the tool arm away from the fence 10 far enough so that the saw blade is in front of the workpiece.
• Switch on the machine.
• Press button 4 and guide the tool arm slowly downward with handle 5.
• Press the tool arm in the direction of the fence 10 and saw through the workpiece applying uniform feed.
• Switch off the machine and wait until the saw blade has come to a complete stop.
  – Guide the tool arm slowly upward.

Sawing Workpieces of the Same Length

(see figure Q)

The length stop 36 can be used for easily sawing workpieces to the same length.

• Loosen wing nut 52 and position the length stop to the requested distance to the saw blade.
• Tighten the wing nut again.
• Position the workpiece against the stop. Check again with the cutting line marked by the laser if the length stop is positioned correctly.
• Saw this and the other workpieces to the same length according to the work steps in the section “Sawing”.

Adjusting the Depth Stop (Sawing Grooves)

(see figure R)

The depth stop must be adjusted when a butt gap is to be sawed.

• Loosen both lock nuts 53 using a commercial box-end or open-end spanner (size 14 mm).
• Loosen the stop nut 54 and screw the depth stop 29 all the way up turning in anticlockwise direction.
• Tilt the tool arm by the handle 5 to the position at which the requested groove depth is reached.
• Screw the depth stop in clockwise direction until the end of the screw faces against the casing stop 55.
  – Guide the tool arm slowly upward.
• Retighten the stop nut 54 first and then the lock nuts 53.

Special Workpieces

When sawing curved or round workpieces, these must be especially secured against slipping. At the cutting line, no gap may exist between workpiece, fence and saw table.

Provide for special fixtures, if required.

Replacing the Insert Plate

(see figure S)

The red insert plates 12 can become worn after long use of the machine.

Replace defective insert plates.

• Bring the power tool into the working position.
• Unscrew the screws 56 using the provided Phillips screwdriver and remove the old insert plates.
• Insert the new right-hand insert plate.
• Screw the insert plate as far as possible to the right with the screws 56 so that the saw blade does not come into contact with the insert plate over the complete length of the possible slide motion.
• Repeat the work steps in the same manner for the left-hand insert plate.

English

Sawing Profile Strips/Mouldings (Floor and Ceiling Strips)

Profile strips/mouldings can be sawn in two different ways:

• Placed against the fence
• Lying flat on the saw table.

In addition, the cut can be performed with or without slide movement depending on the width of the profile strip/moulding.

Always make trial cuts with the mitre angle setting first on scrap wood.

Floor Strips/Mouldings

The following table contains instructions for sawing floor strips/mouldings.

Settings		Placed against the fence		Lying flat on the saw table
Vertical bevel angle		0°		45°
Floor strip/moulding		Left side	Right side	Left side	Right side
Inner corner	Horizontal mitre angle	45° left	45° right	0°	0°
	Positioning of workpiece	Bottom edge on saw table	Bottom edge on saw table	Upper edge against the fence	Bottom edge against the fence
	The finished workpiece is located...	... to the left of the cut	... to the right of the cut	... to the left of the cut	... to the left of the cut
Outer corner	Horizontal mitre angle	45° right	45° left	0°	0°
	Positioning of workpiece	Bottom edge on saw table	Bottom edge on saw table	Bottom edge against the fence	Upper edge against the fence
	The finished workpiece is located...	... to the right of the cut	... to the left of the cut	... to the right of the cut	... to the right of the cut

48 | English

Checking and Adjusting the Basic Adjustment

▶ Before any work on the machine itself, pull the mains plug.

To ensure precise cuts, the basic adjustment of the machine must be checked and adjusted as necessary after intensive use.

A certain level of experience and appropriate specialty tools are required for this.

A Bosch after-sales service station will handle this maintenance task quickly and reliably.

Adjusting the Laser

• Bring the power tool into the working position.
• Turn the saw table 17 until it engages at 0^ .
• Remove the cover 57. (see figure T1)

Checking: (see figure T2)

• Draw a straight cutting line on the workpiece.
• Press button 4 and guide the tool arm slowly downward with handle 5.
• Align the workpiece in such a manner that the teeth of the saw blade are in alignment with the cutting line.
• Hold the workpiece in this position and slowly guide the tool arm upward again.
• Clamp the workpiece.
• Switch the laser beam on with switch 28.

The laser beam must be in alignment with the cutting line on the workpiece over the complete length, also when the tool arm is lowered.

Adjusting: (see figure T3)

• Loosen the knurled screw 58.
• Turn set screw 59 (horizontal laser positioning) and/or 60 (vertical laser positioning) until the laser beam is flush with the cutting line on the workpiece over the complete length.
• Carefully tighten the knurled screw again.

Setting the Standard Bevel Angle 0° (Vertical)

• Bring the machine into the transport position.
• Turn the saw table 17 until it engages at 0^ .

Checking: (see figure U1)

• Set an angle gauge to 90^ and place it on the saw table 17.
  The leg of the angle gauge must be flush with the saw blade 8 over the complete length.

Adjusting: (see figure U2)

• Loosen the clamping lever 30.
• Loosen the lock nut of the stop screw 22 using a commercial box-end or open-end spanner (size 10 mm).
• Screw the stop screw in or out until the leg of the angle gauge is flush with the saw blade over the complete length.
• Retighten the clamping lever 30 again.
• Afterwards, retighten the lock nut of the stop screw 22 again.

In case the angle indicator 51 is not in a line with the 0^ mark of the scale 61 after the adjustment, loosen the screw 62 using a commercial Phillips screwdriver and align the angle indicator along the 0^ mark.

Setting the Standard Bevel Angle 45° (Vertical)

• Bring the power tool into the working position.
• Turn the saw table 17 until it engages at 0^ .
• Release the clamping lever 30 and tilt the tool arm leftward to the stop (45°) by the handle 5.

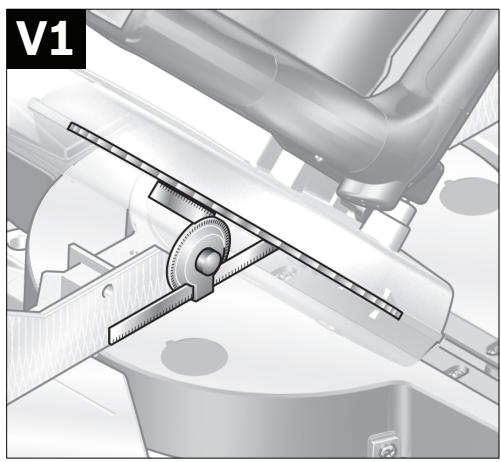

Checking: (see figure V1)

- Set an angle gauge to 45^ and place it on the saw table 17.

The leg of the angle gauge must be flush with the saw blade 8 over the complete length.

Adjusting: (see figure V2)

• Loosen the lock nut of the stop screw 21 using a commercial box-end or open-end spanner (size 10 mm).
• Screw the stop screw in or out until the leg of the angle gauge is flush with the saw blade over the complete length.
• Retighten the clamping lever 30 again.
• Afterwards, retighten the lock nut of the stop screw 21 again.

In case the angle indicator 51 is not in a line with the 45^ mark of the scale 61, firstly check the 0^ setting for the bevel angle and the angle indicator again. Then repeat the adjustment of the 45^ bevel angle.

Aligning the Fence

• Bring the machine into the transport position.
• Turn the saw table 17 until it engages at 0^ .

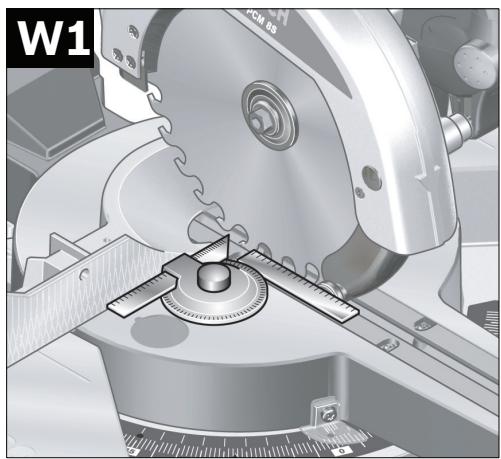

Checking: (see figure W1)

- Set an angle gauge to 90^ and place it on the saw table 17 between the fence 10 and the saw blade 8.

The leg of the angle gauge must be flush with the fence over the complete length.

Adjusting: (see figure W2)

• Loosen all Allen screws 32 with the Allen key provided.
• Turn the fence 10 until the angle gauge is flush over the complete length.
• Retighten the screws again.

Aligning the Angle Indicator (Horizontally)

(see figure X)

• Bring the machine into the transport position.
• Turn the saw table 17 until it engages at 0^ .

Checking:

The centre line of the angle indicator 14 must be in line with the 0^ mark of the scale 15.

Adjusting:

• Loosen the screw 63 using a commercial Phillips screwdriver and align the centre line of the angle indicator alongside the 0^ mark.
• Retighten the screw again.

Transport

(see figure Y)

• Bring the machine into the transport position.
• Remove the extension bars.
• Carry the machine by the transport handle 26 or hold it by the recessed grips 64 on the sides of the saw table.

▶ The power tool should always be carried by two persons in order to avoid back injuries.
▶ When transporting the power tool, use only the transport devices and never use the protective devices.

Maintenance and Service

Maintenance and Cleaning

▶ Before any work on the machine itself, pull the mains plug.

If the machine should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for Bosch power tools.

In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.

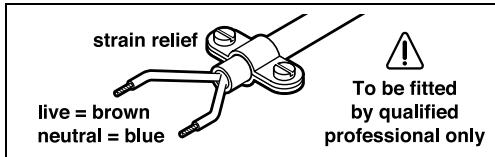

WARNING! Important instructions for connecting a new 3-pin plug to the 2-wire cable.

The wires in the cable are coloured according to the following code:

strain relief live = brown neutral = blue To be fitted by qualified professional only

Do not connect the blue or brown wire to the earth terminal of the plug.

Important: If for any reason the moulded plug is removed from the cable of this power tool, it must be disposed of safely.

Cleaning

For safe and proper working, always keep the power tool and its ventilation slots clean.

The retracting blade guard must always be able to move freely and retract automatically. Therefore, always keep the area around the retracting blade guard clean.

Remove dust and chips after each working procedure by blowing out with compressed air or with a brush.

Clean the roller 9 and the lighting and laser unit (24, 23) regularly.

50 | English

Accessories

Dust bag set.... 2 605 411 222

Extension bars....2 607 001 978

Saw blades for wood and plate materials, panels and strips/mouldings

Saw blade 216 x 30 mm, 48 teeth ..... 2 608 640 430

Saw blade 216 x 30 mm, 24 teeth ..... 2 608 640 429

Spare parts

Quick-action clamp ..... 1 609 203 P95

Base unit 1 609 203 P96

Insert plate. 2 607 001 966

Set of carbon brushes ..... 1 609 203 J13

After-sales service and customer assistance

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Our customer consultants answer your questions concerning best buy, application and adjustment of products and accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: + 61 (01300) 307 045

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Disposal

The sliding mitre saw, accessories and packaging should be sorted for environmental-friendly recycling.

The plastic components are labelled for categorized recycling.

Only for EC countries:

Do not dispose of power tools into household waste!

According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national

right, power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Subject to change without notice.

Robert Bosch GmbH, Dept. PT/ESC,

D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Mogen

27.11.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montage

Robert Bosch (France) S.A.S.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Macau i.v. Nuoyen

27.11.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

76 | Español

Montaje

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. A##ca i.v. Nu#gen

27.11.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montagem

Robert Bosch GmbH, Dept. PT/ESC,

D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Mogen

27.11.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montaggio

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Morgen

27.11.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montage

Stationaire of flexibele montage

Warning sign with triangular warning triangle and prohibition symbol for no explosion or impact

Betydning

Robert Bosch GmbH, Dept. PT/ESC,

D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Morgen

27.11.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montering

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Tel. Service Center: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bortskaffelse

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

27.11.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montage

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppu. Macaca i.v. Nuoyen

27.11.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montering

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Macaca i.v. Nuoyen

27.11.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

192 | Suomi

Asennus

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. dawala i.v. nuoyen

27.11.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Συναρμολόγηση

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. dawala i.v. nuoyen

27.11.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Türkçe | 227

Montaj

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul
