USER MANUAL 3851 CA SKIL

Technical illustration of a SKIL 1800 electric drill with visible components and no text or symbols

QR code image containing encoded data, no visible human-readable text

GB ORIGINAL INSTRUCTIONS 10
(F) NOTICE ORIGINALE 13
D ORIGINALBETRIEBSANLEITUNG 18
NL ORIGINELE GEBRUIKSAANWIJZING 22
S BRUKSANVISNING I ORIGINAL 27
DK ORIGINAL BRUGSANVISNING 31
N ORIGINAL BRUKSANVISNING 34
FIN ALKUPERÄISET OHJEET 38
E MANUAL ORIGINAL 42
(P) MANUAL ORIGINAL 46
I ISTRUZIONI ORIGINALI 51
H EREDETI HASZNÁLATI UTASÍTÁS 55
CZ PÚVODNÍM NÁVODEM K POUŽÍVÁNÍ 59
TR ORIJINAL İŞLETME TALİMATI 63
(PL) INSTRUKCJA ORYGINALNA 67
RU ПОДЛИННИК РУКОВОДСТВА ПО 72
ЭКСПЛУАТАЦИИ

UA ОРИГИНАЛЬНА ІНСТРУКЦІЯ 77
З ЕКСПЛУАТАЦІЇ
GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 82
RO INSTRUCTIUNI DE FOLOSIRE 86
ORIGINALE
BG ОРИГИНАЛНО РЬКОВОДСТВО 91
ЗА ЕКСПЛОАТАЦИЯ
SK PÔVODNÝ NÁVOD NA POUŽITIE 95
HR ORIGINALNE UPUTE ZA RAD 99
SRB ORIGINALNO UPUTSTVO ZA RAD 103
(SLO) IZVIRNA NAVODILA 107
EST ALGUPÄRANE KASUTUSJUHEND 111
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 115
(LT) ORIGINALI INSTRUKCIJA 119
МК ИЗВОРНО УПАТСТВО ЗА РАБОТА 123
(AL) UDHËZIMET ORIGJINALE 128
AR دليل الاستعمال 142
FA راهنمای اصلی 140

www.skil.com

GB	EU Declaration of conformityCordless rotary hammer Article number	We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at:★
F	Déclaration de conformité UEMarteau perforateur sans fil Numéro d'article	Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de:★
D	EU-KonformitätserklärungAkku-Bohrhammer Sachnummer	Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.Technische Unterlagen bei:★
NL	EU-conformiteitsverklaringOplaadbare boorhamer Productnummer	Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordningen en overeenstemmen met de volgende normen.Teknisch dossier bij:★
S	EU-konformitetsförklaringSladdlös borrammare Produktnummer	Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer.Teknisk dokumentation:★
DK	EU-overensstemmelseserklæringBatteridrevet borehammer Typenummer	Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i fölgende direktiver og forordninger og opfylder følgende standarder.Tekniske bilag ved:★
N	EU-samsvarserklæringBatteridrevet borhammer Produktnummer	Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med følgende standarder.Teknisk dokumentasjon hos:★
FIN	EU-vaatimustenmukaisuusvakuutusAkkuporavasara Tuotenumero	Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.Tekniset asiakirjat saatavana:★
E	Declaración de conformidad UEMartillo perforadorinalámbrico Número de artículo	Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las directivas y los reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de:★
P	Declaração de conformidade CEMartelo rotativo sem fios Número do produto	Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à:★
I	Dichiarazione di conformità UEMartello perforatore cordless Codice prodotto	Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle direttive e dei regolamenti elencati di seguito, nonché alle seguenti normative.Documentazione tecnica presso:★
H	EU konformitási nyilatkozatAkkumulátoros fúrókalapács Cikkszám	Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak.Műszaki dokumentumok megőrzési pontja:★
CZ	EU prohlášení o shoděBezdrátové vrtací kladivo Objednací číslo	Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení niže uvedených směrnic a nařízení a je v souladu s následujícími normami.Technické podklady u:★
TR	AB Uygunluk beyaniAkülü kırıcı-delici Ürün kodu	Tek sorumlu olarak, tanımlanan örünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.Teknik belgelerin bulunduğu yer:★
PL	Deklaracja zgodności UEMłotowiertarka akumulatorowa Numer katalogowy	Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz że są zgodne z następującymi normami.Dokumentacja techniczna:★
RU	Заявление о соответствии ECАкнумуляторный перфоратор Товарный номер	Мы заявляем под нашу единоличную ответственность, что названные продукты соответствуют всем действующим предписаниям нижеуказанных директив и распоряжений, а также нижеуказанных норм.Техническая документация хранится у:★
UA	Заява про відповідність ЄСБездротовий перфоратор Товарный номер	Мизаявляемо під нашу одноособову відповідальність, що названі вироби відповідають усім чинним положенням нищеозначених директив і розпоряджень, а також нижчеозначеним нормам.Технічна документація зберігається у:★

GR	Δήλωση πιστότητας EEΕπαναφορτιζόμενο περιστροφικό πιστολέτο	Αριθμός ευρετηρίου	Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.Τεχνικά έγγραφα στη:★
RO	Declaratie de conformitate UE		Declarăm pe proprie răspundere că produsele menționate corespund tuturor dispozitiilor relevante ale directivelor și reglementărilor enumerate în cele ce urmează și sunt în conformitate cu următoarele standarde.Documentație tehnică la:★
	Ciocan rotopercutor fără fir	Număr de identificare
BG	EC декларация за съответствие		С пълна отговорност ние декларираме, че посочените продукти отговарят на всички валидни изисквания на директивите и разпоредбите по-долу и съответства на следните стандарти.Техническа документация при:★
	Безжичен перфоратор	Каталожен номер
SK	EU vyhlásenie o zhode		Vyhlasujeme na výhradnu zodpovednosť, že uvedený výrobok splňa všetky prislušně ustanovenia nižšie uvedených smerníc a nariadení a je v súlade s nasledujúcimi normami.Technické podklady má spoločnosť:★
	Akumulátorové vírtacie kladivo Vecné číslo
HR	EU izjava o sukladnosti		Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svim relevantnim odredbama direktiva i propisima navedenima u nastavku i da su sukladni sa sljedećim normama.Tehnička dokumentacija se može dobiti kod:★
	Okretni bežični čekić Kataloški broj
SRB	EU-izjava o usaglašenosti		Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svim dotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sa sledećim standardima.Tehnička dokumentacija kod:★
	Rotacioni čekić bez kabla Broj predmeta
SLO	Izjava o skladnosti ES		Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vsemi relevantnimi določili direktiv in uredb ter ustreza naslednjim standardom.Tehnična dokumentacija pri:★
	Akumulatorsko vrtalno kladivo Številka artikla
EST	EL-vastavusdeklaratsioon		Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletud direktiivide ja määruste köikidele asjaomastele nõuetele ja on kooskõlas järgmiste normidega.Tehnilised dokumendid saadaval:★
	Akutoitega puurvasar Tootenumber
LV	Deklaracija par atbilstību EK standartiem		Mēs ar pilnu atbildību pazinojam, ka šeit aplūkotie izstrādājumi atbilst visiem tālāk minētajās direktīvās un rīkojumos ietvertajām saistošajām nostādnēm, kā arī sekojošiem standartiem.Tehniskā dokumentacija no:★
	Akumulatora rotācijas triecienurbis Izstrādājuma numurs
LT	ES atitikties deklaracija		Atsakingai pareiškiame, kad išvardyti gaminiai atitinka visus privalomus žemiau nurodytu direktyvų ir reglamentų reikalavimus ir šiuos standartus.Techninė dokumentacija saugoma:★
	Belaidis plaktukinis gręžtuvas Gaminio numeris
MK	EU-Изјава за сообразност		Со целосна одговорност изјавуваме, дека опишаните производи се во согласност со сите релевантни одредби на следните регулативи и прописи и се во согласност со следните норми.Техничка документација кaj:★
	Бежичен ротационен чекан Број на артикл
AL	EU Deklarata e konformitetit		Ne deklarojmě me përgjegjësinė tonė të vetme se produktet e paraqitura janë në përputhje me të gjitha dispozitat e zbatueshme të direktivave dhe rregulloreve të listuara mė poshtė dhe janë në përputhje me standardet si më poshtė.Dosja teknike nė:★
	Matrapik me bateri Numri i nenit
3851 RH1*3851**			2006/42/EC EN 62841-1:20152014/30/EU EN 62841-2-6:2020 + A11:20202011/65/EUEN 55014-1:2021EN 55014-2:2021EN 63000:2018
			SKIL Skil BVRithmeesterpark 22 A14838 GZ BredaThe Netherlands
			Olat DijkgraatApproval ManagerSkil BV, Rithmeesterpark 22 A1, 4838 GZ Breda, NL02.08.2022
Declaration of ConformityCordless rotary hammer Article number	We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standardsTechnical file at:Chervon Europe Ltd., 34 Bridge Street, Reading, RG1 2LU, United Kingdom
3851 RH1*3851**	Supply of Machinery (Safety) Regulations 2008 (SI 2008/1597)Electromagnetic Compatibility Regulations 2016 (SI 2016/1091)The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (SI 2012/3032)Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001 (SI 2001/1701 and SI 2005/3525)EN 62841-1:2015EN 62841-2-6:2020+A11:2020EN 55014-1:2021EN 55014-2:2021EN IEC 63000:2018
		Chervon Europe Ltd., 34 Bridge Street, Reading, RG12LU, United Kingdom, as authorized representative (in terms of above regulations) acting on behalf of Skil BV, Rithmeesterpark 22 A1, 4838GZ Breda, The Netherlands
	James McCroryTechnical Service ManagerPlace of issue: ReadingDate of issue: 02/08/2022

①

3851

②

DCBA E F G H J

Icon of a person reading a document inside a circle, with number 3 in the top-left corner (no text or symbols on the icon itself)

④

⑤ max.50 °C

⑥

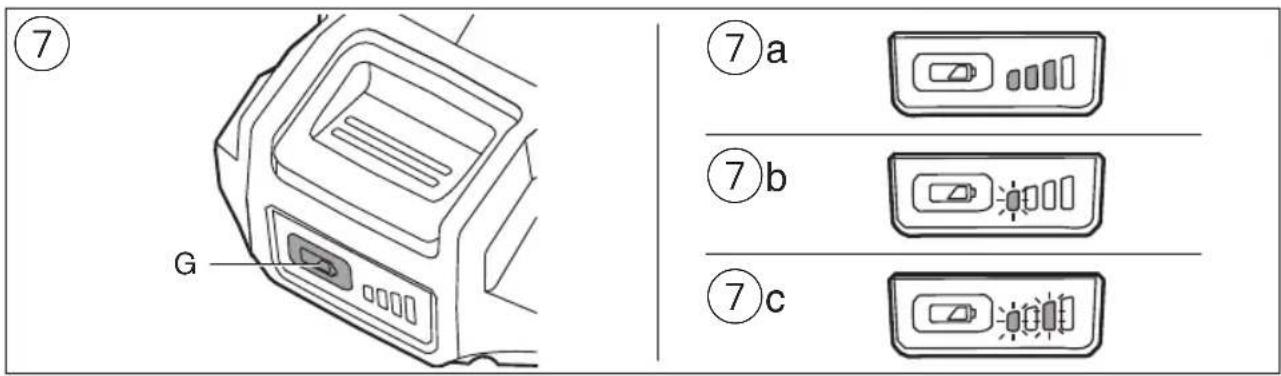

⑦ G ⑦a ⑦b ⑦c

Diagram illustrating three steps of a mechanical or electrical component installation, showing front, side, and top views with labeled components and directional arrows.

Technical diagram showing a drill bit being adjusted to a mechanical component with an unlock mechanism indicated.

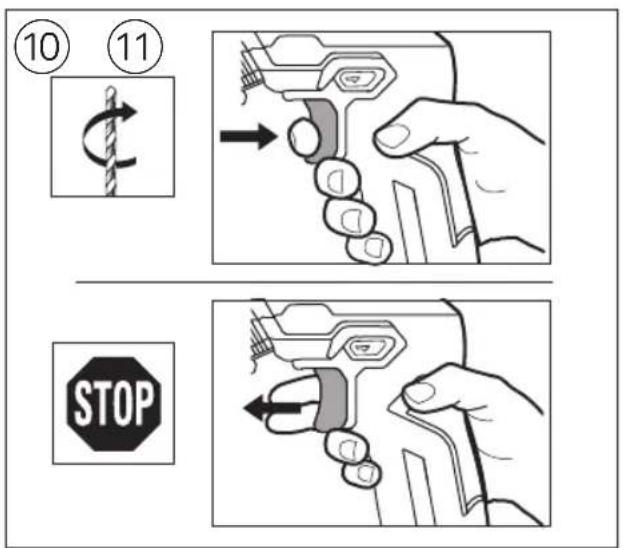

⑩ ⑪ STOP

Illustration of a hand holding a handheld device with a light beam projecting onto turtle and running figures (no text or symbols)


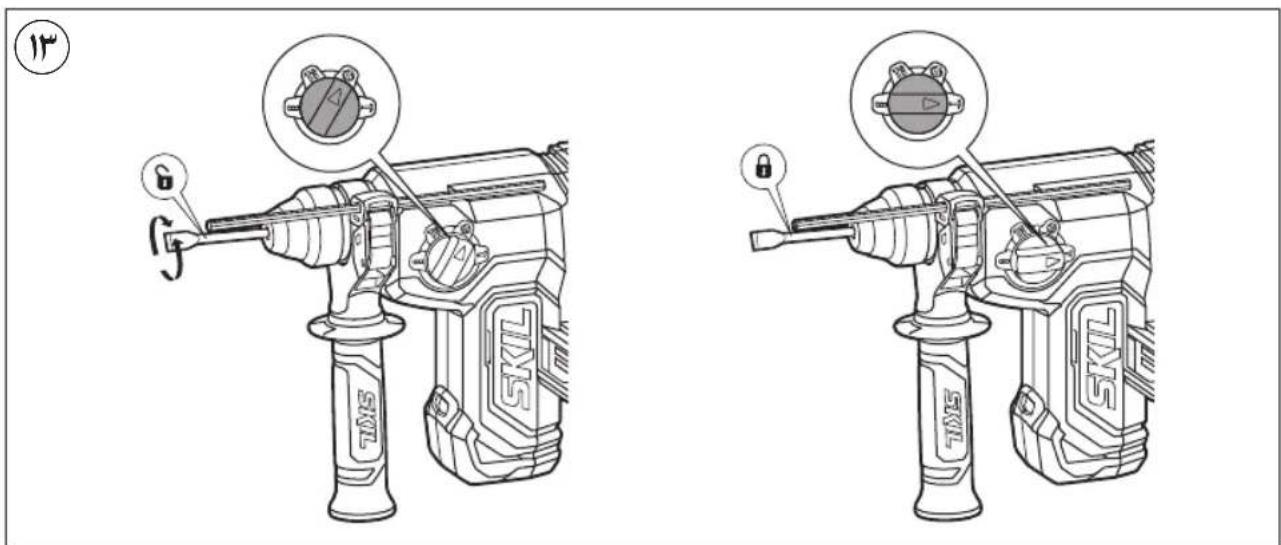

⑬ SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL SKL

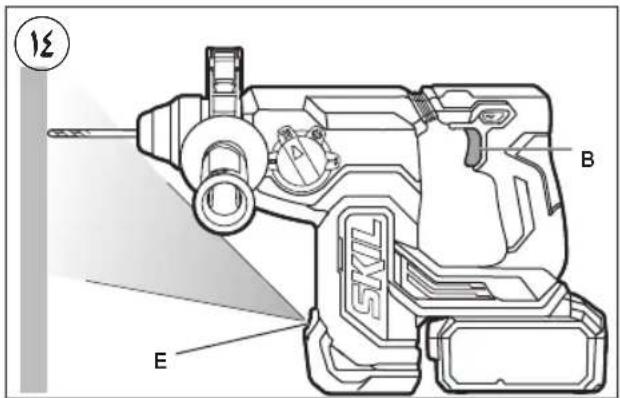

14 B E

Line drawing of a SKT5 electric drill with a hand tool and control panel (no text or symbols)

Line drawing of a digital camera with lock and connector components (no text or symbols)

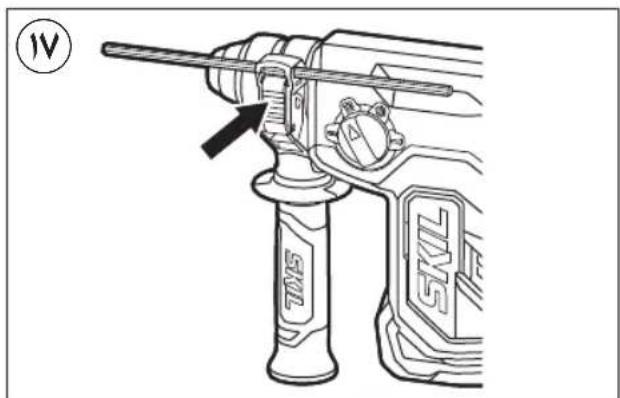

⑰ TIMS SKIL

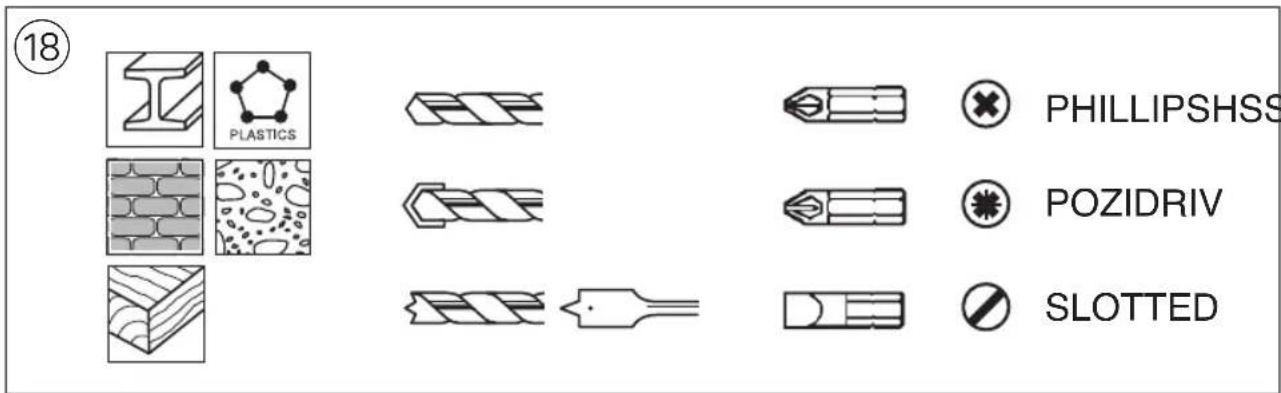

(18) PLASTICS PHILLIPSHSS POZIDRIV SLOTTED

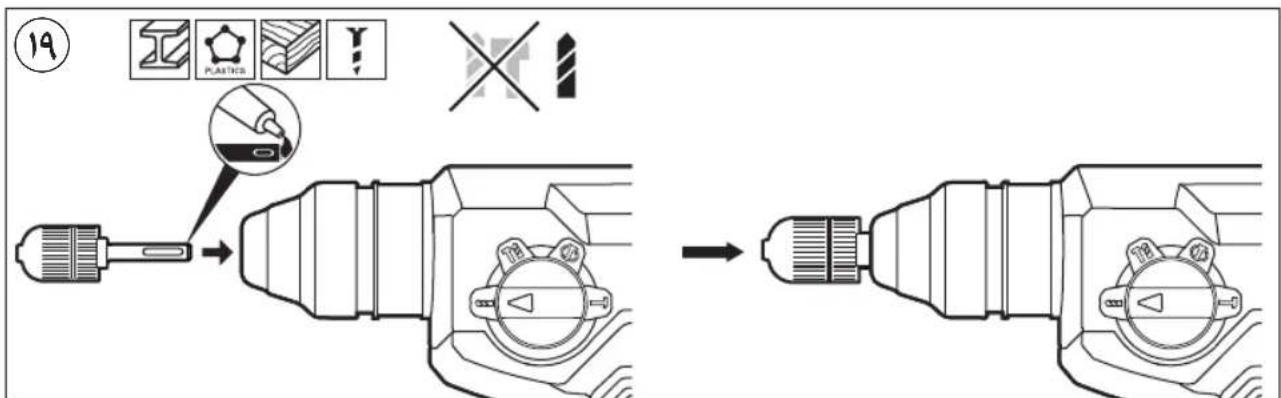

(19) PLANTES

20

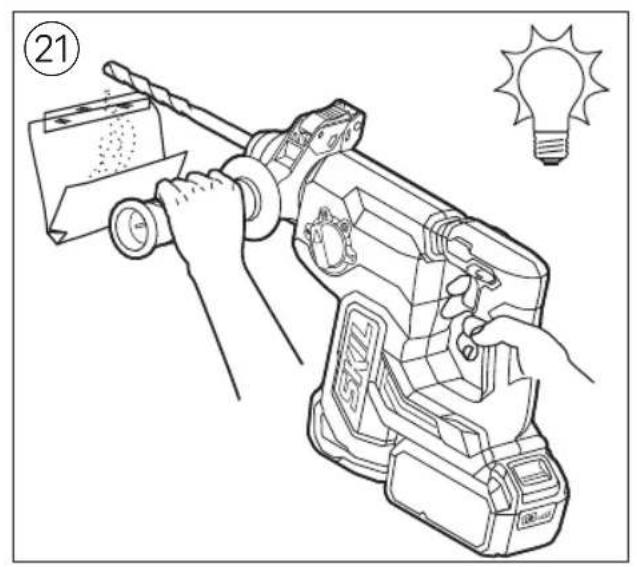

Line drawing of a hand operating a drill bit with a light bulb nearby (no text or symbols)

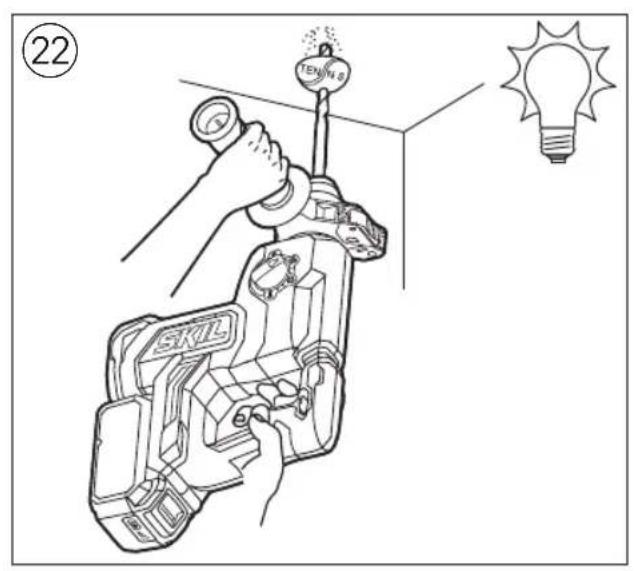

22 TEN/Na SKILL

Illustration of a satellite with a tool and light bulb, no text or symbols present

GB

Brushless cordless 3851 rotary hammer

INTRODUCTION

• This tool is intended for hammer drilling in concrete, brick and stone, as well as for drilling in wood, metal, ceramic and plastic; tools with electronic speed control and left/right rotation are also suitable for screw driving and thread cutting
• The hammering system in this tool outperforms any traditional ratcheting drill when drilling in concrete
• This tool is designed for use in combination with all standard SDS+ accessories
  • This tool is not intended for professional use
• When parts are missing or damaged, please contact your dealer
• Read this instruction manual carefully before use and save it for future reference ③
• Pay special attention to the safety instructions and warnings; failure to follow these may result in serious injury

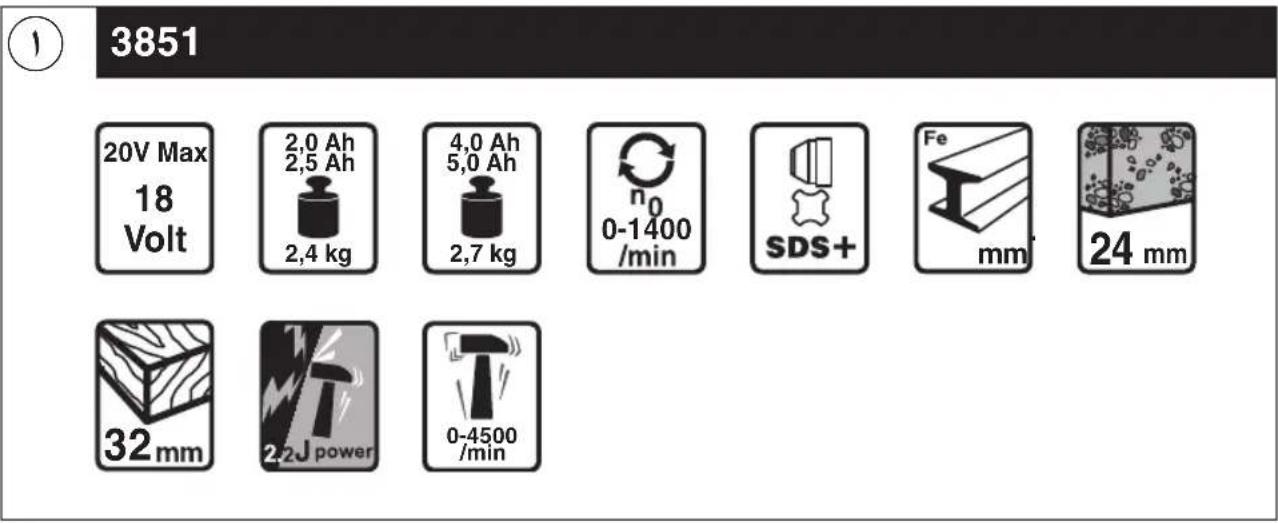

TECHNICAL DATA ①

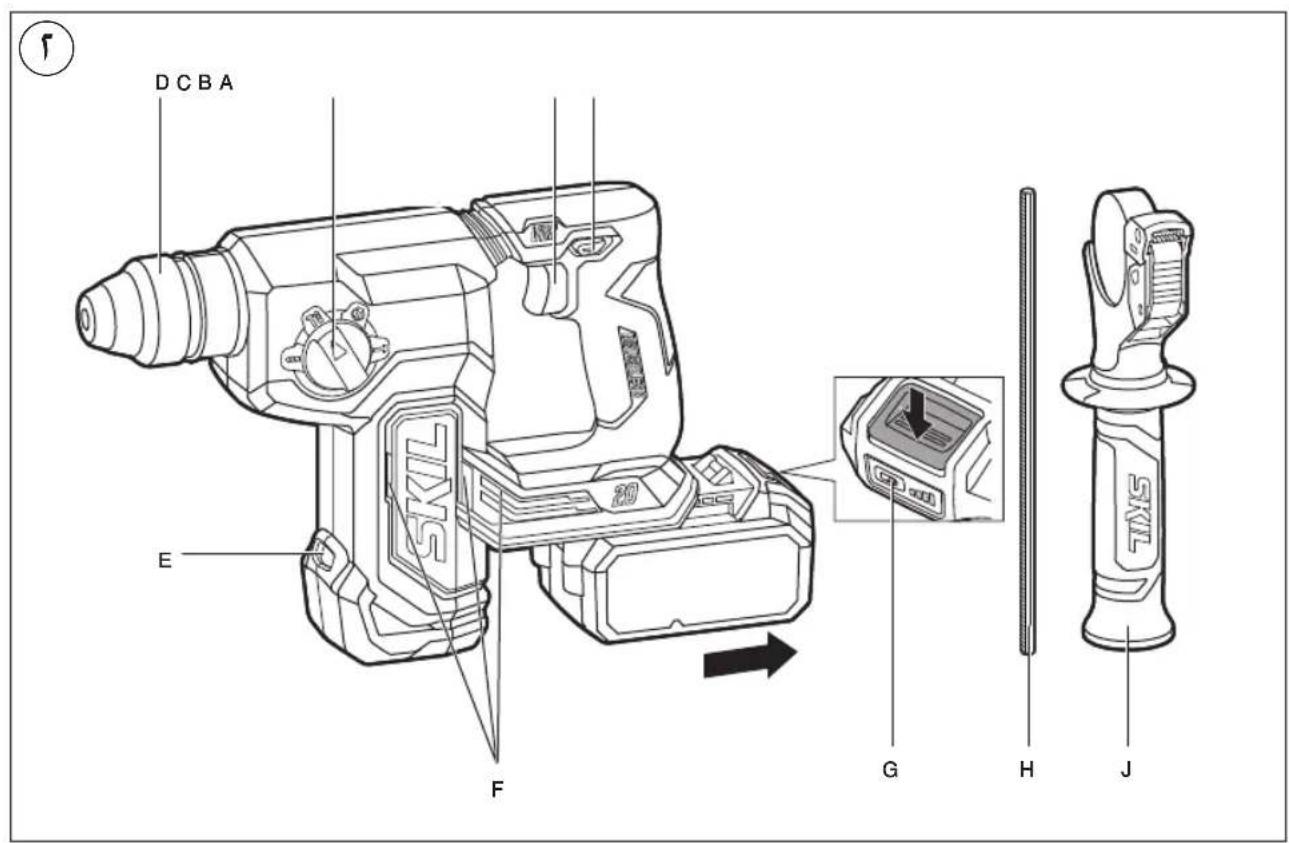

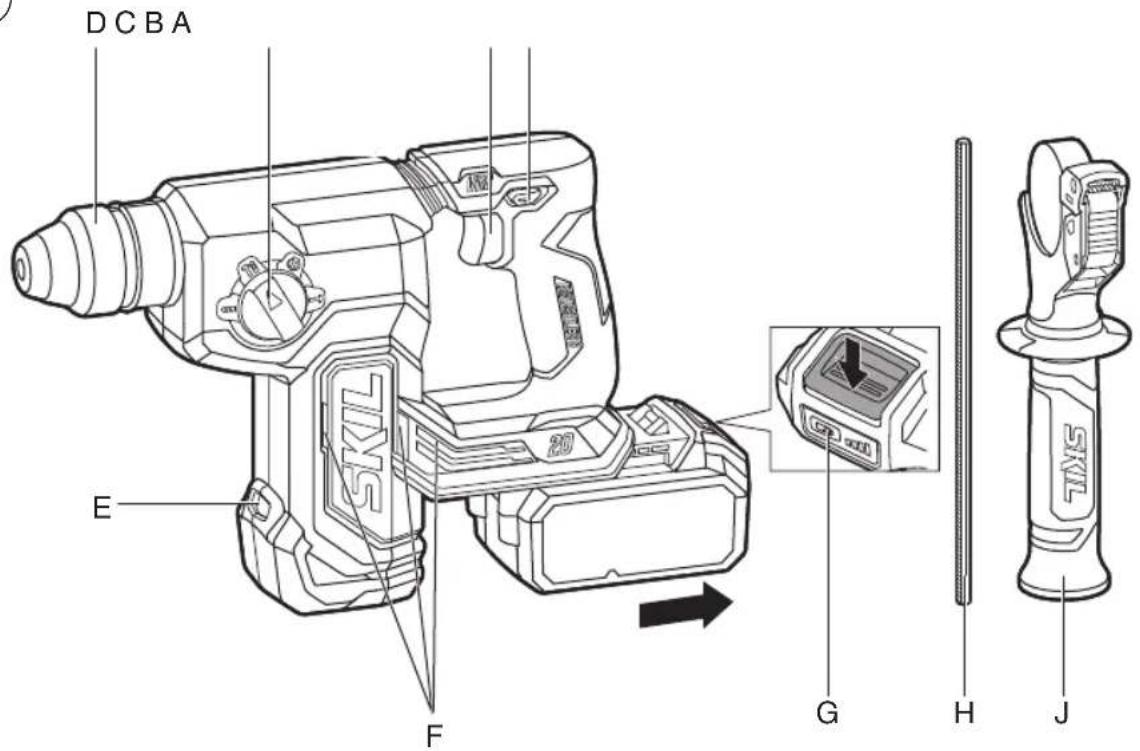

TOOL ELEMENTS ②

A Direction of rotation (forward/center-lock/reverse) selector
B Switch for on/off and speed control
C Switch for selecting operating mode
D Locking sleeve

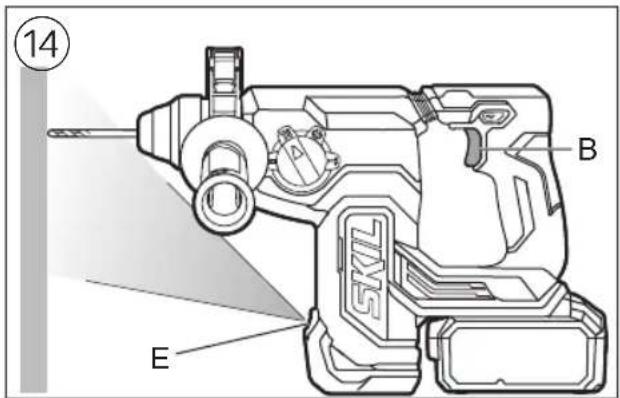

E LED-light
F Ventilation slots
G Battery level indicator button
H Depth gauge
J Auxiliary handle

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating

a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increased the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safely shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore

tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safely measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
g) Follow all charging Instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
6) SERVICE
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY INSTRUCTIONS FOR CORDLESS HAMMER

• Wear ear protectors. Exposure to noise can cause hearing loss
• Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury
• Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring (cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock)

SAFETY INSTRUCTIONS WHEN USING LONG DRILL BITS WITH ROTARY HAMMERS

• Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
• Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend, causing breakage or loss of control, resulting in personal injury.

GENERAL

• Do not work materials containing asbestos (asbestos is considered carcinogenic)
• This tool should not be used by people under the age of 16 years
• Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable

- Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable

- Follow the dust-related national requirements for the materials you want to work with

BEFORE USE

• Avoid damage that can be caused by screws, Anails and other elements in your workpiece; remove them before you start working

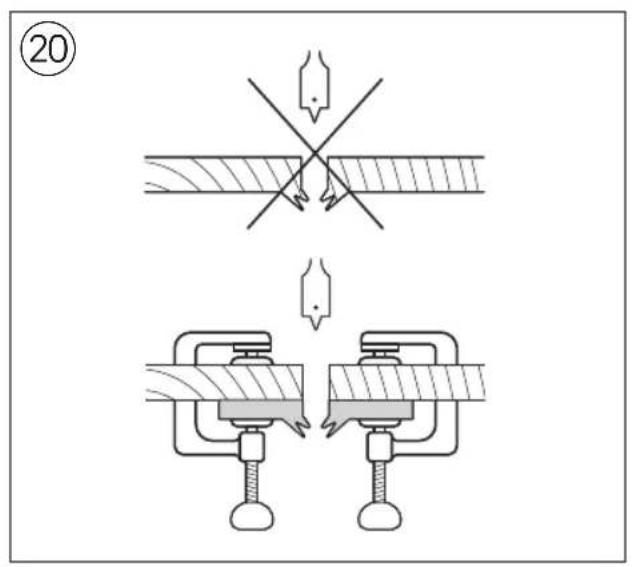

• Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than

by hand)

• Use suitable detectors to find hidden utility lines or call the local utility company for assistance (contact with electric lines can lead to fire or electrical shock; damaging a gas line can result in an explosion; penetrating a water pipe will cause property damage or an electrical shock)

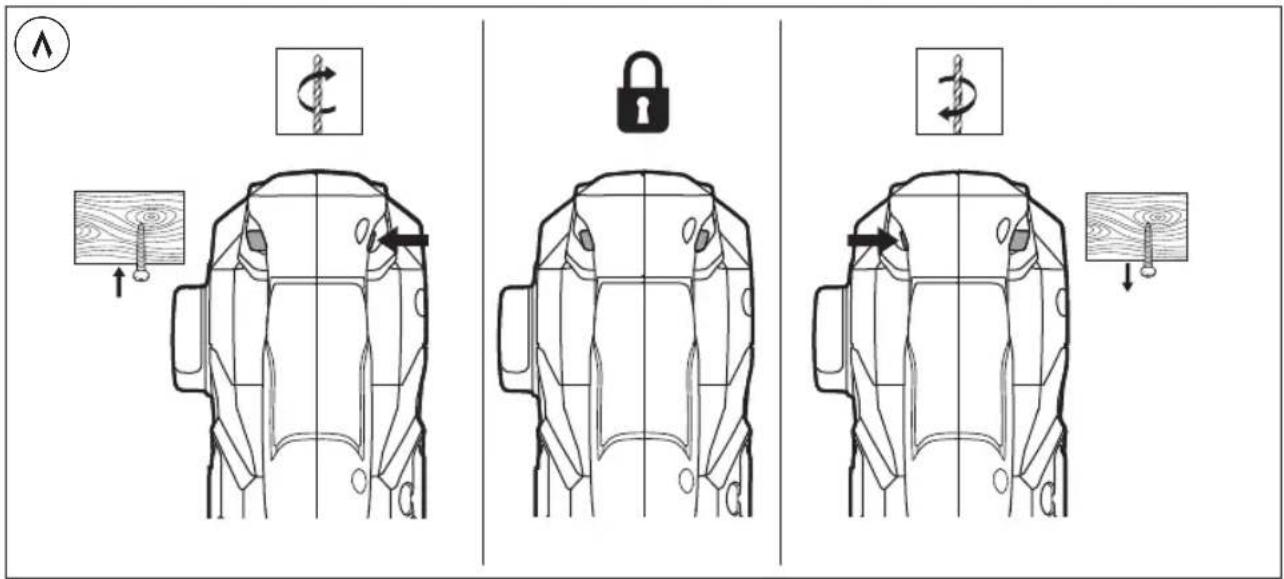

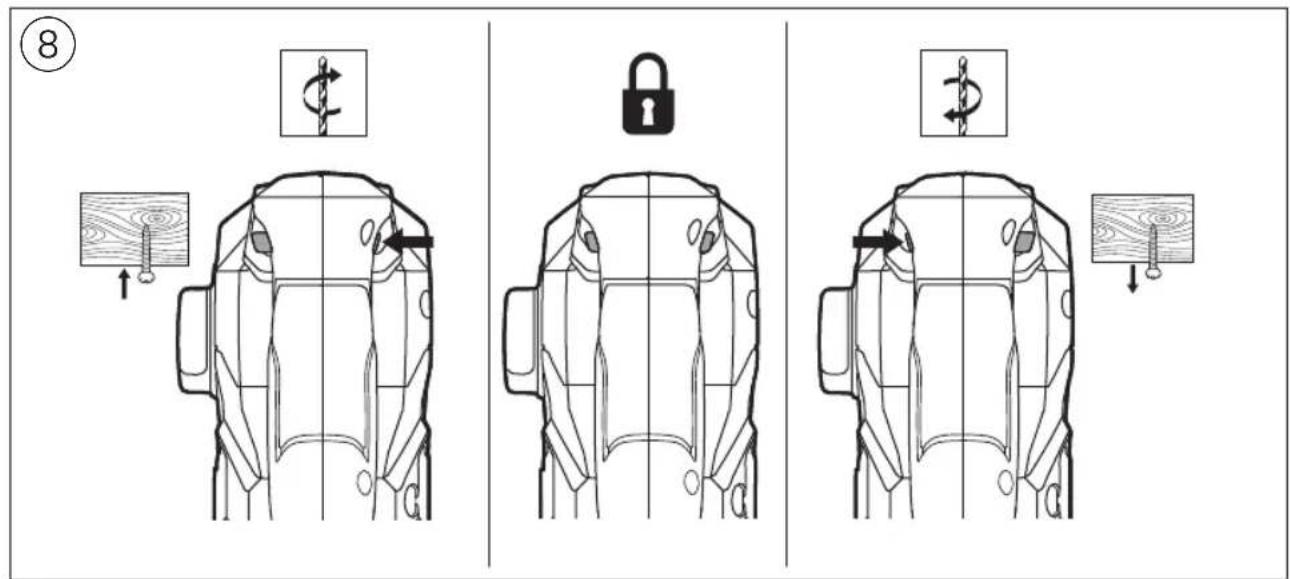

• Ensure that direction-of-rotation selector B ② is in the middle (locking) position before making any adjustments or changing accessories as well as when carrying or storing the tool.
• Be aware of the forces that occur as a result of jamming (especially when drilling metals); always use auxiliary handle J and take a secure stance

ACCESSORIES

• SKIL can assure flawless functioning of the tool only when original accessories are used
• Use only accessories with an allowable speed matching at least the highest no-load speed of the tool

AFTER USE

- When you put away the tool, switch off the motor and ensure that all moving parts have come to a complete standstill

BATTERIES

• The battery supplied is partially charged (to ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time).
• Only use the following batteries and chargers with this tool

-SKIL battery: BR1*31****

-SKIL charger: CR1*31****

• Do not use the battery when damaged; it should be replaced immediately
• Do not disassemble the battery
• Do not expose tool/battery to rain
• Permitted ambient temperature (tool/charger/battery):
• when charging 4...40°C
• during operation -20...+50°C
• during storage -20...+50°C

EXPLANATION OF SYMBOLS ON TOOL/BATTERY

③ Read the instruction manual before use
④ Batteries may explode when disposed of in fire, so do not burn battery for any reason
⑤ Store tool/charger/battery in locations where temperature will not exceed 50°C
⑥ Do not dispose of electric tools and batteries together with household waste material

USE

• Charging battery ! read the safety warnings and instructions provided with the charger
• Removing/installing the battery ②
• Battery level indicator ⑦
• press the battery level indicator button G to show the current battery level ⑦a ! when the lowest level of the battery indicator starts flashing after pressing button G⑦b, the battery is empty

! when 2 levels of the battery indicator start flashing after pressing button G⑦c, the battery is not within the allowable operating temperature range

- Battery protection

The tool is suddenly being switched off or prevented from being switched on, when

- the load is too high --> remove load and restart -the battery temperature is not within the allowable operating temperature range of -20 to +50°C -->2 levels of the battery level indicator start flashing when pressing button G⑦c; wait until battery has returned within the allowable operating temperature range -the battery is nearly empty (to protect against deep discharge) --> a low battery level or flashing low battery level ⑦b is shown by the battery level indicator when pressing button G; charge battery

! do not continue to press the on/off switch after the tool is switched off automatically; battery may be damaged

- Changing direction of rotation ⑧

- when not properly set in left/right position, switch B② cannot be activated ! change direction of rotation only when tool is at a complete standstill

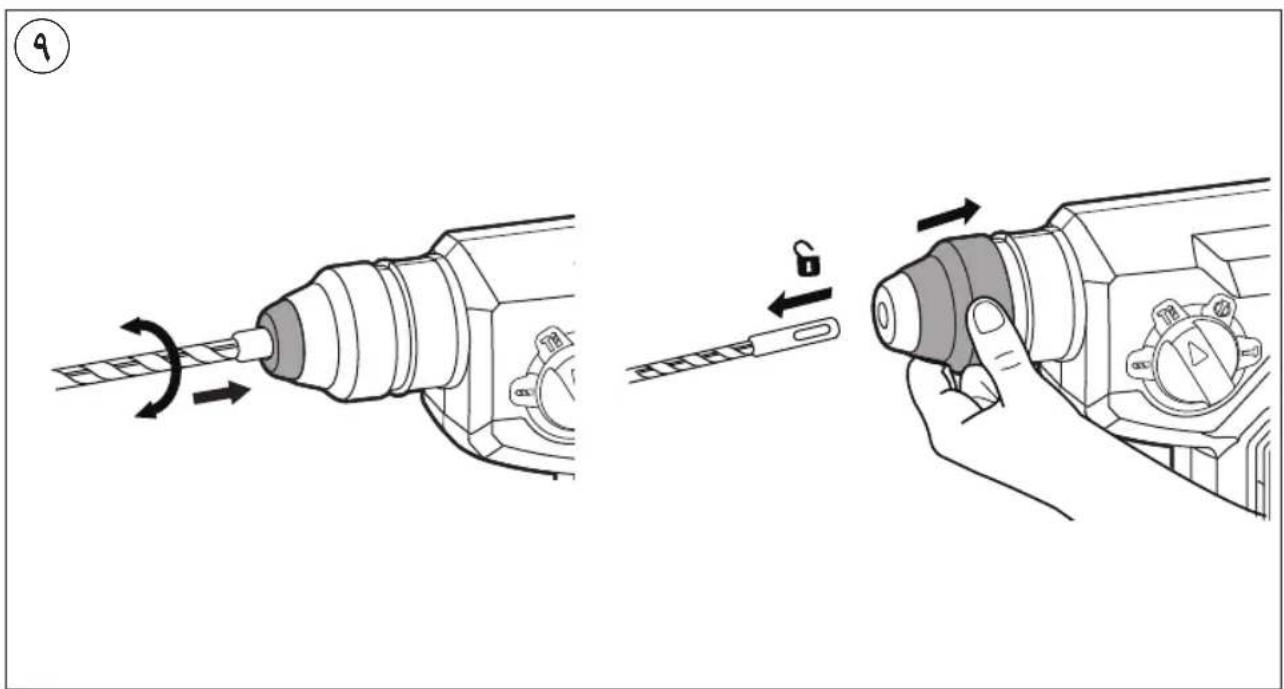

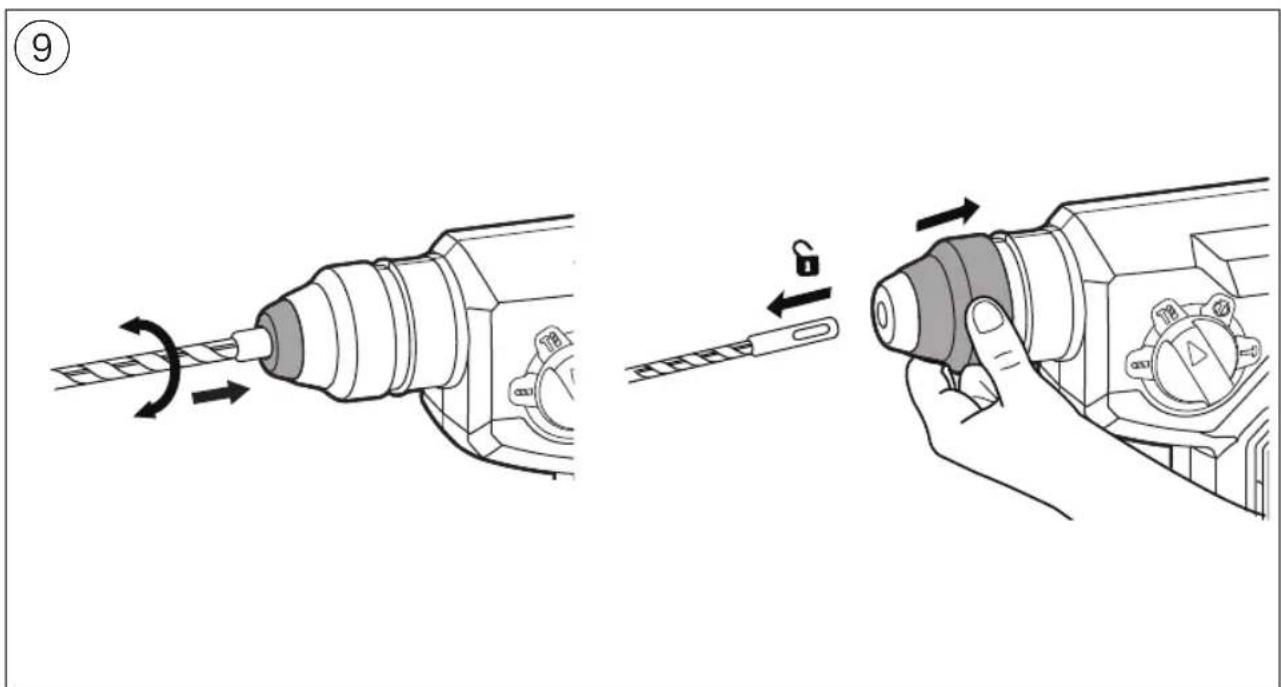

- Installing and removing bits ⑨a & ⑨b

! clean and lightly lubricate the SDS+ accessory before insertion -insert accessory in SDS+ chuck while turning and pushing it until it engages; the accessory locks in position automatically -pull accessory to check that it is locked correctly -remove accessory by pulling back locking sleeve D

! the SDS+ accessory requires freedom of movement which causes eccentricity when tool is off-load; however, the accessory automatically centres itself during operation without affecting drilling precision

! do not use bits with a damaged shank

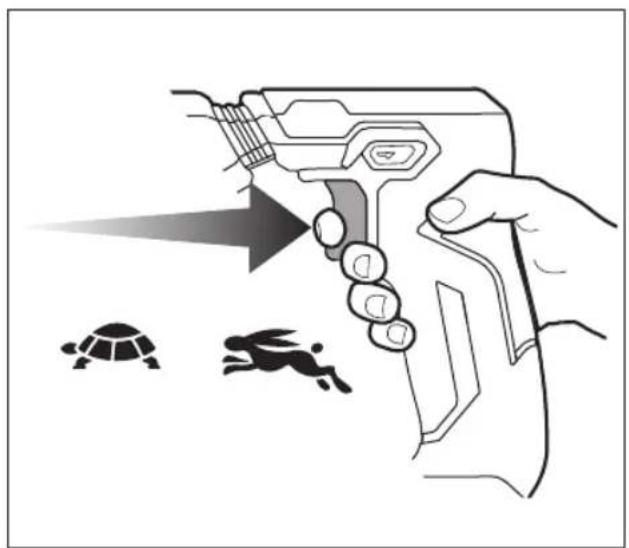

• Combined switch for on/off ⑩ and speed control ⑪ -control the speed steplessly from zero to maximum by putting less or more pressure on the switch B

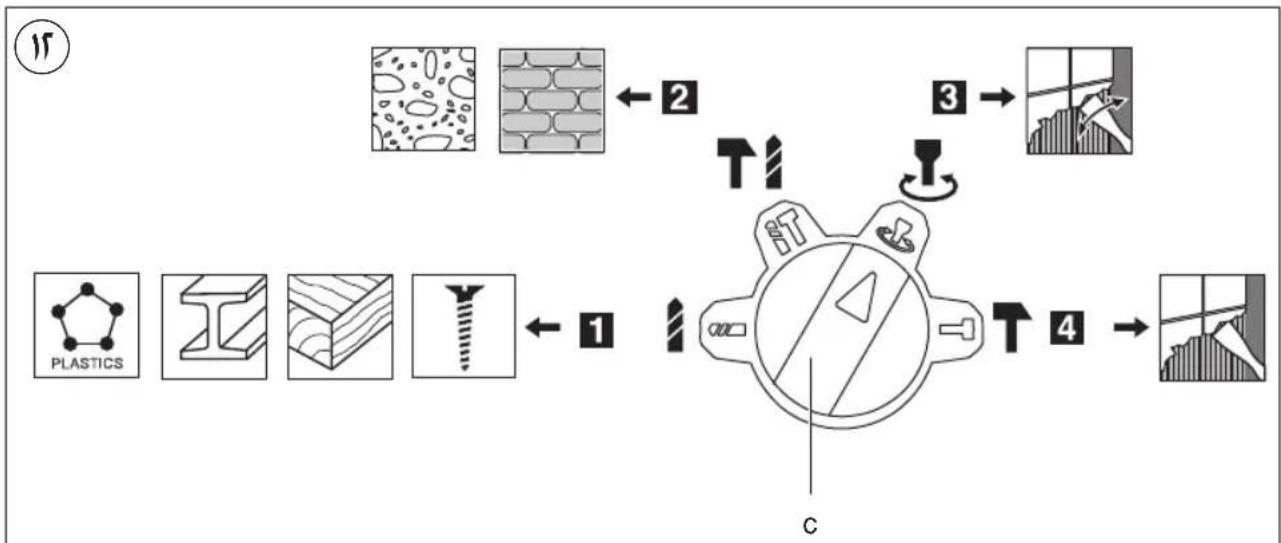

• Selecting operating mode ⑫ -turn switch C to the desired operating mode until it snap-locks

1 = normal drilling/screwdriving
2 = impact drilling
3 = chiseling with rotating chisel
4 = chiseling with fixed chisel

! select operating mode only when tool is switched off and battery is removed

-the hammer mechanism is activated by applying a slight pressure on the tool when the drill bit is in contact with the workpiece

-it takes a short time for the hammer mechanism to reach full impact power
-best hammer drilling results can be obtained by only a slight pressure on the tool; drilling performance will not improve by applying more pressure on the tool

• Chiseling with fixed chisel ⑬

! switch off the tool and remove the battery
-select "rotating" chiseling mode
-place chisel in desired position
-select "fixed" chiseling mode

- LED-light 14

-LED-light E automatically lights on when activating the switch B
! when LED worklight starts flashing, the battery

protection is activated (see above)

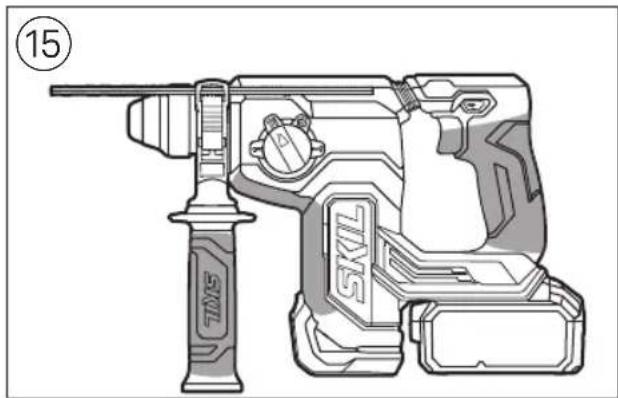

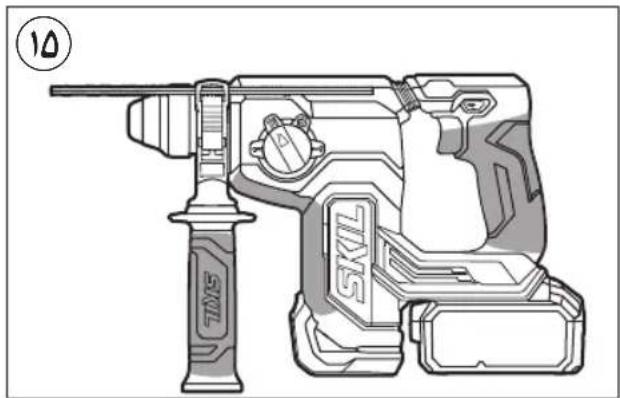

• Holding and guiding the tool ⑮

! while working, always hold the tool at the grey-coloured grip area(s)

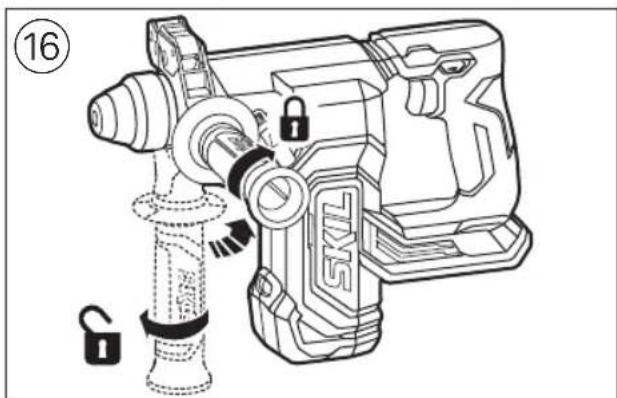

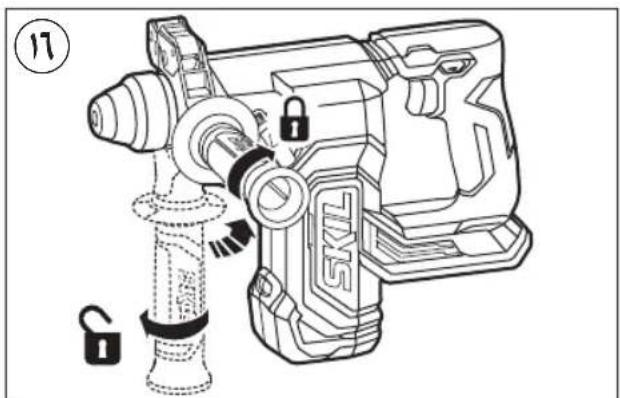

- always use auxiliary handle J (can be adjusted as illustrated) ⑯

- keep ventilation slots F② uncovered -do not apply too much pressure on the tool; let the tool do the work for you

- Adjusting drilling depth ⑰

APPLICATION ADVICE

- Use the appropriate bits ⑱ ! only use sharp bits

- For drilling with non SDS drill bits in wood, metal and plastic, use an adapter (not standard included) ⑲ ! clean and lightly lubricate the SDS+ accessory before insertion -pull back locking sleeve D and insert adapter in SDS+ chuck while turning and pushing it until it engages; the adapter locks in position automatically -pull adapter to check whether is it locked correctly -set switch C to normal drilling (only activate when tool is switched off and the switch is locked)

- When drilling ferrous metals - pre-drill a smaller hole, when a large hole is required - lubricate drill bit occasionally with oil

- When turning in a screw at/near the cross cut end or an edge of wood, pre-drill a hole in order to avoid cracking of the wood

- Splinterfree drilling in wood 20

• Dustfree drilling in walls ②1

• Dustfree drilling in ceilings ②

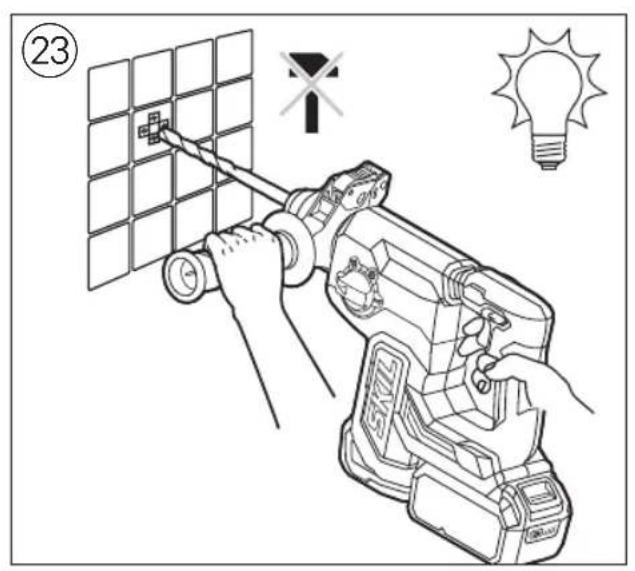

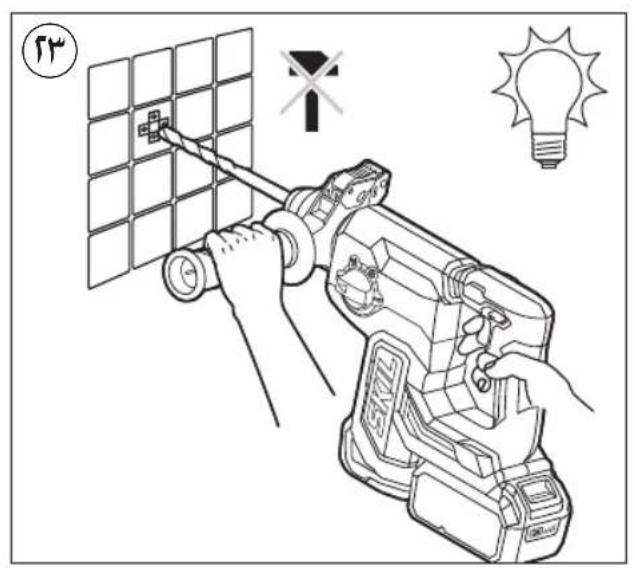

- Drilling in tiles without skidding ②3

- For more information see www.skil.com

MAINTENANCE/SERVICE

• This tool is not intended for professional use

- Always keep tool clean (especially ventilation slots F②) ! remove battery from tool before cleaning

- If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)

- Be aware that damage due to overload or improper handling of the tool will be excluded from the warranty (for the SKIL warranty conditions see www.skil.com or ask your dealer)

ENVIRONMENT

Only for EU countries

- Do not dispose of electric tools, accessories and packaging together with household waste material -in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an

environmentally compatible recycling facility

- symbol ⑥ will remind you of this when the need for disposing occurs

! prior to disposal protect battery terminals with heavy tape to prevent short-circuit

Only for UK

- Do not dispose of electric tools, accessories and packaging together with household waste material -in observance of on Waste Electric and Electronic Equipment Regulations 2013 (SI 2013/3113), electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

- symbol ⑥ will remind you of this when the need for disposing occurs

! prior to disposal protect battery terminals with heavy tape to prevent short-circuit

NOISE / VIBRATION

- Measured in accordance with EN 62841 the sound pressure level of this tool is 93.4 dB(A) and the sound power level 104.4 dB(A) (uncertainty K = 3 dB), and the vibration* (triax vector sum; uncertainty K = 1.5 m/s²)

*when hammer drilling in concrete 16.2 m³/s *when chiseling 12.8 m³/s

- The vibration emission level has been measured in accordance with a standardized test given in EN 62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

-using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level

-the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

2 = perçage de percussion

WAARSCHUWING Lees alle

1) SIKKERHET I ARBEIDSOMRÅDET

1 = normal boring/skruing

2 = slagboring

3 = meisling med roterende meisel

4 = meisling med fast meisel

Bezsuku bezvadu perforators

3851

IEVADS

TECHNINIAI DUOMENYS ①

IRANKIO DALYS ②

Technical diagram showing two mechanical assembly states with cross-sectional views and a force indicator symbol

Line drawing of a hand operating a drill bit with a light bulb nearby (no text or symbols)

TEN S SKILL

Illustration of a satellite with a sensor and light bulb, showing no text or symbols

12 B E

Line drawing of a SKT5 electric drill with a drill bit and control knob (no text or symbols)

Line drawing of a digital camera with lock and connector components (no text or symbols)

IV TIMS SKIL

PHILLIPSHSS POZIDRIV SLOTTED

Technical diagram illustrating the step-by-step assembly of a drill bit, showing tool insertion and component positioning before and after processing.

Instructional diagram showing hand tool grip and stop sign with numbered instructions and visual examples

Illustration of a hand holding a handheld device with a light beam projecting onto turtle and running figures (no text or symbols)

Technical diagram showing two variants of a SKL (Standard Arm) tool with labeled components and close-ups of the dial indicator.

V G V a V b V c

Diagram illustrating three steps of a mechanical or electrical component assembly, showing head, lock, and wire connection with directional arrows.

Technical diagram showing a drill bit being adjusted to a mechanical component with an unlock mechanism indicated.

3851 20V Max 18 Volt 2,0 Ah 2,5 Ah 2,4 kg 4,0 Ah 5,0 Ah 2,7 kg n₀ 0-1400 /min SDS+ Fe mm 24 mm 32 mm 2.2J power 0-4500 /min

DCBA E 20 G H J SKL

Four safety symbols with icons and labels: person using a device, no litter, thermometer, and trash bin, all marked with numbered indicators.

Illustration of a SKIL 1800 electric drill with visible components and branding (no text or symbols beyond branding)

QR code image containing encoded data, no visible human-readable text

دليل الاستعمال AR راهنماي اصلی FA
