HDW5618CNPK - Refrigerator HAIER - Free user manual and instructions
Find the device manual for free HDW5618CNPK HAIER in PDF.
| Product Type | Refrigerator-Freezer |
| Brand | Haier |
| Model | HDW5618CNPK |
| Width | 920 mm |
| Depth | 1137 mm |
| Dimensions (W x D) | 920 x 1137 mm |
| Power Supply | 220-240 V ~ 50 Hz |
| Refrigerator Temperature | 2°C to 8°C (adjustable) |
| Freezer Temperature | -16°C to -24°C (adjustable) |
| Special Functions | Super Cool, Super Freeze, Eco Mode, Holiday |
| Built-in Wi-Fi | Yes, compatible with hOn app |
| Door Reversibility | Yes |
| Defrost | Automatic (refrigerator and freezer) |
| Interior Lighting | LED |
| HCS Filter | Yes, humidity control |
| Demo Mode | Yes, accessible via key combination |
| Noise Level | Not specified |
| Total Net Capacity | Not specified |
Frequently Asked Questions - HDW5618CNPK HAIER
User questions about HDW5618CNPK HAIER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Refrigerator in PDF format for free! Find your manual HDW5618CNPK - HAIER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HDW5618CNPK by HAIER.
USER MANUAL HDW5618CNPK HAIER
PRODUCT DESCRIPTION 2
Space requirements 2
USE. 3
Use 3 Customized temperature 4 Super Cool function 4 Super Freeze function 5 Eco mode 5 Holiday function 5 Defrosting 5 Demo mode 6 Error Codes 6 App connection. 7 Step 1 7 Step 2 7 Step 3 7 Wi-Fi Use 8 DOOR REVERSIBILITY 9
TROUBLESHOOTING

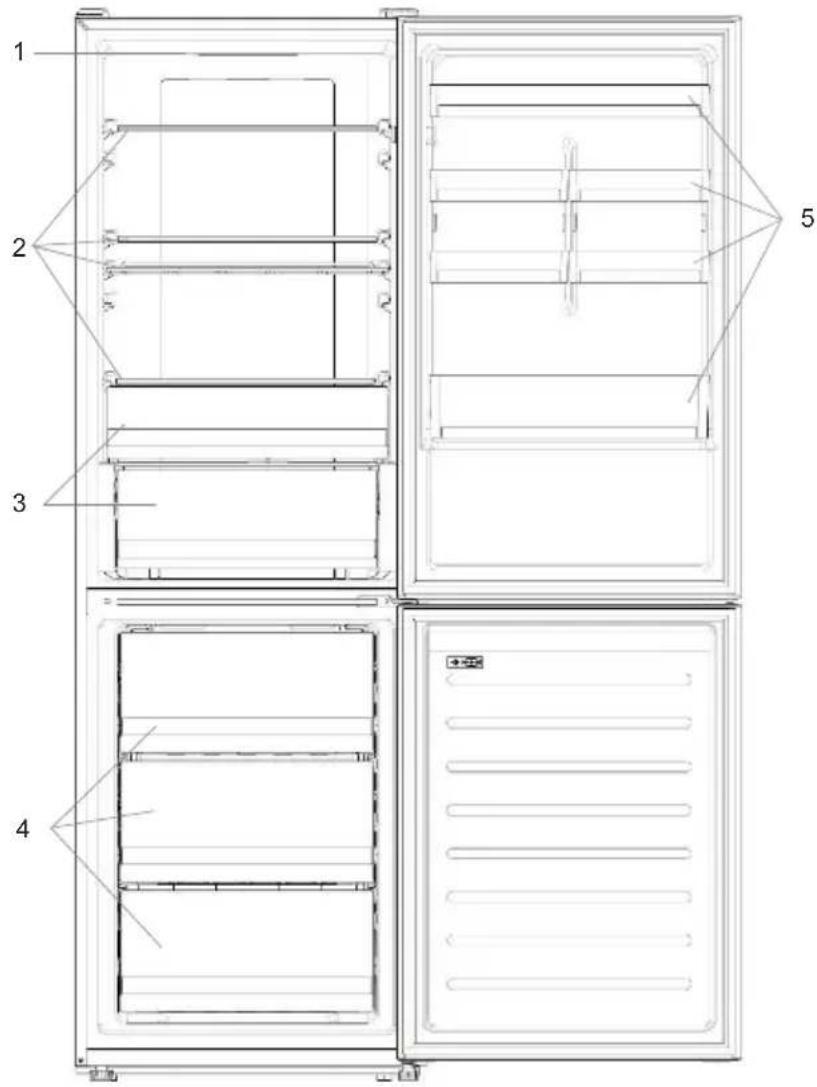

PRODUCT DESCRIPTION
- Control Panel 2.Shelves
- Crispers
- Freezer Boxes
- Door rack
- The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures.
** The pictures above are only for reference. The actual configuration will depend on the physical product or statement by the distributor.

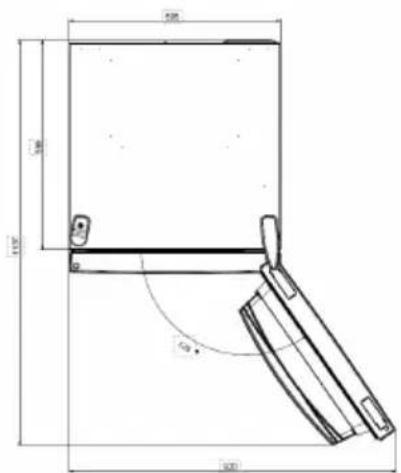

Space requirements
The unit's door must be able to fully open as shown. Spare enough space for convenient opening of the doors and drawers.
Keep a distance of at least 50 mm between the side walls of the product and adjacent parts.
Width: min. 920 mm
Depth: min. 1137 mm
USE

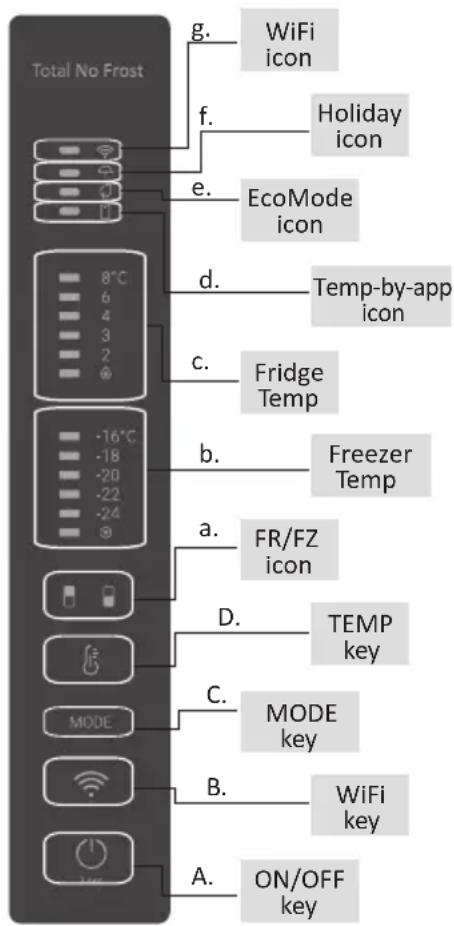

A. ON/OFF key, used to switch on/off the appliance B. Wi-Fi key, used to switch on/off the Wi-Fi C. Mode key, used to select the desired function D. TEMP key, used to select the fridge and freezer temperature
a. Fridge/freezer area icon, shows which compartment of the appliance is selected b. Freezer temperature levels, show which is the selected temperature in the freezer c. Fridge temperature levels, show which is the selected temperature d. Customized temperature icon, shows if the temperature has been selected by app e. Eco mode icon, shows whether the eco mode is activated f. Holiday function icon, shows whether the holiday function is activated g. Wi-Fi icon, shows whether the Wi-Fi is working and the appliance is connected
Use
- Plug on the appliance, it automatically turns on. The temperature will automatically set at 4 °C in the fridge and -18 °C in the freezer.
- To change the temperature, press the TEMP key for 5 seconds, an acoustic signal is made and the icon of the selected compartment (fridge or freezer) as well as all the temperature LEDs of the corresponding compartment turn on for 2s, after 2s the selection of the compartment is confirmed. With the selected compartment icon on, quick press the TEMP key to change the temperature. When the setting increases, the corresponding LED light will turn on. An acoustic signal is made every time the TEMP key is pressed and the temperature is changed, after 5 seconds the selection is confirmed. After 30s without operation the fridge/freezer icon area turns off, while the LEDs of the selected temperatures stay on. When the TEMP key is touched again, the icon of the last area selected (fridge or freezer) turns on.
- In case of power loss, the last cooling level set will be restored.
- To restore the default setting, long press the Temp key button and click the ON/OFF key button 5 times (in 5 seconds).
- Under normal operating conditions (in spring and autumn), it is recommended to set the temperature at 4 °C. In summer when the ambient temperature is high, it is recommended to set temperature at 6~8 °C, so as to guarantee the fridge and freezer temperatures and reduce the refrigerator continuous running time; and in winter when the ambient temperature is low, it is recommended to set temperature at 3~4 °C to avoid frequent start/stop of the refrigerator.
Customized temperature
From the app it is possible to customize the temperature for both fridge and freezer. The temperature can be set with 1°C sensitivity. It is possible to select a temperature from 2°C to 8°C in the fridge, and from -16°C to -24°C in the freezer.
When the temperature is selected by the app, the customized temperature icon turns on, while all the temperature LED lights of the affected compartment are turned off (i.e. if the refrigerator temperature is selected from the app, LEDs from 2°C to 8°C are turned off. If the freezer temperature is selected from the app, LEDs from -16°C to -24°C are turned off). If only a single area (freezer or fridge) has the customized temperature, the temperature selection of the other area is not changed and the LED light of the selected temperature of that area remains on. An acoustic signal is made every time the temperature is changed.
Super Cool function
It is suggested to switch on the Super Cool function if a large quantity of food should be stored (for example after the purchase). The Super-Cool function accelerates the cooling of fresh food and protects the goods already stored from undesirable warming. When the function is activated, the temperature of the fridge is automatically set at 2°C. How to use the Super Cool function:
- The function can be activated by long pressing TEMP key to select the fridge compartment, and then quick pressing the TEMP key until the Super Cool icon led is turned on, or it can be turned on from the app. When the function is activated, the Super Cool LED is always ON.
- To exit the Super Cool function, press the TEMP key or turn it off from the app.
- The Super Cool function automatically ends when the function has lasted for more than 30 hours.
- When the Super Cool ends, the icon of the control panel is switched off and the previously set cooling level is restored.
Note: Super Cool and Super Freeze function cannot be activated simultaneously
Super Freeze function
The super freezing function accelerates the freezing of fresh food and protects the goods already stored from undesirable warming. If a large amount of food has to be freeze, it is recommended to set the Super-Freeze function on 24h before the usage. When the function is activated, the temperature is automatically set at -24°C.
How to use the Super Freeze function:
- The function can be launched by long pressing TEMP key to select the freezer compartment, and then quick pressing TEMP key until the Super Freeze icon led is turned on, or it can be turned on from the app. When the function is activated, the Super Freeze LED is always ON.
- To exit the Super Freeze function, press the TEMP key or turn it off from the app.
- The Super Freeze function automatically ends when the function has lasted for more than 50 hours.
- When the Super Freeze ends, the icon on the control panel switches off and the previously set freezing level is restored.
Note: Super Cool and Super Freeze functions cannot be activated simultaneously.
Eco mode
The Eco mode can be activated to optimize the performance of the appliance, while obtaining the best food storage. The Eco mode will automatically set the temperature at 5°C in the fridge and at -18°C in the freezer.
How to use the Eco mode:
- The function can be activated from the control panel by pressing the "mode" key until the Eco mode icon turns on (an acoustic signal confirms the selection), or by selecting the function from the app. When the function is activated, the Eco mode icon is always ON.
- To exit the Eco mode, turn it off from the app or choose another function from the control panel.
- When the Eco mode ends, the icon on the control panel switches off and the previously set cooling levels are restored.
Holiday function
The Holiday function can be used to reduce the energy consumption of the appliance when it is not used regularly. When the function is on, the LED lights are off (even if the door is open) and the fridge is turned off, whereas the freezer will keep working normally.
How to use the Holiday function:
- The function can be activated from the control panel by pressing the "mode" key until the Holiday icon turns on (an acoustic signal confirms the selection), or by selecting the function from the app. When the function is activated, the Holiday icon is always ON.
- To exit the Holiday function, turn it off from the app or choose another function from the control panel.
- When the Holiday function ends, the icon on the control panel switches off and the previously set cooling levels are restored.
Defrosting
The defrosting of the refrigerator and freezer compartments is done automatically: no manual operation is needed.
HCS
When a certain moisture level is reached, the HCS filter fibers open, causing moisture to decrease, and then close again.
Demo mode
To enter the demo mode, with the display unlocked, keep pressed the SET key and press the WiFi key 5 times within 5 seconds. To exit the demo mode, perform the same operation or power off the refrigerator.
Error Codes
- Communication error
If the lights in the freezer corresponding to temperatures [-16°C, -18°C, -20°C, -22°C, -24°C] turn on sequentially, it means there has been a communication error between the main control board and the display board. Please contact technical assistance to help solve the problem.
Fan
If the lights in the freezer corresponding to temperatures [-16°C, -20°C, -22°C, -24°C] flash simultaneously, it means the fan is not working properly. Please contact technical assistance to help solve the problem.
APP CONNECTION
IN APP PAIRING PROCEDURE

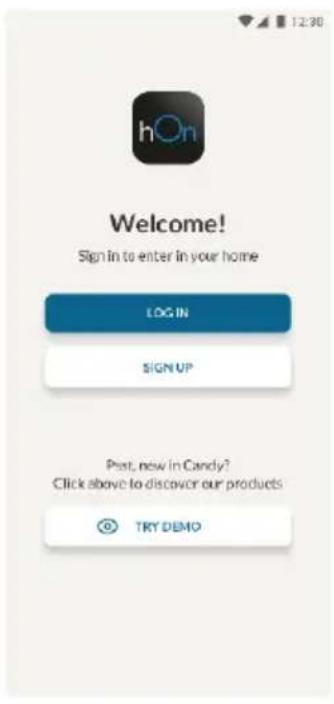

Step 1
Download the hOn app from the app stores
Step 2

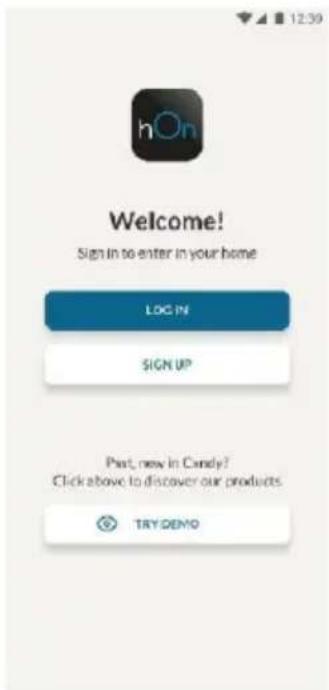

- Create your account on the hOn App or log in if you already have an account
Step 3
- Follow pairing instructions in the hOn App
Wi-Fi Use
If the Wi-Fi has not been configured yet, when the refrigerator turns on, it will automatically enter the configuration mode and keep this status for 30 minutes. The Wi-Fi icon blinks and product enrollment can start.
- Follow in app instructions to configure the Wi-Fi (see above)
- Once the Wi-Fi is configured and the connection established, the Wi-Fi icon is on and fixed.
- After 30 minutes without performing any operation, the Wi-Fi will automatically exit the configuration mode
- If the Wi-Fi has already been configured, it will automatically reconnect according to the configuration information.
To reset the Wi-Fi, press Wi-Fi key and SET key for 2s.
To turn off the Wi-Fi, press Wi-Fi key for 3s.
Radio-module - Technical data
| Frequency rate (OFR) | 2400 MHz-2843.5 MHz |
| Channel frequencies | 2412...2472 MHz(step size 5 MHz) |
| Maximum power(EIRP) | 100 mW |
Radio equipment type is in compliance with Directive 2014/53/EU.

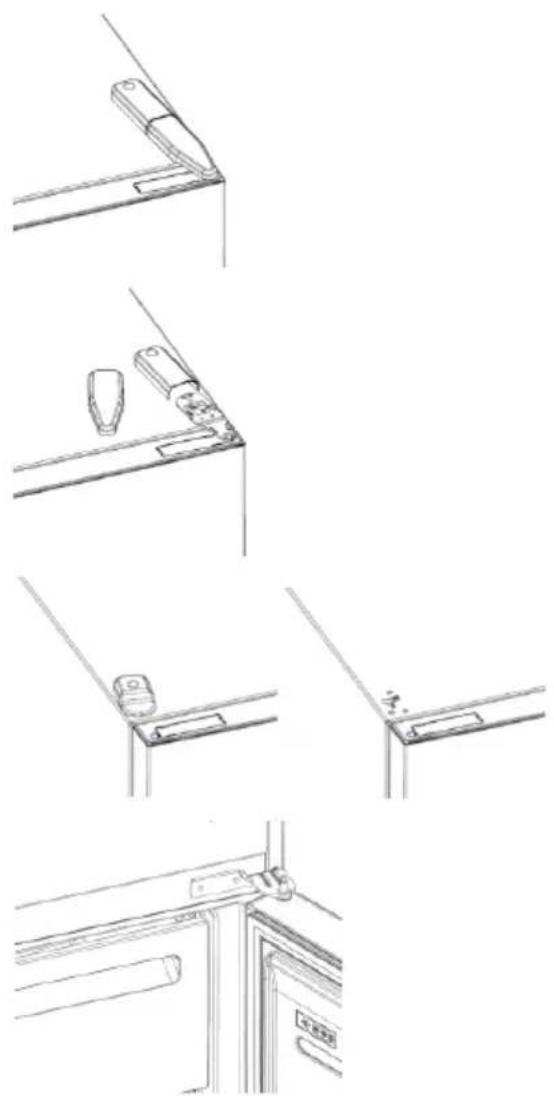

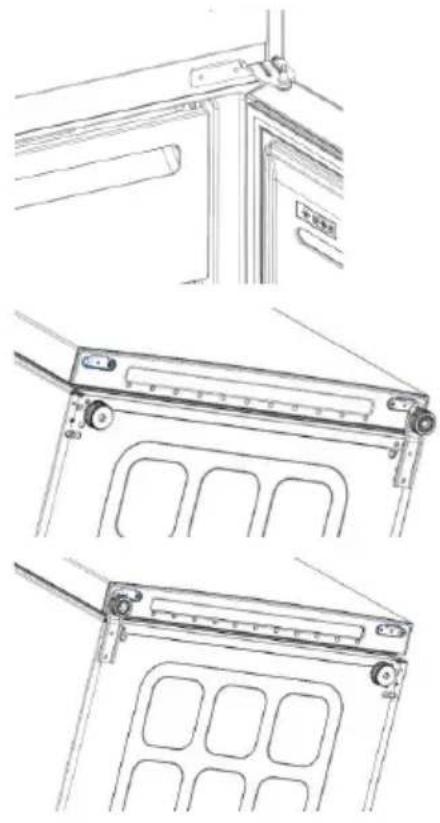

DOOR REVERSIBILITY
Tools needed: Electric screwdriver
- Remove the top hinge cover
- Unscrew the top hinge
- Remove the top hinge cover (left)
- Remove middle hinge
- Remove lower hinge
- Mount hinge foot
- Mount middle hinge
- Mount the upper hinge plate
- Mount the upper hinge cover
TROUBLESHOOTING
| The inside light bulb does not turn on. | ·No electricity. | ·The power cable is not properly plugged in. ·Check if the appliance is switched off (see Temperature Adjustment). ·Check the power socket is working correctly (e.g. with another electric device). |
| ·Holiday Mode is activated. | ·Deactivate Holiday mode. | |
| The internal temperature of the refrigerator and/or freezer is not cold enough. | ·The doors are not closed. | ·Check that the door and gaskets close properly. |
| ·The doors are frequently opened. | ·Avoid opening the doors unnecessarily for some time. | |
| ·Incorrect temperature setting. | ·Check the temperature setting and, if possible, set a lower temperature (see Temperature Adjustment). | |
| ·The refrigerator and/or freezer are too full. | ·Wait for the temperature of the refrigerator/ freezer to stabilise. ·Avoid filling the refrigerator and freezer excessively. | |
| ·The surrounding temperature is too low. | ·Move the unit to a warmer place or heat the current room. | |
| ·Warm items have been stored. | ·Always allow items to cool before storing them. | |
| The food in the refrigerator freezes. | ·Incorrect temperature setting. | ·Check the temperature setting and, if possible, increase the temperature. |
| ·Food in contact with the back wall. | ·Keep the food away from the refrigerator's back wall. | |
| The bottom of the refrigerator compartment is wet or water droplets are present. | ·The drain hose could be clogged. | ·Clean the drain hose with a stick or similar item to allow the water to drain. |
| Presence of drops of water or frost on the rear wall of the refrigerator. | ·Depending on the function, drops of water or frost form on the rear wall of the refrigerator during operation. | ·It is not a defect. |
| ·Warm items have been stored. | ·Always allow items to cool before storing them. | |
| ·There are open food containers or liquids. | ·Always cover food and liquids. | |
| ·The doors are not closed. | ·Check that the door and gaskets close properly. | |
| ·The doors are frequently opened. | ·Avoid opening the doors unnecessarily for some time. | |
| Presence of water in the vegetable drawer. | ·Lack of air circulation. | ·Verify that your appliance is not too full. |
| ·Vegetables and fruit with too much moisture. | ·Wrap the fruit and vegetables in plastic materials, e.g. cling film, bags or containers. | |
| The motor runs continuously. | ·The doors are not closed. | ·Make sure the doors are closed and check the seals close properly. |
| ·The doors are opened frequently. | ·Avoid opening the doors unnecessarily for some time. | |
| ·Ambient temperature is very high. | ·Verify that the ambient temperature is in the range set out in the specifications on the appliance tag. ·Set the display screen/thermostat to a warmer temperature. | |
| ·The appliance has been off (no power) for some time. | ·It normally takes the appliance 8-12h to cool completely. | |
| The frozen food is thawing. | ·Surrounding temperature is too low. | ·Move the unit to a warmer place or heat the current room. |
| ·The freezer door is not closed. | ·Make sure the door is closed and that the gasket is sealing properly. | |
| Fridge door alarm. | ·Fridge door alarm (acoustic beep) activates whenever the door is left open for more than 3 minutes. | ·Avoid leaving the door open when not needed. The beep ceases when the door is closed. |
| The appliance makes noises such as gurgling, buzzing, clicking, creaking. | ·No breakdowns. An engine is running, e.g. refrigeration unit, fan. The refrigerant flows into the pipes. Motor, switches and solenoid valves are switched on or off. | ·No action needed. |
| ·The appliance is not located on level ground. | ·Adjust the feel to level the appliance. | |
| ·The appliance touches an object around it. | ·Remove objects around the appliance. | |
| The appliance does not cool, the temperature and lighting indicators are on. | ·Demo mode is activated. | ·Deactivate DEMO mode. |
| Strong ice and frost in the freezer compartment. | ·The items were not adequately packaged. | ·Always pack the items well. |
| ·A door/drawer of the appliance is not tightly closed. | ·Close the door/drawer. | |
| ·The door/drawer has been opened too frequently or for too long. | ·Do not open the door/drawer too frequently. | |
| ·The door/drawer gasket is dirty, worn, cracked or mismatched. | ·Clean the door/drawer gasket or replace it with a new one. | |
| ·Something on the inside prevents the door/drawer from closing properly. | ·Reposition the shelves, door racks or internal containers to allow the door/drawer to close. | |
| The sides of the appliance are warm. | ·This is normal. |
Space for installation
The door of the appliance must be able to open fully, as shown. Leave sufficient space for easy opening of the door and drawers. Maintain a distance of at least 50 mm between the side walls of the product and adjacent parts.
Width: min. 920 mm
Depth: min. 1137 mm
Operation

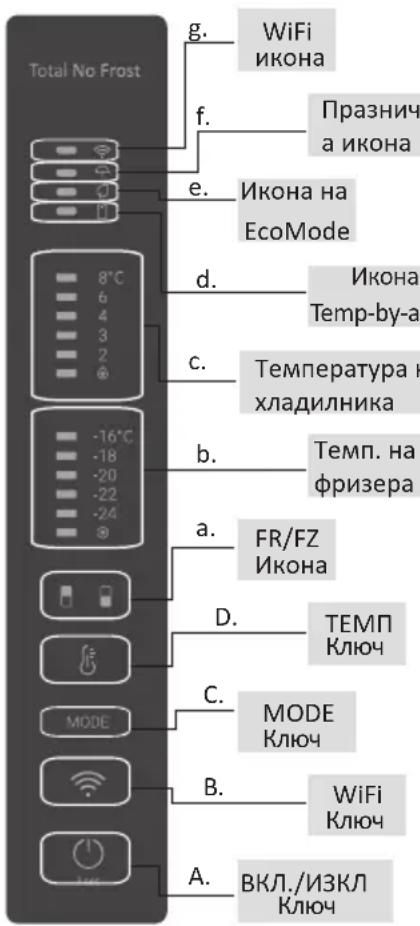

A. "ON/OFF" button for turning the appliance on/off B. "Wi-Fi" button for turning Wi-Fi on/off C. "Mode" button for selecting the desired function D. TEMP button for selecting the temperature in the refrigerator and freezer
a. Icon for the refrigerator/freezer zone, showing which compartment of the appliance is selected b. The temperature values in the freezer show the selected temperature for the compartment c. The temperature values in the refrigerator show the selected temperature d. The icon for the set temperature shows the set temperature and the temperature selected from the app e. The "Eco" mode icon shows whether the eco mode is activated f. The "Holiday" function icon shows whether the function is activated g. The "Wi-Fi" icon shows whether the Wi-Fi network is functioning and the appliance is connected
Operation
- The appliance starts working automatically after you plug it in. The temperature of the refrigerator will automatically be set to 4°C, and the freezer to -18°C. To change the temperature, press the "TEMP" button for 5 seconds, you will hear a sound signal of the selected compartment (refrigerator or freezer), and all temperature indicators of the corresponding compartment will light up for 2 seconds, after which the selection of the compartment will be confirmed. When the icon of the selected compartment lights up, press the TEMP button quickly to change the temperature. When the setting is increased, the corresponding LED light turns on. With each press of the "TEMP" button, a sound signal is emitted and the temperature changes, after 5 seconds the selection is confirmed. If it does not work in
After 30 seconds of inactivity, the icon for the refrigerator/freezer zone turns off, while the indicators of the selected temperatures remain on. When you press the "TEMP" button again, the icon of the last selected compartment (refrigerator or freezer) turns on.
In case of power loss, the last setting of the cooling level will be restored. To restore the setting after a power failure, press the "Temp" button continuously and press the "ON/OFF" button 5 times (within 5 seconds) - Under normal operating conditions (in spring and autumn) it is recommended to set the temperature to 4°C. In summer, when the ambient temperature is high, it is recommended to set the temperature to 6~8°C to ensure the temperatures of the refrigerator and freezer and to reduce the continuous operation time of the refrigerator. In winter, when the ambient temperature is low, it is recommended to set the temperature to 3~4°C to avoid frequent switching on/off of the refrigerator.
Personalized temperature
It is possible to personalize the temperature of each compartment - the refrigerator and the freezer. The temperature can be adjusted in steps of 1°C. It is possible to select a temperature from 2°C to 8°C in the refrigerator and from -16°C to -24°C in the freezer.
When the temperature is selected from the app, the button for personalized temperature is activated, while all LED lamps for the temperature of that compartment are turned off (i.e., if the refrigerator temperature is selected from the app, the lights from 2°C to 8°C are turned off. If the freezer temperature is selected from the app, the lights from -16°C to -24°C are turned off).
If only one zone (freezer or refrigerator) has personalized temperature, the temperature selection of the other zone is not changed and the LED lights of the selected temperature of that zone remain on. Every time the temperature is changed, an audible signal is emitted.
Function "Super Cool"
It is recommended to activate the "Super Cool" function if you need to store large quantities of food (e.g., after shopping). The "Super Cool" function accelerates the cooling of fresh food and protects stored products from warming. When the function is activated, the refrigerator temperature is automatically set to 2°C. How to activate the "Super Cool" function:
Download on the App Store
EXPLORE IT ON AppGallery
Page 2
Connect your device to the app or log in if you already have an account.
Page 3
Follow the instructions for connecting in the app.
Using Wi-Fi
If Wi-Fi has not been configured when the refrigerator is turned on, it will automatically enter configuration mode and remain in this state for 30 minutes. The "Wi-Fi" button flashes and can be used to register the product.
Follow the instructions in the app to configure Wi-Fi (see above). Once Wi-Fi is configured and the connection is established, the Wi-Fi button is on and flashing. After 30 minutes without any action, Wi-Fi automatically disconnects and exits configuration mode. If Wi-Fi is already configured, it will automatically connect using the normal configuration.
To reset the Wi-Fi connection, press the "Wi-Fi" button and the "SET" button for 2 seconds.
Press and hold the Wi-Fi button for 3 seconds.
Radio module - Technical data
| Чебota (OFR) | 2400 MHz-2843.5 MHz |
| Чебotingи на каналa | 2412...2472 MHz(размер на CTыпкaitа 5 MHz) |
| Мakсимална мошиност(EIRP) | 100 mW |
Radio equipment complies with Directive 2014/53/EU.

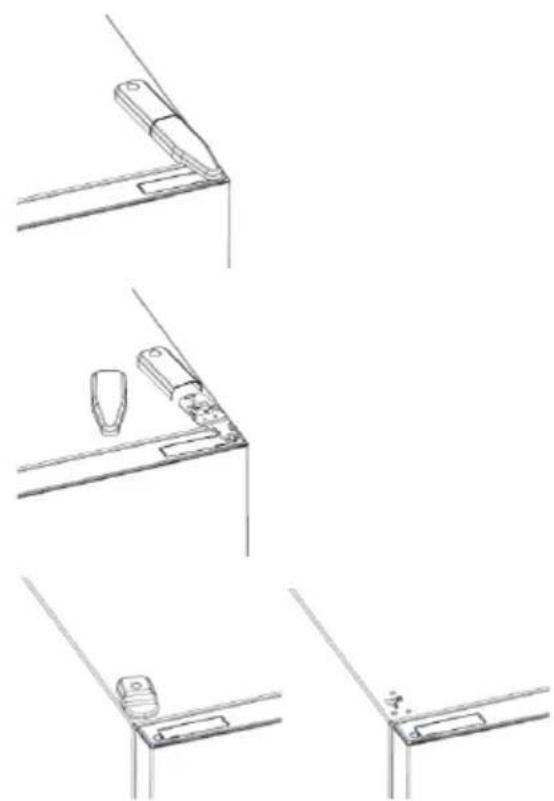

TOOLS REQUIRED: Electric screwdriver
- Remove the caps of the top plate
- Remove the top plate
- Remove the caps of the top plate (back)
- Remove the middle plate
- Remove the bottom plate
- Mount the bracket of the plate
- Mount the middle plate
- Mount the top plate of the plate
- Mount the top cap of the plate
TROUBLESHOOTING
Step 1
Place the appliance .56
SYNTHESIS PHARMACY 57
Unit 1 .57
Unit 2 57
Unit 3 .57
Wi-Fi connection 58
TROUBLESHOOTING 59
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
1. Control panel 2. Shelves 3. Drawers for fruits and vegetables 4. Storage box for freezer 5. Door shelf
- The recommended placement for energy efficiency requires the placement of drawers, containers for food, and shelves in the product. Please refer to the images above. ** The images above are for reference only. The actual arrangement of parts depends on the physical product or the manufacturer's instructions.
Space Requirements
The door of the unit must be able to open fully as shown. There should be sufficient free space for the ventilation of the doors and drawers.
Maintain a minimum distance of 50 mm between the side walls of the product and the adjacent furniture.
Download on the App Store
EXPLORE IT ON AppGallery
Step 2
Download on the App Store
EXPLORE IT ON AppGallery
Step 2
PRODUCT DESCRIPTION 122
APP CONNECTION IN THE APP PAIRING PROCEDURE
Step 1
Setting the temperature
In the app, you can set the temperature for both the refrigerator compartment and the freezer compartment. The temperature can be set in 1°C increments. For the refrigerator compartment, you can select a temperature from 2°C to 8°C, and for the freezer compartment, from -16°C to -24°C.
If the temperature is selected in the app, the indicator for manual temperature setting lights up, and all temperature indicators for the corresponding compartment turn off (i.e., if the refrigerator temperature is selected in the app, the indicators from 2°C to 8°C turn off). If the freezer temperature is selected in the app, the indicators from -16°C to -24°C turn off.
If the temperature is manually set for only one zone (freezer or refrigerator), the selected temperature for the other zone does not change, and the indicator for the selected temperature of that zone remains on. An acoustic signal is emitted each time the temperature is changed.
Super Cool function
It is recommended to activate the Super Cool function if you need to store a large quantity of products (for example, after shopping). The Super Cool function accelerates the cooling of fresh products and protects already stored goods from unwanted warming. When this function is activated, the refrigerator compartment temperature is automatically set to 2°C.
How to use the Super Cool function:
This function can be activated by pressing and holding the TEMP button to select the refrigerator compartment, then quickly pressing the TEMP button until the Super Cool indicator lights up; or this function can be enabled in the app. When the function is activated, the Super Cool indicator will remain on. To turn off the Super Cool function, press the TEMP button, or turn it off in the app. The Super Cool function automatically turns off after more than 30 hours from activation.
When the Super Cool function turns off, the appliance returns to the previously set cooling level.
Note: The Super Cool and Super Freeze functions cannot be activated simultaneously.
Super Freeze function
The Super Freeze function accelerates freezing of fresh food and protects already stored food in the freezer compartment from unwanted warming. If you need to freeze a large quantity of food, it is recommended to activate the Super Freeze function 24 hours before use. When the function is activated, the temperature is automatically set to -24°C.
How to use the Super Freeze function:
- The function can be activated by pressing and holding the TEMP button to select the freezer compartment, then quickly pressing the TEMP button until the Super Freeze indicator lights up; or this function can be enabled in the app. When the function is activated, the Super Freeze indicator will remain on.
- To turn off the Super Freeze function, press the TEMP button, or turn it off in the app.
- The Super Freeze function automatically turns off after more than 50 hours from activation. When Super Freeze turns off, the indicator on the control panel goes out.
Note: The Super Cool and Super Freeze functions cannot be activated simultaneously.
Eco mode
Eco mode can be activated to optimize the performance of the appliance while ensuring good conditions for storing food. Eco mode automatically sets the temperature to 5°C in the refrigerator compartment and -18°C in the freezer compartment.
How to use Eco mode:
- The function can be activated from the control panel by pressing the "mode" button until the Eco mode indicator lights up (a sound signal confirms the selection), or select the function in the app. When the function is activated, the Eco mode indicator is always on.
- To exit the Eco mode, turn it off in the settings or select a different function on the control panel. When the Eco mode is turned off, the indicator on the control panel turns off, and the previously set cooling levels are restored.
Holiday function
APP CONNECTION AND APP CONNECTION MODE
Step 1
To use the Holiday function:
- The function can be activated from the control panel by pressing the "mode" button until the Holiday function pictogram turns on (a sound signal confirms the selection); or you can select the function from the app. When the function is activated, the Holiday pictogram will always be on.
- After turning on the Holiday function, the pictogram on the control panel turns on, and the previously set cooling levels are restored.
Defrosting
Defrosting of the refrigerator and freezer compartments is carried out automatically: manual control is not required.
HCS
When a certain level of humidity is reached, the HCS filter fibers open, which leads to a change in humidity, and then they close again.
Demonstration mode
To enter the demonstration mode with an unlocked display, press and hold the SET button and press the Wi-Fi button 5 times within 5 seconds. To exit the demonstration mode, perform the same actions or turn off the refrigerator.
When the appliance
The temperature indicator (-16°C; -18°C; -20°C; -22°C; -24°C) in the freezer turns on sequentially; this means that the main control board or the relay board has a data exchange error. Contact technical support to get help in solving the problem.
- Fan
The temperature indicator (-16°C; -20°C; -22°C; -24°C) in the freezer turns on in order, which means that the fan is not working properly. Contact technical support to get help in solving the problem.
CONNECTION TO THE ACCESSORY
Required tools: Electric screwdriver
- Remove the top hinge cover
- Unscrew the top hinge
- Remove the top hinge cover (left)
- Remove the middle hinge
- Remove the bottom hinge
- Install the hinge support
- Install the middle hinge
- Install the top hinge plate
- Install the top hinge cover
0
y 1
a 1
Ji j J W- Fi 5
A. jie 1
B Total No Frost
C. y = a - b + c/x = a + b + c
4 15 15 15 15 15 15 15 15 15 18-
T 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 1
（204 ）
y jil ginal bia jai oaii pi aal lai
.
5
4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
aaiiaai
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
L 1
- ,,
"Super Cool
Jooi. (e) Jlll lIaIle) plaln no 8 k a K y jnn jn Super Cool aag, Jus Supm 12
Super Cool
blll 1555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555
Super Cool LED
Super Cool
a 30 jy jyj yjw lue Super Cool
y Super Cool y
a
Super Freeze Super Cool
g j 24 Super Freeze
blll 1234567890 Super Freeze Super Freeze LED Super Freeze
. •
•
aee aee eae ee eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eee
1
Super Freeze Super Cool
"ECO
Eco gao Jao, plabll jzjia Jia 1e Juaaall 20 jgall cai jn nn nnnn y Jauayy I aai
1
y jn nn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
a 1000
L
0jglg
Therefore m = 3/11
J 24°C-22°C-20°C-16°C]
- hOn
a
Jbbl bI J 10 hOn
Therefore the area of triangle OBC equals the area of triangle COD plus the area of triangle BOC minus the area of triangle BOC.
·
PRODUCT DESCRIPTION 272
Installation location 272
USE 273
Use. 273
Adjusted temperature. 274
Super Cool function 274
Super Freeze function 275
Eco mode 275
Holiday function 275
Defrosting 275
Demonstration mode 276
Error codes 276
APP CONNECTION 277
Step 1 277
Step 2 277
Step 3 277
- PRODUCT DESCRIPTION
- USE
- SPACE REQUIREMENTS
- CUSTOMIZED TEMPERATURE
- SUPER COOL FUNCTION
- SUPER FREEZE FUNCTION
- ECO MODE
- HOLIDAY FUNCTION
- DEFROSTING
- HCS
- DEMO MODE
- ERROR CODES
- APP CONNECTION
- IN APP PAIRING PROCEDURE
- STEP
- WI-FI USE
- RADIO-MODULE - TECHNICAL DATA
- DOOR REVERSIBILITY
- SPACE FOR INSTALLATION
- OPERATION
- PERSONALIZED TEMPERATURE
- FUNCTION "SUPER COOL
- PAGE
- USING WI-FI
- RADIO MODULE - TECHNICAL DATA
- TOOLS REQUIRED: ELECTRIC SCREWDRIVER
- APP CONNECTION IN THE APP PAIRING PROCEDURE
- SETTING THE TEMPERATURE
- APP CONNECTION AND APP CONNECTION MODE
- DEMONSTRATION MODE
- WHEN THE APPLIANCE
- CONNECTION TO THE ACCESSORY
- AAIIAAI
- SUPER COOL
- ECO
- JGLG
Brand : HAIER
Model : HDW5618CNPK
Category : Refrigerator
