USER MANUAL KS 1800/35 ATIKA

Original instructions – Chain saw

Exterior view of a chain-linking power tool with visible mesh and black handle (no text or symbols)

GB Do not operate machine before having read the operating instructions, understood all the notes and assembly the machine as described here. Keep the instructions in a safe place for future use.

Illustration of a damaged gear with a warning triangle and safety symbol (no readable text or labels)

Close-up of a textured spherical object with a chain-like extension extending from it, labeled '12' in the top-left corner (no other text or symbols)

Illustration of a cracked ball with a checkmark and a curved line above it, no text or symbols present

14 17 4

Close-up of a hand using a chainsaw to cut wood, showing blade and cutting edge (no text or symbols)

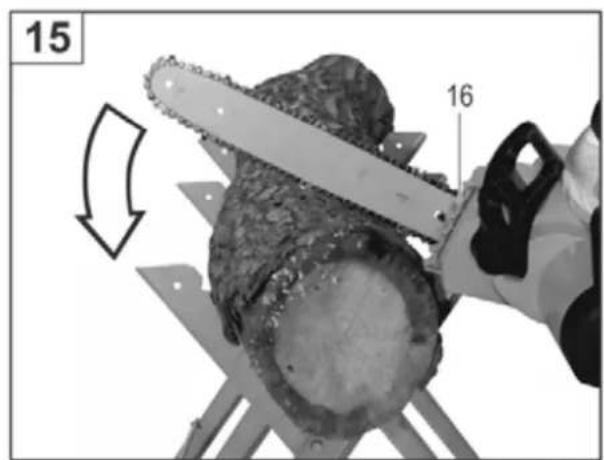

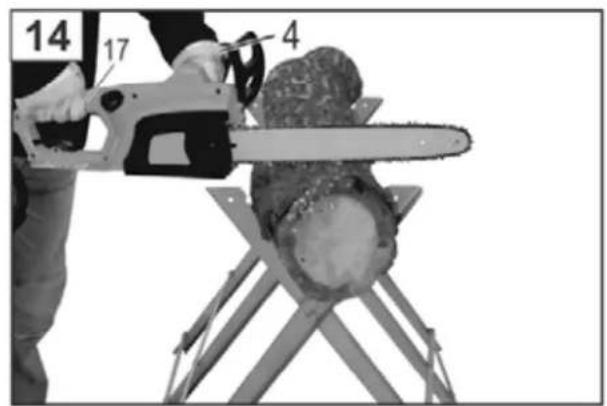

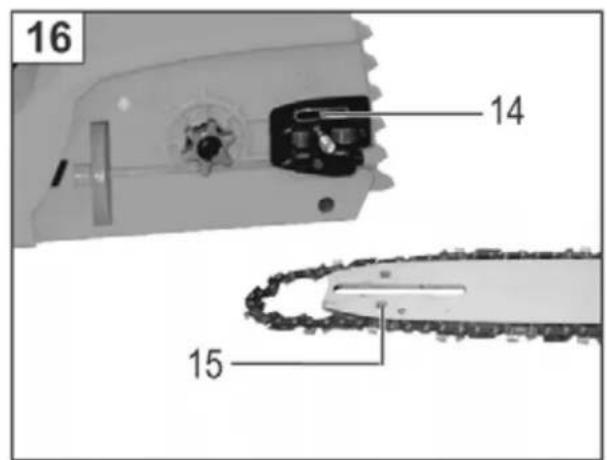

16 14 15

A

Zugseite

Tension side

Côté traction

страна на дърпане

Strana s tahem

Trækside

Lado de tracción

Vetopuoli

➢Πλευρά έλξης

Húzott oldal

Potezna strana

Lato di trazione

Trekkside

Trekkant

Strona rozciagana

20 ③ ② ← A → ① → B ←

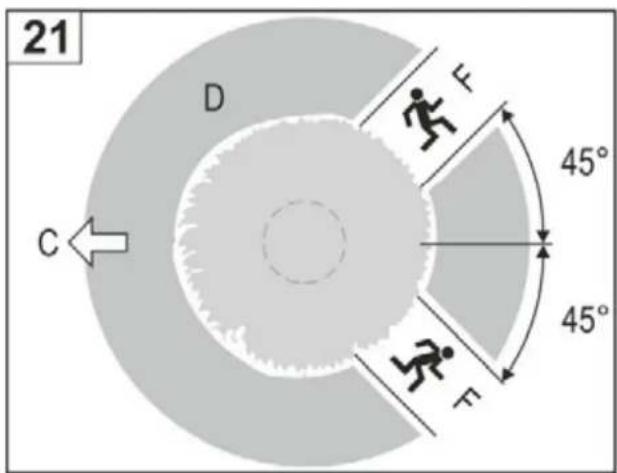

21 D C F 45° 45° T

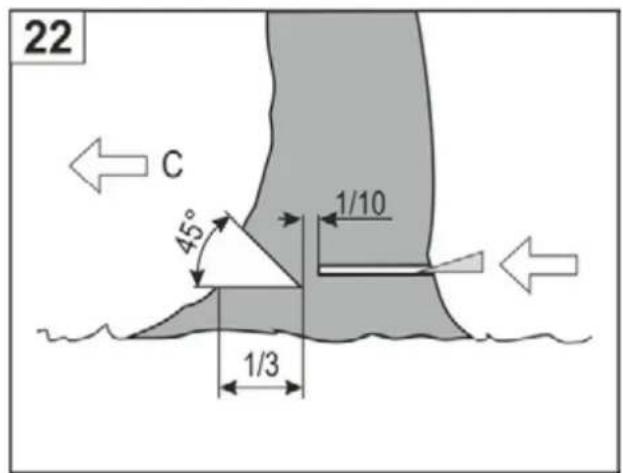

22 C 45° 1/10 1/3

23

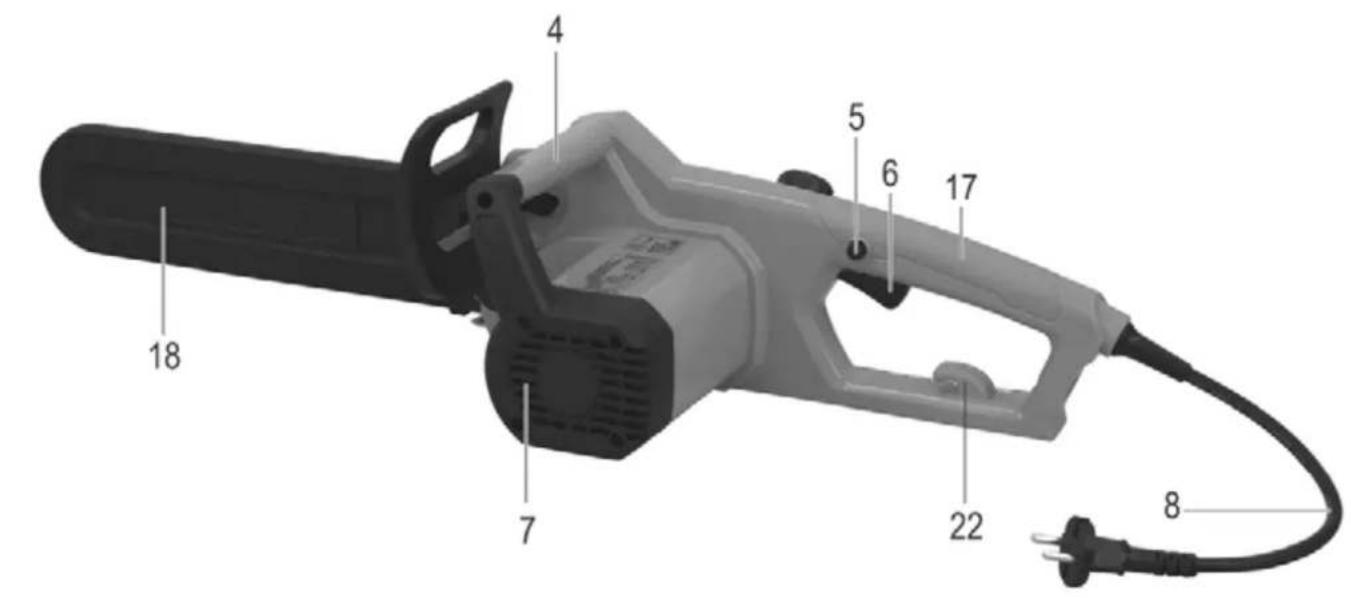

18 4 5 6 17 7 22 8

Labeled diagram of a chain-coil powertrain with numbered parts and internal gear mechanism inset

19 max 356

Inhalt

Lieferumfang 7

Extent of delivery 19

EC Declaration of Conformity 19

Operating times 19

Symbols on the chain saw 20

Symbols operating instructions 20

Proper use 20

Residual risks 20

Safety instructions 20

• General safety instructions 20
• Work area safety 21
• Electrical safety 21
  — Safety of persons 21
  — Power tool use and care 21
• Service 21
  – Chain saw safety warnings 21
  — Causes and operator prevention of kickback 22

Vibrations 23

Assembly 24

Before the first starting 24

- Chain lubrication 24

— Charging the oil tank 24

Start-up 24

— Before sawing 24
— Electric supply 24
- Mounting of the extension cable 25
- Switching On/Off 25
- Chain brake 25
- Checking the chain brake 25
- Clamping of saw chain 25

Work instructions (saw techniques) 25

• Operating 25
  — Additional advices for sawing trunks 26
• Additional advices for sawing timber under tension/release 26
  — Additional advices for chopping down trees 26

Maintenance and cleaning 27

• Maintenance 27
• Sharpening of saw chain 27
  — Exchanging saw chain and guide bar 27
• Chain wheel 27
• Checking of the oil automatic 28
• Cleaning 28

Transport 28

Storage 28

Possible faults 28

Technical specifications 29

Description of device / spare parts 29

Guarantee 29

Extent of delivery

After unpacking, check the contents of the box for

▶ completeness
▶ possible transport damage.

Report any damage or missing items to your dealer, supplier or the manufacturer immediately. Complaints made at a later date will not be acknowledged.

• 1 Chain saw
  • 1 Guide bar
• 1 Saw chain
  • 1 Chain protection
  • 1 Operating instructions
  • 1 Warranty declaration

EC Declaration of Conformity

No. (S-No.): 14624

according to EC directive:

2006/42/EC

We,

ATIKA GmbH

Josef-Drexler-Str. 8 – 89331 Burgau – Germany

declare under our sole responsibility, that the products

Kettensäge (Chain saw) KS 1800/35

Serial number: 000001 - 020000

are conform with the above mentioned EC directives as well as with the provisions of the guidelines below:

2004/108/EC, 2000/14/EC and 2011/65/EU.

Conformity assessment procedures 2000/14/EC -

Appendix V:

Measured sound power level L_WA 104,72 dB (A).

Guaranteed sound power level L_WA 107 dB (A).

Following harmonized standards have been applied:

EN 60745-1:2009+A1, EN 60745-2-13:2009+A1,

EN 55014-1:2006+A1+A2, EN 55014-2:1997+A1+A2,

EN 61000-3-2:2006+A1+A2, EN 61000-3-11:2000

Duly authorised person for the compilation of technical documents:

ATIKA GmbH – Technical department

Josef-Drexler-Str. 8 – 89331 Burgau – Germany

EC type examination carried out by:

TÜV Rheinland Product Safety GmbH

Certificate no.: BM 50296971

Burgau, 06.11.2014

i.A. G. Koppenstein

Engineering design management

Operating times

Please observe as well the regional regulations for noise protection.

Symbols on the chain saw

Read and follow the operating instructions and safety advices before starting up the machine.

Switch off the motor and disconnect the mains plug before performing cleaning, maintenance or repair work.

When connecting cable is damaged or cut through immediately pull out the power plug.

Wear hardhat, eye and ear protection.

Wear protective gloves.

Do not expose to rain. Protect against humidity.

Guide bar length (cutting length) 356 mm

Machine of the protection class II (double insulated)

This product complies with European regulations specifically applicable to it.

Electrical devices do not go into the domestic rubbish. Give devices, accessories and packaging to an ecofriendly recycling.

According to the European Directive 2012/19/EU on electrical and electronic scrap, electrical devices that are no longer serviceable must be separately collected and brought to a facility for an environmentally compatible recycling.

Symbols operating instructions

	Potential hazard or hazardous situation. Failure to observe these instructions may lead to injuries or cause damage to property.
	Important information on proper handling. Failure to observe these instructions may lead to malfunction.
	User information. This information helps you to use all the functions optimally.
	Assembly, operation and servicing. Here you are explained exactly what to do.
	Important notes for environmentally compatible conduct. Failure to observe these instructions may lead to environmental damage.
	The numbers refer to the figures on the pages 3 through 6.

Proper use

■ The chain saw is suitable for
- sawing of trunks, perches, wood trusses, boards etc. and can be used for transverse or longitudinal cuts.
- Chopping down of trees.
■ Do not use the chain saw for sawing of building materials and synthetic materials.
■ The chain saw is only suitable for the private use in the house and hobby garden.
■ The chain saw is not suitable for forestry works (chopping and cutting off of perches in the forest). The necessary safety of the operator is not guaranteed by the cable joint.
■ The intended usage also includes compliance with the operating, servicing and repair conditions prescribed by the manufacturer and following the safety instructions included in the instructions.
■ Any other use is deemed not to be use as prescribed. The manufacturer is not liable for any type of damage resulting from this: the user bears the sole risk.

Residual risks

Even if used properly, residual risks can exist even if the relevant safety regulations are complied with due to the design determined by the intended purpose.

Residual risks can be minimised if the “Safety advices” and the “Intended usage” as well as the whole of the operating instructions are observed.

Observing these instructions, and taking proper care, will reduce the risk of personal injury or damage to the equipment.

■ Risk of kickback when touching the guide bar tip with a hard object.
■ Risk of injuries of fingers and hands by the tool (saw chain).
■ Injury by catapulted workpiece parts.
Electric shock.
■ Risk from electricity when using improper electrical connections.
■ Touching live parts of opened electrical components.
■ Impairment of hearing when working on the machine for longer periods of time without ear protection.
Risk of fire.

In addition, in spite of all the precautionary measures taken, non-obvious residual risks can still exist.

Safety instructions

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in way. Do nut use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of cord suitable for outdoor use reduces the risk of electric shocks.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shocks.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in enexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hais, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any p Any power tool that cannot be controlled with the switch is dangerous and must be repaired.ower tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tool. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the poser tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Ceck for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, being into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Chain saw safety warnings:

• Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of your clothing or body with the saw chain.
• Always hold the chain saw with your right hand on the rear handle and your left hand on the front handle. Holding the chain saw with a reversed hand configuration increases the risk of personal injury and should never be done.

• Hold the power tool on the insulated handle surfaces as the saw chain may come into contact with the unit's mains supply cable. A contact of the saw chain with a live conductor may apply hazardous voltage to metallic parts of the unit and cause electric shock.

• Wear safety glasses and hearing protection. Further protective equipment for head, hands, legs and feet is recommended. Adequate protective clothing will reduce personal injury by flying debris or accidental contact with the saw chain.

• Do not operate a chain saw in a tree. Operation of a chain saw while up in a tree may result in personal injury.
• Always keep proper footing and operate the chain saw only when standing on fixed, secure and level surface. Slippery or unstable surfaces such as ladders may cause a loss of balance or control of the chain saw.
• When cutting a limb that is under tension be alert for spring back. When the tension in the wood fibres is released the spring loaded limb may strike the operator and/or throw the chain saw out of control.
• Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and be whipped toward you or pull you off balance.
• Carry the chain saw by the front handle with the chain saw switched off and away from your body. When transporting or storing the chain saw always fit the guide bar cover. Proper handling of the chain saw will reduce the likelihood of accidental contact with the moving saw chain.
• Follow instructions for lubricating, chain tensioning and changing accessories. Improperly tensioned or lubricated chain may either break or increase the chance for kickback.
• Keep handles dry, clean and free from oil and grease. Greasy, oily handles are slippery causing loss of control.
• Cut wood only. Do not use chain saw for purposes not entended. For example: do not use chain saw for cutting plastic, masonry or non-wood building materials. Use of the chain saw for operations different than intended could result in a hazardous situation.

Causes and operator prevention of kickback:

Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and prinches the saw chain in the cut.

Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.

Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator.

Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As a chain saw user, you should take several steps to keep your cutting jobs free from accident of injury.

Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking porper precautions as given below:

• Maintain a firm grip, with thumbs and fingers encircling the chain saw handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the chain saw.

• Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chain saw in unexpected situations.

• Only use replacement bars and chains specified by the manufacturer. Incorrect replacement bars and chanis may cause chain breakage and/or kickback.

• Follow the manufacturer's sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback.

more safety warnings „Electrical safety“

■ Design of the connection cable according to IEC 60245 (H 07 RN-F) with a core cross-section of at least - 1.5 mm² for cable lengths up to 25 m - 2.5 mm² for cable lengths over 25 m
■ Long and thin connection lines result in a voltage drop. The motor does not reach any longer its maximal power; the function of the device is reduced.
■ Plugs and coupler outlets on connection cables must be made of rubber, non-rigid PVC or other thermoplastic material of same mechanical stability or be covered with this material.
■ The connector of the connection cable must be splash-proof.
■ When running the connection line observe that it does not interfere, is not squeezed, bended and the plug connection does not get wet.
■ During the cutting operation, the supply cord must be securely positioned to prevent the cord from snagged on branches and the like.
■ Do not use the cable for purposes for which it is not meant. Protect the cable against heat, oil and sharp edges.
■ Wind off completely the cable when using a cable drum.
■ Regularly check the cables and replace them if they are damaged.
■ Do not use any defective connection cables.
■ Do not set up any provisional electrical connections.
■ Do not hose down the device with water. (origin of danger electric current).
■ Never bypass protective devices or deactivate them.
■ Only hook up the machine by means of a fault-current circuit breaker (30 mA).
■ The electrical connection or repairs to electrical parts of the machine must be carried out by a certified electrician or one of our customer service points. Local regulations – especially regarding protective measures – must be observed.

more safety warnings „Personal safety“

■ The chain saw shall only be operated by persons with sufficient experience.
■ Give or lend the chain saw only to persons who are familiar with the chain saw and its operation. Give always the operating instruction to take with them.
■ The operator is responsible for accidents or risks which occur to other persons or their properties.
■ Wear suitable protective equipment when working:
— Hairnet in case of long hair
- Visor
— Cut-proof trousers and gloves

more safety warnings „Power tool use and care“

■ Switch off machine and pull out power plug out of the power outlet in case of:

• Contact of chain saw with soil, stones, nails or other foreign substances Check immediately chain and guide bar.
• Carrying out repair work.
• Performing maintenance and cleaning work.
• Eliminating faults.
• Transport.
• Clamping again the chain.
• Chain change.
  – Leaving of machine (also for short-term interruption).

■ Check the machine for possible damage:

• Before further use of the machine the safety devices must be checked carefully for their proper and intended function. Only operate the machine with complete and correctly attached safety equipment and do not alter anything on the machine that could impair the safety.
• Check whether movable parts function perfectly and do not stick or whether parts are damaged. All parts must be correctly installed and fulfil all conditions to ensure perfect operation of the machine.
• Damaged safety devices and parts must be properly repaired or exchanged by a recognized, specialist workshop; insofar as nothing else is stated in the instructions for use.
  – Damaged or illegible safety labels have to be replaced.

■ Store unused devices in a dry, locked place.

more safety warnings

„Service“

■ not carry out repair operations on the machine other than those described in section "Maintenance" but contact the manufacturer or authorized customer service centres.
■ Use only original spare. Accidents can arise for the user through the use of other spare parts. The manufacturer is not liable for any damage or injury resulting from such action.

more safety warnings

„Chain saw safety warnings“

- Primary users

Persons working for the first time with the chain saw must obtain a practical instruction on the use of the chain saw and the operator protection equipment by an experienced operating person. Primary users shall first of all practice cutting of round timber on a sawhorse or a rack.

• Minors are not allowed to work with the chain saw.
• This device is not intended to be used by persons (including children) with restricted physical, sensory or mental abilities or a lack of experience and/or know-how unless they are supervised by a person responsible for their safety or they have been instructed by such a person on the use of the device.
• Children must be supervised to make sure that they do not play with the device.

more safety warnings

„Causes and operator prevention of kickback“

→ Kickback

⚠️ Carry out lateral cuts, diagonal cuts and longitudinal cuts with increased attention because here the claw stopper is not put on.

How to avoid saw backstroke?

• 14 Always hold the chain saw firmly with both hands.

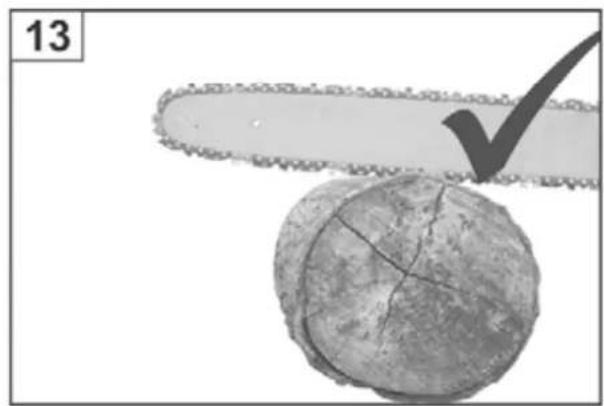

• 13 For better control saw with the lower edge of the guide bar. Hold the chain saw as close as possible to the horizontal position when contacting wood.
• 11 Never saw with the guide bar tip.

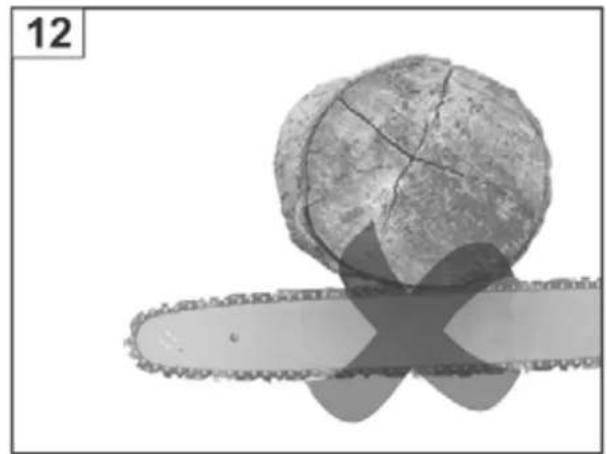

• 12 Sawing with the upper guide bar edge may cause a saw backstroke if the saw gets jammed or hits a hard object in the wood.
  ■ Start cutting only with running saw chain.
  ■ Only work with correctly sharpened and clamped saw chain.
  ■ 15 Use claw stopper (16) as lever.
  ■ Never work above height of shoulders.
  ■ Never cut through several perches at the same time. When releasing make sure that no other perch is touched.
  ■ If possible use a sawhorse when cutting to length.
  ■ Stab cuts shall only be carried out by instructed personal.

Vibrations

Hand arm vibration a_h = 4,824 m/s^2

Measuring uncertainty K_hd = 1,5 m/s^2

The indicated vibration emission level has been measured according to a standardised test method and can be used to compare power tools.

It can also be used for an initial estimate of the vibration exposure.

⚠ The actual vibration emission level during the use of the machine may differ from that indicated in the operating instructions or indicated by the manufacturer.

This may be caused by the following factors to be minded before and during the use:

– Proper use of the machine
– Correct cutting or machining of material
– Proper condition of the machine for use
– Use of the correct and sharp cutting tool

• Handles and optional anti-vibration handles properly mounted on the machine body

When you feel uncomfortable or notice discoloration of skin on your hands during the use of the machine, stop working immediately. Observe sufficient break times to rest. Failure to have sufficient break times may result in a hand-arm vibration syndrome.

The extent of exposure depending on the type of work or machine use should be estimated and appropriate breaks taken. In this way, the extent of exposure can be considerably reduced over the entire work time. Minimise the risk caused by vibrations. Maintain this machine according to the instructions in the manual. If you intend to use this machine frequently, contact your local authorised dealer and purchase anti-vibration accessories if required. Avoid the use of this machine at temperatures under 10^ C. Create a work schedule in order to minimise vibration exposure.

Assembly

Connect chain saw to power supply system only after having finished the complete assembly.

Risk of injury! Wear protective gloves when assembling.

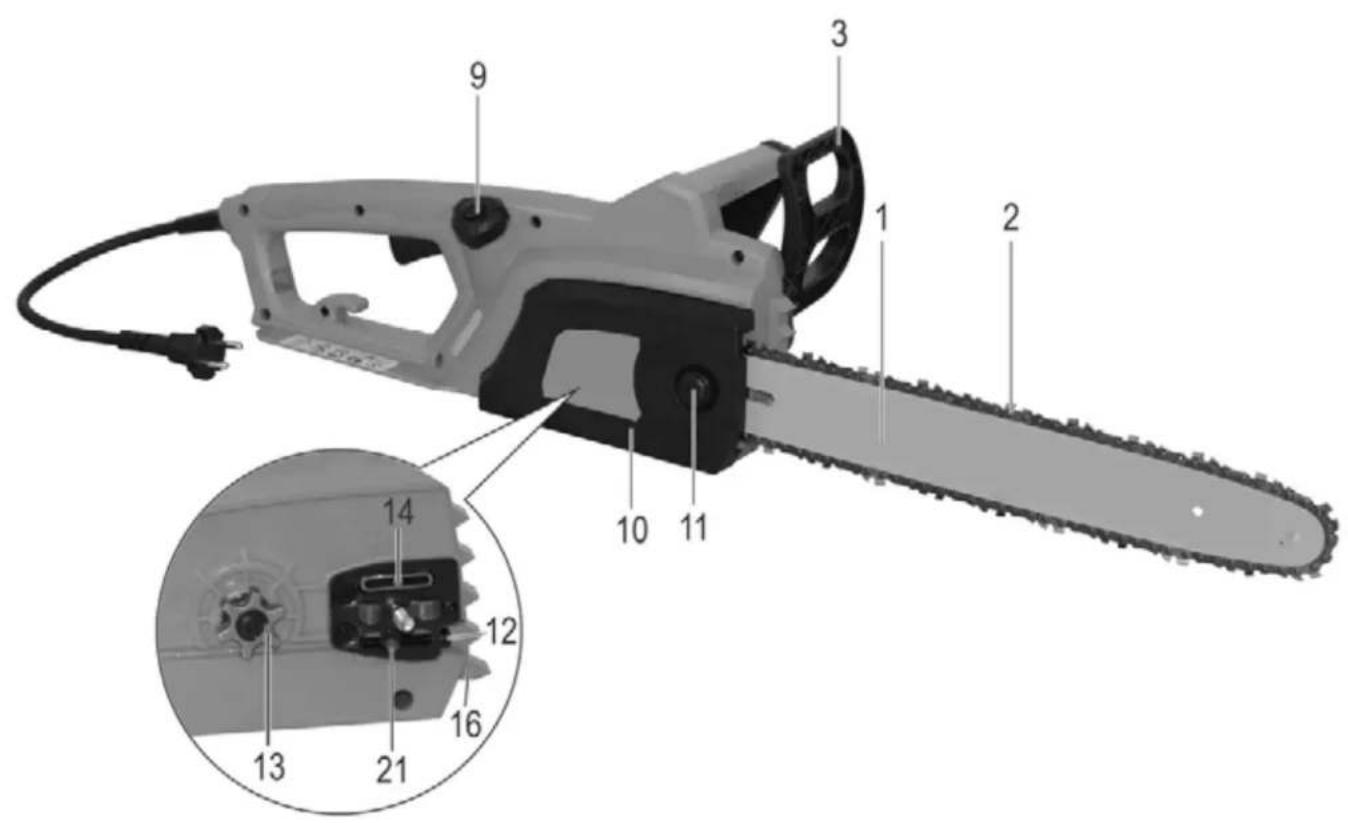

Place the chain saw on a level surface and release the chain brake. Press the front hand guard (3) against the front handle (4).

Remove the cover (10) by removing the retaining nut (11).

2 Turn the chain stretching screw (12) anticlockwisely until the chain stretching pin (21) is in its end position.

3 Place the guide bar. The chain stretching pin (21) must engage in the provided hole in the guide bar.

Put the saw chain over the chain wheel (13) ➔ and insert it in the circumferential guiding groove of the guide bar.

⚠️Attend to the correct running direction of the chain links.

When assembling, pay attention that the chain links are lying correctly within the guide slot and on the chain wheel (13).

1 Remount the cover (10) and tighten the nut (11) hand-tight.

→ Stretch the saw chain as described in section „Stretching the saw chain”.

Before the first starting

Chain lubrication

The chain saw is not delivered filled with saw chain adhering oil.

Never operate the chain saw without lubrication. Any use without chain saw oil may result in damage of the chain saw and guide bar.

The durability and cutting power of the chain depends on the optimal lubrication. During operation the saw chain is automatically wetted with oil.

Charging the oil tank

→ Put the chain saw on a suitable base.

→ 4 Unscrew the oil tank lock (9).

⇒ Fill the oil tank with bio-degradable chain saw adhering oil (app. 90 ml). The fill level can be seen on the inspection window (17). For easier filling use a funnel.

When filling observe that no dirt reaches the oil tank.

→ Screw on the oil tank lock again.

4 Once you have filled the oil tank for the first time or after it was completely emptied press the "primer" (9) about 10 times to pump oil in the circuit.

Never use recycled oil or used oil. The guarantee expires when using oil which is not allowed for chain saws.

Start-up

Before sawing

Carry out the following checks before the initiation and regularly during the working process. Observe the relevant sections in the operating instruction manual:

■ Ist he chain saw assembled completely and properly?

■ Is the chain saw in good and safe condition?

■ Only use a suited guide bar/saw chain combination as described under "Technical data". Incorrect combinations increase the risk of kickbacks.

■ Is the oil tank filled (chain lubrication)?

Check the oil level on a regular basis. Top up saw chain oil without delay to prevent the saw chain from running dry.

■ Is saw chain clamped correctly?

Observe the points in paragraph "Clamping saw chain".

■ Is saw chain sharpened correctly?

Use only well sharpened saw chains as edgeless saw chains increase not only the risk of backstrokes but also charge the motor.

■ Is chain brake released and works properly?

Observe the points in paragraph "Checking the chain brake".

■ Are the handles clean and dry – free of oil and resin?

■ Before starting your work make sure that:

- no other persons, children or animals stay within the working area,

— you can always step back without any barriers,

- your standing area is free from foreign objects, brushwood and branches,

- you have always a secure standing position.

■ Take environmental influences into consideration:

- Do not work on snow, ice or recently peeled wood – slip hazard.

- Do not work under insufficient light conditions (e.g. fog, rain, snow flurry or twilight). You can not see anymore details within the falling area – risk of accident.

- Do not use the chain saw near inflammable liquids or gases - Risk of fire.

Electric supply

■ Compare the voltage given on the machine model plate with the mains voltage and connect the machine to the relevant and properly plug. ① Use a earthed shockproof plug, mains voltage 230 V with residual current circuit breaker (FI switch 30 mA).

■ Only use extension cables with sufficient core cross-section.

In case of disadvantageous power system conditions short-term voltage reductions can occur during the starting process of the device which can influence other devices (e.g. jittering of a lamp). No failures are expected when the house service connection has a continuous current-carrying capacity greater than 100 A per phase.

i Main fuse: 16 A

Mounting of the extension cable

→ 7 In order to prevent an unintended loosening of the connection assembly put the extension cable as noose through the opening on the rear handhold (17) and put it over the cable mounting (22).

Switching On/Off

Do not use a device where

— the contactor can not be switched on and off.
— the chain and motor brake does not work properly

Damaged switches and brakes must be repaired or replaced immediately by the customer service.

When switching on the chain saw must be supported and held safely. Chain and guide bar must stand free.

→ 5 Release the chain brake. Push the front hand guard (3) towards the front handle (4) (Pos. 1). The chain saw is ready for operation.

Switching on:

→ Push and hold automatic trip switch (5). Then operate the On/Off switch (6). Release now automatic trip switch.

When the saw chain is jammed or overloading occurs reduce the power or immediately cut off the chain saw.

- Remove the guide bar from the cut. - Check the chain saw and the chain tension before restarting.

Switching off

→ Release On/Off switch (6).

Chain brake

The chain brake is a protective mechanism which in case of a stroke back chain saw is initiated via the front hand protection or after releasing the on/off switch. The saw chain stops immediately (< 0,1 sec.).

Checking the chain brake

Check the chain brake's proper function before each work start.

• Start the engine.
• Hold the chain saw with both hands.
  6 Use the back of your hand to press against the front hand guard (3). (Pos. 2).

⚠ The chain saw must stop immediately.

It is not allowed to use this chain saw without properly working chain brake. Please contact the manufacturer or the customer service point.

Clamping of saw chain

• Before setting or checking the saw chain tension pull out power plug.
• In order to avoid injuries wear protective gloves.

Check the saw chain tension before

→ start of work
→ after the first steps
→ during sawing regularly all 10 minutes

Only with a correct clamped saw chain and a sufficient lubrication you can influence the durability.

i Please observe the following:

⇒ a new saw chain must be reclamped more often until it has elongated.
⇒ a new saw chain must be reclamped more often until it has elongated.
⇒ in case of heating of chain to operating temperature it expands and needs to be reclamped.
⚠️ After finishing the sawing works release tension of saw chain as in case of cooling too high tensions would emerge in the saw chain.
if chain flackers or comes out of the guide clamp it again immediately.

Clamping of saw chain:

→ 9Loosen the retaining nut (11) by max. 1 turn.
Slightly lift the guide bar tip and turn the chain stretching screw (12) clockwise until the correct chain tension is reached.
10 The saw chain is correctly stretched when it can be lifted in the centre of the chain guide by appr. 3 – 4 mm.
- 9 Turn the chain stretching screw anti-clockwise when the saw chain is stretched too much. Check that the chain links are positioned correctly in the guiding groove of the guide bar.
⇒ Re-tighten the retaining nut (11).

Work instructions (saw techniques)

Operating

■ 14 Never saw with only one hand. Hold the chain saw always firmly with both hands, left hand on the front handhold (4) and right hand on the rear handhold (17).

■ Hold the chain saw slightly on the right of the own body.
■ Avoid abnormal posture. Provide a safe standing position and keep at any time the balance.
■ When switching on the chain saw must be supported and held safely. Chain and guide bar must stand free.
■ Start cutting only when the saw chain has reached the full number of revolutions.

■ Never work

– with stretched arms
— on hardly accessible places
— above shoulder height
— standing on a ladder, a staging or a tree.

■ Activate the chain brake when moving to a tree.
■ Before leaving the chain saw (work break) bring it in a safe condition (cover the guide bar, apply the chain brake) and put it on a place where nobody is endangered. Secure the chain saw against unauthorized access.

Additional advices for sawing trunks

■ Never work alone. Keep acoustic and visual contact to other persons at all times to allow immediate first aid in emergency cases.
■ Immediately stop the engine at imminent danger or in emergency cases.
■ Never leave the saw running unattended.
■ Immediately stop working when you feel unwell (e.g. headache, dizziness, nausea, etc.). Otherwise there is an increased risk of accidents.
■ Make breaks when sawing so that the engine can cool down.
■ Do not place a hot chain saw in dry grass or onto inflammable objects.
■ Never get in contact with the running saw with metallic fences or the ground.
■ Make sure that the wood is free of foreign object (stones, nails etc).
■ Make sure that the wood can not turn when sawing.
■ Saw splintered wood with care. There is risk of injury by wood pieces carried away.
- Avoid saw backstroke by a correct guiding of the saw. Note: „Causes and operator prevention of kickback“
■ 15 Use the claw stopper (16) for fixing the chain saw on the wood. Use the claw stopper when sawing as lever.
■ Do not use the chain saw for lifting or moving of wood.
■ Let the chain saw work by producing a light leverage pressure over the claw stopper. When sawing do not press with strength.
■ When sawing thicker perches or trunks set back the claw stopper (16) on a deeper point. For setting back release the claw stopper from the wood and place it again in a deeper position. Do not remove the saw here out of the cut.
■ Be careful at the end of a sawing cut. As far as the saw leaves the wood the force of weight changes. There is risk of accident for legs and feet.
■ Remove the chain saw only with running saw chain out of the cut.
■ If the saw chain gets jammed in the wood, stop it immediately. Use a wedge to free the guide bar.
■ Never put the trunk for sawing on the ground. Support the trunk in such manner that the cut does not close and the saw chain jams. Use a safe base (e.g. sawhorse). Avoid contact to ground with the guide bar tip or saw chain.
■ Adapt shorter trunks before sawing and clamp them firmly.
■ Avoid cutting of thin bosk and lumber. The chain saw is not suitable for those works.
- Carry out longitudinal cuts with special care as the claw stopper is not used. Avoid saw backstroke by guiding the saw with a small angle.
■ When working at a slope take always the position above or on the side of the trunk or the lying sawing material respectively. Pay attention to rolling trunks.

Additional advices for sawing timber under tension/release

If perches, trees or wood under tension become free of tension by sawing extreme caution is demanded. The sawing material can react completely uncontrolled and result in heavy injuries or death.

⚠️ Such works shall only be carried out by instructed specialists.

$$ \Rightarrow \boxed {1 7} / \Rightarrow \boxed {1 8} / \Rightarrow \boxed {1 9} / \Rightarrow \boxed {2 0} $$

⚠ For all works set always first of all on the pressure side ① the releasing cut and then the dividing cut ② - otherwise the chain saw can jam or strike back.

17 Upper side of wood under tensile stress

1 Place one cut (one third of the diameter of the trunk) from the bottom up.
② Then place a second cut on the same point from top which cuts through the trunk.

→ 18 Underside of wood under tensile stress

1 Place one cut (one third of the diameter of the trunk) from top to bottom.
② Then place a second cut on the same point from bottom which cuts through the trunk.

→ 19 Strong trunks and strong tension

1 Place one cut (one third of the diameter of the trunk) from bottom up.
② Then place a second cut with distance to the first cut from top which cuts through the trunk.

→ 2Cutting off of perches

→ For horizontal branches without being top heavy

The branch section falls down in a controlled manner without tipping over.

① Set the first cut from below, approx. one third of the branch diameter.
② The second cut is made on the same level as the first cut or moved further toward the inside (negative breaking step).
③ Remove the remaining branch section.

Additional advices for chopping down trees

⚠️ Such works shall only be carried out by instructed specialists.

■ Pay attention to the length of the guide bar. Only those trees are allowed to be cut which have a trunk diameter which is smaller than the length of the guide bar.
■ 21 Safeguard the dangerous zone (D) before cutting. Make sure that there are no persons or animals in the fall area. Danger to life!

■ 21 Make sure that the working area around the trunk is free of risk to stumble and that you have an escape route (F) which is free of obstacles. 21 Before cutting the tree down decide on the felling direction (C). Before chopping the tree decide on the chopping direction. Consider in this case the balance point of the treetop, neighbour trees, slope direction, state of health of the tree and the wind direction. On this side the kerf is cut in.

■ Remove interfering branches, scrub and obstacles from the working area at the trunk and make sure that you have a safe standing position.

■ Thoroughly clean the trunk foot – sand, stones and other foreign objects make the saw chain edgeless or may damage it.

- Consider the state of health of the tree – be careful with trunks with damages or deadwood (droughty, rotten or dead wood).

■ 24hopping a tree:

Cut a kerf with the saw of approximately one third of the tree diameter into the trunk. First of all place the horizontal cut and then as secondly a cut from top in an angle of 45^ .

Shout the warning "Caution" or "Tree is falling" before starting the fell cut.

Now saw on the opposite side of the trunk a horizontal chopping cut. This cut should be placed a bit higher (appr. 4 cm) than the horizontal cut of the kerf.

By no means cut through the trunk. Appr. 1/10 of the trunk diameter must remain. If the tree starts falling ahead of time pull out the chain saw immediately out of the cut and step back or to the side.

→ Push a key into the horizontal chopping cut in order to make the tree falling.

Pay attention, when tree starts falling, to perches or twigs falling down.

Maintenance and cleaning

Before each maintenance and cleaning work

- switch off device

— wait for stop of chain saw

- pull out main plug

Further maintenance and cleaning works than described in this chapter shall only be carried out by the manufacturer or companies named by the manufacturer.

For maintaining and cleaning, removed security devices must unconditionally be mounted properly and proved again.

Use only original parts. Other parts can result in unexpected damages and injuries.

Maintenance

⚠ In order to avoid possible injuries wear gloves.

To guarantee a long and reliable usage of the chain saws carry out the following maintenance works regularly.

Check the chain saw for obvious defects such as

• loose, hung out or damaged saw chain
• loose fastenings
  — worn or damaged components

Check the chain saw after each application for

— wear, especially chain, guide bar and chain wheel.
- correctly assembled and faultless covers and protective devices.

Necessary repair works or maintenance works have to be carried out before the usage of the chain saw.

Sharpening of saw chain

You can only work safely and well with a sharp and clean saw chain. Damaged or incorrectly sharpened saw chains increase the risk of kickbacks.

The saw chain has to be sharpened if

→ only wood dust is thrown out instead of shavings
you have to press the chain saw through the wood during cutting

Inexperienced users: Have the saw chain sharpened by a specialist/service workshop.

You can also sharpen your saw chain yourself by using our electric sharpener KSG 220 A (article-no.: 302360).

Saw chain type Oregon 91 PJ 052X
Depth gauge distance T 0,64 mm (.025")
Sharpening angle α	30°
Breast angle β	85°
Planing tooth length a	min. 3 mm

Exchanging saw chain and guide bar

Saw chain and guide bar are exposed to great wearing demands. Immediately exchange saw chain and guide bar when the faultless function is not guaranteed, ↩ „Assembly“.

Chain wheel

3 The demand of the chain wheel (13) is particularly great. Check regularly the teeth of the chain wheel for wear or damages.

A worn or damaged chain wheel reduces the durability of the saw chain and should therefore immediately be exchanged by the customer service.

Checking of the oil automatic

Check the function of the automatic chain lubrication by switching on the chain saw and holding it with the pike in direction of a carton or paper on the ground.

⚠ Do not get in contact with the ground with the chain. Keep a safe distance of 20 cm.

If an increasing oil track is caused when checking it the oil automatic works faultless.

If there is no oil track despite full oil tank

16 clean the oil flow canal (14) and the upper chain clamping boring (15).
⇒ If this is not successful please contact the customer service.

Cleaning

Clean the chain saw thoroughly after each application so that the faultless function is kept.

→ Clean the case with a soft brush or a dry cloth.
⚠️ Water, solvents and polishing agents shall not be applied.
⇒ Pay attention to that the ventilation slots for the motor cooling are free (risk of overheating).
⇒ In case of harder pollution or resins put the chain for some hours in a container with chain cleaner. Afterwards wash up the chain with clear water.
3 Remove all adhering substances with a brush from the chain wheel (13) and the sword fastening.
16 Clean the oil flow canal (14) with a clean cloth.

Transport

Remove mains plug before each transport.

⚠️ Transport the chain only with the chain protection put on.

When transporting the product within a car put it in the boot or on a separate loading area. Secure the chain saw against tipping over.

Storage

■ Store unused equipment in a dry, locked place out of the reach of children.
■ To extend the service life of the saw and guarantee smooth operation, before storing for a longer period
→ thoroughly clean the chain saw
→ Remove the oil from the oil tank.

Hint:

Some chain oils tend to encrustations after a longer period. For this reason the oil system should be flushed before a longer storing with a chain saw cleaner. Fill the cleaner up to the middle (appr. 50 ml) into the oil tank. Close the tank. Switch on the chain saw without assembled guide bar and chain until the complete cleaner has left the oil opening of the chain saw.

→ Put the saw chain for a short time into an oil bath and enwrap it afterwards in an oil paper.

Possible faults

Before each maintenance and cleaning work

• switch off device
  — wait for stop of chain saw
• pull out main plug

After each fault clearance, put into operation and recheck all security installations.

Fault Possible cause Removal
Chain saw does not initiate after switching on	→ Chain brake→ no power→ Extension cable damaged→ Main plug, motor or switch defect	→ Release chain brake→ Check power supply, power outlet, fuse protection→ Check extension cable, exchange defect cable immediately→ Have motor or switch checked by an approved electrician or replaced by original spare parts.
Chain saw works with interruptions	→ external loose connection→ internal loose connection→ Circuit closer/breaker defect	→ Check power supply, power outlet, fuse protection→ Check extension cable, exchange defect cable immediately→ Please contact the after sales service.→ Please contact the after sales service.
Chain saw picks, vibrates or does not saw correctly	→ Chain blunt/worn→ Chain worn→ Chain tension→ Chain not assembled correctly (teeth face to wrong direction)	→ Chain must be regrinded or exchanged→ Exchange chain→ Check and adjust chain tension→ Assemble chain again
Fault Possible cause Removal
Chain saw does not work with full power	▸ Extension cable too long or diameter too small▸ Power outlet to far away from main connection	▸ Use extension cable with sufficient diameter▸ Use power outlet which is nearer within the working area
Saw chain gets hot	▸ no oil in the tank▸ oil flow canal blocked▸ chain tension too high▸ Chain edgeless	▸ Refill oil▸ Clean oil flow canal▸ Adjust chain tension▸ Chain must be regrinded or exchanged
no saw chain lubrication	▸ no oil in the tank▸ oil flow canal blocked	▸ Refill oil▸ Clean oil flow canal

Technical data

Type/model KS 1800/35
Year of construction see last page
Motor rating P1 1800 W
Mains voltage / Mains frequency	230 V~ / 50 Hz
No-load speed n0 8200 rpm	± 10 %
usable guide bar length (cutting length)	356 mm (14")
Saw chain speed	13,5 m/s
Oil tank volume max.	90 ml
Protection class	II / ☑
Sound power level LPA* 93,72 dB (A)
measured sound power level LWA*	104,72 dB (A)
guaranteed sound power level LWA*	107 dB (A)
Uncertainty KPA / KWA	2,5 dB (A)
Hand-Arm-Vibration a	h = 4,824 m/s2
Uncertainty Khd	1,5 m/s2
Weight	ca. 4,4 kg
Saw chain type	91 PJ 052X (Oregon)

* (according to regulation 2000/14/EC)

Description of device / spare parts ➕ 23

Position	Order number	Denomination
1	364685	Guide bar
2	364686	Saw chain - 91PJ052X
3	364674	Hand guard(Chain brake release)
4		Front handhold
5		Trip switch
6		Circuit closer/breaker
7		Ventilation slots - motor
8		Apparatus cable with plug
9	362610	Oil tank lock with primer
10	364679	Cover
11	364680	Fastening screw
12	364682	Chain stretching screw

Position	Order number	Denomination
13	362923	Chain wheel
14		Oil flow canal
15		Upper chain clamping boring 16
16		Claw stopper
17		Rear handhold
18	362921	Chain protection
19	364673	Safety label
20		Carbon brush set (without pict.)
21		Chain stretching pin
22		Cable strain relief
	400144	Saw chain oil 1 l (without pic.)

Guarantee

Please observe the enclosed terms of guarantee.

Sommaire

conform directivei CE:

2006/42/CE

Prin prezenta noi,

ATIKA GmbH

Josef-Drexler-Str. 8 - 89331 Burgau - Germania

Conformity assessment procedure:

2000/14/UE - Appendix V.

Hand-arm-vibration ah = 4,824 m/s²

2000/14/ES, 2004/108/ES in 2011/65/EU.

Postopek za ugotavljanje skladnosti:

2000/14/ES - Dodatek V.

Year of construction

I

Anno di costruzione

F
