USER MANUAL W11-AA LAICA

EN Filter jug Instructions and guarantee

Black-and-white photo of a transparent digital water heater pouring liquid into a glass of clear water (no text or symbols visible)

Solid gray vertical rectangle with no visible text, symbols, or features.

A

B

[NO TEXT]

[NO TEXT]

E1

E2

E3

●

●

[NO TEXT]

●

1
1a

-100 -75 -50 -25 %

●

-100 -75 -50 -25 %

●

-100 -75 -50 -25 %

[Non-Text]

-100 -75 -50 -25 %

2
2a

Hand holding a circular knob with an arrow indicating rotation (no text or symbols)

●

JAN FEB MA

LAICA

amore per l'acqua

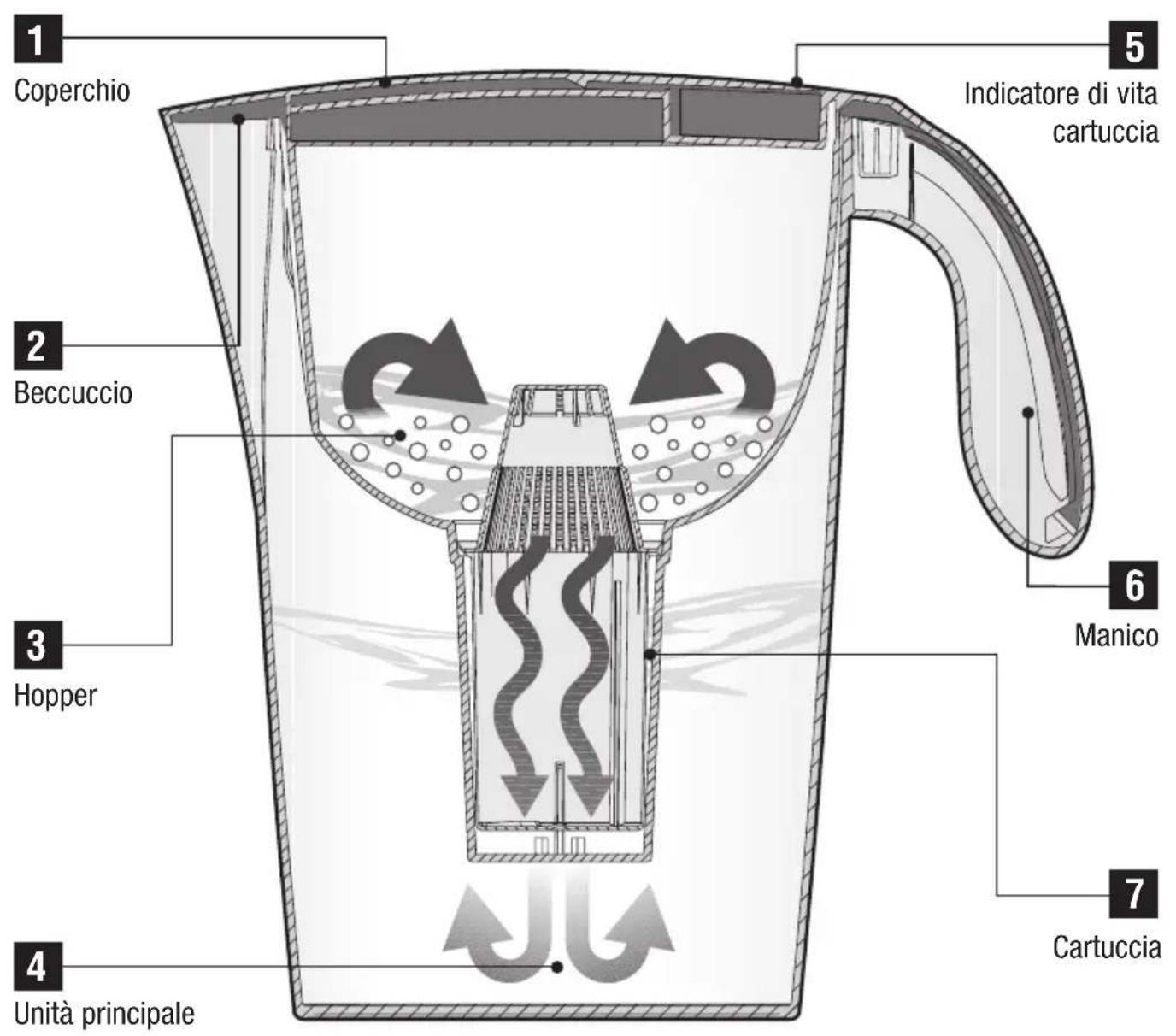

COMPONENTI - COMPONENTS

LAICA water filtration system is projected and manufactured to treat drinking water. It improves the taste of the water through the reduction of chlorine and disinfection by-products. All LAICA filter cartridges are made in Italy and processed by sterilization. LAICA filter cartridges contain silver-impregnated active carbon and ion exchange resins. Active carbons are effective for the reduction of chlorine and disinfection by-products. Ion exchange resins are effective for the reduction of heavy metals whenever present in drinking water. For information on your tap water, contact Municipalities. CAUTION: Do not use with water that is microbiologically unsafe or of unknown quality (check with the competent authority in your area).

GENERAL SAFETY WARNINGS

• After removing the product from its packaging, make sure it is intact and there is no damage resulting from transport. If unsure, do not use the jug and contact an authorized retailer.
• Follow the instructions in this manual. Incorrect use may affect the safety of the product or cause damage to the product itself.
• The manufacturer cannot be held responsible for any damage resulting from improper or incorrect use.
• People affected by specific diseases, allergies or following controlled diets should refer to a doctor before using the water filter system.
• Keep the plastic bag out of reach of children. It is a suffocation hazard.
• Only use this product for its intended use which is as a DEVICE TO TREAT DRINKING WATER. Any other use is considered non-compliant and therefore hazardous.
• In the case of emergency situations reported by the competent authorities suspend use of the filter system and contact the water mains operator for further information. When the authorities declare that the tap water is again safe and drinkable, the filter system must be cleaned as indicated in the paragraph "PREPARING THE FILTER CARTRIDGE" AND "MAINTENANCE AND CARE"; the cartridge must also be replaced.
• Keep the product out of reach of children.
• Preparation, cartridge replacement and maintenance must only be performed by persons over the age of 12.
• Children and individuals with reduced physical, sensory or mental capacities or unskilled people may only use the product if previously instructed on its safe use and only if informed of the dangers connected to the product itself.
• In the event of failure or poor operation, contact an authorized dealer. Information on technical support can be requested by contacting [e-mail].
  • NEVER filter hot water.
  • Only filter cold running water from the tap.
  • NEVER expose the product to weather (rain, sun).
• Keep the product away from heat sources.
  • NEVER use in a microwave oven.
• NEVER submerge the electronic indicator in water as it could be damaged.
  • NEVER use the jug with previously treated water.
• NEVER tamper with or break the cartridge for any reason.
  • DO NOT insert objects into the openings.

• DO NOT use the device if the cover is damaged.
• DO NOT place the device in a steriliser in operation.
• DO NOT freeze the device.
- This device is NOT intended for professional use, but rather only for domestic use.

PREPARATION OF THE FILTER CARTRIDGE

1) Before proceeding with the following operations wash hands thoroughly.
2) Remove the cartridge from the bag (fig.A).
3) Soak the cartridge in a container full of cold water for approximately 15 minutes (fig.B). Shake the cartridge to release the air it contains.
4) Insert the cartridge into the hopper pressing slightly to ensure correct insertion (fig.C).
5) Fill the hopper with cold mains water up to the top level of the same and allow filtering without closing the lid (fig.D).
6) Discard the water filtered in the previous section (or use it to water your plants).
7) Repeat this operation (sections 5 and 6) 3 times.

ACTIVATION OF THE CARTRIDGE REPLACEMENT INDICATOR

1 Water filter with removable trapezoidal electronic indicator

Remov the lid from the jug and check that the magnet is on the underside of the lid (see fig.G). Turning the lid over, remove the electronic indicator onto the back of your hand with a smart tap (see fig.H). Press the "O/I" key for a few seconds until the 4 black bars, each of which corresponds to a period of one week, stabilise on the electronic indicator (fig.1a). Insert the electronic indicator into the lid: 3 consecutive flashes of the same bars confirm activation of the electronic indicator. The electronic indicator indicates that the total filtering capacity is 75% (fig.1b). The electronic indicator indicates that the total filtering capacity is 25% (fig.1c). When it is time to replace the cartridge, the following symbol appears on the display: "▼(fig.1d).

CAUTION: in the electronic counters, at the end of the cartridge life, the display flashes until switching off in order to avoid battery consumption. When replacing the filter cartridge, reactivate the display as shown in the section "ACTIVATION OF THE CARTRIDGE REPLACEMENT INDICATOR".

2 Water filter with manual indicator

Turn the cartridge replacement indicator located on the back of the lid in a clockwise direction as indicated in figure 2a in order to set the use start month for the cartridge.

The month of reference must be aligned with the arrow printed on the lid. If you have purchased a water filter with a mechanical trapezoidal indicator (figure 2b), turn the cartridge replacement indicator located in the upper part of the lid in a clockwise direction in order to set the start month for the cartridge.

USING THE WATER FILTER

• Water filter with automatic fill device

Place the jug under the tap so that the water jet directly enters the hopper through the opening in the lid. Turn on the tap (the pressure of the water jet should not be too strong in order to avoid splashes): the water automatically opens the automatic filling device and directly enters the hopper. (fig.E1). Fill the hopper to the top with cold tap water. When the hopper is almost full the automatic filling device gradually closes: reduce the water flow and shut off the tap when the device closes (fig.E2).

It is in any case recommended to check the water level in the hopper from one side of the jug.

• Water filter without automatic filling device.

Fill the hopper with the first litre of water (fig.E3) and close the lid. Wait for the water to be filtered; when the operation is completed, it is possible to use the filtered water or to refill the hopper; in this case you will have 2 litres of water available.

Your jug is now ready for use.

To ensure optimum performance it is recommended not to filter more than 5 litres a day (taking care to wait some minutes between the filtrations). The filtering cartridge should be replaced every 150 litres/30 filtration days (maximum product efficiency and safety is assured when this instruction is observed).

FILTER CARTRIDGE REPLACEMENT

For replacement of the cartridge remove it from the hopper pulling it upwards as shown in fig.F and repeat the operations as indicated in the sections "PREPARATION OF THE FILTER CARTRIDGE" and "ACTIVATION OF THE CARTRIDGE REPLACEMENT INDICATOR".

BATTERY INSERTION/REPLACEMENT

For jugs with removable rectangular electronic indicator and removable trapezoidal electronic indicator it is possible to replace the battery. Check for the presence of the battery compartment lid on the bottom of the indicator (fig.l).

The electronic indicator works with a 1.5V LR44 type alkaline battery. Replace the battery when the numbers or the bars on the display are not perfectly legible. Make sure your hands are dry when you perform this operation.

1) Open the battery compartment located on the bottom of the appliance by unscrewing the lid counter-clockwise. Facilitate this action by using a small coin.

2) Remove the flat battery.

3) Insert the new battery ensuring correct positioning of the polarities (positive pole facing upwards).

4) Replace the lid on the battery compartment. During this operation, be sure to correctly position the sealing gasket in the event it has been moved or removed during opening of the lid and removal of the batteries (Fig. I).

5) Close the lid by screwing it with a small coin clockwise. Remove the battery where the appliance is not being used for long periods of time. Remove the battery as described in sections 1 and 2. Remove the battery and dispose of as special waste at suitable collection points for recycling. For further information concerning the disposal of batteries

contact the shop where the appliance containing batteries was purchased, the local council or the local waste disposal service.

Attention: For added safety, it is advisable to remove the batteries in the presence of children under the age of 12.

CARE AND MAINTENANCE

Washing instructions for the jug lid:

- Lid with removable trapezoidal electronic indicator.

Remove the lid from the jug and check that the magnet is on the underside of the lid (see fig.G). Remove the electronic indicator by turning the lid over on to the back of your hand with a smart tap (see fig.H). Then hand wash the lid in warm water and washing-up liquid. Dry the lid and slot the electronic indicator back into its housing.

- Lid with non-removable manual indicator:

Remove the lid from the jug. Then hand wash the lid with warm water and washing-up liquid. Dry the lid.

Washing instructions for the other components:

1) Wash all the components, except for the cartridge and the removable electronic counter, by hand with warm water and washing-up liquid at least 2-3 times a week. Do not use other chemicals or abrasives.
2) Do not wash the cartridge with soap or detergents.
3) In the case of non-use of the jug for 24 hours, discard the water that remains inside the jug, fill the hopper and let it filter. The water filter is ready for use again.
4) Keep the water jug in the fridge. The refrigerator must be kept in a good condition.
5) Keep the product away from heat sources and direct sunlight.
6) Only use cold water (+4°C: +30°C).
7) Only filter water; do not filter any other type of liquid.
8) For your personal safety only use LAICA cartridges that have undergone a sterilisation process!

IMPORTANT NOTES

1) In the case of emergency situations reported by the competent authorities suspend use of the water filter and contact the water mains operator for further information.
2) Under no circumstances break the cartridge.
3) The LAICA filter system ensures effective bacteriostatic protection due to the silver used. Any release of silver is in conformity with the guidelines set out by the World Health Organisation (WHO).
4) The filter system may slightly increase the sodium content with respect to water before treatment.

In any case the variation is minimal and is considerably lower than the maximum value of the parameter.

5) The filter system may slightly vary the inlet water hardness. In the first few litres filtered, the LAICA cartridge may lower the water hardness.

6) LAICA invites you to carry out a preventive assessment of the local mains water in order to ensure conscious use of the filtration system.

PROBLEMS

The water flow slows down until stopping

1) The filtering cartridge has not been properly activated. Repeat the procedure described in the section "PREPARATION OF THE FILTERING CARTRIDGE".
2) Air bubbles may build up inside the filtering cartridge thus hindering the normal water flow. Remove the filter, immerse it in water letting the air bubbles escape, allow it to drip and then insert it again into the hopper

Presence of dark residues inside the jug

1) The vegetable carbon contained in the filter may release a certain amount of fine powder (which is in no way noxious) Repeat the procedure described in the section "ACTIVATION OF THE FILTERING CARTRIDGE".

The electronic indicator does not switch on

1) The electronic indicator has not been properly activated. Repeat the procedure described in the section "ACTIVATION OF THE CARTRIDGE REPLACEMENT INDICATOR".

2) The battery is flat. Proceed to replace the battery as described in section "Battery replacement/insertion". In case of doubt concerning the activation time of the last filtering cartridge, replace it with a new one.

DISPOSAL PROCEDURE (Dir. 2012/19/Eu-WEEE)

The symbol on the bottom of the electronic timer indicates the separated collection of electric and electronic equipment. At the end of life of the device, do not dispose it as mixed solid municipal waste, but dispose it referring to a specific collection centre located in your area or returning it to the distributor, when buying a new device of the same type to be used with the same functions. If the appliance to be disposed of is less than 25 cm, it can be returned to a retail location that is over 400 m ^2 without having to purchase a new, similar device. This procedure of separated collection of electric and electronic devices is carried out forecasting a European environmental policy aiming at safeguarding, protecting and improving environment quality, as well as avoiding potential effects on human health due to the presence of hazardous substances in such equipment or to an improper use of the same or of parts of the same.

Caution! The wrong disposal of electric and electronic equipment may involve sanctions.

Instructions for the disposal of the water filter system:

• dispose the lid as electronic equipment at a specific collection centre;
• dispose the other components according to their respective belonging class (plastic, solid municipal waste for the cartridge).

CE This product is meant for household use. The conformity, certified by the CE-marking on the electronic timer, refers to the Directive 2014/30/Eu on electromagnetic compatibility and on Directive 2011/65/Eu on on the restriction of the use of certain hazardous substances in electrical and electronic equipment. This product is an electronic device that was tested to assure, according to the current technical knowledge, that it does not interfere with other nearby located equipment (electromagnetic compatibility) and that it is safe if used according to the advices given in the instructions for use. In case of operation anomalies, do not keep using the device and, if necessary, refer to the manufacturer directly.

This product is meant for household use. The conformity, certified by the UKCA-marking on the electronic timer refers to the Electromagnetic Compatibility Regulations 2016 and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. This product is an electronic device that was tested to assure, according to the current technical knowledge, that it does not interfere with other nearby located equipment (electromagnetic compatibility) and that it is safe if used according to the advices given in the instructions for use. In case of operation anomalies, do not keep using the device and, if necessary, refer to the manufacturer directly.

WARRANTY

This appliance is guaranteed for 2 years from the time of delivery of the goods, or another longer term envisaged by the national legislation of the consumer's residence. This provision complies with Italian and European legislation. The LAICA products are designed for home use and must not be used in public venues. The warranty only covers manufacturing defects and does not apply if the damage is caused by an accidental event, incorrect use, negligence or misuse of the product. Use only the accessories supplied; the use of different accessories may result in invalidity of the warranty. Do not open the unit for any reason; in the case of opening or tampering, the warranty is definitively voided. This warranty does not apply to parts subject to wear or to the batteries when supplied. After 2 years from delivery, or another longer term envisaged by the national legislation of the consumer's residence, the warranty expires; in this case, the technical assistance interventions will be carried out against a fee. Information on technical assistance, whether under warranty or for a fee, can be requested by contacting [e-mail].

No payment will be due for repairs or replacements of products that fall within the terms of the warranty. In the event of faults, contact the retailer. Do NOT send the appliance directly to LAICA. All the operations under warranty (including those of replacement of the product or part thereof) will not prolong the duration of the original period of warranty of the product replaced. The manufacturer declines any liability for any damage that may, directly or indirectly, be caused to persons, property or animals as a result of the non-observance of all the requirements established in the relevant instructions manual and concerning, especially, warnings relating to installation, use and maintenance of the appliance. LAICA, in its constant commitment to improving its products, is entitled to changing without any notice, in whole or in part, its products in relation to production requirements, without this entailing any liability for LAICA towards its dealers. For further information: www.laica.it.

INTRODUCTION/REEMPLACEMENT BATTERIE

RECOMMANDATIONS IMPORTANTES

1 Guidelines for Drinking-water Quality - 4th ed.
ISBN 978 92 4 154815 1 (NLM classification: WA 675),
World Health Organization, WHO Library Cataloguing-in-Publication Data.
2 Nutrients in Drinking-water
ISBN 92 4 159398 9 (NLM classification: WA 687).
Water, Sanitation and Health, Protection and the Human Environment, World Health Organization, Geneva. World Health Organization, WHO Library Cataloguing-in-Publication Data.
3 Silver in Drinking-water
Background document for development of WHO Guidelines for Drinking-water Quality World Health Organization, World Health Organization, Geneva, 1996.
4 pH in Drinking-water
Background document for development of WHO Guidelines for Drinking-water Quality World Health Organization, World Health Organization, Geneva, 1996.
5 Calcium and Magnesium in Drinking-water
Public health significance.
ISBN 978 92 4 156355 0 (NLM classification: QV 276) World Health Organization, WHO Library Cataloguing-in-Publication Data
6 Hardness in Drinking-water
Background document for development of WHO Guidelines for Drinking-water Quality World Health Organization, World Health Organization, Geneva, 1996.
7 Jug water filter systems – Specification
British Standard, BS 8427 : 2004
8 AFNOR – Association Française de Normalisation
Norme Francaise NF P41 - 650
