USER MANUAL FF Classic Prime Line SIGMA
14mm T3.2, 20mm T2.5, 24mm T2.5, 28mm T2.5 35mm T2.5, 40mm T2.5, 50mm T2.5, 65mm T2.5 85mm T2.5, 105mm T2.5, 135mm T3.2
日本語 6\~12
ENGLISH 13\~18
DEUTSCH 19\~24
FRANÇAIS 25\~30
NEDERLANDS 31\~36
ITALIANO 37\~42
SVENSKA 43\~48
DANSK 49\~54
简体中文 55\~61
繁體中文 62\~67
한국어 68\~73
РУССКИЙ 74\~79
PORTUGUÊS 80\~85
ESPAÑOL 86\~91
使用説明書/INSTRUCTIONS
/ Technology
日本語
Cine prime lenses for PL mount are compatible with Cooke Optics' /i Technology communication protocol. By using an /i Technology-compatible cine lens with a cine camera that supports the same protocol, users can see and record lens metadata such as focus distance, focal length, and aperture.
The compatibility of "/i Technology" has been tested and approved by Cooke Optics Ltd. Please contact Cooke Optics Ltd. for the details of "/i Technology".
Note
Depending on the camera, there may be some limitations on lens data that can be indicated or recorded.
/i is a registered trademark of Cooke Optics Limited used with permission.
DEUTSCH
Thank you very much for purchasing a Sigma Lens. In order to get the maximum performance and enjoyment out of your Sigma lens, please read this instruction booklet thoroughly before you start to use the lens.
SAFETY PRECAUTIONS
- After attaching a lens, do not look directly at the sun, through the viewfinder. Doing so can cause damage to the eye or loss of eyesight.
- Do not look at the sun with the lens of your camera; otherwise you can lose your eyesight.
- Do not look at the sun through the lens. If strong direct sunlight enters the lens, the concentration of light could cause a fire.
- The mount part of the lens is complicated. Improper usage may cause injury.
- Please select a sturdy tripod that is capable of supporting this lens. If the tripod is not sturdy enough, it may cause the lens to fall.
The CE Mark is a Directive conformity mark of the European Community (EC).
Disposal of Electric and Electronic Equipment in Private Households
Disposal of used Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)
This symbol on the product, in the manual/warranty, and/or on the packaging indicates that this product must not be treated as household waste. Instead it should be handed over to the appropriate collection point for the recycling of electrical and electronic equipment. If your equipment contains easy removable batteries, please dispose of these separately according to your local legislation. It is your responsibility to ensure that this product is recycled correctly. In doing so you will help conserve natural resources, protect the environment and human health. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation. (Except PL mount)

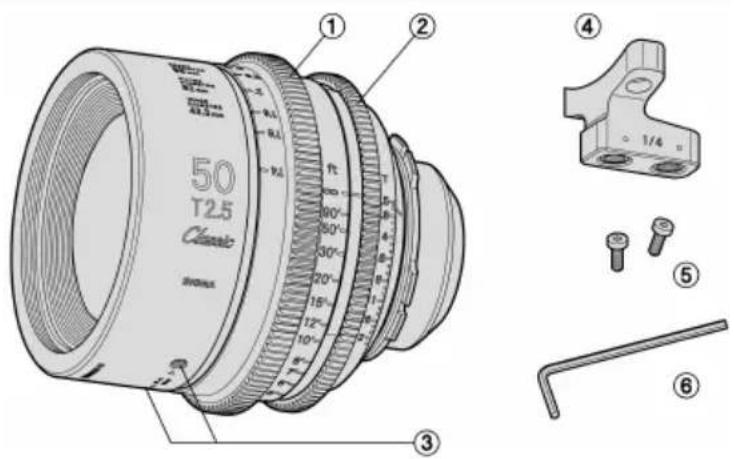

NAMES OF PARTS
① Focus ring / Focus drive gear
② Iris ring / Iris drive gear
③ Lens support foot fixing screw holes
④ Lens support foot
⑤ Lens support foot fixing screws (2 pieces)
⑥ Hex key
CAUTION !!
Please make sure the camera is off when attaching or detaching the lens. Otherwise, the electronic circuit of the lens might possibly be damaged.
This lens has a lens support foot to improve stability. It can be attached to the lens support on the rig.

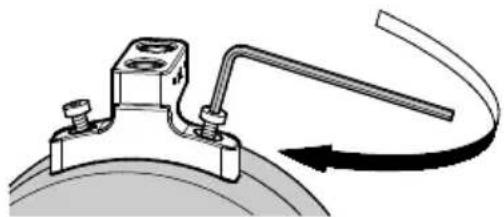

HOW TO ATTACH
It is possible to fix the lens support foot, using the two supplied screws, to the holes on the lens barrel. Use the supplied hex key and tighten the screws in the two different holes, as shown in the image.
- As shown in the below chart, it is necessary to use the dedicated lens support foot and screws for each model. If other types are used, it could damage the lens barrel and stability of the lens may not be sufficient.
| 14mm T3.2 | 20mm T2.5, 24mm T2.5, 35mm T2.5, 28mm T2.5, 50mm T2.5 | 40mm T2.5, 65mm T2.5, 85mm T2.5, 135mm T3.2 | 105mm T2.5 | ||
| Modelof lens support foot | SF-41 | SF-11 | SF-31 | SF-51 | |
| Lens support foot fixing screws | M3 x 6 |  |  | ||
- Please only use the supplied hex key. Other hex keys may not be suitable to tighten the screws sufficiently.
- Make sure the lens support foot is always attached to the rig while shooting. It is not designed to stabilize the weight of the camera and lens by itself.
SPUR GEAR SPECIFICATIONS
| Focus drive gear | Iris drive gear | |
| Number of teeth | 128 | 120 |
| Module | 0.8 | 0.8 |
| P.C.D | 102.4mm | 96mm |
| Angular rotation | 180° | 60° |

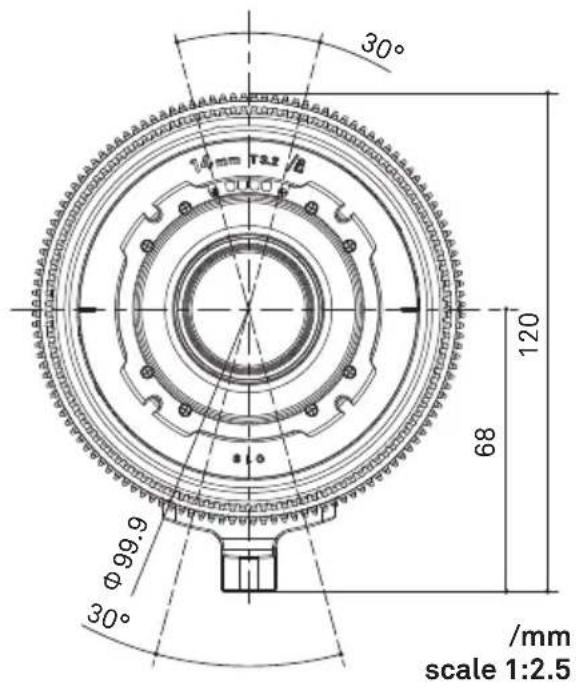

• Dimensions (P.92 - 95)
BASIC CARE AND STORAGE
- Avoid any shocks or exposure to extreme high or low temperatures or to humidity. For extended storage, choose a cool and dry place, preferably with good ventilation. To avoid damage to the lens coating, keep away from mothballs or naphthalene gas.
- This lens benefits from a dust and splash proof construction. Although this construction enables the lens to be used under light rain, it is not the same as being water proof. Please pay attention to prevent a large amount of water from splashing on the lens, especially when using it by a waterside. It is often impractical to repair the internal mechanism, lens elements and electric components if damaged by water.
SPECIFICATIONS
| 14mm T3.2 | 20mm T2.5 | 24mm T2.5 | 28mm T2.5 | |
| PL mount | PL mount | PL mount | PL mount | |
| Focal length | 14mm | 20mm | 24mm | 28mm |
| Aperture (T-number) | T3.2 - T25 | T2.5 - T25 | T2.5 - T25 | T2.5 - T25 |
| Number of diaphragm blades | 9(Rounded diaphragm) | 9(Rounded diaphragm) | 9(Rounded diaphragm) | 9(Rounded diaphragm) |
| Close focus *1 | 0.27m / 11" | 0.28m / 11" | 0.25m / 11" | 0.28m / 1' |
| Maximum Magnification Ratio | 1:9.8 | 1:7.1 | 1:5.3 | 1:5.4 |
| Image coverage | FF ∅43.3mm | FF ∅43.3mm | FF ∅43.3mm | FF ∅43.3mm |
| Front diameter | 95 mm / 3.7" | 95 mm / 3.7" | 95 mm / 3.7" | 95 mm / 3.7" |
| Filter size | - | - | M 82 x 0.75 mm | M 82 x 0.75 mm |
| Maximum diameter | 104mm / 4.1" | 104mm / 4.1" | 104mm / 4.1" | 104mm / 4.1" |
| Length *2 | 111.5mm / 4.4" | 110 mm / 4.4" | 87 mm / 3.5" | 99.7 mm / 4" |
| Weight *3 | 1.4 kg / 3 lb | 1.3 kg / 2.7 lb | 1.1 kg / 2.3 lb | 1.3 kg / 2.8 lb |
| Horizontal angle of view (FF*4) | 104.3° | 84.0° | 73.7° | 65.5° |
| Horizontal angle of view (S35*5) | 82.6° 63.2° 54.3° | 47.4° | ||
| Horizontal angle of view (APS-C*6) | 80.5° 61.3° 52.6° | 45.9° | ||
*1 Close focus distance is measured from the image plane.
*2 Front to mount flange.
*3 Without lens support foot, front cap and rear cap.
| 35mm T2.5 | 40mm T2.5 | 50mm T2.5 | 60mm T2.5 |
| PL mount | PL mount | PL mount | PL mount |
| 35mm | 40mm | 50mm | 65mm |
| T2.5 - T25 | T2.5 - T25 | T2.5 - T25 | T2.5 - T25 |
| 9(Rounded diaphragm) | 9(Rounded diaphragm) | 9(Rounded diaphragm) | 9(Rounded diaphragm) |
| 0.30m / 1' | 0.40m / 1'4" | 0.40m / 1'4" | 0.65m / 2'2" |
| 1:5.2 | 1:6.5 | 1:5.6 | 1:7.9 |
| FF ∅43.3mm | FF ∅43.3mm | FF ∅43.3mm | FF ∅43.3mm |
| 95mm / 3.7" | 95mm / 3.7" | 95mm / 3.7" | 95mm / 3.7" |
| M 82 x 0.75mm | M 82 x 0.75mm | M 82 x 0.75mm | M 86 x 1.0 mm |
| 104mm / 4.1" | 104mm / 4.1" | 104mm / 4.1" | 104mm / 4.1" |
| 87mm / 3.5" | 123mm / 4.9" | 94mm / 3.8" | 120.6mm / 4.8" |
| 1.1 kg / 2.3 lb | 1.5 kg / 3.3 lb | 1.2 kg / 2.7 lb | 1.6 kg / 3.4 lb |
| 54.4° | 48.5° | 39.6° | 31° |
| 38.7° | 34.2° | 27.6° | 21.4° |
| 37.4° | 33.0° | 26.7° | 20.7° |
*4 Aspect ratio 1:1.5, dimensions 36 mm × 24 mm / 1.42" × 0.94"
*5 Aspect ratio 1:1.8, dimensions 24.6 mm × 13.8 mm / 0.97" × 0.54"
*6 Aspect ratio 1:1.5, dimensions 23.7 mm × 15.7 mm / 0.93" × 0.62"
| 85mm T2.5 | 105mm T2.5 | 135mm T3.2 | |
| PL mount | PL mount | PL mount | |
| Focal length | 85mm | 105mm | 135mm |
| Aperture(T-number) | T2.5 - T25 | T2.5 - T25 | T3.2 - T25 |
| Number of diaphragm blades | 9 (Rounded diaphragm) | 9 (Rounded diaphragm) | 9 (Rounded diaphragm) |
| Close focus *1 | 0.85m / 2'10" | 1 m / 3'4" | 0.88m / 2'11" |
| Maximum Magnification Ratio | 1:8.5 1:8.3 1:5 | ||
| Image coverage | FF ∅43.3 mm | FF ∅43.3mm | FF ∅43.3 mm |
| Front diameter | 95 mm / 3.7" | 95 mm / 3.7" | 95 mm / 3.7" |
| Filter size | M 86 x 1.0 mm | - | M 82 x 0.75mm |
| Maximum diameter | 104mm / 4.1" | 110mm / 4.3" | 104mm / 4.1" |
| Length *2 | 118.9mm / 4.7" | 126.2mm / 5" | 106.9mm / 4.3" |
| Weight *3 | 1.4 kg / 3 lb | 1.7 kg / 3.8 lb | 1.5 kg / 3.2 lb |
| Horizontal angle of view (FF*4) | 23.9° 19.5° 15.2° | ||
| Horizontal angle of view (S35*5) | 16.5° 13.4° 10.4° | ||
| Horizontal angle of view (APS-C*6) | 15.9° 12.9° 10.0° |
For detailed information on SIGMA Cine Lenses, refer to the following SIGMA webpage. sigma-global.com/en/cine-lenses/resources/
DEUTSCH
Mechanical diagram showing a pipe connection with a curved arrow indicating rotation (no text or symbols)VOORZICHTIGHEID!!
| 14mm T3.2 | 20mm T2.5, 24mm T2.5, 35mm T2.5, 28mm T2.5, 50mm T2.5 | 40mm T2.5, 65mm T2.5, 85mm T2.5 135mm T3.2 | 105mm T2.5 | |
| Model lens support | SF-41 | SF-11 | SF-31 | SF-51 |
| Lens support fixeer schroeven | M3 x 6  | M3 x 8  | ||
| Modell av objektivfot | SF-41 | SF-11 | SF-31 | SF-51 |
| Skruvmodell | M3 x 6  | M3 x 8  | ||
| 14mm T3.2 | 20mm T2.5, 24mm T2.5, 35mm T2.5, 28mm T2.5, 50mm T2.5 | 40mm T2.5, 65mm T2.5, 85mm T2.5, 135mm T3.2 | 105mm T2.5 | |
| 镜头支撑脚型号 | SF-41 | SF-11 | SF-31 | SF-51 |
| 镜头支撑脚固定螺丝规格 | M3 x 6  | M3 x 8 |  | |
sigma-global.com/en/cine-lenses/resources/
保存、使用中的注意点
| 14mm T3.2 | 20mm T2.5, 24mm T2.5, 35mm T2.5, 28mm T2.5, 50mm T2.5 | 40mm T2.5, 65mm T2.5, 85mm T2.5, 135mm T3.2 | 105mm T2.5 | |
| 鏡頭支撐腳型號 | SF-41 | SF-11 | SF-31 | SF-51 |
| 鏡頭支撐腳固定螺絲 | M3 x 6  | M3 x 8  | ||
sigma-global.com/en/cine-lenses/resources/
한국어
*6 Aspect ratio 1:1.5, dimensões: 23.7 mm × 15.7 mm / 0.93" × 0.62"
| 65mm T2.5 | 85mm T2.5 | 105mm T2.5 | 135mm T3.2 |
| Montagem PL | Montagem PL | Montagem PL | Montagem PL |
| 65mm | 85mm | 105mm | 135mm |
| T2.5 - T25 | T2.5 - T25 | T2.5 - T25 | T3.2 - T25 |
| 9 (circular) | 9 (circular) | 9 (circular) | 9 (circular) |
| 0.65m / 2'2" | 0.85m / 2'10" | 1 m / 3'4" | 0.88 m / 2'11" |
| 1:7.9 | 1:8.5 | 1:8.3 | 1:5 |
| FF ∅43.3mm | FF ∅43.3mm | FF ∅43.3mm | FF ∅43.3mm |
| 95 mm / 3.7" | 95 mm / 3.7" | 95 mm / 3.7" | 95 mm / 3.7" |
| M 86 x 1.0mm | M 86 x 1.0mm | - | M 82 x 0.75mm |
| 104 mm / 4.1" | 104 mm / 4.1" | 110 mm / 4.3" | 104 mm / 4.1" |
| 120.6mm / 4.8" | 118.9mm / 4.7" | 126.2mm / 5" | 106.9mm / 4.3" |
| 1.6 kg / 3.4 lb | 1.4 kg / 3 lb | 1.7 kg / 3.8 lb | 1.5 kg / 3.2 lb |
| 31° | 23.9° | 19.5° | 15.2° |
| 21.4° | 16.5° | 13.4° | 10.4° |
| 20.7° | 15.9° | 12.9° | 10.0° |
| A mm | 110 87 | 99.7 87 94 |


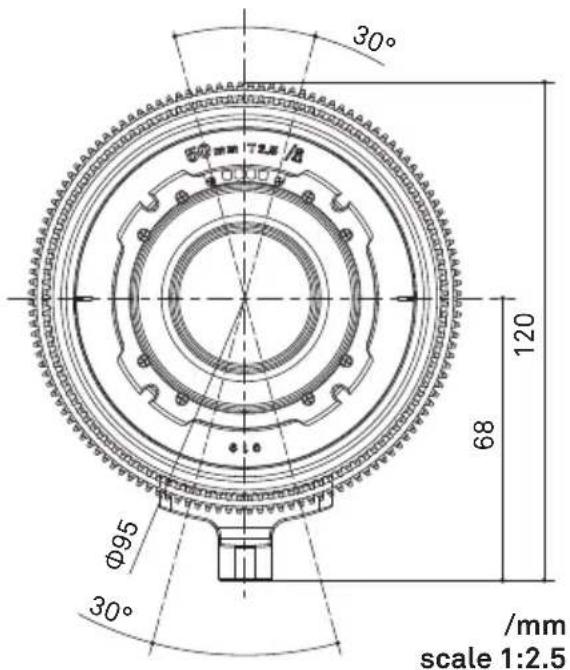

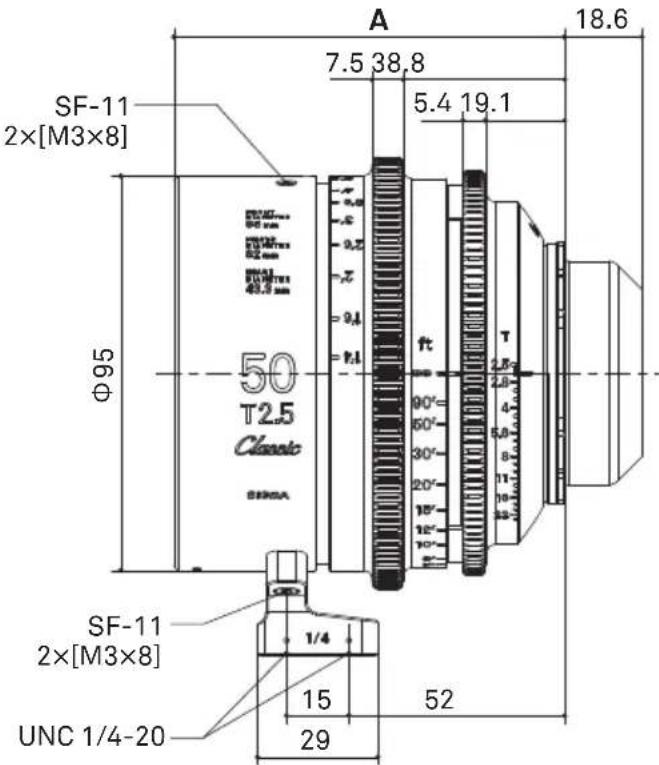

PL Mount
20mm T2.5, 24mm T2.5, 28mm T2.5
35mm T2.5, 50mm T2.5
| Amm | 123 120 | 6 118.9 106.9 |

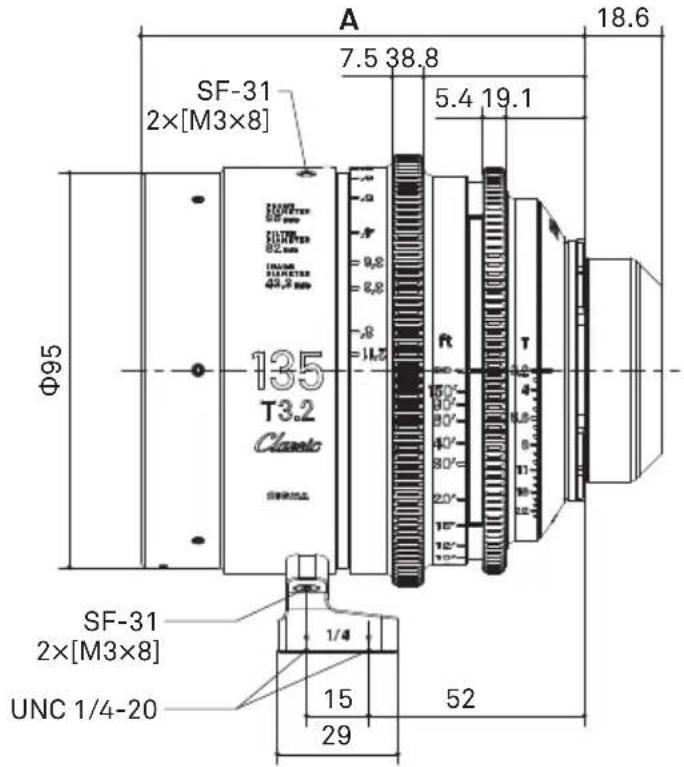

Dimensions

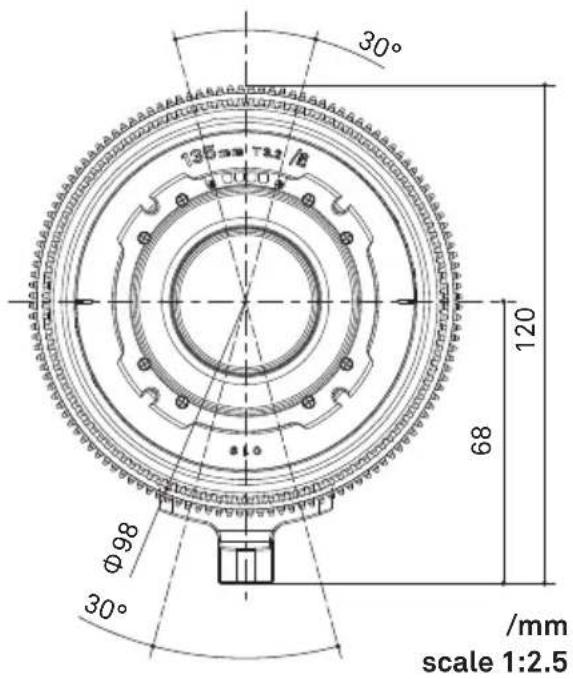

PL Mount
40mm T2.5, 65mm T2.5
85mm T2.5, 135mm T3.2


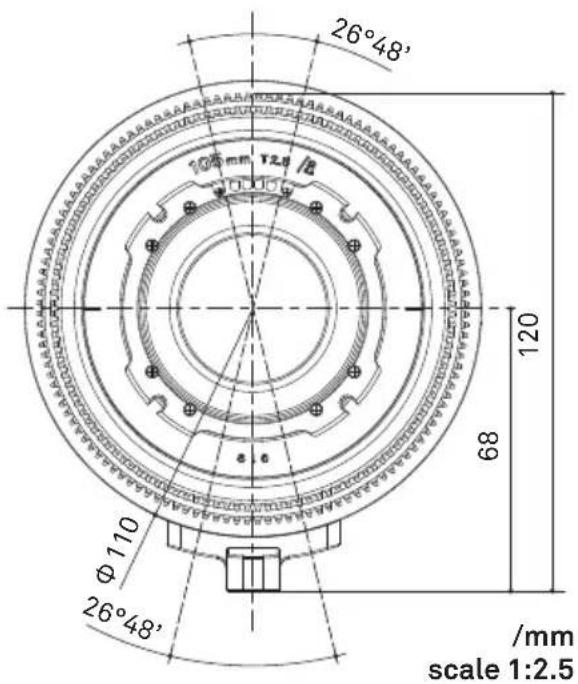

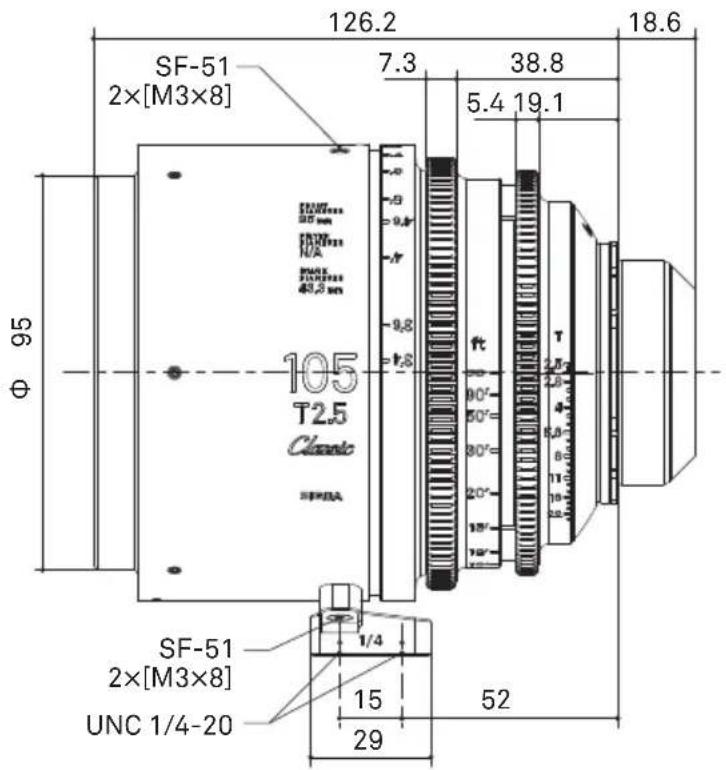

PL Mount
105mm T2.5
2-8-15 Kurigi, Asao-ku, Kawasaki-shi, Kanagawa 215-0033 Japan
