USER MANUAL LBP 125-15 18-EC C Flex

Line drawing of a precision angle grinder with visible brand mark 'FLEX' and no text or symbols on the device itself

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps.

C

1 2 3 4

E

Technical diagram of a mechanical device with labeled parts and a circular inset showing a rotating component.

F FLUX

G 1 2

H ≤6mm

1 2 1

J CLICK CLICK CLICK

Technical illustration of a mechanical component being processed, showing two sequential steps with arrows indicating motion (no text or symbols present)

Symbols used in this manual

WARNING!

Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a possibly dangerous situation. Non-observance of this warning may result in slight injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the power tool

Before switching on the power tool, read the operating manual!

Wear goggles!

Wear ear protection!

Disposal information for the old machine (see page 19)

For your safety

WARNING!

Before using the power tool, please read the follow:

– these operating instructions,
- the "General safety instructions" on the handling of power tools in the enclosed booklet (leaflet-no.: 315.915),
– the currently valid site rules and the regulations for the prevention of accidents.

This angle grinder is state of the art and has been constructed in accordance with the acknowledged safety regulations.

Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged. The angle grinder may be operated only if it is

-asintended,

- in perfect working order.

Faults which impair safety must be repaired immediately.

Intended use

This angle grinder is intended

– for commercial use in industry and trade,
– for dry grinding metal and stone;
- for use with grinding tool and accessories recommended in these instructions or by the manufacturer.

- cutting function only permitted with a suitable cutting guard

Not permissible are e.g. chainsaw discs, saw blades.

Safety instructions for angle grinder

WARNING!

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Safety Warnings Common for Grinding Operations

■ This power tool is intended to function as a grinder tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
■ Operation such as polishing, sanding and abrasive cutting-off are not recommended to be performed with this power tool.
Operations for which the power tool was not designed may create a hazard and cause personal injury.

■ Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.

■ The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.

■ The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.

• Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange.
  Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
• Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.
  ■ Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
• Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
  ■ Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
  ■ Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
  ■ Do not run the power tool while carrying it at your side. Accidental contact with

the spinning accessory could snag your clothing, pulling the accessory into your body.

• Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards. Do not operate the power tool near flammable materials. Sparks could ignite these materials.
• Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Kickback and Related Warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching.

Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

• Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
  ■ Never place your hand near the rotating accessory. Accessory may kickback over your hand.
• Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.

■ Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
- Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

Safety Warnings Specific for Grinding Operations

■ Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
■ The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.
■ The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.
■ Wheels must be used only for recommended applications.
■ Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage.
- Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

Additional safety instructions

■ Use suitable detectors to detect concealed power supply cables or consult your local supply company. Contact with electric cables may result in a fire and/or electric shock. A damaged gas pipe may cause an explosion. Cutting into a water pipe will cause damage to property or may cause an electric shock.

■ When working, hold the power tool firmly with both hands and ensure that you have a secure footing. The power tool is controlled more securely if held with both hands.
- Secure the workpiece. A workpiece is held more securely in a clamping device than by hand.
■ Dust released from materials, such as lead paints, some types of wood, minerals and metal, may be hazardous to the operator or people in the vicinity. Inhaling or touching such dust may result in respiratory diseases and/or allergic reactions.
– Ensure the workplace is well ventilated.
- If possible, use external dust extraction.
- It is recommended to wear a respirator mask belonging to filter class P2.
■ Do not work on materials which release hazardous substances (e.g. asbestos).
■ Use only original batteries with the voltage indicated on the type plate of your power tool. The use of other batteries, e.g. imitations, reconditioned batteries or other makes, increases the risk of injury and damage to property by exploding batteries.

Safety instructions for handling batteries

■ Do not open the battery. Short-circuiting hazard!
■ Protect the battery against heat, including prolonged sunshine, fire, water and moisture. Explosion hazard!
■ A damaged or incorrectly used battery may result in the emission of fumes. Ensure a supply of fresh air and consult a doctor in the event of any physical complications. The fumes may irritate the respiratory tracts.
- Liquid may leak out of the battery if the battery is incorrectly used. Avoid contact with such liquid. If contact accidentally occurs, rinse with water. If liquid contacts eyes, seek medical attention. Liquid discharged from the battery may cause irritation or burns.
■ Use FLEX rechargeable batteries only in connection with FLEX tools and FLEX accessories. Only in this way is the rechargeable battery protected against dangerous overloads.

■ Recharge batteries only with chargers recommended by the manufacturer. A charger that is suitable for one type of battery may create a fire hazard when used with another battery.
■ The battery may be damaged by pointed objects such as e.g. nails or screwdrivers or by external application of force. This may give rise to an internal short circuit, causing the battery to burn, smoke, explode or overheat.

Special safety instructions

■ The mains voltage and the voltage specifications on the rating plate must correspond.
■ Do not press the spindle lock until the grinding tool stops.

Noise and vibration

The noise and vibration values have been determined in accordance with EN 60745. The A evaluated noise level of the power tool is typically:

– Sound pressure level L_pA : 74 dB(A);
- Sound power level L_WA : 92 dB(A);
- Uncertainty: K = 3 dB.

Total vibration value:

• Emission value a_h : 6.75 m/s
• Uncertainty: K = 1.5 m/s

CAUTION!

The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.

NOTE

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

However if the tool is used for different applications, with different accessories or

poorly maintained, the vibration emission may differ. This may significantly decrease the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

CAUTION!

Wear ear protection at a sound pressure above 85 dB(A).

Technical data

Tool LBP 125-15 18-EC
Type Angle grinder
Nominal voltage	V	18
Max. grinding tool ∅	mm 125
Spindle thread	M14
Speed r.p.m. 10,000
Weight according to “EPTA Procedure 01/2003” (without battery)	kg	1.87
Battery	18V	AP 18/2.5AP 18/5.0AP 18/8.0
Weight of battery	kg	AP 18/2.5AP 18/5.0AP 18/8.0	0.40.71.1
Working temperature	-10-40°C
Storage temperature	< 50°C
Charging temperature	4-40°C
Charger	CA 12/18, CA 18-LD

Overview (see figure A)

1 Spindle

2 Threaded flange

a Clamping flange
b Clamping nut

3 Guard hood

Can be adjusted without a tool through 360^ by means of 12 notches.

4 Spindle lock

Secures the spindle when the tool is changed.

5 Gear head

With air outlet and direction-of-rotation arrow.

6 Power Switch

The power switch energizes the unit when it is depressed.

7 Lock-Off Tab

The ambidextrous tab must be rotated to the front to activate the power switch.

8 Rear handle

9 Filter cover

10 Handle

Handle can be fitted to the left or right.

11 Pin wrench

Operating instructions

WARNING!

Remove the battery before carrying out any work on the power tool.

Before switching on the power tool

Unpack the angle grinder and check that there are no missing or damaged parts.

NOTE

The batteries are not fully charged on delivery. Prior to initial operation, charge the batteries fully. Refer to the charger operating manual.

Inserting/replacing the battery (see figure B)

■ Press the charged battery into the power tool until it clicks into place.
■ To remove, press the release button (1.) and pull out the battery (2.).

CAUTION!

When the device is not in use, protect the battery contacts. Loose metal parts may short-circuit the contacts; explosion and fire hazard!

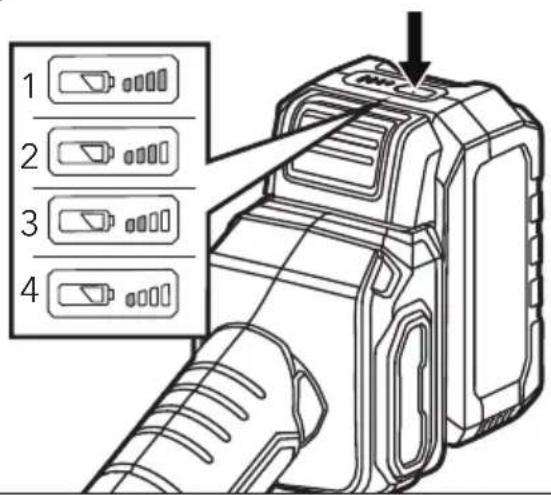

Battery state of charge (see figure C)

■ Press the button to check the state of charge at the state of charge indicator LEDs.

The indicator goes out after 5 seconds. If one of the LEDs flashes, the battery must be recharged. If none of the LEDs light up after the button is pressed, the battery is faulty and must be replaced.

Attach and remove the guard

WARNING!

When using the angle grinder for roughing or cutting, never work without the guard. A special cutting guard must be used for cutting.

To attach (see figure D)

■ Remove the battery
■ Attach the guard (1.). Lugs on the guard hood must be located in the flange recesses.
■ Turn guard hood clockwise (2.). Rotation is possible in one direction only!

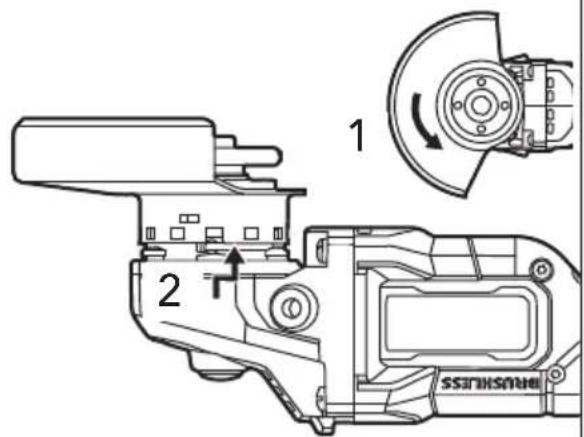

To remove (see figure E)

■ Remove the battery
■ Rotate the guard clockwise, and it will pop up when it reaches a certain position.
■ Rotate the guard counterclockwise for a small angle (1.) and take it out along the recesses of the flange (2.).

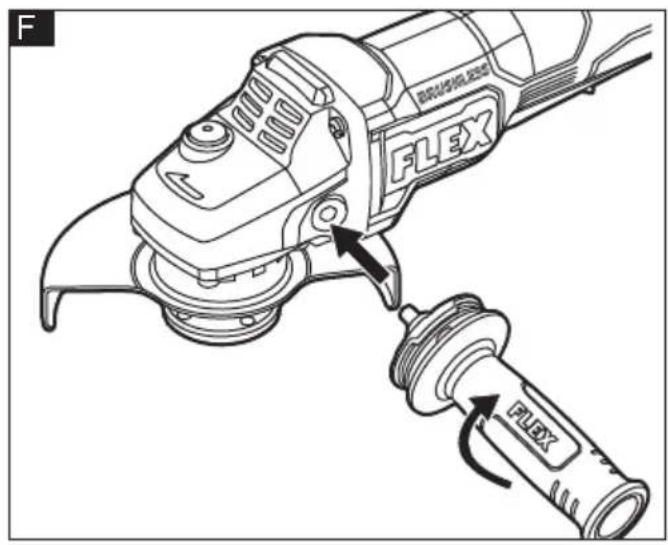

Attach the handle (see figure F)

NOTE

It is not permitted to operate the electric power tool without the handle.

Attaching/changing the tool

■ Remove the battery.

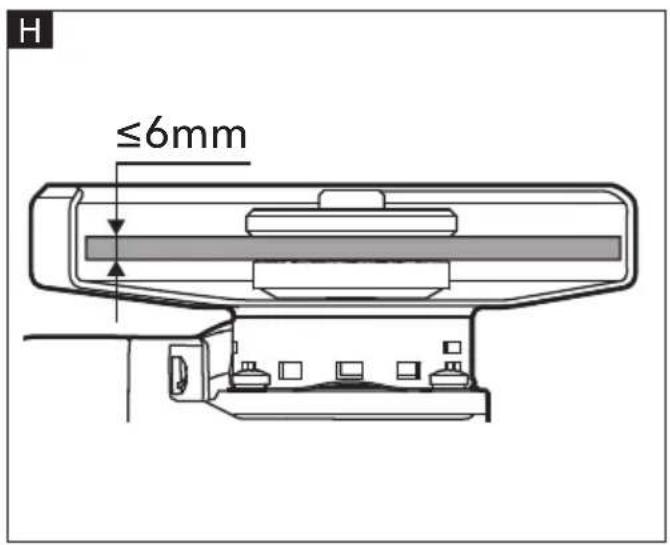

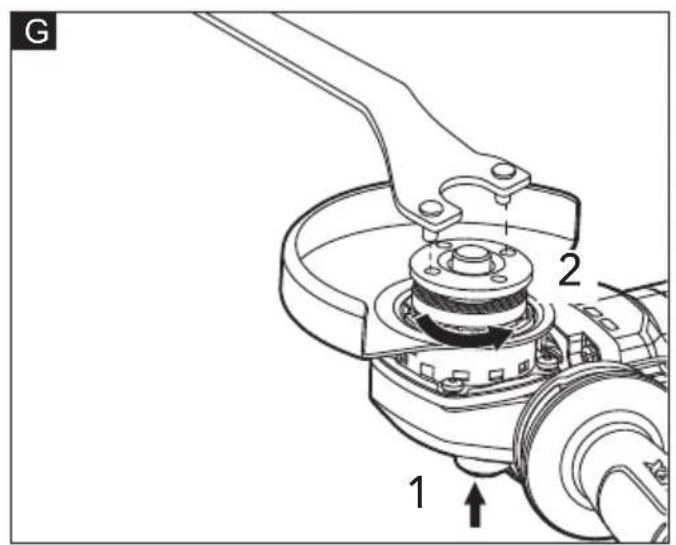

Attach the grinding wheel (see figure G H)

■ Press and hold down the spindle lock (1.).
■ Using the pin wrench, loosen the clamping nut on the spindle in an anticlockwise direction and remove (2.).
■ Insert the grinding wheel in the correct position.
■ Screw the clamping nut with flange face up, onto the spindle.
■ Press and hold down the spindle lock.
■ Tighten the clamping nut with the pin wrench.
- Carry out a test run to check that the tool is clamped in the centre.

Test run

■ Insert the battery.
■ Switch on the angle grinder with the switch (without engaging it) and run the angle grinder for approx. 30 seconds. Check for imbalances and vibrations.
■ Switch off the angle grinder.

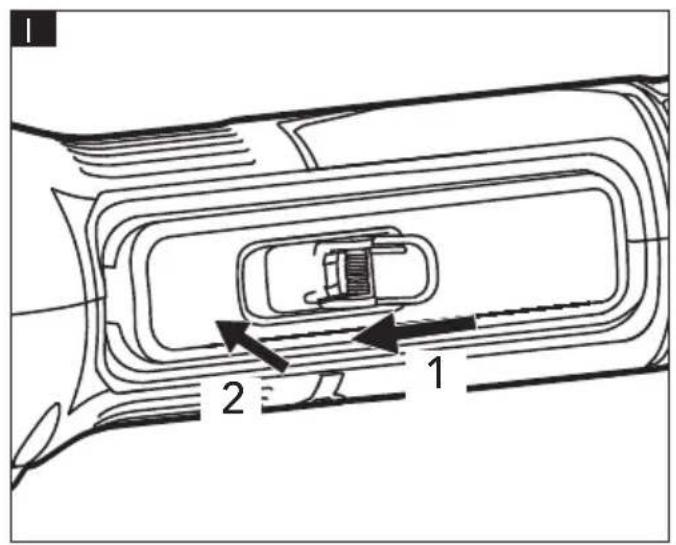

Switching on and off (see figure I)

The main switch has a secondary LOCK-OFF tab that must be rotated to the front to be able to depress the power switch.

■ Grasp the main switch with your fingers and slide the tab to the front (1.).
■ Depress the main switch (2.) to activate the angle grinder.
■ Release the main switch to stop the angle grinder.

NOTE

Following a power failure, the switched on power tool does not restart.

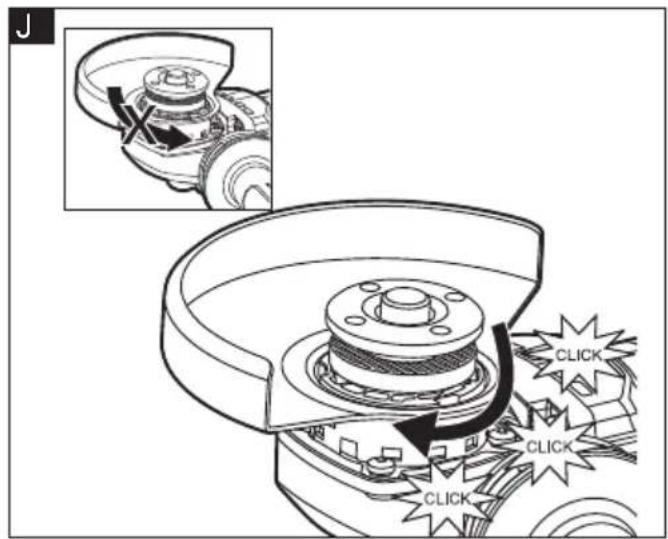

Adjusting the guard (see figure J)

To adjust the tool to the task at hand, the guard hood can be adjusted by 12 notches on 360^ without a tool.

CAUTION!

Risk of injury! Wear protective gloves.

■ Remove the battery.
■ Turn guard hood opposite to the direction-of-rotation arrow on the gear head to the required position.

Work instructions

NOTE

When the power tool is switched off, the grinding tool continues running briefly.

Rough-grinding

WARNING!

- Applying moderate pressure, move the angle grinder backwards and forwards. As a result, the workpiece will not become too hot and there will be no discoloration; nor will there be any grooves.

Maintenance and care

WARNING!

Remove the battery before carrying out any work on the power tool.

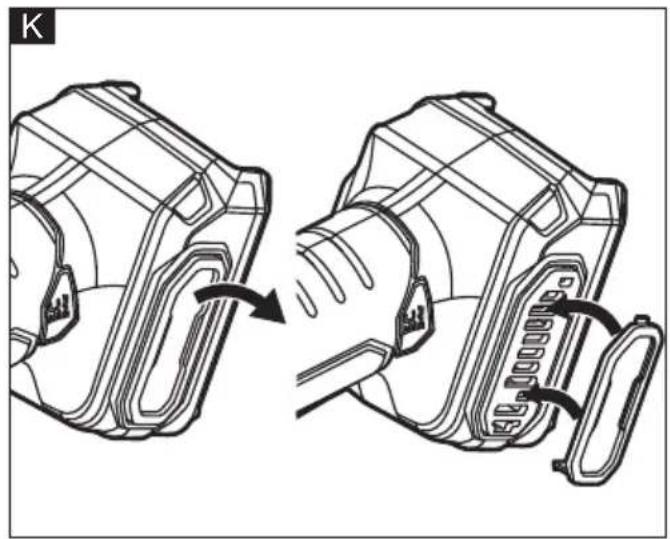

Cleaning (see figure K)

■ Regularly clean the power tool and ventilation slots. Frequency of cleaning is dependent on the material and duration of use.
■ Regularly blow out the housing interior and motor with dry compressed air.
■ Regularly clean the filter cover.
■ Remove filter cover and blow it out with dry compressed air.

Gears

i NOTE

Do not loosen the screws on the gear head during the warranty period. Non-compliance will deem the guarantee obligations of the manufacturer null and void.

Repairs

Repairs may be carried out by an authorized customer service centre only.

Spare parts and accessories

For other accessories, see the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage:

www.flex-tools.com.

Disposal information

WARNING!

Render redundant power tools unusable:

• mains operated power tool by removing the power cord,
• battery operated power tool by removing the battery.

EU countries only Do not throw electric power tools into the household waste!

In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner.

Raw material recovery instead of waste disposal.

Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.

WARNING!

Do not throw batteries into the household waste, fire or water. Do not open used batteries.

EU countries only: In accordance with Directive 2006/66/EC defective or used batteries must be recycled.

NOTE

Please ask your dealer about disposal options!

CE-Declaration of Conformity

We declare under our sole responsibility that the product described under "Technical specifications" conforms to the following standards or normative documents: EN 60745 in accordance with the regulations of the directives 2014/30/EU, 2006/42/EC, 2011/65/EU. Responsible for technical documents: FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr

Peter Lameli Klaus Peter Weinper Technical Director Head of Quality Department

(QD)

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product. The manufacturer and his representative are not liable for any damage which was caused by improper use of the product or by use of the product with products from other manufacturers.

Declaration of Conformity

We as the manufacturer: FLEX

declare under our sole responsibility, that the product(s) described under „Technical specifications“ fulfills all the relevant

provisions of The Supply of Machinery

(Safety) Regulations S.I. 2008/1597 and also fulfills all the relevant provisions of the following UK Regulations:

Electromagnetic Compatibility Regulations S.I. 2016/1091, The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations

S.I. 2012/3032 and are manufactured in accordance with the following designated Standards:

BS EN 60745-1:2010

BS EN 60745-2-3:2011

BS EN 55014-1:2017

BS EN 55014-2:2015

Place of declaration: Steinheim, Germany.

Responsible person: Peter Lameli, Technical

Contact details for Great Britain: FLEX Power

Tools Limited, Unit 8 Anglo Office Park,

Lincoln Road, HP 12, 3RH Buckinghamshire, United Kingdom.

Technical Director Head of Quality

Department (QD)

01.09.2023

Laadur CA 12/18; CA 18-LD
