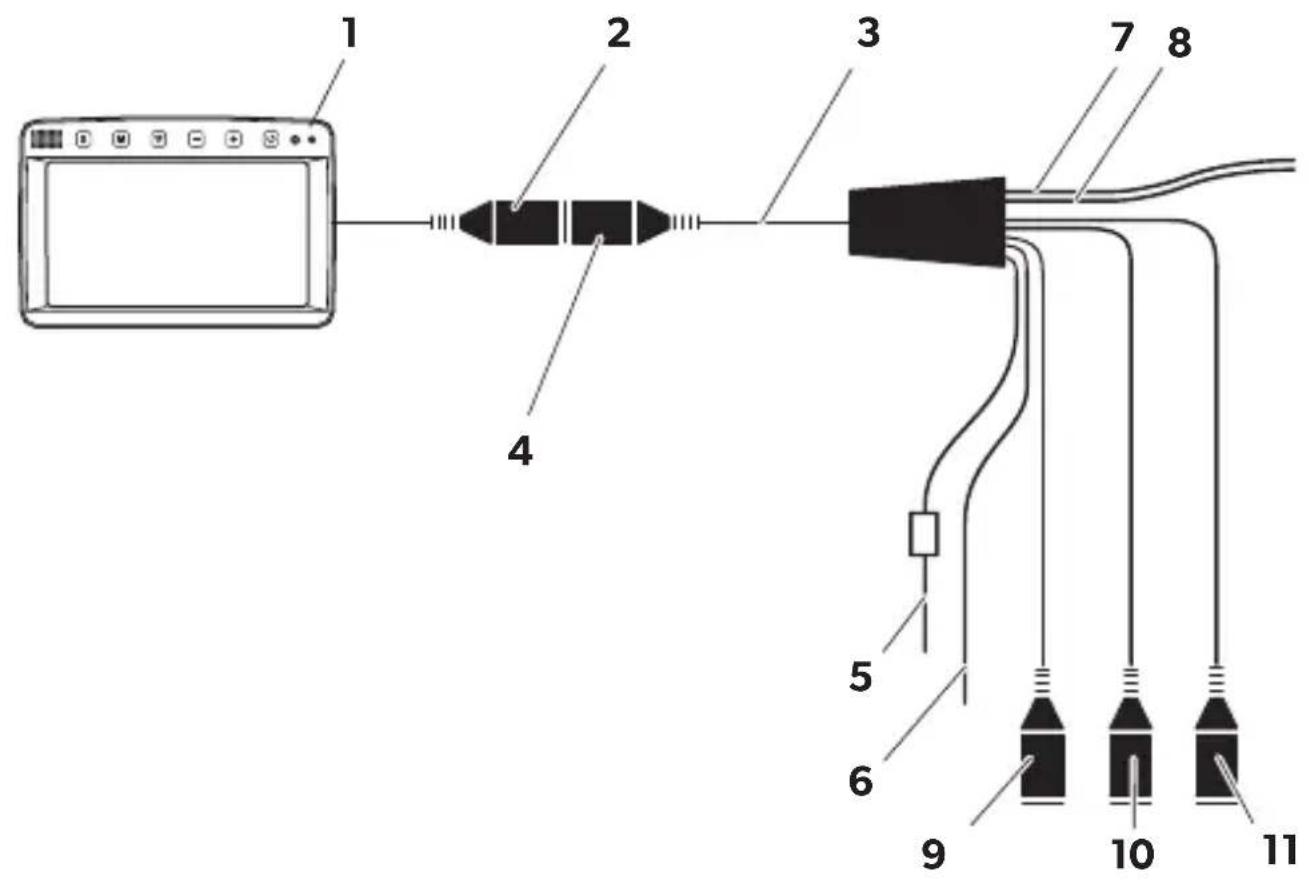

Diagram of a device connection showing ports 1 through 11 with labeled components and wiring connections

Please read this instruction manual carefully before installation and first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it.

Table of contents

1 Explanation of symbols....8
2 Safety and installation instructions....9
3 Scope of delivery 12
4 Accessories....12
5 Intended use....12
6 Technical description....13
7 Installing the LCD monitor 16
8 Using the LCD monitor....20
9 Cleaning and caring for the LCD monitor 23
10 Warranty 24
11 Disposal....24
12 Technical data....25

1 Explanation of symbols

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

2 Safety and installation instructions

The manufacturer accepts no liability for damage in the following cases:

• Faulty assembly or connection
- Damage to the product resulting from mechanical influences and excess voltage
• Alterations to the product without express permission from the manufacturer
- Use for purposes other than those described in the operating manual

Please observe the prescribed safety instructions and stipulations from the vehicle manufacturer and service workshops.

WARNING!

Inadequate supply cable connections could result in short circuits, which could have as a consequence that:

• Cable fires occur
  •The airbag is triggered
  • Electronic control devices are damaged
  • Electric functions fail (indicators, brake light, horn, ignition, lights)

NOTICE!

To prevent the risk of short circuits, always disconnect the negative terminal of the vehicle's electrical system before working on it.

If the vehicle has an additional battery, its negative terminal should also be disconnected.

Please observe the following instructions:

• When working on the following cables, only use insulated cable lugs, plugs and flat push-on receptacles:
• 30 (direct supply from positive battery terminal)
• 15 (connected positive terminal, behind the battery)
• 31 (return line from the battery, earth)
• L (indicator lights left)

• R (indicator lights right)
  Do not use terminal strips.

• Use a crimping tool to connect the cables.

• When connecting to cable 31 (earth), screw the cable

– to the vehicle's earth bolt with a cable lug and a gear disc or

- to the sheet-metal bodywork with a cable lug and a self-tapping screw.

Ensure that there is a good earth connection.

If you disconnect the negative terminal of the battery, all data stored in the volatile memories will be lost.

- The following data must be set again, depending on the vehicle equipment options:

• Radio code
• Vehicle clock
• Timer
• On-board computer
• Seat position

You can find instructions for making these settings in the appropriate operating instructions.

Observe the following installation instructions:

CAUTION!

• Secure the parts installed in the vehicle in such a way that they cannot become loose under any circumstances (sudden braking, accidents) and cause injuries to the occupants of the vehicle.
• Secure any parts of the system covered by the bodywork in such a manner that they cannot be come loose or damage other parts and cables or impair vehicle functions (steering, pedals, etc).
• Always follow the safety instructions of the vehicle manufacturer. Some work (e.g. on retention systems such as the AIRBAG etc.) may only be performed by qualified specialists.

NOTICE!

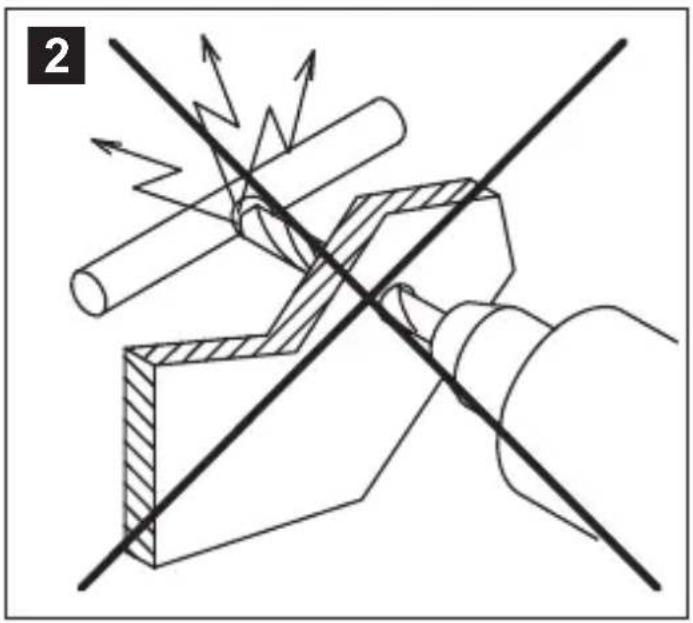

• To prevent damage when drilling, make sure there is sufficient space on the other side for the drill head to come out.
• Deburr all drill holes and treat them with a rust-protection agent.

Observe the following instructions when working with electrical parts:

NOTICE!

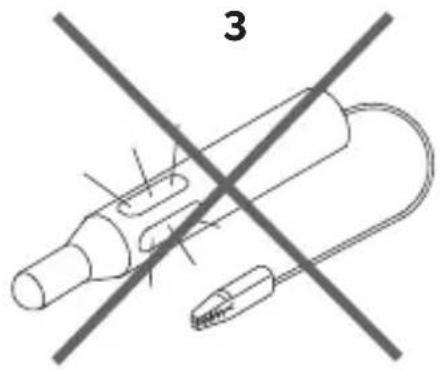

• When testing the voltage in electrical cables, only use a diode test lamp or a voltmeter.
  Test lamps with an illuminant take up voltages which are too high and which can damage the vehicle's electronic system.

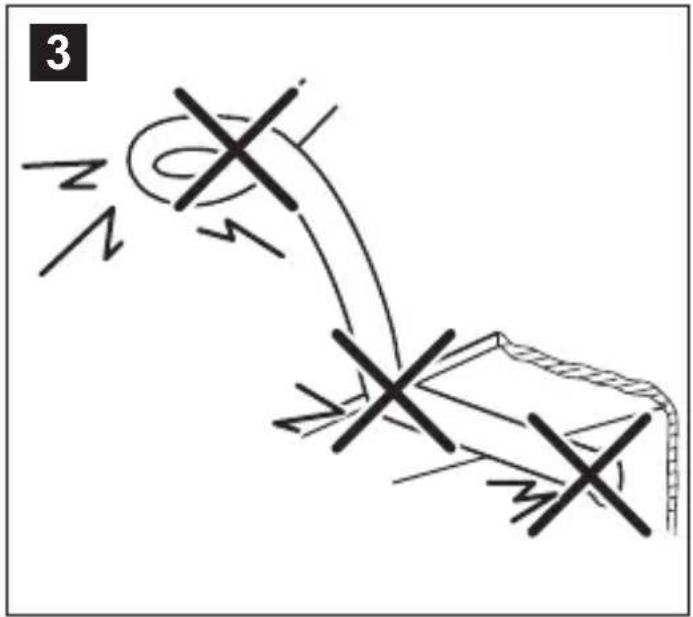

- When making electrical connections, ensure that:

– they are not kinked or twisted
– they do not rub on edges
– they are not laid in sharp edged ducts without protection.

• Insulate all connections.

- Secure the cables against mechanical wear with cable binders or insulating tape, for example to existing cables.

Observe the following instructions when handling the LCD monitor:

CAUTION!

- People (including children) whose physical, sensory or mental capacities or whose lack of experience or knowledge prevent them from using this product safely should not use it without the supervision or instruction of a responsible person.

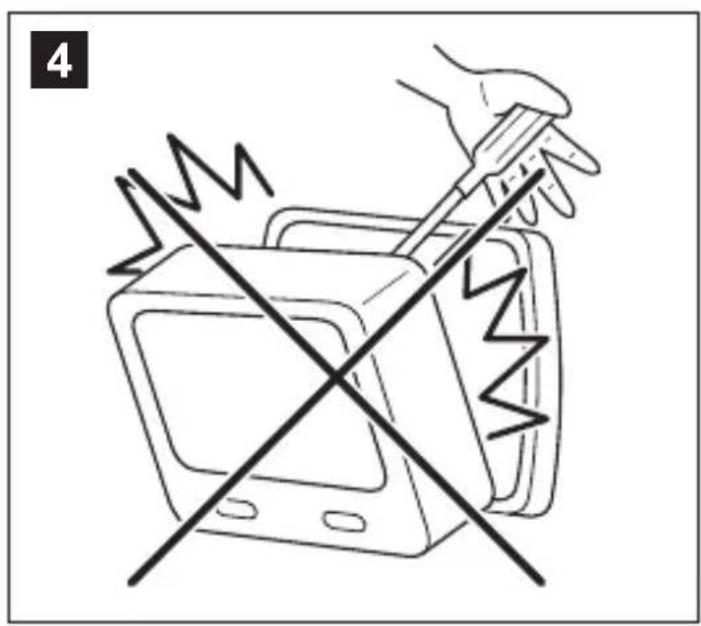

• Do not open the monitor (fig. 4, page 3).

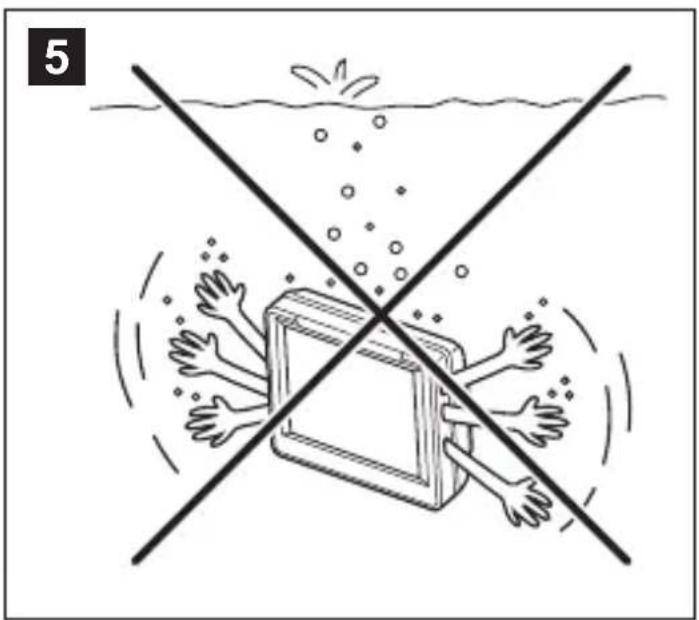

• Do not submerge the monitor in water (fig. 5, page 3); the monitor is not designed for underwater use.
• Do not operate the monitor if the housing has been damaged.

NOTICE!

• Connect it to the correct voltage.
• Do not use the monitor in areas which
• are subjected to direct sunlight,
• are subject to strong temperature fluctuations,
• have high levels of humidity,
• are poorly ventilated,

• are dusty or oily.

• Do not press against the LCD display.

• Do not drop the monitor.
• If you use the monitor in vehicles, the vehicle should be running during operation to prevent the vehicle battery from discharging.
• The picture quality can be impaired in the vicinity of electromagnetic fields. For this reason do not mount the monitor near loudspeakers.

Observe the following instructions when handling the remote control:

NOTICE!

• Do not open the remote control.
• Never submerge the remote control in water; the remote control is not watertight.
• Do not operate the remote control with wet hands.
• Do not drop the remote control.

3	S	c	o	p	e	o	f	d	e	I
No. in fig. 9, page 4		Quantity Description Ref. no.

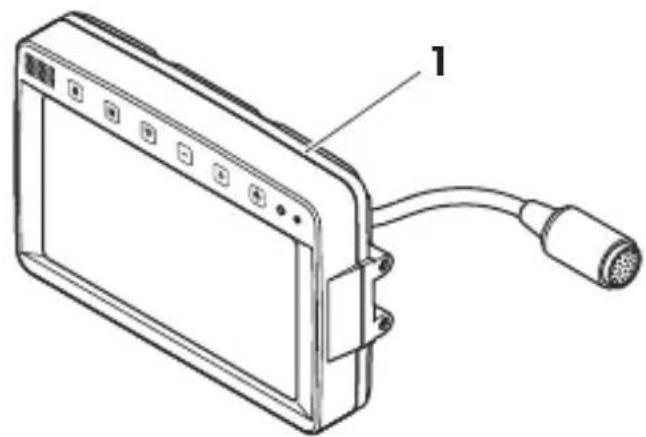

1	1 Monitor 9600000065
2	1 Monitor bracket 9102200054

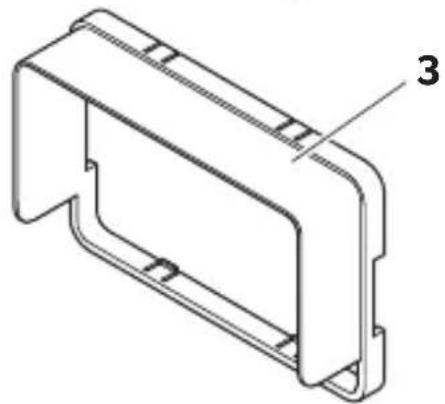

3	1 Sun screen 9102200168
4	1 Infrared remote control 9102200169
-	1 Connection cable 9102200170
-	-	Fastening material							-

4 Accessories

Available as accessories (not included in the scope of delivery):

Description	Ref. no.
CAM50	9102000019
CAM60ADR	9600000057
CAM604	9600000041

5 l n t e n d e d u s

The PerfectView M70IP LCD monitor (ref. no. 9600000065) is a monitor primarily intended for use in vehicles. It can be used to connect up to three cameras (e.g. a reversing video system) or other video sources.

The LCD monitor is designed for use in all vehicles.

6 Technical description

6.1 Function description

The LCD monitor is a monitor for the connection of cameras (e.g. reversing video systems) or other video sources (e.g. DVD players). It is possible to switch back and forth between video sources.

The monitor features control cables which allow the cameras to be activated automatically.

The M70IP monitor can operate up to three cameras. Alongside manual controls and control using control cables, the three cameras can be switched consecutively in automatic mode. The monitor features a distance indicator in the display which is activated automatically when the reverse gear is engaged.

The brightness of the monitor adapts automatically to the ambient light.

The M70IP monitor is equipped with a housing protected from water and also withstands water jets in accordance with IP67.

The monitor can be operated using the control elements on the monitor and the infrared remote control.

6.2 Control elements

Monitor

The following control elements are located on the monitor:

No. in fig. 10, page 5 Label Description

1 – Loudspeaker

2 S Switches between the video sources 1 to 3 (CAM1, CAM2 and CAM3). Closes the menu.

Label Description

3 M Calls up the menu.

Calls up the parameters to be set.

The parameters are distributed over four screen pages in the following order:


• Brightness
• Contrast
• Colour
  •Volume
• Automatic brightness adjustment ("Auto Dim")
• Set the distance markers ("Scale adjust")

Options ("Option")

• Language ("Lang")
  • Distance markers ("Scale")
• Camera1/Camera2/Camera3 ("CAM1/CAM2/CAM3")

System

• Video standard ("Color-Sys"): Auto/PAL/NTSC
• Screen background without the camera signal blue/black ("Blue Back")
  • Horizontal
  •Vertical
• Aspect ratio ("Zoom")

Automatic search ("Auto Scan")

•Automatic search ("Auto Scan")
- Scan time ("Scan time")
- Camera1/Camera2/Camera3 ("CAM1/CAM2/CAM3")
Closes the menu after the fourth screen page.

4 ▽ Selects the parameter to be set. Switches the distance markers on or off.

5 - Decreases the value of the selected parameter.

6 + Increases the value of the selected parameter.

7 ⏻ Switches the monitor on and off.

8 – Infrared connection for remote control

9 – Sensor window for the dimmer function. The brightness of the display is automatically adapted to the ambient light with a delay of approx. 5 seconds.

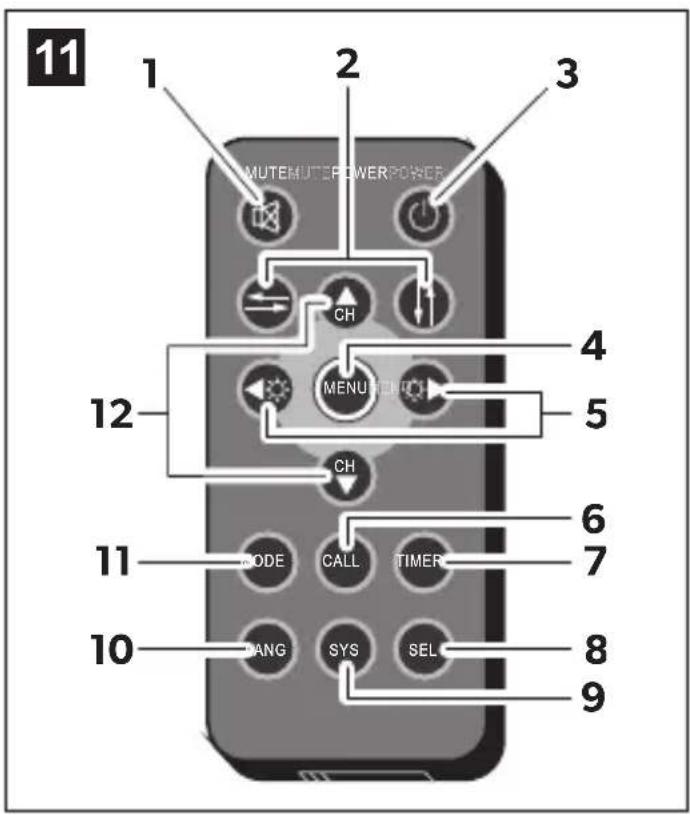

Remote control

The remote control features the following control elements:

No. in fig. 11, page 6	Label Description
1 Mute Turns the monitor mute.
2 Flips the display horizontally.
	↓↑	Flips the display vertically.
3 ⏻ Switches the monitor on and off.
4 Menu Calls up the menu.
	Calls up the menus with the parameters to be set.
5 Reduces the brightness.
	Decreases the value of the selected parameter.
	Increases the brightness.
	Increases the value of the selected parameter.
6 Call Displays the source of the video signal on the display.
7 Timer Sets the time after which the monitor will automatically shut off (10, 20, 30, 40 and max. 90 minutes)
8	Sel	Switches between the cameras displayed.
9	Sys	Switches between video standards (Auto/PAL/NTSC).
10 Lang	Selects the display language.
11	Mode Changes the screen mode (Personal/Standard/Soft/Vivid/Light)
12	CH	Selects the previous menu item.
	CH	Selects the next menu item.

7 Installing the LCD monitor

7.1 Tools required (fig. 1, page 2)

For installation and assembly, you will need the following tools:

• Measuring ruler (4)
• Centre punch (5)
• Hammer (6)
• Drill head set (7)
• Drill (8)
• Screwdriver (9)

To establish and test the electrical connection, the following tools are required:

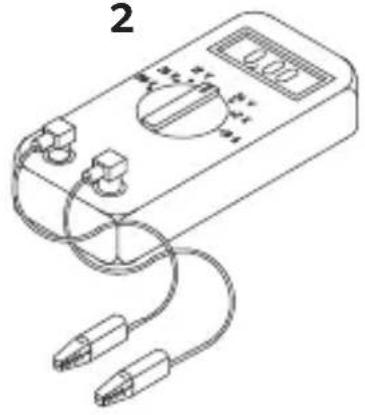

• Diode test lamp (1) or voltmeter (2)
• Insulating tape (10)
- Heat shrinking sleeve

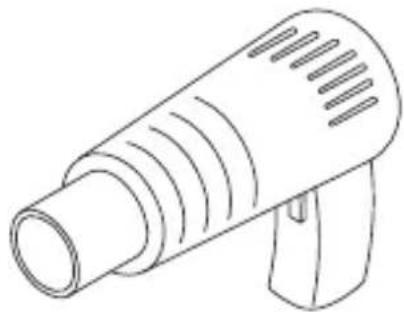

- Hot air blower (11)
- Crimping tool (12)
• Soldering iron (optional) (13)
- Solder (optional) (14)
• Cable bushing sleeves (optional)

To fasten the cables, you may require additional cable binders.

7.2 Installing the monitor

CAUTION! Beware of injury

Select the location of the monitor so that it cannot injure the passengers in the vehicle under any circumstances (e.g. sudden braking, road traffic accidents).

Observe the following installation instructions:

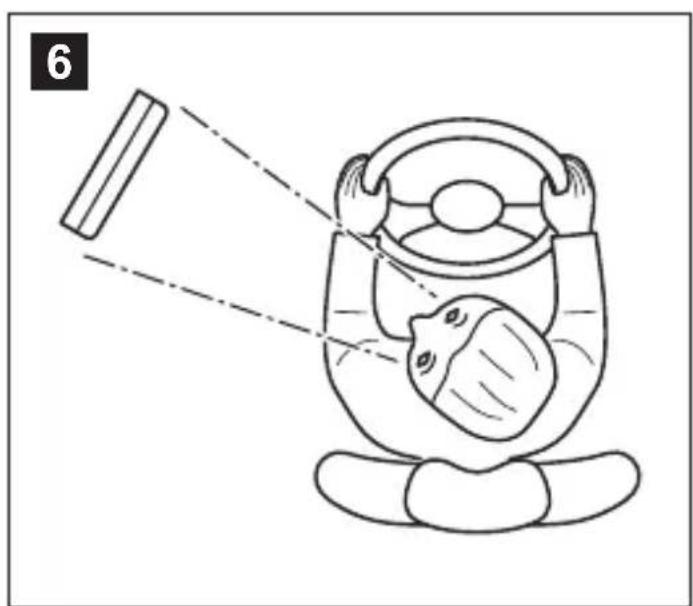

• Select an installation location that provides an unobstructed view of the monitor (fig. 6 and fig. 7, page 3).
• Never install the monitor in areas where your head could hit it or in the airbag deployment path. This could cause injury if the airbag opens.

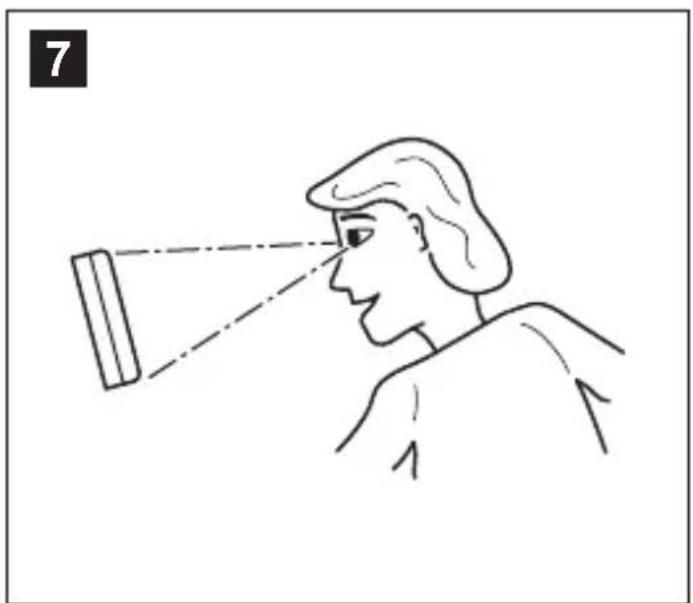

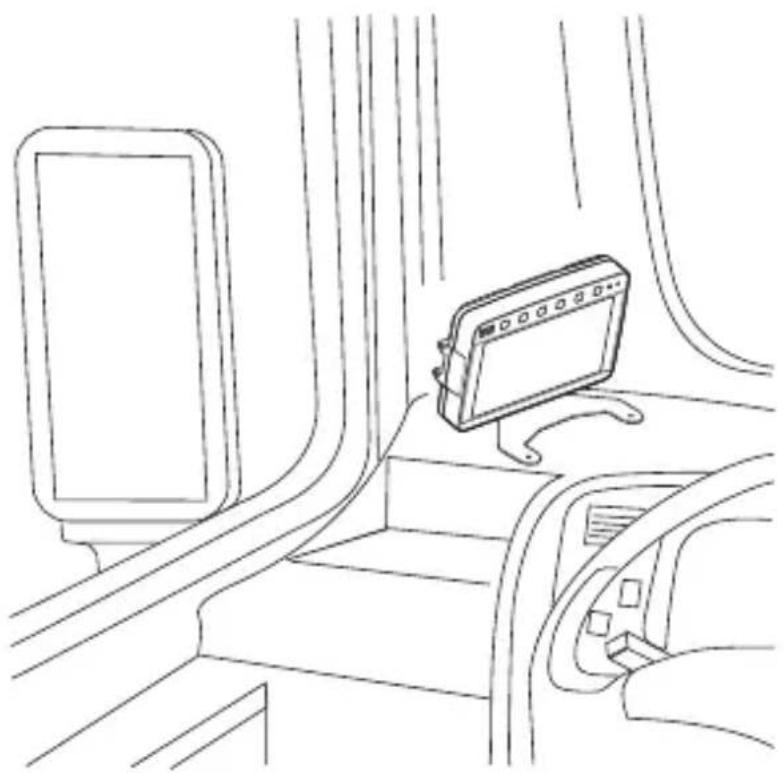

• The monitor must not impair your vision when driving (fig. 8, page 4).
• The installation location should be flat.
• Check that there is sufficient space underneath the installation location to attach the washers and nuts.
• Check beforehand that there is sufficient space on the other side for the drill head to come out (fig. 2, page 3).
• Bear in mind the weight of the monitor. Provide reinforcement if necessary (larger washers or plates).
• Make sure you can lay the connection cable to the monitor.

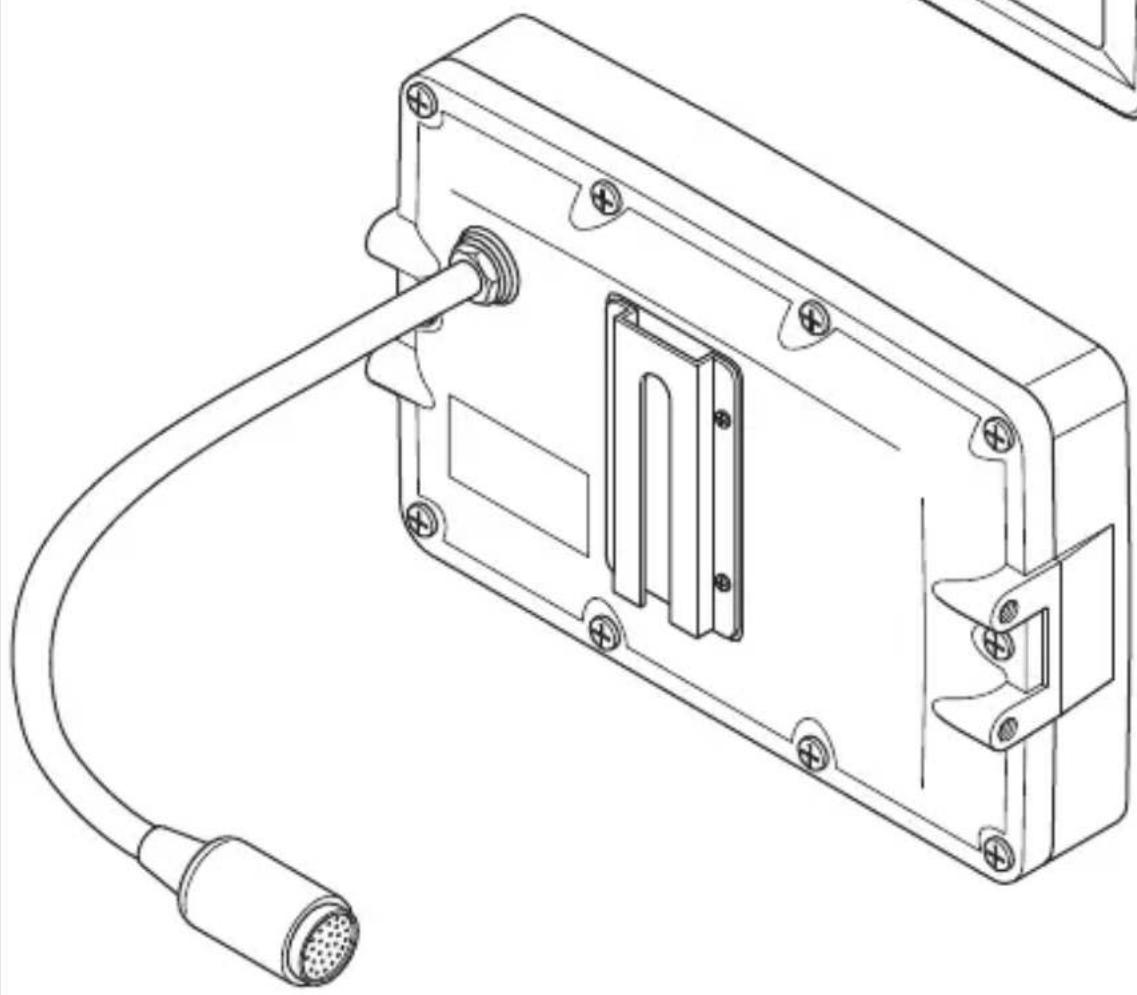

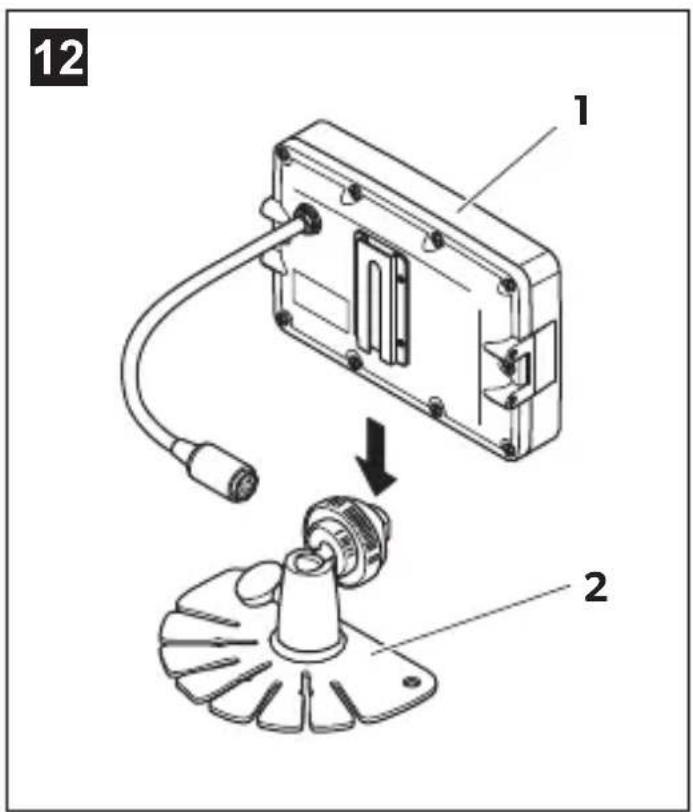

Choosing the installation location (fig. 12, page 6)

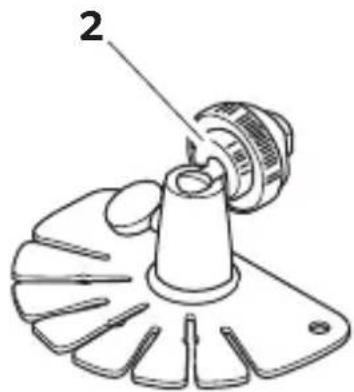

▶ Slide the monitor (1) onto the monitor bracket (2) and secure it with the knurled screw (3).
▶Position the monitor with the attached monitor bracket provisionally.
▶ Mark the outlines of the corners of the monitor bracket (2) on the dashboard.
▶Unscrew the monitor from the monitor holder.

NOTE

You can fasten the monitor bracket using adhesive or screws.

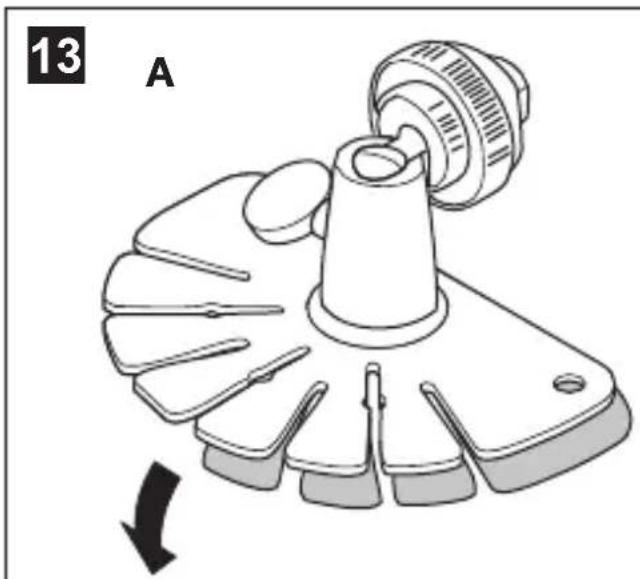

Sticking the monitor bracket onto the dashboard (fig. 13 A, page 6)

▶Remove the film from under the monitor bracket.
▶Stick the monitor bracket to the position of your choice.

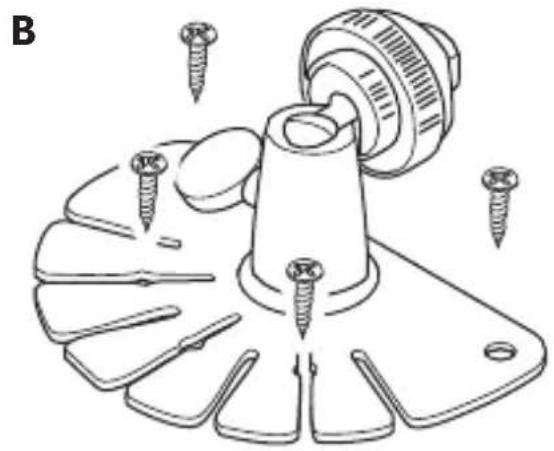

Screwing the monitor bracket onto the dashboard (fig. 13 B, page 6)

▶Hold the monitor bracket within the outlines marked beforehand.
▶Mark four drilling points.
▶ Drill the holes, with ∅ of 2 mm, at each of the markings.
▶ Screw the monitor holder on using 4 x 20 mm self-tapping screws.

Fastening the monitor

▶ Set the monitor on the monitor bracket and secure it with the knurled nut (fig. 12, page 6).

7.3 Connecting the monitor electrically

The circuit diagram for the LCD monitor can be found in fig. 14, page 7:

No. in fig. 14, page 7	Description
	1	M	o	n	i	t	o
	2 13-pin plug
	3	C	o	n	n	e	c
	4	1	3	-	p	i	n
	5 12 – 24 V positive cable (red): connected to the positive pole of the ignition (connected positive, terminal 5) or the positive pole of the battery (terminal 30).
	6 Earth cable (black): connected to the negative pole of the voltage source.
	7 Cable (green): control input for video input CAM1, such as for connecting the reversing light
	8 Cable (white): control input for video input CAM2, such as for the side camera
	9 6-pin CAM1 socket (connection to video source 1)
	10 6-pin CAM2 socket (connection to video source 2)
	11 6-pin CAM3 socket (connection to video source 3), with video signal detection

NOTICE!

Cables and connections that are not properly installed will cause malfunctions or damage to components.

Correct installation of cables and connections ensures lasting and trouble-free operation of the retrofitted components.

Observe the following instructions when laying the connection cable:

• If possible, use original ducts for laying the cables, or other suitable options, such as ventilation grilles. If there are no existing ducts, you must drill a hole of ∅ 20 mm. Check beforehand that there is sufficient space on the other side for the drill head to emerge (fig. 2, page 3).
• To prevent damage to the cables, when laying them ensure that there is always sufficient distance to vehicle components which can become hot (lights, heaters, ventilators etc.).
• Wrap insulating tape around every connection on the cable (even inside the vehicle).

- When laying the cables (fig. 3, page 3), make sure:

– they are not kinked or twisted
– they do not rub on edges
– they are not laid in sharp-edged ducts without protection.

Connecting the monitor as a reversing video system (fig. 14, page 7)

▶Lay the connection cable on the dashboard.
▶ Insert the plug of the monitor cable (2) into the socket (4) of the connection cable (3).

NOTICE! Beware of damage!

Make sure the polarity is correct when connecting to a voltage source.

▶ Connect the red and black cables of the connection cable to a suitable voltage supply:
- Connect the red cable (5) to terminal 15 (ignition).
- Connect the black cable (6) to terminal 31 (earth).
If the monitor is to be activated when reverse gear is selected, connect the green cable (7) to the positive cable of the reversing light.

NOTE

If voltage is present in the green cable (7), the reversing camera will be activated automatically. The reversing camera has priority.

If the monitor is to be activated by actuating the indicator, for example, connect the white control cable (8) to a positive cable of the indicator.

NOTE

If voltage is present in this control cable, the video input CAM2 will be activated.

This control cable is used as a signal cable for the activation of a side camera when an indicator is flashing, for example.

If necessary, connect the CAM1 socket (9) of the connection cable to the plug of video source 1 (e.g. camera).
If necessary, connect the CAM2 socket (10) of the connection cable to the plug of the video source 2 (e.g. side camera).
If necessary, connect the CAM3 socket (11) of the connection cable to the plug of video source 3 (e.g. reversing camera).

NOTE

Observe the power consumption of the video system. The cameras are equipped with heaters. A maximum current of 1.5 A can flow (three cameras in heating mode). Use a disconnector switch for direct connection to the battery. This allows you to disconnect the video system from the battery easily if you are no longer using the vehicle.

8 Using the LCD monitor

8.1 Switching on the monitor

With the monitor switched off, press the "⏻" button on the monitor (fig. 10 7, page 5) or the "⏻" button on the remote control (fig. 11 3, page 6) to switch on the monitor.

√The picture appears.

8.2 Switching off the monitor

▶ Press the "⏻" button on the monitor (fig. 10 7, page 5) or the "⏻" button on the remote control (fig. 11 3, page 6) to switch off the monitor.

√The picture disappears.

8.3 Setting the language (fig. 10, page 5)

The default language is English.

To set the language, proceed as follows:

▶ Press the "M" button (3) twice to open the "Options" menu.
√The "Lang" parameter is displayed at the top in the menu.
▶ Use the “-” (5) and “+” (6) buttons to select the desired language:

English/Deutsch/Français/Espanôl/Português/Italiano/Nederlands/Pyrский

√The display indicates the desired language.

8.4 Adjusting the monitor (fig. 10, page 5)

To set the monitor to suit your requirements, proceed as follows:

▶ Press the "M" button (3) to call up the required parameters.

√The parameters to be set appear in the following order:

Picture:

-Brightness: 0 - 100
- Contrast: 0 - 100
- Colour: 0 - 100
– Volume: (chapter "Volume setting" on page 22)
- Automatic brightness adjustment ("Auto Dim"): ON/OFF
- Set the distance markers ("Scale adjust"): (chapter "Setting the distance markers (fig. 10, page 5)" on page 23)

Options ("Option"):

– Language ("Lang"): English/Deutsch/Français/Espanol/Português/Italiano/
Nederlands/Русский (chapter "Setting the language (fig. 10, page 5)" on page 20)
- Distance markers ("Scale"): ON/OFF
- Camera1/Camera2/Camera3 ("CAM1/CAM2/CAM3"): "Normal" or "Mirrored"

System:

• Video standard ("Color-Sys"): Auto/PAL/NTSC
• Screen background without the camera signal blue/black ("Blue Back"): ON/OFF
• Flip horizontal ("Horizontal")
• Flip vertical ("Vertical")
• Aspect ratio ("Zoom"): 16:9 or 4:3

Auto search ("Auto Scan"):

• Automatic scan ("Auto Scan"): ON/OFF
• Scan time: 1 - 90 s
• Camera1/Camera2/Camera3 ("CAM1/CAM2/CAM3"): ON/OFF

▶ Press the “−” button (5) to reduce the value of the selected parameter.

▶ Press the “+” button (6) to increase the value of the selected parameter.

▶ Press the "M" button (2) to switch to or exit the respective menu.

▶ Press the "S" button (3) to exit the menu.

8.5 Setting the video source (fig. 10, page 5)

▶ If you would like to switch to a different video source, press the "S" button (2).
√The monitor changes the camera in the order "Camera 1 – Camera 2 – Camera 3".

If you want to have the cameras run through automatically, press the "M" button (3) four times to open the "Auto Scan" menu.

√The "Auto Scan" parameter is displayed at the top in the menu.

▶ Use the “-” (5) and “+” (6) buttons to select the desired operating mode:

√The monitor changes the cameras in the order "Camera 1 – Camera 2 – Camera 3" automatically in the preset scan time.

If you want to set the display time (1 s to 90 s), press the "M" button (3) four times to open the "Auto Scan" menu.
▶ Press the “∇” key (4) to select the “Scan time” parameter.
▶ Press the “−” button (5) to reduce the camera display time.
▶ Press the “+” button (6) to increase the camera display time.
To stop the automatic function, open the Auto Scan menu (see above) and select the operating mode "Off".

8.6 Volume setting

To set the volume, proceed as follows:

▶ Press the "M" button (3) to open the "Screen" menu.
▶ Press the “▽” key (4) to select the “Volume” parameter.
▶ Use the “-” (5) and “+” (6) buttons to select the desired volume.

8.7 Setting the distance markers (fig. 10, page 5)

Distance markers help you estimate the distance of your vehicle to objects behind the vehicle. You can move the distance markers horizontally and vertically.

Activating distance markers

To activate the distance markers, proceed as follows:

▶ Press the "M" button (3) twice to open the "Option" menu.
▶ Press the “▽” key (4) to select the “Scale” parameter.
▶ Use the “-” (5) and “+” (6) buttons to select the operating mode “On”.

Moving distance markers horizontally or vertically

To set the distance markers, proceed as follows:

▶ Press the "M" button (3) to open the "Screen" menu.
▶ Press the “▽” key (4) to set the “Scale” parameter.
▶ Use the “-” (5) and “+” (6) buttons to select the desired setting.
▶ Press the "S" button (2) to exit the menu.
▶ Press the “▽” button (4) to call up the distance marker.
▶ Use the “−” (5) button or “+” (6) button to select the desired position.
▶ Press the "M" button (3) to exit the settings.

- ⇌: h o r i z o n t a l - ↓↓: v e r t i c a l

9 Cleaning and caring for the LCD monitor

NOTICE! Beware of damage!

• Do not use sharp or hard objects for cleaning, as these may damage the monitor.
• Remove the cable before cleaning the monitor to prevent short circuiting.

▶Clean the monitor with a soft, damp cloth from time to time.

10 Warranty

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.

For repair and guarantee processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault

11 Disposal

Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

12 Technical data

	M70IP
Ref. no.: 9600000065
Type: Colour TFT LCD
Display size: 7" (17.78 cm)
Brightness: Approx. 400 cd/m2
Display resolution, H x V: 800 x 480 pixels
Video standard: PAL/NTSC	(automatic switching)
Operating voltage: 12 - 24 V---
Power: Approx. 6 W
Operating temperature: -20 °C to 70 °C
Storage temperature: -30 °C to 80 °C
Relative humidity:	Max. 90 %
Vibration resistance:	6 g
Dimensions in mm W x H x D (with bracket):	197.2 x 132 x 30.5 mm
Weight:	Approx. 680 g

Approvals

The device has E13 certification.

6 Description technique

dometic.com/sales-offices
