USER MANUAL WX092.9 WORX

PRODUCT SAFETYGENERAL SAFETY WARNINGS

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

ADDITIONAL SAFETY RULES FOR CORDLESS AIR PUMP

1. Avoid using the pump at temperatures below -25^ or above 45^
2. Never leave the pump unsupervised while it is in

use.

1. Ensure that the ON/OFF switch is turned off when connecting to the power source.
2. Caution! Operate the pump only for a short time. Under the high working pressure of 8bar (120 psi), the appliance may overheat if operated continuously for longer than 2.5 minutes. Switch the appliance off immediately and allow it to cool down for at least 7.5 minutes
3. Risk of injury! Do not pump any objects up to more than the intended pressure. They could burst and cause injury and/or material damage
4. Do not exceed the permissible output range of the pump. Do not pump up any lorry, tractor or other large tires
5. Do not work with any materials that are or could be easily inflammable or explosive.
6. Never use the pump and accessories for purposes other than the ones for which it was designed
7. The pump must be protected from moisture.

10.Before each use, check the device. If damage is detected, do not use the device. Have repairs performed only by a queried technician. Never open the device yourself.
11. The device produces a high pressure. Do not direct the air outlet at persons or animals.
12.Remain alert at all times! Never use the appliance when you are distracted or do not feel well
13. High pressure air could result in death or serious injury. Never operate above maximum operating pressure. Do not operate with pressure switch or safety valve set above maximum allowable working pressure.
14. Inhalation hazard. Using pump to supply breathing air could result in death or serious injury. Do not use pump to supply breathing air.
15.The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating.

SAFETY WARNING FOR LED LAMP

WARNING: The LED lamp equipped with power tool is in the Exempt Group. In order to avoid the viewer-related risk, operator shall be more careful and read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in optical injuries.

How to avoid exposure hazard

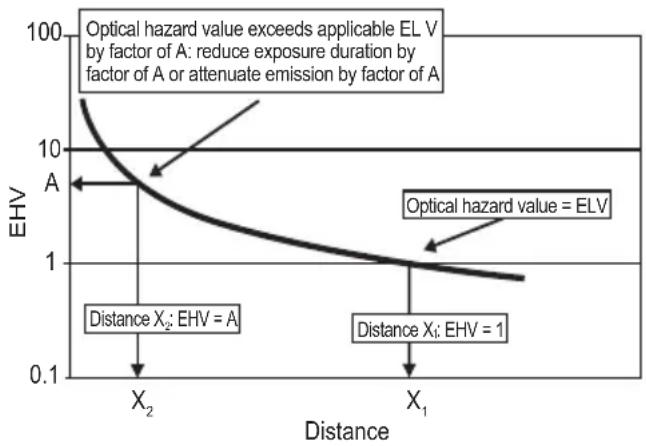

With increasing distance from a lamp the applicable hazard values decrease - see Figure 1. At the distance X1, EHV = 1, i.e. the EHV equals the applicable emission limit value. Distance X1 is the hazard distance (HD) for this lamp system. At distance X2, the optical radiation hazard value exceeds the applicable emission limit value by a factor of A. At this distance, excessive exposure to optical radiation may be reduced either by restricting exposure time by a factor of A (if the emission limit values are expressed in terms of radiant exposure or time integrated radiance), or by using engineering controls (such as filters) which attenuate

the accessible emission and/ or personal protective means (such as eyewear, clothing) which would limit the potential exposure to the emitted energy.

Figure 1 - Example of graphic presentation of distant dependent emission hazard values

SYMBOL

	To reduce the risk of injury, user must read instruction manual
	Warning
	Wear eye protection
	Hearing protection must be worn
	Risk of high temperature

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

COMPONENT LIST

1. INCREASE AIR PRESSURE BUTTON
2. START/STOP BUTTON
3. DECREASE AIR PRESSURE BUTTON
4. POWER BUTTON
   5.WORKLIGHT
5. ADAPTER HOLDER
   7.HOSE
6. BATTERY PACK*
7. HOSE CLAMP
   10.AIR CHUCK
8. AIR CHUCK CLAMP
9. PRESTA VALVE ADAPTER( SEE FIGURE E2)
10. SPORT BALL NEEDLE(SEE FIGURE E3)
11. TAPERED ADAPTER (SEE FIGURE E4)
12. WORKLIGHT BUTTON (SEE FIGURE F)
    *Not all the accessories illustrated or described are included in standard delivery

TECHNICAL DATA

	WX092 WX092.X***
Rated voltage 20 V Max	** ---
Inflation efficiency (0 to 2.4 bar for 215/55R17 tires)	4 mins
Working pressure	10 bar(150 psi) Max 8 bar (120 psi) 2.5 mins/7.5 mins
Weight (Bare tool) 0.95 kg

** Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

** X = 1 - 999, A-Z, M1-M9 there are only used for different customers, there are no safe relevant changes between these models

Category Model Capacity
20 V Battery	WA3550 1.5 Ah
	WA3550.11.5 Ah
	WA3551 2.0 Ah
	WA3551.1 2.0 Ah
	WA3553 4.0 Ah
20 V Charger	WA3760 0.4 A
	WA3869 2.0 A
	WA3880 2.0 A

We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

OPERATING INSTRUCTIONS

To reduce the risk of injury, user must read instruction manual

INTENDED USE

This product is a multifunctional device, combining inflators, tire pressure monitor, lighting, SOS warning four functions in one.

ASSEMBLY AND OPERATION

ACTION FIGURE
BEFORE OPERATION
Checking the Battery Pack Condition NOTE: Fig. A1 only applies for the battery pack with battery indicator light.	See Fig .A1
Removing the Battery Pack	See Fig. A2
Charging the Battery Pack	See Fig. A3,A4
Installing the Battery Pack	See Fig. A5
OPERATION

Power button Press the button to turn on the tool and hold the button to turn it off. NOTE: To avoid unintentional start up, the power button will automatically shut down when the Start/Stop button is not pressed for a certain period after the power button is turned on.	See Fig. B
Changing the unit of measure Press INCREASE AIR PRESSURE BUTTON and DECREASE AIR PRESSURE BUTTON simultaneously to change the unit of measure	See Fig. C
Setting the pressure Press INCREASE AIR PRESSURE BUTTON or DECREASE AIR PRESSURE BUTTON to set the pressure value. NOTE: Object's original air pressure will be displayed once connected. Without connection, "0" will be displayed.	See Fig. D
Inflating Connect the object to the tool. Then press Start/Stop button. Once it reaches the set pressure, the tool will automatically stop. NOTE: Make sure all connections have been tightened before inflating. NOTE: In E2, loosen the locking nut on the valve stem first. WARNING: When inflating the floating tube, check the status of the tube rather than using the pressure value on the gauge.	See Fig. E1,E2,E3,E4
Work Light Press the work light button to cycle through work light or SOS emergency light. WARNING: Do not look towards the light directly.	See Fig. F
Storing adapter and hose See Fig.	G1,G2

Battery protection system

The tool is equipped with a battery protection system. The system will automatically cut off power to the tool to extend battery life. The tool will automatically stop during operation if the battery is placed under one of the following conditions:

• Overloaded: The tool is operated in a manner that causes it to draw an abnormally high current. In this situation, turn the tool off and stop the application that caused the tool to become overloaded. Then turn the tool on to restart.
• Low battery voltage: The remaining Battery capacity is too low and the tool will not operate. In this situation, remove and recharge the Battery.

MAINTENANCE

Remove the battery pack from the tool before carrying out any adjustment, servicing or maintenance.

Your power tool requires no additional lubrication or maintenance.

There are no user serviceable parts in your power tool.

Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust.

Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities

or retailer for recycling advice.

DELCRATION OF CONFORMITY

We,

Positec Germany GmbH

Gruner Weg 10, 50825 Cologne, Germany

Declare that the product,

Description Cordless air pump

Type WX092WX092.X (092-designation of machinery, representative of Cordless air pump) Function inflating

Complies with the following Directives:

2014/35/EU, 2014/30/EU, 2011/65/EU&(EU)2015/863

Standards conform to

EN 60335-1, EN 1012-1, EN 62233,

EN 55014-1, EN 55014-2

2020/07/10

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SECURITE DU PRODUIT AVERTISSEMENTS DE SECURITE GENÉRAUX

	WX092 WX092.X***
Tension 20 V Max**	---

Déclaration DE CONFORMITÉ

Nos,

Positec Germany GmbH

Gruner Weg 10, 50825 Cologne, Germany

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SICUREZZA DEL PRODOTTO AVVISIGENERALI PER LA SICUREZZA

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SEGURANÇA DO PRODUCTO AVISOS GERAIS DE SEGURANÇA

ATENÇAO! Leia atentamente as

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUCTVEILIGHEID

ALGEMENE

VEILIGHEIDSWAARSCHUWINGEN

WAARSCHUWING! Lees alle instructies

VEILIGHEIDSWAARSCHUWING VOOR LED-LAMP

WAARSCHUWING: De

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUKTSIKKERHED GENERELLE ADVARSLER

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUKTSIKKERHET GENERELLE SIKKERHETS-ADVARSLER

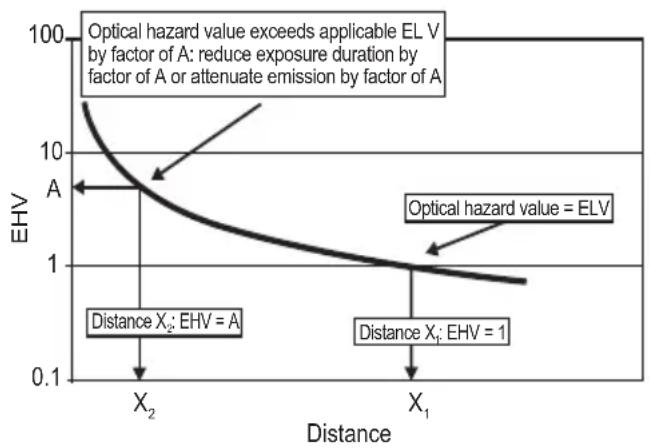

Figure 1 - Example of graphic presentation of distant dependent emission hazard values
