PRO EG380 - Glue gun RAPID - Free user manual and instructions

Product type	Hot glue gun
Brand	Rapid
Model	PRO EG380
Dimensions (W x H x D)	36 × 24 × 8 cm
Weight	1.7 kg
Power supply	220-240 V~, 50 Hz
Power consumption	400 W
Temperature range	140 °C to 220 °C
Temperature control	Adjustable thermostat
Glue stick diameter	12 mm (Rapid)
Handle	Unbreakable, TPR circular for comfort
Trigger	Single, effortless
Nozzle	Removable, replaceable
Heating indicator	Red light
Heating time	Approximately 3 to 5 minutes
Routine maintenance	Clean exterior, purge if clogged
Nozzle replacement	Do it when hot (tool unplugged and warm)
Warranty	2 years
Safety instructions	Use on stand, do not immerse, unplug after use
Intended use	Indoor, clean and dry surface
Recycling	Separate collection (WEEE)
Recommended glue sticks	Rapid Ø 12 mm
Repairs	By manufacturer or qualified person

Frequently Asked Questions - PRO EG380 RAPID

Which glue sticks should I use with the Rapid PRO EG380?

Use exclusively glue sticks of diameter 12 mm from the brand Rapid. Using other sticks may damage the mechanism.

How do I adjust the temperature of the glue gun?

Turn the adjustment knob on the device to select a temperature between 140 °C and 220 °C. A higher temperature is suitable for resistant materials, a lower one for sensitive materials.

How long does it take for the gun to heat up?

The heating time is approximately 3 to 5 minutes. The red light turns on to indicate power.

How do I replace the nozzle of the gun?

Unplug the device and let it cool down (not completely cold). Wear gloves and unscrew the nozzle. Clean the melt chamber if necessary, then screw on a new nozzle without over-tightening.

What if the glue drips or runs too much?

This may indicate a worn nozzle. Replace the nozzle. Also check that the temperature is not too high for the material used.

How do I purge the gun if it gets clogged?

Remove the nozzle, place the hot device on its stand, and let the glue melt and drip onto a disposable surface. Insert a new stick and squeeze the trigger gently until the old glue is expelled.

Can the gun be left plugged in for a long time without use?

It is not recommended to leave the tool on without prolonged use. This can carbonize the glue and clog the nozzle. Unplug it after each use and let it cool down.

What safety precautions should I follow?

Do not touch the hot nozzle (up to 220 °C). Use the supplied metal stand. Never immerse in water. Keep out of reach of children. Unplug after use.

Can I use glue sticks of other brands?

No, use only Rapid Ø 12 mm sticks. Other diameters or compositions may damage the feeding mechanism.

How do I clean the glue gun?

Clean the exterior with a soft, dry cloth. For the interior, regular purging (see question about clogging) is sufficient. Do not use solvents.

USER MANUAL PRO EG380 RAPID

Technical Characteristics

Dimensions (WxHxD): 36 × 24 × 8 cm

Weight: 1.7 kg

Working voltage: 220V-240V~, 50Hz

Power rating: 400W

Temperature: 140°C - 220°C

Regulation: Thermostat

Glue sticks: Rapid 0 12mm

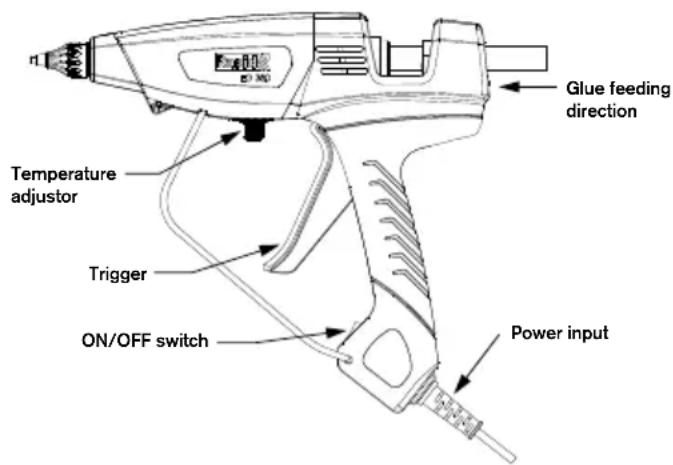

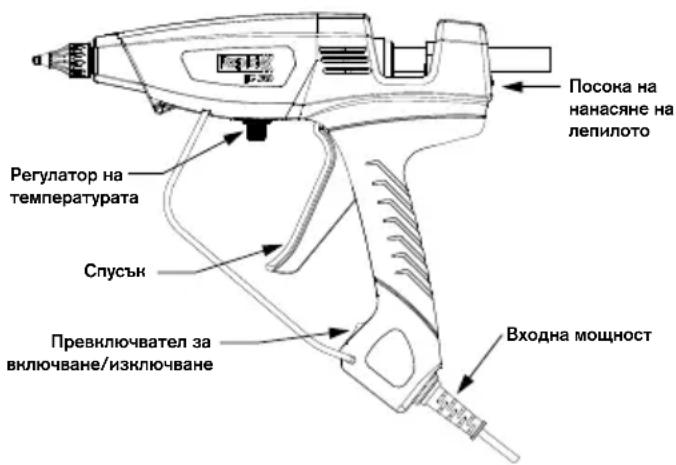

Special features

Non-breakable handle and light weight - Unique effort-saving trigger, with circular TPR handle for comfortable hour-long operation - Temperature adjustor between 140°C - 220°C

Safety Instructions

Read safety rules and instructions carefully before using this machine.

WARNING: This tool must be placed on its stand when not in use.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Do not use or store this machine in a humid environment. Do not place it where it may be splashed

Do not expose it to extreme changes in temperature during or directly after use.

• Only use it indoors on a clean, dry work surface. Excessive dust and dirt may reduce the lifetime of this tool.
• Never unplug the machine by pulling the cable.
• If the power cable is damaged or cut, remove the plug from the electric socket immediately and do not use the machine. It must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.
• Unplug the machine when not in use, before any servicing operations (maintenance, cleaning, etc.).
• Always verify that the appliance is attached to a grounded socket.
• When using an electric extension cable, check that it is in good working order and that it has a grounded socket.
• Never use the tool if it is damaged in any way.
• Never insert objects other than 12 mm Rapid glue sticks into the machine.
• Never remove a glue stick that has already been inserted.
• The EVA adhesive can be stored indefinitely in the unheated gun and re-melted by heating up the tool. Use only recommended adhesives in this glue gun.
• It is normal for this tool to become quite warm during use. This is normal and does not indicate a problem.
• Hot Surfaces: the nozzle of the appliance and the glue can reach a temperature of approximately 220°C. Do not touch the heated nozzle or the hot adhesive. Avoid any contact with the skin. If you burn yourself, put the burn in cold water immediately. Never try to remove a large quantity of glue without medical help.
• Keep children away. Children should not use this glue gun.
• When applying at a height, take all necessary precautions to ensure that the glue does not run onto the operator or onto any object. Make sure that you have enough protective wear (skin, eyes).
• Some materials are heat-sensitive and can be damaged by the hot nozzle or even the hot glue. Whenever possible, test a piece of scrap material or a hidden portion of the object being repaired.
• Stay alert. Pay attention to your work. Beware of any dripping hot glue from your project. Use common sense. Do not operate this gun when you are tired. Do not operate under the influence of alcohol or other drugs that may impair your physical abilities.
• When you have finished using the machine, unplug it and wait until it has cooled. Never immerse the glue gun in water or other liquids to speed up the cooling process. Allow it to

air cool only. The glue gun should be stored in a closed, dry, and secure place (tool box, drawer, cupboard, etc.).

Instructions for Use

Plug the glue gun into a suitable socket; the red light on means the power is on. Allow the tool to heat for approximately 3-5 minutes. Insert a glue stick in the back of the tool. When the gun is fully heated, squeeze the trigger slowly until the melted material begins to flow from the nozzle. Release the trigger to stop the glue flow. Set the temperature button to adjust the operating temperature between 140-220°C. Work with the glue gun trigger to adjust the output and speed of the glue stick.

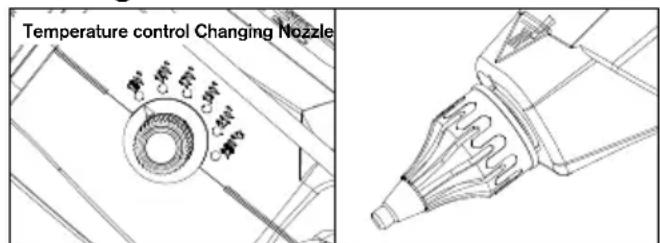

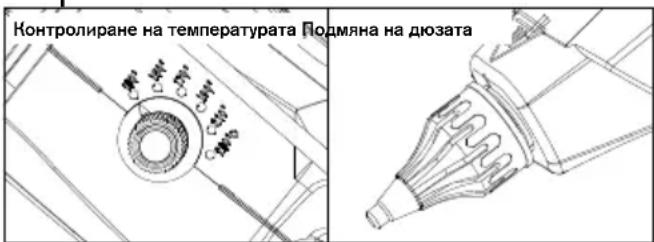

• To change the nozzle, the glue gun should be slightly warm but unplugged.
• Unscrew the nozzle using gloves.

Breakdowns and remedies

• To prevent the clogging of this glue gun, keep the feeding mechanism and melt chamber free from dirt and foreign debris.
• Store unused glue sticks in a clean environment.
• Do not pull the glue stick from the back of the glue gun. The feed mechanism may be damaged or impaired. If you need to change glue type, cut off the protruding end and feed the remainder through with the new glue stick.
• Do not lay the heated gun on its side. Keep the heated gun in an upright position, on the metal stand or workbench, with the nozzle pointed down.
• If melted glue has escaped from the melt chamber entrance and is interfering with the feed mechanism, allow the gun to cool and gently remove the obstructing glue.
• Replace the nozzle if glue drips excessively. Do not attempt to change the nozzle when the glue is cold. To change the nozzle, the gun must be heated until the glue is softened enough to remove the nozzle (about 1 minute). Use gloves and remove the old nozzle. Flush glue through the gun to clean out the melting chamber. Replace with a new nozzle. Tighten only until snug. Do not over-tighten.
• Keep the outside of the glue gun clean.
• Do not use glues other than those recommended by Rapid.
• Leaving the tool switched on for

too long without use can lead to risks. Unnecessary overheating over a long period of inactivity, without use, depending on the length of time and type of glue used, can have adverse effects:

• Melting and softening of the glue stick at the back of the tool, or even adhesion of the stick in the back entrance sleeve at the entrance of the heater. In this case, restarting your tool for subsequent operation may take longer and be more difficult. In the event of such a problem, Rapid recommends that you follow these steps:
• Plug in the tool and leave it heating for around fifteen minutes.
• Start to push the glue by pressing lightly on the trigger from time to time. Continue to let the tool warm up and repeat this action until it unblocks. The unblocking time may be longer or shorter depending on: The type and composition of the glue that would have been used and the duration for which the tool has been left heating up unnecessarily, without being used for gluing.

If start-up is still difficult after this action:

• Remove the nozzle, beware the device is hot.
• Place the tool on its stand. Leave it plugged in and heated.
• Purge the tool by letting the hot glue flow out under

gravity, onto a disposable support (container, paper, cardboard, etc.).

• Start to push the glue by pressing lightly on the trigger from time to time. Continue to let the tool warm up and repeat this action until it unblocks. Pull the trigger a few times, to make sure that the old glue has been completely cleared and the tool has been completely purged.
• Charring of the glue, depending on the nature and composition of the glue used, occurs when the glue remains molten, trapped inside the tool, for too long. Once charred, the glue will begin to obstruct the nozzle and thus lead to a glue leakage towards the back of the tool which in the long-term can have serious consequences such as a system blockage at the front or a break in the heating system.

In this event:

• Remove the nozzle, beware with the device being hot.
• Place the tool on its stand. Leave it plugged in and heated. Purge the tool by letting the hot glue flow out under gravity, onto a disposable support (container, paper, cardboard, etc.).
• Insert a new glue stick, pushing lightly on the trigger.
• Pull the trigger a few times, to make sure that the old glue has been completely

cleared and the tool has been completely purged.

• Replace the nozzle with a new one.

In any case, you should never: - Force the trigger before the tool has heated up to its working temperature - Push hard on the glue stick, never attempt to remove it from the back. Repair work on the glue gun should be carried out by qualified staff only. - If the power supply cable is damaged it must be replaced by the manufacturer, the manufacturer's after sales service or a similarly qualified person in order to avoid any danger.

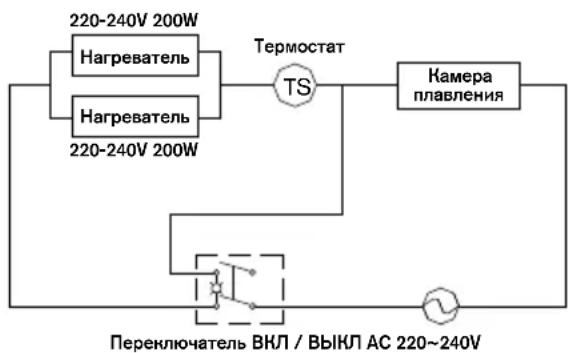

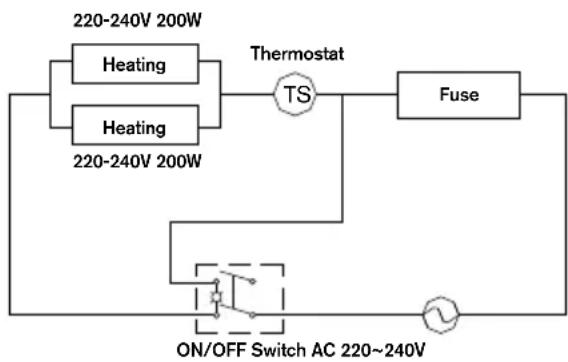

Electric wiring diagram

ENVIRONMENT

Separate Collection. Do not dispose power tools into household waste! According to the European Directive

2012/19/EC on waste of electrical and electronic equipment.

When the tool needs to be replaced, or if it is of no further use it should be brought to a separate collection centre for recycling.

Warranty and repairs under warranty

Warranty period: This product is guaranteed for 2 years from the date of purchase (original sales receipt acting as proof).

Warranty conditions: All points mentioned in this document must have been fully adhered to.

Warranty repairs: The Esselte-Rapid After-Sales Service is the only approved service to carry out warranty repairs on this tool.

In the event of a claim under the warranty:

1 Return the product in its original packaging to the shop or outlet that supplied you with this product, 2 Accompany the returned product with the original dated receipt.

Any breach of one of these points would prevent consideration by RAPID under the manufacturer's warranty.

ELECTRIC GLUE GUN: EG380

Adhesive: Rapid 0 12mm

Special features

Rated load: 400 W

Temperature: 140° - 220°C

Regulation: Thermostat

Glue patterns: Rapid 0 12 mm

Special features

Glue sticks: Rapid 0 12mm

Dimensions (W x H x D) 36 x 24 x 8 cm

Weight: 1.7 kg

Warranty period: This product is guaranteed for 2 years from the date of purchase (original sales receipt acting as proof).

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Do not use or store this appliance in a humid environment. Do not leave it in places where water may get on the appliance. Do not subject it to sudden temperature changes during or immediately after use. - Store the appliance in a closed place on a clean, dry surface. Accidental splashing of water or dirt may reduce the performance of this tool. - Never unplug the appliance by pulling the cord. In case of damage to the power cord, immediately unplug it from the electrical outlet and do not use the tool. It must be replaced by the manufacturer or its service agent or a similarly qualified specialist to avoid accidents. - Disconnect the appliance from the mains

when it is not in use, and also before any maintenance of the appliance (technical maintenance, cleaning, etc.)

Always ensure that the appliance is connected to an earthed outlet. - When using an extension cord, make sure it is in good working condition and the outlet is earthed. Never use the tool if it is damaged in any way. - Never insert objects other than 12mm Rapid glue sticks into the appliance. Never remove a glue stick that has been installed. Glue sticks can be stored indefinitely in a non-heated state and can be re-melted when the tool is heated. Use only the glue sticks recommended for this glue gun. - Sufficiently strong heating of the tool during operation is not a malfunction. This is normal and does not indicate a problem. - Hot surfaces: the nozzle of the appliance and the glue can reach temperatures of approx. 220°C. Do not touch the heated nozzle or hot glue. Avoid any contact with skin. If contact occurs, immediately cool the affected area with cold water. Never

attempt to remove large amounts of glue without medical assistance.

Store the glue gun out of the reach of children. Do not use this glue gun. Use at height, take all necessary precautions to prevent glue from getting on the operator or any object. Make sure you are wearing protective clothing (goggles, gloves) - some materials are heat-sensitive and may be damaged by the hot nozzle or glue. If possible, test the interaction of the material with the glue on a small area or hidden part of the object being repaired. Be careful. Perform the work carefully. Make sure that hot glue does not drip from the object. Use common sense. Do not use this gun when you are tired. Do not work under the influence of alcohol or other drugs that may impair physical abilities. When you have finished using the device, turn it off and put it down until it cools. Never immerse the guns in water or other liquids to speed up cooling. The glue gun must cool in the air. Glue gun

The glue gun should be stored in a closed, dry, and safe place (e.g., a tool box, drawer, cabinet, etc.).

Instructions for use

The glue has completely flowed out and the tool has been completely cleaned.

*Burning of glue, depending on the nature and composition of the glue, occurs when molten glue remains inside the tool for too long. Burnt glue will start to clog the nozzle, which will lead to jamming and thus cause glue to accumulate in the rear part of the tool, which in the long term may have serious consequences, such as blockage of the system in the front part or failure in the heating system. In this case: - Carefully remove the nozzle, the tool is hot. - Place the tool on a stand. - When heated, leave it plugged in. Clean the tool, allowing the flow of burnt glue under the action of gravity onto a single-use pad (container, paper, cardboard,...). - Insert a new glue stick, slightly pressing the trigger. - Press the trigger several times to ensure that the old glue has completely flowed out and the tool has been completely cleaned. - Replace the nozzle. In any case, never:

• Do not press the trigger before the tool has heated to the working temperature.
• Do not press hard on the glue stick, never try to remove it from the rear part.
• Repair of the glue gun should only be carried out by qualified personnel.
• If the power cord is damaged, it must be replaced by the manufacturer, by personnel performing after-sales service, or by other qualified persons to avoid any danger.

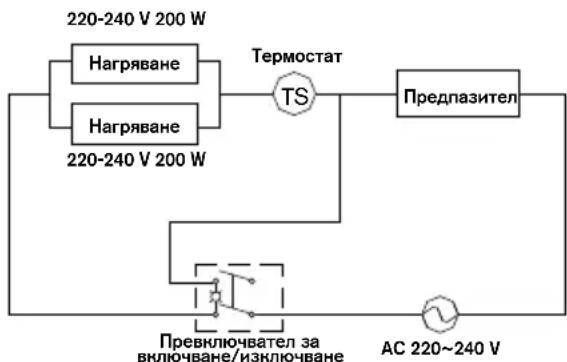

Electrical connection diagram

Environmental protection

Disposal of waste. It is forbidden to throw power tools into household waste! Dispose of waste in accordance with the European Council Directive 2012/19/EU on the recycling of electrical and electronic equipment.

Replaceable parts or tools that have become unusable must be handed in to a specialized recycling center.

Warranty and post-warranty repair

Warranty period:

The product has a warranty of 2 years from the date of purchase (receipt as proof).

Warranty conditions: All

points mentioned in this document must be fully observed.

Warranty repair:

After-sales service EsseltePaNid is the only recommended service

Safety instructions

Before using the machine, read carefully the rules and safety instructions

WARNING!

The device must be unplugged when not in use.

This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety.

Children must be supervised to ensure that they do not play with the device.

Do not store the device in a humid environment. Do not place it where it can be splashed with water. Do not expose it to high temperature fluctuations during use or immediately after. - Use only on a closed, dry, and clean work surface. Excessive amounts of dust or clogging can impair the functionality of the tool. Never disconnect the machine by pulling the cable. If the cable is damaged or cut, immediately remove the plug from the electrical contact and stop using the machine. The cable must be replaced by the manufacturer, its authorized service representative, or a similarly qualified person to avoid danger. - Turn off the machine when not in use and before servicing (technical support, cleaning, etc.).

Always check that the plugs are connected to the grounded contact. When using electric tools, check that they are in good working condition and properly grounded. Never use the tool if it is damaged or has any malfunction. Never insert objects other than 012 mm drill bits into the machine. Never remove the drill bit while it is still in motion. - The glue sticks can be stored indefinitely in a non-flooded container and can be melted again by refilling the tool. Use only the recommended glue sticks with this tool. It is normal for the tool to heat up significantly during use. This is normal and does not indicate damage. - Nozzle and surfaces: The tip of the device and the glue can reach temperatures of approximately 220°C. Do not touch the hot nozzle or the melted glue. Avoid contact with the skin. If you burn yourself, immediately cool the burned area with cold water. Never attempt to remove a large amount of glue stuck to the skin without medical

Keep the tool away from moisture. Do not use it if it is wet. Take all necessary precautions to prevent the tool from being exposed to rain or other liquids. Make sure you have good eye protection (for the eyes). Some materials are sensitive to heat and can be damaged by the correct dose or by the correct heat. When possible, test on a scrap piece of material or a hidden part of the object you are repairing. Be careful. Work carefully. Avoid contact with hot parts of the tool. Use common sense. Do not work with this tool when you are tired. Do not work with tools under the influence of alcohol or other drugs that may affect your physical abilities. When you finish working with the machine, turn it off and unplug it, and let it cool down. Never immerse the tool in water or other liquids to speed up the cooling process. Leave it on its own to cool down. The tool for the glue must be stored in a closed,

dry and clean place (tool box, cabinet, or other).

Instructions for use

Plug the glue gun into a suitable outlet; the red light indicates that the tool is on. - Wait approximately 3-5 minutes for the tool to warm up. Place the glue stick into the rear part of the tool. When the tool is fully heated, press the trigger gently until the melted material starts to flow from the nozzle. Release the trigger to stop the flow of glue. - Adjust the temperature knob to set the working temperature in the range between 140 and 220°C. - By the force of the pressure on the trigger, you regulate the flow rate of the glue stick.

• During operation, do not do the following:
• Do not press the trigger before the tool has reached the working temperature
• Do not press the glue stick too hard and never try to remove it from the rear part.

Repair work on the tool must only be carried out by qualified personnel. If the power cord is damaged, it must be replaced by the manufacturer, the manufacturer's service representative, or a similarly qualified person, to avoid risks.

Electrical diagram

PROTECTION OF THE ENVIRONMENT

Separate collection. Do not dispose of electrical tools with household waste! In accordance with the European Directive

2012/19/EU on electrical and electronic equipment. When the tool is to be replaced and is no longer used, it must be taken for recycling to a collection point for separate waste collection.

Warranty and repair work under warranty

Warranty: This product is guaranteed for 2 years from the date of purchase (proof of purchase is required, such as a cash receipt).

Warranty conditions: The warranty is subject to the general conditions of this document.

Warranty repair:

The service for professional servicing Esselte-Rapid is the only authorized service for carrying out warranty repairs on this instrument.

In case of a warranty claim: 1. Return the product in its original packaging to the store or point of sale where you purchased it.

2. The product must be accompanied by the original receipt with the date.
