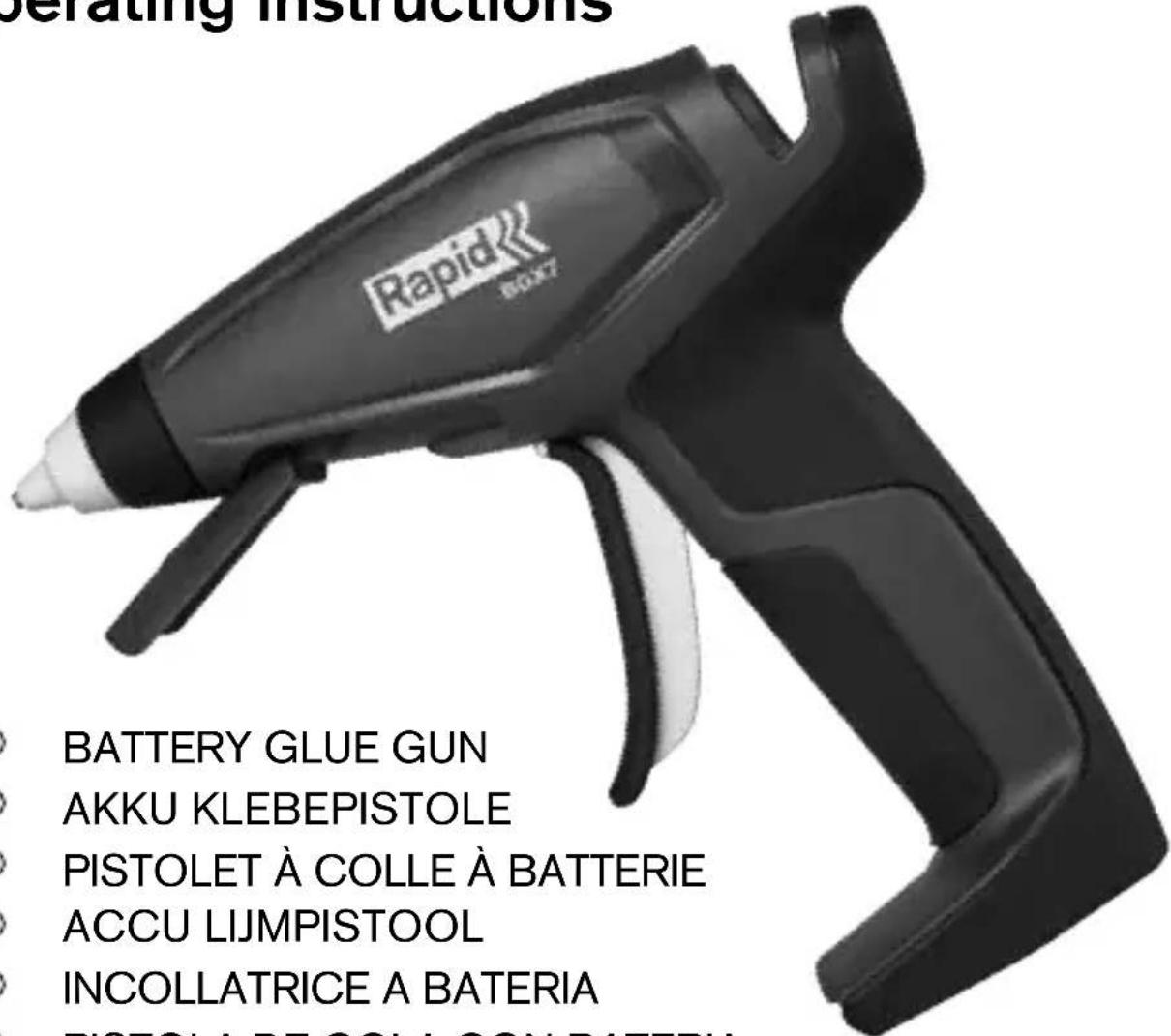

Operating Instructions Rapid Pro Box 1807 BATTERY GLUE GUN AKKU KLEBEPISTOLE PISTOLET À COLLE À BATTERIE ACCU LIJMPISTOOL INCOLLATRICE A BATERIA

GB BATTERY GLUE GUN
DE AKKU KLEBEPISTOLE
FR PISTOLET À COLLE À BATTERIE
NL ACCU LIJMPISTOOL
IT INCOLLATRICE A BATERIA
ES PISTOLA DE COLA CON BATERIA
PT APLICADOR DE COLA A BATERIA
SE UPPLADDNINGSBAR LIMPISTOL
DK LIMPISTOL MED BATTERI
NO BATTERI LIMPISTOLEN
FI AKKUKÄYTTÖINEN LIIMAPISTOOLI
EE AKUGA LIIMIPÜSTOL

LT BATERIJOMIS VALDOMAS KLIJŲ PISTOLETAS

LV LÍMES PISTOLE, KAS DARBOJAS AR AKUMULATORU

Rapid P A B C D E F G H 2

GB Operating instructions - Original 4
DE Betriebsanleitung - Übersetzung der ursprünglichen 16
FR Notice technique - Traduction de l'original 31
NL Bedieningsvoorschriften - vertaling van het origineel 46
Istruzioni per l'uso - traduzione dell'originale 60
ES Manual de instrucciones - traducción del original 74
Instruções de utilização - tradução do original 88
SE Bruksanvisning - översättning av den ursprungliga 102
DK Betjeningsvejledning - oversættelse af den oprindelige 115
NO Instruksjoner for bruk - oversettelse av den opprinnelige 127
FI Käyttöohjeet - käännös alkuperäisestä 140
EE Kasutusjuhend - Originaali tõlge 152
LT Naudojimosi instrukcijos - originalaus teksto vertimas 165
LV Lietošanas instrukcija - tulkojums no origināla 178
GR Οδηγίες λειτουργίας - μετάφραση του πρωτοτύπου 192

GENERAL POWER TOOLS SAFETY WARNINGS

WARNING!!

Read all safety warnings and all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep your work area clean and well lit.
Cluttered benches and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep bystanders, children, and visitors away while operating a power tool. Dis-

tractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp lo-

cation is unavoidable, use a ground fault circuit interrupter protected supply. Use of a ground fault circuit interrupter reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench be-

fore turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instruc-

tions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) SERVICE

a) Have your power tool serviced by a qual- ifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

BATTERY GLUE GUN SAFETY WARNINGS

WARNING:

• This tool must be placed on its stand or foot when not in use.
• A fire may result if the appliance is not used with care, therefore
• be careful when using the appliance in places where there are combustible materials;
• do not apply to the same place for a long time;
• do not use in presence of an explosive atmosphere;

• be aware that heat may be conducted to combustible materials that are out of sight;

• place the appliance on its stand after use and allow it to cool down before storage;

• do not leave the appliance unattended when it is switched on.

- Do not use or store the tool in damp or wet conditions.

- Do not expose it to water or other fluid substances in any way.

- Do not use the tool if any part is damaged or defective.

- Hot surface: Both the glue and the nozzle of the tool can reach temperatures up to 170^ .

- Avoid all skin contact. If burnt, plunge the burn under cold water. Never attempt to remove solidified glue from burnt skin without medical assistance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision

BATTERY SAFETY WARNINGS

• The user should never attempt to open the product for any reason.
• Do not expose the battery and tool to water and any other liquids.
• Do not expose the battery to heat or fire. There is a risk of explosion
• Do not store in locations where the temperature may exceed 40°C.
• Charge only at ambient temperature between 10^ and 40^ .
• Charge only using the charger provided with the tool.
• Dispose of product responsibly as WEEE at your local collection point.

CHARGER AND USB CABLE SAFETY WARNINGS

• The charger is double insulated therefore no earth wire is required.
• Always check that the mains voltage corresponds to the voltage on the rating plate.
• The charger is intended for indoor use only.
• Use your charger only to charge the battery in the tool with which it was supplied.

• Do not expose the charger to water.
• Do not open the charger.
• Appliance is only to be used with the USB cable unit provided with the appliance
• If the power supply cable is damaged it must be replaced by the manufacturer, the manufacturer's after sales service or a similarly qualified person in order to avoid any danger.

TECHNICAL SPECIFICATION

Lithium Ion battery operated glue gun

Tool size 155x150x50 mm
Weight 0,230kg
Electrical rating 3.6V DC 1500 mAh
Battery (integrated) 1 cell Lithium Ion
Heating up time approx. 20 s
Max temp approx. 170 °C
Glue sticks original Rapid diam 7 mm
Working time for one full battery charge Approx 30 min
Charging time 90% after 2 hours

The manufacturer reserves the right to change specifications without notice.

USB charger

Input	100-240V 50-60Hz
Power rating	10 W
Output	5 VDC

TECHNICAL FEATURES

A : On/Off button
B : Tool LED light (green/Red)
©: Nozzle
D : USB Socket
E : Trigger
F : Tool stand
G : Charge
H : USB cable

USAGE

• Before using for the first time, fully charge the battery (3-4 hours) so as to prolong its life. (see Charging Instructions)
• Feed glue sticks in to the rear of the tool.
• Use only Rapid glue sticks recommended.
• Press on/off button for approx. 2 sec, Green LED will fl ash for approx. 20 sec, and remain green fi x when ready for use.
• When using the tool for the first time, press the trigger several times to fill the heating chamber with adhesive. It may also be necessary to give the glue stick a short push to help it move in.
• Place the nozzle of the tool against the surface and press gently on the trigger to extrudeglue.
• Place the second element in contact with the glue, if need be adjust it and press parts together for an average of 10 seconds.
• Never pull/remove a glue stick from the tool once is has been fed into the tool. The resultant molten glue could create irreparable damage to the tool.
• Once finished, push the on/off button for approx. 2 sec.
• When the battery is almost discharged, the LED will alternately flash from red to green.
• For safety reason if no use for approx. 3 min, the glue gun will automatically switch it off.

Operation / Usage
LED Red LED green
○		Switch ON for approx 2 sec.Green LED will fl ash for approx 20 sec.(pre-heating)
○	●	Applicator ready for Use.Press ON/OFF button for approx 2 sec to switch OFF the applicator when job is fi nish
○	○	No use/glueing for approx 3 min : glue gun automatically switches OFF for safetyPress button ON to re-start
		Red and green LED fl ashes alternately after glue gun has been used for approx 25 min.Battery almost empty applicator can now only be used for approx 5 minRed fl ash only or no more LED : battery is empty, re-load it by using USB charger

CHARGING INSTRUCTIONS

• Connect the USB cable onto charger and micro USB socket at the back of the tool
• Connect the charger to the mains.
• The LED on the glue gun will flash red during the charge., and will turn to fix green when battery is fully charge
• During the process of charging, the charger and glue gun can become warm, this is normal.

Charging with USB charger
LED Red LED	D green	Battery is charging
○		Battery is fully charged

MAINTENANCE

• Unplug the tool before any maintenance.
• Keep the air intake and outlet free from dust and dirt.
• Clean the tool by a dry or damp cloth. NEVER use any solvent.
• DO NOT oil or grease any parts.
• Be sure the tool is not damaged. Replace or repair prior to use.

WARNING!

- DO NOT alter or parts on this tool or attach special fixtures. This can lead to personal injury.

ENVIRONMENT!

Waste Electrical and Electronic Equipment (WEEE)

Electrical and electronic devices contain materials and substances that can have damaging effects on human health and the environment. This symbol indicates that this device must not be treated as unsorted municipal waste but must be collected separately. Dispose of the device via a collection point for the recycling of waste electrical and electronic equipment within the EU, UK and in other European countries that operate separate collection systems for waste electrical and electronic equipment. By disposing of the device in the proper manner, you help to avoid possible hazards for the environment and public health that could otherwise be caused by improper treatment of waste equipment. The recycling of materials contributes to the conservation of natural resources.

At the end of the product life, a suitably qualified person can remove the battery for separate recycling by opening the appliance and cutting the battery connection cable.

WARRANTY

Warranty period: This product is guaranteed for 2 years from the date of purchase (original sales receipt acting as proof).

Warranty conditions: All points mentioned in this document must have been fully adhered to.

In the event of a claim under the warranty:

1 Return the product in its original packaging to the shop or outlet that supplied you with this product,
2 Accompany the returned product with the original dated receipt. Any breach of one of these points would prevent consideration by RAPID under the manufacturer's warranty.
