USER MANUAL i-Pivot 360 Joie

enhanced child restraint

GB Instruction Manual

Icon depicting a person sitting on a chair next to an icon of a person lying down (no text or symbols)

ECE R129/03: i-Size

Line drawing of a baby car seat with no text or symbols

1 CLICK

2 2 1

Illustration of a hand pressing down on a car seatbelt with an arrow indicating motion (no text or symbols)

Line drawing of a baby car seat with a highlighted section and arrow (no text or symbols)

Simple line drawing of a baby holding a long rod, no text or symbols present

Illustration of a person viewed from behind holding a long rod, with a red band indicating shoulder area (no text or symbols)

9

Line drawing of a baby seat with a hand operating the seat (no text or symbols)

Illustration of a hand pressing down on a small object with an arrow indicating motion (no text or symbols)

Line drawing of a car seat with a highlighted frame and directional arrow (no text or symbols)

Illustration of a manual carabiner with a 10-step angle indicator (no text or symbols on the diagram itself)

11 2 1

12 CLICK 1 ✓ ✗ 2 - - 3 ↑

13 2 -1

Line drawing of a car seat with a highlighted seatbelt and orange arrow indicating direction (no text or symbols)

18 2 1

14 2 1

19

Line drawing of a car seat with arrows indicating direction (no text or symbols)

15 2 1

Line drawing of a car seat with an orange arrow indicating the seatbelt (no text or symbols present)

21 CLICK

22

23 CLICK

Line drawing of a baby car seat with an orange arrow indicating upward motion (no text or symbols)

29

Anatomical illustration of a human hand and foot with a highlighted internal structure and an arrow indicating a point of interest (no text or labels present)

Line drawing of a car comfort seat with seatbelt and seat rack, no text or symbols present

30 2 1 ✓ ×

31 I1 CLICK I2

26 2 1

27

Medical illustration showing foot positioning with numbered arrows and checkmark indicators below

Illustration showing a hand holding a device with warning symbols and an orange sun symbol above, indicating a hazard or alert.

33

34

Illustration of a baby car seat with directional arrows indicating rotation (no text or symbols)

Line drawing of a car seat assembly with an arrow indicating upward motion (no text or symbols)

Line drawing of a car seat with arrows indicating rotation or movement (no text or symbols)

Diagram of a car head with arrows indicating motion or movement, no text or symbols present

Line drawing of a baby car seat with a highlighted seat area and orange arrow indicating motion (no text or symbols)

Line drawing of a baby car seat with orange arrows indicating rotation (no text or symbols)

GB

Welcome to Joie™

You have purchased a high quality, fully certified child safety child restraint. This product is suitable for the use of children with height and weight up to 105cm and 21kg.

Carefully read this Instruction Manual and follow the installing steps because this is the ONLY way to protect your child from serious injury or death in case of an accident, and to provide comfort to your child while using this product.

Keep this instruction manual for future reference.

Please confirm

To use this Joie enhanced child restraint with the i-Size ISOFIX connections according to the UN Regulation No.129/03, your child must meet the following requirements.

Rear Facing: Child height 40cm-105cm/ Child weight ≤ 21kg; Forward Facing: Child age ≥ 15m/ Child height 76cm-105cm/ Child weight ≤ 21kg;

Please read all the instructions in this manual before installing and using the product.

! IMPORTANT; KEEP FOR FUTURE REFERENCE. PLEASE READ CAREFULLY.

Please keep the instruction manual in the storage compartment at the back of the seat as right figure.

For warranty information, please visit our website at joiebaby.com

Simple line drawing of a car with an open book and a flag, no text or symbols present

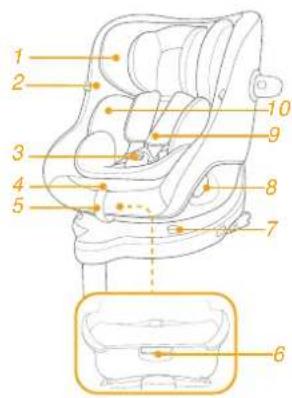

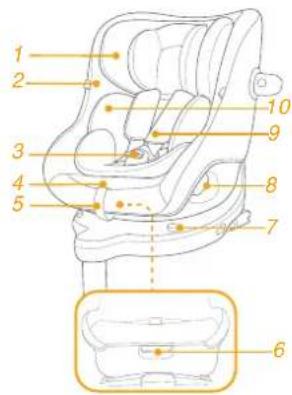

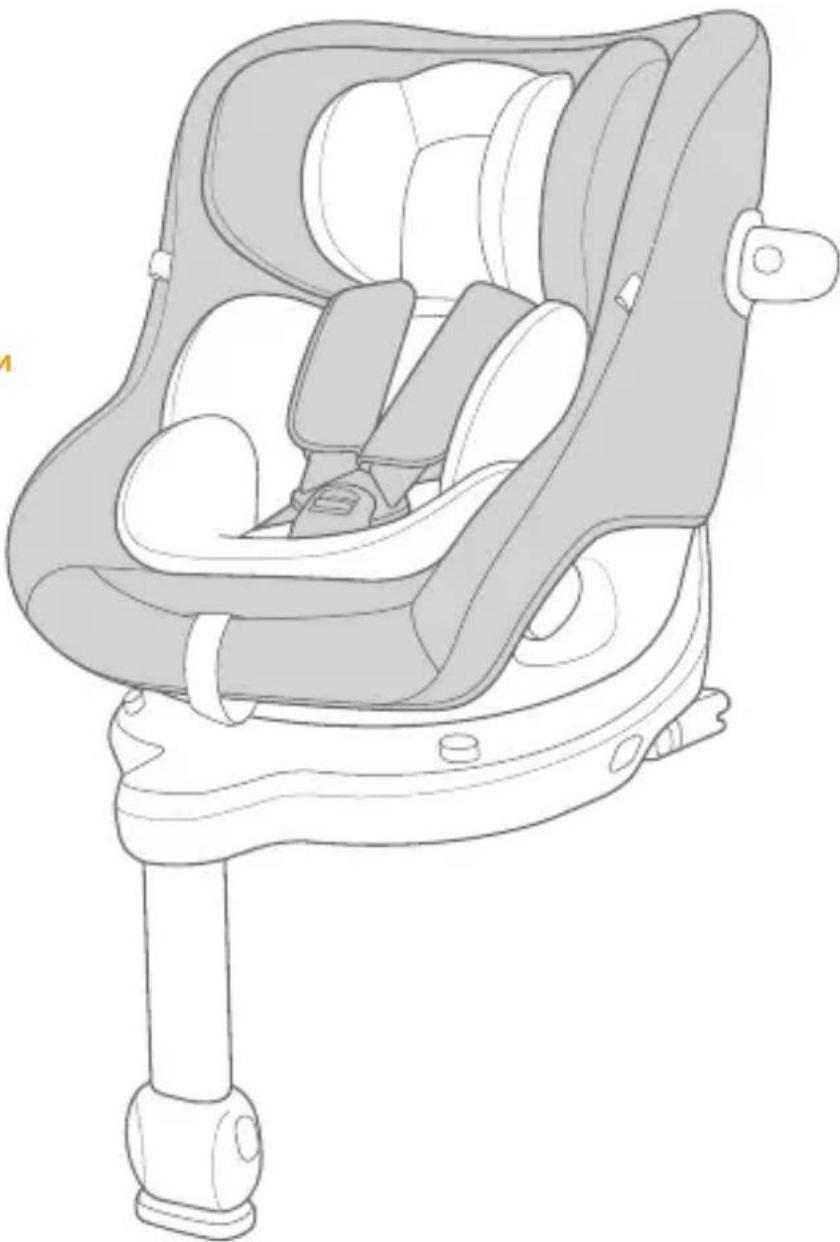

Parts List

Please make sure there are no missing parts. Please contact the retailer if anything is missing.

1 Head Support
2 Seat Pad
3 Buckle
4 Harness Adjustment Button
5 Adjustment Webbing
6 Recline Adjustment Button
7 Swivel Lock-off
8 Rotation Button
9 Shoulder Harness Covers

10 Insert
11 Head Support Adjustment Lever
12 ISOFIX Adjuster Button
13 ISOFIX Connector
14 Load Leg Adjustment Button
15 ISOFIX Attachments Guides
16 Side Impact Protection *must use on door side only

1 2 3 4 5 6 7 8 9 10

11 12 13 14

WARNING

! BE informed that the rigid items and plastic parts of an enhanced child restraint system shall be located and installed so that they are not liable to become trapped by a movable seat or in a door of the vehicle during everyday use of the vehicle.
! DO NOT use the rearward facing enhanced child restraint systems in seating positions where there is an active frontal airbag installed.
! To use this enhanced child restraint according to the UN Regulation No.129/03, your child must meet the following requirements.
! Rear Facing Mode: Child height 40cm-105cm/ max. 21kg;
Forward Facing Mode: Child height 76cm-105cm/max. 21kg;
! IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS (Refer to instructions).
! The enhanced child restraint may not fit in all approved vehicles due to storage compartments or limited space to the vehicle roof. In doubt, please contact your retailer or reach out to us.
! Any support-leg should be in contact with the vehicle floor, any straps restraining the child should be adjusted to the child's body, and straps should not be twisted.

WARNING

! After your child is placed in this enhanced child restraint, the safety belt must be used correctly. Ensure that any lap strap is worn low down, so that the pelvis is firmly engaged, shall be stressed.
This enhanced child restraint should be replaced when it has been subject to violent stresses in an accident. An accident can cause damage to it that you cannot see.
! Consider the danger of making any alterations or additions to the device without approval of the adequate authority, and the danger of not following closely to the installation instructions provided by the enhanced child restraint manufacturer.
! Please keep this enhanced child restraint away from sunlight, otherwise it may be too hot for child's skin. Always touch the enhanced child restraint before placing child in it.
! DO NOT leave your child unattended in the enhanced child restraint system.
! Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.
The enhanced child restraint system shall NOT BE USED without the soft goods.
The soft goods should not be replaced with any other than the one recommended by the manufacturer, because the soft goods constitutes an integral part of the restraint performance.

WARNING

! Please check if this enhanced child restraint can be installed properly in your vehicle before you purchase it.
NO enhanced child restraint can guarantee full protection from injury in an accident. However, proper use of this enhanced child restraint will reduce the risk of serious injury or death to your child.
! DO NOT install this enhanced child restraint without following the instructions in this manual or you may put your child at serious risk of injury or death.
! DO NOT use this enhanced child restraint if it has damaged or missing parts.
! DO NOT have your child in large/oversized clothes because this may prevent your child from being, properly and securely fastened by the shoulder harness straps and the crotch strap between the legs.

Emergency

In case of emergency or accidents, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

1. This is an i-Size Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual.
2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

Materials Plastics, metal, fabrics

Patent No. Patents pending

Choose Your Installation

ECE R129	Child's Size	Installation Mode	Figure for Installation	Reference Age	Seat Position
	40cm-105cm/ ≤ 21kg	Rear Facing		Approx 4 years	Position 1-5
	76cm-105cm/ ≤ 21kg	Forward Facing		15 months to approx 4 years	Position 1-5

Installation Concerns

Illustration of a car seat with red buttons and a yellow checkmark (no text or symbols)

Use Side Impact Protection

see images 1 - 2

1. The enhanced child restraint is delivered with removable side impact protection pod. Insert the side impact pod on the side closest to the door. Installation shown in ①.
2. Press the release button to remove side impact protection.

Height Adjustment

for Head Support and Shoulder Harnesses

see images ③ - ⑥

Please adjust the head support and check if the shoulder harnesses are at the correct height according to 3 & 4 & 5 & 6

When used in rear facing mode, the shoulder harness height must be even with or just below the top of child's shoulders.
When used in forward facing mode, the shoulder harness height must be even with or just above the top of child's shoulders.

Press the head support adjustment lever 5 and pull up or push down the head support until it clicks into one of the 6 positions, shown as 6.

Recline Adjustment

see images 7 - 8

Press the recline adjustment button to adjust the enhanced child restraint to the desired position. 7 & 8.

There are 5 recline positions that can be used for both rear facing mode and forward facing mode.

Base Installation Using in the real

see images 9 - 15

1. Insert ISOFIX guides to assist with installation.

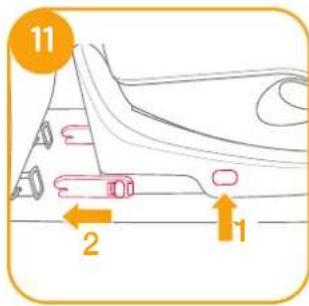

2. Press the ISOFIX adjuster button to extend the ISOFIX. 11 -1&11 -2

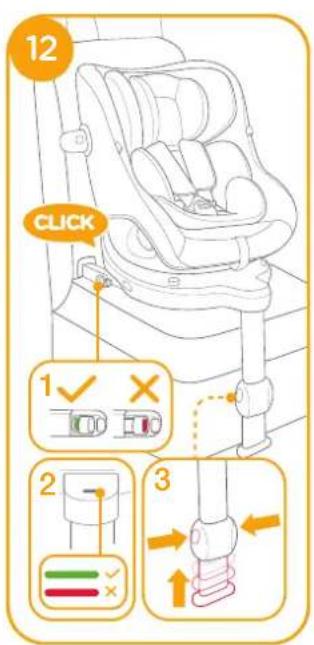

3. Make sure that both ISOFIX connectors are securely attached to their ISOFIX anchor points. The colors of the indicators on both ISOFIX connectors should be completely green. 12 -1

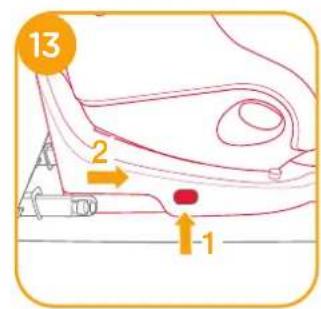

! Press the ISOFIX adjustment buttons again while pushing the seat back until it comes in contact with the vehicle seat backrest.

1. After attaching the ISOFIX, pull the load leg downward to floor. When the load leg indicator shows green, the load leg is installed correctly. 12 -2

2. Squeeze the load leg releasing button, then adjust the load leg length. 12-3

! Always make sure the support leg has direct contact with the floor and is in locked position even when the child is not in it.

Removing the seat

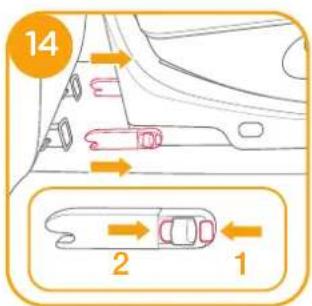

1. To remove from the vehicle press the ISOFIX adjuster button and pull the base back from the seat. Then press and release the connectors from the vehicle's ISOFIX. ^14
2. To prevent damage during transit, press the ISOFIX adjuster button 15 -1 and fold the connector completely. 15 -2

ing mode

(Child height 40cm-105cm/Child weight <21kg/infant - 4 years old)

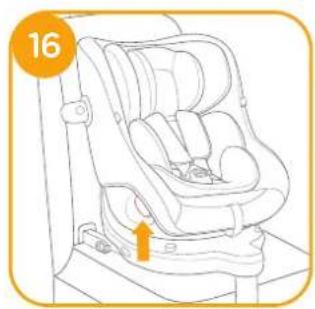

see images 16 - 23

! Install the enhanced child restraint on the rear vehicle seat, and then place the child in the enhanced child restraint.

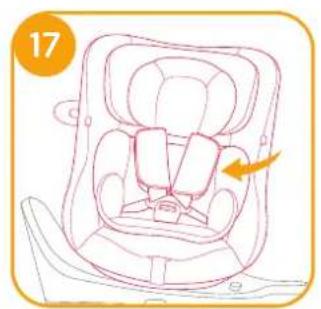

Press the rotating button to rotate for easier side loading/unloading of the child, then rotate the seat to the rear facing position. 16 & 17
! Press the rotating button on either side to rotate the enhanced child restraint.

Securing Child

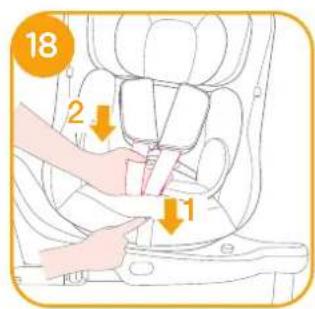

1. To lengthen the shoulder harness belts, press the harness adjustment button while pulling out the shoulder harnesses to loosen. 18
2. Unbuckle the harness by pressing the red button. 19

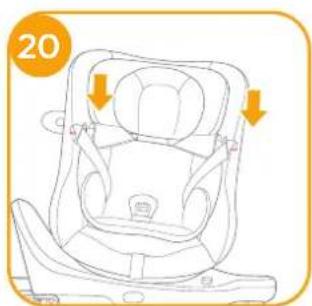

3. Fix the buckles on both sides of the seat, marked as 20, to make placing the child in rear-facing mode more convenient.

Use Infant Insert

We recommend using the full infant insert while the baby is under 60cm and can be used until they outgrow the infant insert. The infant insert increases side impact protection.

1. Place the child into the enhanced child restraint and pass both arms through the harnesses.

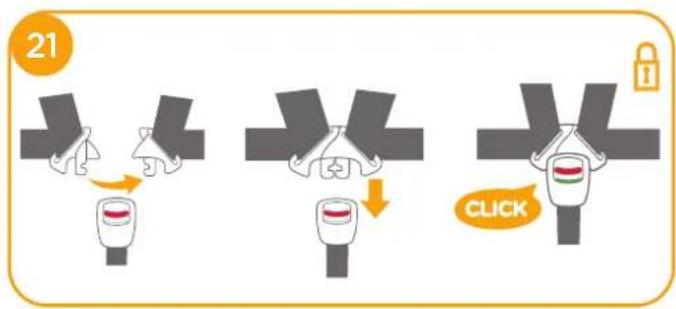

2. Engage the buckle. Please refer to 21

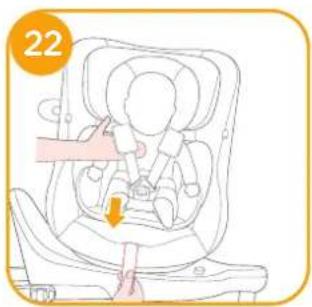

3. Pull down the adjustment webbing and adjust it to the proper length to make sure your child is properly secured. 22
   ! Always keep child secured in harness and properly tightened by removing any slack.
   ! Make sure the space between the child and the shoulder harness straps is about the thickness of one hand.

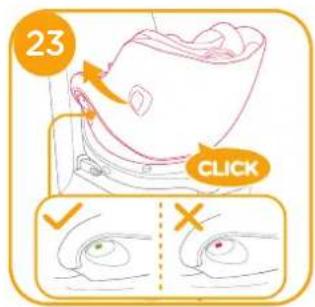

   ! When the seat is rotated in place and properly engaged, rotation button will show green; otherwise it will show red. 23
   ! Always make sure the seat is in locked position (rearward facing / forward facing) even when the child is not in it.

Using in the forward facing mode (Child height 76cm-105cm/Child weight ≤slant 21kg/15 months - approx. 4 years old)

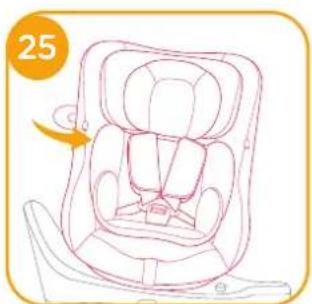

see images 24 - 31

! Install the enhanced child restraint on the rear vehicle seat, and then place the child in the enhanced child restraint.

Press the rotation button to rotate for easier side loading/unloading of the child, then rotate the seat to the forward facing position. ^24\&25

! Press the rotation button on either side to rotate the enhanced child restraint.

Securing Child

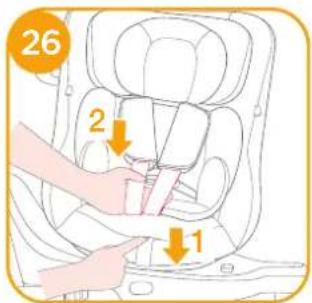

1. To lengthen the shoulder harness belts, press the harness adjustment button while pulling out the shoulder harnesses to loosen. 26

2. Unlock the buckle of the harnesses by pressing the red button. 27

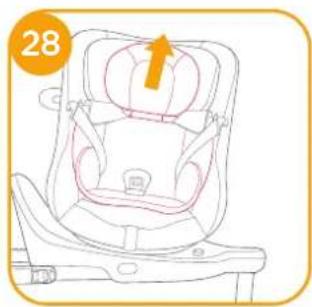

   ! Remove the infant insert when in forward facing mode. 28

3. Place the buckle tongues on the both sides of the seat, to ensure that the tongues are held in place.

4. Place the child into the enhanced child restraint and pass both arms through the harnesses.
5. Engage the buckle.

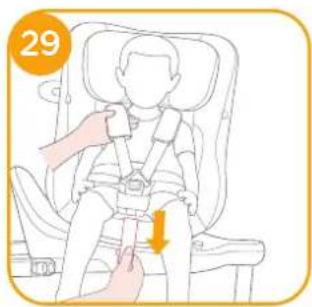

6. Pull down the adjustment webbing and adjust it to the proper length to make sure your child is properly secured.

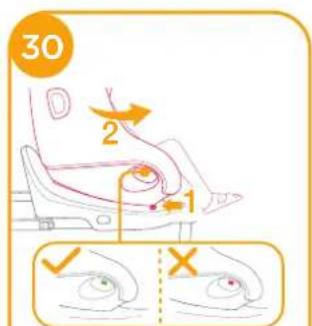

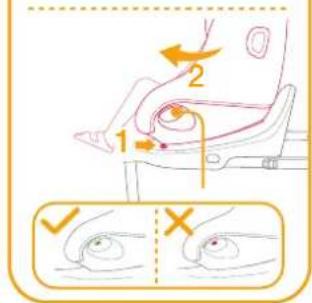

7. Press the swivel lock off button 30-1 while you rotate the seat to the forward facing mode. 30-2
   When the seat is rotated in place and properly engaged, rotation button will show green, otherwise it will show red. 30
   ! Always make sure the seat is in locked position (rearward facing / forward facing) even when the child is not in it.

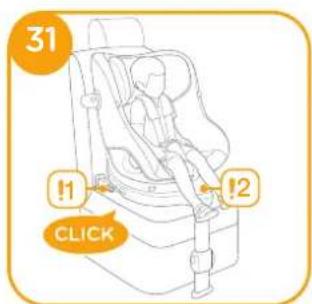

   ! The ISOFIX connectors must be attached and locked onto the ISOFIX anchor points. 31-1
   ! The load leg must be installed correctly with green indicator. 31-2
   ! Always keep child secured in harness and properly tightened by removing any slack.
   ! DO NOT use forward facing mode until your child's height is at least 76cm AND 15 months old.

Detach Soft Goods

see images 32 - 40

Press the red button to disengage the buckle. 32

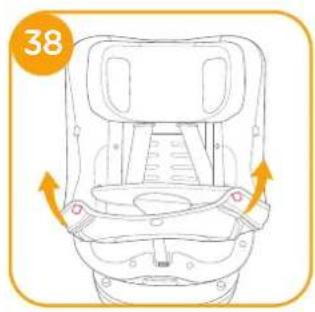

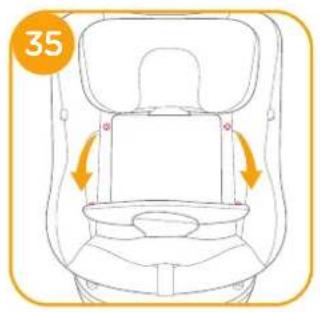

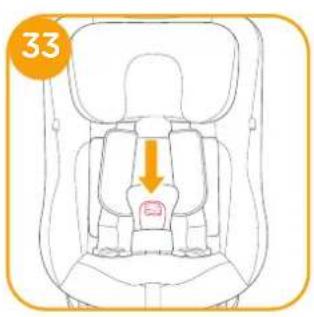

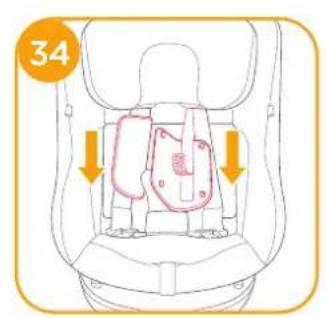

Follow steps 33 - 40 to detach soft goods.

To re-attach the soft goods please repeat the above steps in the reverse order.

Care and Maintenance

! Please store the pad somewhere out of the child's reach.
! Please wash the soft goods with cold water under 30°C.
! Do not iron the soft goods.
! Do not bleach or dry clean the soft goods.
Do not use undiluted detergents gasoline or other organic solvent to wash the enhanced child restraint or base. It may cause damage to the enhanced child restraint.
! Do not twist the soft goods to dry with great force. It may leave the soft goods with wrinkles.
! Please hang dry the soft goods in the shade.
! Please remove the enhanced child restraint from the vehicle seat if it will not be in use for a long period of time.

FR

Simple line drawing of a person sitting on an easel with a book and a flag, against an orange background (no text or symbols)

Liste des pièces

Diagram of a car seat with numbered labels pointing to different compartments or parts, including a zoomed-in inset view.

11 12 13 14 16

AVERTISSEMENT

Illustration of a car seat with red markers and a yellow checkmark on the side panel (no text or symbols)

Simple line drawing of a chair with an open book and a pointer, no text or symbols present

Teileliste

Technical diagram of a car seat with numbered labels pointing to specific components

WARNUNG

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

Simple line drawing of a chair with an open book and a pointer, no text or symbols present.

Onderdelenlijst

Illustration of a car seat with red markers and a yellow checkmark on the side (no text or symbols)

Simple line drawing of a chair with an open book and a pointer, no text or symbols present.

Elenco parti

Diagram of a car seat with numbered labels pointing to different compartments or parts.

Illustration of a car seat with red buttons and a yellow checkmark (no text or symbols)

Simple line drawing of an open book with a bookmark, no text or symbols present

Lista de piezas

Anatomical diagram of a car seat with numbered labels pointing to specific areas.

Illustration of a car seat with red buttons and a yellow checkmark (no text or symbols)

Simple line drawing of a car with an open book and a flag, no text or symbols present

Lista de componentes

Illustration of a car seat with red buttons and a yellow checkmark (no text or symbols)

Simple line drawing of a car with an open book and a flag, no text or symbols present

Wykaz części

Diagram of a car seat with numbered labels pointing to different compartments or parts.

Illustration of a train seat with red markers and a yellow checkmark (no text or symbols)

Simple line drawing of a car with an open book and a flag, no text or symbols present

Seznam dílů

Diagram of a car seat with numbered labels pointing to different sections

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

Simple line drawing of a person sitting on an easel holding an open book, against an orange background (no text or symbols)

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

Simple line drawing of a person reading a book with a pointer (no text or symbols)

Seznam delov

Prepričajte se, da noben del ne manjka. Če kar koli manjka, se obrnite na prodajalca.

1 Opora za glavo
2 Sedežna blazina
3 Sponka
4 Gumb za nastavitev pasov
5 Prilagoditveni trak
6 Gumb za nastavitev naklona
7 Vrtljivi zaklepni gumb
8 Gumb za obračanje
9 Prevleki za ramenska pasova

1 2 3 4 5 6 7 8 9 10

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

Illustration of an open book with a pointer and a small icon, set against an orange background (no text or symbols)

Diagram of car seat with numbered labels pointing to different seat positions

11 12 13 14

ВНИМАНИЕ

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

Simple line drawing of a car with an open book and a flag, no text or symbols present

Liste over dele

Kontroller, at der ikke mangler nogen dele. Kontakt venligst din forhandler, hvis noget mangler.

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

Brug sideskærmen

Se billederne ① - ②

Simple line drawing of a car with an open book and a pointer, no text or symbols present

Alkatrészek listája

Technical diagram of a car seat with numbered labels pointing to specific components

FIGYELMEZTETÉS

Illustration of a car seat with red markers and a yellow checkmark on the side panel (no text or symbols)

Simple line drawing of a person holding an open book, no text or symbols present

Lista componentelor

Diagram of a car seat with numbered labels pointing to different sections

11 12 13 14

AVERTISMENT

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

Simple line drawing of a car with an open book and a flag, no text or symbols present

Diagram of a car seat with numbered labels pointing to different compartments or parts.

11 12 13 14

ΠΡΟΕΙΔΟΠΟΙΗΣΗ

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

Simple line drawing of a car with an open book and a flag, no text or symbols present

Parça Listesi

Technical diagram of a car seat with numbered labels pointing to specific components

UYARI

Illustration of a seat with red markers and a yellow checkmark (no text or symbols)

Anatomical diagram of a car seat with labeled parts and directional arrows indicating specific positioning.

Technical diagram of a mechanical component with labeled parts and an inset view showing a top view.

Simple line drawing of a car with a selfie stick against an orange background (no text or symbols)

تحذیر

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

Deployment in the world is justifying the global economy.

۳۳ - ۱۷ رراجع الصور

Simple line drawing of a car with an open book and a flag, no text or symbols present

Popis dijelova

Diagram of a car seat with numbered labels pointing to different compartments or parts.

11 12 13 14

UPOZORENJE

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

Upotreba zaštite od bočnog udarca

Simple line drawing of a car with an open book and a flag, no text or symbols present

Lista över delar

Technical diagram of a car seat with numbered labels pointing to specific components

WARNING

Illustration of a car seat with red buttons and a yellow checkmark (no text or symbols)

Simple line drawing of a person sitting on a chair with an open book and a flagpole (no text or symbols)

Deleliste

Technical diagram of a car seat with numbered labels pointing to specific components

ADVARSEL

Interior view of a car seat with red buttons and a yellow checkmark (no text or symbols)

Simple line drawing of a chair with an open book and a pointer, no text or symbols present.

Osaluettelo

Technical diagram of a car seat with numbered labels pointing to specific components

VAROITUS

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ

NUNA International B.V. Van der Valk Boumanweg 178 C, 2352 JD Leiderdorp, The Netherlands
