Product type Built-in dishwasher
Brand Candy
Model CIMC E0W 3E53
Dimensions (H x W x D) 818-898 x 598 x 555 mm
Net weight Approximately 35 kg
Power supply 220-240 V ~ 50 Hz
Required water pressure 0.08 - 1 MPa
Power cable length Approximately 1350 mm
Inlet hose length Approximately 1500 mm
Drain hose length Approximately 1700 mm
Installation type Built-in, height adjustable from 818 to 898 mm
Tub material Stainless steel
Safety Automatic overflow protection system
Included accessories Anti-vapor strip, screws, drilling template, fixing inserts
Foot adjustment Front and rear feet adjustable in height and tilt
Kitchen panel Installation possible, handle not supplied, max weight 9 kg
Installation requirements Flat, solid surface, indoors, protected from moisture

Frequently Asked Questions - CIMC E0W 3E53 CANDY

How to install the anti-vapor strip?
Apply the anti-vapor strip (ref. E) under the worktop and on the sides of adjacent cabinets to protect against moisture.
How to adjust the height of the dishwasher?
Tilt the appliance by lifting the back about 10 cm, then adjust the rear foot from the front. Then adjust the front feet directly.
How to attach the kitchen panel?
Measure the gap with adjacent doors, use the drilling template, then fix the panel with the supplied screws. Ensure the screw heads do not protrude at the back.
What water pressure is required?
The water pressure must be between 0.08 MPa and 1 MPa.
What to do in case of overflow?
The dishwasher is equipped with an overflow protection device that automatically stops the water inlet and/or drains the excess in case of malfunction.
How to disassemble the dishwasher?
Disconnect the appliance from the electrical and hydraulic systems, unscrew the fixing screws, then slightly lift the product to remove it.
Can the dishwasher be installed under a hob?
No, it is forbidden to install the dishwasher under a hob for safety reasons.
How to adjust the tilt of the appliance?
Level the dishwasher with respect to the vertical and horizontal planes using the adjustable feet.
Where to find the serial number of the appliance?
The serial number is indicated on the rating plate of the appliance, usually on the side or inside the door.
What tools are needed for installation?
The included tools include a T15 screwdriver, screws of different types (A to I) and a drilling template. Protective gloves are recommended.

User questions about CIMC E0W 3E53 CANDY

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Dishwasher in PDF format for free! Find your manual CIMC E0W 3E53 - CANDY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CIMC E0W 3E53 by CANDY.

USER MANUAL CIMC E0W 3E53 CANDY

double movement hinges

Less washing time, more washing space

EN | IT | FR | DE | ES | GR | NL | PT | SK | PL | CZ | RO | HU

SL | SR | LT | EE | LV | BG | HR | DA | FI | NO | SV | UA | TR

Woman cleaning a modern kitchen with open oven, stainless steel counter, and green wall art (no visible text or symbols)

Hand holding a blue candy tray inside a grocery store (no visible text or symbols on the tray or background)

WELCOME

This installation manual is intended for kitchen manufacturers who will accommodate these products. To ensure safety and achieve the best results, carefully read this manual, including the safety instructions, and keep it for future reference. Before proceeding with installation, note the serial number, as it may be needed in case of repairs. Check for any damage during transport and consult a technician if in doubt before use. Always keep all packaging materials out of reach of children.

NOTE: The features and images contained in this document are for reference only and may change without notice.

Index

1 safety notices for installation

2 Where to install the dishwasher p.3

3 Dishwasher dimensions p.4-5

4 Step-by-step installation video p.6

5 installation tools p.6

6 Built-in dimensions p.7

7 Instructions for dishwasher installation p.8 - 17

7.1 Installation of the anti-steam strip 7.2 Height adjustment 7.3 Adjustment of the rear foot 7.4 Adjustment of the front feet height 7.5 Tilt adjustment 7.6 Insertion into the built-in compartment 7.7 Fixing the front feet 7.8 Preparation of the panel 7.9 Installation of the panel 7.10 Fixing the machine to the kitchen

8 Connection to water and electrical network p.18 - 19

8.1 Connection diagram

8.2 Safety devices

9 Delivery to the user p.19

10 Dishwasher disassembly p.19

1 Safety warnings for installation

Observe these directions before beginning the installation of the product. Your safety is very important to us. Please read this information carefully before using the product.

  • The installation must be carried out by a qualified technician who must be aware of and comply with the laws in force in the country of installation and the manufacturer's instructions;
  • If manufacturer service is required to eliminate faults resulting from improper installation, such service is not covered by the fix;
  • Remove the packaging material before operating the appliance;
  • After unpacking the product, check that it is not damaged and, in case of problems, contact the service center before proceeding with installation and do not connect it to the power supply;
  • A damaged product can cause a short circuit, electric shock, fire hazard, and other dangers;
  • Check the packaging for accessories or accompanying materials (envelopes with screws, documents, brochures, etc.) and, if so, remove and store them;
  • Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury;
  • Safe use is only guaranteed if installation has been carried out properly according to these instructions. In case of damage due to improper installation, the responsibility lies with the person who installed the product;
  • During installation, the appliance must not be connected to the power supply;
  • It is recommended to wear protective gloves during installation to avoid cut injuries;
  • In case of incorrect installation, tampering with the device and improper connection, the validity of the product warranty will expire;
  • Make sure that when the product's power supply cable is completed, it is not accessible;
  • After assembly, the power cord must not come into contact with moving parts of kitchen components (such as a drawer) and must not be exposed to mechanical stresses;
  • When delivering the product to the end user, the technician must ensure that it has been installed correctly;
  • Do not connect the product to the electrical network until the front panel has been fully installed. Otherwise, there may be an electrical hazard; • Take care during transport, the product is heavy;
  • Before starting the installation, check all the dimensions of the built-in compartment by comparing them with the instructions contained in this manual. Note that it is possible to align the door with the doors of other furniture, even if it exceeds the control panel in height;

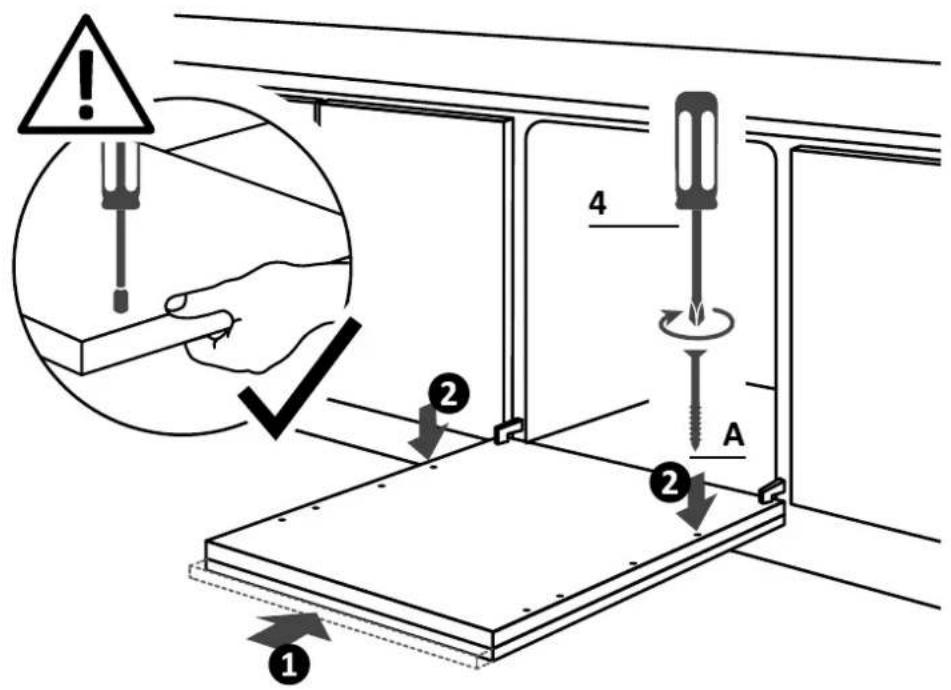

  • Make sure the installation area is stable and solid;
  • Apply the protective film, supplied in the installation kit, under the worktop and on surrounding furniture. This film protects the furniture from humidity;
  • Be careful when opening and closing the product;
  • Incorrect installation can cause the product to tip over;
  • The product must be level to function correctly, otherwise the door will not close properly, leading to the escape of hot steam.

Where to install the dishwasher

2

  • Install and use this product in a closed, covered, dry, and well-ventilated environment;
  • Do not install the product in open environments exposed to atmospheric agents; • Install the product near an electrical outlet;
  • Use the product only when placed in a recessed compartment, otherwise you risk injury and burns;
  • Do not install the dishwasher under a cooktop;
  • Do not install the product near heat sources (radiators, stoves, etc.);
  • Do not place the product on carpets or similar surfaces;
  • Place the product on a clean, level, and stable surface.

3 Dishwasher dimensions

Dimensions in mm

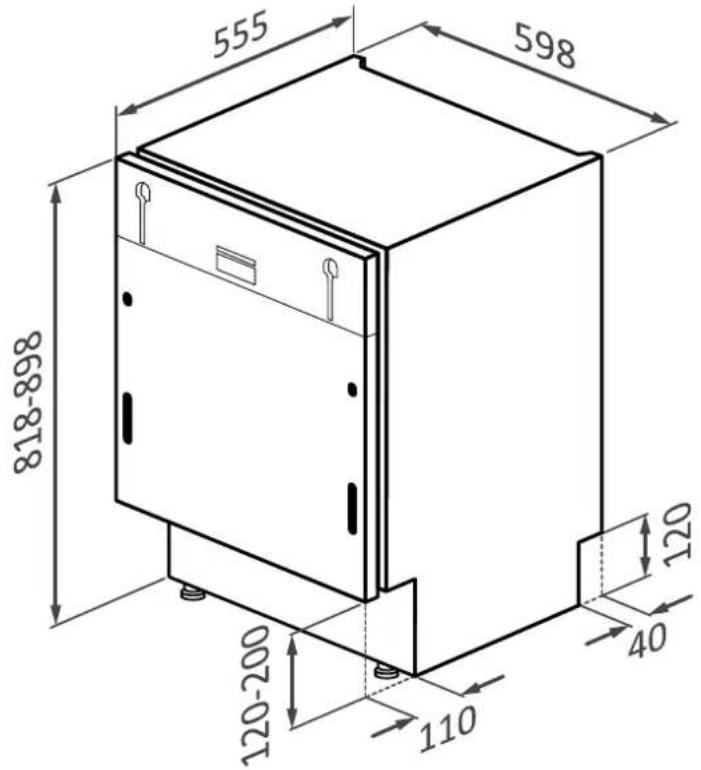

Front axonometric view of the product

555 598 818-898 120 120-200 40 110

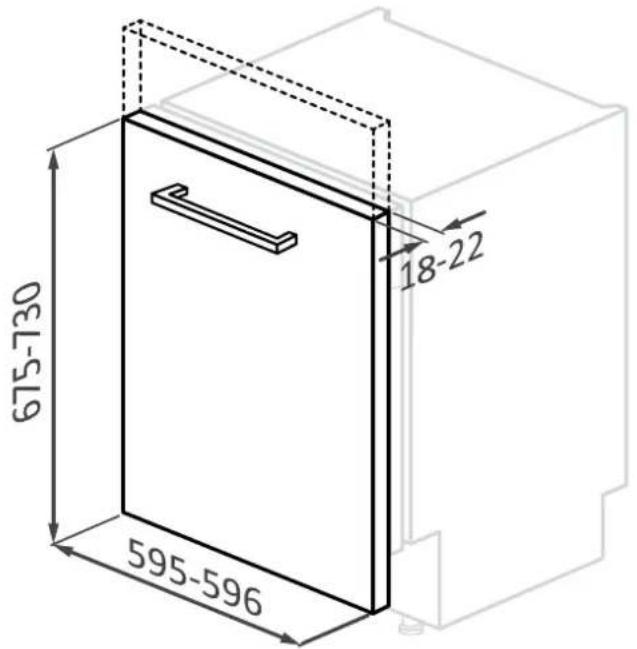

Front axonometric view with kitchen door

675-730 595-596 18-22

CANDY CIMC E0W 3E53 - Dishwasher dimensions - 3

⚠ WARNING: if the kitchen panel weighs more than 9 kg contact customer service.

Dimensions in mm

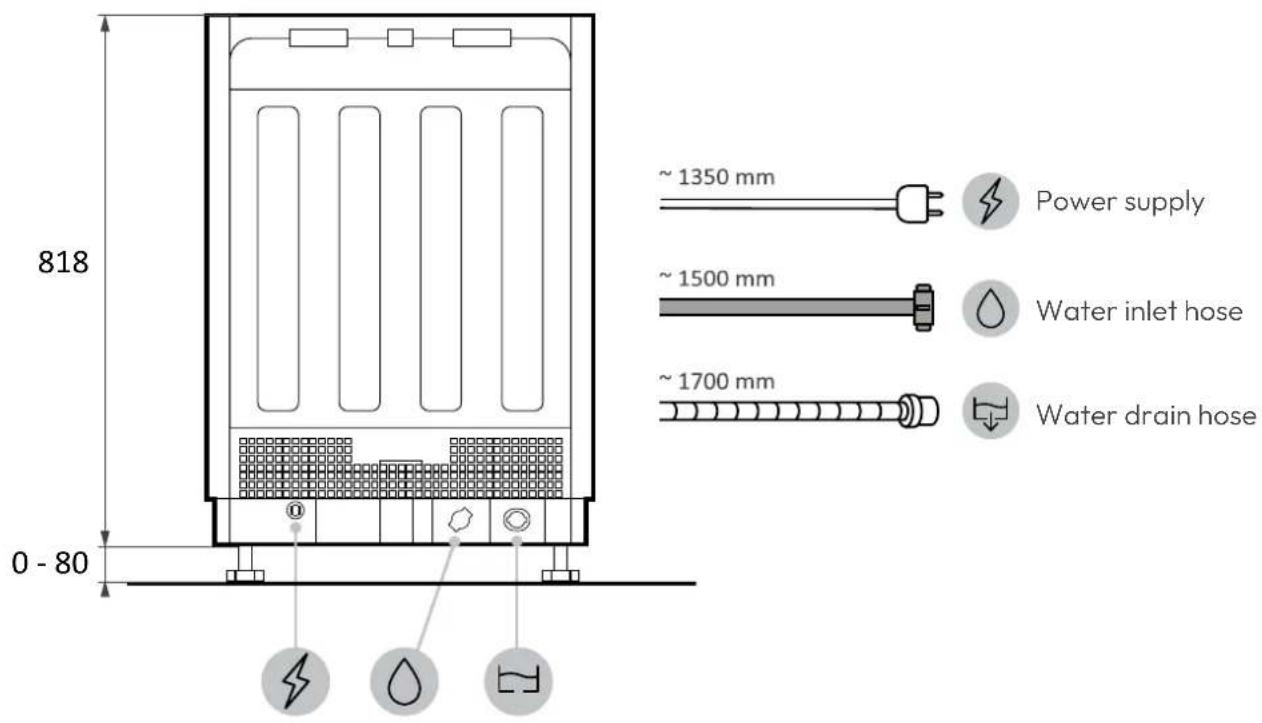

Back view818 0 - 80 ~ 1350 mm Power supply ~ 1500 mm Water inlet hose ~ 1700 mm Water drain hose

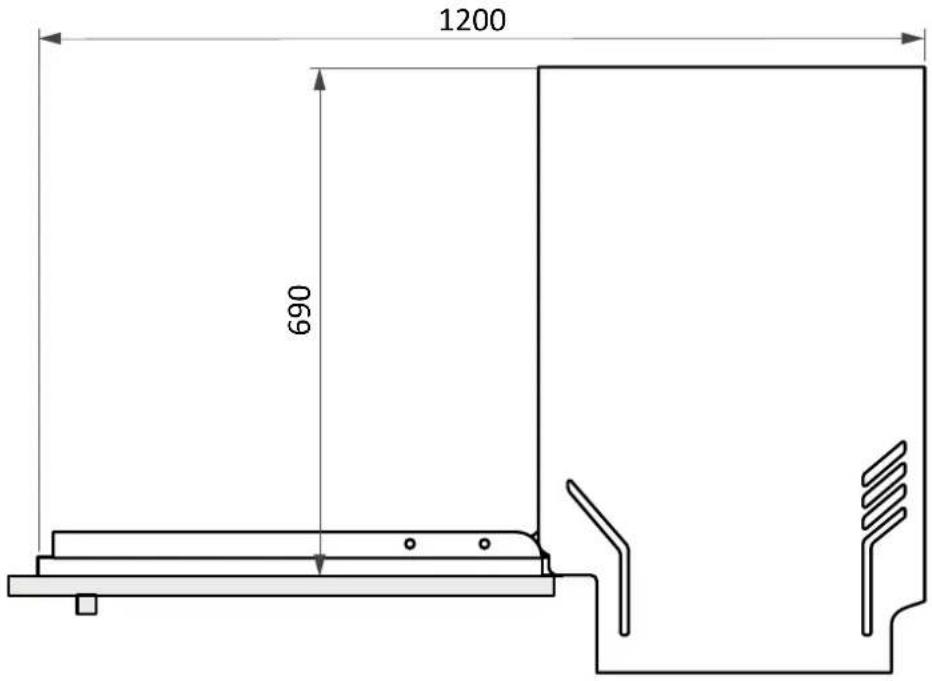

Side view1200 690

4 Step-by-step installation video

You can watch the product installation video by scanning the QR Code:

QR code image containing encoded data, no visible human-readable text

or by clicking this

CANDY CIMC E0W 3E53 - Step-by-step installation video - 2

2-3h

5 Installation tools

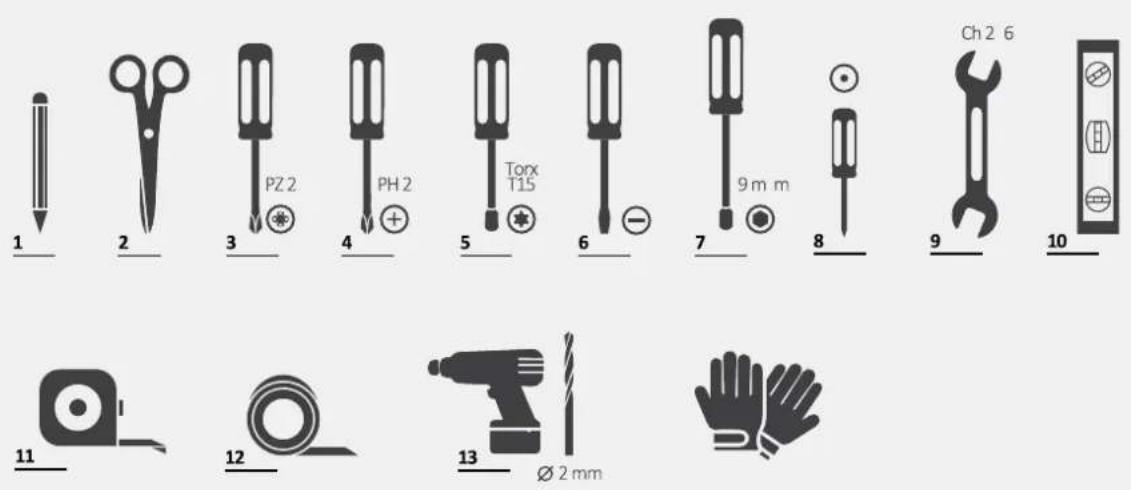

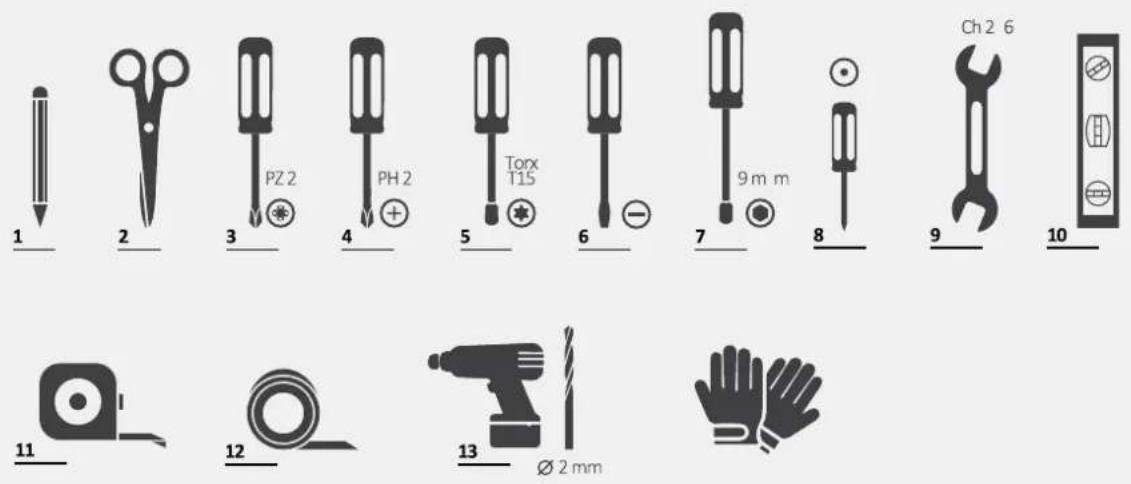

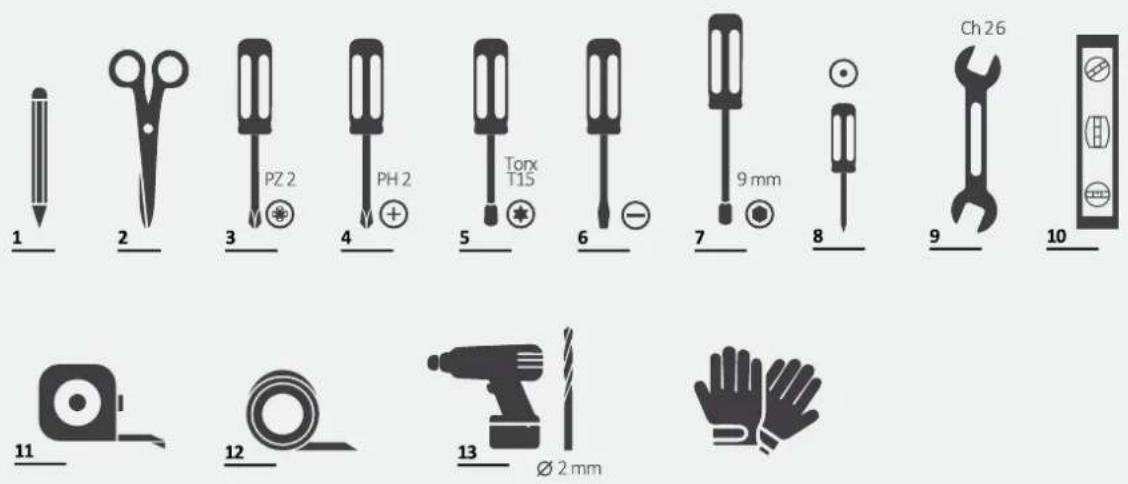

Required tools1 2 3 4 5 6 7 8 9 10 Ch2 6 PZ2 PH2 Torx T15 9 mm 11 12 13 Ø 2 mm Gloved

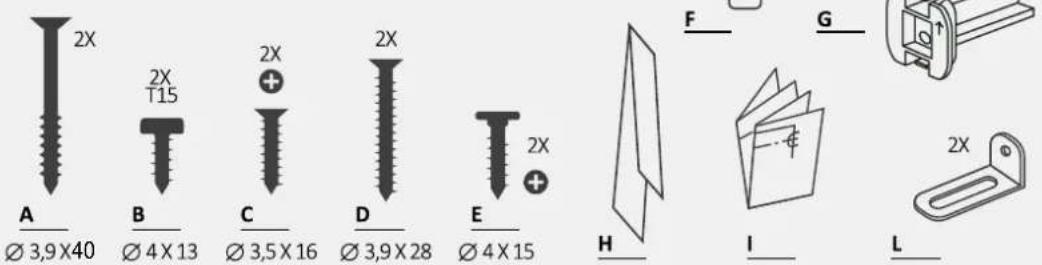

Tools provided with the product2X A Ø 3,9 X 40 B Ø 4 X 13 C Ø 3,5 X 16 D Ø 3,9 X 28 E Ø 4 X 15 2X + 2X 2X 2X F G H I L 2X

Dimensions in mm

Axonometric view

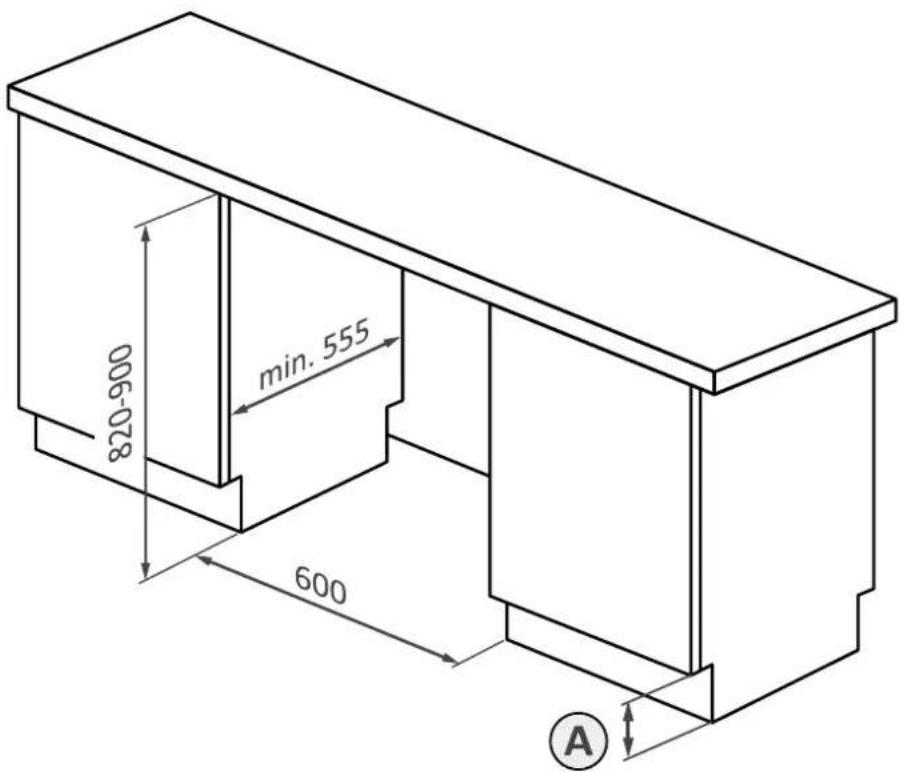

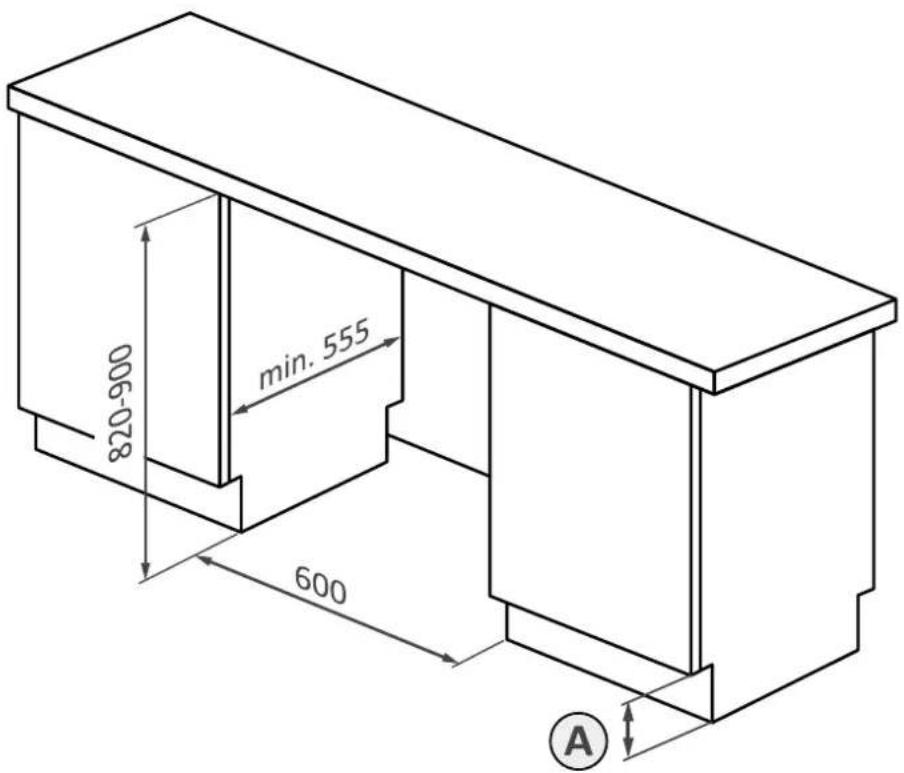

min. 555 820-900 600 A

A

Pure technical line drawing of a door or cabinet with a circular inset detail (no text or symbols)

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present)

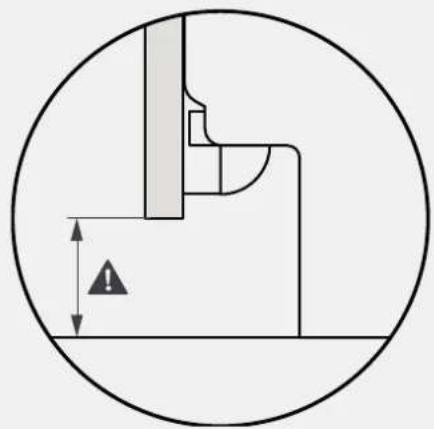

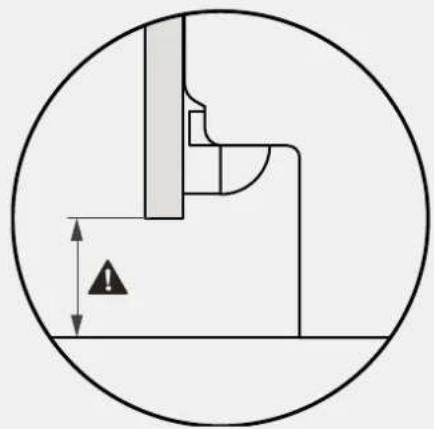

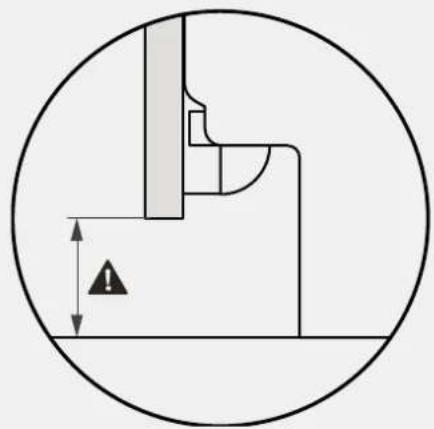

⚠ WARNING: The minimum height of the dishwasher is 818 mm; in this case, the distance between the kitchen door and the floor must be between 90 and 120 mm. If the dishwasher is raised (max. 898 mm), the door-to-floor distance must also increase proportionally, up to a maximum between 170 and 200 mm.

7 Instructions for dishwasher installation

7.1 Steam band installation

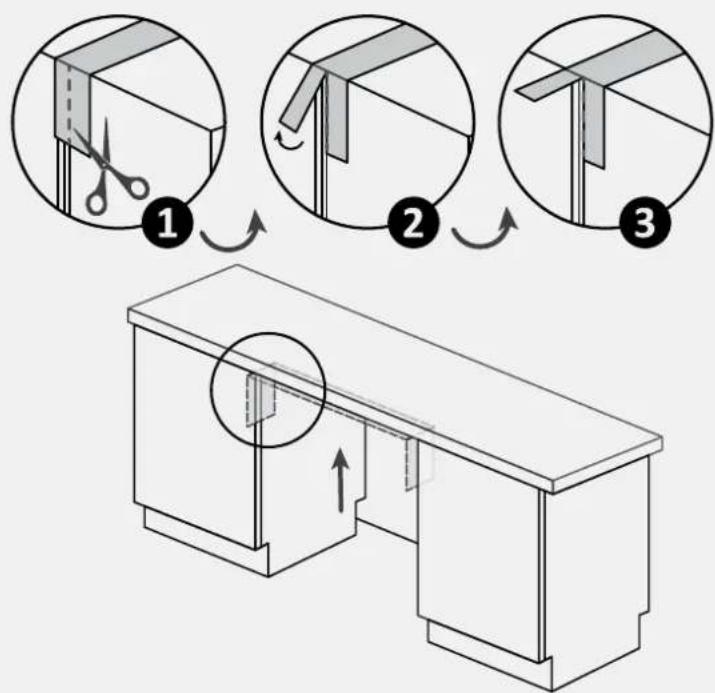

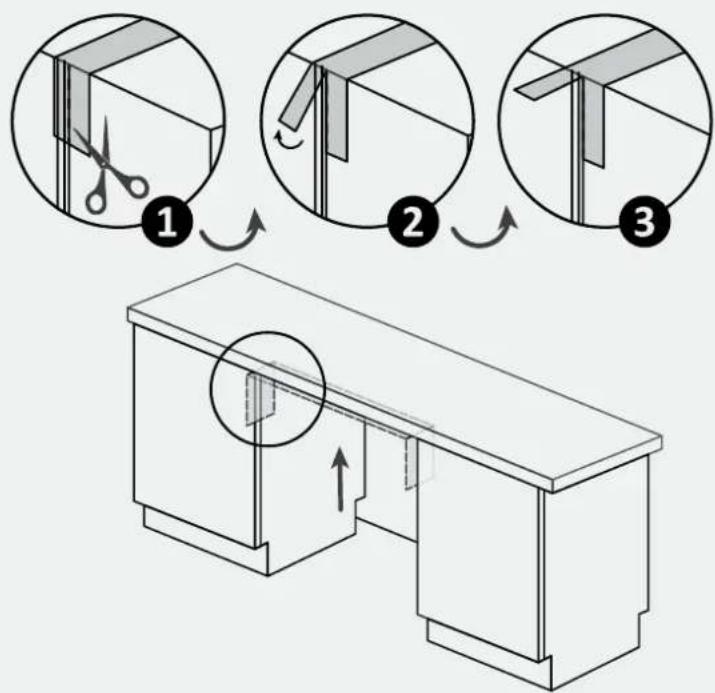

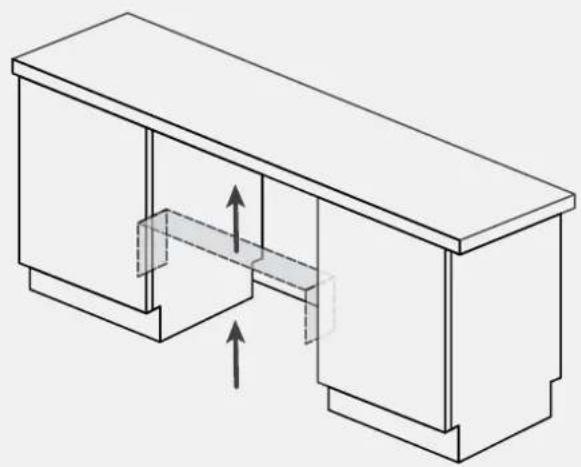

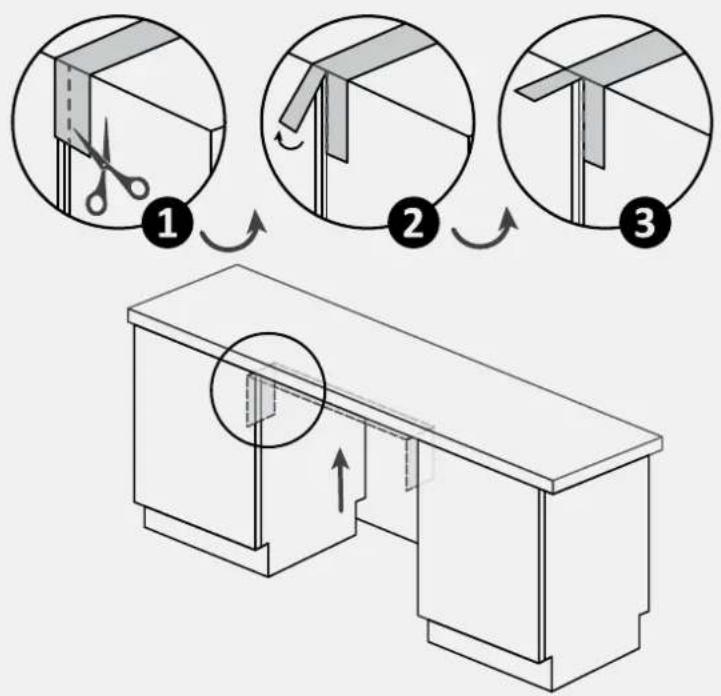

Apply the sticker band under the worktop and to the sides of the adjacent furniture;

  1. CANDY CIMC E0W 3E53 - Steam band installation - 1
  1. CANDY CIMC E0W 3E53 - Steam band installation - 2
  1. CANDY CIMC E0W 3E53 - Steam band installation - 3

7.2 Height adjustment

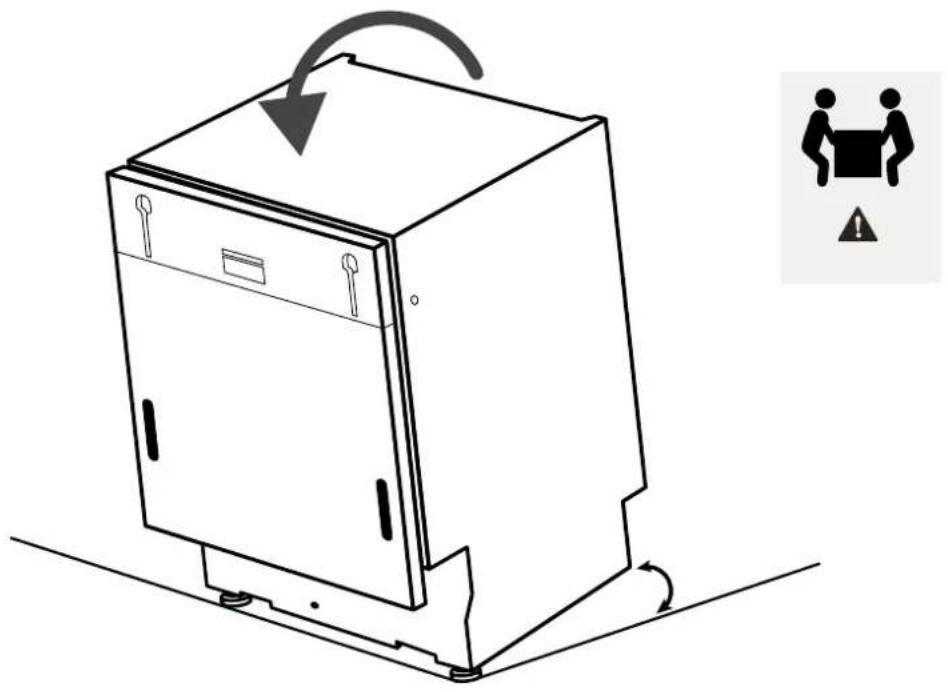

Incline the dishwasher by raising the back about 10 cm.

Line drawing of a washing machine with directional arrows indicating motion, accompanied by a warning symbol (no text or labels).

7.3 Rear foot adjustment

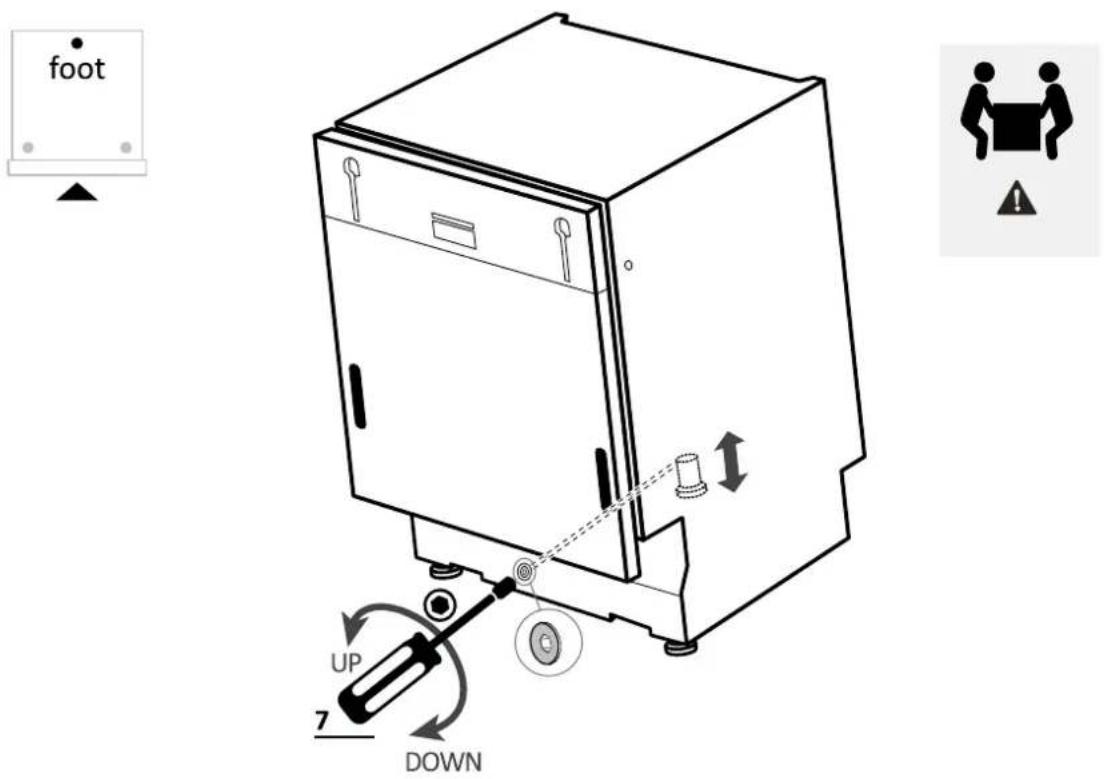

Adjust the rear foot height by operating from the front of the machine as indicated below.

foot UP 7 DOWN

7 Instructions for dishwasher installation

7.4 Front feet adjustment

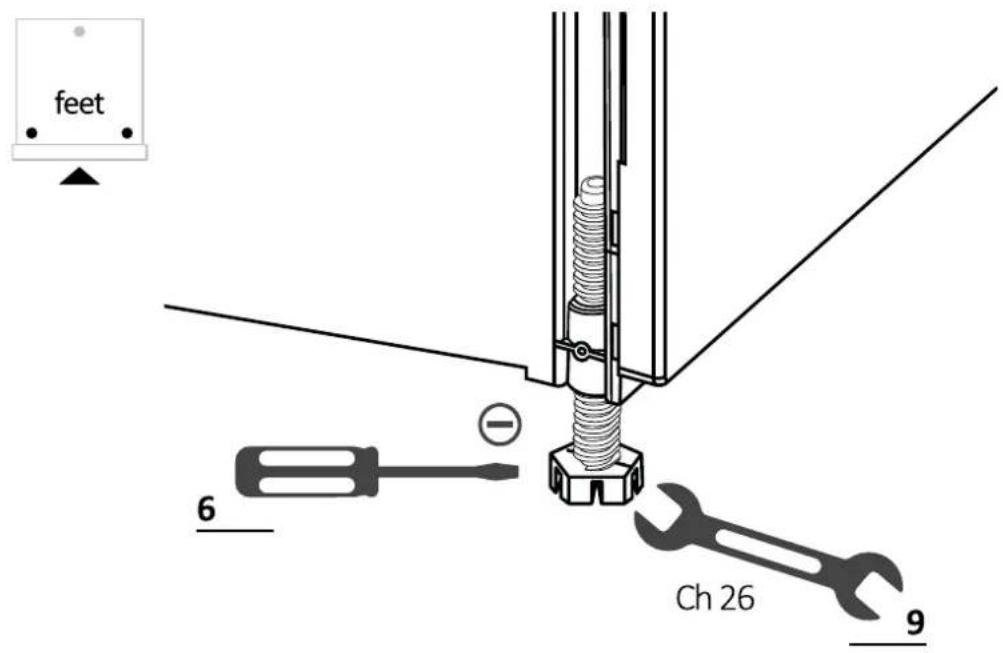

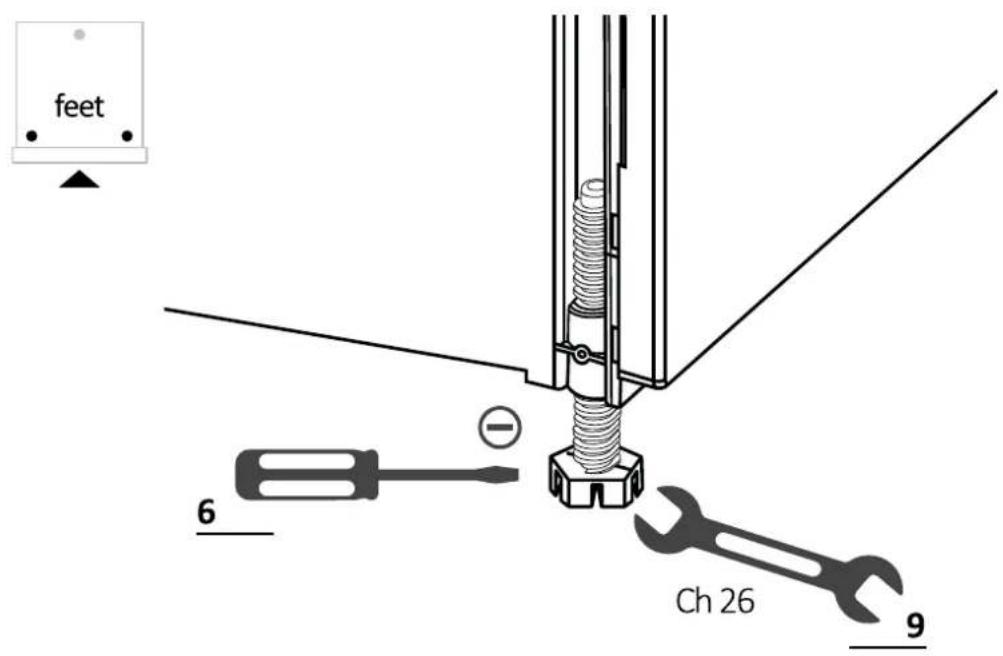

Adjust the front feet directly. If necessary, lift the dishwasher slightly.

feet 6 Ch 26 9

7.5 Tilt adjustment

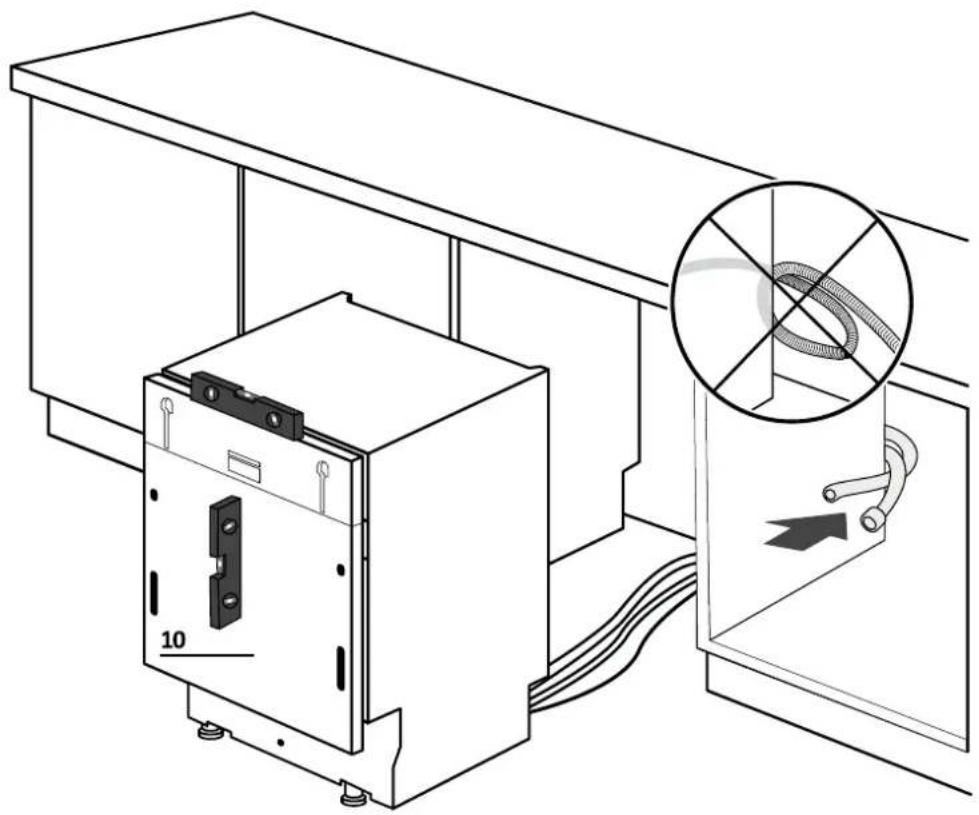

Level the dishwasher by the vertical and horizontal planes.

Technical line drawing of a cabinet with an electrical enclosure and cable, showing wiring and a magnified inset (no text or symbols).

7.6 Insertion into the built-in compartment

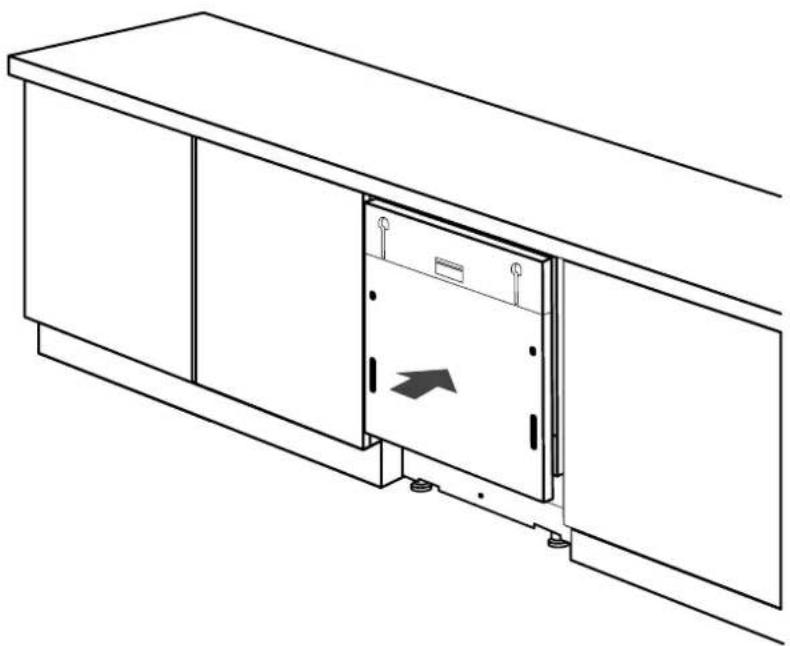

Insert the dishwasher into the built-in compartment and check measurements and tolerances.

Line drawing of a cabinet with an open door and directional arrow indicating movement (no text or symbols).

7.7 Fixing the front feet

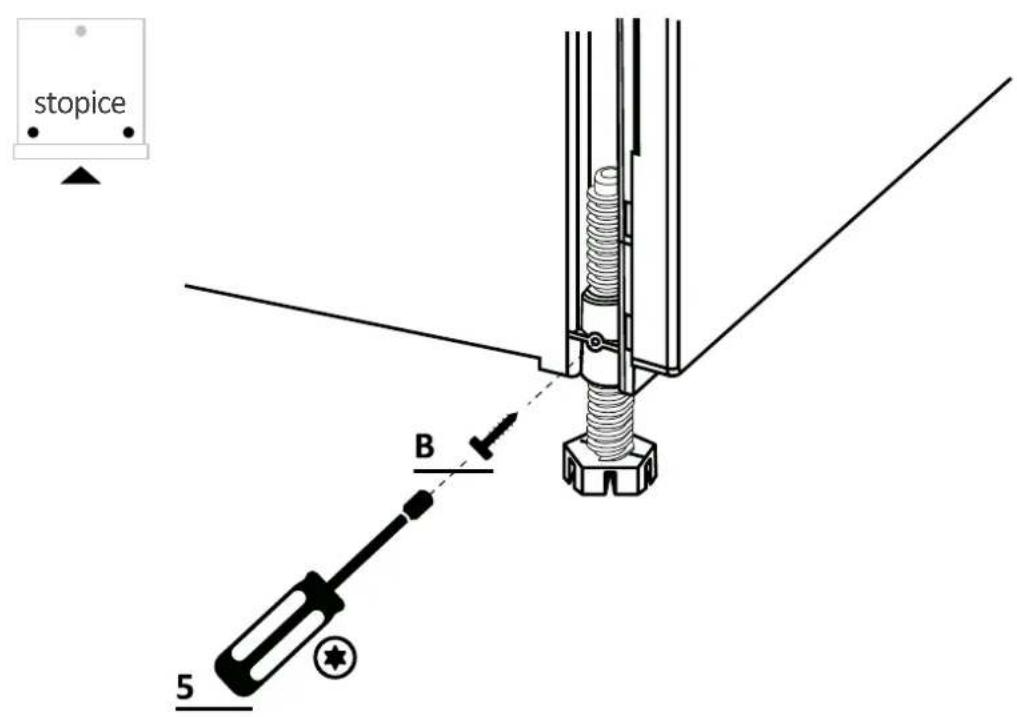

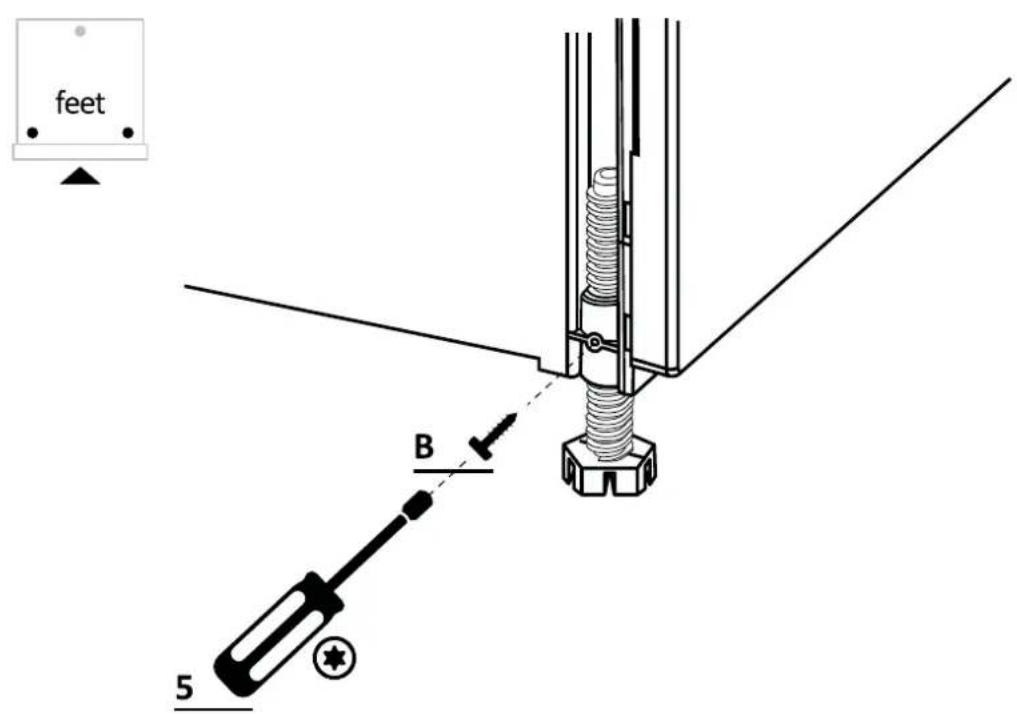

After checking all measurements, permanently fix the front feet to prevent them from loosening over time. This operation can also be done after installing the kitchen panel.

feet B 5

7 Instructions for dishwasher installation

7.8 Panel preparation

1.

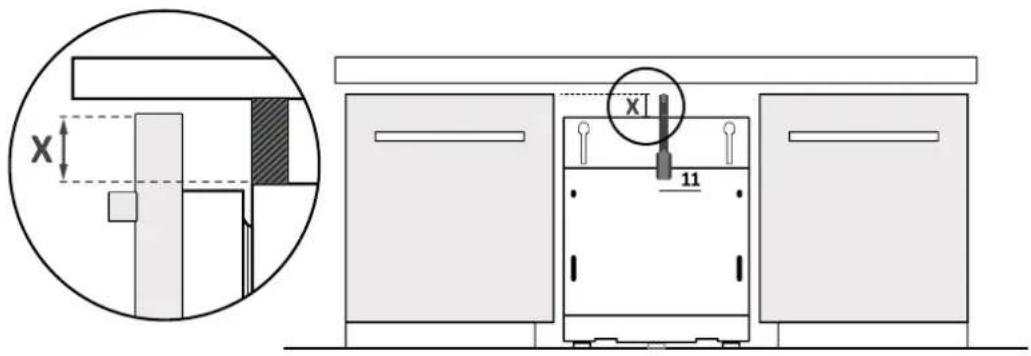

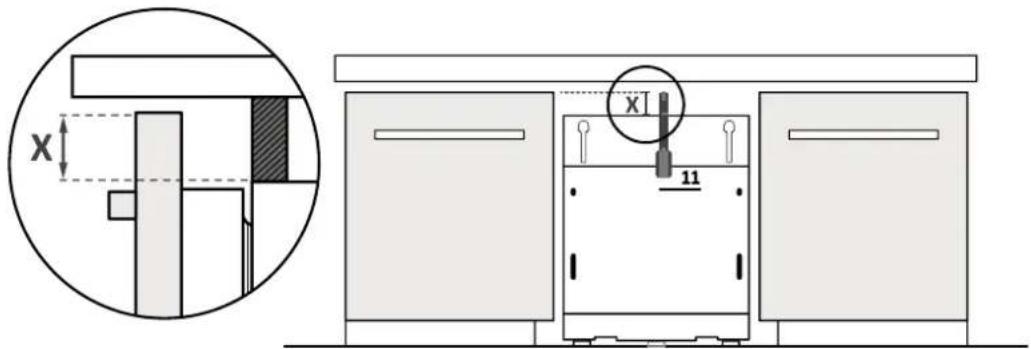

Measure the distance between the top edge of the adjacent doors and the dishwasher;

Technical diagram showing a mechanical assembly with cross-sectional view and labeled dimension 'X' and reference number '11'.

2.

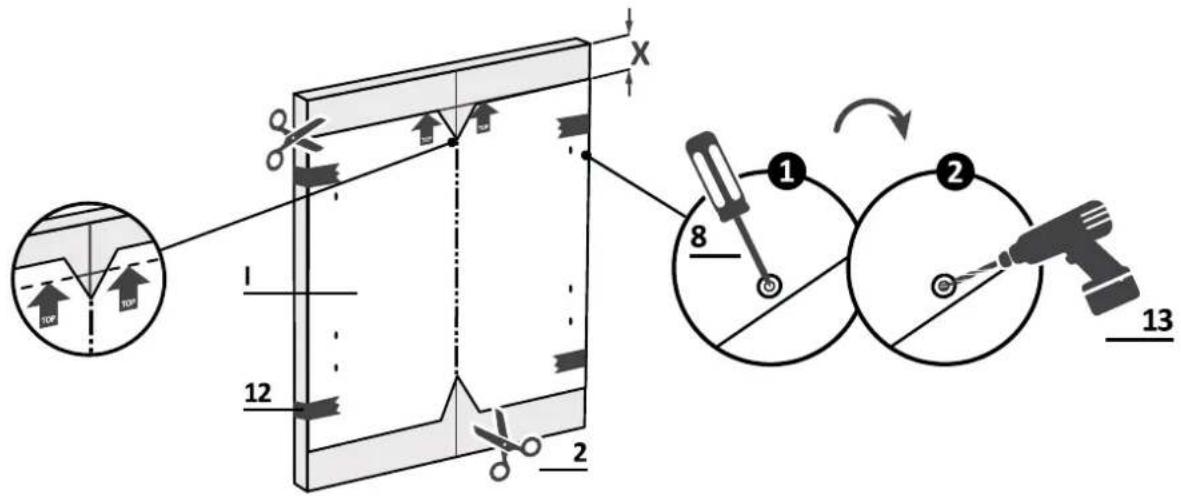

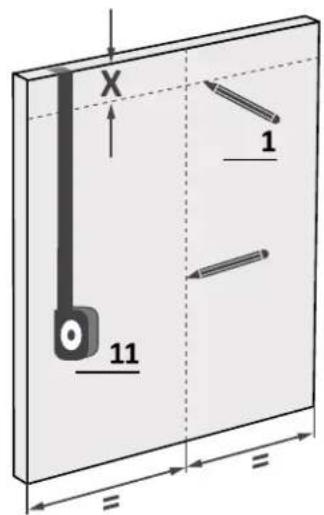

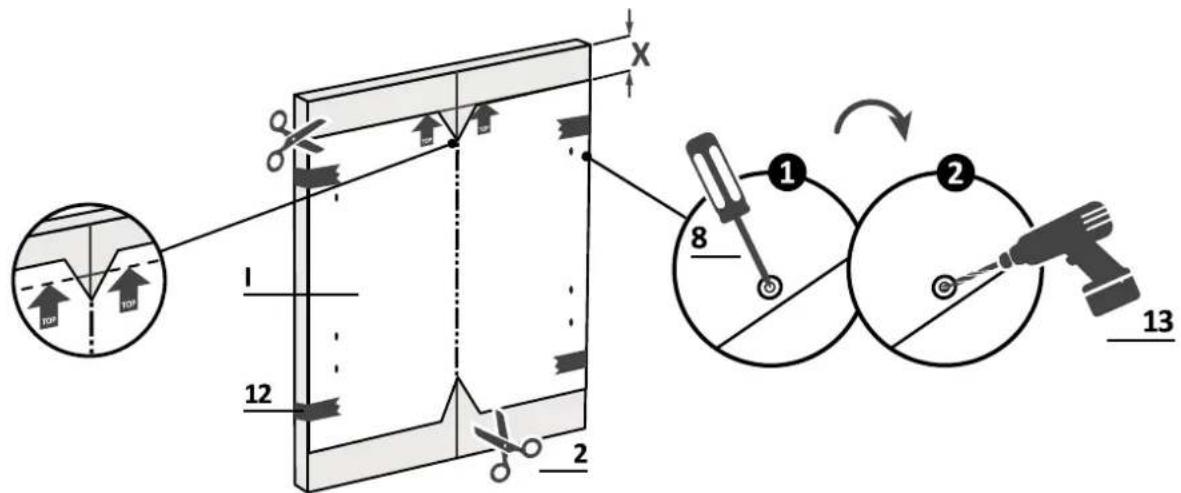

Transfer the measurement onto the kitchen panel and locate the center;

X 1 11

3.

Apply the drilling template and follow the instructions provided.

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows, including parts numbered 1, 2, 8, and 13.

7.8 Panel preparation

4.

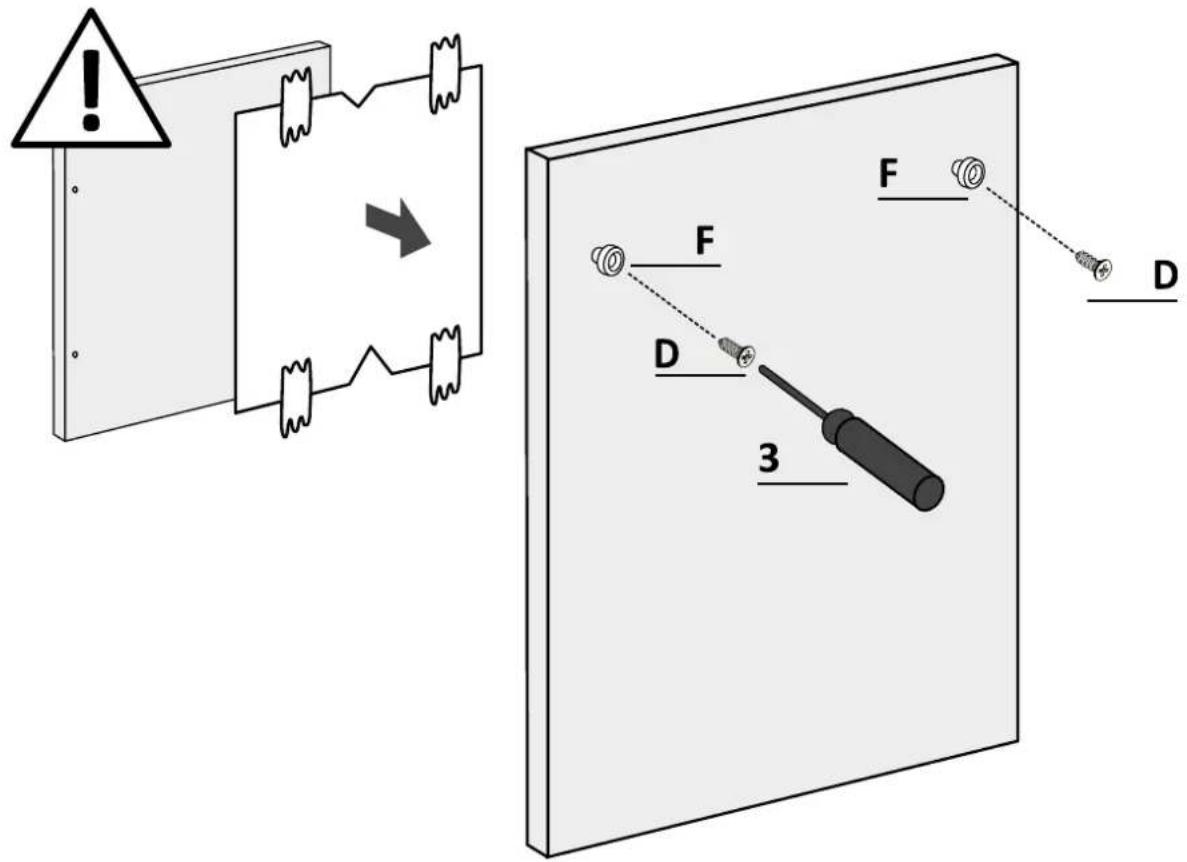

Remove the drilling template and apply the accessories.

Diagram illustrating a battery circuit transformation with warning symbol and labeled components including battery, switch, and screwdriver.

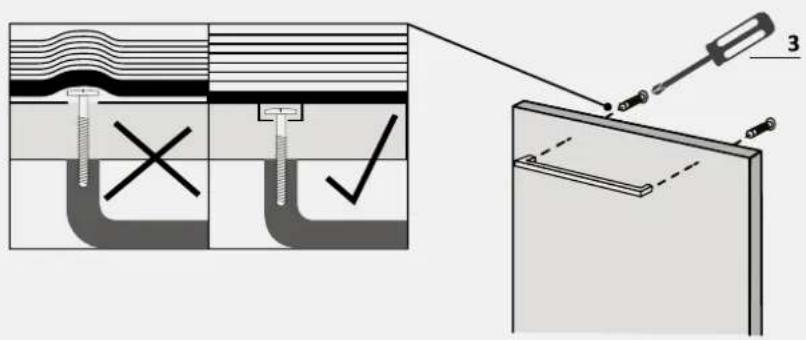

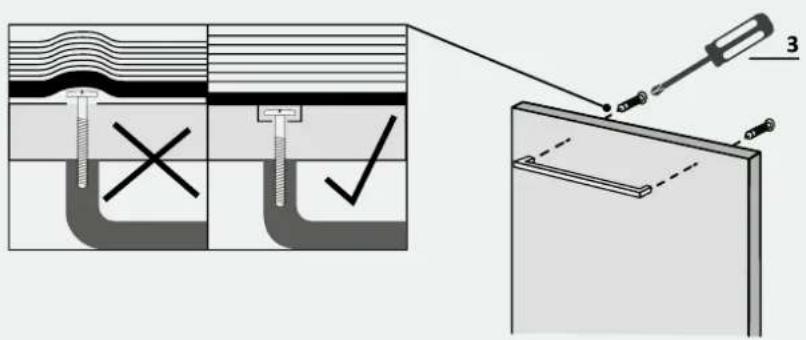

⚠ WARNING: Ensure screw heads don't protrude from the panel's rear surface, especially if you install the handle.

Technical diagram showing a mechanical assembly with cross and check symbols, including a tool and labeled component '3'.

7 Instructions for dishwasher installation

Installation of the panel 7.9

1.

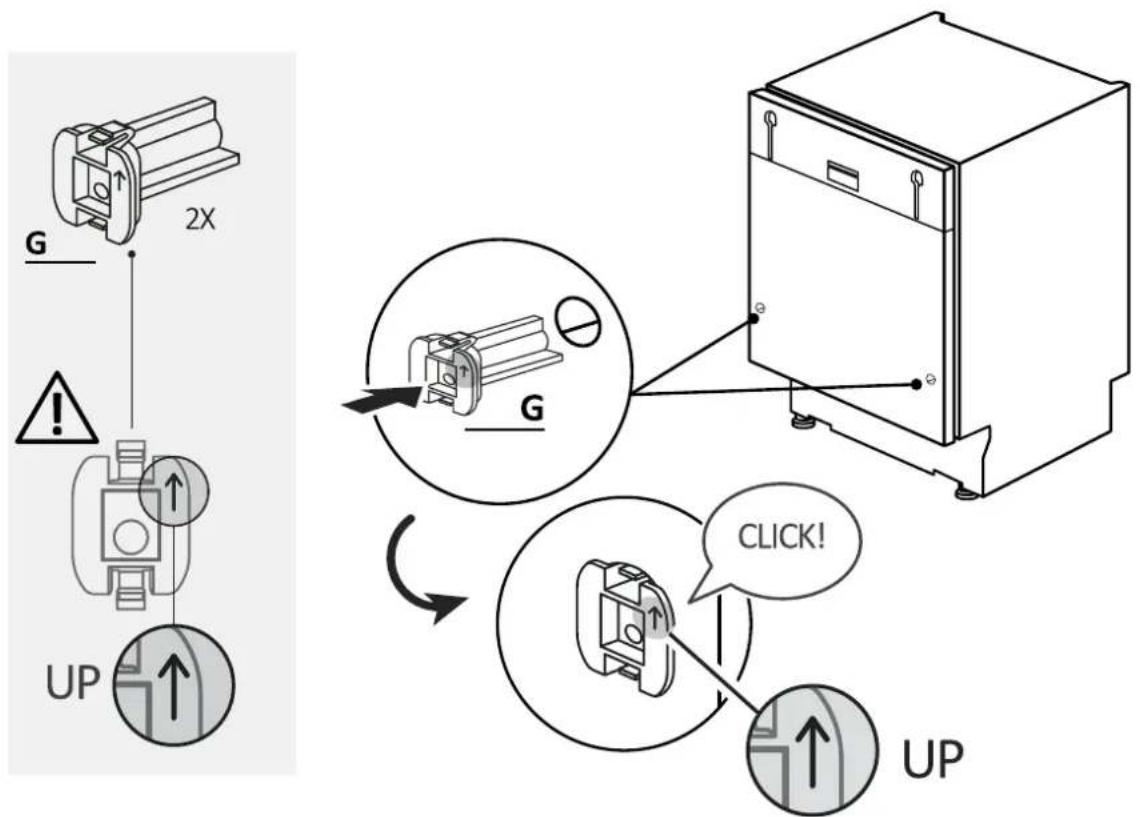

Apply the inserts to the dishwasher, making sure that the components are installed in the correct orientation with the arrow pointing upwards;

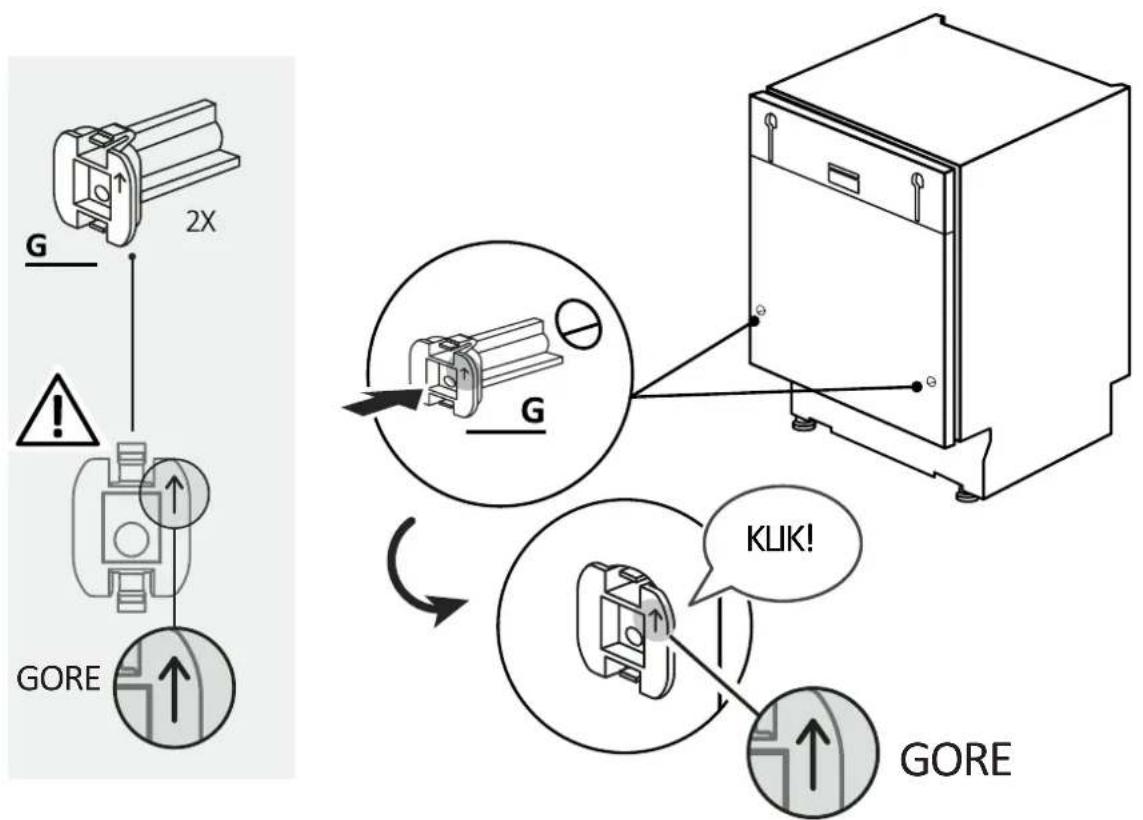

G 2X ! UP G CLICK! UP

2.

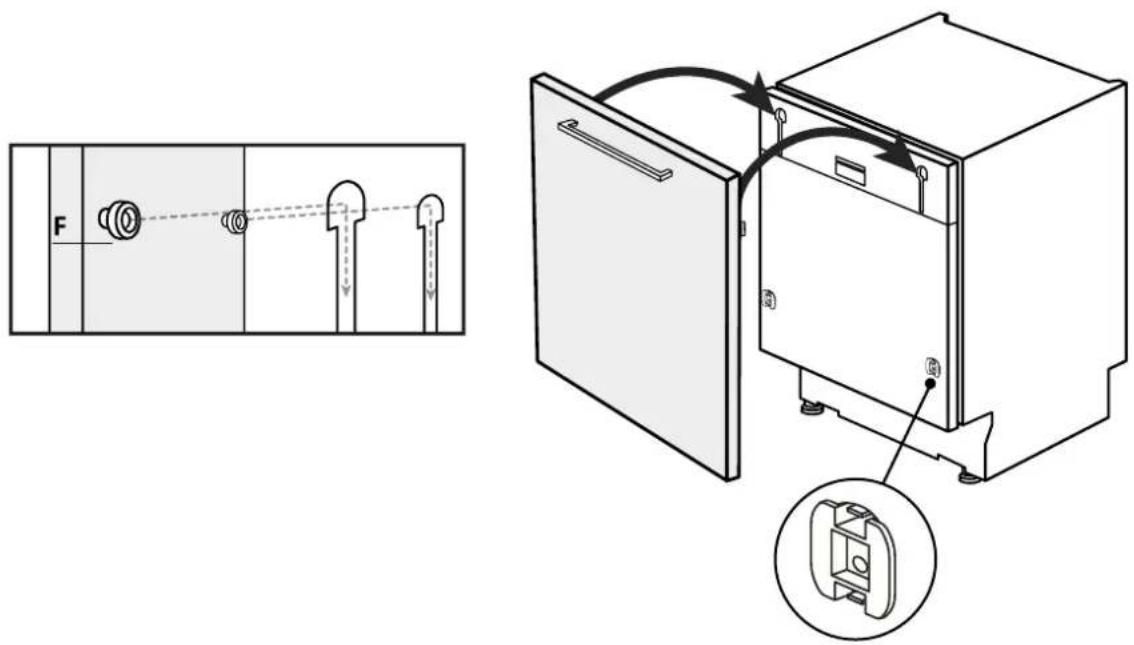

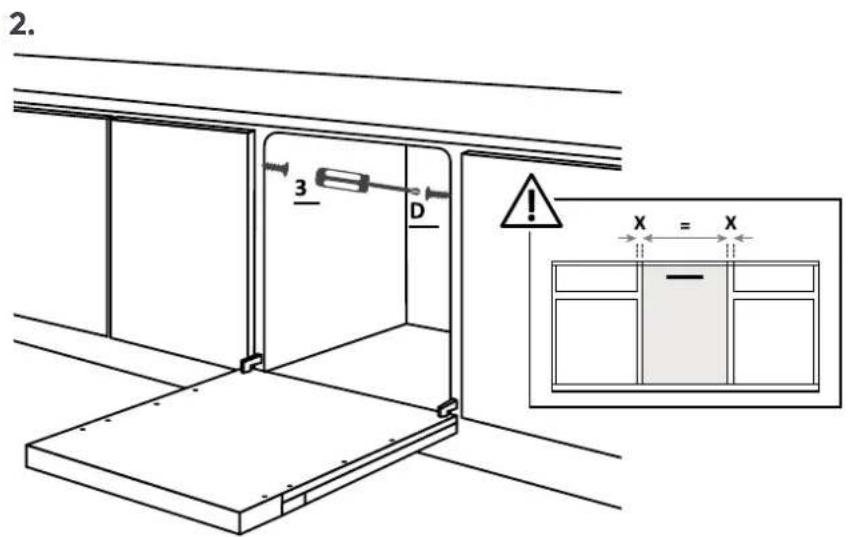

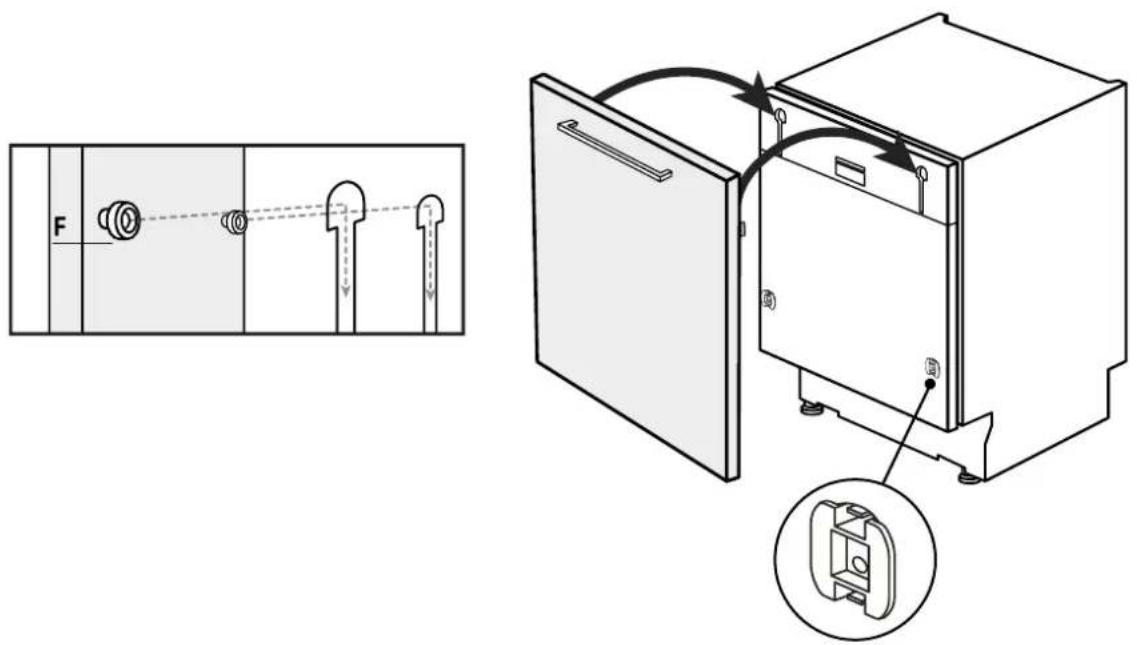

Fix the panel to the lower part of the dishwasher;

Technical diagram showing a door opening mechanism with labeled components and a close-up view of the interior panel.

7.9 Installation of the panel

3.

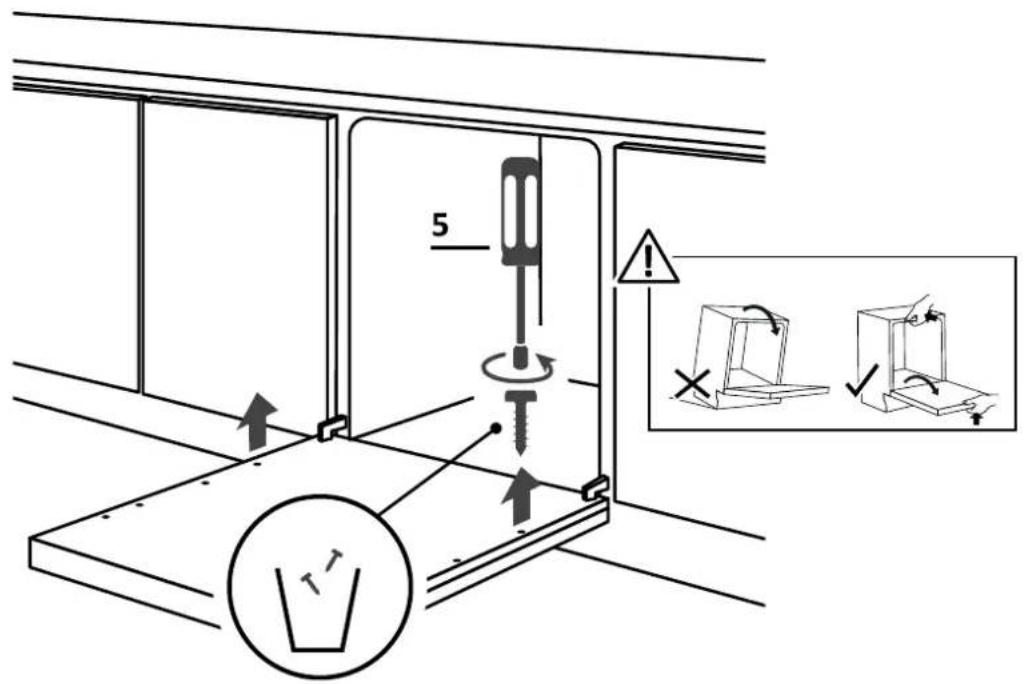

Open the dishwasher door while holding the lower part of the kitchen panel, then unscrew the lower screws;

5 × ✓

4.

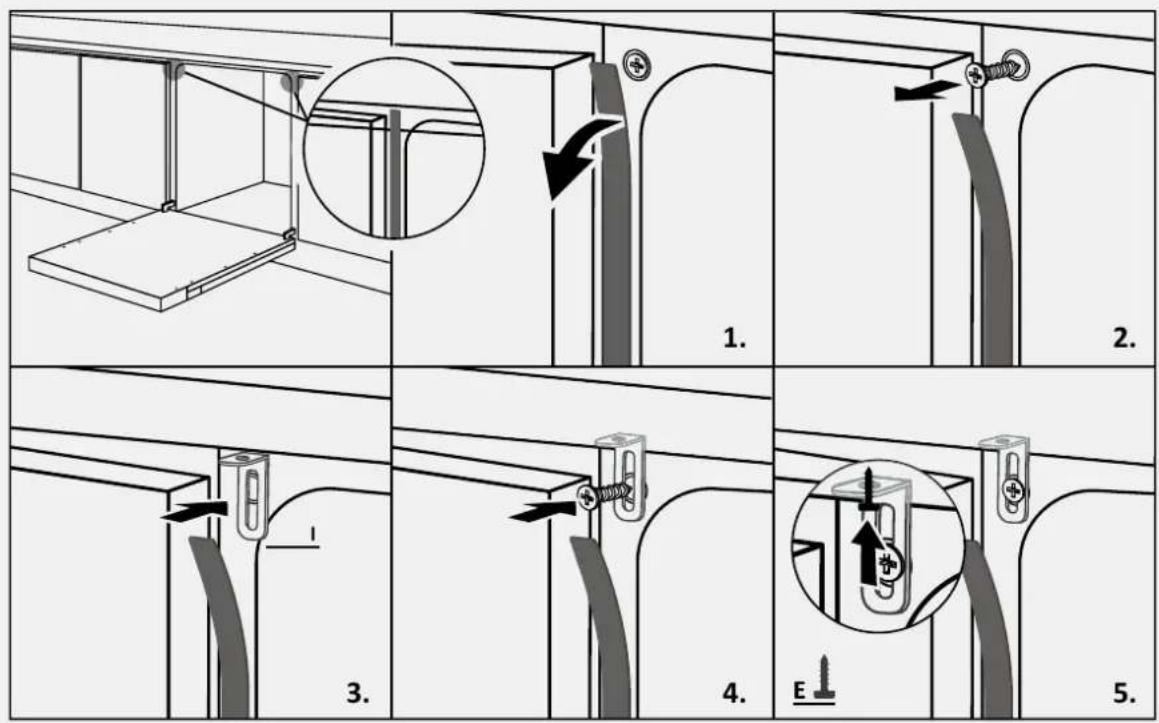

Make sure the panel is fully inserted (1); fix the kitchen panel to the dishwasher using the supplied screws (2).

Technical diagram showing a screwdriver installation with labeled components and warning indicators.

7 Instructions for dishwasher installation

CANDY CIMC E0W 3E53 - Instructions for dishwasher installation - 1

⚠ WARNING: Connect the dishwasher now to the water and electrical network, following the instructions in chapter 8.

7.10 Fixing the machine to the kitchen

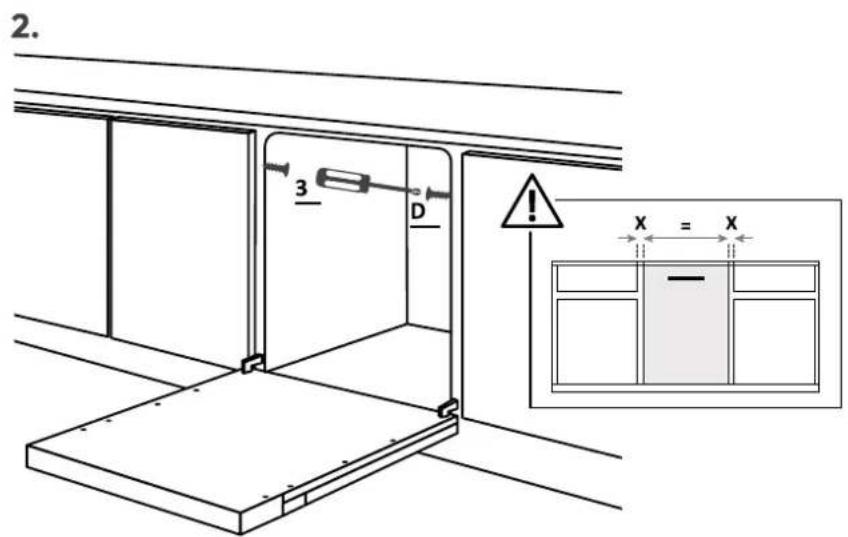

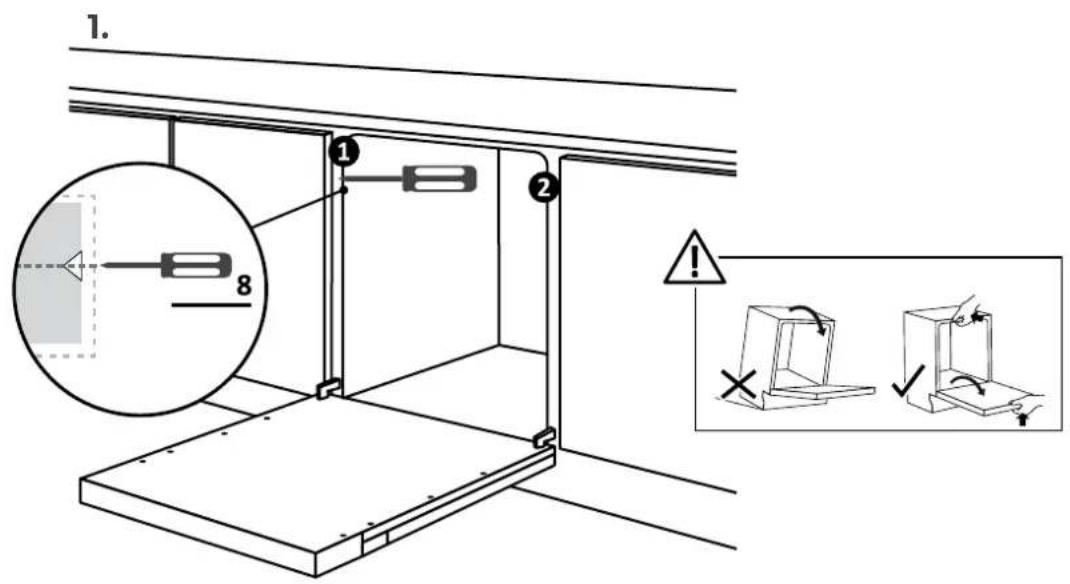

Instructions for fixing the dishwasher laterally to the adjacent cabinets.

1. ① ② 8 ! X

2. 3 D ! X = X

CANDY CIMC E0W 3E53 - Fixing the machine to the kitchen - 3

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

⚠ WARNING: If it is not possible to fix the dishwasher laterally, use the supplied brackets and fix it to the worktop; pay attention if the latter is not made of wood.

Technical diagram illustrating a five-step installation or assembly process for a cabinet or enclosure, with labeled steps and component views.

8 Drain water and electricity connection

8.1 Connection diagram

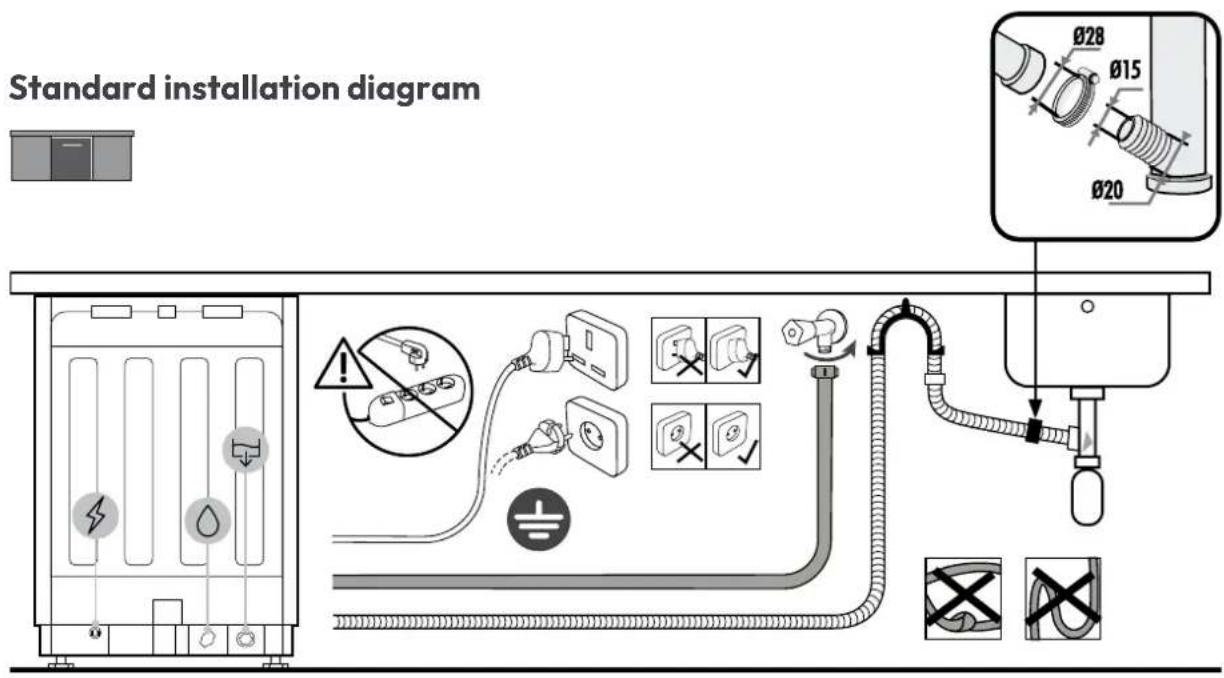

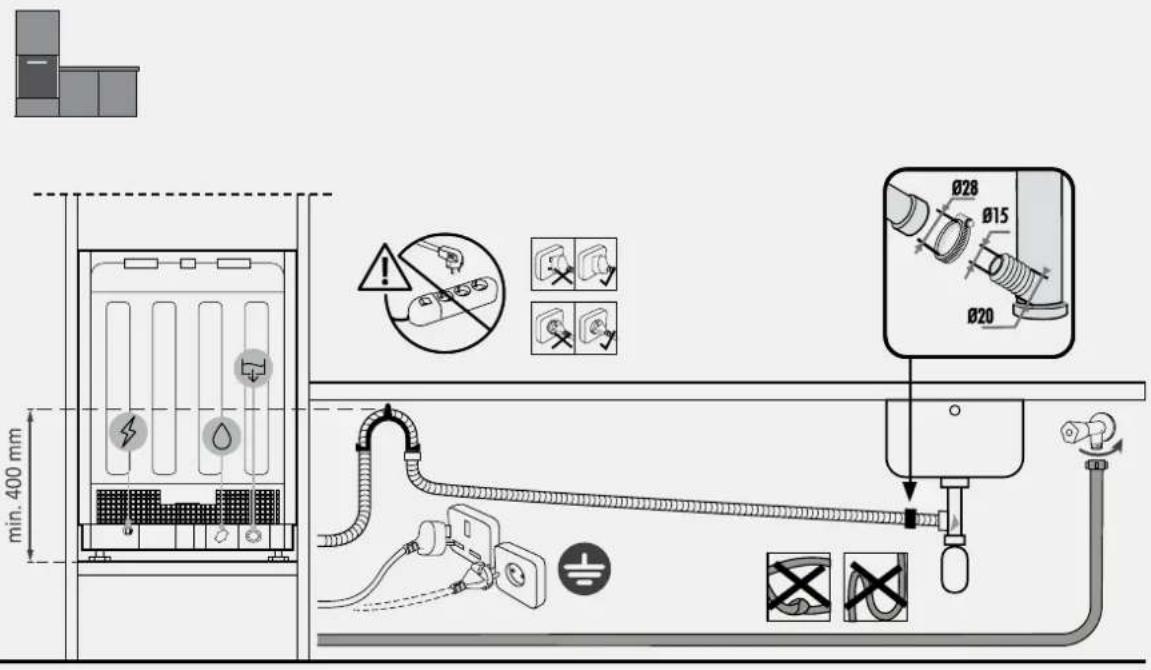

Standard installation diagram. Dimensions: Ø28, Ø15, Ø20.

Column installation diagramMinimum 400 mm. Dimensions: Ø28, Ø15, Ø20.

CANDY CIMC E0W 3E53 - Connection diagram - 3

WARNING: Ensure that the water pressure is between 0.08 Mpa and 1 Mpa.

8.2 Safety devices

All dishwashers are equipped with an anti-overflow safety device which, in the event that the water exceeds the normal level due to a malfunction, automatically blocks the water flow and/or drains the excess water.

See the User Manual for more details.

Delivery to the user

9

At the end of installation:

  • Inform the user about essential functions;
  • Inform the user about all aspects relevant to safe use and handling;
  • Deliver accessories and instructions for use and assembly to the user to be kept with care.

After installation is complete, remove the protective film, tape, and all other packing materials and remove the supplied accessories from inside the product.

CANDY CIMC E0W 3E53 - Delivery to the user - 1

NOTE: The actual appearance of the product depends on the model chosen.

Dishwasher disassembly

10

  • Disconnect the product from the electrical and water supply;
  • Unscrew the fastening screws;
  • Slightly lift the product and pull it out completely;
  • This product does not damage the furniture, which can also be used with a new appliance.

Interior view of a multi-level kitchen appliance with green and blue plastic fixtures, no visible text or symbols on main components.

CANDY

Hand holding a candy tray inside a grocery store with glassware and a green pot (no visible text or symbols).

BENVENUTI

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present).

  1. CANDY CIMC E0W 3E53 - BENVENUTI - 2

2.

Technical diagram showing installation of a mechanical component with cross and check symbols, alongside a close-up view of a tool on a panel.

CANDY CIMC E0W 3E53 - BENVENUTI - 4

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols visible

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols)

BIENVENUE

5 Installation tools

Outils nécessaires1 2 3 PZ 2 PH 2 4 Torx T15 6 9 mm 7 8 9 Ch 26 10 11 12 13 Ø 2 mm Gloved

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked with an 'A' (no text or symbols present)

  1. CANDY CIMC E0W 3E53 - Installation tools - 3

2.

CANDY CIMC E0W 3E53 - 2. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present)

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols)

WILLKOMMEN

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present)

  1. CANDY CIMC E0W 3E53 - WILLKOMMEN - 2

2.

7.9 Platteninstallation

3.

CANDY CIMC E0W 3E53 - 3. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.3 Adjusting the rear foot

2.

CANDY CIMC E0W 3E53 - 2. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy bar inside a grocery store aisle filled with green and black containers (no visible text or symbols on the product itself).

WELCOME

3.

Diagram illustrating a three-step folding or cutting process of a cabinet, with numbered steps and a schematic diagram below.

7.2 Height adjustment

2.

2. 3 D ! X = X

CANDY CIMC E0W 3E53 - Height adjustment - 2

Pure diagram of a device with two circular arrows pointing to a central rectangular block (no text or symbols).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present).

  1. CANDY CIMC E0W 3E53 - WELCOME - 2

7.2 Height adjustment

7.5 Tilt adjustment

Level the dishwasher with respect to the vertical and horizontal plane.

Technical line drawing of a cabinet with an electrical enclosure and cable, showing wiring and a magnified inset (no text or symbols).

2.

2. 3 D ! X = X

CANDY CIMC E0W 3E53 - 2. - 2

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

2.

CANDY CIMC E0W 3E53 - 2. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present)

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.5 Setting the tilt

2.

Transfer the measurement to the kitchen panel and determine the center;

X, 1, 11

3.

7.8 Preparing the panel

4.

2. 3 D ! X = X

CANDY CIMC E0W 3E53 - Preparing the panel - 2

Pure diagram of a device interior with two circular annotations pointing to the screen area (no text or symbols)

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols)

WELCOME

Dimensions in mm

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, with numbered steps and a 3D model of the cabinet.

2.

7.9 Panel installation

3.

CANDY CIMC E0W 3E53 - 3. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and stretching steps with numbered annotations.

7.2 Height adjustment

2.

7.8 Panel preparation

4.

7.9 Panel installation

3.

2. 3 D ! X = X

CANDY CIMC E0W 3E53 - 3. - 2

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present)

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

2.

CANDY CIMC E0W 3E53 - 2. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.2 Height adjustment

2.

2. 3 D X = X

CANDY CIMC E0W 3E53 - 2. - 2

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy plastic tray inside a grocery store (no visible text or symbols on the tray or background).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

⚠ CAUTION: The minimum height of the dishwasher is 818 mm; in this case, the distance between the kitchen door and the floor must be between 90 and 120 mm. If the dishwasher is raised (max. 898 mm), the distance between the door and the floor must increase proportionally up to a maximum of between 170 and 200 mm.

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

2.

Measure the kitchen panel and determine the center;

X, 1, 11

3.

Install the drilling template and follow the included instructions;

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows, including parts numbered 1, 2, 8, and 13.

7.8 Panel preparation

4.

Remove the template and install the accessories;

Diagram illustrating a battery circuit with warning sign, switch, and labeled components (F, D).

CANDY CIMC E0W 3E53 - Panel preparation - 2

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

⚠ WARNING: If you cannot secure the dishwasher laterally, use the supplied brackets and attach it to the worktop; be careful if the worktop material is not wood.

Technical diagram illustrating a five-step installation or assembly process for a cabinet or enclosure, with labeled steps 1 through 5.

CANDY

Hand holding a candy bar inside a grocery store aisle filled with green and black containers (no visible text or symbols on the product itself).

WELCOME

This installation manual is intended for kitchen manufacturers who will install these products. To ensure safety and achieve the best results, carefully read this manual, including the safety instructions, and keep it for future reference. Before proceeding with installation, note the serial number, as it may be needed in case of repairs. Check for transport damage and consult a technician if in doubt before use. Always keep all packaging materials out of reach of children.

i NOTE: The functions and images contained in this document are for reference only and may change without prior notice.

Index

1 Safety notices for installation p. 2-3 2 Where to install the dishwasher p. 3 3 Dimensions of the dishwasher p. 4-5 4 Video for detailed installation p. 6 5 Tools for installation p. 6 6 Installation dimensions p. 7 7 Installation instructions for the dishwasher p. 8–17 7.1 Mounting the anti-condensation strip 7.2 Adjusting the height 7.3 Adjusting the rear foot 7.4 Adjusting the height of the front feet 7.5 Adjusting the tilt 7.6 Inserting into the built-in kitchen element 7.7 Securing the front feet 7.8 Panel preparation 7.9 Panel installation 7.10 Securing the machine to the kitchen 8 Connection to water and electrical supply p. 18–19 8.1 Connection diagram 8.2 Safety devices 9 Information for the user p. 19 10 Removing the dishwasher p. 19

or by clicking on this

CANDY CIMC E0W 3E53 - Index - 1

2-3 h

5 Tools for installation

Required tools1 2 3 4 5 6 7 8 9 10 Ch26 PZ 2 PH 2 Torx T15 9 mm 11 12 13 Ø 2 mm Gloved

CANDY CIMC E0W 3E53 - Tools for installation - 2

CANDY CIMC E0W 3E53 - Tools for installation - 3

CANDY CIMC E0W 3E53 - Tools for installation - 4

Technical diagram showing a door mechanism and its circular cross-section with warning symbol (no text or labels).

⚠ WARNING: The minimum height of the dishwasher is 818 mm; in that case, the distance between the kitchen door and the floor must be between 90 and 120 mm. If the dishwasher is raised (max. 898 mm), the distance from the door to the floor must also increase proportionally, up to a maximum of 170 and 200 mm.

7 Installation instructions for the dishwasher

7.1 Installing the anti-condensation strip

  1. CANDY CIMC E0W 3E53 - Installing the anti-condensation strip - 1

7.7 Securing the front feet

After checking all measurements, permanently secure the front feet to prevent them from loosening over time. This operation can also be performed after installing the kitchen worktop.

stopice B 5

7 Installation instructions for the dishwasher

7.8 Preparing the worktop

1.

Measure the distance between the top edge of the adjacent doors and the dishwasher;

Technical diagram showing a cross-sectional view of a mechanical assembly with labeled dimensions and components.

2.

Transfer the measurement to the kitchen worktop and locate the center;

X 1 11

3.

Apply the drilling template and follow the provided instructions.

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows, including parts numbered 1, 2, 8, and 13.

7.8 Preparing the worktop

4.

⚠ WARNING: Make sure that the screw heads do not protrude from the back of the panel, especially if you are installing a handle.

Technical diagram showing installation of a mechanical component with cross and check marks, alongside a close-up view of a tool on a panel.

7 Installation instructions for the dishwasher

7.9 Panel installation

1.

Place the inserts on the dishwasher, making sure that the components are installed in the correct orientation with the arrow pointing upward;

G 2X ! GORE G KUK! GORE

2.

Attach the panel to the bottom of the dishwasher;

Technical diagram showing a door lock mechanism with labeled components and a close-up of the internal structure.

7.9 Panel installation

3.

Open the dishwasher door while holding the bottom of the kitchen panel, then unscrew the bottom screws;

5 × ✓

4.

Check that the panel is fully inserted (1); attach the kitchen panel to the dishwasher using the provided screws (2).

Technical diagram showing a hand using a screwdriver to install a panel, with labeled components and warning indicators.

7 Installation instructions for the dishwasher

CANDY CIMC E0W 3E53 - Installation instructions for the dishwasher - 1

⚠ WARNING: Now connect the dishwasher to the water supply and electrical mains, in accordance with the instructions in chapter 8.

7.10 Securing the machine for the kitchen

Instructions for securing the dishwasher laterally to adjacent kitchen elements.

1. ① ② 8 ! X ✓

2. 3 D ! X = X

⚠ WARNING: If it is not possible to secure the dishwasher laterally, use the supplied brackets and secure it to the worktop; pay attention if it is not made of wood.

Technical diagram illustrating five-step installation of a mechanical component with labeled parts and directional arrows indicating motion.

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols)

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A', no text or symbols beyond the label.

Isometric line drawing of a cabinet or enclosure with internal compartments and directional arrows indicating movement, no text or symbols.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and reassembly steps with numbered annotations.

7.5 Adjusting the feet

7 Installation instructions for the dishwasher

7.9 Installing the panel

7.9 Installing the panel

7 Installation instructions for the dishwasher

2. 3 D ! X = X

CANDY CIMC E0W 3E53 - Installation instructions for the dishwasher - 2

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present)

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols)

TABLE OF CONTENTS

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.5 Adjusting the tilt angle

7.7 Attaching the front legs

2.

7.8 Preparing the panel

4.

7.9 Installing the panel

3.

2. 3 D ! X = X

CANDY CIMC E0W 3E53 - 3. - 2

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols).

LAIPNI LÜGTI

or by clicking on this link

CANDY CIMC E0W 3E53 - LAIPNI LÜGTI - 1

2-3h

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, with numbered steps and a 3D model of the cabinet.

2.

7.9 Installing the panel

3.

CANDY CIMC E0W 3E53 - 3. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy bar inside a grocery store aisle filled with green and black containers (no visible text or symbols on the product itself)

WELCOME

3.

Diagram illustrating three-step folding or cutting process of a cabinet, with numbered steps and a 3D sketch below.

2.

7.8 Panel preparation

4.

CANDY CIMC E0W 3E53 - 4. - 1

Pure diagram of a device with two circular arrows pointing to a central rectangular block (no text or symbols)

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols)

WELCOME

or by clicking on the next

CANDY CIMC E0W 3E53 - WELCOME - 1

2-3h

5 Installation tools

Required tools1 2 3 PZ 2 PH 2 4 Torx T15 6 9 mm 7 8 9 Ch 26 10 11 12 13 Ø 2 mm Gloved

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

⚠ WARNING: The minimum height of the dishwasher is 818 mm; in that case, the distance between the kitchen door and the floor must be between 90 and 120 mm. If the dishwasher is raised (max. 898 mm), this distance must also be increased proportionally, up to a maximum of between 170 and 200 mm.

7 Dishwasher installation instructions

7.1 Installing the steam strip

3.

Diagram illustrating three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.2 Adjusting the height

7.3 Adjusting the rear foot

Adjust the height of the rear foot from the front of the machine according to the instructions.

foot UP DOWN

7 Installation instructions for the dishwasher

7.4 Adjusting the height of the front feet

Act directly on the front feet. If necessary, slightly lift the dishwasher.

feet 6 Ch 26 9

7.5 Adjusting the tilt

Align the dishwasher vertically and horizontally.

Technical line drawing of a cabinet with an electrical enclosure and cable, showing wiring and a magnified inset (no text or symbols)

7.6 Inserting into the built-in space

2.

7.8 Preparing the panel

4.

Remove the template and install the accessories.

Diagram illustrating a battery circuit transformation with warning symbol and labeled components including battery, switch, and screwdriver.

⚠️ CAUTION: Avoid having the screw heads protrude from the back of the panel when installing the handle.

Technical diagram showing a mechanical assembly with cross and check symbols, including a tool labeled '3' pointing to a component.

7 Dishwasher installation instructions

7.9 Panel installation

1.

Place the inserts on the dishwasher, making sure the components are installed in the correct direction, with the arrow pointing upwards;

G, 2X, !, UP, G, CLICK!, UP

2.

Attach the panel to the top of the dishwasher;

Technical diagram showing a door lock mechanism with labeled components and a close-up of the internal structure.

7.9 Panel installation

3.

Open the dishwasher door while holding the bottom of the kitchen panel, then unscrew the lower screws;

5, ×, ✓

4.

Check that the panel is fully inserted (1); attach the kitchen panel to the dishwasher using the provided screws (2).

Technical diagram showing a screwdriver installation with labeled components and warning indicators

7 Dishwasher installation instructions

1., 2., 3, D, X = X

CANDY CIMC E0W 3E53 - Dishwasher installation instructions - 2

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present)

⚠ WARNING: If you cannot secure the dishwasher laterally, use the provided brackets and attach it to the worktop; be careful if the worktop material is not wood.

Technical diagram illustrating five-step installation or assembly process for a cabinet or enclosure, with labeled steps and component views.

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols)

WELCOME

Dimensions in mm

Axonometric view

min. 555 820-900 600 A

A

Pure technical line drawing of a door or cabinet with a circular inset detail (no text or symbols).

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.2 Height adjustment

7.5 Angle adjustment

2.

7.9 Installation of the panel

1.

Mount the inserts on the dishwasher, and make sure that the components are installed in the correct direction with the arrow pointing upward;

G 2X ! UP G CLICK! UP

2.

7.9 Installation of the panel

3.

2. 3 D X = X

CANDY CIMC E0W 3E53 - 3. - 2

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating three-step folding or assembly process of a cabinet, showing cutting and reassembly steps with numbered annotations.

7.2 Height adjustment

Tilt the dishwasher by lifting the rear about 10 cm.

Line drawing of a refrigerator with directional arrows indicating motion, accompanied by a warning sign (no text or symbols on the diagram itself).

7.3 Rear foot adjustment

2.

7.9 Panel installation

3.

CANDY CIMC E0W 3E53 - 3. - 1

Diagram of a device with two circular annotations highlighting a central component (no text or symbols present)

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no text or symbols visible)

WELCOME

Dimensions in mm

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating three-step folding or assembly process of a cabinet, showing cutting and reassembly steps with numbered annotations.

7.2 Height adjustment

7.5 Angle adjustment

2.

CANDY CIMC E0W 3E53 - 2. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present)

CANDY

Hand holding a candy tray inside a grocery store with glassware and a green pot (no visible text or symbols).

WELCOME

Dimensions in mm

Axonometric view

min. 555 820-900 600 A

A

Pure technical line drawing of a door or cabinet with a circular inset detail (no text or symbols).

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.2 Height adjustment

7.5 Angle adjustment

2.

CANDY CIMC E0W 3E53 - 2. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

Hand holding a candy bar inside a grocery store aisle filled with green and black containers (no visible text or symbols on the product itself).

WELCOME!

3.

Diagram illustrating a three-step folding or cutting process of a cabinet, with numbered steps and a 3D sketch below.

2.

2. 3 D ! X = X

CANDY CIMC E0W 3E53 - WELCOME! - 3

Pure diagram of a device with two circular arrows pointing to a central rectangular block (no text or symbols).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.2 Height adjustment

7.5 Slope adjustment

2.

7.9 Panel mounting

3.

CANDY CIMC E0W 3E53 - 3. - 1

Diagram of a device with two circular annotations highlighting a central screen area (no text or symbols present).

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : CANDY

Model : CIMC E0W 3E53

Category : Dishwasher
