USER MANUAL GGS-E 12 Li Gardol

Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet. Danger! Read all safety regulations and instructions. Any errors made in following the safety regula- tions and instructions may result in an electric shock, fi re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use. Explanation of the warning signs on the ma- chine (Figure 10)

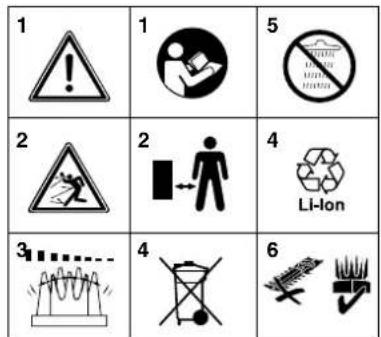

1. Important! Read the operating instructions

and follow the warnings and safety instruc- tions

2. Keep all other persons away from the danger

3. Caution! The cutter blades continue to run

after the motor is switched off . Wait for the blades to come to a standstill. Risk of injury!

4. Dispose of batteries correctly!

5. Protect the tool from the damp and never

6. Extension only with grass cutter blade! It

is prohibited to use the extension with the hedge cutter blade!

7. Guaranteed sound power level: 87 dB

2. Layout and items supplied

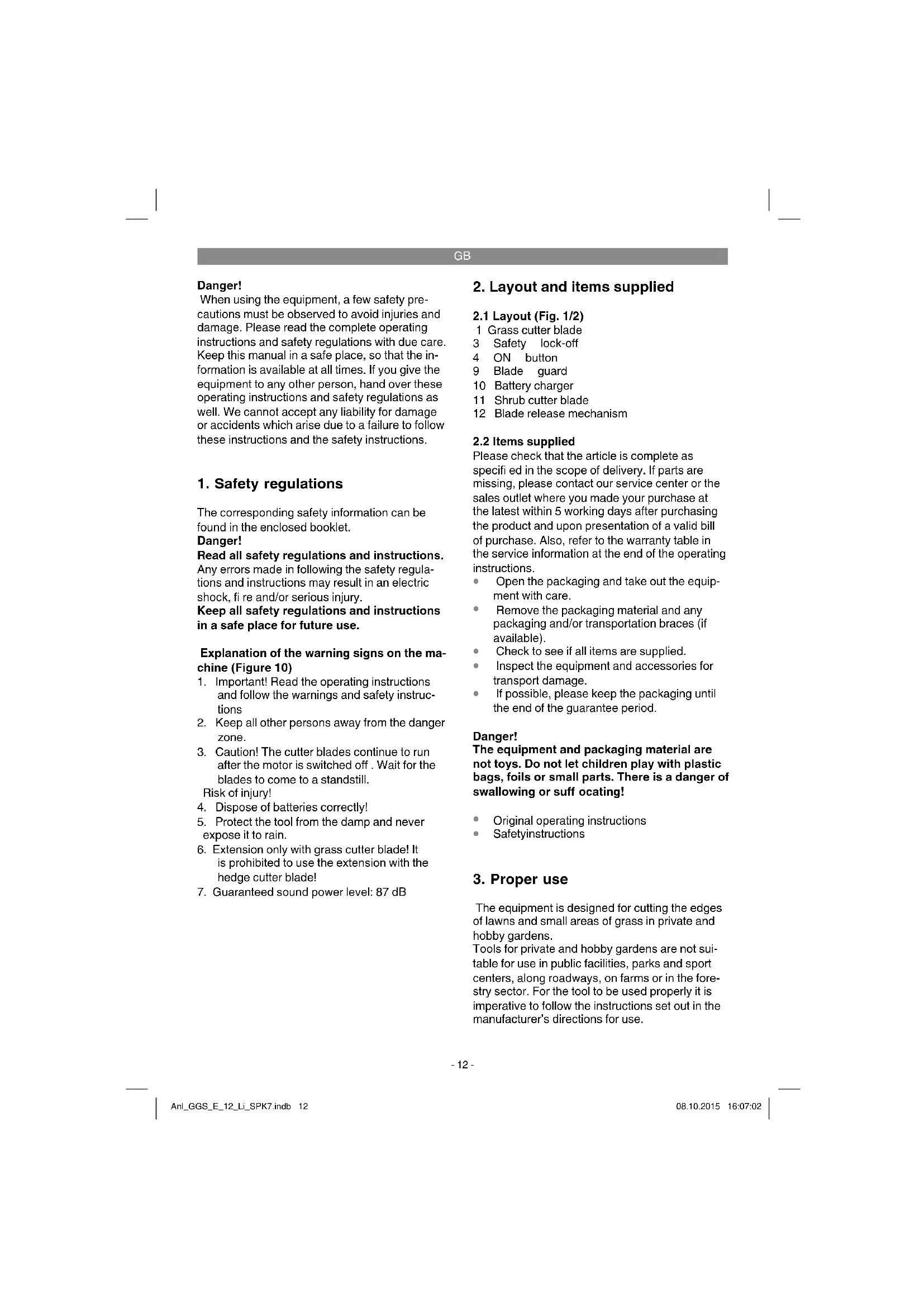

2.1 Layout (Fig. 1/2)

1 Grass cutter blade 3 Safety lock-off 4 ON button 9 Blade guard 10 Battery charger 11 Shrub cutter blade 12 Blade release mechanism

Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Danger! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

Original operating instructions

The equipment is designed for cutting the edges of lawns and small areas of grass in private and hobby gardens. Tools for private and hobby gardens are not sui- table for use in public facilities, parks and sport centers, along roadways, on farms or in the fore- stry sector. For the tool to be used properly it is imperative to follow the instructions set out in the manufacturer’s directions for use. Anl_GGS_E_12_Li_SPK7.indb 12Anl_GGS_E_12_Li_SPK7.indb 12 08.10.2015 16:07:0208.10.2015 16:07:02GB

Warning! It is prohibited to use the tool to chop material for composting because of the potential danger to persons and property. The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manu- facturer will be liable for any damage or injuries of any kind caused as a result of this. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

The vibration emission level has been measu- red in accordance with a set of standardized criteria and can be used to compare one po- wer tool with another.

The specified emission level can also be used to make an initial assessment of the ex- posure to vibrations.

The vibration emission level may vary from the level specified during actual use, depen- ding on the way in which the power tool is used.

Try to keep the impact from vibrations as low as possible. Exposure to vibrations can be re- duced by wearing gloves when using the tool, for example, and by limiting the amount of operating time. This includes the full cycle of operation (e.g. times when the power tool is switched off and times when the tool is swit- ched on but no working load is applied).

5. Before starting the equipment

5.1 Charging the battery pack (Figure 3, 4)

Connect the charger to the charging station (Figure 3).

Check that your mains voltage is the same as that marked on the rating plate of the bat- tery charger. Plug the battery charger in a socket-outlet. The red LED (Figure 4 / Item 1) comes on to indicate that charging voltage is available.

The battery pack is being charged. An empty battery pack requires a maximum charging period of 2 hours. The temperature of the bat- tery pack may rise slightly during the charging operation. This is normal.

As soon as battery pack is fully charged, the red LED (Fig. 4/Item 1) extinguishes If the rechargeable battery fails to charge, check whether there is voltage at the socket outlet. Timely recharging of the battery pack will help it serve you well for a long time. Recharging is always necessary when you notice a drop in the tool’s performance. Never allow the battery pack to become fully di- scharged. This will cause it to develop a defect. Anl_GGS_E_12_Li_SPK7.indb 13Anl_GGS_E_12_Li_SPK7.indb 13 08.10.2015 16:07:0208.10.2015 16:07:02GB

Warning! It is prohibited to remove or bridge any of the switching elements installed on the tool by the manufacturer (e.g. by securing a button to the handle) as this would prevent the tool from switching off automatically and result in high risk of injury. Under no circumstances are you to use the shrub cutter with the tele- scopic long handle fi tted.

The area to be cut must fi rst be cleared of stones and other solid objects. The safety lock-off (Fig. 1/ Item 3) prevents the tool being started unintenti- onally. Activate the safety lock-off (Figure 1 / Item

3) by pushing it forward and pressing the ON/

OFF switch (Figure 1 Item 4) at the same time. To switch off the tool, let go of the ON/OFF switch (Figure 1 / Item 4).

Allow the grass cutter to glide above the ground. The best results are achieved when the lawn is dry. When you notice a drop in cutting performance, re-charge the tool immediately so that the battery does not become fully discharged.

The tool can be used to trim small hedges and shrubs. Hold the tool slightly tilted in relation to the hedge you want to cut. First cut the sides from the bottom up, then cut the top. Watch out for foreign objects in or on the hedge which could damage the blades. When is the best time to trim hedges?

As a general rule, hedges which lose their leaves in the autumn should be trimmed in June and October.

Hedges which do not lose their leaves should be cut in April and August.

6.3 Changing the blades

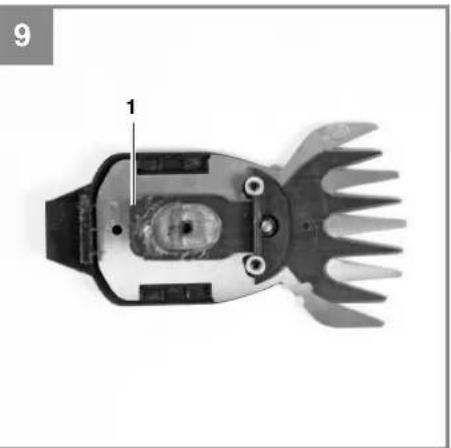

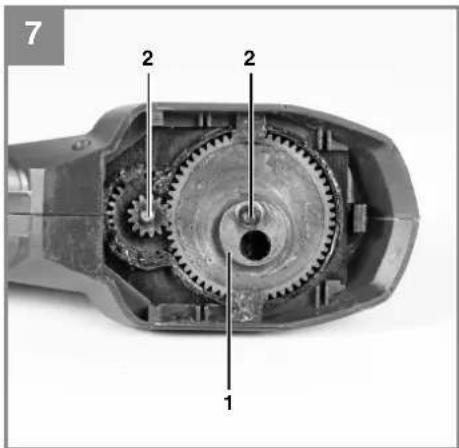

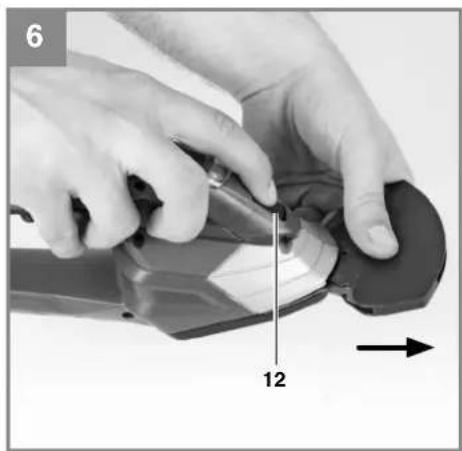

Warning! Risk of injury! To remove the blade, press the release mecha- nism (Fig. 1/Item 12) and take out the blade as shown in Fig. 6/Item 12. Once you have removed the blade you will be able to see the toothed wheels of the gear unit (Fig. 7). Make sure that no dirt gets into the gear unit when you change the blade. To assemble, proceed in the reverse order. Caution! The blade will fall out when the release mechanism is pressed (Fig. 1/Item 12)! When you fi t the hedge cutter blade check the position of the pin for the eccentric con- nector (Fig. 7/Item 1). Take the hedge cutter blade and slide the eccentric mount (Fig. 8/Item 1) into position so that the pin for the eccentric connector and the eccentric mount fi t together precisely when assembled. Slot the hedge cutter blade onto the guide pins (Fig. 7/Item 2). When you fi t the grass cutter blade check the position of the pin for the eccentric connector (Fig. 7/Item 1) again. Shift the eccentric mount (Fig. 9/Item 1) on the grass cutter blade to the left or the right to fi nd the position at which the pin for the eccentric connector (Fig. 7/Item 1) and the eccentric mount (Fig. 9/Item 1) match up.

7. Cleaning, maintenance and

ordering of spare parts

Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

We recommend that you clean the device immediately each time you have finished using it.

Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. En- sure that no water can seep into the device.

To ensure constant exact cutting it is also important to remove grass remnants and dirt from between the upper and lower blade. Caution! Never clean the tool under running water - and particularly never with high pressure - because of the potential danger to persons and property. Keep your cordless grass cutter and hedge trimmer in a dry and frost- proof place. Choose a place that children are unable to enter.

To achieve good results you should keep the blades sharp at all times. In particular we re- commend that you immediately level off any jags or ridges caused by stones or the like. The tool should be thoroughly cleaned both before and after use.

There are no parts inside the equipment which require additional maintenance.

7.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Article number of the machine

Identification number of the machine

Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

8. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system. The unit and its accessories are made of various types of material, such as metal and plastic. De- fective components must be disposed of as spe- cial waste. Ask your dealer or your local council. Anl_GGS_E_12_Li_SPK7.indb 15Anl_GGS_E_12_Li_SPK7.indb 15 08.10.2015 16:07:0308.10.2015 16:07:03GB

For EU countries only Never place any electric power tools in your household refuse. To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot. Recycling alternative to the return request: As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any ac- cessories or aids without electrical components supplied with the old equipment. This consignment contains lithium-ion batteries. In accordance with special provision 188 this consignment is not subject to the ADR regulations. Handle with care. Danger of ignition in case of damage to the consignment package. If the consignment packa- ge is damaged: Check and if necessary repackage. For further information contact: 0049 1807 10 20 20 66 (fi xed network 14 ct/min, mobile phone max. 42 ct/min) Outside Germany charges will apply instead for a regular call to a landline number in Germany. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH. Subject to technical changes Anl_GGS_E_12_Li_SPK7.indb 16Anl_GGS_E_12_Li_SPK7.indb 16 08.10.2015 16:07:0308.10.2015 16:07:03GB

Service information We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* Carbon brushes, Battery Consumables* Blade Missing parts

• Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Ple- ase ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

Warranty certifi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the fol- lowing terms under which guarantee claims can be made:

1. These warranty terms regulate additional warranty services, which the manufacturer mentioned

below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not aff ected by this guarantee. Our guarantee is free of charge to you.

2. The warranty services cover only defects due to material or manufacturing faults on a product which

you have bought from the manufacturer mentioned below and are limited to either the rectifi cation of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applica- tions. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex- posing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for ex- ample by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

4. The guarantee is valid for a period of 60 months starting from the purchase date of the device. Gu-

arantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fi tted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fi tted. This also applies if an on-site service is used.

5. Please report the defective device on the following internet address to register your guarantee claim:

www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device. Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions. Anl_GGS_E_12_Li_SPK7.indb 18Anl_GGS_E_12_Li_SPK7.indb 18 08.10.2015 16:07:0308.10.2015 16:07:03FR
