PFS 920 Niro - Slicer Prowork - Free user manual and instructions

Product Type	Tile Cutting Machine
Brand	Prowork
Model	PFS 920 Niro
Motor Power	900 W (S2 10 min)
Rotation Speed	2950 min⁻¹
Supply Voltage	230 V ~ 50 Hz
Insulation Class	B
Protection Rating	IP20
Maximum Cutting Height	41 mm
Cutting Table Dimensions	500 x 400 mm
Table Material	Stainless Steel
Cutting Wheel	Diamond, ∅ 200 mm, bore ∅ 25.4 mm, width 1.8 mm
Cutting Length	Unlimited
Jolly Cutting Length	Unlimited
Miter Cut	Up to 45°
Cooling	By water (removable tank)
Sound Pressure Level (under load)	92.0 dB(A)
Sound Power Level (under load)	100.2 dB(A)
Warranty	2 years
Intended Use	Cutting tiles, ceramics (DIY, crafts)
Required Safety Equipment	Goggles, ear protection, gloves
Maintenance	Clean with compressed air or cloth; avoid caustic products

Frequently Asked Questions - PFS 920 Niro Prowork

How to change the cutting wheel of the PFS 920 Niro?

To change the wheel, first unplug the machine. Remove the water tank, then the side cover (17) by loosening the nuts (21). Lock the motor shaft with a 4 mm hex key. Unscrew the lock nut (22) using a 19 mm open-end wrench. Replace the worn wheel with a new identical one (∅ 200 mm, bore ∅ 25.4 mm, width 1.8 mm). Reassemble the parts in reverse order.

How to adjust the parallel stop for a straight cut?

Set the desired cutting width using the parallel stop (2), then lock it with the thumbscrews. Ensure the water level covers the diamond part of the wheel before cutting.

How to make a 45° miter cut (Jolly)?

Tilt the cutting table to 45° and lock it with the thumbscrews. Place the cutting guide about 2 mm from the wheel. Position the glazed side of the tile on the work surface to prevent the wheel from touching the glaze. The right hand holds the piece against the wheel, the left hand slowly advances it.

What is the motor power of the PFS 920 Niro?

The motor power is 900 W in S2 mode (10 minutes continuous operation). The rotation speed is 2950 min⁻¹.

What types of tiles can I cut with this machine?

The machine is designed to cut ceramic tiles and similar materials of medium size. Cutting wood or metal is not permitted.

How to fill the water tank for cooling?

Fill the water tank directly (Fig. 1) until the level covers the diamond part of the wheel. Check the level before each cut and during the process.

What protective equipment must I wear when using the machine?

Always wear safety goggles, ear protection (earmuffs) and protective gloves.

What is the rotation speed of the wheel?

The motor rotation speed is 2950 min⁻¹. This corresponds to the wheel speed.

How to clean the machine after use?

Regularly clean dust and dirt with compressed air or a cloth. Do not use caustic products on plastic parts.

What to do if the cutting wheel is cracked or damaged?

Do not use a cracked wheel. Replace it immediately with a new one of the same dimensions (∅ 200 mm, bore ∅ 25.4 mm, width 1.8 mm). Segmented wheels are prohibited.

USER MANUAL PFS 920 Niro Prowork

Labeled diagram of a machine or electronic device with numbered components for identification

2 18 11 16 15

3D printer or scanner setup with a black tool and a scale indicator (no readable text or symbols)

Person using a 3D printer to cut or print on a flat surface, no visible text or symbols

Person operating a mechanical device with a flat panel and clamped components (no visible text or symbols)

2

Augenschutz tragen

Gehörschutz tragen

1. Miter stop
2. Parallel stop
3. Wheel guard
4. Table
5. Water trough
6. Housing
7. Thumb screw
8. Scale for miter cuts
9. Knurled screw
11. Holder for splitter
12. ON/OFF switch
13. Switch housing
14. Power cable
15. Diamond cutting wheel
16. Outer flange
17. Side cover
18. Nut
19. Splitter

2. Technical data

Motor rating: 900 W S2 10 min

Motor speed: 2950 rpm

AC motor: 230 V \~ 50 Hz

Insulation class: Class B

Protection type: IP 20

Length of cut: unlimited

Length of jolly: unlimited

Cutting height: 41 mm

Cutting table:

- Dimensions 500 x 400 mm

- Material: Inox steel

Diamond cutting wheel ∅ 200 x 25.4

Noise emission values

- The noise produced by this tile cutting machine is measured in accordance with DIN EN ISO 3744; 11/95, DIN EN ISO 11201: 1996-07 ISO 7960 Annex A; 2/95. The level of noise at the workplace may exceed 85 dB(A). In this case it is essential to take suitable precautions to protect the user's hearing (wear ear muffs!).

Working mode Idle

Sound pressure level LPA 92,0 dB(A) 66,1 dB(A)

Sound power level LWA 100,2 dB(A) 79,1 dB(A)

3. Important notes

Please read this operating manual carefully and follow the instructions. Use the manual to familiarize yourself with the machine, its proper use and safety instructions.

Important!

For safety reasons it is prohibited for children, young people under the age of 16 years and all persons who have not read and understood the operating instructions to use the tile cutting machine.

● Portable tile cutting machine for medium tiles
● Cutting performed by a diamond cutting wheel.
● Jolly cuts with tilting work top up to 45 degrees.
● Cutting wheel cooled with water.
● Straight fence and mitre fence.
● Removable trough as cooling water container. (To remove: Pull out the trough as far as the stop and then lift slightly to remove completely.)

4. Intended use

The tile cutting machine is designed to perform cutting jobs on small and medium tiles (floor and wall tiles made of ceramic and similar material) which suit the machine's size. It is intended in particular for use by DIY enthusiasts and craftsmen. The cutting of wood and metal is prohibited. The machine is to be used solely for its intended purpose. Any use other than its intended use is a case of mis-use. The user/operator and not the manufacturer shall be liable for any damage or injury resulting from cases of mis-use. Only those cutting wheels suitable for the machine are to be used. The use of saw blades is prohibited. For the machine to be used as intended it is also imperative to observe the safety instructions, the assembly instructions and the operating

instructions set out in this manual. All persons entrusted with operating and servicing the machine must be acquainted with the manual and must be informed about the machine's potential hazards. It is also imperative to pay exact attention to the accident prevention regulations in force in your country and to observe the general rules of occupational medicine and safety. The manufacturer can accept no liability whatsoever for damages resulting from any modifications to the machine. Even when the machine is used as intended, certain residual risk factors cannot be ruled out completely. The following hazards may arise in connection with the machine's design and construction:

● Touching of the diamond cutting wheel in the uncovered zone.
● Reaching into the area of the diamond cutting wheel when it is running.
● Catapulting of a faulty diamond tip off the cutting wheel.
● Kicking of workpieces and workpiece parts during incorrect operation.
● Damage to hearing if ear muffs are not worn.

5. Safety instructions

• Set up the machine on level, non-slip ground. The machine should not wobble.
  ● Make sure that the voltage on the rating plate is the same as your supply system. Only then are you to insert the power plug in the mains socket-outlet.
  ● Put on safety goggles.
• Put on ear muffs.
  ● Put on safety gloves.
  ● Never use cracked diamond cutting wheels but replace immediately.
  ● Never use segment-type cutting wheels.
  ● Caution: The cutting wheel continues to rotate after switching off!
• Do not slow down the cutting wheel by applying pressure to its side.
  ● Caution: The diamond cutting wheel has to run in the water bath!
  ● Pull out the power plug before you change the cutting wheel.
• Use only suitable diamond cutting wheels: 200 mm, bore 25.4 mm, width 1.8 mm. Caution: Note the width of the adjusting br
• Close the guard hood when you are finished with your work.
  ● Never leave the machine unattended in rooms with children.
• Keep the machine out of children's reach.
  ● Pull out the power plug before you check the electric motor compartment system.

6. Before starting

● The machine has to be set up where it stands firmly, i.e. on a workbench or bolted to a strong base frame.

● All the covers and safety devices have to be fitted properly before starting.

● The diamond cutting wheel has to be able to run freely.

● Before you press the ON/OFF switch, make sure that the diamond cutting wheel is fitted and that all moving parts run smoothly.

● Before you connect the machine to a socket-outlet, check that the data on the rating plate are the same as those of your power supply.

● Before you use the machine, check that all its parts are undamaged. Damaged parts have to be replaced. Read the instructions in this manual carefully when replacing parts or accessories.

● For optimum results and for maximum safety, keep the machine clean at all times.

- Check the power cable at regular intervals. - Keep an eye on wearing parts during use. Check the fasteners of any parts which become loose and check that accessories are fitted correctly.

- Important!

The tile cutting machine FSM 820 NIRO is designed to be used with water. Before every cut and while making every cut, make sure that the level of water covers the diamond part of the cutting wheel. Fill and top up the trough directly with cooling water (Fig. 1).

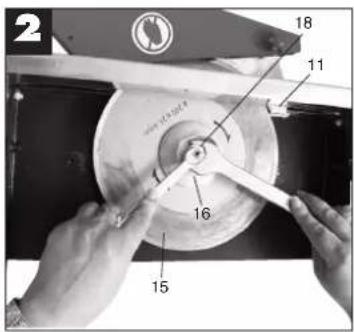

7.1. Changing the diamond cutting wheel (Fig. 2)

● To replace a worn wheel, proceed as follows: a.) Pull out the power plug.

b.) Take out the water trough.

c.) Remove the side cover (17) by undoing the nuts (21).

d.) Use the 4 mm Allen key to block the motor shaft.

e.) Use a 19 mm open-jaw wrench to unscrew (22) the lock nut from the wheel flange.

f.) After you have removed the wheel, clean the wheel flange thoroughly and lubricate the surface with filing oil.

g.) Take out the worn diamond cutting wheel and place a new wheel on the flange (14), mount the counterflange (16) and tighten with the nut (22).

h.) Refasten the side cover (17) with the nuts (21).

Caution! Make sure the diamond cutting wheel rotates in the right direction!

GB

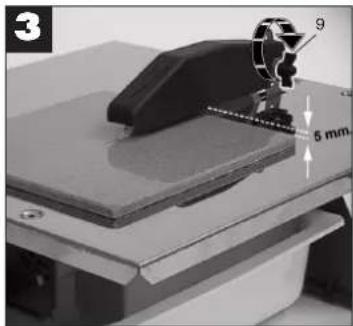

7.2. Adjusting the upper wheel guard (Fig. 3)

• Insert the adjusting bracket (23) in the splitter holder (11) from above through the table top an lock with the Allen screw.
• Position the wheel guard around 5 mm above the tile you want to cut. Lock the wheel guard in place with the screw marked in the drawing.
• Caution! The machine has a cutting wheel with an all-round cutting edge.

10. Ordering replacement parts

Please quote the following data when ordering replacement parts:

● Type of machine
● Article number of the machine
● Identification number of the machine
● Replacement part number of the part required

8. Operation

8.1 Plain cuts (Fig. 1/4)

• Set the cutting width the parallel stop (2) and lock with the thumb screws. The width of the piece you want to use can be read off the centimetre scales.

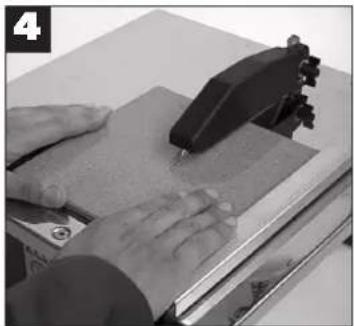

  ● Figure 4 shows the correct position of your hands when making plain cuts. Be sure to adapt the feed speed to the cutting capacity of the wheel. This will ensure that no material is catapulted off the tile, resulting in accidents or injuries.

Important! Always check the level of water.

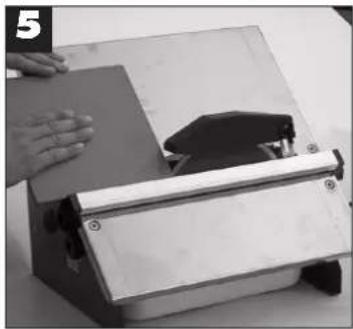

8.2 45° mitre cuts (jolly) (Fig. 5)

- Position the table as shown in the drawing and lock in place with the handles. Position the cutting guide around 2mm from the diamond cutting wheel and secure with the thumb screws. Place the tile, glazed side down, on the work top and make sure that the diamond wheel does not touch the glaze. If necessary, correct the position of the cutting guide.

- Figure 5 shows the correct position of your hands when making 45^ mitre cuts. Use your right hand to keep the tile in contact with the diamond wheel and your left hand to feed the tile. Be sure to adapt the feed speed to the cutting capacity of the wheel. This will ensure that no material is catapulted off the tile, resulting in accidents or injuries.

9. Maintenance

• Remove dust and dirt regularly from the machine. Cleaning is best done with compressed air or a rag.
  ● Never use caustic agents to clean plastic parts.

h) Fixe a tampa lateral (17) com as porcas (21)

The undersigned declares in the name of the company that the product is in compliance with the following guidelines and standards.

The image contains no text or characters.

97/23/EG

The image contains no text or characters. It is a blank rectangular box.

R&TTED 1999/5/EG

X

89/336/EWG

[NO TEXT]

2000/14/EG: L_WM dB(A); L_WA dB(A)

□

90/396/EWG

EN 55014-1; EN 61000-3-2; EN 55014-2; EN 61000-3-3; EN 61029-1; EN ISO 3744

Landau/lsar, den 25.05.2004

The product described in these instructions comes with a 2-year warranty covering deficits. This 2-year warranty period begins with the passing of risk or when the customer receives the product.

For warranty claims to be accepted, the product has to resolve the cancer maintenance and be put to the proper use as described in the operating instructions.

Your statutory rights of warranty are naturally unaffected during these 2 years.

This warranty applies in Germany, or in the respective country of the manufacturer's main regional sales partner, as a supplement to local regulations. Please note the details for contacting the customer service center responsible for your region or the service address listed below.
