SMJ 650 E - Drill Prowork - Free user manual and instructions

Product type	Hammer drill
Brand	Prowork
Model	SMJ 650 E
Supply voltage	230 V - 50 Hz
Power consumption	650 W
Drilling capacity - Concrete	13 mm
Drilling capacity - Steel	10 mm
Drilling capacity - Wood	20 mm
No-load speed	0 - 2600 min⁻¹
Drill chuck	Quick release, 2 to 13 mm
Auxiliary handle	Yes, with depth stop
Weight	1.8 kg
Sound pressure level	93.3 dB(A)
Sound power level	106.3 dB(A)
Vibration (handle)	14.9 m/s²
Rotation direction	Reversible (switch)
Hammer mode	Yes, switchable
Speed control	Electronic, variable
Continuous operation lock	Yes (lock button)
Recommended protection	Safety glasses and dust mask
Maintenance	Regular cleaning, check carbon brushes, keep ventilation slots clear
Warranty	2 years
Intended use	Drilling and screwdriving in wood, metal, concrete

Frequently Asked Questions - SMJ 650 E Prowork

How to adjust the rotation speed?

The speed is electronically adjustable by varying the pressure on the on/off switch. A knurled screw on the switch allows presetting the maximum speed.

How to use the hammer mode?

Turn the drilling/hammer switch to the 'hammer drilling' position. Only switch when stopped. This mode is suitable for drilling in concrete and masonry.

How to reverse the rotation direction?

Use the rotation direction switch located near the trigger. This allows screwing or unscrewing.

How to use the depth stop?

The depth stop is on the auxiliary handle. Adjust it to the desired depth by sliding and locking it.

Which drill bits can I use?

Use sharp drill bits with shank 2 to 13 mm. For wood up to 20 mm, steel up to 10 mm, concrete up to 13 mm with hammer drill bits.

How to clean the drill?

Keep the drill clean by wiping with a dry cloth. Do not use corrosive products. Keep the ventilation slots clear. Regularly check the carbon brushes.

What to do in case of excessive sparks?

Excessive sparking indicates that the carbon brushes need to be checked. Have them replaced by a specialist if necessary.

How to change the chuck?

The chuck is a quick-release chuck. To change it, loosen the internal screw (no details in the manual), remove the old one and screw on the new one. Consult a professional if needed.

What is the power and drilling capacity?

The drill has a power of 650 W. Drilling capacities: concrete 13 mm, steel 10 mm, wood 20 mm. Variable speed from 0 to 2600 min⁻¹.

What is the warranty of this device?

The warranty is 2 years from the date of purchase, subject to use in accordance with the instruction manual and proper maintenance.

USER MANUAL SMJ 650 E Prowork

White and black PROJIM WORK electric drill put tool (no visible text or symbols on body)

SMJ 650E

⑥ Bitte vor Montage und Inbetriebnahme die Betriebsanleitung aufmerksam lesen
Please read the operating instructions carefully before assembling and using
- Veuillez lire attentivement ce mode d'emploi avant de procéder au montage et à la mise en service
⑩ Gelieve vóór montage en ingebruik-neming de gebruik aanwijzing aan dachtig te lezen
① SI prega, prima di assemblare ed avvi- are il trapano, di leggere attentamente le istruzioni sul funzionamento
② Læs driftsvejledningen grundigt inden montage og idrifttagning
Przed montażem i uruchomieniem proszę uważnie przeczytać instrukcję obsługi
Внимание: Пожалуйста, перед проведением монтажа и началом эксплуатации ознакомьтесь с инструкцией по эксплуатации!
⑩ A összeszerelés és hasz nálatba vétel előtt kérjük a használati utasítást figyel mesen átolvasni.
Molimo da prije montaže i upotrebe pažljivo pročitate naputak za uporabu

© Bitte Seite 2 ausklappen
GB Please pull out page 2
© Veuillez ouvrir les page 2
NL Gelieve bladzijden 2 te ontvouven
① Aprire le pagine dalle 2
© Fold siderne 2 ud
PL Proszę rozłożyć stronę 2
Пожалуйста, откройте на странице 2
⑧ A 2 -es oldalat kérjük szétnyitni.
HR Molimo da raširite stranicu 2

© Selte 4 - 6
⑩ Page 7 - 9
⑤ Page 10 - 12
Blz. 13 - 15
① Pagina 16 - 18
⑩ Side 19 - 21
⑩ Pagina 22 -24
① Страница 25 - 27
Oldal 28 - 30
Stranice 31 - 33

PROWORK 1 2 3 4 5 6 7 8

3

D

Lieferumfang

SMJ 650 E

White PROWORK electric drill with labeled parts A and B (no additional text or symbols visible)

White electric drill bit with black handle and ventilation slots (no text or symbols visible)

Close-up of a white and black electric drill bit with ventilation slots (no visible text or symbols)

Scope of delivery package

SMJ 650 E,

Quick-change drill chuck 2 -13 mm,

Additional grip with bit stop

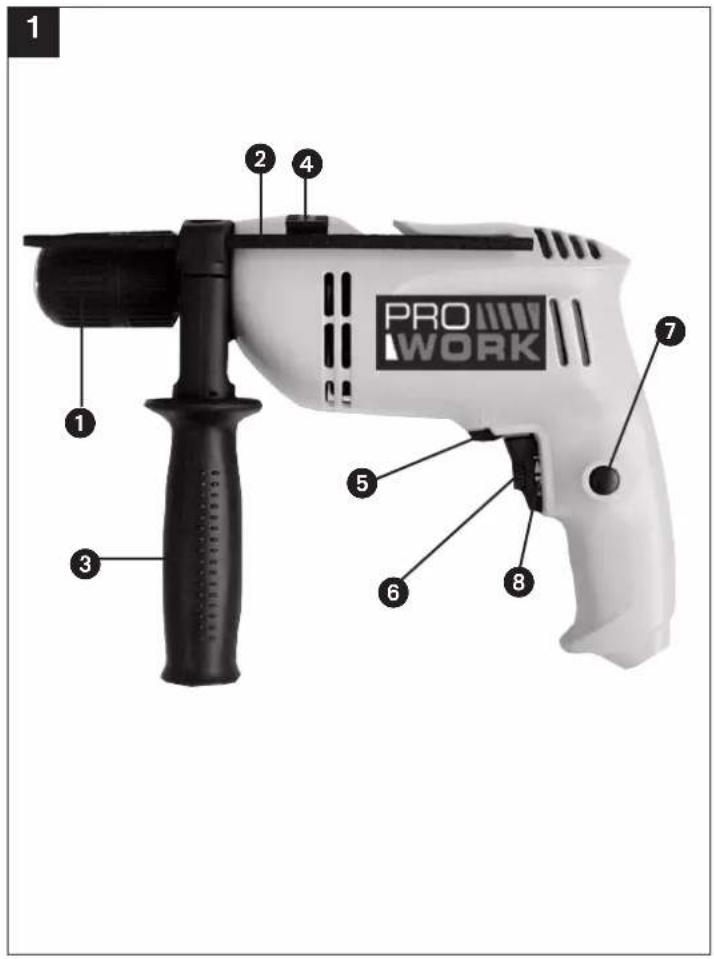

Description

1 Quick-change drill chuck
2 Depth stop
3 Additional handle
4 Selector button: drill/hammer
5 Selector button:
clockwise/anticlockwise
6 Speed control
7 Locking button
8 On/Off switch

Technical data

Voltage: 230 V \~ 50 Hz

Power rating: 650 W

Drilling capacity Concrete 13 mm

Steel 10 mm

Wood 20 mm

No Load Speed 0 - 2600 min

Number of blows 0 - 26.500 min

Safety insulated

Sound pressure

level LPA 93,3 dB(A)

Sound power

level LWA 106,3 dB(A)

Vibration a_w 14,9 m/s ^2

Weight 1,8 kg

Caution

● The SMJ 650 E is not designed for the operating of auxiliary devices.
● Do not use near steams or inflammable liquids.
- Only use sharp bits and suitable screwing bits.
- Remove the plug from the socket for all adjusting and cleaning work.
- Protect the mains cable against any damage. Oil and acids can damage the cable.
- Do not carry the device by the mains cable.

GB

• Do not remove the plug from the socket by pulling the mains cable.
  ● Make sure before inserting the plug that the operating switch is not locked.
• When using a cable drum uncoil the cable completely. Cross-section of wire at least 1.5 ~mm^2 .
• Do not overload machine.
• Secure all workpieces to be processed sufficiently.
• Do not allow children to have access.
  ● Make sure you have a secure stance on ladders or scaffolding when using the drill free-hand.
• Localise lines with a line detector in walls where power, water or gas lines are laid invisibly.
  ● Wear protection goggles and use a dust mask for dust-producing work.
  ● Always arrange for a qualified electrician to carry out repairs
  ● Use only original replacement parts

● The level of noise at the workplace may exceed 85 dB(A). In this case you will need to introduce noise protection measures for the user. The noise generated by this electric tool was measured in accordance with EN 50114-1.
● Vibration measured on the handle acc. to EN 50144-1.

Maintenance

● Always keep the drill clean.
- Do not use corroding agents for cleaning plastic.
- Check carbon brushes in the case of excessive sparking
- Keep ventilation channels free.

GB

White PRO WORK electric drill with labeled parts A and B (no additional text or symbols)

On/Off switch:
To switch on: Press switch A
Continuous operation: Lock switch A with locking button B
To switch off: Press switch A briefly
The speed is varied by applying more or less pressure on switch A. You can preselect the speed by turning the knurled screw in switch A.

Close-up of a white and black electric drill bit with no visible text or symbols

Rotary switch set for hammer mode. Wait for the drill to stop before changing!
Please note: This switch should be in 'drill' position when drilling holes in tiles.

Close-up of a white and black electric drill bit with no visible text or symbols

Rotary switch set for drilling mode. Wait for the drill to stop before changing!

F

percussion 0 - 26.500 min

A double isolation

White PROWORK electric drill with labeled parts A and B (no additional text or symbols visible)

White and black electric drill bit with no visible text or symbols

Close-up of a white electric drill bit with black adjustment knobs and a flat blade (no text or symbols visible)

White PROWORK electric drill with labeled parts A and B (no additional text or symbols)

Top-down view of a white and black electric drill bit with no visible text or symbols

Close-up of a white and black electric drill bit with no visible text or symbols

White PROWORK electric drill with labeled parts A and B (no additional text or symbols visible)

White and black electric drill bit with no visible text or symbols

White and black electric drill bit with blade and handle (no visible text or symbols)

White PRO WORK electric drill with labeled parts A and B (no additional text or symbols)

Stromafbryder:

Start: Tryk på albryderen A.

Kontinuerlig drift: Sikr albryderen A med låseknappen B

Stop: Tryk kort på afbryderen A.

Close-up of a white and black electric drill bit with no visible text or symbols

Close-up of a white and black electric shaver with ventilation slots (no text or symbols visible)

White and black electric drill bit with no visible text or symbols

White and black electric drill bit with blade and handle (no visible text or symbols)

White PRO WORK electric drill with labeled parts A and B (no additional text or symbols visible)

Close-up of a white electric drill bit with black handle and control knob (no visible text or symbols)

Close-up of a white and black handheld device with ventilation slots (no visible text or symbols)

White and black electric drill bit with control knobs and a flat blade (no text or symbols visible)

Pomična sklopka u položaju za bušenje s čekićem. Prekloplti samo dok je busilica isključena!

Close-up of a white and black handheld device with ventilation slots (no visible text or symbols)

Pomična sklopka u položaju za bušenje bez čakića. Preklopiti samo dok je bušilica isključenal

ISC GmbH

Eschenstraße 6

D-94405 Landau/Isar

Eschenstraße 6 - D-94405 Landau/Isar (Germany)

Info-Tel. [phone] • Telefax 0180-5 835 830

Technical changes subject to change

The product described in these instructions comes with a 2-year warranty covering defects. This 2-year warranty period begins with the passing of risk or when the customer receives the product.

For warranty claims to be accepted, the product has to receive the correct maintenance and be put to the proper use as described in the operating instructions.

Your statutory rights of warranty are naturally unaffected during these 2 years.

This warranty applies in Germany, or in the respective country of the manufacturer's main regional sales partner, as a supplement to local regulations. Please note the details for contacting the customer service center responsible for your region or the service address listed below.
