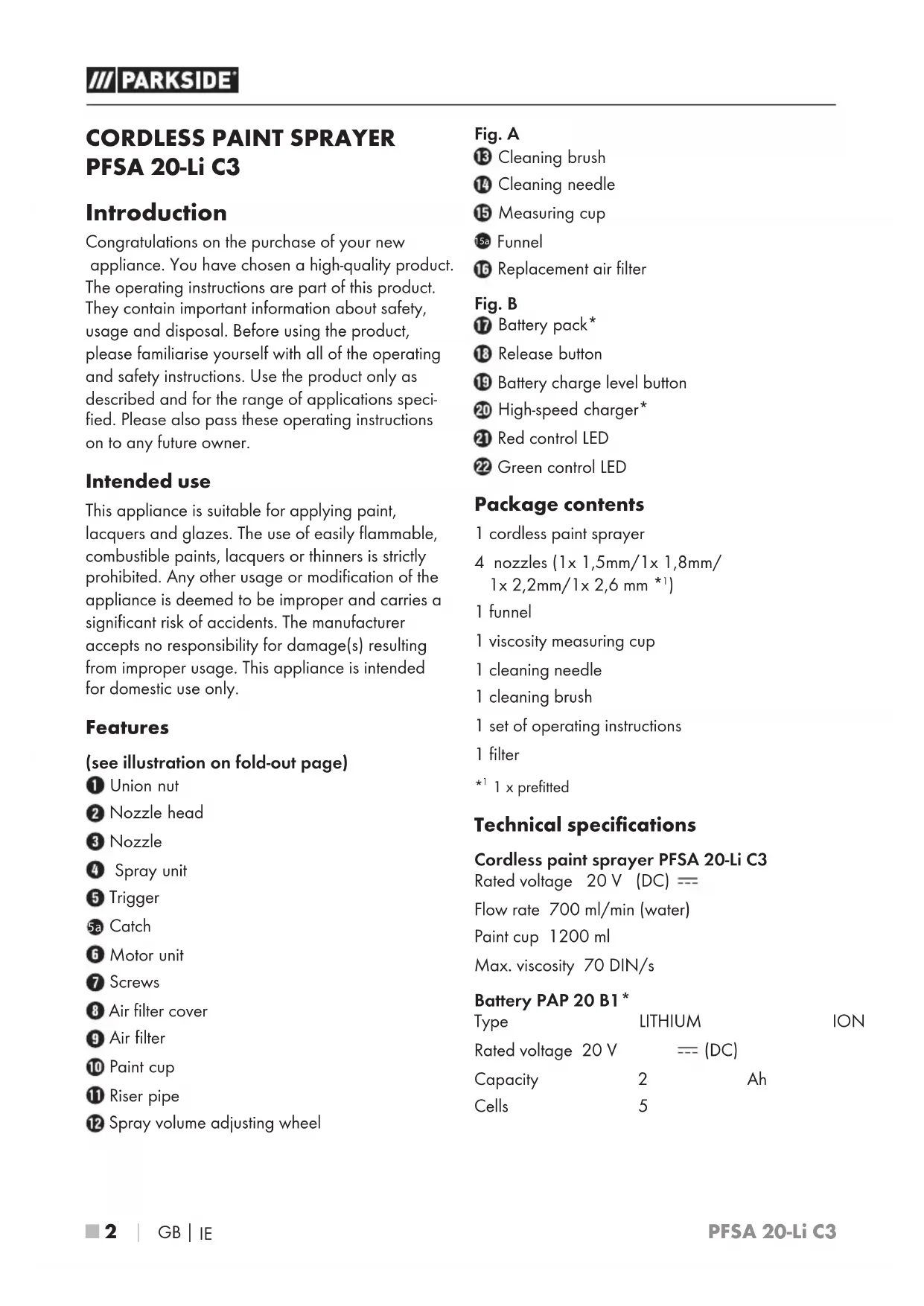

CORDLESS PAINT SPRAYER PFSA 20-Li C3

Introduction

Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This appliance is suitable for applying paint, lacquers and glazes. The use of easily flammable, combustible paints, lacquers or thinners is strictly prohibited. Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) resulting from improper usage. This appliance is intended for domestic use only.

Features

(see illustration on fold-out page)

① Union nut

② Nozzle head

3 Nozzle

4 Spray unit

5 Trigger

5a Catch

6 Motor unit

⑦ Screws

8 Air filter cover

9 Air filter

10 Paint cup

⑪ Riser pipe

12 Spray volume adjusting wheel

Fig. A

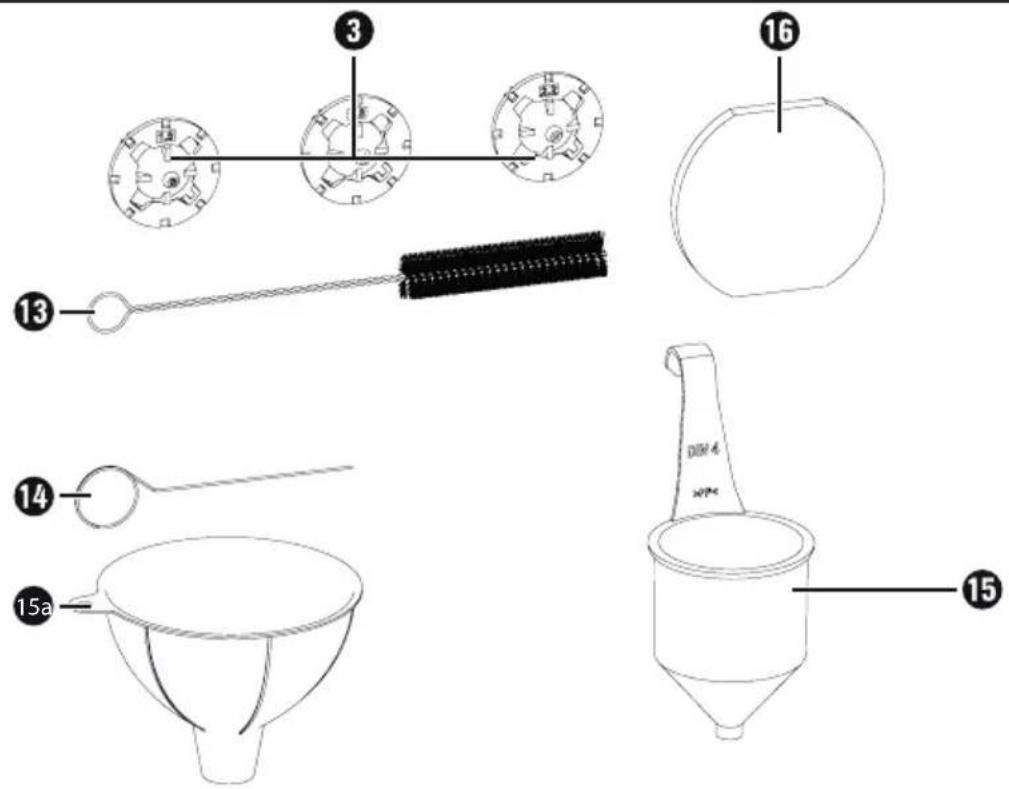

13 Cleaning brush

14 Cleaning needle

15 Measuring cup

15a Funnel

16 Replacement air filter

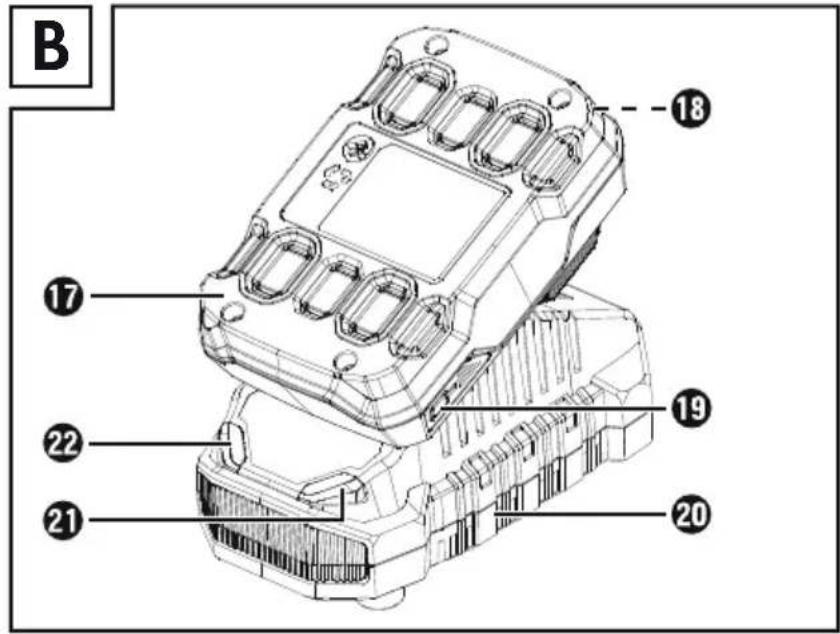

Fig. B

17 Battery pack*

18 Release button

19 Battery charge level button

20 High-speed charger*

21 Red control LED

22 Green control LED

Package contents

1 cordless paint sprayer

1 viscosity measuring cup

1 cleaning needle

1 cleaning brush

1 set of operating instructions

1 filter

*1 1 x prefitted

Technical specifications

Cordless paint sprayer PFSA 20-Li C3

Rated voltage 20 V (DC) ---

Flow rate 700 ml/min (water)

Paint cup 1200 ml

Max. viscosity 70 DIN/s

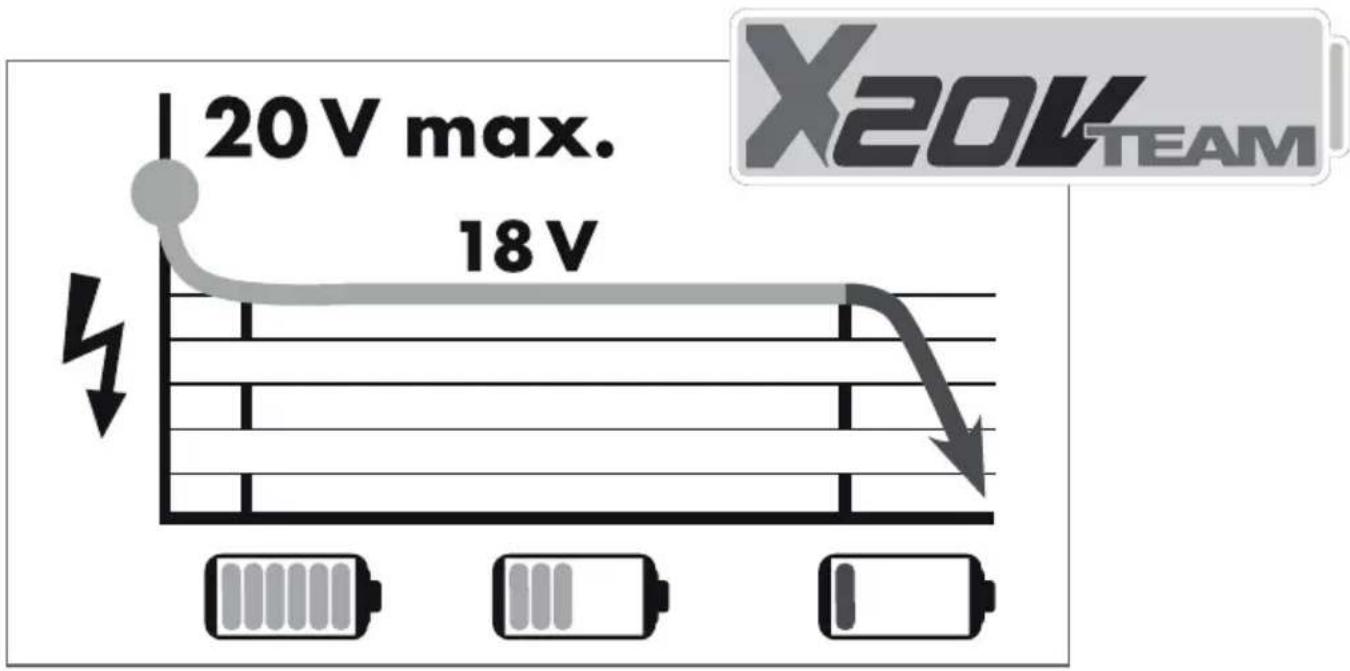

Battery PAP 20 B1*

Type LITHIUM ION

Rated voltage 20 V = (DC)

Capacity 2 Ah

Cells 5

High-speed battery charger PLG 20 C1\*

INPUT

Rated voltage 230-240 V\~, 50 Hz (AC)

Rated power

consumption

65 W

Fuse (internal) 3.15 A

OUTPUT

Rated voltage 21.5 V (DC) ---

Rated current 2.4 A

Charging time approx. 60 min

Protection class II / □(double insulation)

* BATTERY AND CHARGER ARE NOT INCLUDED

Noise and vibration data

Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the power tool is typically as follows:

Sound pressure level L _pA=72.1 dB(A)

Uncertainty K = 3 dB

Sound power level L _WA = 83.1 dB (A)

Uncertainty K = 3 dB

Wear ear muffs!

Total vibration value of the handle a_h < 2.5 m/s^2

Uncertainty K = 1.5 m/s ^2

Symbols on the appliance

Always wear safety goggles.

Always wear a mask.

NOTE

The vibration emission value given in these instructions has been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
The specified vibration emission value can also be used to make an initial exposure estimate.

WARNING!

The vibration emission value may differ from the stated value during actual use of the power tool, depending on of the manner in which the power tool is being used.
▶ Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General power tool safety warnings

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Use and handling of the cordless electrical power tool

a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.
c) When they are not being used, store rechargeable battery units away from paper-clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.
d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries.

Protect the rechargeable battery from heat (including continuous exposure to sunlight), fire, water and moisture. There is a risk of explosion.

6. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional safety instructions for paint spray guns

• Keep your work area clean, well lit and free of paint and solvents, cloths and other inflammable materials. Possible risk of spontaneous combustion. Have a fully functioning fire extinguisher available at all times.
  ■ Ensure adequate ventilation in the spray area and sufficient fresh air in the entire room. Evaporation of flammable solvents will cause an explosive environment.
  ■ Do not spray or clean with materials whose ignition point is lower than 21°C. Use water-based materials, non-volatile hydrocarbons or similar materials. The evaporation of volatile solvents will cause an explosive environment.
  Do not spray near ignition sources such as static electric sparks, open flames, ignition flames, hot items, motors, cigarettes or sparks caused by plugging in/unplugging power cables or by operating switches. These ignition sources could ignite a fire in the environment.
  ■ Do not spray any material if you do not know whether it is potentially dangerous. Unknown materials can cause hazardous conditions.
  ■ Wear additional personal protective equipment such as suitable gloves and a protective mask/respirator when spraying or when handling chemicals. Wearing appropriate protective equipment for the conditions reduces your exposure to dangerous substances.
  Be aware of the potential hazards of the sprayed material. Note the markings on the container and the manufacturer's information on the spray material you are using, including the instructions to use personal protective equipment. Follow the manufacturer's instructions to reduce the risk of fire and injuries caused by poisons, carcinogens, etc.

■ The spray gun must not be used for spraying flammable substances. Do not clean spray guns with flammable solvents.

WARNING!

▶ Pay attention to the dangers that can be caused by the sprayed substance and also observe the labels on the containers or the instructions given by the manufacturer of the substance.

Original accessories/auxiliary equipment

■ Only use the accessories and additional equipment that are specified in the operating instructions and are compatible with the appliance.

WARNING!

- Do not use any accessories that are not recommended by PARKSIDE. This can lead to electric shock and fire.

Safety guidelines for battery chargers

■ This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a plaything. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

■ To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person.

The charger is suitable for indoor use only.

ATTENTION!

This charger can only charge the following batteries: PAP 20 A1/PAP 20 A2/PAP 20 A3/PAP 20 B1/PAP 20 B3/PAPS 204 A1/PAPS 208 A1.

◆ A current list of battery compatibility can be found at www.Lidl.de/Akku.

Working procedures

Viscosity

This appliance can process spray materials up to max. 70 DIN/sec (viscosity). You can determine the viscosity (thickness) of the substance with the supplied measuring cup using a simplified measuring procedure.

◆ Fill the supplied measuring cup ^15 to the brim with the spray material.
◆ Remove the measuring cup ^15 from the spray material and allow the liquid to run out.
◆ Measure the time (in seconds) until the stream of liquid stops. This time is called "DIN seconds (DIN/sec)".
If the value is too high, gradually thin the spray material by adding small amounts of a suitable thinning agent and mixing the liquid.
◆ Measure the DIN seconds again. Repeat the process until you measure a viscosity of less than 70 DIN/sec.

NOTE

▶ Do not exceed the maximal viscosity of the appliance. The spray material must not be too thick. Otherwise, the appliance might clog.

NOTE

▶ Ensure that the spray material and thinning agent are compatible. Using an unsuitable thinning agent may cause clots that clog the appliance. Never mix synthetic resin varnishes with cellulose thinners.
To find out which thinning agent is suitable for your spray material (water, paint thinner), refer to the manufacturer's notes provided with the spray material.
▶ Granular products and products containing solids must not be sprayed. Their abrasive effect shortens the service life of the appliance.

Preparing the spray surface

◆ Cover the area around the spray area thoroughly and over a wide area. Any surface that is not masked could become contaminated.
◆ Make sure that the spray surface is clean, dry and free of grease.
◆ Polished surfaces should be lightly sanded and the sanding dust removed.

Before use

Charge battery pack (see fig. B)

CAUTION!

▶ Always unplug the appliance before you remove the battery pack ⑰ from or connect it to the charger.

NOTE

▶ Never charge the battery pack at an ambient temperature of below 10^ C or above 40^ C. If a lithium-ion battery is to be stored for an extended period, the charge level must be checked regularly. The optimum charge level is between 50% and 80%. The storage climate should be cool and dry and the ambient temperature should be between 0^ C and 50^ C.

◆ Insert the battery pack⑰ into the high-speed charger ⑳

◆ Insert the power plug into the socket. The red control LED 21 lights up to indicate that the appliance is charging.

The green LED ^2 indicates that the charging process is complete and the battery pack 17 is ready.

♦ Push the battery pack⑰ into the appliance.

Attaching/disconnecting the battery pack to/from the appliance

Attaching the battery pack

◆ Push the battery pack17 into the handle until it clicks into place.

Removing the battery pack

◆ Press the release button 18 and remove the battery pack 17

Checking the battery charge level

◆ Press the battery charge level button ^19 to check the charge level of the battery. The status is indicated in the adjacent battery display LED as follows:

RED/ORANGE/GREEN = maximum charge

RED/ORANGE = medium charge

RED = low charge - charge the battery

Setting up

Assembly/disassembly

◆ Move the ▶ mark on the spray unit ④ to the ⑦ mark on the motor unit ⑥. Now, turn the spray unit ④ until the ▶ mark on the spray unit ④ locks into the ⑦ mark on the motor unit ⑥

Release the catch5a. Turn the ▶ mark on the spray unit 4 to the 1 mark on the motor unit 6 to separate the two units.

Selecting/changing the nozzle

Nozzle Use
1.5 mm nozzle 3	Low viscosity
1.8 mm nozzle 3	Water-based paints
2.2 mm nozzle 3	High viscosity
2.6 mm nozzle 3	Oil-based paints

- Undo the union nu ^1 completely and remove it from the spray unit ^4 .

◆ Fit the desired nozzle onto the nozzle head ②

♦ Screw the union nu① back onto the spray unit④.

Filling with spray material

◆ Unscrew the paint cup 10 from the spray unit 4.

To work on a horizontal object, place the riser pipe ⑪ in front, facing the nozzle head ② To work overhead, place the riser pipe ① at the back, facing the motor unit ⑥

◆ Fill the paint cup⑩ with the spray material and screw it firmly onto the spray unit ④

Switching the appliance on/off

Working methods

◆ Hold the spray gun at a constant distance from the object. The ideal spraying distance is approx. 15 cm.

◆ Work out the best settings by carrying out a test.

Do not switch the appliance on/off over the spray surface. Rather, start/end the spraying process approx. 10 cm from the spray surface.

Switching on

◆ To switch on, pull the trigger⑤ and keep it pressed in.

Switching off

◆ To stop spraying, simply release the trigger ^5 .

Adjust spray pattern

Set the spray rate

◆ Turn the spray volume adjusting wheel ^12 to the desired position:

(-) = minimum spray rate

(+) = maximum spray rate

NOTE

▶ We recommend starting at the minimum setting.

Selecting a jet type

◆ Undo the union nu1.

♦ Turn the protruding parts of the nozzle head 2 so that they point to the desired symbol on the spray unit 4.

The appliance has the following settings:

- round jet

vertical flat jet

horizontal flat jet

◆ Re-tighten the union nu1.

Maintenance and cleaning

WARNING! RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance.

ATTENTION!

▶ Never immerse the paint spray gun completely in solvent.

NOTE

- Thorough cleaning after every use is very important for safety and operation. Otherwise, the needle could get blocked and proper operation of the appliance cannot be guaranteed.

■ Wear suitable gloves when cleaning.

■ After every use, squirt water through the appliance.

To clean the spray un 4, nozzle head 2 nozzles 3 and the spray holes inside, use the supplied cleaning brush 13 cleaning needle 14 a cloth. Never use petrol, solvents or cleansers which can damage plastic.

◆ Store the device only in dry interior rooms.

Cleaning/replacing the air filter

Check the air filter regularly ⑨ otherwise malfunctions may occur.

◆ Remove the screw⑦ from the air filter cover⑧.
◆ Remove the air filter cover 8.
◆ Remove the air filter ^9 and examine it for contamination.
If necessary, shake out the air filter ^9 and clean it under running water. Leave the air filter ^9 to dry.

NOTE

▶ If necessary, replace the air filter ^9 with the replacement air filter ^16

◆ Proceed in reverse order in order to reassemble the appliance.

Disposal

Applies only to France

The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Do not dispose of power tools in your normal domestic waste!

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Do not dispose of batteries in your normal household waste!

Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Batteries/rechargeable batteries must be treated as hazardous waste and must therefore be disposed of in an environmentally sound manner by appropriate bodies (dealers, specialist dealers, public municipal bodies, commercial disposal companies). Batteries/rechargeable batteries may contain toxic heavy metals.

For this reason, do not dispose of batteries/rechargeable batteries in domestic waste. Take them to a specialist collection point. Only return batteries that are fully discharged.

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

Environmental compatibility and material disposal

■ Paints and lacquers... are considered hazardous waste and must be disposed of accordingly.
■ Observe the local regulations.
- Observe the manufacturer's instructions.
■ Environmentally harmful chemicals must not be allowed to get into the ground, groundwater or any body of water.
■ Spraying work next to bodies of water or adjoining surfaces thereof (catchment area) is therefore not permitted.
■ When buying paints, lacquers... pay attention to their environmental compatibility.

KompernassHandelsGmbH warranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If included with the product on delivery, the battery packs of the X12V and X20V Team series also come with a 3-year warranty from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).

This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not cover product parts that are subject to normal wear and tear and can therefore be considered wearing parts, such as saw blades, replacement blades, abrasive papers, etc. or for damage to fragile parts, such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

The warranty does not apply to

■ Normal reduction of the battery capacity over time
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions, operating errors
■ Damage caused by natural hazards

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 418086_2210 available as proof of purchase.
■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 418086_2210.

WARNING!

▶ Have the power tool repaired by the Service Centre or a qualified technician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.

NOTE

▶ Replacement parts not listed (such as the needle, nozzles, paint cup) can be ordered via our service hotline.

Service

GB Service Great Britain Tel.: [phone] E-Mail: [e-mail]

IE ServiceIreland Tel.: [phone] E-Mail: [e-mail] IAN 418086_2210

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Original Declaration of Conformity

We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive (2006/42/EC)

EMC (Electromagnetic Compatibility) (2014/30/EU)

RoHS Directive (2011/65/EU)*

* The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards

EN 60745-1:2009/A11:2010

EN 50580:2012/A1:2013

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 63000:2018

Type designation of machine: Cordless paint sprayer PFSA 20-Li C3

Year of manufacture: 03-2023

Serial number: IAN 418086_2210

Bochum, 19/12/2022

CE

Semi Uguzlu

- Quality Manager -

We reserve the right to make technical changes in the sense of further product development.

Ordering a replacement battery and charger

You can easily order a replacement battery or charger on the Internet at www.kompernass.com.

Black XECAM battery with visible model number and branding (no text or symbols on body)

Black and white photo of a battery pack (no visible text or symbols)

X20V 4 Ah

X20V 2 Ah

PDSLG 20 A1

◆ Scan the QR code with your smartphone/tablet.

You can use this QR code to go directly to our website to view and order the available replacement parts.

NOTE

If you have problems with your online order, you can contact our service centre by phone or email.
▶ Always quote the article number (IAN) 418086_2210 in your order.
▶ Please note that online ordering of replacement parts is not possible for all countries.

Inhaltsverzeichnis

Einleitung 16

Montage/Demontage 22

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Black industrial battery with visible model number Xew (no text or symbols on body)

Black and white photo of a black Xbox 3.0L battery (no visible text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Directive relative aux machines (2006/42/CE)

Directive RoHS (2011/65/EU)*

Semi Uguzlu

Black industrial battery with visible model number Xew (no text or symbols on body)

Black and white photo of a black Xbox 3.0L battery (no visible text or symbols)

21 Rode controle-LED

22 Groene controle-LED

$$ L _ {W A} = 8 3, 1 \mathrm{dB(A)} $$

Onzekerheid

$$ K = 3 \mathrm{dB} $$

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Semi Uguzlu

Black Xeon 3.0D printer with visible model number and control panel (no text or symbols on body)

Black hard drives battery with visible model number Xenon (no text or symbols on body)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Semi Uguzlu

- manažer kvality -

Black Xeon 3.0D printer with visible model number and control panel (no text or symbols on body)

Black and white photo of a black cylindrical battery with a visible internal component (no text or symbols)

Akumulator: PAP 20 B1\*

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Semi Uguzlu

Black Xeon 3.0D printer with visible model number and control panel (no text or symbols on body)

Black and white photo of a black cylindrical battery with a visible internal component (no text or symbols)

$$ L _ {W A} = 8 3, 1 \mathrm{dB(A)} $$

Neurčitosť K = 3 dB

Noste ochranu sluchu!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Black industrial battery with visible model number Xew (no text or symbols on body)

Black and white photo of a black Xbox 3.0E-12 powertrain (no visible text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Black Xerom industrial battery with visible branding (no text or symbols on body)

Black cylindrical battery with visible internal components and a logo (no readable text or symbols)

16 Reserveluftfilter

Fig. B

17 Genopladelig batteripakke*

$$ L _ {W A} = 8 3, 1 \mathrm{dB(A)} $$

Usikkerhed

$$ K = 3 \mathrm{dB} $$

Bær høreværn!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Black XECAM battery with visible model number and branding (no text or symbols on body)

Black and white photo of a battery pack (no visible text or symbols)

X20V 4 Ah

X20V 2 Ah

PDSLG 20 A1

◆ Scan QR-koden med din smartphone/tablet.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Black industrial battery with visible model number Xew (no text or symbols on body)

Black and white photo of a black Xbox 3.0E-12 powertrain (no visible text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

Semi Uguzlu

Black Xbox 3.0D printer with visible model number and branding (no text or symbols on body)

Black Xbox 3.0L battery with visible model and branding (no text or symbols on body)

Akumulator: PAP 20 B1\*

Tip		LITIJ-IONSKI
Nazivna napetost	20 V	== (enosmerni tok)
Kapaciteta		2	Ah
Celic	5

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMČIJA

www.kompernass.com

Pooblaščeni serviser

SI ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN 418086_2210

OPOZORILO!

▶ Naprave dajte v popravilo samo servisni službi ali strokovnjaku, ki naj uporablja le originalne nadomestne dele. S tem zagotovite, da se ohrani varnost naprave.

OPOMBA

Semi Uguzlu

- vodja kakovosti -

Black XECAM battery with visible model number and branding (no text or symbols on body)

Black and white photo of a battery pack (no visible text or symbols)

X20V 4 Ah

X20V 2 Ah

PDSLG 20 A1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NJEMAČKA

www.kompernass.com

Black industrial battery casing with visible branding (no readable text or symbols)

Black and white photo of a battery pack (no visible text or symbols)

♦ Skenirajte QR kôd pomoću pametnog telefona / tableta.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Semi Uguzlu

- Manager calitate -

Black Xeon 3.000 hp battery with visible model number and branding (no text or symbols on body)

Black and white photo of a black Xbox 3.0L battery (no visible text or symbols)

♦ Scanati codul QR cu smartphone-ul/tableta.

CE

Семи Угузлу

Black industrial battery pack with visible brand mark and model number (no text or symbols on body)

Black and white photo of a 50-wheeled battery (no visible text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ГЕРMANIA

www.kompernass.com

Semi Uguzlu

Black Xeon 3.0D printer with visible model number and control panel (no text or symbols on body)

Black Xbox 3.0L battery with visible model and branding (no text or symbols on body)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie · Stav informaci Stan informacji · Stav informácií · Estado de las informaciones · Tilstand af information · Versione delle informazioni Információk állása · Stanje informacij · Stanje informacija · Versiunea informațiilor · Актуалност на информацията 'Ekdoση των πληροφοριών: 02/2023 · Ident.-No.: PFSA20-LiC3-122022-1
