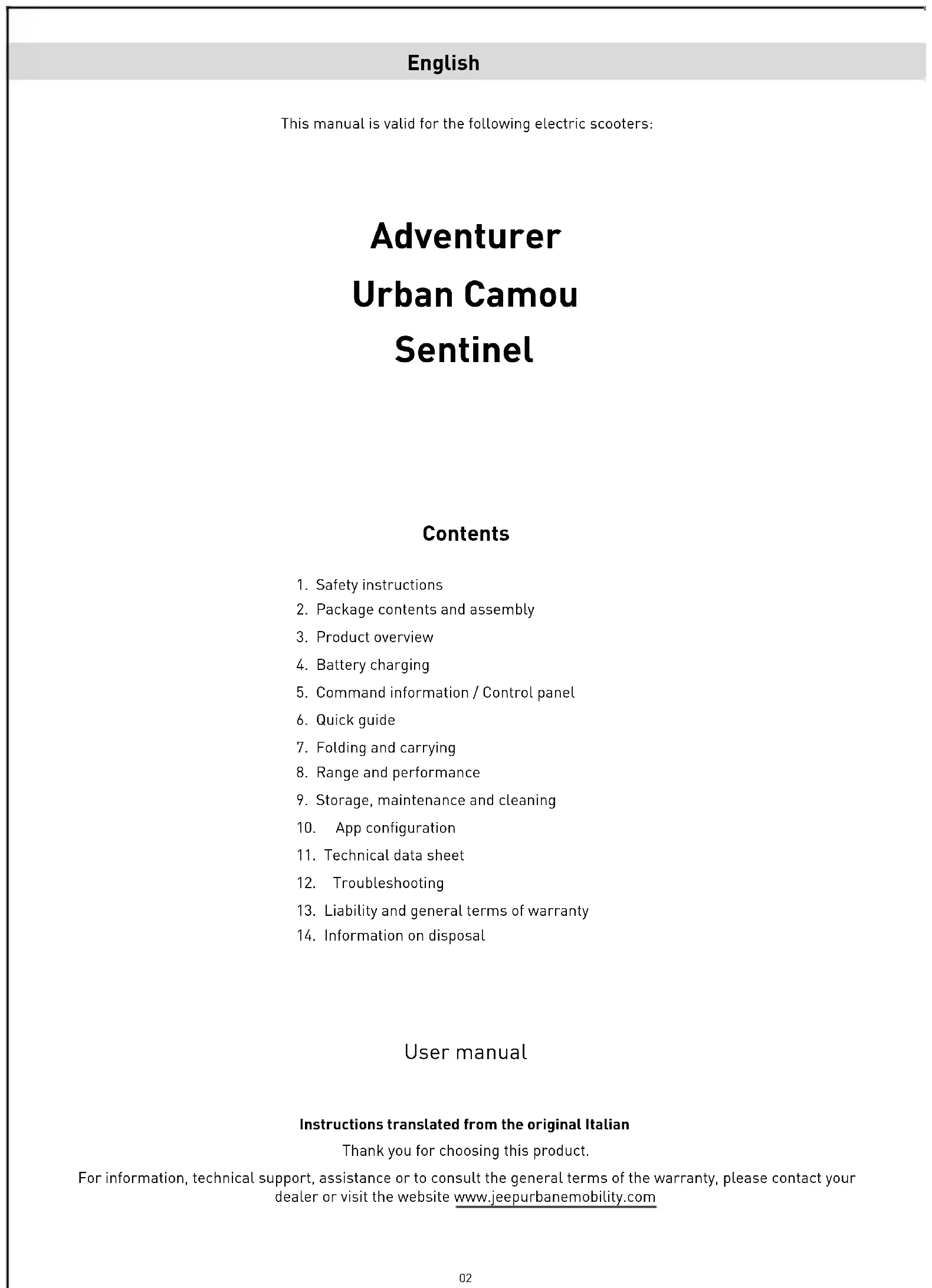

English
This manual is valid for the following electric scooters:
Adventurer Urban Camou Sentinel
Contents
- Safety instructions
- Package contents and assembly
- Product overview
- Battery charging
- Command information / Control panel
- Quick guide
- Folding and carrying
- Range and performance
- Storage, maintenance and cleaning
- App configuration
- Technical data sheet
- Troubleshooting
- Liability and general terms of warranty
- Information on disposal
User manual
Instructions translated from the original Italian
Thank you for choosing this product.
For information, technical support, assistance or to consult the general terms of the warranty, please contact your dealer or visit the website www.jeepurbanemobility.com
1. Safety instructions
IMPORTANT! Read and follow the instructions carefully before using the item. Keep this manual for future reference or new users.
Take the time to learn the basics of the procedure to avoid severe accidents that may occur in the first few months. Contact your dealer for the proper support on how to use the item correctly or to be directed to an appropriate training organisation.
The company assumes no direct or indirect responsibility arising from misuse of the item, non-compliance with both the highway code and the instructions in the manual, accidents or disputes caused by non-compliance or illegal activity.
This product is to be used for recreational purposes, by one person only and without passengers, therefore it cannot be used by more than one person at a time.
Do not modify the intended use of the vehicle in any way. The item is not suitable for stunts, competitions, transporting objects, towing other vehicles or trailers.
The electric scooter must be used carefully, always respecting the rules imposed by the Highway Code of the country where it is used, in order to avoid dangerous situations and to take the utmost care of yourself and others.
CAUTION
Illustrative vehicle design requirements:
| Electric scooter model | Jeep Urban Camou | Jeep Adventurer Jeep | Sentinel |
| Product code without indicators JE-MO-21 | 0002 JE-MO-210001 - | | |
| Product code with indicators included | JE-MO-210006JE-MO-220003 | JE-MO-210005JE-MO-220002 | JE-MO-210004JE-MO-220001 |
| MIN weight (Kg) 30 30 30 | | | |
| MAX weight (Kg) 100 100 100 | | | |
| *MIN age 14 14 14 | | | |
| *MAX age 65 65 65 | | | |
| MIN height (cm) 120 120 120 | | | |
| MAX height (cm) 200 200 200 | | | |
* Before using the product, check and follow local regulations regarding the minimum age of the rider, restrictions on the type of riders who can use the product and on the use of the product itself.
The A-weighted emission sound pressure level (noise) at the rider's ear is less than 70 dB(A).
Visual representation of safety warnings
The following visual symbols are used to identify safety messages in this manual. They draw the focus of attention of the reader/user to the proper, safe use of the item.
CAUTION
Pay attention
Highlights the rules to follow to prevent damage to the item and/or prevent hazardous situations from arising.
DANGER
Residual risks
Highlights the presence of hazards that generate residual risks to which the user must pay attention to avoid injury or material damage.
General warnings
CAUTION
It is important to bear in mind that when out in a public space or on the road, even when the instructions in the manual are observed down to the letter, the rider is not immune to injury caused by infractions or inappropriate actions taken towards other vehicles, obstacles or persons. Misuse of the item or non-compliance with the instructions provided in this manual may cause severe injury.
This product is an electric vehicle. The faster you ride, the longer the braking distance. Emergency braking on slippery, muddy, wet or icy roads may result in wheel spin and loss of balance. Adequate speeds and safety distances from other vehicles or pedestrians must be adhered to. Take extra care when riding on unfamiliar roads. Do not open the kickstand when using the item, risk of severe personal injury and damage to item.
CAUTION
On wet roads, the braking distance increases and the grip decreases compared to dry roads!
Drive more carefully, keep a safe distance!
For personal safety, wear a helmet, and knee and elbow pads to protect against falls and injuries while riding the item. When allowing others to use the item, ensure that the rider wears the safety equipment and explain the operation of the vehicle. To avoid injury, do not allow other persons to use the item if they do not know how to use it. Wear shoes before using the item.
Children must not play with the scooter or its parts, nor should they be allowed to clean it or perform maintenance operations.
When riding, take special care to not frighten children or pedestrians. When passing behind them, warn them by sounding the horn and slow down using the minimum speed of 6km/h.
Instructions and warnings on rider behaviour
| Conditions Appropriate | intended use Improper use | |
| Riders | One More than one person, with children or animals. |
| Safety equipment | Helmet, knee pads, elbow pads, reflective vest. No equipment. |
| Pre-riding check | Prior to each use, check brakes and any wear, check tyre pressure (see side of tyre for recommended value), wheel wear, throttle, indicators, lights and charge status of battery.If any unusual noises or faults are detected, do not use the item and contact your dealer or the Authorised Technical Support Department. | Never checking the item prior to use. |
| If any unusual noises or faults are detected, do not use the item and contact dealer or Technical Support Department. | Using the item when noise or faults are present. |
| Walking while pushing the item | Not accelerating. Pressing the throttle.Pushing while walking across pedestrian crossingsIn pedestrian areas when not in pedestrian mode (6 km/h)In overcrowded areas. Riding the vehicle in overcrowded areas. | Riding the vehicle on pedestrian crossings.Riding the vehicle in pedestrian areas when not in pedestrian mode (6 km/h). |
| Stationary | The person riding the item must be able to easily place both feet on the ground while holding the handlebars at the correct height. | Not being able to keep the item stationary and balanced.Sitting on the item while it is running or stationary. |
| Riding under normal conditions | No objects hanging from handlebars. Objects hanging from handlebars result in instability and may impede manoeuvring. |
| Riding with both hands on handlebars. One-handed | or hand-free riding. |
| Not using devices such as phones, smartwatches, music players, or headphones. | Using devices such as phones, smartwatches, music players, or headphones. |
| Riding with both feet on the footrest comfortably and safely. | Riding with one or both feet outside the footrest.It is prohibited to place or amass weight on the rear mudguard. |
| Riding with helmet and protective equipment. Riding without helmet and protective equipment. |
| Riding on easily accessible, smooth and compact roads, avoiding areas with intense traffic or overcrowded areas:e.g. dedicated cycle path, smooth paved surfaces.Complying with local regulations and the highway code. | Riding on motorways, long-distance roads.Riding on busy roads.Riding on pavements.Riding in overcrowded areas.Riding on very rough roads.Riding near: ravines, escarpments, harbours, sea, lakes or rivers.Failure to comply with regulations and the highway code.Failure to comply with regulations and the highway code. |
| Looking ahead and watching out for obstacles, vehicles or nearby pedestrians. | Being distracted while driving. |
| Changing direction, making sure to be seen, moderating speed.Anticipating the route and moderating speed while observing the highway code and those that are the most vulnerable.Using direction indicators, if included on the item. | Changing direction abruptly at high speed without making sure that you have been seen.Braking and cornering at the same time makes the vehicle unstable.Not using direction indicators. |
| Slowing down when pedestrians are present. Accelerating or maintaining a constant speed when pedestrians are present.Using pedestrian mode in pedestrian areas (6 km/h).Warning others of your presence by using the bell. | Riding without using pedestrian mode in pedestrian areas (6 km/h).Not warning others of your presence by using the bell. |
| Uneven road conditions: speed bumps/ steps/rough road surfaces | Riding at moderate speed. Riding at high-speed.Bend knees slightly for better shock absorption when traversing uneven surfaces. | Accelerating over bumps or ditches, going down steps, jumping over obstacles, climbing pavements, riding harshly. |
| Conditions Appropriate | Intended use Improper use | |
| Behaviour: around bends, down slopes, in the presence of nearby obstacles, vehicles and pedestrians | Keeping at a safe distance. Not observing safety distances. Stopping accelerating. Braking and slowing down. Riding at moderate speed and braking safely. Riding at high speed, braking suddenly. Paying attention to doors and other high obstacles. | Accelerating.Traversing beneath high obstacles. |
| Visibility conditions | Only ride if there is enough light to ride safely. When riding in unfavourable lighting conditions (from half an hour following sunset, throughout the entire period of darkness and even during the day, if weather conditions preclude road visibility, when driving through tunnels), remember to switch on the item's lights and wear a reflective vest, belts or bands. | Riding in unfavourable lighting conditions with lights off and without using a reflective vest, belts or bands. |
| Weather conditions | Driving in optimal conditions (no rain). Riding in adverse weather conditions:in the rain, when it snows, when there is ice or mud on the road, in strong winds, in fog. |
| Parking | In designated areas without impeding movement of vehicles or pedestrians.On smooth surfaces, ensuring stability is maintained.Switching off the item and using an anti-theft device.Using the kickstand provided. | Everywhere, impeding movement of vehicles or pedestrians.On uneven surfaces and without ensuring stability.Leaving the item switched on, unattended with no anti-theft device. |
| Engaging in extreme sports/acrobatics | NO YES. | Riding near: ravines, escarpments, harbours, sea, lakes or rivers.Riding over puddles.Racing with other vehicles. |
| Subjecting the item to forceful impact | NO YES. | Jumping over object or persons, jumping off steps or from high places. |
What to do after a fall:
Check that the throttle lever works properly. To do this, accelerate and decelerate several times.
Check that the brakes work properly. To do this, get off the item and push it forward and brake in order to ensure it responds to commands.
Check that all vehicle components are in place and securely fastened.
Check tyre wear and pressure (see side of tyre for recommended value).
Check the wear of the brakes and cables.
DANGER
The brakes may become hot during use. Do not touch after use.
2. Package contents and assembly

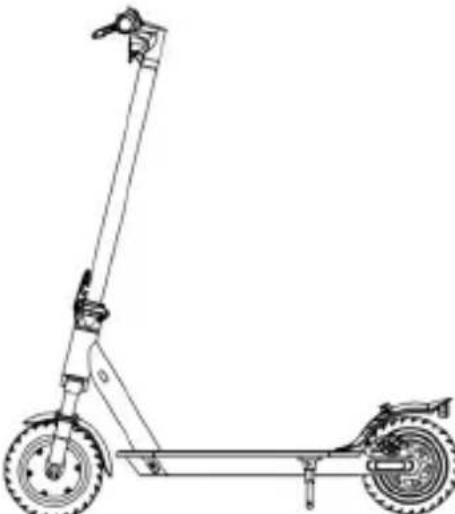

Assembled item, the handlebar must be installed using the special screws contained in the package.
| Model Reference picture In the package Handlebar assembly | |
| AdventurerUrbanCamou |  | 1x Allen key1x Battery charger4x Handlebar screws1x Air chamber4x Stickers1x Screw-cover plate1x Transport hook1x Adaptor for tiresinflation |  Follow the steps on thenext paragraph to properlyassemble the parts shown inthe image. |
| Sentinel |  | 1x Allen key1x Battery charger4x Handlebar screws1x Air chamber4x Stickers1x Adaptor for tiresinflation |  Insert the 4 screws manuallywithout tightening them, thenuse the hex wrench suppliedto tighten them and secure thehandlebars. |
Method:
Urban Camou / Adventurer:
- Open the package and remove the upper packaging materials.

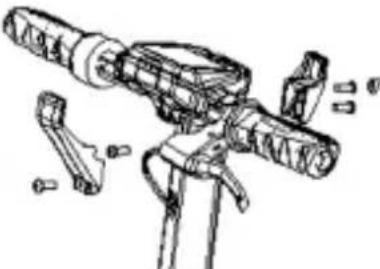

- Lift the steering column and insert the handlebar keeping attention to not flatten the cables.
- Fix the steering column by folding the closing lever. Push downward the locking ring of the folding mechanism.
- Place the hook on the inner side of the steering column and insert the 2 screws (with reduced head) without tightening them.
- Insert the screw (reduced head) in the first hole on the opposite side of the steering wheel.
- Tighten the 3 screws previously inserted.
- Place the screw-cover plate between the remaining hole and the cover display, insert the screw (large head) and tighten it as needed in order to not damage the plate.
- Pick up the product from the package, open the kickstand and check for the product stability.
- Adjust the steering wheel closing mechanism (if * needed).
- Check the tire pressure (see the side of the tire for the recommended value).
Sentinel:
- Open the package and remove the upper packaging materials.
- Open the handlebar stem and secure it by folding the lever on the locking mechanism.
- Connect the display power cable to the main wiring (if necessary).
• Install the handlebar on the steering wheel taking care to the wires and insert the 4 screws, tighten them using the hex wrench.
• Take the item out of the packaging
- Open the kickstand and check that the item is stable
- Adjust the steering wheel closing mechanism (if needed)**.
| Model Reference picture * Adjustment | |
| AdventurerUrbanCamou |  | Outside the mechanism there is a hex socket screw. If the handlebar stem is not very stable after closing, adjust the screw in the mechanism, by tightening or loosening it as required to increase the stability of the stem. |
| Sentinel |  | Inside the closing mechanism lever there is a hex wrench. If the handlebar stem is not very stable after closing, adjust the screw in the mechanism, by tightening or loosening it as required to increase the stability of the stem. |
CAUTION
Assemble the item correctly. If, during assembly, any factory defects are detected, certain steps are unclear or issues with assembly or adjustments occur, do not ride the vehicle and contact your dealer or visit www.urbanchicemobility.it for technical support.
Do not use accessories and/or additional parts that are not approved by the manufacturer.
Keep children away from plastic items (including packaging materials) and small parts that may result in suffocation.
It is forbidden to modify or transform the item or any its parts in any way, as this may impair efficiency, reduce structural integrity and cause damage. Remove any sharp edges caused by misuse, breakage or damage to the item. If any factory defects, unusual noises or faults are detected, do not ride the vehicle and contact your dealer or visit www.jeepurbanemobility.com for technical support.
3. Product overview
In the interest of technological development, the manufacturer reserves the right to modify the item with no prior notice and this manual will not be automatically updated.
For further information and to consult different versions of the manual, visit www.jeepurbanemobility.com

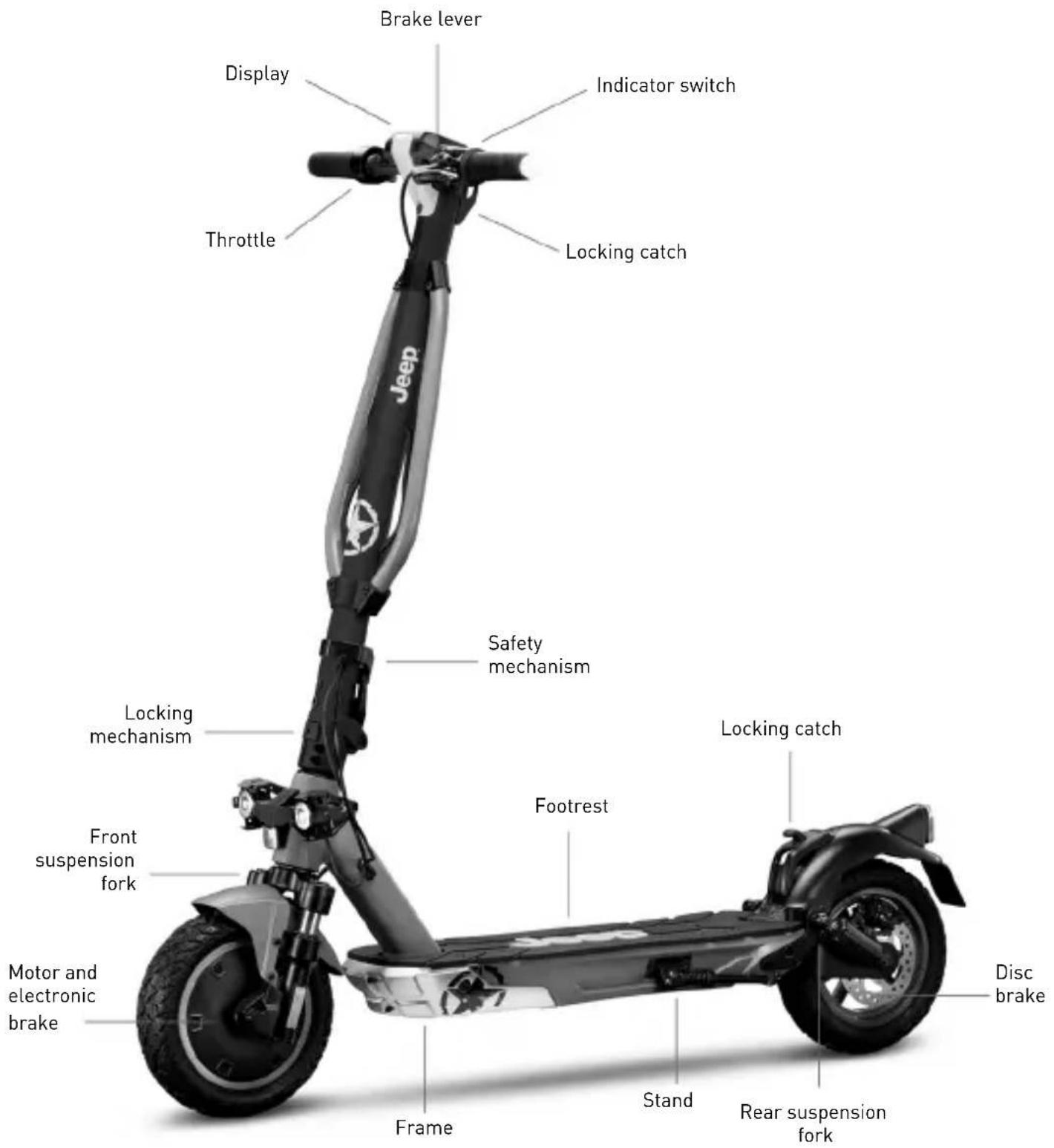

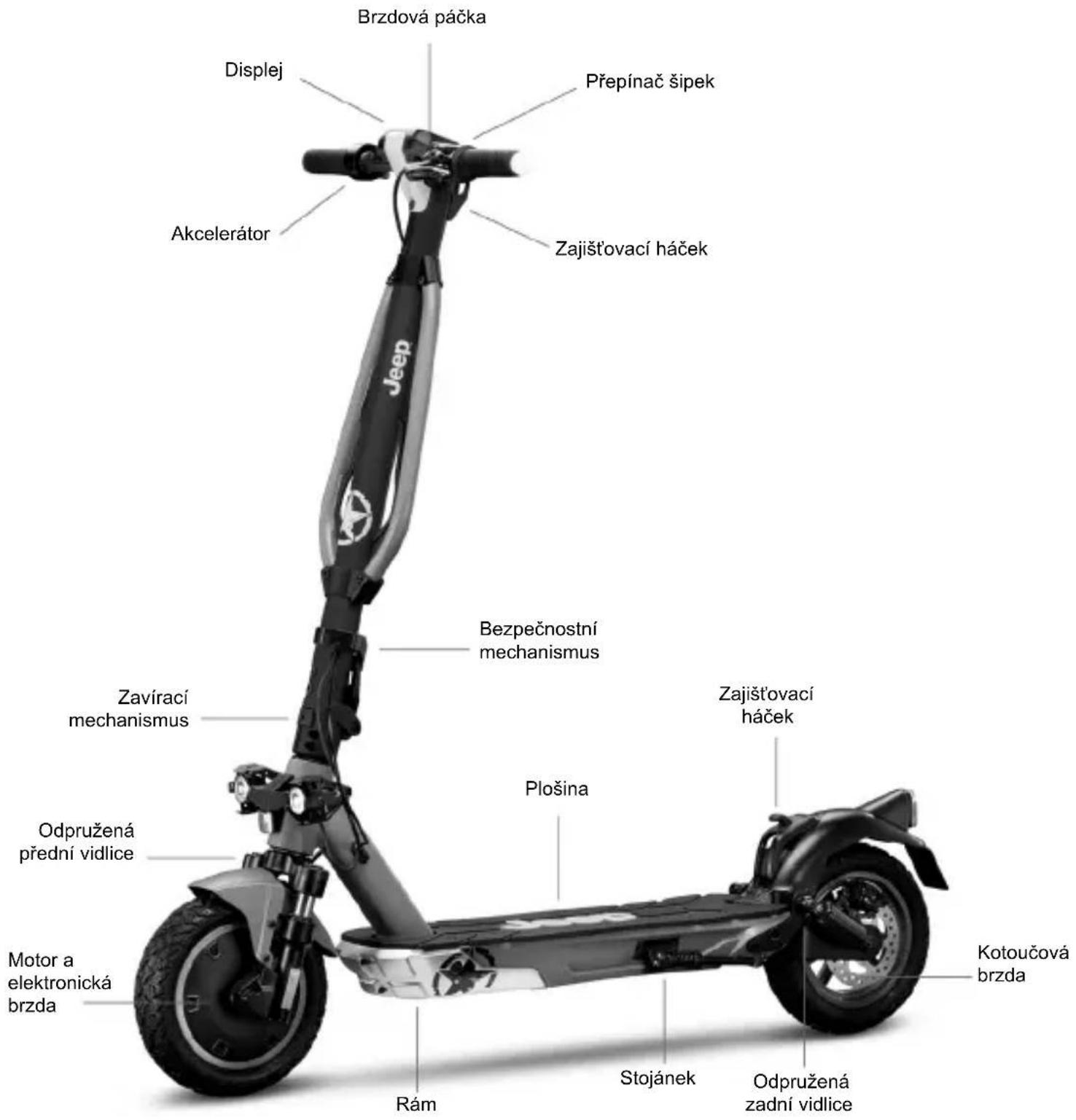

Adventurer / Urban Camou
Display
Indicator switch
Throttle
Locking catch
Jeep
Safety mechanism
Locking mechanism
Footrest
Locking catch
Front suspension fork
Motor and electronic brake
Frame
Stand
Rear suspension fork
Disc brake

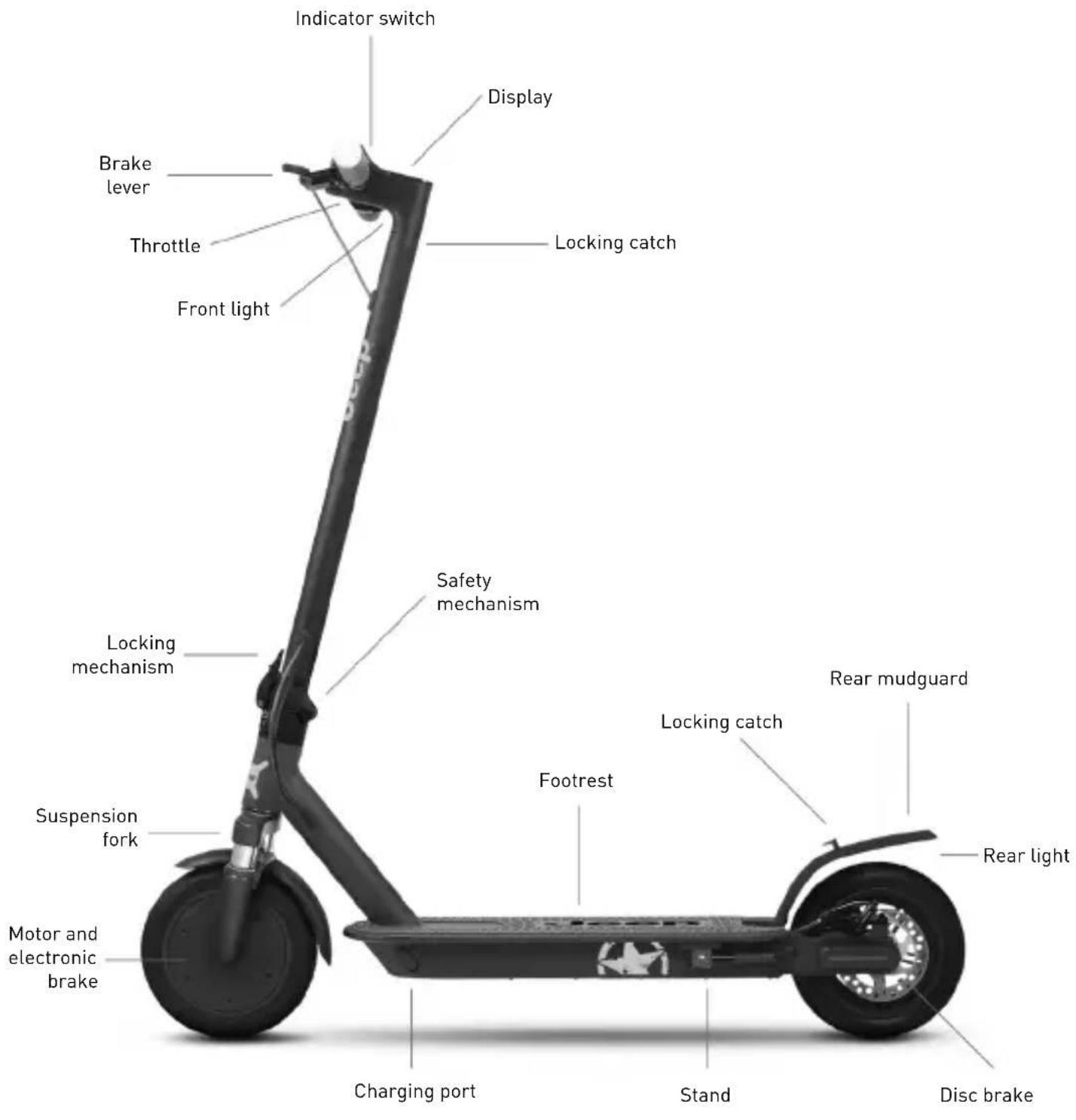

Sentinel
Display
Brake lever
Throttle
Front light
Locking catch
Locking mechanism
Safety mechanism
Suspension fork
Motor and electronic brake
Charging port
Stand
Disc brake
Footrest
Rear mudguard
Locking catch
Rear light
4. Battery charging
CAUTION
Prior to using the item for the first time, charge to 100%. Ensure the item, charger, and charging port are dry.
Instructions
- Open the kickstand
- Switch off the scooter
| Model Reference picture Instructions | |
| Adventurer |  |
| Urban Camou |
| Sentinel |
| CAUTION | To recharge the item, use the battery charger supplied ONLY |
| Model Battery charger model Output voltage Charging time | | |
| Adventurer | HVE063-4200150 42V – 1.5A 7 h | | |
| Urban Camou | HVE126-5460200 54.6V – 2.0A 5 h | | |
| Sentinel | XHK-916-42015 42V – 1.5A 5 h | | |
Using another type of charger may damage the scooter or entail other potential risks. Never leave the item unsupervised while it is charging. Do not switch the product on while it is charging.
After each use, fully recharge the battery to extend its useful life. Do not recharge the item immediately after use. Allow the scooter to cool for an hour before recharging.
The item should not be charging for extended periods. Overcharging reduces battery life and poses additional potential hazards.
Allow the vehicle to discharge completely to prevent damage to the battery.
Damage caused by the battery being left uncharged for a long period is irreversible and is not covered by the limited warranty. Once the damage has occurred, the battery cannot be recharged (the battery must not be dismantled by unqualified personnel, as this could lead to electric shocks, short circuits or even major safety incidents). If the owner is away, e.g. on holiday, and the device is entrusted to a third party, leave it in a partial charge state (20-50% charge), not fully charged.
Carry out regular visual inspection of the charger and charger cables. If the battery charger cable is clearly damaged, do not use it to avoid further damage and/or risks; please contact us for a replacement.
Battery warnings
The battery consists of lithium-ion cells and chemical elements that are hazardous to health and the environment. Do not use the item if it emits odours, substances or excessive amounts of heat. Do not dispose of the item or the battery with household waste. The end user is responsible for the disposal of electrical and electronic equipment and batteries in compliance with all applicable regulations.
Avoid used, defective and/or non-original batteries of other models or brands.
DANGER
Do not leave the battery near fire or heat sources. Fire and explosion hazard.
Do not open the battery or take it apart. Do not strike, throw, or puncture the battery or attach objects onto it.
Do not touch any substances leaking from the battery, as they are deemed hazardous. Do not allow children or pets to touch the battery.
Do not overcharge or short-circuit the battery. Fire and explosion hazard.
Do not immerse or expose the battery to water, rain or other liquids. Do not expose the battery to direct sunlight, excessive heat or cold (for example, do not leave the item or battery in a car in direct sunlight for extended periods of time), or environments containing explosive gases or flames.
Do not carry or store the battery with metal objects such as hairpins, necklaces, etc. Contact between metal objects and battery contacts may cause a short circuit resulting in physical injury or death.
| Model Figure | Description | |

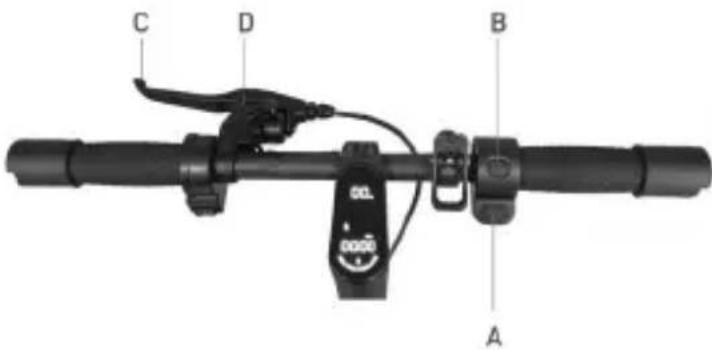

| AdventurerUrban Camou |  | A | Throttle: press down to accelerate. |
| B | Power button: press to switch the item on/off. |
| B | Speed level change: press the button (B) twice to select the desired level. |
| B | Lights: press once the button to switch them on/off. |
| C | Brake lever: pull the lever to brake. |
| D | Bell: push once the lever to enable it. |

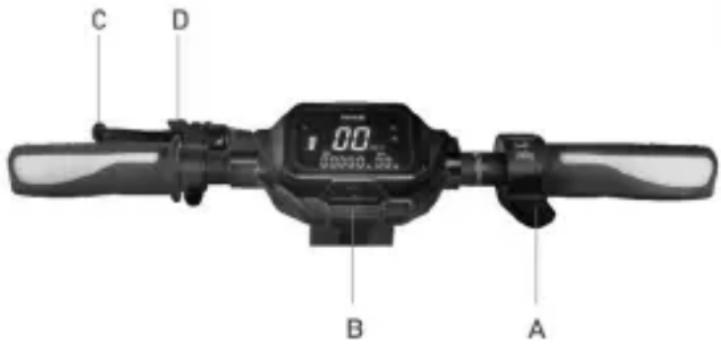

| Sentinel |  | A | Bell: push once the lever to enable it. |
| B | Power button: press to switch the item on/off. |
| B | Speed change: press twice to select the speed level desired. |
| B | Lights: press once the button to switch them on/off. |
| C | Brake lever: pull the lever to brake. |
| D | Bell: push once the lever to enable it. |
| Model Reference picture Symbols | |

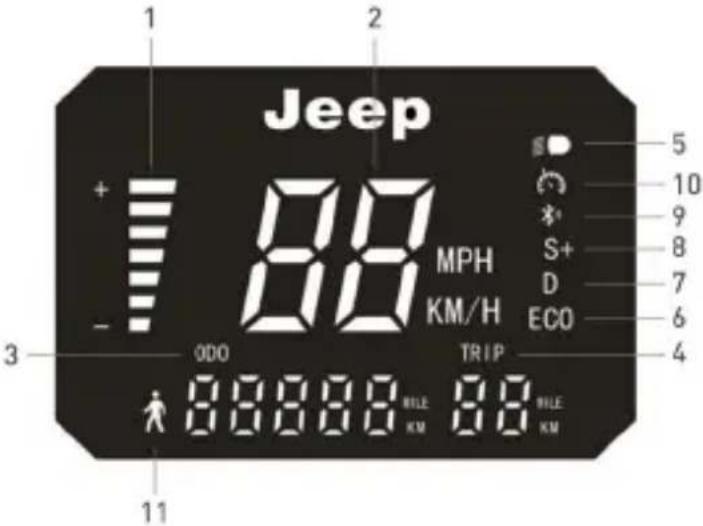

| AdventurerUrban Camou |  | 1. Battery level: It indicates the battery charge remaining.2. Speedometer: It indicates the instantaneous vehicle speed.3. ODO: Total distance travelled.4. TRIP: Single trip distance.5. Lights: Lights indicator light.6. Level 1 - ECO Mode.7. Level 2 - D Mode.8. Level 3 - S+ Mode.9. Bluetooth indicator light: Smart-phone connection available.10. Cruise Control: Speed control. It is activated after the same speed has been maintained for a few seconds. The display emits a short beep.11. Pedestrian mode: it helps pushing the vehicle with flashing rear light. |
| Sentinel |  | 1. Speedometer: It indicates the instantaneous vehicle speed.2. Level 1 - ECO Mode.3. Level 2 - DRIVE Mode.4. Level 3 - SPORT Mode.5. Pedestrian mode: it helps pushing the vehicle with flashing rear light.6. Lights: Lights indicator light.7. Cruise Control: Speed control. It is activated after the same speed has been maintained for a few seconds. The display emits a short beep.8. ODO: Total distance travelled.9. TRIP: Single trip distance.10. Battery level: It indicates the battery charge remaining. |
Direction indicators (if present)
| Models* | | |
| Adventurer | Drive: | On models where they are fitted, the direction indicators are placed at the ends of the handlebars (left and right side).The direction indicators are required to provide early warning of any change in direction while riding. |
| Urban Camou |  CAUTIONBefore each use of the product, check the correct operation of the direction indicators. |
| Sentinel |  | The direction indicators are required to provide early warning of any change in direction while riding.[BZKZ] CAUTIONBefore each use of the product, check the correct operation of the direction indicators. |
6. Quick guide
• Prior to using the item for the first time, charge to 100%.
- Check tyre pressure (see side of tyre for recommended value). If the item does not reach at least 60% of the declared kms, or the maximum speed within the first 3 months of use, it is likely that the wheels have deflated once more. In this case, restore pressure as indicated.
- Check and adjust the brakes.
- Turn on the display.
- Place the item on a flat surface.
- Hold the handlebar firmly using both hands. Step onto the footrest with one foot and use the other to give yourself a gentle push and accelerate.
CAUTION

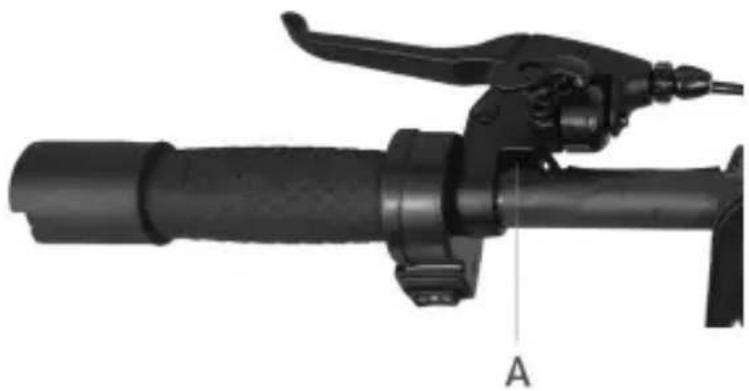

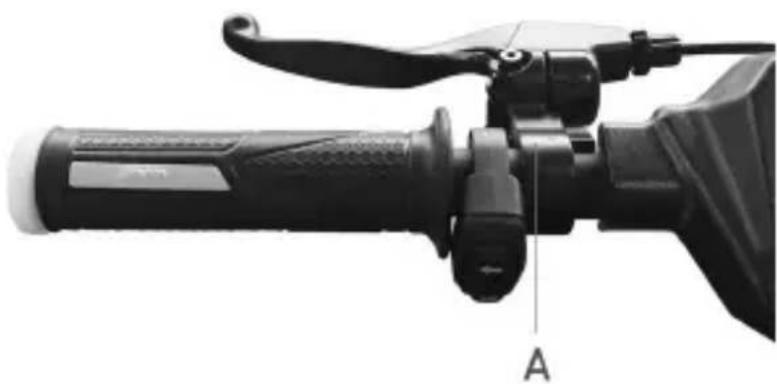

Zero Start Function: the throttle is activated once the forward speed exceeds 3 km/h.
For safety reasons, the item is initially set up to avoid standing starts.
- When riding the item, tilt body in the riding direction during a turn and slowly turn the handlebars.
• To stop the item, release the throttle, pull the brake lever
• To get off, first stop the item completely. Getting off the moving item can cause injury.
- Prior to each use, check brakes and any wear, check tyre pressure (see side of tyre for recommended value), wheel wear, throttle and charge status of battery.
Brake lever adjustment
| Adventurer / Urban Camou Indications | |
 | It is possible to adjust the position of the brake lever, if necessary, by unscrewing the screw (A). Once the position has been adjusted, tighten the screw (A). |
| Sentinel Indications | |
 | It is possible to adjust the position of the brake lever, if necessary, by unscrewing the screw (A). Once the position has been adjusted, tighten the screw (A). |
| Model Images | Indications | |
| Adventurer |  | If the brake is too tight or too loose, use the Allen wrench to loosen the screw (A), then adjust the brake cable, (shorten the brake cable at the top if it is too tight; if it is too loose, pull the brake cable downwards) and then, retighten the screw (A).Check the correct alignment between the brake caliper and the disc. Use the screws (B) and (C) to adjust the position / alignment on the disc, if necessary. |
| Urban Camou |
| Sentinel |
7. Folding and carrying
Make sure the electric scooter is turned off. Hold the handlebar stem with your hand, pull the lever, fold the stem towards the footrest and fasten it.

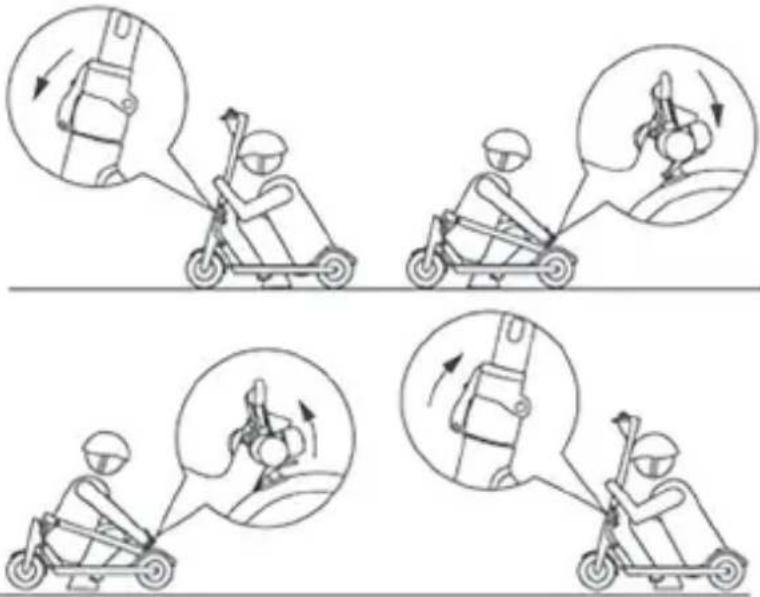

| Adventurer / Urban Camou Indications | |
 |  CAUTIONAfter folding, lift it by holding the handlebar stem with one or both hands.Make sure to secure the item during transportation. If the item cannot be lifted, do not transport with the item raised. If dropped, the item may cause severe injury and damage. |
| Sentinel |
 |
The maximum range and performance of the vehicle depends on a number of variables:
Terrain: riding on smooth roads provides greater range and performance than riding on rough roads and climbs.
Weight of user: the greater the weight, the lower the range and performance of the vehicle.
Temperature: riding the scooter in very cold or hot conditions affects range and performance.
Speed and riding style: riding smoothly and at a constant speed extends the range. Continuous acceleration, deceleration and manoeuvring greatly reduce the range. A lower speed extends the range.
Maintenance: prompt recharging, proper maintenance and regular checking of tyre pressure increase range and ensures consistent performance over time.
The level of battery charge affects performance – the lower the level, the lower the speed, especially on climbs.
9. Storage, maintenance and cleaning
CAUTION
If there are stains on the body of the scooter, wipe with a damp cloth. If the stains persist, apply neutral soap, brush out with a toothbrush, then wipe with a damp cloth. If there are scratches on the plastic components, use sandpaper or other abrasive material to remove them. Do not clean the items with alcohol, petrol, paraffin or other corrosive or volatile chemical solvents to prevent severe damage. Do not wash the item using high-pressure water jets. When cleaning the scooter, make sure that it is switched off, that the charging cable is disconnected, and the rubber cap is closed, as a water leak may cause an electric shock or other serious problems. Water seeping into the battery may cause damage to internal circuits and risk of fire or explosion. Should you suspect that water may have entered the battery, stop using the battery immediately and return it to your dealer's after-sales service for checking.
When the item is not in use, store it indoors in a cool, dry place. Do not store outdoors or inside cars for extended periods of time. Excessive sunlight, overheating, and excessive cold accelerate tyre ageing and jeopardize the life of both the item and the battery. Do not expose it to rain or water or immerse it in water to wash it.
Regularly check the tightness of the bolted parts, in particular wheel axles, the folding and transportation system, the steering system, the braking system, the state of the frame, the forks and the suspension. Nuts and all other self-locking fasteners may lose their effectiveness. Periodically check and tighten these components.
Like all mechanical components, the item is subject to wear and tear. Different materials and components may react to wear or stress fatigue in a variety of ways. If the service life of a component is exceeded, it may break suddenly, resulting in injury to the rider. Any cracks, scratches or changes in colour in areas subject to high levels of stress indicate that the life of the component has been reached and must be replaced.
Check the condition of the tyres: there must be no cuts, cracks, foreign bodies, abnormal swelling, missing parts or other damage.
Do not attempt to disassemble or repair the scooter yourself. Replacement of all scooter components should be carried out by the technical service department. For further information, contact your dealer or visit www.jeepurbanemobility.com
10. App configuration
This item can be paired with the Jeep e-mobility app. The App allows you to control the item directly from your Smartphone.
e-mobility
App Store
Google Play
Open the App and follow the instructions given.
The App may require various permissions required for the use and operation of the App itself.
The App version may have been updated by your App store. It is advisable to constantly check whether any updates are available for the App in order to be able to use the new features and always install the latest version of the App on your device.
Do not use your device while riding.
11. Technical data sheet
General information
| Adventurer Urban Camou Sentinel | |
| Frame magnesium alloy magnesium alloy aluminium and steel | |
| Sunspensions front and rear front and rear front | | |
| Speed | JE-MO-210001JE-MO-210005 | JE-MO-220002 | JE-MO-210002JE-MO-210006 | JE-MO-220003 JE-MO-210004 JE-MO-220001 |
| Pedestrian:≤ 6km/hL2: ≤ 15km/hL3: ≤ 20km/hL4: ≤ 25km/h(Max speed) * | Pedestrian:≤ 6km/hL2: ≤ 10km/hL3: ≤ 15km/hL4: ≤ 20km/h(Max speed) * | Pedestrian:≤ 6km/hL2: ≤ 15km/hL3: ≤ 20km/hL4: ≤ 25km/h(Max speed) * | Pedestrian:≤ 6km/hL2: ≤ 10km/hL3: ≤ 15km/hL4: ≤ 20km/h(Max speed) * | Pedestrian:≤ 6km/hL2: ≤ 10km/hL3: ≤ 20km/hL4: ≤ 25km/h(Max speed) * | Pedestrian:≤ 6km/hL2: ≤ 10km/hL3: ≤ 15km/hL4: ≤ 20km/h(Max speed) * |
| Maximum slope** 18% 26% 18% | | |
| Brakes | Electronic front brake and rear disc brake | Electronic front brake and rear disc brake | Electronic front brake and rear disc brake |
| Tyres | Size: 10" tubelessPressure: 44PSI/3BAR | Size: 10" tubelessPressure: 44PSI/3BAR | Size: 8,5" for air chamberPressure: 50PSI/3.5BAR |
| Maximum load 100 kg 100 kg 100 kg | | |
| Rider Check the current legislation in your country |
| Operating temperature | -5 °C/ 45 °C -5 °C/ 45 °C -0 °C/ 45 °C | |
| Protection level IPX4 | IPX4 IPX4 | | |
| Charging time | approx. 7 hours | approx. 5 hours | approx. 5 hours |
| Autonomy** | up to 40km | up to 45km | up to 25km |
Electrical system
| Rated power of motor | ≤ 0.35kW; 350W Brushless | ≤ 0.5Kw; 500W Brushless | ≤ 0.35kW; 350W Brushless |
| Maximum power of motor | 0.515Kw; 515W | 0.7Kw; 700W | 0.515kW; 515W |
| Display | 3.5" LED | 3.5" LED | Built-in LED |
| Battery | 36V 10.4Ah 374Wh | 48V 9.6Ah 461Wh 36V 7.5Ah 270Wh | |
| Low voltage protection | 30V ± 0.5V | 40V ± 0.5V | 31V ± 1V |
| Current limit | 18A | 18A | 18A |
| Kers | Yes | Yes | Yes |
| Lights | Front and rear LEDs | Front and rear LEDs | Front and rear LEDs |
| Features | Bluetooth with App | Bluetooth with App | Bluetooth with App |
Dimensions and weight
| Net weight | 18.5 kg | 19.5 kg | 12.9 kg |
| Gross weight | 22.8 kg | 23.8 kg | 15.4Kg |
| Open item dimensions | 1195 x 473 x 1168mm | 1195 x 473 x 1168mm | 1060 x 480 x 1190 |
| Closed item dimensions | 1195 x 473 x 515mm | 1195 x 473 x 515mm | 1060 x 480 x 480 |
| Packaging dimensions | 1230 x 210 x 535mm | 1230 x 210 x 535mm | 1090 x 175 x 590 |
* Always observe the highway code and the regulations in force in the country where the electric scooter is in use.
** Subject to variations based on the riders weight, road conditions and temperature.
12. Troubleshooting
Problem Cause Solution
| The motor is not running Electrical issue, error code present Request technical assistance |
| The drive wheel does not turn | Problems with the brakes Adjust the brakes; if the problem persists, request technical assistanceMotor is blocked Check that the wheel is properly tightened, check that the wheel turns without starting the vehicle.If the problem persists, request technical assistance |
| The motor stops while it is running | Motor overheating Stop the vehicle and wait for it to coolPresence of error code Request technical assistance |
| After charging it, the item does not switch on or it switches off after a few km. | Damaged battery Request technical assistance |
| The battery does not charge or the item does not switch on | Connection problems Request technical assistanceThe battery is not connected (models with removable battery)The battery is depleted Charge the battery to 100%Damaged battery Request technical assistanceProblems with the battery charger Replace the battery charger |
Error code table
| Model Code Indications Solution | |
| Adventurer | E01 | Overcurrent protection Switch off the vehicle, wait a few minutes before restarting it | |
| E02 | Low voltage protection Recharge the battery; if the problem persists, request technical assistance | |
| E03 | Protection from overvoltage Request technical assistance | |
| E04 | Engine malfunction Request technical assistance | |
| E05 | Control unit MOS malfunction Request technical assistance | |
| E06 | Control unit MOS malfunction Request technical assistance | |
| E07 | Control unit signal error Request technical assistance | |
| Urban Camou | E08 | Overheating protection Switch off the vehicle, wait a few minutes before restarting it; if the problem persists, request technical assistance | |
| E09 | Throttle malfunction Request technical assistance | |
| E10 | Brake lever sensor malfunction Request technical assistance | |
| E11 | Light system anomaly Request technical assistance | |
| E12 | Display communication error Request technical assistance | |
| E13 | Start button malfunction Request technical assistance | |
| Model Code | Indications Solution | |
| Sentinel | E01 | Engine malfunction Request technical assistance | |
| E02 | Control unit MOS malfunction Request technical assistance | |
| E03 | Brake sensor malfunction (cut-off) | Request technical assistance |
| E04 | Throttle malfunction Request technical assistance | |
| E05 | Low voltage protection Recharge the battery; if the problem persists, request technical assistance | |
| E06 | Display communication error Request technical assistance | |
| E07 | Overcurrent protection Request technical assistance | |
| E08 | Control unit signal error Request technical assistance | |
| E09 | Brushless engine anomaly / block | Request technical assistance |
13. Liability and general terms of warranty
The rider assumes all liability for any injury when not wearing a helmet or other protective devices.
The driver must respect current local regulations regarding:
- the minimum age allowed for the driver,
- restrictions on the types of drivers who can use the product
- all other regulatory aspects
The driver must always keep the product clean and in a perfect state of efficiency and maintenance, diligently perform the safety checks he/she is responsible for as described in the previous section, not tamper with the product in any way and keep all the maintenance documents.
M.T. Distribution shall not be liable for any damages caused and is in no way responsible for damages caused to property or persons when:
- the item is used incorrectly or in a manner that does not comply with the instructions of the user guide;
- after the purchase, the item is modified or tampered with in all or some of its components.
In case of malfunction of the product for reasons not attributable to improper behaviour of the driver and in case you want to consult the general terms of warranty, please contact your dealer or visit the website www.jeepurbanemobility.com
The Legal Guarantee never covers any Product faults or malfunctions caused by accidental events and/or events attributable to the Purchaser, or due to use of the Product in non-compliance with its intended use and/or with the provisions of the technical documentation attached to the Product, or due to failure to regulate mechanical parts, the natural wear of consumable materials, or due to assembly errors, lack of maintenance and/or use of said product in non-compliance with the instructions.
For example, the following are to be considered excluded from the statutory guarantee regarding products:
- damage caused by impacts, accidental falls or collisions, punctures;
- damage caused by use, exposure or storage in an unsuitable environment (e.g. presence of rain and/or mud, exposure to humidity or excessive heat, contact with sand or other substances)
- caused by failure to adjust for road use and/or maintenance of mechanical parts, mechanical disc brakes, handlebars, tyres, etc.; incorrect installation and/or assembly of parts and/or components
- the natural wear and tear of consumable materials: mechanical disc brake (e.g. pads, callipers, disc, cables), tires, platforms, gaskets, bearings, led lights and bulbs, kickstand, knobs, mudguards, rubber parts (platform), wiring cable connectors, grilles and stickers, etc.;
- improper maintenance and/or improper use of the product battery;
- tampering with and/or forcing parts of the product;
- incorrect or inadequate maintenance or alteration of the Product;
- improper use of the product (e.g.: excess load, use in competitions and/or for commercial or rental activities);
- maintenance, repairs and/or technical interventions on the product carried out by unauthorised third parties;
- damage to the products resulting from transport, if carried out by the purchaser;
- damage and/or defects resulting from the use of non-original parts.
Please refer to the most updated version of the warranty terms available on the website www.jeepurbanemobility.com/en/support/
CAUTION
Handling of the electrical or electronic device at the end of its service life (applicable in all European Union countries and in other European systems with separate collection systems)
This symbol on the product or packaging indicates that the product should not be considered as normal household waste, but should be taken to a facility authorised to dispose of waste from electrical and electronic equipment (WEEE).
By ensuring the item is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which may otherwise be caused by inappropriate disposal.
Recycling materials will help to preserve natural resources.
For more detailed information about the recycling and disposal of this item, you can contact the local waste disposal service or the point of sale where you purchased it.
In any case, disposal must be carried out in accordance with the legislation in force in the country of purchase.
More specifically, consumers must not dispose of WEEE as municipal waste, but must dispose of this type of waste separately, in one of two possible ways:
- By taking it to municipal collection centres (also called eco-collection centres or recycling facilities), directly or through the collection services of municipal companies, where available.
- By taking it to shops selling new electrical and electronic equipment.
Very small WEEE items (with the longest side less than 25 cm) may be deposited here free of charge, while larger WEEE items may be deposited on a 1-for-1 basis, i.e. by depositing an old product when purchasing a new one with the same functions.
Moreover, the 1-on-1 mode is always guaranteed when the consumer purchases a new EEE, regardless of the size of the WEEE.
In the event of unlawful disposal of electrical and electronic equipment, specific sanctions may be applied by the laws governing the protection of the environment.
If the WEEE contains batteries or accumulators, they must be removed and subjected to specific separate collection.
CAUTION
Handling of spent batteries (applicable in all European Union countries and in other European systems with separate collection systems)
This symbol on the product or packaging indicates that the battery pack should not be treated as normal household waste. On some types of batteries, this symbol may be used in combination with a chemical symbol.
The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.
By ensuring that the batteries are disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which may otherwise be caused by inappropriate disposal. Recycling materials will help to conserve natural resources. In the case of products which, for safety, performance or data protection purposes require a fixed connection to an internal battery, this should only be replaced by qualified service personnel.
Deliver the product at the end of its service life to collection centres suitable for the disposal of electrical and electronic equipment: this ensures that the battery inside it is also treated correctly.
For more detailed information about disposal of the dead battery, contact the local waste disposal service or the shop where it was purchased.
In any case, disposal must be carried out in accordance with the legislation in force in the country of purchase.
Italiano
Adventurer Urban Camou Sentinel
Indice
Urban Camou / Adventurer:
App Store
Google Play
Adventurer Urban Camou Sentinel
Índice
Urban Camou / Adventurer:
App Store
Google Play
Adventurer Urban Camou Sentinel
Table des matières
App Store
Google Play
Adventurer Urban Camou Sentinel
Verzeichnis
Urban Camou / Adventurer:
App Store
Google Play
Adventurer Urban Camou Sentinel
Spis treści
Urban Camou / Adventurer:
App Store
Google Play
Adventurer Urban Camou Sentinel
Obsah
Adventurer/Urban Camou
App Store
Google Play
Adventurer Urban Camou Sentinel
Obsah
Urban Camou / Adventurer:
- Otvorte balenie a odstráňte horné obaly.
- Zdvihnite predstavec, založte riadidlá, pričom dajte pozor, aby ste nepomliaždili káble.
- Upevnite predstavec prehnutím uzatváracej páky. Bezpečnostný krúžok skladacieho mechanizmu posuňte smerom nadol.
- Hák umiestnite na vnútornú stranu predstavca a vložte 2 skrutky (so zníženou hlavou) bez utiahnutia.
• Vložte skrutku (so zníženou hlavou) do prvého otvoru na opačnej strane k predstavcu.
- Predtým vložené 3 skrutky utiahnite.
- Umiestnite kryciu dosku skrutiek medzi zvyšný otvor a krycí displej, vložte skrutku (so širokou hlavou) a utiahnite ju natol'ko, aby sa doska nepoškodila.
- Vyberte výrobok z balenia, otvorte stojan a skontrolujte stabilitu výrobku.
- Nastavte uzatvárací mechanizmus predstavca* (ak je to potrebné).
- Skontrolujte tlak pneumatík (odporúčanú hodnotu nájdete na boku pneumatiky).
Sentinel:
App Store
Google Play
Adventurer Urban Camou Sentinel
Περιεχόμενα
Urban Camou / Adventurer:
App Store
Google Play
Adventurer Urban Camou Sentinel
Kazalo
Urban Camou / Adventurer:
App Store
Google Play
Adventurer Urban Camou Sentinel
Inhoudsopgave
Urban Camou / Adventurer:
App Store
Google Play
Adventurer Urban Camou Sentinel
Sadržaj
Urban Camou / Adventurer:
- Otvorite pakovanje i uklonite gornja pakovanja.
- Podignite držač i umetnite upravljač pazeći da ne zgnječite sajle.
- Osigurajte stub upravljača preklapanjem poluge za zaključavanje. Gurnite nadole sigurnosni prsten mehanizma za sklapanje.
- Postavite kuku na unutrašnju stranu stuba i umetnite 2 zavrtnja (sa smanjenom glavom) bez zatezanja.
- Stavite zavrtanj (smanjene glave) u prvu rupu na suprotnoj strani stuba.
- Zategnite 3 prethodno stavljena zavrtnja.
- Postavite poklopac vijaka između preostale rupe i poklopca ekrana, umetnite zavrtanj (velika glava) i zategnite ga tek toliko da ne oštetite ploču.
- Izvadite proizvod iz pakovanja, otvorite stalak i proverite stabilnost proizvoda.
- Podesite mehanizam za zaključavanje stuba (ako je potrebno*).
• Proverite pritisak u gumama (pogledajte stranu gume za preporučenu vrednost).
Sentinel:
- Otvorite pakovanje i uklonite gornja pakovanja.
- Otvorite držač upravljača i učvrstite ga preklapanjem poluge mehanizma za zaključavanje.
- Povežite kabl za napajanje ekrana na glavni kabl (ako je potrebno).
- Postavite držač upravljača pazeći na kablove i umetnite 4 zavrtnja i zategnite ih šestougaonim ključem.
- Izvadite proizvod iz pakiranja
- Otvorite postolje i proverite stabilnost proizvoda
- Podesite mehanizam za zaključavanje stuba (ako je potrebno*).
| Model Referen | tna slika * Podešavanje | |
| AdventurerUrbanCamou |  | Na spoljnoj strani mehanizma nalazi se zavrtanj sa šestouglim nastavkom. Ako je držač upravljača nestabilan nakon zatvaranja, podesite vijak mehanizma tako što ćete zavrnuti ili odvrnuti samo toliko da povećate stabilnost vretena. |
| Sentinel |  | U unutrašnjosti poluge mehanizma za zaključavanje nalazi se šestougaoni zavrtanj. Ako je držač upravljača nestabilan nakon zatvaranja, podesite vijak mehanizma tako što ćete zavrnuti ili odvrnuti samo toliko da povećate stabilnost vretena. |
PAŽNJA
Pravilno sastavite proizvod. U slučaju da tokom montaže otkrijete bilo kakav proizvodni nedostatak, nejasne korake ili poteškoće u samoj montaži ili u podešavanjima, nemojte voziti vozilo i kontaktirajte svog prodavca ili posetite veb lokaciju www.jeepurbanemobility.com da biste dobili tehničku pomoć.
Nemojte koristiti pribor i/ili dodatne delove koje nije odobrio proizvođač.
App Store
Google Play
Otvorite aplikaciju i pratite uputstva na usluzi referentne aplikacije.
PAŽNJA
Ovaj simbol na proizvodu ili na ambalaži označava da proizvod ne treba smatrati normalnim kućnim otpadom, već ga treba odnijeti na odgovarajuće sabirno mjesto za recikliranje električne i elektronske opreme (OEEO).
Ovaj simbol na proizvodu ili ambalaži označava da se baterija ne bi trebala smatrati normalnim kućnim otpadom. Na nekim vrstama baterija simbol se može koristiti u kombinaciji sa hemijskim simbolom.
www.jeepurbanemobility.com sitesini ziyaret edin
Urban Camou / Adventurer:
App Store
Google Play
Adventurer Urban Camou Sentinel
الفهرس
.1. تعليمات السلام
:Urban Camou / Adventurer
App Store
Google Play
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: ADVENTURER
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: URBAN CAMOU
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
according to the EC Machinery Directive 2006/42/EC, Annex II 1.A.
PLATUM by M.T. Distribution S.R.L
Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: Sentinel
Description of product: Electric Scooter
Serial identification number(s) : JPMN2XXX0XXXXX
The object of the declaration described above fulfils all the relevant provisions of the following Directives:
2006/42/EC Machinery Directive
2014/53/EU Radio Equipment Directive on the harmonization of the laws of the Member States relating to the making available on the market of radio equipment.
2011/65/EU RoHS on the restriction of the use of certain hazardous substances in electrical and electronic equipment
Applicable harmonized standard(s):
EN 300 328 V2.2.2
EN 301 489-1 V1.9.2
EN 62479:2010
EN 62368-1:2014 + AC:2015
EN IEC 63000:2018
Other standard or technical specifications applied
EN 17128:2020
ETSI EN 301 489-17 V3.2.4
Manufacturer: Zhunhai Chang Jing Trade Co., Ltd
Address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000
Date: 04/07/2022
PLATUM.COM
HEADQUARTERS: VIA BARGELLINO 10 C/D - 40012 CALDERARA DI RENO (BO)
SALES OFFICE: VIA PARACELSO 24, PALAZZO CASSIOPEA 2 - 20864 AGRATE BRIANZA (MB)
MARCHIO REGISTRATO DI M.T. DISTRIBUTION SRL P. IVA 04177060375 CF 01119840377 REA BO-236546
PLATUM
Shaping urban e-mobility
Authorized Representative in the EU:
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
Authorized person - First name and surname:
Position: CEO
Alessandro Summa
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
PLATUM.COM
HEADQUARTERS: VIA BARGELLINO 10 C/D - 40012 CALDERARA DI RENO (BO)
SALES OFFICE: VIA PARACELSO 24, PALAZZO CASSIOPEA 2 - 20864 AGRATE BRIANZA (MB)
MARCHIO REGISTRATO DI M.T. DISTRIBUTION SRL P. IVA 04177060375 CF 01119840377 REA BO-236546
Jeep®
E-SCOOTERS
PLATUM
Staging when activity
Imported and distributed by M.T. Distribution Srl via Bargellino 10c/d, 40012, Calderara di Reno, (BO) Italy www.platum.com
Jeep, the Jeep grille and related logos,
vehicle model names and trade dress are trademarks
of FCA US LLC and used under license by M.T. Distribution Srl.
©2022 FCA US LLC.
