Product type	Electric scooter
Brand	Jeep
Model	Adventure Advanced Safety (Adventurer)
Dimensions (open)	1195 x 473 x 1168 mm
Dimensions (folded)	1195 x 473 x 515 mm
Net weight	18.5 kg
Maximum load	100 kg
Maximum speed	25 km/h (Sport mode)
Range	Up to 40 km
Maximum gradient	18 %
Motor	350 W (nominal) / 515 W (peak), brushless
Battery	Lithium-ion 36 V / 10.4 Ah (374 Wh)
Charging time	Approximately 7 hours
Brakes	Front electronic brake and rear disc brake
Suspension	Front and rear
Tires	10 inch tubeless, pressure 44 PSI / 3 bar
Lighting	Front headlight and rear LED light
Display	3.5 inch LED
Connectivity	Bluetooth (Jeep e-mobility app)
Protection rating	IPX4
Operating temperature range	-5 °C to 45 °C
Cleaning	Damp cloth, avoid solvents and high-pressure water jets

Frequently Asked Questions - Adventure Advanced Safety JEEP

How to charge the battery for the first time?

Before first use, charge the battery to 100% using the supplied charger. Plug the charger into the mains socket then into the charging port of the scooter when it is turned off. The charger indicator changes from red to green when charging is complete. Do not turn on the scooter during charging.

What is the maximum rider weight?

The maximum rider weight is 100 kg. The minimum weight is 30 kg.

What are the different speed modes?

There are four speed levels: Pedestrian mode (≤6 km/h), Eco (≤15 km/h), Drive (≤20 km/h) and Sport (≤25 km/h). To change levels, press the power button twice.

How to fold and transport the scooter?

Make sure the scooter is turned off. Hold the handlebar with one hand, pull the folding lever and fold the handlebar towards the deck until it clicks. Then lift the scooter by holding the handlebar to transport it.

What tire pressure is recommended?

For 10-inch tubeless tires, the recommended pressure is 44 PSI (3 bar). Check the pressure regularly, especially if the range decreases.

How to connect the Jeep e-mobility app?

Download the Jeep e-mobility app on your smartphone, enable Bluetooth, open the app and follow the pairing instructions. The scooter's display shows a Bluetooth indicator when connected.

What to do in case of an error code on the display?

Refer to the error code table in the manual. For example, E01 indicates an overcurrent: turn off the scooter, wait a few minutes and restart. If the problem persists, contact customer service.

How to maintain the battery to extend its life?

Recharge the battery after each use. Do not let it discharge completely. Store it at a partial charge (20-50%) if not using for a long time. Avoid extreme temperatures.

What is the actual range of the scooter?

The announced range can reach 40 km, but it varies depending on rider weight, terrain, temperature, riding style and maintenance. Smooth driving and proper tire pressure improve range.

What safety equipment is recommended?

Always wear a helmet, knee pads, elbow pads and a reflective vest. Before each trip, check the brakes, tire pressure and proper functioning of turn signals (if present). Obey traffic laws.

USER MANUAL Adventure Advanced Safety JEEP

This manual is valid for the following electric scooters:

Adventurer Urban Camou Sentinel

Contents

1. Safety instructions
2. Package contents and assembly
3. Product overview
4. Battery charging
5. Command information / Control panel
6. Quick guide
7. Folding and carrying
8. Range and performance
9. Storage, maintenance and cleaning
10. App configuration
11. Technical data sheet
12. Troubleshooting
13. Liability and general terms of warranty
14. Information on disposal

User manual

Instructions translated from the original Italian

Thank you for choosing this product.

For information, technical support, assistance or to consult the general terms of the warranty, please contact your dealer or visit the website www.jeepurbanemobility.com

1. Safety instructions

IMPORTANT! Read and follow the instructions carefully before using the item. Keep this manual for future reference or new users.

Take the time to learn the basics of the procedure to avoid severe accidents that may occur in the first few months. Contact your dealer for the proper support on how to use the item correctly or to be directed to an appropriate training organisation.

The company assumes no direct or indirect responsibility arising from misuse of the item, non-compliance with both the highway code and the instructions in the manual, accidents or disputes caused by non-compliance or illegal activity.

This product is to be used for recreational purposes, by one person only and without passengers, therefore it cannot be used by more than one person at a time.

Do not modify the intended use of the vehicle in any way. The item is not suitable for stunts, competitions, transporting objects, towing other vehicles or trailers.

The electric scooter must be used carefully, always respecting the rules imposed by the Highway Code of the country where it is used, in order to avoid dangerous situations and to take the utmost care of yourself and others.

CAUTION

Illustrative vehicle design requirements:

Electric scooter model	Jeep Urban Camou	Jeep Adventurer Jeep	Sentinel
Product code without indicators JE-MO-2	0002 JE-MO-210001 -
Product code with indicators included	JE-MO-210006JE-MO-220003	JE-MO-210005JE-MO-220002	JE-MO-210004JE-MO-220001
Product code with two brake controls JE-MO-220011		JE-MO-220006JE-MO-220007	JE-MO-220010
MIN weight [Kg] 30 30 30
MAX weight [Kg] 100 100 100
*MIN age 14 14 14
*MAX age 65 65 65
MIN height (cm) 120 120 120
MAX height (cm) 200 200 200

• Before using the product, check and follow local regulations regarding the minimum age of the rider, restrictions on the type of riders who can use the product and on the use of the product itself.
  The A-weighted emission sound pressure level (noise) at the rider's ear is less than 70 dB(A).

Visual representation of safety warnings

The following visual symbols are used to identify safety messages in this manual. They draw the focus of attention of the reader/user to the proper, safe use of the item.

CAUTION

Pay attention

Highlights the rules to follow to prevent damage to the item and/or prevent hazardous situations from arising.

DANGER

Residual risks

Highlights the presence of hazards that generate residual risks to which the user must pay attention to avoid injury or material damage.

It is important to bear in mind that when out in a public space or on the road, even when the instructions in the manual are observed down to the letter, the rider is not immune to injury caused by infractions or inappropriate actions taken towards other vehicles, obstacles or persons. Misuse of the item or non-compliance with the instructions provided in this manual may cause severe injury.

This product is an electric vehicle. The faster you ride, the longer the braking distance. Emergency braking on slippery, muddy, wet or icy roads may result in wheel spin and loss of balance. Adequate speeds and safety distances from other vehicles or pedestrians must be adhered to. Take extra care when riding on unfamiliar roads. Do not open the kickstand when using the item, risk of severe personal injury and damage to item.

CAUTION

On wet roads, the braking distance increases and the grip decreases compared to dry roads!

Drive more carefully, keep a safe distance!

For personal safety, wear a helmet, and knee and elbow pads to protect against falls and injuries while riding the item. When allowing others to use the item, ensure that the rider wears the safety equipment and explain the operation of the vehicle. To avoid injury, do not allow other persons to use the item if they do not know how to use it. Wear shoes before using the item.

Children must not play with the scooter or its parts, nor should they be allowed to clean it or perform maintenance operations.

When riding, take special care to not frighten children or pedestrians. When passing behind them, warn them by sounding the horn and slow down using the minimum speed of 6km / h

Instructions and warnings on rider behaviour

Conditions Appropriate	intended use Improper use
Riders	One More than one person, with children or animals.
Safety equipment	Helmet, knee pads, elbow pads, reflective vest. No equipment.
Pre-riding check	Prior to each use, check brakes and any wear, check tyre pressure (see side of tyre for recommended value), wheel wear, throttle, indicators, lights and charge status of battery. If any unusual noises or faults are detected, do not use the item and contact your dealer or the Authorised Technical Support Department.	Never checking the item prior to use.
	If any unusual noises or faults are detected, do not use the item and contact dealer or Technical Support Department.	Using the item when noise or faults are present.
Walking while pushing the item	Not accelerating. Pressing the throttle. Pushing while walking across pedestrian crossings In pedestrian areas when not in pedestrian mode (6 km/h) In overcrowded areas. Riding the vehicle in overcrowded areas.	Riding the vehicle on pedestrian crossings. Riding the vehicle in pedestrian areas when not in pedestrian mode (6 km/h). Riding the vehicle in pedestrian areas when not in pedestrian mode (6 km/h).
Stationary	The person riding the item must be able to easily place both feet on the ground while holding the handlebars at the correct height.	Not being able to keep the item stationary and balanced.Sitting on the item while it is running or stationary.
Riding under normal conditions	No objects hanging from handlebars. Objects hanging from handlebars result in instability and may impede manoeuvring.
	Riding with both hands on handlebars. One-handed	or hand-free riding.
	Not using devices such as phones, smartwatches, music players, or headphones.	Using devices such as phones, smart-watches, music players, or headphones.
	Riding with both feet on the footrest comfortably and safely.	Riding with one or both feet outside the footrest.It is prohibited to place or amass weight on the rear mudguard.
	Riding with helmet and protective equipment. Riding without helmet and protective equipment.
	Riding on easily accessible, smooth and compact roads, avoiding areas with intense traffic or overcrowded areas: e.g. dedicated cycle path, smooth paved surfaces.	Riding on motorways, long-distance roads.Riding on busy roads.Riding on pavements.Riding in overcrowded areas.Riding on very rough roads.Riding near: ravines, escarpments, harbours, sea, lakes or rivers.Failure to comply with regulations and the highway code.Failure to comply with regulations and the highway code.
	Complying with local regulations and the highway code.
	Looking ahead and watching out for obstacles, vehicles or nearby pedestrians.	Being distracted while driving.
	Changing direction, making sure to be seen, moderating speed.	Changing direction abruptly at high speed without making sure that you have been seen.
	Anticipating the route and moderating speed while observing the highway code and those that are the most vulnerable.	Braking and cornering at the same time makes the vehicle unstable.
	Using direction indicators, if included on the item.	Not using direction indicators.
	Slowing down when pedestrians are present. Acceusing pedestrian mode in pedestrian areas (6 km/h).Warning others of your presence by using the bell.	erating or maintaining a constant speed when pedestrians are present.Riding without using pedestrian mode in pedestrian areas (6 km/h).Not warning others of your presence by using the bell.
Uneven road conditions: speed bumps/ steps/rough road surfaces	Riding at moderate speed. Riding at high-speed.Bend knees slightly for better shock absorption when traversing uneven surfaces.	Accelerating over bumps or ditches, going down steps, jumping over obstacles, climbing pavements, riding harshly.
Conditions Appropriate	Intended use Improper use
Behaviour: around bends, down slopes, in the presence of nearby obstacles, vehicles and pedestrians	Keeping at a safe distance. Not observing safety distances. Stopping accelerating. Braking and slowing down. Riding at moderate speed and braking safely. Riding paid attention to doors and other high obstacles.	stances. Accelerating. at high speed, braking suddenly. Traversing beneath high obstacles.
Visibility conditions	Only ride if there is enough light to ride safely. When riding in unfavourable lighting conditions (from half an hour following sunset, throughout the entire period of darkness and even during the day, if weather conditions preclude road visibility, when driving through tunnels), remember to switch on the item's lights and wear a reflective vest, belts or bands.	Riding in unfavourable lighting conditions with lights off and without using a reflective vest, belts or bands.
Weather conditions	Driving in optimal conditions (no rain). Riding in adverse weather conditions: in the rain, when it snows, when there is ice or mud on the road, in strong winds, in fog.
Parking	In designated areas without impeding movement of vehicles or pedestrians. On smooth surfaces, ensuring stability is maintained. Switching off the item and using an anti-theft device. Using the kickstand provided.	Everywhere, impeding movement of vehicles or pedestrians. On uneven surfaces and without ensuring stability. Leaving the item switched on, unattended with no anti-theft device.
Engaging in extreme sports/acrobatics	NO YES.	Riding near: ravines, escarpments, harbours, sea, lakes or rivers. Riding over puddles. Racing with other vehicles.
Subjecting the item to forceful impact	NO YES.	Jumping over object or persons, jumping off steps or from high places.

What to do after a fall:

Check that the throttle lever works properly. To do this, accelerate and decelerate several times.

Check that the brakes work properly. To do this, get off the item and push it forward and brake in order to ensure it responds to commands.

Check that all vehicle components are in place and securely fastened.

Check tyre wear and pressure (see side of tyre for recommended value).

Check the wear of the brakes and cables.

DANGER

The brakes may become hot during use. Do not touch after use.

2. Package contents and assembly

Assembled item, the handlebar must be installed using the special screws contained in the package.

Model Referen	picture In the package Handlebar assembly
Adventurer Urban Camou		1x Allen key 1x Battery charger 4x Handlebar screws 1x Air chamber 4x Stickers 1x Screw-cover plate 1x Transport hook 1x Adaptor for tires inflation	Follow the steps on the next paragraph to properly assemble the parts shown in the image.
Sentinel		1x Allen key 1x Battery charger 4x Handlebar screws 1x Air chamber 4x Stickers 1x Adaptor for tires inflation	Insert the 4 screws manually without tightening them, then use the hex wrench supplied to tighten them and secure the handlebars.

Method:

Urban Camou / Adventurer:

• Open the package and remove the upper packaging materials.
• Lift the steering column and insert the handlebar keeping attention to not flatten the cables.
  Fix the steering column by folding the closing lever. Push downward the locking ring of the folding mechanism.
• Place the hook on the inner side of the steering column and insert the 2 screws (with reduced head) without tightening them.
• Insert the screw (reduced head) in the first hole on the opposite side of the steering wheel.
• Tighten the 3 screws previously inserted.
• Place the screw-cover plate between the remaining hole and the cover display, insert the screw [large head] and tighten it as needed in order to not damage the plate.
• Pick up the product from the package, open the kickstand and check for the product stability.
• Adjust the steering wheel closing mechanism (if * needed).
• Check the tire pressure (see the side of the tire for the recommended value).

Sentinel:

• Open the package and remove the upper packaging materials.
• Open the handlebar stem and secure it by folding the lever on the locking mechanism.
• Connect the display power cable to the main wiring (if necessary).
  Install the handlebar on the steering wheel taking care to the wires and insert the 4 screws, tighten them using the hex wrench.
  Take the item out of the packaging
• Open the kickstand and check that the item is stable.
• Adjust the steering wheel closing mechanism (if needed)**.

Model Reference	picture * Adjustment
Adventurer Urban Camou		Outside the mechanism there is a hex socket screw. If the handlebar stem is not very stable after closing, adjust the screw in the mechanism, by tightening or loosening it as required to increase the stability of the stem.
Sentinel		Inside the closing mechanism lever there is a hex wrench. If the handlebar stem is not very stable after closing, adjust the screw in the mechanism, by tightening or loosening it as required to increase the stability of the stem.

CAUTION

Assemble the item correctly. If, during assembly, any factory defects are detected, certain steps are unclear or issues with assembly or adjustments occur, do not ride the vehicle and contact your dealer or visit www.urbanchicemobility.it for technical support.

Do not use accessories and/or additional parts that are not approved by the manufacturer.

Keep children away from plastic items (including packaging materials) and small parts that may result in suffocation.

It is forbidden to modify or transform the item or any its parts in any way, as this may impair efficiency, reduce structural integrity and cause damage. Remove any sharp edges caused by misuse, breakage or damage to the item. If any factory defects, unusual noises or faults are detected, do not ride the vehicle and contact your dealer or visit www.jeepurbanemobility.com for technical support.

3. Product overview

In the interest of technological development, the manufacturer reserves the right to modify the item with no prior notice and this manual will not be automatically updated.

For further information and to consult different versions of the manual, visit www.jeepurbanemobility.com

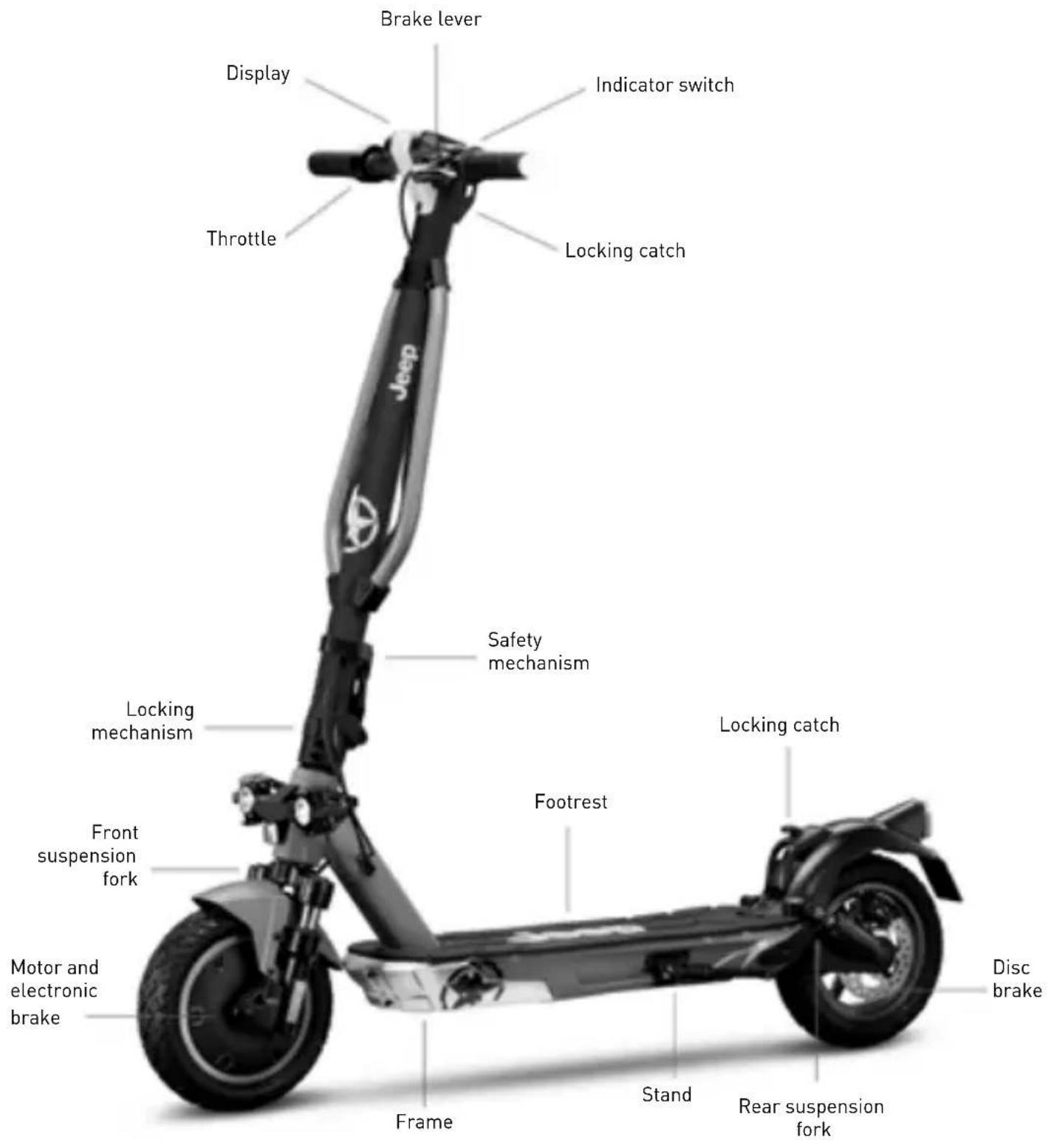

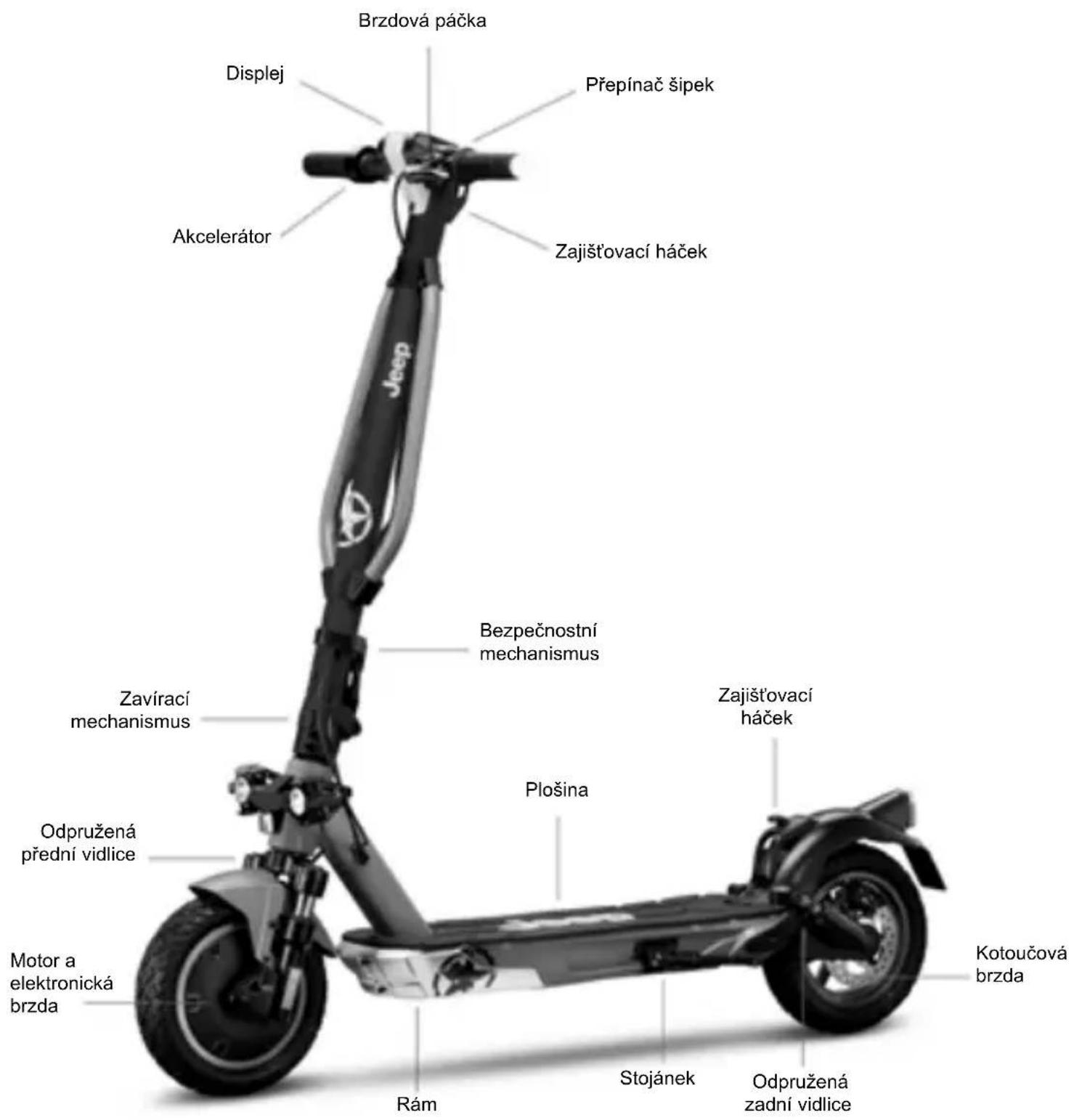

Adventurer / Urban Camou

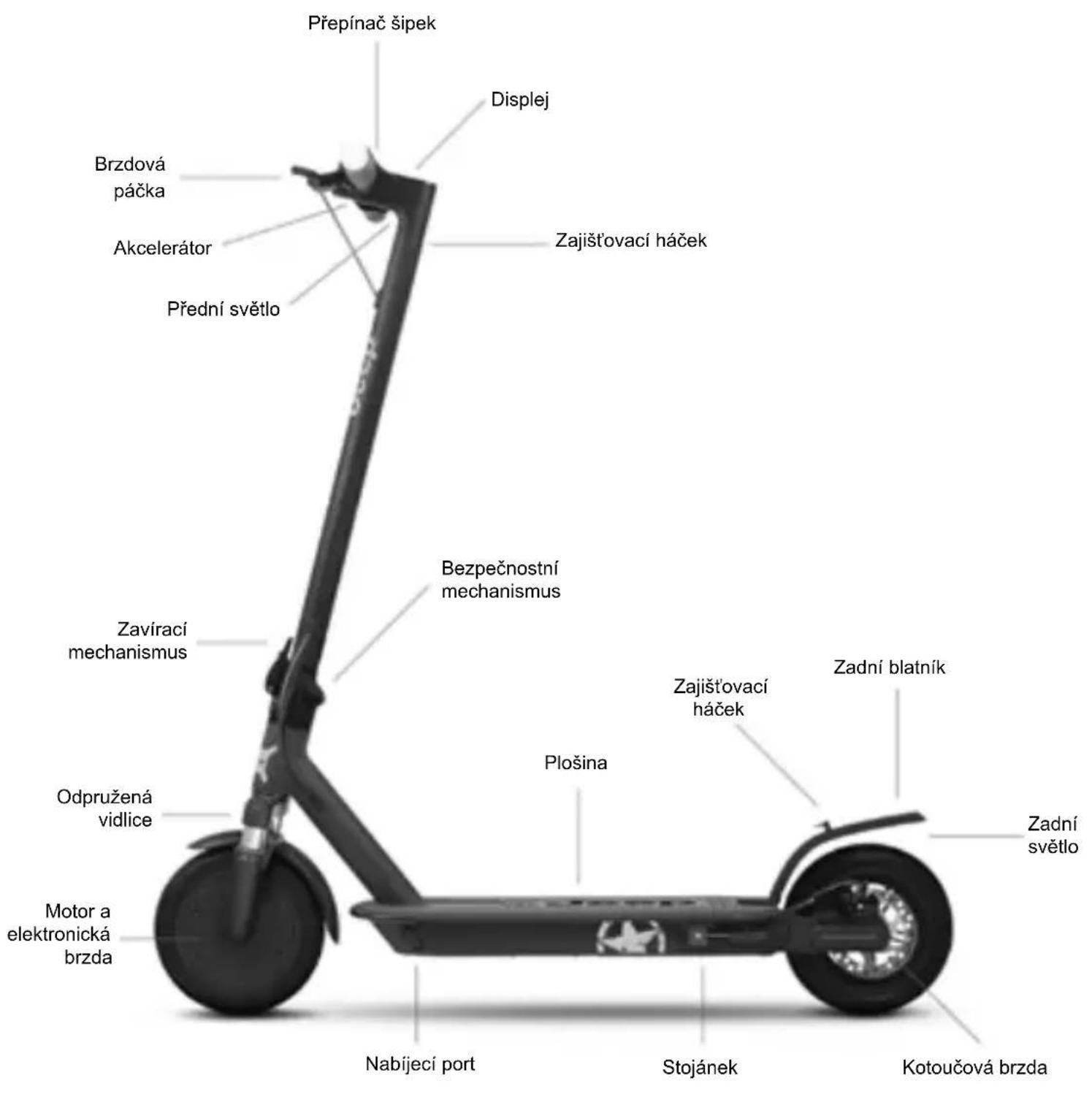

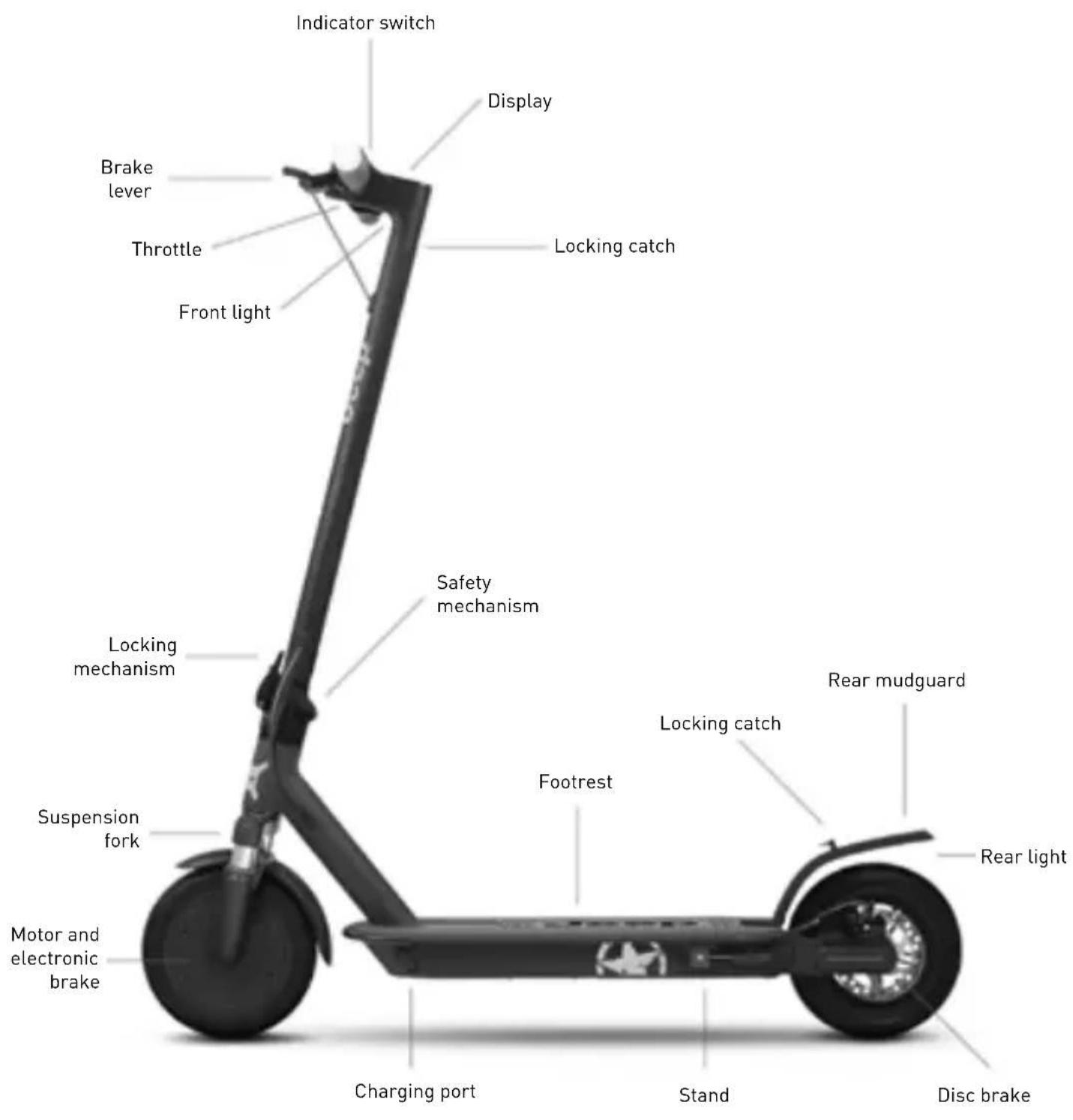

Sentinel

4. Battery charging

CAUTION

Prior to using the item for the first time, charge to 100% . Ensure the item, charger, and charging port are dry.

Instructions

1. Open the kickstand
2. Switch off the scooter

Model Reference	picture Instructions
Adventurer Urban Camou Sentinel		- Remove the rubber cover from the charging socket. - Connect the battery charger to the electrical outlet and then to the charging socket. - When the item is fully charged, the light on the charger changes from red (charging) to green (charging complete). - After recharging, disconnect the battery charger from the vehicle and reinsert the rubber cover. - Unplug the battery charger from the power socket. Do not switch the scooter on while it is charging. CAUTION The red light on the charger will turn green when charging is complete.

CAUTION	To recharge the item, use the battery charger supplied ONLY
Model Battery charger model	el Output voltage Charging time
Adventurer	HVE063-4200150 42V - 1.5A 7 h
Urban Camou	HVE126-5460200 54.6V - 2.0A 5 h
Sentinel	XHK-916-42015 42V - 1.5A 5 h

Using another type of charger may damage the scooter or entail other potential risks. Never leave the item unsupervised while it is charging. Do not switch the product on while it is charging.

After each use, fully recharge the battery to extend its useful life. Do not recharge the item immediately after use. Allow the scooter to cool for an hour before recharging.

The item should not be charging for extended periods. Overcharging reduces battery life and poses additional potential hazards.

Allow the vehicle to discharge completely to prevent damage to the battery.

Damage caused by the battery being left uncharged for a long period is irreversible and is not covered by the limited warranty. Once the damage has occurred, the battery cannot be recharged (the battery must not be dismantled by unqualified personnel, as this could lead to electric shocks, short circuits or even major safety incidents). If the owner is away, e.g. on holiday, and the device is entrusted to a third party, leave it in a partial charge state (20 - 50%) charge), not fully charged.

Carry out regular visual inspection of the charger and charger cables. If the battery charger cable is clearly damaged, do not use it to avoid further damage and/or risks; please contact us for a replacement.

Battery warnings

The battery consists of lithium-ion cells and chemical elements that are hazardous to health and the environment. Do not use the item if it emits odours, substances or excessive amounts of heat. Do not dispose of the item or the battery with household waste. The end user is responsible for the disposal of electrical and electronic equipment and batteries in compliance with all applicable regulations.

Avoid used, defective and/or non-original batteries of other models or brands.

DANGER

Do not leave the battery near fire or heat sources. Fire and explosion hazard.

Do not open the battery or take it apart. Do not strike, throw, or puncture the battery or attach objects onto it.

Do not touch any substances leaking from the battery, as they are deemed hazardous. Do not allow children or pets to touch the battery.

Do not overcharge or short-circuit the battery. Fire and explosion hazard.

Do not immerse or expose the battery to water, rain or other liquids. Do not expose the battery to direct sunlight, excessive heat or cold (for example, do not leave the item or battery in a car in direct sunlight for extended periods of time), or environments containing explosive gases or flames.

Do not carry or store the battery with metal objects such as hairpins, necklaces, etc. Contact between metal objects and battery contacts may cause a short circuit resulting in physical injury or death.

5. Command information / Control panel

Model Figure	Description
Adven-turer		A	Throttle: press down to accelerate.
		B	Power button: press to switch the item on/off.
		B	Speed level change: press the button (B) twice to select the desired level.
		B	Lights: press once the button to switch them on/off.
		C	Brake lever: pull the lever to brake.
		D	Bell: push once the lever to enable it.
Sentinel		A	Bell: push once the lever to enable it.
		B	Power button: press to switch the item on/off.
		B	Speed change: press twice to select the speed level desired.
		B	Lights: press once the button to switch them on/off.
		C	Brake lever: pull the lever to brake.
		D	Bell: push once the lever to enable it.

Model Reference picture Symbols
Adventurer Urban Camou	Jeeep BMW MPH KM/H ECO 88888=88=	1. Battery level: It indicates the battery charge remaining. 2. Speedometer: It indicates the instantaneous vehicle speed. 3. ODO: Total distance travelled. 4. TRIP: Single trip distance. 5. Lights: Lights indicator light. 6. Level 1 - ECO Mode. 7. Level 2 - D Mode. 8. Level 3 - S+ Mode. 9. Bluetooth indicator light: Smart-phone connection available. 10. Cruise Control: Speed control. It is activated after the same speed has been maintained for a few seconds. The display emits a short beep. 11. Pedestrian mode: it helps pushing the vehicle with flashing rear light.

Sentinel

3 2 5 8

1 1 2 3 10

1. Speedometer: It indicates the instantaneous vehicle speed. 2. Level 1 - ECO Mode. 3. Level 2 - DRIVE Mode. 4. Level 3 - SPORT Mode. 5. Pedestrian mode: it helps pushing the vehicle with flashing rear light. 6. Lights: Lights indicator light. 7. Cruise Control: Speed control. It is activated after the same speed has been maintained for a few seconds. The display emits a short beep. 8. ODO: Total distance travelled. 9. TRIP: Single trip distance. 10. Battery level: It indicates the battery charge remaining.

Direction indicators (if present)

Models*
Adven-turer	Drive:	On models where they are fitted, the di-rection indicators are placed at the ends of the handlebars (left and right side).The direction indicators are required to provide early warning of any change in direction while riding.
Urban Camou		CAUTIONBefore each use of the product, check the correct operation of the direction indicators.
Sentinel		The direction indicators are required to provide early warning of any change in direction while riding. CAUTIONBefore each use of the product, check the correct operation of the direction indicators.

6. Quick guide

Prior to using the item for the first time, charge to 100% .
- Check tyre pressure (see side of tyre for recommended value). If the item does not reach at least 60% of the declared kms, or the maximum speed within the first 3 months of use, it is likely that the wheels have deflated once more. In this case, restore pressure as indicated.
- Check and adjust the brakes.
- Turn on the display.
- Place the item on a flat surface.
- Hold the handlebar firmly using both hands. Step onto the footrest with one foot and use the other to give yourself a gentle push and accelerate.

CAUTION

Zero Start Function: the throttle is activated once the forward speed exceeds 3km / h

For safety reasons, the item is initially set up to avoid standing starts.

• When riding the item, tilt body in the riding direction during a turn and slowly turn the handlebars.
• To stop the item, release the throttle, pull the brake lever
  To get off, first stop the item completely. Getting off the moving item can cause injury.
• Prior to each use, check brakes and any wear, check tyre pressure (see side of tyre for recommended value), wheel wear, throttle and charge status of battery.

Brake lever adjustment

Adventurer / Urban Camou Indications
A	It is possible to adjust the position of the brake lever, if necessary, by unscrewing the screw (A). Once the position has been adjusted, tighten the screw (A).
Sentinel Indications
A	It is possible to adjust the position of the brake lever, if necessary, by unscrewing the screw (A). Once the position has been adjusted, tighten the screw (A).

Model Images	Indications
Adventurer		If the brake is too tight or too loose, use the Allen wrench to loosen the screw [A], then adjust the brake cable, (shorten the brake cable at the top if it is too tight; if it is too loose, pull the brake cable downwards) and then, retighten the screw [A]. Check the correct alignment between the brake caliper and the disc. Use the screws [B] and [C] to adjust the position / alignment on the disc, if necessary.
Urban Camou
Sentinel

7. Folding and carrying

Make sure the electric scooter is turned off. Hold the handlebar stem with your hand, pull the lever, fold the stem towards the footrest and fasten it.

Adventurer / Urban Camou Indications
Sentinel	CAUTION After folding, lift it by holding the handlebar stem with one or both hands. Make sure to secure the item during transportation. If the item cannot be lifted, do not transport with the item raised. If dropped, the item may cause severe injury and damage.

8. Range and performance

The maximum range and performance of the vehicle depends on a number of variables:

Terrain: riding on smooth roads provides greater range and performance than riding on rough roads and climbs.

Weight of user: the greater the weight, the lower the range and performance of the vehicle.

Temperature: riding the scooter in very cold or hot conditions affects range and performance.

Speed and riding style: riding smoothly and at a constant speed extends the range. Continuous acceleration, deceleration and manoeuvring greatly reduce the range. A lower speed extends the range.

Maintenance: prompt recharging, proper maintenance and regular checking of tyre pressure increase range and ensures consistent performance over time.

The level of battery charge affects performance - the lower the level, the lower the speed, especially on climbs.

9. Storage, maintenance and cleaning

CAUTION

If there are stains on the body of the scooter, wipe with a damp cloth. If the stains persist, apply neutral soap, brush out with a toothbrush, then wipe with a damp cloth. If there are scratches on the plastic components, use sandpaper or other abrasive material to remove them. Do not clean the items with alcohol, petrol, paraffin or other corrosive or volatile chemical solvents to prevent severe damage. Do not wash the item using high-pressure water jets. When cleaning the scooter, make sure that it is switched off, that the charging cable is disconnected, and the rubber cap is closed, as a water leak may cause an electric shock or other serious problems. Water seeping into the battery may cause damage to internal circuits and risk of fire or explosion. Should you suspect that water may have entered the battery, stop using the battery immediately and return it to your dealer's after-sales service for checking.

When the item is not in use, store it indoors in a cool, dry place. Do not store outdoors or inside cars for extended periods of time. Excessive sunlight, overheating, and excessive cold accelerate tyre ageing and jeopardize the life of both the item and the battery. Do not expose it to rain or water or immerse it in water to wash it.

Regularly check the tightness of the bolted parts, in particular wheel axles, the folding and transportation system, the steering system, the braking system, the state of the frame, the forks and the suspension. Nuts and all other self-locking fasteners may lose their effectiveness. Periodically check and tighten these components.

Like all mechanical components, the item is subject to wear and tear. Different materials and components may react to wear or stress fatigue in a variety of ways. If the service life of a component is exceeded, it may break suddenly, resulting in injury to the rider. Any cracks, scratches or changes in colour in areas subject to high levels of stress indicate that the life of the component has been reached and must be replaced.

Check the condition of the tyres: there must be no cuts, cracks, foreign bodies, abnormal swelling, missing parts or other damage.

Do not attempt to disassemble or repair the scooter yourself. Replacement of all scooter components should be carried out by the technical service department. For further information, contact your dealer or visit www.jeepurbanemobility.com

10. App configuration

This item can be paired with the Jeep e-mobility app. The App allows you to control the item directly from your Smartphone.

Open the App and follow the instructions given.

CAUTION

The App may require various permissions required for the use and operation of the App itself.

The App version may have been updated by your App store. It is advisable to constantly check whether any updates are available for the App in order to be able to use the new features and always install the latest version of the App on your device.

Do not use your device while riding.

11. Technical data sheet

General information

	Adventurer Urban Camou Sentinel
Frame magnesium alloy magnesium alloy aluminium and steel
Sunspensions front and rear front and rear front
Speed	JE-MO-210001 JE-MO-210005 JE-MO-220006	JE-MO-220002 JE-MO-220007	JE-MO-210002 JE-MO-210006 JE-MO-220011	JE-MO-220003	JE-MO-210004 JE-MO-220010JE-MO-220001
	Pedestrian: ≤ 6km/h L2: ≤ 15km/h L3: ≤ 20km/h L4: ≤ 25km/h (Max speed) *	Pedestrian: ≤ 6km/h L2: ≤ 10km/h L3: ≤ 15km/h L4: ≤ 20km/h (Max speed) *	Pedestrian: ≤ 6km/h L2: ≤ 15km/h L3: ≤ 20km/h L4: ≤ 25km/h (Max speed) *	Pedestrian: ≤ 6km/h L2: ≤ 10km/h L3: ≤ 15km/h L4: ≤ 25km/h (Max speed) *	Pedestrian: ≤ 6km/h L2: ≤ 10km/h L3: ≤ 15km/h L4: ≤ 20km/h (Max speed) *
Maximum slope** 18% 26% 18%
Brakes	Electronic front brake and rear disc brake		Electronic front brake and rear disc brake		Electronic front brake and rear disc brake
Tyres	Size: 10" tubeless Pressure: 44PSI/3BAR		Size: 10" tubeless Pressure: 44PSI/3BAR		Size: 8,5" for air chamber Pressure: 50PSI/3.5BAR
Maximum load 100 kg	100 kg 100 kg
Rider Check the current legislation in your country
Operating temperature	-5 °C/ 45 °C -5 °C/ 45 °C -0 °C/ 45 °C		5 °C
Protection level IPX4	IPX4 IPX4
Charging time approx. x. 7 hours approx. x. 5 hours approx. x. 5 hours
Autonomy** up to 40km			up to 45km		up to 25km
Electrical system
Rated power of motor	≤ 0.35kW; 350W Brushless		≤ 0.5Kw; 500W Brushless		≤ 0.35kW; 350W Brushless
Maximum power of motor	0.515Kw; 515W		0.7Kw; 700W		0.515kW; 515W
Display	3.5" LED		3.5" LED		Built-in LED
Battery	36V 10.4Ah 374Wh		48V 9.6Ah 461Wh 36V 7.5Ah 270Wh
Low voltage protection	30V ± 0.5V		40V ± 0.5V		31V ± 1V
Current limit	18A		18A		18A
Kers	Yes		Yes		Yes
Lights	Front and rear LEDs		Front and rear LEDs		Front and rear LEDs
Features	Bluetooth with App		Bluetooth with App		Bluetooth with App
Dimensions and weight
Net weight	18.5 kg		19kg 12.9 kg
Gross weight	22.8 kg		22.8 kg		15.4Kg
Open item dimensions	1195 x 473 x 1168mm		1195 x 473 x 1168mm		1060 x 480 x 1190
Closed item dimensions	1195 x 473 x 515mm		1195 x 473 x 515mm		1060 x 480 x 480
Packaging dimensions	1230 x 210 x 535mm		1230 x 210 x 535mm		1090 x 175 x 590

• Always observe the highway code and the regulations in force in the country where the electric scooter is in use.
  ** Subject to variations based on the riders weight, road conditions and temperature.

12. Troubleshooting

Problem Cause Solution

The motor is not running Electrical issue, error code present Request technical assistance
The drive wheel does not turn	Problems with the brakes Adjust the brakesMotor is blocked Check that the wheel is properly tight-ened, check that the wheel turns without starting the vehicle.If the problem persists, request technical assistance
The motor stops while it is running	Motor overheating Stop the vehicle and waitPresence of error code Request technical assistance
After charging it, the item does not switch on or it switches off after a few km.	Damaged battery Request technical assistance
The battery does not charge or the item does not switch on	Connection problems Request technical assistanceThe battery is not connected (models with removable battery)The battery is depleted Charge the battery to damaged battery Request technical assistanceProblems with the battery charger Replace the battery charger

Error code table

Model Code Ind	cations Solution
Adventurer	E01	Overcurrent protection Switch off the vehicle,	wait a few minutes before restarting it
	E02	Low voltage protection Recharge the battery; if the problem persists, request technical assistance	if the problem persists, request technical assistance
	E03	Protection from overvoltage Request technical assistance	assistance
	E04	Engine malfunction Request technical assistance
	E05	Control unit MOS malfunction Request technical assistance
	E06	Control unit MOS malfunction Request technical assistance
	E07	Control unit signal error Request technical assistance
Urban Camou	E08	Overheating protection Switch off the vehicle,	wait a few minutes before restarting it; if the problem persists, request technical assistance
	E09	Throttle malfunction Request technical assistance
	E10	Brake lever sensor malfunction Request technical assistance
	E11	Light system anomaly Request technical assistance
	E12	Display communication error Request technical assistance
	E13	Start button malfunction Request technical assistance

Model Code	Indications Solution
Sentinel	E01	Engine malfunction Request technical assistance
	E02	Control unit MOS malfunction Request technical assistance
	E03	Brake sensor malfunction (cut-off)	Request technical assistance
	E04	Throttle malfunction Request technical assistance
	E05	Low voltage protection Recharge the battery; if the problem persists, request technical assistance
	E06	Display communication error Request technical assistance
	E07	Overcurrent protection Request technical assistance
	E08	Control unit signal error Request technical assistance
	E09	Brushless engine anomaly / block	Request technical assistance

13. Liability and general terms of warranty

The rider assumes all liability for any injury when not wearing a helmet or other protective devices.

The driver must respect current local regulations regarding:

1. the minimum age allowed for the driver,
2. restrictions on the types of drivers who can use the product
3. all other regulatory aspects

The driver must always keep the product clean and in a perfect state of efficiency and maintenance, diligently perform the safety checks he/she is responsible for as described in the previous section, not tamper with the product in any way and keep all the maintenance documents.

M.T. Distribution shall not be liable for any damages caused and is in no way responsible for damages caused to property or persons when:

• the item is used incorrectly or in a manner that does not comply with the instructions of the user guide;
• after the purchase, the item is modified or tampered with in all or some of its components.

In case of malfunction of the product for reasons not attributable to improper behaviour of the driver and in case you want to consult the general terms of warranty, please contact your dealer or visit the website www.jeepurbanemobility.com

The Legal Guarantee never covers any Product faults or malfunctions caused by accidental events and/or events attributable to the Purchaser, or due to use of the Product in non-compliance with its intended use and/or with the provisions of the technical documentation attached to the Product, or due to failure to regulate mechanical parts, the natural wear of consumable materials, or due to assembly errors, lack of maintenance and/or use of said product in non-compliance with the instructions.

For example, the following are to be considered excluded from the statutory guarantee regarding products:

• damage caused by impacts, accidental falls or collisions, punctures;
• damage caused by use, exposure or storage in an unsuitable environment (e.g. presence of rain and/or mud, exposure to humidity or excessive heat, contact with sand or other substances)
• caused by failure to adjust for road use and/or maintenance of mechanical parts, mechanical disc brakes, handlebars, tyres, etc.; incorrect installation and/or assembly of parts and/or components
  the natural wear and tear of consumable materials: mechanical disc brake (e.g. pads, callipers, disc, cables), tires, platforms, gaskets, bearings, led lights and bulbs, kickstand, knobs, mudguards, rubber parts (platform), wiring cable connectors, grilles and stickers, etc.;
• improper maintenance and/or improper use of the product battery;
• tampering with and/or forcing parts of the product;
• incorrect or inadequate maintenance or alteration of the Product;
• improper use of the product (e.g.: excess load, use in competitions and/or for commercial or rental activities);
• maintenance, repairs and/or technical interventions on the product carried out by unauthorised third parties;
• damage to the products resulting from transport, if carried out by the purchaser;
• damage and/or defects resulting from the use of non-original parts.

Please refer to the most updated version of the warranty terms available on the website

www.jeepurbanemobility.com/en/support/

14. Information on disposal

Handling of the electrical or electronic device at the end of its service life (applicable in all European Union countries and in other European systems with separate collection systems)

This symbol on the product or packaging indicates that the product should not be considered as normal household waste, but should be taken to a facility authorised to dispose of waste from electrical and electronic equipment (WEEE).

By ensuring the item is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which may otherwise be caused by inappropriate disposal.

Recycling materials will help to preserve natural resources.

For more detailed information about the recycling and disposal of this item, you can contact the local waste disposal service or the point of sale where you purchased it.

In any case, disposal must be carried out in accordance with the legislation in force in the country of purchase.

More specifically, consumers must not dispose of WEEE as municipal waste, but must dispose of this type of waste separately, in one of two possible ways:

• By taking it to municipal collection centres (also called eco-collection centres or recycling facilities), directly or through the collection services of municipal companies, where available.
• By taking it to shops selling new electrical and electronic equipment.

Very small WEEE items (with the longest side less than 25cm ) my be deposited here free of charge, while larger WEEE items may be deposited on a 1-for-1 basis, i.e. by depositing an old product when purchasing a new one with the same functions. Moreover, the 1-on-1 mode is always guaranteed when the consumer purchases a new EEE, regardless of the size of the WEEE.

In the event of unlawful disposal of electrical and electronic equipment, specific sanctions may be applied by the laws governing the protection of the environment.

If the WEEE contains batteries or accumulators, they must be removed and subjected to specific separate collection.

Handling of spent batteries (applicable in all European Union countries and in other European systems with separate collection systems)

This symbol on the product or packaging indicates that the battery pack should not be treated as normal household waste. On some types of batteries, this symbol may be used in combination with a chemical symbol.

The chemical symbols for mercury [Hg] or lead [Pb] are added if the battery contains more than 0.0005% mercury or 0.004% lead.

By ensuring that the batteries are disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which may otherwise be caused by inappropriate disposal. Recycling materials will help to conserve natural resources. In the case of products which, for safety, performance or data protection purposes require a fixed connection to an internal battery, this should only be replaced by qualified service personnel.

Deliver the product at the end of its service life to collection centres suitable for the disposal of electrical and electronic equipment: this ensures that the battery inside it is also treated correctly.

For more detailed information about disposal of the dead battery, contact the local waste disposal service or the shop where it was purchased.

In any case, disposal must be carried out in accordance with the legislation in force in the country of purchase.

Italiano

Adventurer Urban Camou Sentinel

Indice

Urban Camou / Adventurer:

Adventurer Urban Camou Sentinel

Índice

No Change in the price. No change in the price.

Urban Camou / Adventurer:

Adventurer Urban Camou Sentinel

Table des matieres

Adventurer Urban Camou Sentinel

Verzeichnis

Urban Camou / Adventurer:

Adventurer Urban Camou Sentinel

Spis tresci

Urban Camou / Adventurer:

Adventurer Urban Camou Sentinel

Obsah

Adventurer/Urban Camou

Sentinel

POZOR

Pri prvnim pouziti nabijte vyrobek na 100% . Ujistete se, ze jsou vyrobek, nabijecka a nabijeci port suche.

Pokyny

Adventurer Urban Camou Sentinel

Obsah

Urban Camou / Adventurer:

• Otvorte balenie a odstrante horne obaly.
  Zdvihnite predstavec, zalozte riadidla, pričom dajte pozor, aby ste nepomliaždili káble.
• Upevnite predstavec prehnutim uzatvaracej páky. Bezpečnostné krúžok skladacieho mechanizmu posuţe smerom nadol.
• Hák umiestnite na vnútornú stranu predstavca a vlozte 2 skrutky (so zniženou hlavour) bez utiahnutia.
  Vlozte skrutku (so zniZenou hlavou) do prveho otvoru na opacnej strane k predstavcu.
  Predtym vlozené 3 skrutky utiahnite.
  Umiestnite kryciu dosku skrutiek medzi zvysny otvor a kryci dispiej, vlozte skrutku (so sirokou hlavou) a utiahnite jut natolko, aby sa doska neposkodila.
• Vyberte vyrobok z balenia, otvorte stojan a skontrolujte stabilitu vyrobku.
• Nastavte uzatvárací mechanizmus predstavca* (ak je to potrebné).
• Skontrolutje tlak pneumatik (odporucanu hodnotu najdete na boku pneumatiky).

Sentinel:

• Otvorte balenie a odstrante horny obal.
• Otvorte predstavec riadidiel a upevnite ho ohnutim páky uzatváracieho mechanizmu.
• Pripojte napájací kabel displeja k hlavnej kabeláži (ak je to potrebné).
  Namontujte riadidla na predstavec, priom daje pozor na kable a vlozte 4 skrutky utiahnite ich klucom na sesthrannene matie.
• Vyberte vyrobok z balenia
• Otvorte stojan a skontrolujte stabilitu vyrobku
• Nastavte uzatváraci mechanizmus predstavca (ak je to potrebné)*.

Adventurer Urban Camou Sentinel

περιεχόμενα

Adventurer Urban Camou Sentinel

Kazalo

Adventurer Urban Camou Sentinel

Inhoudsopgave

Urban Camou / Adventurer:

Adventurer Urban Camou Sentinel

Sadržaj

1. Bezbednosna uputstva
2. Sadržaj pakovanja i montaža
3. Pregled proizvoda
4. Punjenbe baterije
5. Informacao o komandama /kontrolna ploca
6. Brzi vodič
7. Sklapanje i noosenje
8. Autonomija i performanse
9. Skladištenje, odžavanje i cisćenje
10. Konfiguracija aplikacije
11. Tehnički list
12. Rešavanje problema
13. Odgovornost i opsti uslovi garancije
14. Informacije o odlaganju

Uputstvo za upotrebu

Prevod originalnih uputstava

Hvala vam sto ste izabrali ovaj proizvod.

Adventurer Urban Camou Sentinel

Içindekiler

www.jeepurbanemobility.com sitesini ziyaret edin

Urban Camou / Adventurer:

Adventurer Urban Camou Sentinel

W

aodwlllalss .1

gogssg 2

cuall dcdo ojbi .3

aJbolljoo oJcI .4

a#/ a#/g 5

6

Jg. .7

1yUyueog yjbluI o.8

aillg aalgl kJ.9

上山 10

aaii aaggl .11

CswJ 12

aolal jlaai bgaag aJgswal .13

Jalil jw loglso .14

Jd

aJyI yI aJyI aJy

caiialiieosjuiol

aia 3g jgally jai, aolll jaiall bgy gcl ybl y1 jog ouclalglall acullglogall jai

www.jeepurbanemobility.com gogolj

J 100000000000000000000000000000000000000000000000000000000000000000000000000000

aoll aaiy aolll ayalll cull

			م (**دالسکنير KWHERIA)
			س (**دالشام بوران/Aهام
JE-MO-210004	JE-MO-210005	JE-MO-210006	س (**دالشام بوران/Aهام
JE-MO-220001	JE-MO-220002	JE-MO-220003
JE-MO-220010	JE-MO-220006		س (**دالشام بوران/Aهام
	JE-MO-220007
			*(س)*1003030
			*(س)*100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100
			(الحَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعْزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَrozَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزِيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَи*14
			(الحَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ لَعَزَيُّلُ l.l.1414
			(الحَزَيُّلُ l.l.1414
			(الحَزَيُّلُ l.l.1414
			(الحَزَيُّلُ l.l.1414
			(الحَزَيُّلُ l.l.1414
			(الحَزَiُّلُ l.l.1414
			(الحَزَiُّلُ l.l.1414
			(الحَزَiُّلُ l.l.1414

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

.(A) 70 no Jd dall j A a gjgall (elogall) gall bal s

aallll j

yolal yolgol yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal yolal

aaglln aeg aaglll aaglll w lccn cclg gglg ll llae eal lglg > g 0c n k o gdlg dic alg g g aaglll no g 3 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g aal g

1aJgblb jlaIbIgkaKw JyIglaIyIgaiyIgaiyIgaiyIgaiyIgaiy

10000000000000000000000000000000

Jl 1 J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

aillllg aaiiil lclac eljag aeg aol gai gaiigai jgijslll jll

6 aall aacn alldw yacn w gwrjol dssyly aagl . agal no grrll sic olalg jol . jol oal . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol . jol.

a aal alg lglal glll al

الإستعمال		metabانiekوانيون
		ملاويات
الإستعمال محيى	الإستعمال الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية EXCELLENTLY	ملاويات
عربية حسيلة محيى بنا نهش محيى	عربية حسILA الحرفية الحرفية الحرفية الحرفية الحرفية EXCELLENTLY	ملاويات
الإستعمال الحرفية الحرفية EXCELLENTLY	الإستعمال الحرفية EXCELLENTLY	ملاويات
الإستعمال الحرفية EXCELLENTLY	الإستعمال EXCELLENTLY	ملاويات
الإستعمال EXCELLENTLY	الإستعمال EXCELLENTLY	ملاويات
الإستعمال EXCELLENTLY	الإستعمال EXCELLENTLY	ملاويات
الإستعمال EXCELLENTLY	الإستعمال EXCELLENTLY	ملاويات
الإستعمال EXCELLENTLY	الإستعمال EXCELLENTLY	ملاويات
الإستnzر实用性 محيى	الإستnzر实用性 EXCELLENTLY	ملاويات
الإستnzر实用性 EXCELLENTLY	الإستnzر实用性 EXCELLENTLY	ملاويات
الإستnzر实用性 EXCELLENTLY	الإستnzر实用性 EXCELLENTLY	ملاويات
الإستnzر实用性 EXCELLENTLY	الإستnzر实用性 EXCELLENTLY	ملاويات
الإستnzر实用性 EXCELLENTLY	الإستnzر实用性 EXCELLENTLY	mلاويات
الإستnzر实用性 EXCELLENTLY	الإستnzر实用性 EXCELLENTLY	mلا Coilatt
الإستnzر实用性 EXCELLENTLY	الإستnzر实用性 EXCELLENTLY	mلا Coilatt
الإستnzر实用性 EXCELLENTLY	الإستnzر实用性 EXCELLENTLY	mلا Coilatt
الإستnzر实用性 EXCELLENTLY	الإستnzر实用性 EXCELLENTLY	mلا Coilatt
الإستnzر实用性 EXCELLENTY	الإستnzر实用性 EXCELLENTY	mلا Coilatt
الإستnzر实用性 EXCELLENTY	ال,ennzrEXCELLENTY	mلا Coilatt
ال,ennzrEXCELLENTY	THEENZEREXCELLENTY	mلا Coilatt
ال,ennzrEXCELLENTY	THEENZEREXCELLENTY	mلا Coilatt
ال,ennzrEXCELLENTY	THEENZEREXCELLENTY	mلا Coilatt
ال,ennzrEXCELLENTY	THEENZEREXCELLENTY	mلا Coilatt
ال,ennzrEXTELLENTY	THEENZEREXCELLENTY	mلا Coilatt
ال,ennzrEXCELLENTY	THEENZEREXCELLENTY	mلا Coilatt
ال,ennzrEXCELLENTY	THEENZEREXCELLENTY	mلا Coilatt
ال,ennzrEXCELLENTY	THEENZEREXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEENZEREXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEENZEREXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEENZEREXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN23EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN24EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN25EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN26EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN27EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN28EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN29EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN30EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN31EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN32EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN33EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN34EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN35EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN36EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN37EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN38EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN39EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN40EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN41EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN42EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN43EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN44EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN45EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN46EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN47EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN48EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN49EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN50EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN51EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN52EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN53EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN54EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN55EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN56EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN57EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN58EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN59EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN60EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN61EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN62EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN63EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN64EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN65EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN66EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN67EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN68EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN69EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN70EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN71EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN72EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN73EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN74EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN75EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN76EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN77EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN78EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN79EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN80EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN81EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN82EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN83EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN84EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN85EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN86EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN87EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN88EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN89EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN90EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN91EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN92EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN93EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN94EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN95EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN96EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN97EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN98EXCELLENTY	mلا Coilatt.
ال,ennzrEXCELLENTY	THEEN99EXCELLENTY	mلا Coilatt.
الإستعمال		الإستعمال
الإستعمال	الإستعمال	الإستعمال
الإستعمال	الإستعمال	الإستnzients
الإستnzients	الإستnzients	الإستnzients
الإستnzients	الإستnzients	الإستnzients
الإستnzients	الإستnzients	ال,enzients
ال,enzients	ال,enzients	ال,enzients
ال,enzients	ال,enzients	ال,enzients
ال,enzients	ال,enzients	ال,enzients
ال,enzients	ال,enzients	ال,enzients
ال,enzients	ال,enzients	ال,enzients
ال,enzients	ال,enzients	ال,enzients
ال,enzients	THE ENZIENTS	THE ENZIENTS
ال,enzients	THE ENZIENTS	THE ENZIENTS
ال,enzients	THE ENZIENTS	THE ENZIENTS
ال,enzients	THE ENZIENTS	THE ENZIENTS
ال,enzients	THE ENZIENTS	THE ENZIENTS
ال,enzients	THE ENZIENTS	THE ENZIENTS
ال(enzients)	THE ENZIENTS	THE ENZIENTS
ال(enzients)	THE ENZIENTS	THE ENZIENTS
ال(enzients)	THE ENZIENTS	THE ENZIENTS
ال(enzients)	THE ENZIENTS	THE ENZIENTS
ال(enzients)	THE ENZIENTS	THE ENZIENTS
ال(enzients	THE ENZIENTS	THE ENZIENTS
ال(enzients)	THE ENZIENTS	THE ENZIENTS
ال(enzients)	THE ENZIENTS	THE ENZIENTS
ال(enzients)	THE ENZIENTS	THE ENZIENTS
ال(enzients)	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enzients)	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enzients)	THE ENZIENTS	THE ENZIENTS
ال(enzients)	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enzients)	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enzients)	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enzients)	THE ENZIENTS	THE ENZIENTS
ال(enzients)	THE ENZIENTS	THE ENZIENTS
ال(enzients)	THE ENZIENTS	THE ENZIENTS
ال(enzients)	THE ENZIENTS	THE ENZIENTS
ال(enZients	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enZients	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enZients)	THE ENZIENTS	THE ENZIENTS
ال(enZcents)	THE ENZIENTS	THE ENZIENTS
ال(enZcents)	THE ENZIENTS	THE ENZIENTS
ال(enZcents)	THE ENZIENTS	THE ENZIENTS
ال(enZcents)	THE ENZIENTS	THE ENZIENTS
ال(enZcents)	THE ENZIENTS	THE ENZIENTS
ال(enZents)	THE ENZIENTS	THE ENZIENTS
ال(enZents)	THE ENZIENTS	THE ENZIENTS
ال(enZents)	THE ENZIENTS	THE ENZIENTS
ال(enZents)	THE ENZIENTS	THE ENZIENTS
ال(enZents)	THE ENZIENTS	THE ENZIENTS
ال(enZcents)	THE ENZIENTS	THE ENZIENTS
ال(enZcents)	THE ENZIENTS	THE ENZIENTS
ال(enZcents)	THE ENZIENTS	THE ENZIENTS
ال(enZcents)	THE ENZIENTS	THE ENZIENTS
ال(enZcent)	THE ENZIENTS	THE ENZIENTS
ال(enZcent)	THE ENZIENTS	THE ENZIENTS
ال(enZcent)	THE ENZIENTS	THE ENZIENTS
ال(enZcent)	THE ENZIENTS	THE ENZIENTS
ال(enZcent)	THE ENZIENTS	THE ENZIENTS
ال(enZent)	THE ENZIENTS	THE ENZIENTS
ال(enZent)	THE ENZIENTS	THE ENZIENTS
ال(enZent)	THE ENZIENTS	THE ENZIENTS
ال(enZent)	THE ENZIENTS	THE ENZIENTS
ال(enZent)	THE ENZIENTS	THE ENZIENTS
ال(enZENT)	THE ENZIENTS	THE ENZIENTS
ال(enZENT)	THE ENZIENTS	THE ENZIENTS
ال(enZENT)	THE ENZIENTS	THE ENZIENTS
ال(enZENT)	THE ENZIENTS	THE ENZIENTS
ال(enZENT)	THE ENZIENTS	THE ENZIENTS
ال(enZent)	THE ENZIENTS	THE ENZIENTS
ال(enZent)	THE ENZIENTS	THE ENZIENTS
ال(enZent)	THE ENZIENTS	THE ENZIENTS
ال(enZent)	THE ENZIENTS	THE ENZIENTS
ال(enZident)	THE ENZIDENTS	THE ENZIDENTS
ال(enZident)	THE ENZIDENTS	THE ENZIDENTS
ال(enZident)	THE ENZIDENTS	THE ENZIDENTS
ال(enZident)	THE ENZIDENTS	THE ENZIDENTS
ال(enZident)	THE ENZIDENTS	THE ENZIDENTS
ال(enZident)	THE ENZIDENTS	THE ENZIENTS
ال(enZident)	THE ENZIDENTS	THE ENZIDENTS
ال(enZident)	THE ENZIDENTS	THE ENZIDENTS
ال(enZident)	THE ENZIDENTS	THE ENZIDENTS
ال(enZident)	THE ENZIDENTS	THE ENZIDENTS
ال(enZident)	THE ENZ IDENTITIES	THE ENZIDENTS
ال(enZident)	THE ENZ IDENTITIES	THE ENZIDENTS
ال(enZident)	THE ENZ IDENTITIES	THE ENZIDENTS
ال(enZident)	THE ENZ IDENTITIES	THE ENZIDENTS
ال(enZident)	THE ENZ IDENTITIES	THE ENZIDENTS
ال(enZident)	THE ENZ IDENTITYS	THE ENZIDENTS
ال(enZident)	THE ENZ IDENTITYS	THE ENZIDENTS
ال(enZident)	THE ENZ IDENTITYS	THE ENZIDENTS
ال(enZident)	THE ENZ IDENTITYS	THE ENZIDENTS
ال(enZident)	THE ENZ IDENTITYS	THE ENZIDENTS
ال(enZident)	The ENZ IDENTITYS	The ENZIDENTS
ال(enZident)	The ENZ IDENTITYS	The ENZIDENTS
ال(enZident)	The ENZ IDENTITYS	The ENZIDENTS
ال(enZident)	The ENZ IDENTITYS	The ENZIDENTS
ال(enZident)	The ENZ IDENTITYS	The ENZIDENTS
ال(enZident)	The EN2 IDENTITIES	The EN2 IDENTITIES
ال(enZident)	The EN2 IDENTITIES	The EN2 IDENTITIES
ال(enZident)	The EN2 IDENTITIES	The EN2 IDENTITIES
ال(enZident)	The EN2 IDENTITIES	The EN2 IDENTITIES
ال(enZident)	The EN2 IDENTITIES	The EN2 IDENTITIES
ال(enZident)	The EN2 IDENTITIES	The EN2 IDENTities
ال(enZident)	The EN2 IDENTITIES	The EN2 IDENTITIES
ال(enZident)	The EN2 IDENTITIES	The EN2 IDENTITIES
ال(enZident)	The EN2 IDENTITIES	The EN2 IDENTITIES
ال(enZident)	The EN2 IDENTITIES	The EN2 IDENTITIES
ال(enZident)	The EN2 IDENTITIES	The EN2 IDENTATIATS
ال(enZident)	The EN2 IDENTATIATS	The EN2 IDENTATIATS
الإستعمال		bvtn/12/10
الإستعمال بعبيعة الحرفية و ص響ات محيى.الإستعمال بعبيعة الحرفية و ص響ات محيى.الإستعمال بعبيعة الحرفية و ص響ات محيى.الإستعمال بعبيعة الحرفية و ص響ات محيى.الإستعمال بعبيgua. الإستعمال بعبيعة الحرفية و ص響ات محيى.الإستعمال بعبيgua. الإستعمال بعبيgua. الإستعمال بعبيgua. الإستعمال بعبيgua. الإستعمال بعبيgua. الإستعمال بعبيgua. الإستعمال بعبيgua. الإستعمال بعبيgua. الإستعمال بعبيgua. الإستعمال بعبيgua. الإستعمال بعبيgua. الإستعمال بعبيgua. الإستعمال بعبيgua. الإستعمال bga. الإستعمال bga. الإستعمال bga. الإستعمال bga. الإستعمال bga. الإستعمال bga. الإستعمال bga. الإستعمال bga. الإستعمال bga. الإستعمال bga. الإستعمال bga. الإستعمال bga. الإستعمال bga. الإستعمال bga. الإستعمال bga. الإستعمال bga. الإستعمال bga. ال,en. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. ال disen. . ال disen. . ال disen. . ال disen. . ال disen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ; . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . - . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad

Jaiy Jaiy Jaiy Jaiy Jaiy Jaiy Jaiy

ogall 30gll gdl aalololwll abwgl gall cji jao

:Urban Camou / Adventurer

aagall aal algo jg gaa

i 1

a aal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal

aagbgyggy (yaaia y) yjawall jg gglggl glglgl

a gai gasal jai aai jie jai ai (jiaia) jaiai

.

aJyjI ydi yd jg (yS) Jlalll aaii aaiia aaiia aaiia

gaiiall a jao gaojagai jolal jolal jai jai jai jai jai jai

（yj）

（gogall aal al gol jll no jll jbl) clll bghg

:Sentinel

gall jjg gsl

aill aill aolil ggyb jc aagg gally ooll aegll

（）

aal 1 aal alabg laby gao yolw4 Jl jygl yolwl ygo ag gll dgaagd

ogall jzaiil zjai

aial jaaai no slig Jalal ciai

（y）yj）ggljdaibuia

		Adventurer Urban Camou
		Sentinel

4

		Adventurer Urban Camou Sentinel

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

aagglj bbs jgag ajjbll jno jlll l bjaal gaaagab glall

aJalal aJai Jai aai aJai jai jai jai

y_b

jaiyglg jzaljbs.ajlall jslagjll jj

gaii gaiia 1jie ggi i 1y (cag gl ayglal jwll

gaiuagaii gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy gaiy

5

			الإستعمال
الإستعمال:الترجمة:الترجمة:الترجمة:الترجمة:الترجمة:الترجمة:الترجمة:الترجمة:الTRL:الإستعمال:الإستعمال:الTRL:الإستعمال:الTRL:الإستعمال:الTRL:الإستعمال:الTRL:الإستعمال:الTRL:الإستعمال:الTRL:الإستعمال:الTRL:الإستعمال:الTRL:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB: الإستعمال:الإستعمال:الTRL:الإستعمال:الTRL:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:الTAB:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL: AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:Al:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:	A.ع.	sw C D E F G H I J K L M N O P Q R S T U V W X Y Z	Adventurer Urban Camou
		B
الإستعمال:الTRL:الTAB:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL الإستعمال:الTRL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:AL:
	C.χ.
	D
	A.	C D E F G H I J K L M N O P Q R S T U V W X Y Z	Sentinel
	B
	B
	B
	B
	C.χ.
	D

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

a 1

J 1

suii i 1

gall jyj jdi gjjg jgyjail cagll ao jajg jgal aall aan abg jgswll cigfo jllw jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai

www.jeepurbanemobility.com

g 10

Jill clil 10 gol jgol Jgol Jgol Jgol Jgol Jgol Jgol

a aalaaal aaalaaal aaalaaal aaalaaal gglgabll

4

aaii jiaaiy aaiiy aaiy aaiy aaiy aaiy

a 1

ai = 1n j = 0^ma_ij

dolcoglso

		AdventurerUban CamouSentinel
ال/ll						العربيةالعربيةالعربيةالعربيةالعربيةالعربية
ال/ll		العربيةالعربيةالعربيةالعربيةالعربية
JE-MO-220001	JE-MO-210004JE-MO-220010	JE-MO-220003	JE-MO-210002JE-MO-210006JE-MO-220011	JE-MO-220002JE-MO-220007	JE-MO-210001JE-MO-210005JE-MO-220006	العربية
:العربيةالعربيةالعربيةالعربيةالعربيةالعربية	:العربيةالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ie�	:الع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ie�	:الع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieال洩	:الع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieالع-ieال洩	:الع-ieالع-ieالع-ieال洩	العربية
\( \text{مص直升رطاني ملاير} \)	\( \text{مص直升رطاني ملاير} \)	\( \text{مص直升رطاني ملاير} \)	\( \text{مص直升رطاني ملاير} \)	\( \text{مص直升رطاني ملاير} \)	\( \text{مص直升rtn} \)	\( \text{مص直升rtn} \)
\( \text{مص直升رطاني ملاير} \)	\( \text{مص直升rtn} \)	\( \text{mص直升rtn} \)	\( \text{mص直升rtn} \)	\( \text{mص直升rtn} \)	\( \text{mص直升rtn} \)	\( \text{mص直升rtn} \)
\( \text{مص直升rtn} \)	\( \text{mص直升rtn} \)	\( \text{mص直升rtn} \)	\( \text{mص直升rtn} \)	\( \text{mص直升rtn} \)	\( \text{mص直升rtn} \)	\( \text{mص直升rtn} \)
\( \text{مص直升rtn} \)	\( \text{mص直升rtn} \)\( \text{mcc} \)	\( \text{mcc} \)	\( \text{mcc} \)	\( \text{mcc} \)	\( \text{mcc} \)	\( \text{mcc} \)
\( \text{مص直升rtn} \)	\( \text{mcc} \)	\( \text{mcc} \)	\( \text{mcc} \)	\( \text{mcc} \)	\( \text{mcc} \)	\( \text{mcc} \)
\( \text{مص直升rtn} \)	\( \text{mcc} \)	\( \text{mcc} \)	\( \text{mCC} \)	\( \text{mcc} \)	\( \text{mcc} \)	\( \text{mcc} \)
\( \text{مص直升rtn} \)	\( \text{mcc} \)	\( \text{mcc} \)	\( \text{mcc} \)	\( \text{mcc} \)	\( \text{mcc} \)	\(\text{mcc} \)
\( \text{مص直升rtn} \)	\( \text{mcc} \)	\( \text{mcc} \)	\( \text{mcc} \)	\( \text{mcc} \)	\( \text{mcc} \)	\( \text{mcc} \)
\( \text{مص直升rtn} \)	\( 44PSI/3BAR : بورف {}^{\prime } \)	\( \text{b\/�الع PIE {}^{\prime } } \)	\( \text{b\/�الع PIE {}^{\prime } } \)	\( \text{b\/�الع PIE {}^{\prime } } \)	\( \text{b\/�الع PIE {}^{\prime } } \)	\( \text{b\/�الع PIE {}^{\prime } } \)
\( \text{مص直升rtn} \)	\( \text{b\/�الع PIE {}^{\prime } } \)	\( \text{b\/�الع PIE {}^{\prime } } \)	\( \text{b\/�الع PIE {}^{\prime } } \)	\( \text{b\/�الع PIE {}^{\prime } } \)	\( \text{b\/�الع PIE {}^{\prime } } \)	\( \text{b\/�الع PIE {}^{\prime } } \)

yll ylll lla yjllal delgall jbjlln gilll

aJg jgsjgl ggl 0g jg cag a

aJUJI

طالدانيالفندی		لی پوره‌کانی نهام‌کانی
طالدانيالفندی بسته‌کانی العین‌کانی سید‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانी العین‌کانी العین‌کانी العین‌کانी العین‌کانी العین‌کانी العین‌کانी العین‌کانी العین‌کانी العین‌کانी العین‌کانी العین‌کانी العین‌کانी العinox‌کانी العinox‌کانी العinox‌کانी العinox‌کانी العinox‌کانी العinox‌کانी العinox‌کانी العinox‌کانी العinox‌کانी العinox‌کانी العinox‌کانी العinox‌کانी العinox‌کان⁄- العinox‌کان⁄- العinox‌کان⁄- العinox‌کان⁄- العinox‌کان⁄- العinox‌کان⁄- العinox‌کان⁄- العinox‌کان⁄- العinox‌کان⁄- العinox‌کان⁄- العinox‌کان⁄- العinox‌کان⁄- العinox‌کان⁄- العinox⁄- العinox⁄- العinox⁄- العinox⁄- العinox⁄- العinox⁄- العinox⁄- العinox⁄- العinox⁄- العinox⁄- العinox⁄- العinox⁄- العinox⁄- العinox⁄- العinox⁄- العinox⁄- العinox⁄- العinox⁄- العinox⁄- العinox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- الع vox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- الع Vox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- الع voxel العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄-
طالدانيالفندی بسته‌کانی نهام‌کانی العین‌کانی سید‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی	طالدانيالفندی بسته‌کانی نهام‌کانی العین‌کانی سید‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین‌کانی العین⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العoxel⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- الع OMX⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العiox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العinox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- الع vox⁄- الع vox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- الع vox⁄- الع Vox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- الع vox⁄- الع voxel العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox⁄- العvox/- -

1a110g1g2

Jaaal aal alal Jauaill dkaia jalal gaiuall llae ydol

aio yj gll abg lcll

1J 3 J 3 J 3 J 3 J 3 J 3

a aaiiaaii iaiydiagaiyaiyaiyaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai

jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy

jgl a jylo. (aull jzllg aull lall jw) ayll gao jso

yj yj yj yj yj yj yj yj yj yj yj yj yj yj

12> 8ill jgiy lai. gio (jw 25 lgbl wll jglay) gill) iiaaiall sial yg ayg jyll ojai liu jg

aikco aibg sds dgs g hao n daall aaii 1 jlaa 1 a

aag yg aayy ggyg 1 1 1 1 1

aaii aiaai iaii gllg 15e oogaaiaaiaggl lal gaiy gl aai yll

Jaege gagg lglgllj jy aai, aalbll ciaa y gl bly jggi aajy y g ayu y

(jaaalg aabj odjol gyl aag ybl aby 3g ydl sby jy gao (g) aaii oai jll

gai jia daiyao jia jia cui yao jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

1J 3g aJlalglgagaljLg

C E

Declaration of Conformity

M.T. Distribution S.R.L

Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy

This declaration of conformity is issued under the sole responsibility of the Manufacturer

Product Brand: Jeep®

Product Model: ADVENTURER

Description of product: Electric Scooter

Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:

2006/42/EC Machinery Directive

2014/30/EU Electromagnetic Compatibility Directive

Applicable harmonized standard(s):

Machinery Directive 2006/42/EC Annex I

EN ISO 12100:2010

EN 17128:2020

Factory name: Taizhou Siweiluo Vehicle co., Limited

Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China

Date: 13/12/2021

Technical file available from EU headquarter

Declaration Place: Bologna, Italy

First name and surname: Alessandro Summa

Position: CEO

MT DISTRIBUTION S.R.L

Via Bargellino 10, 40012, Calderara di Reno (BO), Italy

Authorized person: Alessandro Summa

Position: CEO

NOTE:

This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.

C

Declaration of Conformity

M.T. Distribution S.R.L

Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy

This declaration of conformity is issued under the sole responsibility of the Manufacturer

Product Brand: Jeep®

Product Model: URBAN CAMOU

Description of product: Electric Scooter

Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:

2006/42/EC Machinery Directive

2014/30/EU Electromagnetic Compatibility Directive

Applicable harmonized standard(s):

Machinery Directive 2006/42/EC Annex I

EN ISO 12100:2010

EN 17128:2020

Factory name: Taizhou Siweiluo Vehicle co., Limited

Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China

Date: 13/12/2021

Technical file available from EU headquarters

Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO

MT DISTRIBUTION S.R.L Via Bargellino 10,40012, Calderara di Reno (BO), Italy

Authorized person: Alessandro Summa Position: CEO

NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.

EC Declaration of Conformity

according to the EC Machinery Directive 2006/42/EC, Annex II 1.A.

PLATUM by M.T. Distribution S.R.L

Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy

This declaration of conformity is issued under the sole responsibility of the Manufacturer

Product Brand: Jeep®

Product Model: Sentinel

Description of product: Electric Scooter

Serial identification number(s): JPMN2XXX0XXXXX

The object of the declaration described above fulfils all the relevant provisions of the following Directives:

2006/42/EC Machinery Directive

2014/53/EU Radio Equipment Directive on the harmonization of the laws of the Member States relating to the making available on the market of radio equipment.

2011/65/EU RoHS on the restriction of the use of certain hazardous substances in electrical and electronic equipment

Applicable harmonized standard(s):

EN 300 328 V2.2.2

EN 301 489-1 V1.9.2

EN 62479:2010

EN 62368-1:2014 +AC:2015

EN IEC 63000:2018

Other standard or technical specifications applied

EN 17128:2020

ETSI EN 301 489-17 V3.2.4

Manufacturer: Zhunhai Chang Jing Trade Co., Ltd

Address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000

Date: 04/07/2022

PLATUM.COM

HEADQUARTERS: VIA BARGELLINO 10 C/D - 40012 CALDERARA DI RENO (BO)

SALES OFFICE: VIA PARACELSO 24, PALAZZO CASSIOPEA 2-20864 AGRATE BRIANZA (MB)

MARCHIO REGISTRATO DI M.T. DISTRIBUTION SRL P. IVA 04177060375 CF 0119840377 REA BO-236546

Authorized Representative in the EU:

MT DISTRIBUTION S.R.L

Via Bargellino 10, 40012, Calderara di Reno (BO), Italy

Technical file available from EU headquarters

Declaration Place: Bologna, Italy

Authorized person - First name and surname: Position: CEO

Alessandro Summa

NOTE:

This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.

Jeep

E-SCOOTERS
