Product type	Electric scooter
Brand	Jeep
Model	JAF Safe Ride (JAF SR / JAF AS)
Usage	Recreational use, single rider
Maximum supported weight	100 kg
Minimum driver age	14 years (according to local regulations)
Maximum driver age	65 years
Driver height	120 cm to 200 cm
Maximum speed	20 km/h (JAF SR) / 25 km/h (JAF AS)
Speed modes	Pedestrian (≤6 km/h), ECO, Drive, Sport
Maximum range**	Up to 25 km (SR) / 30 km (AS)
Battery	Lithium-ion 36V 7.5Ah (SR) / 7.8Ah (AS)
Charging time	Approximately 5 hours
Charger	42V 1.5A (model-specific)
Motor	350W nominal, brushless
Brakes	Front electric brake and rear disc brake
Tires	8.5 inches with inner tube, pressure 50 PSI / 3.5 bar
Suspension	Front (suspended fork)
Lighting	Front and rear LED lights
Turn indicators	Yes (depending on model)
Connectivity	Bluetooth with Jeep e-mobility app
Protection level	IPX4 (SR) / IPX5 (AS)
Operating temperature	-5°C to 40°C (SR) / -5°C to 50°C (AS)
Folding	Yes, with locking hook

Frequently Asked Questions - JAF Safe Ride JEEP

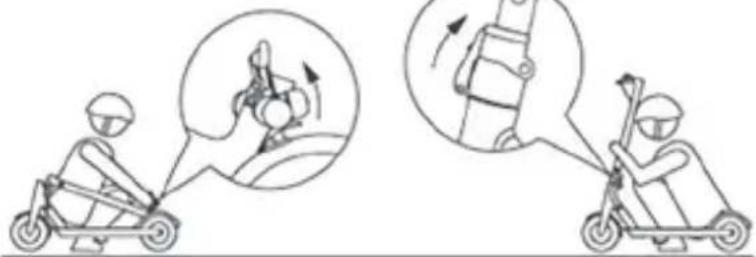

How to fold and transport the scooter?

Make sure the scooter is turned off. For JAF SR and JAF AS models, hold the handlebar stem with one hand, pull the quick-release lever, fold the stem towards the deck and hook it. After folding, lift holding the handlebar firmly. For transport, use the provided transport hook if available.

What is the battery charging procedure?

Open the kickstand and turn off the scooter. Plug the provided charger (42V 1.5A) into the charging port on the chassis. Charging time is approximately 5 hours. Never charge unattended and do not use any other charger. Let it cool down for 1 hour after use before charging. Fully recharge after each use to extend the life of the lithium-ion battery.

What to do if the battery does not charge or the scooter does not turn on?

First check that the charger is properly connected and that the outlet works. If the battery is depleted, charge it to 100%. If the problem persists, it may be a connection issue or a damaged battery. In that case, contact technical support. Do not attempt to disassemble the battery yourself.

What are common error codes and how to resolve them?

Error codes are displayed on the screen. For example: E01 (overload protection): turn off and wait a few minutes. E02 (low voltage): recharge the battery. E05 (MOS failure): request technical assistance. Consult the complete table in the manual for each code. If in doubt, contact customer service.

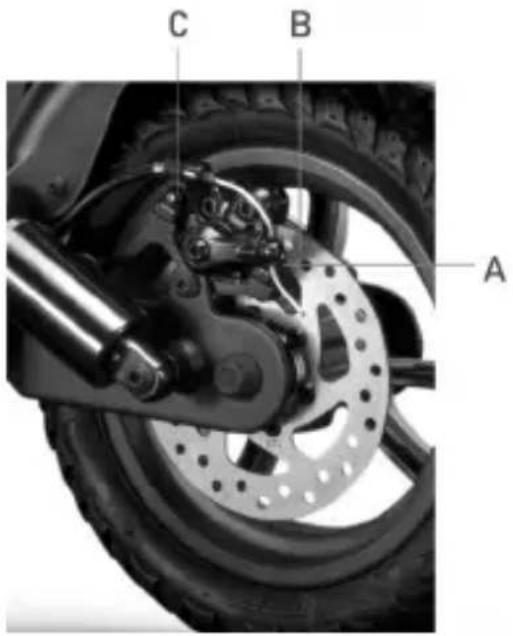

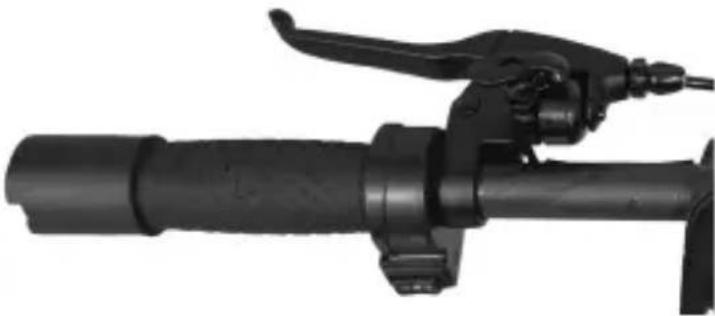

How to adjust the brakes?

Use an Allen key to loosen screw (A) on the brake lever. Adjust the cable tension by moving it up (tighter) or down (looser). Then tighten the screw. Check the caliper alignment with the disc using screws (B) and (C). A properly adjusted brake is essential for safety.

Can I use the scooter in the rain?

The protection level is IPX4 (JAF SR) or IPX5 (JAF AS), which resists splashes but not immersion. It is not recommended to ride in the rain as water can damage the battery and electronic components. On wet roads, braking distance increases and traction decreases. Drive with caution.

What is the actual range and what does it depend on?

The maximum announced range is up to 25 km (SR) or 30 km (AS), but it varies depending on several factors: user weight, terrain (smooth road vs hills), outside temperature, driving style (frequent accelerations reduce range), and tire pressure. Smooth driving and correct pressure optimize range.

How to clean and maintain the scooter?

Use a damp cloth for stains, and mild soap if necessary. Never use alcohol, gasoline, or solvents. Do not wash with high-pressure water. Regularly check screw tightness, tire wear (cuts, pressure), brake and cable condition. Store in a dry, cool place. For any repairs, contact customer service.

What safety equipment is recommended?

Always wear a helmet, knee pads, and elbow pads. The manual also recommends a reflective vest for visibility. Before each use, check the brakes, tire pressure, and lights. Follow traffic rules and do not exceed weight and age limits.

How to set up the Jeep e-mobility app?

Download the 'Jeep e-mobility' app from your store. Enable Bluetooth on your smartphone. Turn on the scooter and open the app. Follow the on-screen instructions to pair the devices. The app allows you to control speed, battery level, and access settings. Do not use it while driving.

USER MANUAL JAF Safe Ride JEEP

Silhouette of a mountain range with pine trees and full moon, no text or symbols present

USER MANUAL

English | Italiano | Español | Français | Deutsch | Nederlands

Polski | يب erg | Hrvatski | Românesc | Português

English....02

Italiano....34

Español....66

Français....98

Deutsch 130

Nederlands 162

Polski....194

عربي 226

Hrvatski....258

Românesc 290

Português 386

This manual is valid for the following electric scooters:

JUC AS / JAD AS / JAF SR / JAF AS / JXP

User Manual

JE-MO-000001 rev. 2

Contents

1. Safety instructions
2. Package contents and assembly
3. Product overview
4. Battery charging
5. Command information / Control panel
6. Quick guide

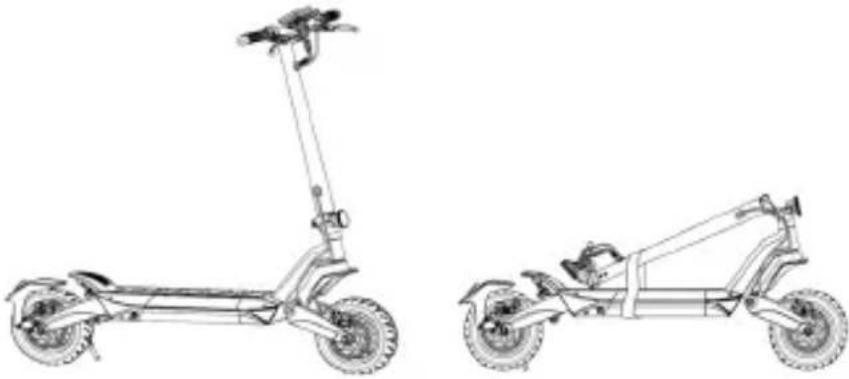

7. Folding and carrying
8. Range and performance
9. Storage, maintenance and cleaning
10. App configuration
11. Technical data sheet
12. Troubleshooting
13. Liability and general terms of warranty
14. Information on disposal

Instructions translated from the original Italian

Thank you for choosing this product.

For information, technical support, assistance or to consult the general terms of the warranty, please contact your dealer or visit the website www.jeepurbanemobility.com/en

1. Safety instructions

IMPORTANT! Read and follow the instructions carefully before using the item. Keep this manual for future reference or new users.

Take the time to learn the basics of the procedure to avoid severe accidents that may occur in the first few months. Contact your dealer for the proper support on how to use the item correctly or to be directed to an appropriate training organisation.

The company assumes no direct or indirect responsibility arising from misuse of the item, non-compliance with both the highway code and the instructions in the manual, accidents or disputes caused by non-compliance or illegal activity.

This product is to be used for recreational purposes, by one person only and without passengers, therefore it cannot be used by more than one person at a time.

Do not change the intended purpose of the vehicle in any way, this product is not suitable for stunts, competitions,

transporting objects, towing other vehicles or trailers.

The electric scooter must be used carefully, always respecting the rules imposed by the Highway Code of the country where it is used, in order to avoid dangerous situations and to take the utmost care of yourself and others.

CAUTION

Illustrative vehicle design requirements:

Electric scooter model	JUC AS JAD	AS JAF SR		JAF AS JXP
Product code	JE-MO-220008JE-MO-220011	JE-MO-220006JE-MO-220007	JE-MO-220010 JE-MO-230002 JE-MO-220009
MIN weight (Kg) 30 30 30	30 30
MAX weight (Kg) 100 100	100 100 100
*MIN age 14 14 14 14 14
*MAX age 65 65 65 65 65
MIN height (cm) 120 120	120 120 120
MAX height (cm) 200 200	200 200 200

* Before using the product, check and follow local regulations regarding the minimum age of the rider, restrictions on the type of drivers who can use the product and on the use of the product itself.

The A-weighted emission sound pressure level (noise) at the rider's ear is less than 70 dB(A).

Visual representation of the safety warnings

To identify the safety messages in this manual, the following graphic symbols will be used. They draw the focus of attention of the reader/user to the proper, safe use of the item.

CAUTION

Care required

Highlights the rules to follow to prevent damage to the item and/or prevent hazardous situations from arising.

DANGER

Residual risks

Highlights the presence of hazards causing residual risks, which the user must be aware of to prevent injury or damage to property.

General warnings

CAUTION

It is important to bear in mind that when out in a public space or on the road, even when the instructions in the manual are observed down to the letter, the rider is not immune to injury caused by infractions or inappropriate actions taken towards other vehicles, obstacles or persons. Misuse of the item or non-compliance with the instructions provided in this manual may cause severe injury.

This product is an electric vehicle. The faster you ride, the longer the braking distance. Emergency braking on slippery, muddy, wet or icy roads may result in wheel spin and loss of balance. It is required to take adequate speeds and safety distance from other vehicles or pedestrians. Take extra care when riding on unfamiliar roads. Do not open the kickstand when using the item, risk of severe personal injury and damage to item.

CAUTION

On wet roads, the braking distance increases and the grip decreases compared to dry roads! Drive more carefully, keep a safe distance!

For personal safety, wear a helmet, and knee and elbow pads to protect against falls and injuries while riding the item. When allowing others to use the item, ensure that the rider wears the safety equipment and explain the operation of the vehicle. To avoid injury, do not allow other persons to use the item if they do not know how to use it. Wear shoes before using the item.

Children must not play with the scooter or its parts, nor should they be allowed to clean it or perform maintenance operations.

When riding, take special care to not frighten children or pedestrians. When passing behind them, warn them by sounding the horn and slow down using the minimum speed of 6km/h.

CAUTION

Frequency information:

The frequency hopping data transmission equipment Bluetooth® is operating between the band 2,4000 GHz and 2,4835 GHz. The maximum transmitted radio frequency power is 100mW.

Instructions and warnings on rider behaviour

Conditions Appropriate	intended use Improper use
Riders	One More than one person, with children or animals.
Safety equipment	Helmet, knee pads, elbow pads, reflective vest.	No equipment.
Pre-riding check	Prior to each use, check brakes and any wear, check tyre pressure (see side of tyre for the recommended value), wheel wear, throttle and charge status of battery.If any unusual noises or faults are detected, do not use the item and contact your dealer or the Authorised Technical Support Department.	Never checking the item prior to use.
	If any unusual noises or faults are detected, do not use the item and contact dealer or Technical Support Department.	Using the item when noise or faults are present.
Walk by pushing the item.	Not accelerating. Pressing the throttle.Pushing while walking across pedestrian crossingsIn pedestrian areas when not in pedestrian mode (6 km/h)In overcrowded areas. Riding the vehicle in overcrowded areas.	Riding the vehicle on pedestrian crossings.Riding the vehicle in pedestrian areas when not in pedestrian mode (6 km/h).
Stationary	The person riding the item must be able to easily place both feet on the ground while holding the handlebars at the correct height.	Not being able to keep the item stationary and balanced.Sitting on the item while it is running or stationary.
Conditions Appropriate	Intended use Improper use
Riding under normal conditions	No objects hanging from handlebars. Objects hanging from handlebars result in instability and may impede manoeuvring.

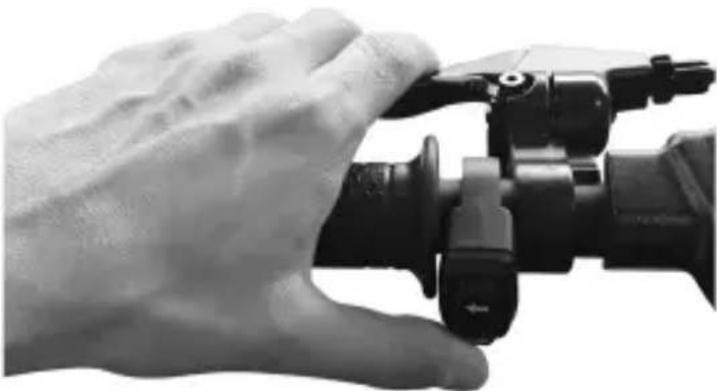

	Riding with both hands on handlebars. One-handed or hand-free riding.Do not use devices as telephones, smartwatches, music players, headsets.
	Riding with both feet on the footrest comfortably and safely.	Riding with one or both feet outside the footrest.It is prohibited to place or amass weight on the rear mudguard.
	Riding with helmet and protective equipment. Riding without helmet and protective equipment.
	Riding on easily accessible, smooth compact roads, avoiding heavily trafficked or overcrowded areas:for example, dedicated cycle path, surfaces with smooth floor.Complying with local regulations and the highway code.	Riding on motorways, long-distance roads.Riding on busy roads.Riding on pavements.Riding in overcrowded areas.Riding on very rough roads.Riding next to: ravines, escarpments, harbours, sea, lakes and rivers.Failure to comply with regulations and the highway code.Failure to comply with regulations and the highway code.
	Looking ahead and watching out for obstacles, vehicles or nearby pedestrians.	Being distracted while driving.
	Changing direction, making sure to be seen, moderating speed.Anticipating the route and moderating speed while observing the highway code and those that are the most vulnerable.Using direction indicators, if included on the item.	Changing direction abruptly at high speed without making sure that you have been seen.Braking and cornering at the same time makes the vehicle unstable.Not using direction indicators.
	Slowing down when pedestrians are present. Accelerating or maintaining a constant speed when pedestrians are present.Using pedestrian mode in pedestrian areas (6 km/h).Warning others of your presence by using the bell.	Riding without using pedestrian mode in pedestrian areas (6 km/h).Not warning others of your presence by using the bell.
Rough road conditions: speed bumps/ steps/bumpy road surface	Riding at moderate speed. Riding at high-speed.Bend knees slightly for better shock absorption when traversing uneven surfaces.	Accelerate over bumps and ditches, go down steps, jump obstacles, climb curbs, drive stiffly.
Behaviour: around bends, down slopes, in the presence of nearby obstacles, vehicles and pedestrians	Keeping at a safe distance. Not observing safety distances. Stopping accelerating. Braking and slowing down. Riding at moderate speed and braking safely. Riding at high-speed, suddenly brake. Paying attention to doors and other high obstacles.	Accelerating.Traversing beneath high obstacles.
Visibility conditions	Only ride if there is enough light to ride safely. When riding in unfavourable lighting conditions (from half an hour following sunset, throughout the entire period of darkness and even during the day, if weather conditions preclude road visibility, when driving through tunnels), remember to switch on the item's lights and wear a reflective vest, belts or bands.	Driving under unfavourable light conditions with the lights off and without using a reflective jacket or braces.
Weather conditions	Driving in optimal conditions (no rain). Riding in adverse weather conditions:under the rain, the snow, in presence of ice or mud on the road, strong wind, in presence of fog.
Parking	In designated areas without impeding movement of vehicles or pedestrians.On smooth surfaces, ensuring stability is maintained.Switching off the item and using an anti-theft device.Using the kickstand provided.	Everywhere, impeding movement of vehicles or pedestrians.On uneven surfaces and without ensuring stability.Leaving the item switched on, unattended with no anti-theft device.
Engaging in extreme sports/acrobatics	NO YES.	Riding next to: ravines, escarpments, harbours, sea, lakes and rivers,Riding over puddles.Racing with other vehicles.
Subjecting the item to forceful impact	NO YES.	Jumping over object or persons, jumping off steps or from high places.

What to do after a fall:

Check that the accelerator lever works properly. To do this, accelerate and decelerate several times.

Check that the brakes work properly. To do so, get off the vehicle and push it forward and brake to

ensure it responds to the commands.

Check that all vehicle components are in place and securely fastened.

Check tyre wear and pressure (see side of tyre for recommended value). Check the wear of the brakes and cables.

DANGER

The brakes may become hot during use. Do not touch after use.

2. Package contents and assembly

Assembled item, the handlebar must be installed using the special screws contained in the package.

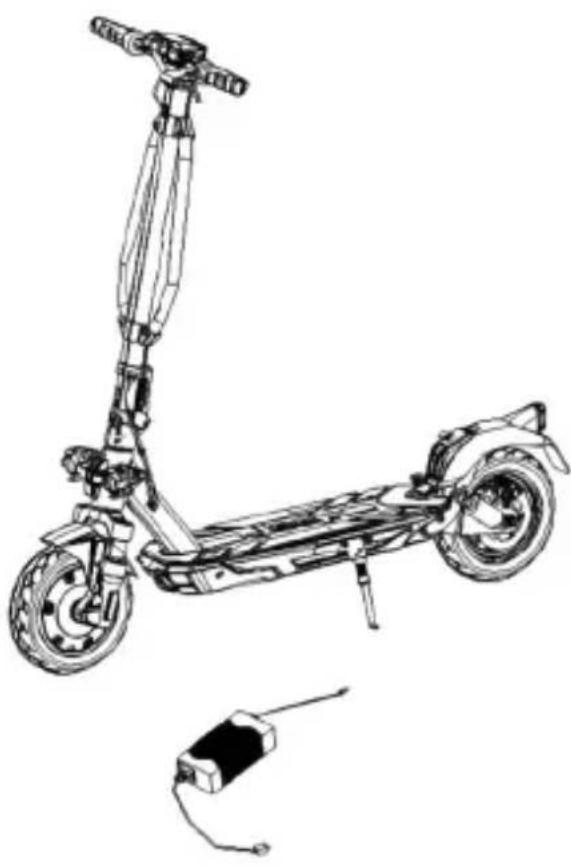

Model Reference picture In the package Indications
JUC ASJAD AS		1x Allen key 1xCharger 4xHandlebars screws1x Inner tube1 Cable-cover plate 1xTransport hook 1xAdaptor for inflating tyres1x Electronic buzzer(JE-MO-220008 only)	1. Raise the steering column and insert the handlebars taking care not to damage the buzzer and avoiding to crush the cables.2. Raise the steering column and insert the handlebars taking care not to crush the cables.3. Install the hook (see photo) by approaching it to the rod, making sure that it is aligned with the holes, then insert the screws.4. Insert the screw on the outside into the hole located under the control panel.5. Tighten the screws.6. Put near and align the plastic plate (see photo)
JAF SRJAF AS		1x Allen key 1xCharger 4xHandlebars screws1x Inner tube1x Adaptor for inflating tyres	Insert the 4 screws manually without tightening them, then use the hex wrench supplied to tighten them and secure the handlebars.
JXP		4x Handlebar screws1x Allen Key1x Battery charger1x Carry strap	Insert the 4 screws manually without tightening them, then use the hex wrench supplied to tighten them and secure the handlebars.

Method:

JUC AS / JAD AS:

• Open the package and remove the upper packaging materials.
• Raise the steering column and insert the handlebars taking care not to damage the buzzer (JE-MO-220008* excluded) and taking care not to crush the cables.
  • Fix the steering column by folding the closing lever.
• Place the hook on the inner side of the steering column and insert the 2 screws (with reduced head) without tightening them.
• Insert the screw (reduced head) in the first hole on the opposite side of the steering wheel.
• Tighten the 3 screws previously inserted.
• Place the screw-cover plate between the remaining hole and the cover display, insert the screw (large head) and tighten it as needed in order to not damage the plate.
• Pick up the product from the package, open the kickstand and check for the product stability.
• Check the tyre pressure (see the side of the tyre for the recommended value).

*JUC AS (JE-MO-220008) - buzzer

Electronic buzzer (if present)

USB charging port

(lower side, under the rubber protection)

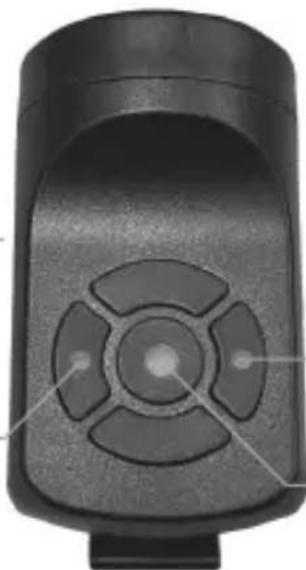

Close-up of a black plastic mechanical component with a circular center and four curved blades (no text or symbols visible)

Right button:

Press and hold to deactivate anti-theft mode.

Left button:

Press and hold to activate anti-theft mode.

Central button (Horn):

• Press to ring.
• Press twice quickly to change the sound.

Charging the device: Insert the USB cable into the charging port (lower side).

JAF SR / JAF AS

• Open the package and remove the upper packaging materials.
• Raise and fix the steering column by folding the closing lever.
• Connect the display power cable to the main wiring (if necessary).

• Install the handlebars on the steering column paying attention to the cables, insert the 4 screws and tighten them with the hex wrench.

• Take the item out of its packaging.

- Open the kickstand and check that the item is stable.

- Perform adjustment of the steering column locking mechanism (if necessary*).

- Check the tyre pressure (see the side of the tyre for the recommended value).

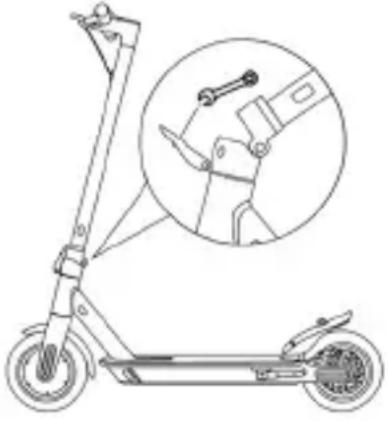

\*Steering column stability – JAF

JAF SRJAF AS

The locking mechanism contains a hex screw. If the handlebar stem is not very stable after closing, adjust the screw in the mechanism, by tightening or loosening it as required to increase the stability of the stem.

JXP

• Open the package and remove the upper packaging materials.
• Raise and secure the steering column by turning the locking mechanism screw clockwise.
• Connect the display power cable to the main wiring (if necessary).

- Install the handlebars on the steering column paying attention to the cables, insert the 4 screws and tighten them with the hex wrench.

• Take the item out of its packaging.

- Open the kickstand and check that the item is stable.

- Check the stability of the steering column and, if necessary, further tighten the relative screw of the locking mechanism.

- Check the tyre pressure (see the side of the tyre for the recommended value).

Assemble the item correctly. If, during assembly, any factory defects are detected, certain steps are unclear or issues with assembly or adjustments occur, do not ride the vehicle and contact your dealer or visit www.jeepurbanemobility.com/en for technical support.

Do not use accessories and/or additional parts that are not approved by the manufacturer.

Keep children away from plastic items (including packaging materials) and small parts that may result in suffocation.

It is forbidden to modify or transform the item or any its parts in any way, as this may impair efficiency, reduce structural integrity and cause damage. Remove any sharp edges caused by misuse, breakage or damage to the item. If any factory defects, unusual noises or faults are detected, do not ride the vehicle and contact your dealer or visit

www.jeepurbanemobility.com/en for technical support.

3. Product overview

In the view of the continuous technological development, the manufacturer reserves to modify the item without notice, without the automatic updating of this manual.

For further information and to consult different versions of the manual, visit www.jeepurbanemobility.com/en

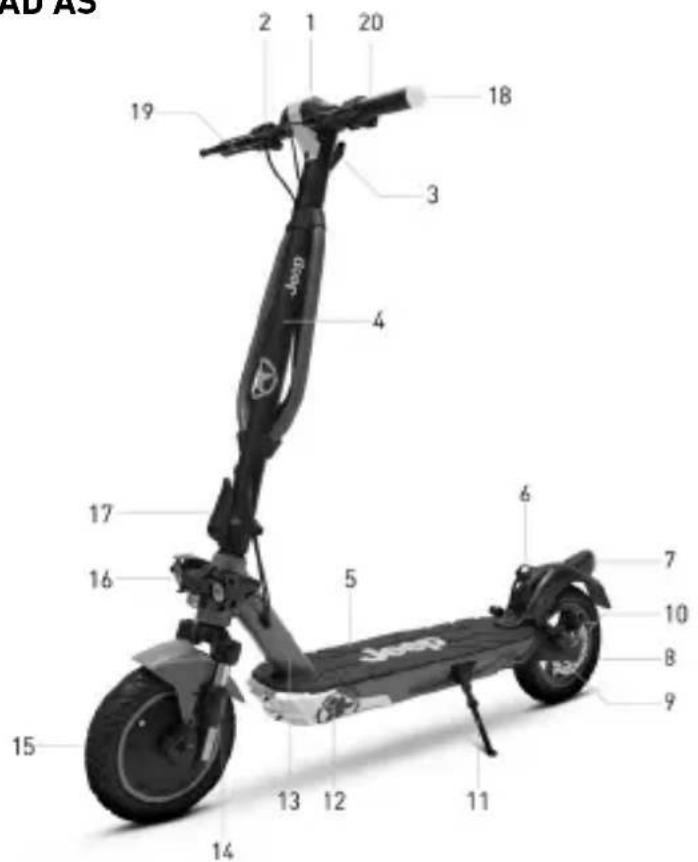

JUC AS / JAD AS

AD AS 19 2 1 20 18 3 4 17 16 5 6 7 10 8 9 15 14 13 12 11

1. Display
2. Throttle
3. Locking catch
4. Steering column
5. Footrest
6. Locking catch
7. Light
8. Free wheel
9. Disc brake
10. Suspension fork
11. Stand
12. Charging port
13. Frame
14. Suspension fork
15. Drive sprocket
16. Headlamp
17. Quick tightening lever
18. Turn signal
19. Brake lever
20. Command of the turn signals

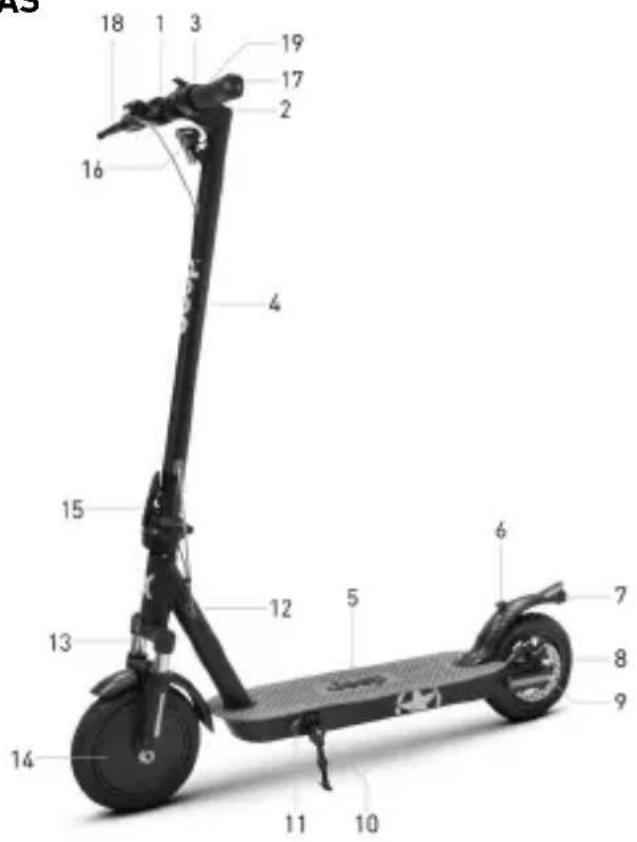

JAF SR / JAF AS

18 1 3 19 17 2 16 4 15 12 5 6 7 13 14 11 10 8 9

1. Accelerator
2. Display
3. Fastening clip
4. Steering column
5. Footrest
6. Locking catch
7. Light
8. Free wheel
9. Disc brake
10. Stand
11. Charging port
12. Frame
13. Suspension fork
14. Drive sprocket
15. Quick tightening lever
16. Headlamp
17. Turn signal
18. Brake lever
19. Command of the turn signals

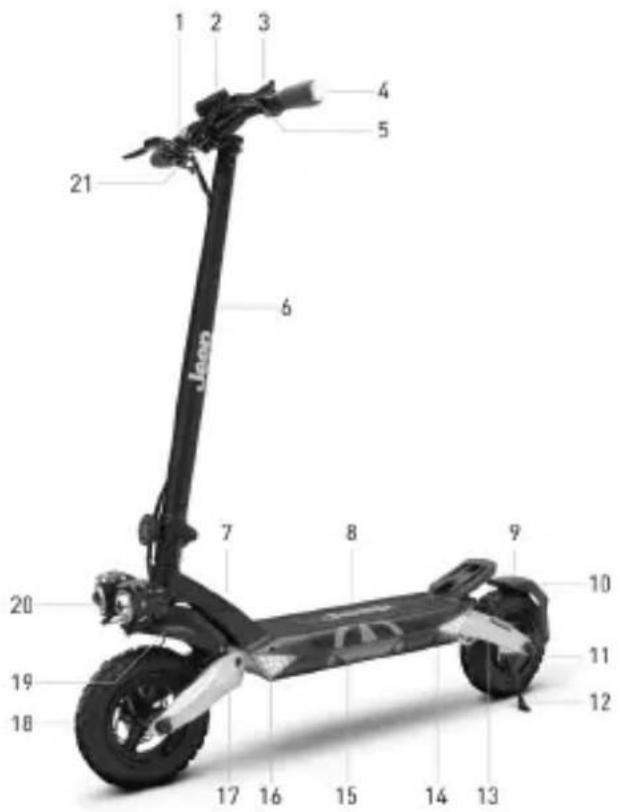

1 2 3 4 5 21 6 Jiaon 7 8 9 20 10 19 11 18 17 16 15 14 13 12

1. Accelerator
2. Display
3. Multi-function switch
4. Turn signal
5. Brake lever
6. Steering column
7. Frame
8. Footrest
9. Rear mudguard
10. Light
11. Rear drive wheel
12. Side kickstand
13. Rear suspension fork
14. Charging port
15. Battery compartment and controller
16. Turn signal
17. Front suspension fork
18. Free front wheel
19. Front mudguard
20. Headlights
21. Handlebars

4. Battery charging

CAUTION

Prior to using the item for the first time, charge to 100%. Ensure the item, charger, and charging port are dry.

Instructions

1. Open the kickstand
2. Turn off the scooter

Model Reference picture Instructions
JUC AS
JAD AS
JAF SR
JAF AS
JXP

CAUTION

To recharge the item, use the battery charger supplied ONLY.

Model Product code		Battery charger model	Output time Charging time
JUC AS	JE-MO-220008JE-MO-220011	CP542000 54.6V - 2A 5 h
JAD AS	JE-MO-220006JE-MO-220007	CP4215 42V - 1.5A 7 h
JAF SR	JE-MO-220010 XHK-9	16-42015 42V - 1.5A 5 h
JAF AS	JE-MO-230002 GJS150	-4200150 42V - 1.5A 5h
JXP	JE-MO-220009 GJS150	-5460200 54.6V - 2A 8 h

Using another type of charger may damage the scooter or entail other potential risks. Never leave the item unsupervised while it is charging. Do not switch the product on while it is charging.

After each use, fully recharge the battery to extend its useful life. Do not charge the item immediately after having used it. Allow the scooter to cool for an hour before recharging.

The item should not be charging for extended periods. Overcharging reduces battery life and poses additional potential hazards.

Allow the vehicle to discharge completely to prevent damage to the battery.

Damage caused by the battery being left uncharged for a long period is irreversible and is not covered by the limited warranty. Once the damage has occurred, the battery cannot be recharged (the battery must not be dismantled by unqualified personnel, as this could lead to electric shocks, short circuits or even major safety incidents). If the owner is away, e.g. on holiday, and the device is entrusted to a third party, leave it in a partial charge state (20-50% charge), not fully charged.

Carry out regular visual inspection of the charger and charger cables. If the battery charger cable is clearly damaged, do not use it to avoid further damage and/or risks; please contact us for a replacement.

Battery warnings

The battery consists of lithium-ion cells and chemical elements that are hazardous to health and the environment. Do not use the item if it produces odours, substances or excessive heat. Do not dispose of the item or the battery with household waste. The end user is responsible for the disposal of electrical and electronic equipment and batteries in compliance with all applicable regulations.

Avoid used, defective and/or non-original batteries of other models or brands.

DANGER

Do not leave the battery near fire or heat sources. Fire and explosion hazard. Do not open the battery or take it apart. Do not strike, throw, or puncture the battery or attach objects onto it.

Do not touch any substances leaking from the battery, as they are deemed hazardous. Do not allow children or pets to touch the battery.

Do not overcharge or short-circuit the battery. Fire and explosion hazard.

Do not immerse or expose the battery to water, rain or other liquids. Do not expose the battery to direct sunlight, excessive heat or cold (for example, do not leave the item or battery in a car in direct sunlight for extended periods of time), or environments containing explosive gases or flames.

Do not transport or store the battery together metallic objects, as hairpins, necklaces, etc. If the battery comes into contact with metallic objects, electrical shocks may occur, leading to physical damages or death.

5. Command information / Control panel

Model Figure	Description

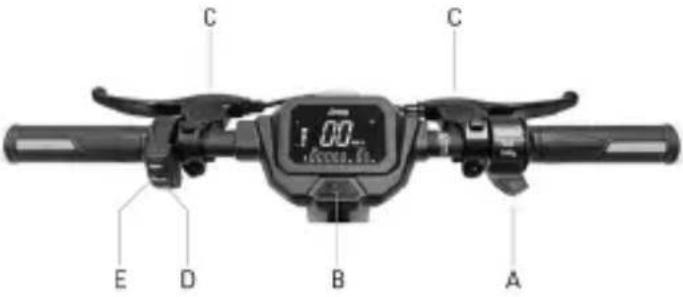

JUC ASJAD AS		A	Throttle: press down to accelerate.
		B	Power button: press to switch the item on/off.
		B	Speed level change: press the button (B) twice to select the desired level.
		B	Lights: press the button once to turn them on/off.
		C	Brake lever: pull the lever to brake.
		D	Buzzer (if present): Push the button once to enable it.
		E	Turn Signal Command - Press once to switch the turn signal on or off.
JAF SR		A	Accelerator: press down to accelerate
		B	Power button: press to switch the item on/off.
		B	Speed change: press twice to select the speed level desired.
		B	Lights: press the button once to turn them on/off.
		C	Brake lever: pull the lever to brake.
		D	Bell: push once the lever to enable it.
		E	Turn Signal Command - Press once to switch the turn signal on or off.
		F	Brake control: press down to brake.
JAF AS		A	Accelerator: press down to accelerate
		B	Power on and off: press and hold to turn on or off.Lights: press the button once to turn them on or off.Speed level change: press the button twice to select the desired level.Change unit of measure: press the button three times to select the unit of measurement.
		C	Brake lever: pull the lever to brake.
		D	Turn signal control: to activate the turn signals, press the switch once to the right or left, depending on the direction to be indicated. To deactivate the turn signal, move the switch back to the central position.Horn: press the button once or several times to activate it.

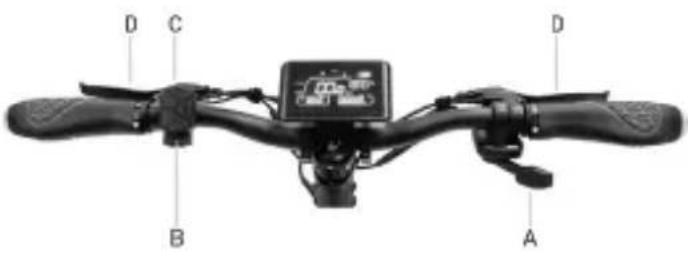

JXP		A	Throttle: press down to accelerate.

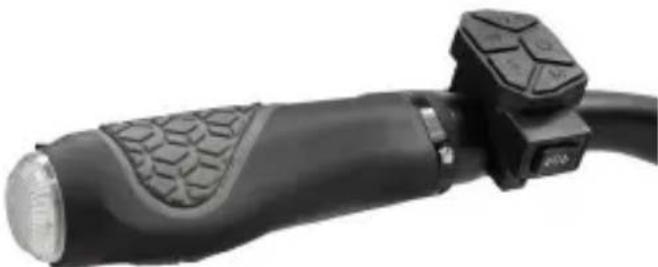

		B	Multi-function control:1. Light switch2. On/off switch3. Settings4. Speed selector5. Horn button6. Turn signal switch
		C	Bell: push once the lever to enable it.
		D	Brake lever: pull the lever to brake.

Model Reference	ance picture Symbols
JUC ASJAD AS		1. Battery level: It indicates the battery charge remaining.2. Speedometer: It indicates the instantaneous vehicle speed.3. ODO: Total distance travelled.4. TRIP: Single trip distance.5. Lights: Lights indicator light.6. Level 1 - ECO Mode.7. Level 2 - D Mode.8. Level 3 - S+ Mode.9. Bluetooth indicator light: Smart-phone connection available.10. Cruise Control: Speed control. It enables after maintaining the same speed for a few seconds. The display emits a short beep.11. Pedestrian mode: it helps pushing the vehicle with flashing rear light.
JAF SR		1. Speedometer: It indicates the instantaneous vehicle speed.2. Level 1 - ECO Mode.3. Level 2 - DRIVE Mode.4. Level 3 - SPORT Mode.5. Pedestrian mode: it helps pushing the vehicle with flashing rear light.6. Lights: Lights indicator light.7. Cruise Control: Speed control. It enables after maintaining the same speed for a few seconds. The display emits a short beep.8. ODO: Total distance travelled.9. TRIP: Single trip distance.10. Battery level: It indicates the battery charge remaining.

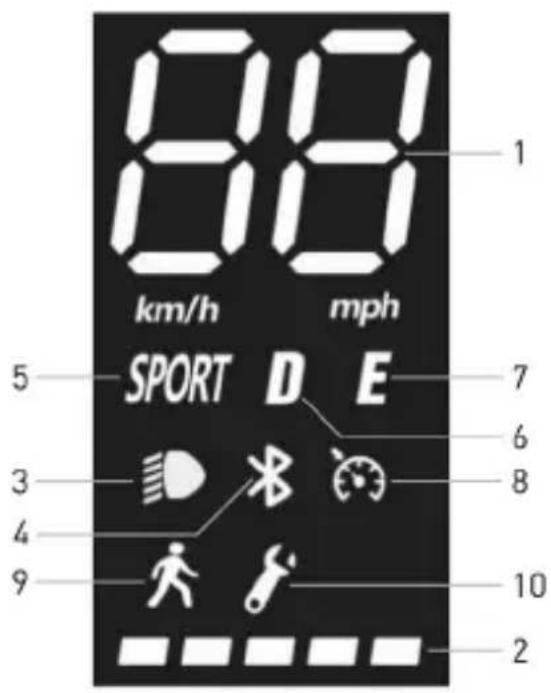

JAF AS

89 km/h mph 5 SPORT D E 3 4 9 10 2 7 6 8

1. Speedometer: Displays the current speed of the scooter.

2. Battery level: indicates the remaining battery level.

3. Lights: lights indicator light

4. Bluetooth: Bluetooth indicator light

5. SPORT mode: the display will show SPORT

6. COMFORT mode: the display will show D

7. ECO mode: the display will show E

8. Cruise control: speed control. It is activated after the same speed has been maintained for a few seconds.

9. Pedestrian mode

10. Fault: if on, check for a possible solution by consulting the error code table.

CAUTION

The accelerator is activated once the speed of travel exceeds 3 km/h. Cruise control is deactivated when the brake or accelerator is pressed for the first time.

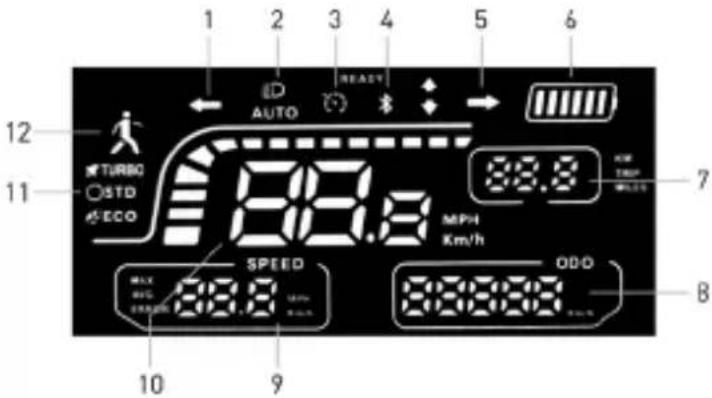

JXP

1. Turn signal (left): light on = left indicator active.2. Lights: Indicates the status of the scooter's lights (on or off).3. Cruise control: indicates whether the scooter's cruise control function is active (light on) or off (light off).4. Bluetooth: indicates whether or not the scooter is connected to a device via Bluetooth.5. Turn signal (right): light on = right indicator active.6. Battery: indicates the remaining battery status.7. KM/Trip/Miles: indicates the distance travelled during a single trip.8. ODO: indicates the total distance travelled by the electric scooter.9. Speed:Max: indicates the maximum speed reached by the electric scooter during a single trip;Avg: indicates the average speed of the electric scooter during a single trip;Error indicates the presence of any errors or anomalies in the functioning of the electric scooter;10. Speedometer: indicates the instantaneous speed of the electric scooter in motion, displayed in miles per hour (mph) or kilometres per hour (km/h), depending on the selected display mode.11. Speed mode:Turbo: mode that offers maximum speed and performance;STD: standard speed modeECO: low energy consumption mode;12. Pedestrian: riding mode with limited speed (usually not exceeding 6 km/h), with vehicle push assistance function by means of a flashing rear light, to ensure safety in the presence of pedestrians

Direction indicators (if present)

Models* Reference picture Indications
JUC ASJAD AS	Drive:	On models where they are fitted, the direction indicators are placed at the ends of the handlebars (left and right side).The direction indicators promptly signal any direction changing during the ride.
		CAUTIONBefore each use of the item, check the correct operation of the direction indicators.
JAF SRJAF AS		The direction indicators promptly signal any direction changing during the ride.CAUTIONBefore each use of the item, check the correct operation of the direction indicators.
JXP		The direction indicators are required to provide early warning of any change in direction while riding.CAUTIONBefore each use of the item, check the correct operation of the direction indicators.

6. Quick guide

• Prior to using the item for the first time, charge to 100%.
• Check tyre pressure (see side of tyre for recommended value). If the item does not reach at least 60% of the declared kms, or the maximum speed within the first 3 months of use, it is likely that the wheels have deflated once more. In this case, restore pressure as indicated.
• Check and adjust the brakes.
• Switch on the display.
• Place the item onto a flat surface.
• Hold the handlebars firmly using both hands. Step onto the footrest with one foot and use the other to give yourself a gentle push and accelerate.

CAUTION

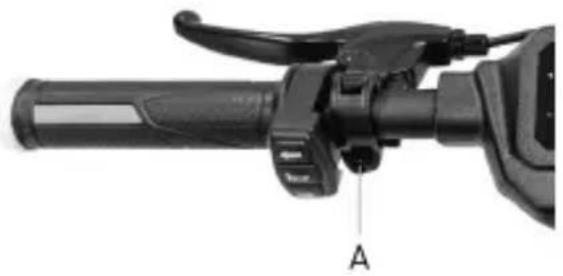

Zero Start Function: the accelerator is activated once the forward speed exceeds 3 km/h.

For safety reasons, the item is initially set up to avoid standing starts.

• When riding the product, tilt the body towards the riding direction during a turn and slowly rotate the handlebars.
  • To stop the item, release the accelerator, pull the brake lever
  • To get off, first stop the item completely. Getting off the moving item can cause injury.
• Prior to each use, check brakes and any wear, check tyre pressure (see side of tyre for recommended value), wheel wear, throttle and charge status of battery.

Brake lever position

Models Reference picture Indications
JUC ASJAD AS		It is possible to adjust the position of the brake lever, if necessary, by unscrewing the screw (A). Once the position has been adjusted, tighten the screw (A).
JAF SRJAF AS		It is possible to adjust the position of the brake lever, if necessary, by unscrewing the screw (A). Once the position has been adjusted, tighten the screw (A).
JXP		It is possible to adjust the position of the brake lever, if necessary, by unscrewing the screw (A). Once the position has been adjusted, tighten the screw (A).
Model Images	Indications
JUC ASJAD ASJAF SRJAF ASJXP		1. Check the alignment of the caliper with the disc; if necessary, adjust it using the screws (B) and (C).2. Check the distance of the fixed pad (located on the inside of the caliper) from the disc; if necessary, proceed with adjustment.3. If the brake is too tight or too loose, loosen the screw (A) using an Allen key.4. Adjust the brake cable: if it is too tight, shorten it by moving it upwards; if it is too loose, pull it down.5. After making the adjustment, tighten the screw (A) to secure the cable.

7. Folding and carrying

Make sure the electric scooter is switched off.

JUC AS, JAD AS, JAF SR and JAF AS: Hold the handlebar stem with your hand, pull the lever, fold the stem towards the footrest and fasten it.

JXP: Hold the handlebar post with your hand, unscrew the knob and press the safety catch to fold the handlebar post towards the footrest. Finally, secure it using the supplied strap.

JUC AS / JAD AS Indications
	CAUTIONAfter folding, lift while keeping the handlebars column with one or both hands.Make sure to secure the item during transportation. If the item cannot be lifted, do not transport with the item raised. If the item is suddenly dropped, it can even cause serious injuries, and it may be damaged.
JAF SR / JAF AS
JXP

CAUTION

8. Range and performance

The maximum range and performance of the vehicle depends on a number of variables:

Terrain: riding on smooth roads provides greater range and performance than riding on rough roads and climbs.

Weight of user: the greater the weight, the lower the range and performance of the vehicle.

Temperature: riding the scooter in very cold or hot conditions affects range and performance.

Speed and riding style: riding smoothly and at constant speed extends the autonomy. Continuous accelerations, decelerations and manoeuvres reduce a lot the autonomy. A lower speed extends the autonomy.

Maintenance: prompt recharging, proper maintenance and regular checking of tyre pressure increase range and ensures consistent performance over time.

The battery charging level impacts on performance: the lower is the level, the lower the speed performance will be, especially during hills.

9. Storage, maintenance and cleaning

CAUTION

If there are stains on the body of the scooter, wipe with a damp cloth. If the stains persist, apply neutral soap, brush them with a small brush, then clean with a damp cloth. If there are scratches on the plastic components, use sandpaper or other abrasive material to remove them. Do not clean the item with alcohol, gasoline, kerosene or other corrosive, volatile chemical agents to not seriously damage it. Do not wash the item using high-pressure water jets. When cleaning the scooter, make sure that it is switched off, that the charging cable is disconnected, and the rubber cap is closed, as a water leak may cause an electric shock or other serious problems. Water seeping into the battery may cause damage to internal circuits and risk of fire or explosion. Should you suspect that water may have entered the battery, stop using the battery immediately and return it to your dealer's after-sales service for checking.

When the item is not in use, store it indoors in a cool, dry place. Do not store it outdoors or inside the car for an extended period of time. Excessive sunlight, overheating, and excessive cold accelerate tyre ageing and jeopardize the life of both the item and the battery. Do not expose it to rain or water or immerse it in water to wash it.

Regularly check the tightness of the bolted parts, in particular wheel axles, the folding and transportation system, the steering system, the braking system, the state of the frame, the forks and the suspension. Nuts and all other self-locking fasteners may lose their effectiveness. Periodically check and tighten these components.

Like all mechanical components, the item is subject to wear and tear. Different materials and components may react to wear or stress fatigue in a variety of ways. If the service life of a component is exceeded, it may break suddenly, resulting in injury to the rider. Any cracks, scratches or changes in colour in areas subject to high levels of stress indicate that the life of the component has been reached and must be replaced.

Check the wear of the tyres: there must be no cuts, cracks, foreign bodies, abnormal swellings, lack of parts or other damages.

Do not attempt to disassemble or repair the scooter yourself. Replacement of all scooter components should be carried out by the technical service department. For further information, contact your dealer or visit www.jeepurbanemobility.com/en

10. App configuration

This item can be paired with the Jeep e-mobility app. The App allows you to control the item directly from your Smartphone.

Jeep e-mobility

Download on the App Store GET IT ON Google Play

Open the App and follow the instructions given.

The App may require various permissions required for the use and operation of the App itself.

The App version may have been updated by your App store. It is advisable to constantly check whether any updates are available for the App in order to be able to use the new features and always install the latest version of the App on your device.

Do not use your device while riding.

11. Technical data sheet

General information

	JUC AS JAD AS JAF SR
Frame Magnesium alloy Magnesium alloy Steel
Suspensions Front and rear Front and rear front
Speed	JE-MO-220008JE-MO-220011	JE-MO-220006 JE-MO-220007 JE-MO-220010
	Pedestrian:≤ 6km/hL2: ≤ 15km/hL3: ≤ 20km/hL4: ≤ 25km/h(max. speed) *	Pedestrian:≤ 6km/hL2: ≤ 15km/hL3: ≤ 20km/hL4: ≤ 25km/h(max. speed) *	Pedestrian:≤ 6km/hL2: ≤ 10km/hL3: ≤ 15km/hL4: ≤ 20km/h(max. speed) *	Pedestrian:≤ 6km/hL2: ≤ 15km/hL3: ≤ 20km/hL4: ≤ 25km/h(max. speed) *
Maximum slope** 26% 26% 18%
Brakes	Front electric brakeand rear disc brake	Front electric brakeand rear disc brake		Front electric brakeand rear disc brake
Tyres	Size: 10" tubelessRecommended pressure:44 PSI / 3 BAR	Size: 10" tubelessRecommended pressure:44 PSI / 3 BAR		Size: 8.5" inner tubeRecommended pressure:50PSI / 3.5 BAR
Maximum load 100 kg 100 kg 100 kg
Rider Check the current legislation in your country
Operating temperature	-5°C / 40°C -5°C / 40°C -5°C / 40°C
Protection level	IPX4: JE-MO-220008IPX5: JE-MO-220011	IPX4 IPX4
Charging time Approx. 5 hours Approx. 7 hours Approx.		5 hours
Autonomy**	up to 45km	up to 40km		up to 25km

Electrical system

Rated power of motor	≤ 0.5kW; 500W Brushless, 28Nm	≤ 0.35kW; 350W Brushless, 18.9Nm	≤ 0.35kW; 350W Brushless, 17Nm
Maximum power of motor	≤ 0.7kW; 700W	≤ 0.515kW; 515W	≤ 0.515kW; 515W Brushless
Display	3.5" Colour LED	3.5" Colour LED	Colour LED
Battery	48V 9.6Ah 461Wh	36V 10.4Ah 374Wh	36V 7.5Ah 270Wh
Low voltage protection	35.75V ± 0.5V	30V ± 0.5V	31V ± 1V
Current limit	18A	18A	18A
Kers	Sì	Si	Si
Lights	Front and rear LEDs	Front and rear LEDs	Front and rear LEDs
Features	Bluetooth with App	Bluetooth with App	Bluetooth with App

Dimensions and weight

Net weight	19.6kg 19.5kg 15kg
Gross weight	23.4kg 23.3kg 17kg

* Always observe the highway code and the regulations in force in the country where the electric scooter is in use.
** Subject to variations based on the riders weight, road conditions and temperature

General information

	JAF AS JXP
Frame Aluminium Aluminium
Suspensions Front Front and rear
Speed	JE-MO-230002 JE-MO-220009
	L1 = ≤ 6km/hL2 = ≤ 15km/hL3 = ≤ 20km/hL4 = ≤ 25km/h	L1: Pedestrian; ≤ 6km/hL2: ≤ 15km/hL3: ≤ 20km/hL4: ≤ 25km/h (max. speed) *
Maximum slope** 15% 20%
Brakes Front electric brake and rear disc brake Front and rear disc brakes
Tyres	Size 8.5" with inner tube Recommended pressure 50 psi / 3.5 bar	Size: 10" tubeless
Maximum load 100 kg 100 kg
Rider Check the current legislation in your country
Operating temperature	-5 °C/ +50 °C -10 °C/ 45 °C
Protection level IPX5	IPX5
Charging time	Approx. 5 hours	Approx. 8 hours
Autonomy**	up to 30km	up to 60km

Electrical system

Rated power of motor	≤ 0.35kW; 350W Brushless, 15Nm	≤ 0.5kW; 500W Brushless
Maximum power of motor	≤ 0.499kW; 499W Brushless	≤ 0.865kW; 865W
Display	Colour LED	Colour LED
Battery	36V 7.8Ah 280Wh	48V 15Ah 720Wh
Low voltage protection	30V ± 0.5V	39V ± 0.5V
Current limit	17A ± 1A 21A ± 0.5A
Kers	Yes	Yes
Lights	Front and rear LEDs	Front and rear LEDs
Features	Yes	Yes

Dimensions and weight

Net weight	13kg	25kg
Gross weight	15kg	30kg

* Always observe the highway code and the regulations in force in the country where the electric scooter is in use.
** Subject to variations based on the riders weight, road conditions and temperature

12. Troubleshooting

Problem Cause Solution

The motor is not running Electrical issue, error code present Request technical assistance
The drive wheel does ot turn	Problems with the brakes Adjust the brakes; if the problem persists, request technical assistanceMotor is blocked Check that the wheel is properly tightened, check that the wheel turns without starting the vehicle.If the problem persists, request technical assistance
The motor stops while it is running	Motor overheating Stop the vehicle and wait for it to coolPresence of error code Request technical assistance
After charging it, the item does not switch on or it switches off after a few km.	Damaged battery Request technical assistance
The battery does not charge or the item does not switch on	Connection problems Request technical assistanceThe battery is not connected (models with removable battery)The battery is low Full charge the batteryBattery damaged Request technical assistanceProblems to the charger Replace the charger	Check if power supply connector is connected.

Error code table

Model Code Indications Solution
JUC AS	E01	Overcurrent protection Switch off the vehicle, wait a few minutes before restarting it
	E02	Low voltage protection Recharge the battery; if the problem persists, request technical assistance
	E03	Protection from overvoltage Request technical assistance
	E04	Engine malfunction Request technical assistance
	E05	Control unit MOS malfunction Request technical assistance
	E06	Control unit MOS malfunction Request technical assistance
	E07	Control unit signal error Request technical assistance
JAD AS	E08	Overheating protection Switch off the vehicle, wait a few minutes before restarting it. If the problem persists, request technical assistance
	E09	Throttle malfunction Request technical assistance
	E10	Brake lever sensor malfunction Request technical assistance
	E11	Light system anomaly Request technical assistance
	E12	Display communication error Request technical assistance
	E13	Start button malfunction Request technical assistance

Model Code	Indications Solution
JAF SR	E01	Engine malfunction Request technical assistance
	E02	Control unit MOS malfunction Request technical assistance
	E03	Malfunction of the brake sensor (cut-off)	Request technical assistance
	E04	Throttle malfunction Request technical assistance
	E05	Low voltage protection Recharge the battery; if the problem persists, request technical assistance
	E06	Display communication error Request technical assistance
	E07	Overcurrent protection Request technical assistance
	E08	Control unit signal error Request technical assistance
	E09	Brushless engine anomaly / block	Request technical assistance
Model Code Problem Indication
JAF AS	E10	Display communication error	Indicates a possible communication interruption between the Electric scooter display and the controller, causing loss of information. Check the connection between the display and the controller or request technical assistance.
	E11	Motor current sensor error	Indicates an abnormality in the electric scooter motor current sensor. Check the motor wiring or request technical assistance.
	E14	Accelerator sensor error	Indicates a malfunction in the electric scooter's acceleration sensor. Check the sensor and wiring or request technical assistance.
	E15	Brake sensor error	Indicates an abnormality in the electric scooter's brake sensor. Check the sensor and wiring or request technical assistance.
	E16	Motor sensor error	If the error occurs on start-up, check that the motor hall wiring is normal. If it occurs while braking, check and replace the motor or controller to resolve the issue or request technical assistance.
	E21	BMS communication error Request technical assistance.
	E50	High voltage main line error	If the error occurs when starting up, check if the battery voltage is normal. If it occurs while riding, it will be necessary to replace the battery or controller to resolve the issue or seek technical assistance.
	E55	Controller high temperature error	If the controller temperature is too high, turn off the vehicle and let it cool down before restarting it. If the error occurs on start-up, the controller will need to be replaced to resolve the issue.
Model Code Problem Indication
JXP	4	Short circuit error	Indicates a short in the scooter's electrical wiring. Check the wiring and request assistance if necessary.
	6	5V voltage too low Request technical assistance.
	10	Display communication error	Indicates a possible communication interruption between the Electric scooter display and the controller, causing loss of information. Check the connection between the display and the controller or request technical assistance.
	11/12/13	Motor current sensor error	Indicates an anomaly in the electric scooter motor current sensor. Check the motor wiring, or request technical assistance.
	14	Accelerator sensor error	Indicates a malfunction in the electric scooter's acceleration sensor. Check the sensor and wiring or request technical assistance.
	15	Brake sensor error	Indicates an abnormality in the electric scooter's brake sensor. Check the sensor and wiring or request technical assistance.
	16/17/18	Motor sensor error	If the error occurs on start-up, check that the motor hall wiring is normal. If it occurs while braking, check and replace the motor or controller to resolve the issue or request technical assistance.
	21	BMS communication error Request technical assistance.
	50	High voltage main line error	If the error occurs when starting up, check if the battery voltage is normal. If it occurs while riding, it will be necessary to replace the battery or controller to resolve the issue or seek technical assistance.
	53 System overload error		Indicates an overload of the electric scooter system. Request technical assistance.
	55 Controller high temperature error		If the controller temperature is too high, turn off the vehicle and let it cool down before restarting it. If the error occurs on start-up, the controller will need to be replaced to resolve the issue.
	58 Battery high temperature alarm		If the battery temperature is too high, turn off the vehicle and let it cool down before restarting it.

13. Liability and general terms of warranty

The rider assumes all liability for any injury when not wearing a helmet or other protective devices.

The rider must respect current local regulations regarding:

1. the minimum age allowed for the driver,
2. restrictions on the types of drivers who can use the product
3. all other regulatory aspects

The rider must always keep the product clean and in a perfect state of efficiency and maintenance, diligently perform the safety checks he/she is responsible for as described in the previous section, not tamper with the product in any way and keep all the maintenance documents.

M.T. Distribution shall not be liable for any damages caused and is in no way responsible for damages caused to property or persons when:

• the item is used incorrectly or in a manner that does not comply with the instructions of the user guide;
• following purchase, the item is modified or tampered with in all or some of its components.

In case of malfunction of the product for reasons not attributable to improper behaviour of the driver and in case you want to consult the general terms of warranty, please contact your dealer or visit the website www.jeepurbanemobility.com/en

The Legal Guarantee never covers any Product faults or malfunctions caused by accidental events and/or events attributable to the Purchaser, or due to use of the Product in non-compliance with its intended use and/or with the provisions of the technical documentation attached to the Product, or due to failure to regulate mechanical parts, the natural wear of consumable materials, or due to assembly errors, lack of maintenance and/or use of said product in non-compliance with the instructions.

For example, the following are to be considered excluded from the statutory guarantee regarding products:

• damage caused by impacts, accidental falls or collisions, punctures;
• damage caused by use, exposure or storage in an unsuitable environment (e.g.: presence of rain and/or mud, exposure to humidity or excessive heat, contact with sand or other substances)
• caused by failure to adjust for road use and/or maintenance of mechanical parts, mechanical disc brakes, handlebars, tyres, etc.; incorrect installation and/or assembly of parts and/or components
• the natural wear and tear of consumable materials: mechanical disc brake (e.g. pads, callipers, disc, cables), tires, platforms, gaskets, bearings, led lights and bulbs, kickstand, knobs, mudguards, rubber parts (platform), wiring cable connectors, grilles and stickers, etc.;
• improper maintenance and/or improper use of the Product battery;
• tampering with and/or forcing parts of the Product;
• incorrect or inadequate maintenance or alteration of the Product;
• improper use of the product (e.g.: excessive load, use in competitions and/or for commercial or rental activities);
• maintenance, repairs and/or technical interventions on the product carried out by unauthorised third parties;
• damage to the products resulting from transport, if carried out by the purchaser;
• damage and/or defects resulting from the use of non-original parts.

Please refer to the most updated version of the warranty terms available on the website www.jeepurbanemobility.com/en/support

14. Information on disposal

CAUTION

Treatment of the electrical or electronic device at the end of its life (applicable in all the European countries and in other Europeans countries with separate collection system)

Symbol of a trash bin with no text or labels

This symbol on the product or packaging indicates that the product should not be considered as normal household waste, but should be taken to a facility authorised to dispose of waste electrical and electronic equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which may otherwise be caused by inappropriate disposal.

Recycling materials will help to preserve natural resources.

For more detailed information about the recycling and disposal of this item, you can contact the local waste disposal service or the point of sale where you purchased it.

In any case, disposal must be carried out in accordance with the legislation in force in the country of purchase.

More specifically, consumers must not dispose of WEEE as municipal waste, but must dispose of this type of waste separately, in one of two possible ways:

• By taking it to municipal collection centres (also called eco-collection centres or recycling facilities), directly or through the collection services of municipal companies, where available.
• By taking it to shops selling new electrical and electronic equipment.

Very small WEEE items (with the longest side less than 25 cm) may be deposited here free of charge, while larger WEEE items may be deposited on a 1-for-1 basis, i.e. by depositing an old product when purchasing a new one with the same functions.

Moreover, the 1-on-1 mode is always guaranteed when the consumer purchases a new EEE, regardless of the size of the WEEE.

In case of illegal disposal of electrical or electronic equipment, the specific sanctions envisaged by current legislation on environmental protection could be applied.

If the WEEE contains batteries or accumulators, they must be removed and subjected to specific separate collection.

CAUTION

Treatment of spent batteries (applicable in all countries of the European Union and in other European systems with separate collection system)

Symbol of a trash bin crossed out by two crossed lines, no text or labels present

This symbol on the product or packaging indicates that the battery pack should not be treated as normal household waste. On some types of batteries, this symbol may be used in combination with a chemical symbol.

The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.

By ensuring the cells/batteries are disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which may otherwise be caused by inappropriate disposal. Recycling materials will help to conserve natural resources. In the case of products which, for security, performance or data protection reasons, require a fixed connection to an internal cell/battery, it should only be replaced by qualified service personnel.

Deliver the product at the end of its life to collection points suitable for the disposal of electrical and electronic equipment:

this ensures that the cell inside is treated properly as well.

For more detailed information about the disposal of the exhaust cell-battery or of this item, please contact the local waste disposal service or the point of sale where you purchased it.

In any case, disposal must be carried out in accordance with the legislation in force in the country of purchase.

Close-up of a black cylindrical mechanical component with four circular features and a central hub (no text or symbols visible)

Pulsante destro:

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Symbol of a trash bin crossed out by two diagonal lines, no text or labels present

Close-up of a black plastic mechanical component with three circular ports and a central hub (no text or symbols visible)

Botón derecho:

Labeled diagram of an electric scooter with numbered parts for identification

Download on the App Store GET IT ON Google Play

Symbol of a trash bin crossed with no visible text or labels

Symbol of a trash bin crossed out by two diagonal lines, no text or labels present

Close-up of a black cylindrical mechanical component with five circular cutouts and a central hub (no text or symbols visible)

Bouton droit :

Labeled diagram of an electric scooter with numbered parts for identification

Download on the App Store GET IT ON Google Play

Symbol of a trash bin crossed out by two diagonal lines, no text or labels present

Symbol of a trash bin crossed out by diagonal lines, no text or labels present

Close-up of a black cylindrical device with a circular vent and three radial slots, no visible text or symbols.

Rechte Taste:

Download on the App Store GET IT ON Google Play

www.jeepurbanemobility.com/en/support

VORSICHT

Symbol of a trash bin crossed with no visible text or labels

Symbol of a trash bin crossed out by two diagonal lines, no text or labels present

Close-up of a black cylindrical mechanical component with a central circular feature and four curved blades (no text or symbols visible)

Knop rechts:

Labeled diagram of an electric scooter with numbered parts for identification

Download on the App Store

GET IT ON Google Play

Symbol of a trash bin crossed out by diagonal lines, no text or labels present

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Close-up of a black mechanical component with a circular feature and four radial slots, no visible text or symbols.

Prawy przycisk:

Labeled diagram of an electric scooter with numbered parts for identification

Download on the App Store GET IT ON Google Play

Symbol of a trash bin crossed with no visible text or labels

Simple line drawing of a trash bin with no text or symbols

Side view of a black electric scooter with extended wheels and a vertical support (no visible text or symbols)

Line drawing of a robotic arm with articulated joints and a curved base (no text or symbols)

Close-up of a black plastic mechanical component with a circular feature and four curved slots (no text or symbols visible)

:الزر lainمن

Labeled diagram of an electric scooter with numbered parts for identification

المرع 1.

الشاه 2.

Download on the App Store GET IT ON Google Play

Symbol of a trash bin crossed out by two diagonal lines, no text or labels present

Simple line drawing of a trash bin with no text or symbols

Close-up of a black cylindrical mechanical component with a central circular feature and four curved blades (no text or symbols visible)

Desni gumb:

Dugo pritisnite za deaktivaciju načina protiv krađe.

Symbol of a trash bin crossed out by diagonal lines, no text or labels present

Ovaj simbol na proizvodu ili pakiranju označava da se s proizvodom ne smije postupati kao s uobičajenim kućnim otpadom, već ga treba predati na odgovarajuće sabirno mjesto za recikliranje električne i elektroničke opreme (OEEO).

Osiguravanjem pravilnog zbrinjavanja ovog proizvoda pomoći ćete u sprječavanju mogućih negativnih posljedica za okoliš i ljudsko zdravlje, koje bi inače mogle biti uzrokovane neprikladnim zbrinjavanjem ovog proizvoda.

Recikliranje materijala pomaže u očuvanju prirodnih resursa.

Za detaljnije informacije o recikliranju i odlaganju ovog proizvoda možete se obratiti lokalnoj službi za zbrinjavanje otpada ili prodajnom mjestu gdje ste ga kupili.

U svakom slučaju, zbrinjavanje se mora provesti sukladno važećim zakonima u zemlji kupnje.

Symbol of a trash bin crossed out by diagonal lines, no text or labels present

Ovaj simbol na proizvodu ili na njegovoj ambalaži označava da se baterija ne smije tretirati kao obični kućni otpad. Na nekim vrstama baterija ovaj se simbol može koristiti u kombinaciji s kemijskim simbolom.

Close-up of a black plastic mechanical component with a circular recess and four radial slots (no text or symbols visible)

Buton dreapta:

Buton central (claxon):

Download on the App Store GET IT ON Google Play

Symbol of a trash bin crossed out by two diagonal lines, enclosed in a rectangle (no text or labels)

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Close-up of a black cylindrical mechanical component with four circular cutouts and a central hole (no text or symbols visible)

Botão direito:

Labeled diagram of an electric scooter with numbered parts for identification

Download on the App Store GET IT ON Google Play

Symbol of a trash bin crossed out by two diagonal lines, no text or labels present

Symbol of a trash bin with no text or labels

EC Declaration of Conformity

accordingtotheECMachineryDirective2006/42/EC,AnnexII1.A.

PLATUMbyM.T.DistributionS.R.L

Address:ViaBargellino10c/d,40012CalderaradiReno(BO),Italy

This declaration of conformity is issued under the responsibility of the manufacturer

ProductBrand: Jeep®

ProductModel:JUCAS

Descriptionofproduct:ElectricScooter

Serialidentificationnumber(s):JPMN1XXX0XXXXX

The object of the declaration described above fulfils all the relevant provisions of the following Directives:

2006/42/ECMachineryDirective

2014/53/EURadioEquipmentDirective ontheharmonizationofthelawsoftheMemberStates relatingtothemakingavailableonthemarketofradioequipment.

2011/65/EU RoHS on the restriction of the use of certain hazardous substances in electrical and electronicequipment

Applicableharmonizedstandard(s):

EN300328V2.2.2

EN301489-1V1.9.2

EN62479:2010

EN62368-1:2014+AC:2015

ENIEC63000:2018

Otherstandardortechnicalspecificationsapplied

EN17128:2020

ETSIEN301489-17V3.2.4

Manufacturer: Taizhou Siweiluo Vehicleco., Limite.

Address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China

Date:20/03/2023

PLATUM.COM

HEADQUARTERS:VIABARGELLINO10C/D-40012CALDERARADIRENO(BO)

SALESOFFICE:VIAPARACELSO24,PALAZZOCASSIOPEA2-20864AGRATEBRIANZA(MB)

MARCHIO REGISTRATO DI M.T. DISTRIBUTION SRL P. IVA 04177060375 CF 01119840377 REA BO-236546

AuthorizedRepresentativeintheEU:

MTDISTRIBUTIONS.R.L ViaBargellino10,40012, Calderaradi Reno(BO), Italy

TechnicalfileavailablefromEUheadquarter DeclarationPlace:Bologna,Italy

Authorizedperson-Firstnameandsurname: Alessandro Summa Position: CEO

M.T. DISTRIBUTION SRL Via Bagnetano, 10 Etc 46012 CALDERARA MRENO (BO) Gol. Finor: D-93 2006 02 27. Parlaia No. 04 1985

NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.

PLATUM.COM

HEADQUARTERS:VIABARGELLINO10C/D-40012CALDERARADIRENO(BO)

SALESOFFICE:VIAPARACELSO24,PALAZZOCASSIOPEA2-20864AGRATEBRIANZA(MB)

MARCHIO REGISTRATC DI M.T. DISTRIBUTION SRL P. IVA 04177060375 CF 01119840377 REA BO-236546

EC Declaration of Conformity

accordingtotheECMachineryDirective2006/42/EC,AnnexII1.A.

PLATUMbyM.T.DistributionS.R.L

Address: Via Bargellino10c/d, 40012 Calderaradi Reno(BO), Italy

This declaration of conformity is issued under the responsibility of the manufacturer

ProductBrand: Jeep®

ProductModel:JADAS

Descriptionofproduct:ElectricScooter

Serialidentificationnumber(s):JPMN1XXX0XXXXX

Theobjectofthedeclarationdescribedabovefulfilsalltherelevantprovisionsofthefollowing Directives:

2006/42/ECMachineryDirective

2014/53/EURadioEquipmentDirective ontheharmonizationofthelawsoftheMemberStates relatingtothemakingavailableonthemarketofradioequipment.

2011/65/EU RoHS on the restriction of the use of certain hazardous substances in electrical and electronicequipment

Applicableharmonizedstandard(s):

EN300328V2.2.2

EN301489-1V1.9.2

EN62479:2010

EN62368-1:2014+AC:2015

ENIEC63000:2018

Otherstandardortechnicalspecificationsapplied

EN17128:2020

ETSIEN301489-17V3.2.4

Manufacturer: Taizhou Siweiluo Vehicleco., Limite.

Address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China

Date:20/03/2023

PLATUM.COM

HEADQUARTERS:VIABARGELLINO10C/D-40012CALDERARADIRENO(BO)

SALESOFFICE:VIAPARACELSO24,PALAZZOCASSIOPEA2-20864AGRATEBRIANZA(MB)

AuthorizedRepresentativeintheEU:

MTDISTRIBUTIONS.R.L ViaBargellino10,40012, Calderaradi Reno(BO), Italy

TechnicalfileavailablefromEUheadquarter DeclarationPlace:Bologna,Italy

Authorizedperson-Firstnameandsurname: Alessandro Summa Position: CEO

M.T. DISTRIBUTION SRL Via Bagnetano, 10 5th 46012 CALDERARA AIRENO (BO) Gold, Finco D-93, 2006 D-08 27. Parcise No. 0411111111

NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.

PLATUM.COM

HEADQUARTERS:VIABARGELLINO10C/D-40012CALDERARADIRENO(BO)

SALESOFFICE:VIAPARACELSO24,PALAZZOCASSIOPEA2-20864AGRATEBRIANZA(MB)

MARCHIO REGISTRATC DI M.T. DISTRIBUTION SRL P. IVA 04177060375 CF 01119840377 REA BO-236546

EC Declaration of Conformity

according to the EC Machinery Directive 2006/42/EC, Annex II 1.A.

PLATUM by M.T. Distribution S.R.L

Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy

This declaration of conformity is issued under the sole responsibility of the Manufacturer

Product Brand: Jeep®

Product Model: JAF Safe Ride

Description of product: Electric Scooter

Serial identification number(s) : JPMN2XXX0XXXXX

The object of the declaration described above fulfils all the relevant provisions of the following Directives:

2006/42/EC Machinery Directive

2014/53/EU Radio Equipment Directive on the harmonization of the laws of the Member States relating to the making available on the market of radio equipment.

2011/65/EU RoHS on the restriction of the use of certain hazardous substances in electrical and electronic equipment

Applicable harmonized standard(s):

EN 300 328 V2.2.2

EN 301 489-1 V1.9.2

EN 62479:2010

EN 62368-1:2014 + AC:2015

EN IEC 63000:2018

Other standard or technical specifications applied

EN 17128:2020

ETSI EN 301 489-17 V3.2.4

Reach Declaration

Manufacturer: Zhunhai Chang Jing Trade Co., Ltd

Address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000

Date: 01/03/2022

PLATUM.COM

HEADQUARTERS: VIA BARGELLINO 10 C/D - 40012 CALDERARA DI RENO (BO)

SALES OFFICE: VIA PARACELSO 24, PALAZZO CASSIOPEA 2 - 20864 AGRATE BRIANZA (MB)

MARCHIO REGISTRATO DI M.T. DISTRIBUTION SRL P. IVA 04177060375 CF 01119840377 REA BO-236546

Authorized Representative in the EU:

MT DISTRIBUTION S.R.L

Via Bargellino 10, 40012, Calderara di Reno (BO), Italy

Technical file available from EU headquarter Declaration Place: Bologna, Italy

Authorized person - First name and surname: Position: CEO

Alessandro Summa

M.T. DISTRIBUTION SRL Via Bagnetti, 10-56 40012 CALDERARADRENO (BO) Cod. Fiso: 0-15-08 1-0-7-7 Partite No. 2-3-1

NOTE:

This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.

CE

EC Declaration of Conformity

according to the EC Machinery Directive 2006/42/EC, Annex II 1.A.

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Manufacturer:

Wuyi Jinyue Engine Science and Technology Co., Ltd.

No.1 Rose Road, Wuyi County, Jinhua City, Zhejiang Province, China

Authorized representative:

Platum By MT Distribution S.r.l

Person authorized to compile the technical file:

Platum By MT Distribution S.r.l

Object of the declaration:

Model code	Generic denomination	Commercial name	Trademark	Serial identification number (s) and/or batch number (s)
JE-MO-230002	Electric Scooter	JAF AS	JEEP	JPMN2XXXM00001 to JPMN2XXXMXXXXX

The object of the declaration described above fulfils all the relevant provisions of the following Directives:

2006/42/EC Machinery Directive

2014/53/EU Radio Equipment Directive on the harmonization of the laws of the Member States relating to the making available on the market of radio equipment.

2011/65/EU RoHS on the restriction of the use of certain hazardous substances in electrical and electronic equipment

Harmonized standards or other technical specifications applied:

EN 300 328 V2.2.2	EN 63000:2018
EN 301 489-1 V1.9.2	EN 17128:2020
EN 62479:2010	ETSI EN 301 489-17 V3.2.4
EN 62368-1:2014 +AC:2015

Place of issue

Name, function, signature

Alessandro Summa, CEO

M.T. DISTRIBUTION SRL

4012 CHINESE

40012 CACCERITA BURENO (BQ)

(38) 1902152840827

Parcua RE, DART, 1980.

Translation of the original Declaration of Conformity

EC Declaration of Conformity

accordingtotheECMachineryDirective2006/42/EC,AnnexII1.A.

PLATUMbyM.T.DistributionS.R.L

Address:ViaBargellino10c/d,40012CalderaradiReno(BO),Italy

This declaration of conformity is issued under the responsibility of the manufacturer

ProductBrand: Jeep®

ProductModel:JXP

Descriptionofproduct:ElectricScooter

Serialidentificationnumber(s):JPMN2XXX0XXXXX

The object of the declaration described above fulfils all the relevant provisions of the following Directives:

2006/42/ECMachineryDirective

2014/53/EURadioEquipmentDirective ontheharmonizationofthelawsoftheMemberStates relatingtothemakingavailableonthemarketofradioequipment.

2011/65/EU RoHS on the restriction of the use of certain hazardous substances in electrical and electronicequipment

Applicableharmonizedstandard(s):

EN300328V2.2.2

EN301489-1V1.9.2

EN62479:2010

EN62368-1:2014+AC:2015

ENIEC63000:2018

Otherstandardortechnicalspecificationsapplied

EN17128:2020

ETSIEN301489-17V3.2.4

Manufacturer: Wuyi Jinyue Engine Science and Technology Co., Ltd.

Address: No.1RoseRoad,WuyiCounty,JinhuaCity,ZhejiangProvince,China

Date:11/08/2022

PLATUM.COM

HEADQUARTERS:VIABARGELLINO10C/D-40012CALDERARADIRENO(BO)

SALESOFFICE:VIAPARACELSO24,PALAZZOCASSIOPEA2-20864AGRATEBRIANZA(MB)

MARCHIO REGISTRATO DI M.T. DISTRIBUTION SRL P. IVA 04177060375 CF 01119840377 REA BO-236546

AuthorizedRepresentativeintheEU:

MTDISTRIBUTIONS.R.L ViaBargellino10,40012, Calderaradi Reno(BO), Italy

TechnicalfileavailablefromEUheadquarter DeclarationPlace:Bologna,Italy

Authorizedperson-Firstnameandsurname: Alessandro Summa Position: CEO

M.T. DISTRIBUTION SRL Via Bagnetano, 10 5th 46012 CALDERARA AIRENO (BO) Gold, Finco D-93, 2006 D-08 27. Parcise No. 0411111111

NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.

PLATUM.COM

HEADQUARTERS:VIABARGELLINO10C/D-40012CALDERARADIRENO(BO)

SALESOFFICE:VIAPARACELSO24,PALAZZOCASSIOPEA2-20864AGRATEBRIANZA(MB)

MARCHIO REGISTRATC DI M.T. DISTRIBUTION SRL P. IVA 04177060375 CF 01119840377 REA BO-236546

Jeep®

E-SCOOTERS

Silhouette of a building viewed through a window with a fence and streetlights, no text or symbols present.

PLATUM

Shaping when more easily

Imported and distributed by M.T. Distribution Srl via Bargellino 10c/d, 40012, Calderara di Reno, (B0) Italy www.platum.com

Jeep, the Jeep grille and related logos, vehicle model names and trade dress are trademarks of FCA US LLC and used under license by M.T. Distribution Srl. ©2023 FCA US LLC.
