| Product Type | Electric scooter (e-scooter) |
| Brand | Jeep |
| Model | 2XE Adventurer |
| Dimensions (open) | 1195 x 473 x 1168 mm |
| Dimensions (folded) | 1195 x 473 x 515 mm |
| Net weight | 19 kg |
| Gross weight | 22.8 kg |
| Maximum load capacity | 100 kg |
| Maximum rider height | 200 cm |
| Maximum speed | 25 km/h |
| Maximum range | Up to 40 km |
| Battery | Lithium-ion 36V 10.4Ah (374Wh) |
| Motor | 350W brushless |
| Brakes | Front electronic brake and rear disc brake |
| Tires | 10-inch tubeless front and rear |
| Suspensions | Front and rear |
| Charging time | Approximately 7 hours |
| Charger included | 42V 1.5A (model HVE063-4200150) |
| Protection level | IPX4 |
| Operating temperature | -5°C to 45°C |
| Noise level | Below 70 dB(A) |
| Smartphone app | Jeep e-mobility (Bluetooth compatible) |
| Warranty | Contact the retailer or www.jeepurbanemobility.com |
Frequently Asked Questions - 2XE Adventurer JEEP
User questions about 2XE Adventurer JEEP
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Scooter in PDF format for free! Find your manual 2XE Adventurer - JEEP and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 2XE Adventurer by JEEP.
USER MANUAL 2XE Adventurer JEEP

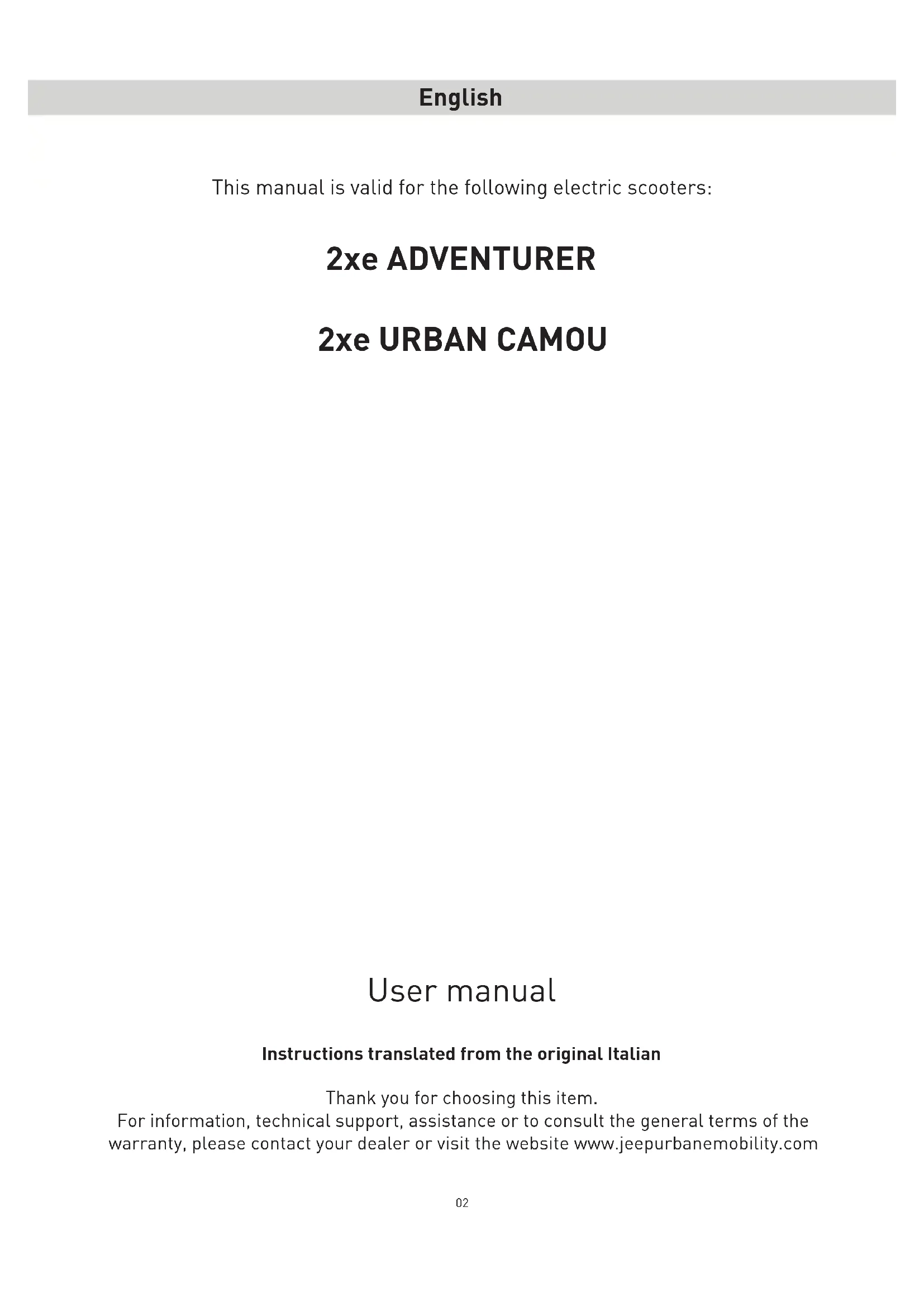

This manual is valid for the following electric scooters:
2xe ADVENTURER
2xe URBAN CAMOU
User manual
Instructions translated from the original Italian
Thank you for choosing this item.
For information, technical support, assistance or to consult the general terms of the warranty, please contact your dealer or visit the website www.jeepurbanemobility.com
- Safety instructions
- Package contents and assembly
- Product overview
- Battery charging and activation
- Command information / Control panel
- Quick guide
- Folding and carrying
- Range and performance
- Storage, maintenance and cleaning
- App configuration
- Technical data sheet
- Troubleshooting
- Liability and general terms of warranty
- Information on disposal
- Declaration of conformity
1. Safety instructions
IMPORTANT! Read and follow the instructions carefully before using the item. Retain the manual for future reference or new users.
Take the time to learn the basics of the procedure to avoid severe accidents that may occur in the first few months. Contact your dealer for the proper support on how to use the item correctly or to be directed to an appropriate training organisation.
The company assumes no direct or indirect responsibility arising from misuse of the item, non-compliance with both the highway code and the instructions in the manual, accidents or disputes caused by non-compliance or illegal activity.
This item should be used for recreational purposes and should not be used for passenger transportation. It must be used by more than one person at a time.
Do not modify the intended use of the vehicle in any way. The item is not suitable for stunts, competitions, transporting objects, towing other vehicles or trailers.
The maximum permissible load of the item is:
| 2xe ADVENTURER 2xe URBAN CAMOU | |
| 100 kg 100 kg | |
The maximum suggested rider height is 200~cm
Check local regulations regarding the minimum age of the rider, restrictions on the type of rider who may use the item, and the use of the item itself before using it, and be sure to follow local regulations.
The A-weighted emission sound pressure level at the rider's ear is less than 70 dB(A).
Visual representation of safety warnings
The following visual symbols are used to identify safety messages in this manual. They draw the focus of attention of the reader/user to the proper, safe use of the item.
CAUTION
Pay attention
Highlights the rules to follow to prevent damage to the item and/or prevent hazardous situations from arising.
DANGER
Residual risks
Highlights the presence of hazards that generate residual risks to which the user must pay attention to avoid injury or material damage.
General warnings
CAUTION
It is important to bear in mind that when out in a public space or on the road, even when the instructions in the manual are observed down to the letter, the rider is not immune to injury caused by infractions or inappropriate actions taken towards other vehicles, obstacles or persons. Misuse of the item or non-compliance with the instructions provided in this manual may cause severe injury.
This item is a vehicle. The faster you ride, the longer the braking distance. Emergency braking on slippery, muddy, wet or icy roads may result in wheel spin and loss of balance. Adequate speeds and safety distances from other vehicles or pedestrians must be adhered to. Take extra care when riding on unfamiliar roads. Do not open the kickstand when using the item, risk of severe personal injury and damage to item.
For personal safety, wear a helmet, and knee and elbow pads to protect against falls and injuries while riding the item. When allowing others to use the item, ensure that the rider wears the safety equipment and explain the operation of the vehicle. To avoid injury, do not allow other persons to use the item if they do not know how to use it. Wear shoes before using the item.
Supervise children to make sure they do not play with the item. Strict supervision is required if the item is being used near children.
When riding, take special care to not frighten children or pedestrians. When approaching them from behind, warn them and slow down using the minimum speed of 6km / h .
Instructions and warnings on rider behaviour
| Conditions Appropriate | Use Improper Use | |
| Riders | One More than one person, with children or animals | or animals |
| Safety equipment | Helmet, knee pads, elbow pads No safety equipment | |
| Pre-riding check | Prior to each use, check brakes and any wear, check tyre pressure (see side of tyre for recommended value), wheel wear, throttle and charge status of battery. | Never checking the item prior to use |
| If any unusual noises or faults are detected, do not use the item and contact dealer or Technical Support Department. | Using the item when noise or faults are present | |
| Walking while pushing the item | Not accelerating Depressing the throttlePushing while walking across pedestrian crossingsIn pedestrian areas when not in pedestrian mode (6 km/h)In overcrowded areas Riding the vehicle | Riding the vehicle on pedestrian crossingsRiding the vehicle in pedestrian areas when not in pedestrian mode (6 km/h)in overcrowded areas |
| Stationary | The person riding the item must be able to easily place both feet on the ground while holding the handlebars at the correct height | Not being able to keep the item stationary and balanced.Sitting on the item while it is running or stationary |
| Conditions Appropriate | Intimate Use Improper Use | |
| Riding under normal conditions | No objects hanging from handlebars Objects hanging from handlebars result in instability and may impede manoeuvring | |
| Riding with both hands on handlebars. 01e-handed or hand-free riding | ||
| Not using devices such as phones,smartwatches, music players, orheadphones | Using devices such as phones,smartwatches, music players, orheadphones | |
| Riding with both feet on the footrestcomfortably and safely | Riding with one or both feet outside the footrestIt is prohibited to place or amass weight on the rear mudguard. | |
| Riding with helmet and protective equipment | Riding without helmet and protective equipment | |
| Riding on easily accessible, smooth and compact roads, avoiding areas with intense traffic or overcrowded areas:e.g. dedicated cycle path, smooth paved surfaces | Riding on motorways, long-distance roadsRiding on busy roadsRiding on pavementsRiding in overcrowded areasRiding on very rough roadsRiding near: ravines, escarpments, harbours, sea, lakes or riversFailure to comply with regulations and the highway code | |
| Complying with local regulations and the highway code | ||
| Looking ahead and watching out for obstacles, vehicles or nearby pedestrians | Becoming distracted while riding | |
| Changing direction, making sure to be seen, moderating speed | Changing direction abruptly at high speed without making sure that you have been seen | |
| Anticipating the route and moderating speed while observing the highway code and those that are the most vulnerable | Braking and cornering at the same time makes the vehicle unstable | |
| Using direction indicators, if included on the item | Not using direction indicators | |
| Slowing down when pedestrians are present | Accelerating or maintaining a constant speed when pedestrians are present | |
| Using pedestrian mode in pedestrian areas (6 km/h) | Riding without using pedestrian mode in pedestrian areas (6 km/h) | |
| Warning others of your presence by using the bell | Not warning others of your presence by using the bell | |
| Conditions Appropriate | Riding at moderate speeds High-speed speedBend knees slightly for better shock absorption when traversing uneven surfaces. | RidingAccelerating over bumps or ditches, going down steps, jumping over obstacles, climbing pavements, riding harshly. |
| Uneven road conditions: speed bumps/ steps/rough road surfaces | ||
| Behaviour: around bends, down slopes, in the presence of nearby obstacles, vehicles and pedestrians | Keeping at a safe distance Not observingCeasing to accelerateBraking and slowing downRiding at moderate speed and braking safelyPaying attention to doors and other high obstacles | safety distancesAcceleratingRiding at high speed, braking suddenlyTraversing beneath high obstacles |
| Visibility conditions | Only ride if there is enough light to ride safely. When riding in unfavourable lighting conditions (from half an hour following sunset, throughout the entire period of darkness and even during the day, if weather conditions preclude road visibility, when driving through tunnels), remember to switch on the item's lights and wear a reflective vest, belts or bands. | Riding in unfavourable lighting conditions with lights off and without using a reflective vest, belts or bands. |
| Weather conditions | Riding in optimal weather conditions Riding | in adverse weather conditions: in the rain, when it snows, when there is ice or mud on the road, in strong winds, in fog. |
| Parking | In designated areas without impeding movement of vehicles or pedestriansOn smooth surfaces, ensuring stability is maintainedSwitching off the item and using an anti-theft device | Everywhere, impeding movement of vehicles or pedestriansOn uneven surfaces and without ensuring stabilityLeaving the item switched on, unattended with no anti-theft device |
| Conditions Appropriate | Use Improper Use | |
| Engaging in extreme sports/acrobatics | NO YES | Riding near: ravines, escarpments, harbours, sea, lakes or rivers Riding through puddles Racing with other vehicles |
| Subjecting the item to forceful impact | NO YES | jumping over object or persons, jumping off steps or from high places |
What to do after a fall:
Check that the throttle lever works properly. To do this, accelerate and decelerate several times.
Check that the brakes work properly. To do this, get off the item, push it forward and brake to ensure it responds to the controls.
Check that all vehicle components are in place and securely fastened.
Check tyre wear and pressure (see side of tyre for recommended value).
Check the wear of the brakes and cables.
DANGER
The brakes may become hot during use. Do not touch after use.
2. Package contents and assembly
Assembled item, the handlebar must be installed using the special screws contained in the package.
| MODEL REFERENCE | ENCE PICTURE IN THE | PACKAGE | HANDLEBAR ASSEMBLY |
| 2xe ADVENTURER | battery charger | ||
| 2xe URBAN CAMOU | charging cable | ||
| 4 M6 screws | |||
| size 4 and 5 Allen wrench | |||
| adapter for inflating the tires |
Method:
- Take the item out of the packaging
- Open the kickstand and check that the item is stable
- Open the handlebar stem and secure it by closing the lever of the closing mechanism
- Connect the display power cable to the main wiring
- Install the handlebar on the stem (do not crush the cables)
- Tighten the screws on the stem using the wrench supplied
- Adjust the stem closing mechanism*.
| MODEL REFERENCE | NCE PICTURE * ADJUSTMENT | |
| 2xe ADVENTURER | Outside the mechanism there is a hex socket screw. If the handlebar stem is not very stable after closing, adjust the screw in the mechanism, by tightening or loosening it as required to increase the stability of the stem. | |
| 2xe URBAN CAMOU |
CAUTION
Assemble the item correctly. If, during assembly, any factory defects are detected, certain steps are unclear or issues with assembly or adjustments occur, do not ride the vehicle and contact your dealer or visit www.jeepurbanemobility.com for technical support.
Do not use accessories and/or additional parts that are not approved by the manufacturer.
Keep children away from plastic items (including packaging materials) and small parts that may result in suffocation.
It is forbidden to modify or transform the item or any its parts in any way, as this may impair efficiency, reduce structural integrity and cause damage. Remove any sharp edges caused by misuse, breakage or damage to the item. If any factory defects, unusual noises or faults are detected, do not ride the vehicle and contact your dealer or visit www. jeepurbanemobility.com for technical support.

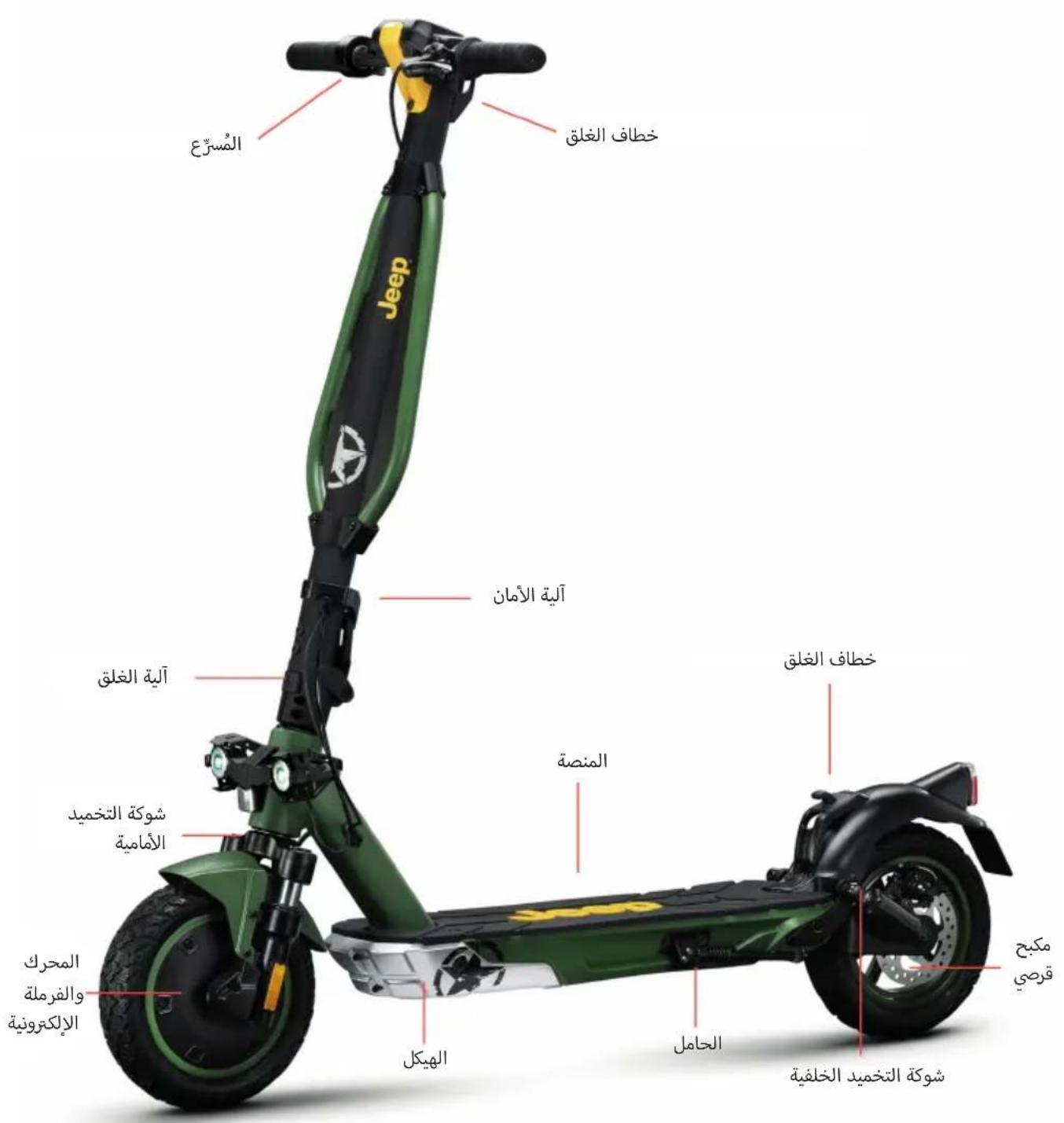

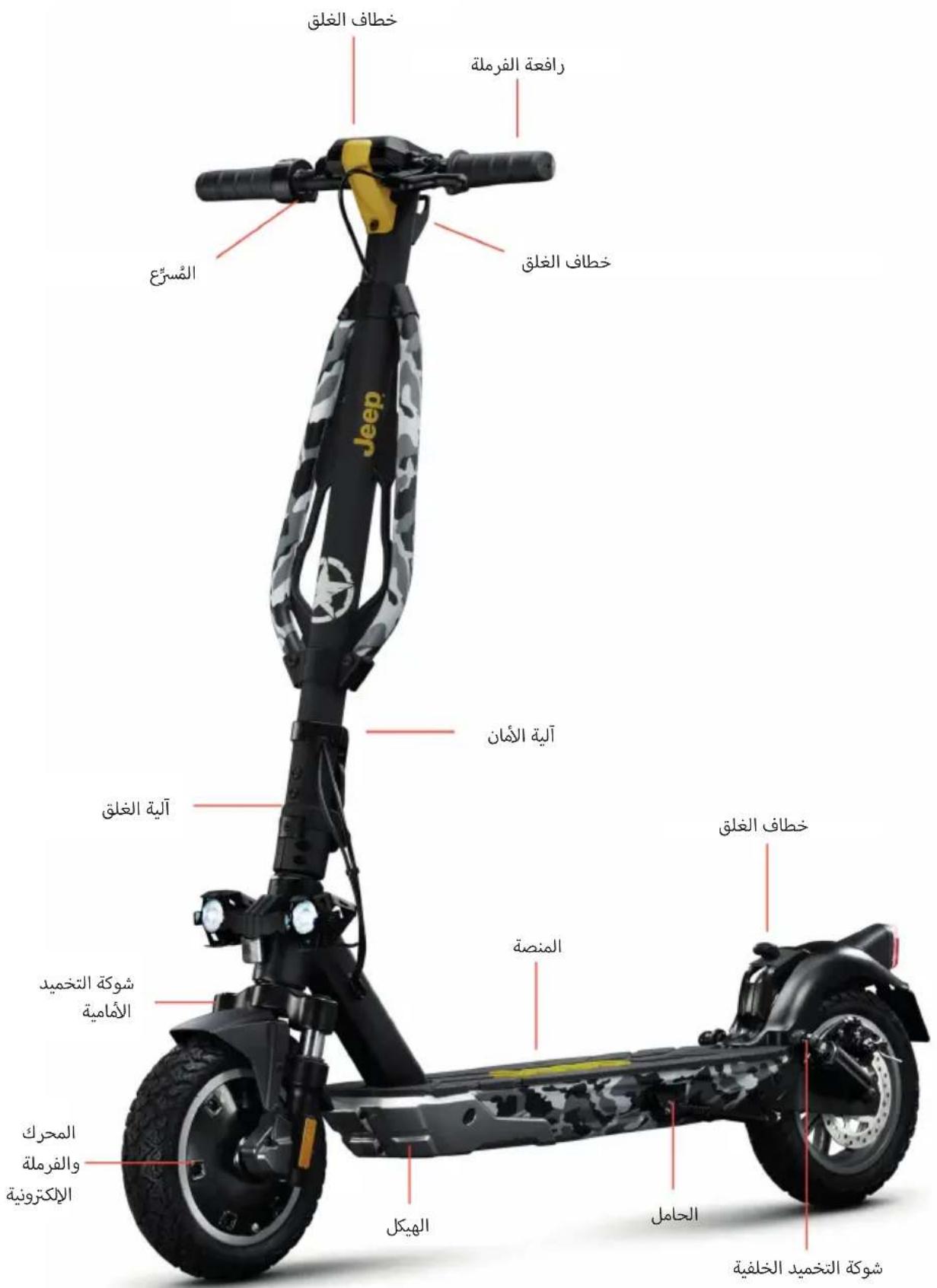

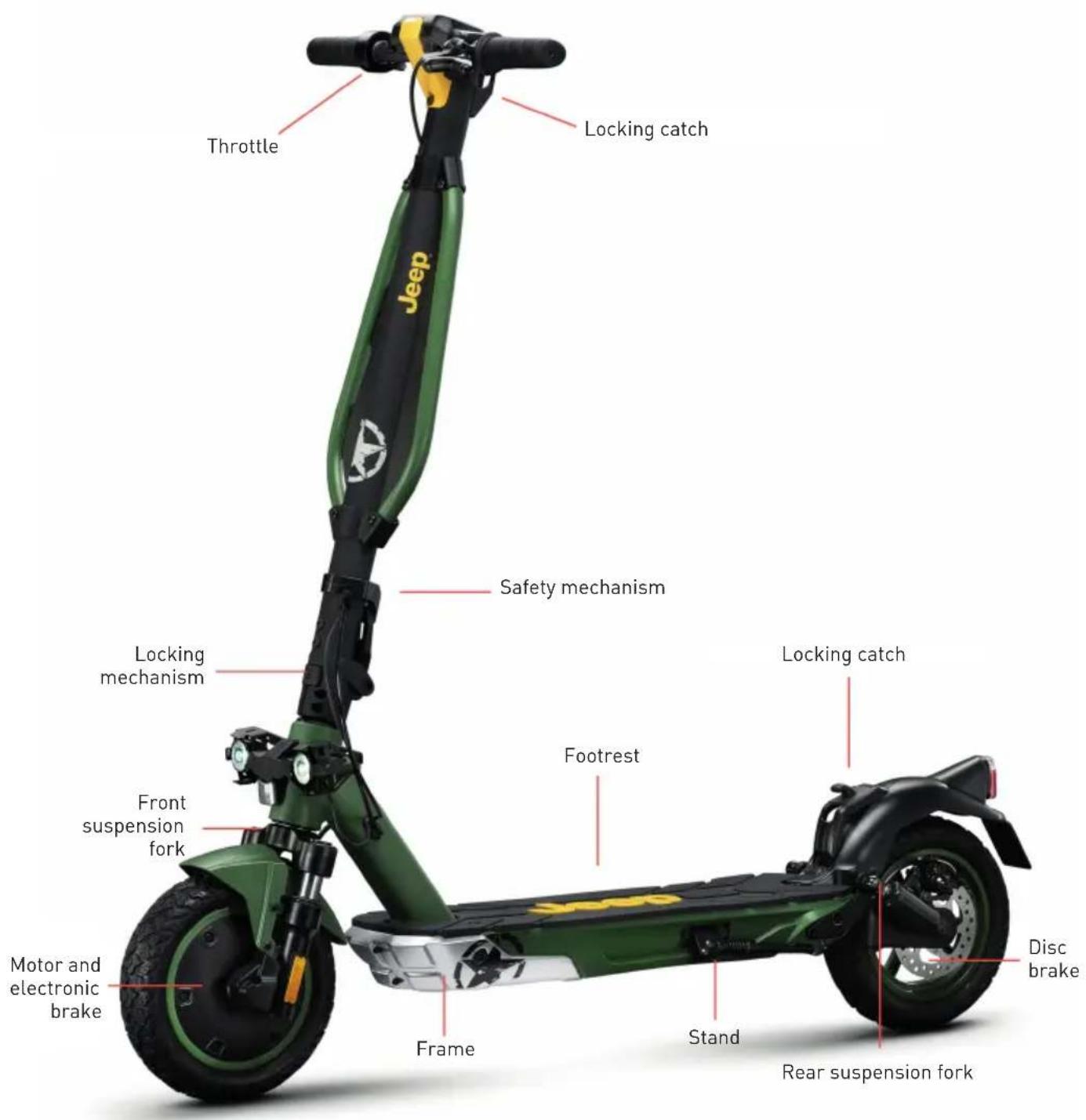

3. Product overview
In the interest of technological development, the manufacturer reserves the right to modify the item with no prior notice and this manual will not be automatically updated.
For further information and to consult different versions of the manual, visit www.jeepurbanemobility.com
2xe ADVENTURER
2xe URBAN CAMOU
4. Battery charging and activation
Prior to using the item for the first time, charge to 100% . Ensure the item, charger, and charging port are dry.
Instructions
Open the kickstand
Switch off the scooter
| MODEL REFERENCE | NCE PICTURE INSTRUCTIONS | |
| 2xe ADVENTURER | - Remove the rubber cover from the charging socket - Connect the battery charger to the charging port and then to the power socket. - When the item is fully charged, the light on the charger changes from red (charging) to green (charging complete). - After charging, close the rubber cover on the charging socket - Unplug the battery charger from the power socket | |
| 2xe URBAN CAMOU |
CAUTION
To recharge the item, use the battery charger supplied ONLY
| MODEL BATTERY CHARGER MODEL OUTPUT VOLTAGE RECHARGE TIME | |||
| 2xe ADVENTURER | HVE063-4200150 42V - 1.5A | 7 h | |
| 2xe URBAN CAMOU | HVE126-5460200 54.6V - 2.0A | 5 h | |
Using another type of charger may damage the scooter or entail other potential risks.
Never leave the product unsupervised while it is charging. Do not ride the item while charging.
After each use, fully recharge the battery to extend its useful life. Do not recharge the item immediately after use. Allow the scooter to cool for an hour before recharging.
The item should not be charging for extended periods. Overcharging reduces battery life and poses additional potential hazards.
Allow the vehicle to discharge completely to prevent damage to the battery.
Damage caused by the battery being left uncharged for a long period is irreversible and is not covered by the limited warranty. Once the damage has occurred, the battery cannot be recharged (the battery must not be dismantled by unqualified personnel, as this could lead to electric shocks, short circuits or even major safety incidents). If the owner is away, e.g. on holiday, and the device is entrusted to a third party, leave it in a partial charge state (20-50% charge), not fully charged.
Carry out regular visual inspection of the charger and charger cables. Check whether the charger cable shows clear signs of damage. Do not use the charger to prevent further damage, contact us for a replacement.
Battery warnings
The battery consists of lithium-ion cells and chemical elements that are hazardous to health and the environment. Do not use the item if it emits odours, substances or excessive amounts of heat. Do not dispose of the item or the battery with household waste. The end user is responsible for the disposal of electrical and electronic equipment and batteries in compliance with all applicable regulations.
Avoid used, defective and/or non-original batteries of other models or brands.
DANGER
Do not leave the battery near fire or heat sources. Fire and explosion hazard.
Do not open the battery or take it apart. Do not strike, throw, or puncture the battery or attach objects onto it.
Do not touch any substances leaking from the battery, as they are deemed hazardous. Do not allow children or pets to touch the battery.
Do not overcharge or short-circuit the battery. Fire and explosion hazard.
Do not immerse or expose the battery to water, rain or other liquids. Do not expose the battery to direct sunlight, excessive heat or cold (for example, do not leave the item or battery in a car in direct sunlight for extended periods of time), or environments containing explosive gases or flames.
Do not carry or store the battery with metal objects such as hairpins, necklaces, etc. Contact between metal objects and battery contacts may cause a short circuit resulting in physical injury or death.

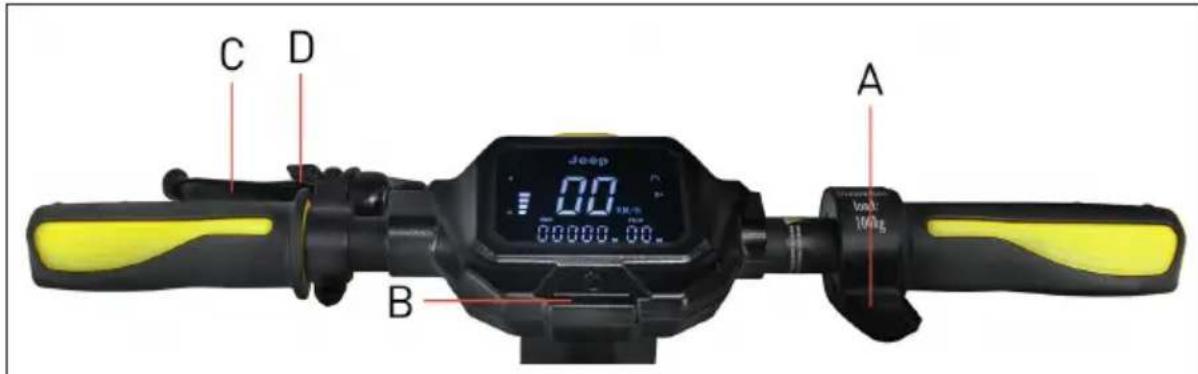

5. Command information / Control panel
| 2xe ADVENTURER / 2xe URBAN CAMOU |
| Throttle (A): press down to accelerate. Power button (B): press to switch the item on/off. Brake lever (C): pull the lever to brake Speed level change: press the button (B) twice to select the desired level. Lights: press the button (B) once to switch them on/off. Horn: press the button (D) once to activate it |
| MODEL REFERENCE PICTURE SYMBOLS | ||
| 2xe ADVENTURER 2xe URBAN CAMOU | 1. Battery Level: the battery level is indicated by 7 bars. 2. Speedometer: Displays the current speed of the scooter. 3. ODO: Total distance travelled. 4. TRIP: Single trip distance. 5. Lights indicator light. 6. Level 1 - The display will show ECO (up to 15 km/h). 7. Level 2 - The display will show D (up to 20 km/h). 8. Level 3 - The display will show S+ (up to 25 km/h). 9. Bluetooth light: always on 10. Cruise Control: Speed control. It is activated after the same speed has been maintained for a few seconds. The display emits a short beep. 11. Pedestrian mode - speed 6 km/h | |
6. Quick guide
- Prior to using the item for the first time, charge to 100% .
- Check tyre pressure (see side of tyre for recommended value). If the item does not reach at least 60% of the declared kms, or the maximum speed within the first 3 months of use, it is likely that the wheels have deflated once more. In this case, restore pressure as indicated.
- Check and adjust the brakes.
- Turn on the display.
- Place the item on a flat surface.
- Hold the handlebar firmly using both hands. Step onto the footrest with one foot and use the other to give yourself a gentle push and accelerate.
CAUTION
Zero Start Function: the throttle is activated once the forward speed exceeds 3km / h
For safety reasons, the item is initially set up to avoid standing starts.
- When riding the item, tilt body in the riding direction during a turn and slowly turn the handlebars.
- To stop the item, release the throttle, pull the brake lever
- To get off, first stop the item completely. Getting off the moving item can cause injury.
- Prior to each use, check brakes and any wear, check tyre pressure (see side of tyre for recommended value), wheel wear, throttle and charge status of battery.
Brake lever adjustment
| 2xe ADVENTURER / 2xe URBAN CAMOU | INSTRUCTIONS |
| A | It is possible to adjust the position of the brake lever, if necessary, by unscrewing the screw (A). Once the position has been adjusted, tighten the screw (A). |
Brake adjustment
| 2xe ADVENTURER / 2xe URBAN CAMOU | INSTRUCTIONS |
| C B A | If the brake is too tight or too loose, use the Allen wrench to loosen the screw (A), then adjust the brake cable, (shorten the brake cable at the top if it is too tight; if it is too loose, pull the brake cable downwards) and then, retighten the screw (A).Check the correct alignment between the brake caliper and the disc. Use the screws (B) and (C) to adjust the position / alignment on the disc, if necessary. |

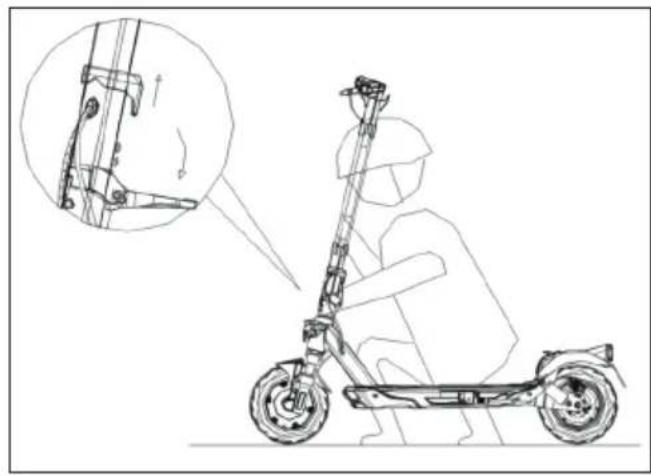

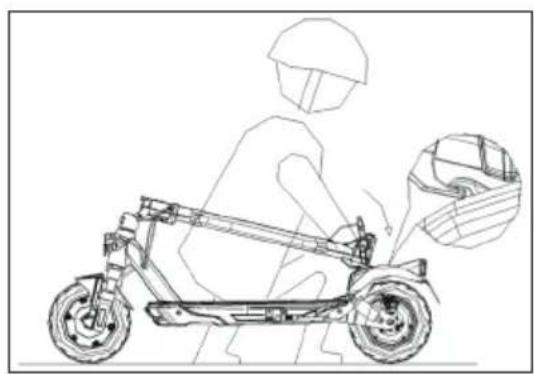

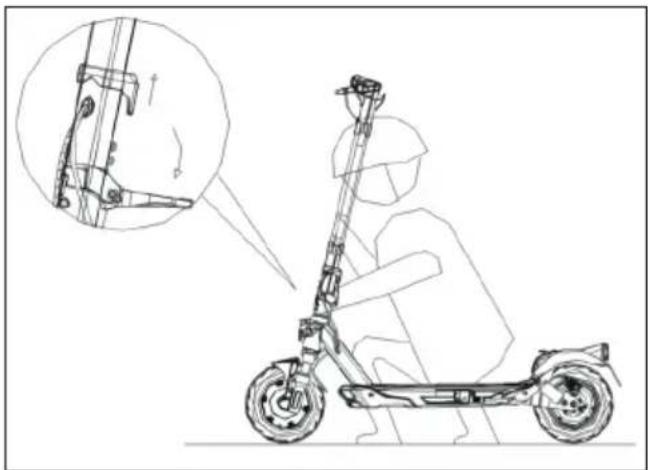

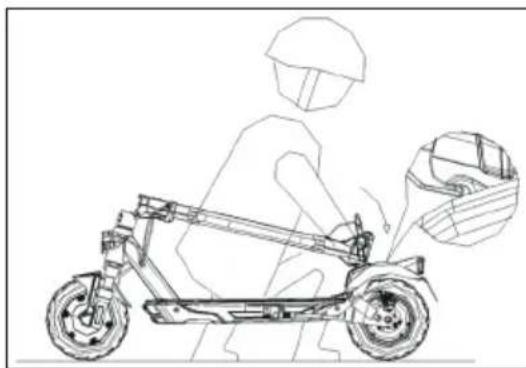

7. Folding and carrying
Make sure the electric scooter is turned off. Hold the handlebar stem with your hand, pull the lever, fold the stem towards the footrest and fasten it.
2xe ADVENTURER / 2xe URBAN CAMOU
After folding, lift it by holding the handlebar stem with one or both hands.
CAUTION
Make sure to secure the item during transportation. If the item cannot be lifted, do not transport with the item raised. If dropped, the item may cause severe injury and damage.
8. Range and performance
The maximum range and performance of the vehicle depends on a number of variables:
Terrain: riding on smooth roads provides greater range and performance than riding on rough roads and climbs.
Weight of user: the greater the weight, the lower the range and performance of the vehicle.
Temperature: riding the scooter in very cold or hot conditions affects range and performance.
Speed and riding style: riding smoothly and at a constant speed extends the range. Continuous acceleration, deceleration and manoeuvring greatly reduce the range. A lower speed extends the range.
Maintenance: prompt recharging, proper maintenance and regular checking of tyre pressure increase range and ensures consistent performance over time.
The level of battery charge affects performance – the lower the level, the lower the speed, especially on climbs.
9. Storage, maintenance and cleaning
CAUTION
If there are stains on the body of the scooter, wipe with a damp cloth. If the stains persist, apply neutral soap, brush out with a toothbrush, then wipe with a damp cloth. If there are scratches on the plastic components, use sandpaper or other abrasive material to remove them. Do not clean the items with alcohol, petrol, paraffin or other corrosive or volatile chemical solvents to prevent severe damage. Do not wash the item using high-pressure water jets. When cleaning the scooter, make sure that it is switched off, that the charging cable is disconnected, and the rubber cap is closed, as a water leak may cause an electric shock or other serious problems. Water seeping into the battery may cause damage to internal circuits and risk of fire or explosion. Should you suspect that water may have entered the battery, stop using the battery immediately and return it to your dealer's after-sales service for checking.
When the item is not in use, store it indoors in a cool, dry place. Do not store outdoors or inside cars for extended periods of time. Excessive sunlight, overheating, and excessive cold accelerate tyre ageing and jeopardize the life of both the item and the battery. Do not expose it to rain or water or immerse it in water to wash it.
Regularly check the tightness of the bolted parts, in particular wheel axles, the folding and transportation system, the steering system, the braking system, the state of the frame, the forks and the suspension. Nuts and all other self-locking fasteners may lose their effectiveness. Periodically check and tighten these components.
Like all mechanical components, the item is subject to wear and tear. Different materials and components may react to wear or stress fatigue in a variety of ways. If the service life of a component is exceeded, it may break suddenly, resulting in injury to the rider. Any cracks, scratches or changes in colour in areas subject to high levels of stress indicate that the life of the component has been reached and must be replaced.
Do not attempt to disassemble or repair the scooter yourself. Replacement of all scooter components should be carried out by the technical service department. For further information, contact your dealer or visit www.jeepurbanemobility.com
10. App configuration
This product can be used with the Jeep e-mobility App. The App allows you to control the item directly from your Smartphone.
Open the App and follow the instructions given.
CAUTION
The App may require various permissions required for the use and operation of the App itself.
The App version may have been updated by your App store. It is advisable to constantly check whether any updates are available for the App in order to be able to use the new features and always install the latest version of the App on your device.
Do not use your device while riding.
11. Technical data sheet
General information
2xe ADVENTURER 2xe URBAN CAMOU
| Frame magnesium alloy mag | ||
| Sunspensions front and rear | ||
| Speed L1: ≤ 6km/h | L2: ≤ 15km/h | L1: ≤ 6km/h |
| L3: ≤ 20km/h | L2: ≤ 15km/h | |
| L4: ≤ 25km/h | L3: ≤ 20km/h | |
| (max speed) | L4: ≤ 25km/h (max speed) | |
| Maximum slope** 18% 26% | ||
| Brakes Electronic front brake | and rear disc brake | Electronic front brake and rear disc brake |
| Tyres front and rear 10" tubeless front and rear 10" tubeless | ||
| Maximum load 100 kg 100 kg | ||
| Rider Check the current legislation in your country | ||
| Operating temperature | -5 °C/ 45 °C | -5 °C/ 45 °C |
| Protection level | IPX4 | IPX4 |
| Charging time | approx. 7 hours | approx. 5 hours |
| Autonomy** | up to 40km | up to 45km |
Electrical system
| Motor 350W Brushless 500W | Brushless | |
| Display 3.2" LED 3.2" LED | ||
| Battery 36V 10.4Ah 374Wh 48V | 9.6Ah 461Wh | |
| Low voltage protection 30V 40V | ||
| KERS Yes Yes | ||
| Lights Front and rear LEDs Front and rear LEDs | ||
| Features Bluetooth with App | Bluetooth with App | |
Dimensions and weight
| Net weight 19 kg | 19 kg | |
| Gross weight | 22.8 kg | 22.8 kg |
| Open item dimensions | 1195 x 473 x 1168mm | 1195 x 473 x 1168mm |
| Closed item dimensions | 1195 x 473 x 515mm | 1195 x 473 x 515mm |
| Packaging dimensions | 1230 x 210 x 535mm | 1230 x 210 x 535mm |
** Subject to variations based on the rider's weight, on the road conditions and on the temperature.
12. Troubleshooting
Error Cause Solution
| The motor is not running | Electrical issue, error code present | Request technical assistance |
| The drive wheel does not turn | Problems with the brakesMotor is blocked Check that | Adjust the brakes; if the problem persists, request technical assistanceat the wheel is properly tightened, check that the wheel turns without starting the vehicle. If the problem persists, request technical assistance |
| The motor stops while it is running | Motor overheating Stop the presence of error code Request technical assistance | vehicle and wait for it to coolrequest technical assistance |
| After charging it, the item does not switch on or it switches off after a few km. | Damaged battery Request | technical assistance |
| The battery does not charge or the item does not switch on | Connection problems ReQThe battery is not connected (models with removable battery)The battery is depletedChargethe battery to 100% damaged battery RequestProblems with the battery charger | quest technical assistanceCheck that the power connector is connected charged the battery to 100% technical assistanceReplace the battery charger |
Error code table
| Error Code 2xe ADVENTURER 2xe URBAN CAMOU | Indications Solution | |
| E01 | Overcurrent protection Switch off the vehicle, wait a few minutes before restarting it | |
| E02 | Low voltage protection Recharge the battery; if the problem persists, request technical assistance | |
| E03 | Protection from overvoltage Request technical assistance | |
| E04 | Engine malfunction Request technical assistance | |
| E05 | Control unit MOS malfunction Request technical assistance | |
| E06 | Control unit MOS malfunction Request technical assistance | |
| E07 | Control unit signal error Request technical assistance | |
| E08 | Overheating protection Switch off the vehicle, wait a few minutes before restarting it; if the problem persists, request technical assistance | |
| E09 | Throttle malfunction Request technical assistance | |
| E10 | Brake lever sensor malfunction Request technical assistance | |
| E11 | Light malfunction Request technical assistance | |
| E12 | Display communication error Request technical assistance | |
| E13 | Start button malfunction Request technical assistance |
13. Liability and general terms of warranty
The rider assumes all liability for any injury when not wearing a helmet or other protective devices. The rider is obliged to comply with current local regulations in relation to the minimum age permitted for riders, restrictions on the type of rider who is permitted to use the item, the use of the item itself prior to using it and ensuring that current local regulations are observed.
The rider is further obliged to keep the product clean and in a proper state regarding effectiveness and maintenance, to duly carry out safety checks for which they are responsible, as described in previous sections, and to keep all documentation relating to the maintenance of the item.
In the event of item malfunction due to causes not attributable to inappropriate rider behaviour or a consultation of the general terms of the warranty, contact your dealer or consult the service centre on the www.jeepurbanemobility.com website
M.T. Distribution shall not be liable for any damages caused and is in no way responsible for damages caused to property or persons when:
- the item is used incorrectly or in a manner that does not comply with the instructions of the user guide;
- after the purchase, the item is modified or tampered with in all or some of its components.
14. Information on disposal
CAUTION
Treatment of the electrical or electronic device at the end of its service life (applicable in all countries of the European Union and in other European systems with separate collection systems)
This symbol on the product or packaging indicates that the product should not be considered as normal household waste, but should be taken to a facility authorised to dispose of waste from electrical and electronic equipment (WEEE).
By ensuring the item is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which may otherwise be caused by inappropriate disposal. Recycling materials will help to conserve natural resources.
For more detailed information about the recycling and disposal of this product, you can contact the local waste disposal service or the point of sale where you purchased it.
In any case, disposal must be carried out in accordance with the legislation in force in the country of purchase.
More specifically, consumers must not dispose of WEEE as municipal waste, but must dispose of this type of waste separately, in one of two possible ways:
- By taking it to municipal collection centres (also called eco-collection centres or recycling facilities), directly or through the collection services of municipal companies, where these are available;
- By taking it to shops selling new electrical and electronic equipment.
Here, very small items of the WEEE type (with the longest side less than 25cm ) can be left free of charge, while larger ones can be left on a 1-for-1 basis, i.e., you can leave the old item when you buy a new one having the same function.
In the event of unauthorised disposal of electrical or electronic equipment, the sanctions provided for by current environmental legislation may be applied (Italian legislation - check the regulations in effect in the country of use/disposal of the vehicle).
If the WEEE contains batteries or accumulators, they must be removed and subjected to specific separate collection.
Handling of spent batteries (applicable in all countries in the European Union and in other European systems with separate collection systems)
This symbol on the product or packaging indicates that the battery pack should not be treated as normal household waste. On some types of batteries, this symbol may be used in combination with a chemical symbol.
The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.
By ensuring that the batteries are disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which may otherwise be caused by inappropriate disposal. Recycling materials will help to conserve natural resources. Where for safety, performance or data protection reasons, products require a fixed connection to an internal battery, this must only be replaced by qualified service personnel.
Deliver the product at the end of its service life to collection centres suitable for the disposal of electrical and electronic equipment: this ensures that the battery inside it is also treated correctly.
For more detailed information about disposal of the dead battery, contact the local waste disposal service or the shop where it was purchased.
In any case, disposal must be carried out in accordance with the legislation in force in the country of purchase.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe ADVENTURER
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe URBAN CAMOU
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe URBAN CAMOU
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe ADVENTURER
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe ADVENTURER
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe URBAN CAMOU
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe ADVENTURER
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe URBAN CAMOU
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe ADVENTURER
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe URBAN CAMOU
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe ADVENTURER
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe URBAN CAMOU
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe ADVENTURER
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe URBAN CAMOU
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe ADVENTURER
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe URBAN CAMOU
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe ADVENTURER
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe URBAN CAMOU
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
AutoTo Evyxepidio 1oxuvi a ta akoloutheta nEKTpiKa Tpativa:
2xe ADVENTURER
2xe URBAN CAMOU
Evyειρίδιο χρήσης
Metapaaon Twv Ppwtotuuv oyniow
Zaç Euxapiotoué Toun Eπiégαe auto To Tpoiov.
Tia pnpopoe, texvikn uTooTnpiN kai BohTeia, kaohc kai yia va diaaaeetouc Yevikouc opouc eyyunong aTneuuvte oTov npouneut noac n ETTIOKEpTeite Tov IOTOTTO www.jeepurbanemobility.com
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe ADVENTURER
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe URBAN CAMOU
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe ADVENTURER
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe URBAN CAMOU
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe ADVENTURER
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe URBAN CAMOU
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe ADVENTURER
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe URBAN CAMOU
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
:ddaaee aee eae ee eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae
2xe ADVENTURER
2xe URBAN CAMOU
aJlJlJlJlJd
J 1
aabio 3 gjgally jai, aolal jaoai bgs jc ybll jn jog odclwllg fll aaglal
www.jeepurbanemobility.com gagolj
aodwluloldszj.1
g g.2
cill Jc dolc ojbi .3
4.1111111111.4
aSaxill a>gl / aSaxill UgJ c UogIoo .5
2.5wJd.6
JJIg.7
15yUyU2og 8.8
aillg aillg bai.9
a.10
aJdagj1.11
U.12
aalll jaalll bgyg aJg.13
J 14
aJ1.15
aJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJg
. solly
J.
a 1 a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
j 1 j 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
.
gI aaiiaai I gI aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy
.
：gaiu 1yjgawwssgaaal algacal
| 2xe ADVENTURER2 | 2xe URBA | |
| 100 | 100 |
.200 15uJg
aJg jn nn nnnn nn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
(A) 70 no jol jol A jogjgol
aJ 1
aai jg jy gaaag aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y aai y
auiy
J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1
JolU 1
.4ioI 4oBpB aagg lki Ko 3 aS roll oigso goo j no s
(1g yogll lgl jyj 1j 1j) 1j b0g j
. 1
jbs
.1 1 1 1 1 1 1 1 1 1 1 1 1
.0g 3 0dglgll l a aasallrulwll abwlgdd gao j
glll lglr gglgglgglgglgglgglgglgglgglggl
y
（）gglj
*4gJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJg
J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J
1 1
- lscjloggl JJJl 100
gogolj jy jlll l aolal gollll lgl 10
www.jeepurbanemobility.com
2xe ADVENTURER
.100 100 100
Jolol
cill 1
| 2xe ADVENTURER 2xe URBAN CAMOU |
J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15
aJgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUg
.
yds
.1jJgI gI JRRrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRrJrRr
Lg
.111111111111111111111111111111111
.1jyI gI jyI yI JyI .0000000000000000000000000000000000000000000
gJ 1 gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ
(1)
.111 1 g o jzoo 1jLg s g
I 1
.
2xe URBAN CAMOU / 2xe ADVENTURER
.1JJ1J 10 JJWJgjB2oJ:(A)
111111111111111111111111
doljll jJn a2oljll uWp:(C) doljll a2olj
| الإستعمال | 2xe URBAN CAMOU / 2xe ADVENTURER |
| loudic loljl lal jaf sc yds g ofo f bap bap s yd a c no jalam all lal yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds ydt .(A) jalam all lal bap bap s yd a c no bajrdr d yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds y ds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds ydds yds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds yDDS ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ynds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds yiks ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydds ydd . |
Jolalb
a a a a a a a a a a a a a a a a a a a a a a a a a a a a
2xe URBAN CAMOU / 2xe ADVENTURER
.
Jai Jolg jg jg bclj g jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn
yUyUyUg yIyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUyUy
e 1
12 = 2( 201)
a 1 a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0
aalbng jllg lalbng aolglgagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagag
aaii i 1000000000000000000000000000000000000000000000000000000000000000000000000
y jll a o 1000000000000000000000000000000000000000000000000000000000000000000000000000000
.
a aalll aagaae aae aee e ae aee
.
J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J
.0d11 1jglg
dolclogdo
2xe ADVENTURER2xe URBAN CAMOU
glll g lglgsslll g gglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglggl
g j 1 g 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
g 1000000000000000000000000000000000000000000000000000
(jiaoiJI
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe ADVENTURER
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Jeep®
Product Model: 2xe URBAN CAMOU
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
Applicable harmonized standard(s):
Machinery Directive 2006/42/EC Annex I
EN ISO 12100:2010
EN 17128:2020
Factory name: Taizhou Siweiluo Vehicle co., Limited
Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China
Date: 13/12/2021
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Jeep
E-SCOOTER
