USER MANUAL DIC-24102 BYRON
1.1 Installation Safety....6
1.2 Operation Safety 6
2 Parts description 6
2.1 What's in the box....6
2.2 Indoor unit (monitor)....6
3 Installation....7
3.1 Fix the mounting plate of the indoor unit (monitor) 7
3.2 Electrical installation 7
3.2.1 Connecting an additional monitor 7
3.2.2 Connecting the AC power 7
3.2.3 Mount the indoor unit 7
4 Basic functions....7
4.1 Answering a call....7
5 Home screen and menus 8
5.1 Monitor menu 8
5.2 Intercom menu 8
5.3 Recording playback menu 8
Byron Table of Contents
5.4 Photo menu....8
5.5 Settings menu 8
5.5.1 Select photos or video recordings....9
5.5.2 Video duration....9
5.5.3 Number of photos 9
5.5.4 Image settings....9
5.5.5 Customer service information 9
5.5.6 Formatting MicroSD card\Internal memory 9
5.5.7 Date and time settings 10
5.5.8 Ringtone and volume 10
6 Frequently asked questions 10
7 Specifications 11
8 Environment....11
9 Declaration of Conformity.... 11

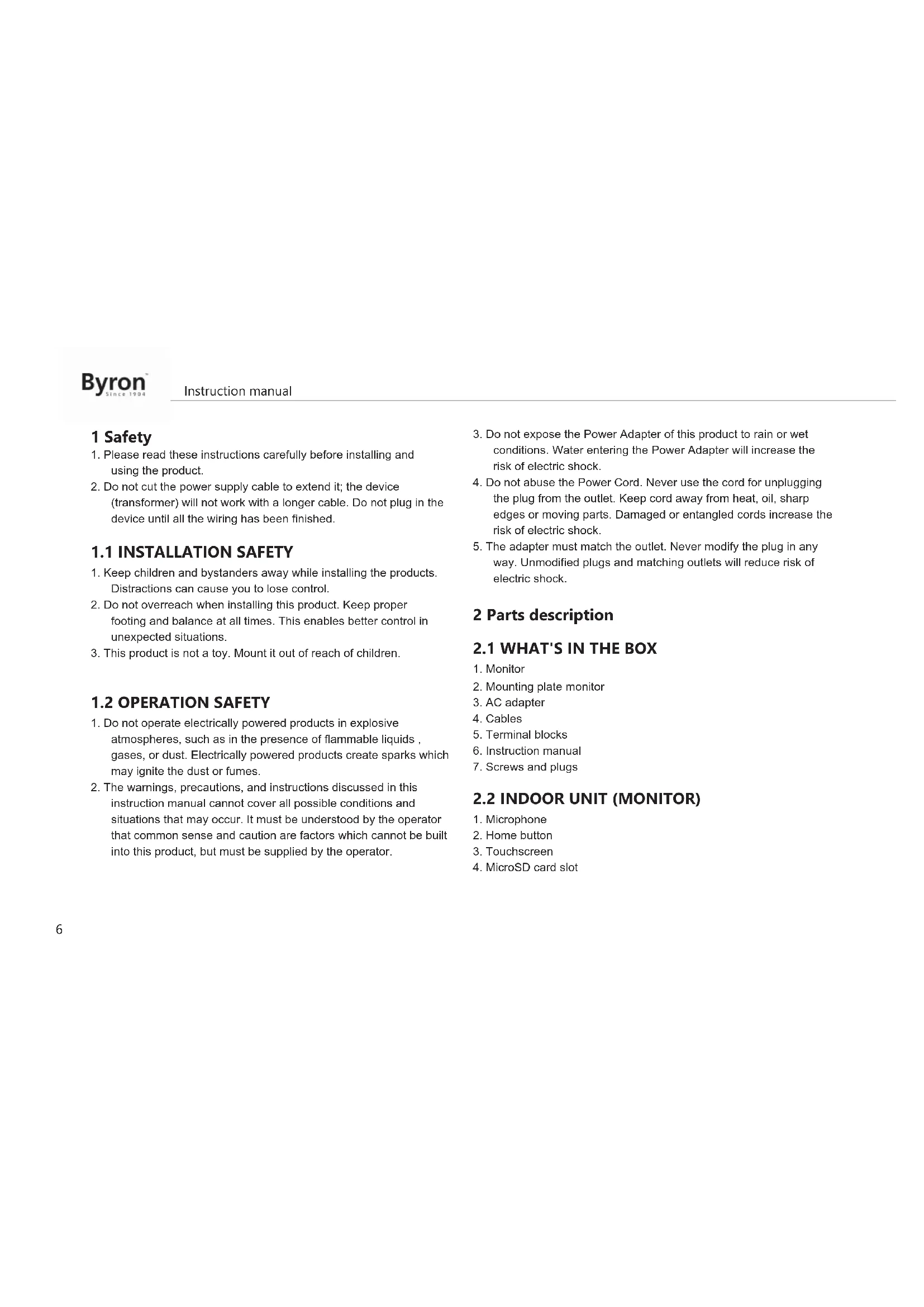

1 Safety
- Please read these instructions carefully before installing and using the product.
- Do not cut the power supply cable to extend it; the device (transformer) will not work with a longer cable. Do not plug in the device until all the wiring has been finished.
1.1 INSTALLATION SAFETY
- Keep children and bystanders away while installing the products. Distractions can cause you to lose control.
- Do not overreach when installing this product. Keep proper footing and balance at all times. This enables better control in unexpected situations.
- This product is not a toy. Mount it out of reach of children.
-
Do not operate electrically powered products in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Electrically powered products create sparks which may ignite the dust or fumes.
-
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator.
-
Do not expose the Power Adapter of this product to rain or wet conditions. Water entering the Power Adapter will increase the risk of electric shock.
- Do not abuse the Power Cord. Never use the cord for unplugging the plug from the outlet. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
- The adapter must match the outlet. Never modify the plug in any way. Unmodified plugs and matching outlets will reduce risk of electric shock.
2 Parts description
2.1 WHAT'S IN THE BOX
- Monitor
- Mounting plate monitor
- AC adapter
- Cables
- Terminal blocks
- Instruction manual
- Screws and plugs
2.2 INDOOR UNIT (MONITOR)
- Microphone
- Home button
- Touchscreen
- MicroSD card slot
3 Installation
3.1 FIX THE MOUNTING PLATE OF THE INDOOR UNIT (MONITOR)
To mount the monitor, you will need the following tools:
√ A suitable screwdriver for the included screws.
√ A drill and suitable drill bit for the included screw plugs.
A. Position the provided mounting plate where desired.
B. Mark the screw positions with a pen.
C. Drill the necessary holes.
D. Insert the plugs.
E. Pull the required cables through the mounting plate.
F. Fasten the mounting plate with the screws.
3.2 ELECTRICAL INSTALLATION
3.2.1 Connecting an additional monitor
To connect an additional monitor to an existing monitor, a BLUE terminal block is available. The additional monitor acts as a repeater to one of the main monitors.
To connect the terminal blocks, you will need the following tool:
√ A small flat head screw driver.
A. BLUE terminal block: Loosen the terminal screws.
B. With the terminal facing you, insert the black wire on the left and the red wire on the right.
C. Fasten the terminal screws.
D. Connect the terminal block to the existing monitor. (See sticker on the existing monitor for position)
E. Repeat steps a-d to fasten an identical terminal block to the other end of the cable and connecting it to the additional monitor.
3.2.2 Connecting the AC power
To connect the AC terminal blocks, you will need the following tool: √ A small flat head screw driver.
A. ORANGE terminal block: Loosen the terminal screws.
B. With the terminal facing you: Insert the (-) wire on the left and the (+) wire on the right.
C. Fasten the terminal screws.
D. Connect the terminal block(s) to the monitor.
3.2.3 Mount the indoor unit
√ A suitable screwdriver for the included screws.
A. Attach the indoor unit to the mounting plate.
4 Basic functions
4.1 ANSWERING A CALL
When the doorbell rings, you can:
A. Press the gate button to open the gate (optional).
B. Press the lock button to open the door (optional).
C. Press the camera button to make a video or take a picture.
D. Press the talk button to talk to your visitor.
5 Home screen and menus
- Press the home button on the monitor to open the home screen. The screen will turn on, and you can view the home screen.
The home screen allows you to access the following menus:
- Time/date
- Monitor menu
- Intercom menu
- Playback recordings menu
- Photo menu
- Settings menu
- Power off
5.1 MONITOR MENU
√ Open the monitor menu from the home screen to check the live footage from the doorbell camera.
A. Press the gate icon to open your gate.
B. Press the lock icon to open your lock.
C. Press the photo icon to take a snap shot.
D. Press the speaker icon to communicate.
⇒ Press the home button to exit the menu and go back to the home screen.
5.2 INTERCOM MENU
√ You need an additional monitor to use this function.
A. Open the intercom menu from the home screen on one of your monitors.
→ The other monitor will start chiming.
B. Press the answer icon in the top corner of the screen of the second monitor to accept the call.
→ You will now be able to talk to another person from one monitor to the other.
C. Press the end call icon in the top corner on one of the monitors to end the call.
5.3 RECORDING PLAYBACK MENU
√ You have made recordings.
A. Open the playback menu from the homescreen.
B. Use the onscreen arrow buttons to scroll through your recordings.
C. Use the onscreen controls to review or delete your recorded footage.
5.4 PHOTO MENU
You have taken photos
A. Open the photo menu from the home screen.
B. Use the onscreen arrow buttons to scroll through your saved photos.
C. Use the onscreen controls to review or delete your saved photos.
5.5 SETTINGS MENU
A. Select photos or video recordings
B. Video duration
C. Number of photos
D. Image settings
E. Customer service information
F. Formatting MicroSD card / Internal Memory
G. Date and time settings
H. Ringtone and volume settings
5.5.1 Select photos or video recordings
You can choose if your intercom takes photos or video recordings of your visitors.
√ Make sure to have a MicroSD card installed if selecting video recording.
A. Tap on the video icon to select video recordings
B. Tap on the photo icon to select photos.
5.5.2 Video duration
You can select video recording duration. The video starts recording when the doorbell is activated.
√ Video must be selected in the settings menu.
A. Press the button with the desired duration, 5-30 seconds.
5.5.3 Number of photos
You can select amount of photos recorded. The photos are taken when the doorbell is activated.
√ Photos must be selected in the settings menu.
A. Press the button with the desired amount, 1, 3 or 5 photos.
5.5.4 Image settings
The image can be adjusted using the arrows. The settings include:
- Brightness
- Contrast
- Color saturation
5.5.5 Customer service information
At Smartwares, we care about our customers and that the products work as intended. Please contact us if you run into any issues. You can also check out our YouTube videos by scanning the QR code below with your phone!
5.5.6 Formatting MicroSD card\Internal memory
The internal memory is used to store photos and is formatted separately from videos that can only be stored on a MicroSD card (not included).
A. Press the photo icon and confirm to format the internal memory
B. Press the video icon and confirm to format the MicroSD card (not included).
5.5.7 Date and time settings
A. Select the desired field to change.
B. Press the arrow keys up or down until the desired value is shown.
5.5.8 Ringtone and volume
The ringtone melody and volume can be adjusted using the arrow keys. The settings include:
• Volume
- Ringtone melody
6 Frequently asked questions
Problem Solution
- Monitor does not switch on. • Make sure that the monitor is connected to the power source.
- Do not use extension cords, as the voltage might not be sufficient to power on the device.
- Monitor is switched on but no image is displayed.
- Check the wire connections between the outdoor unit and the monitor (including the correct polarity).
• The picture quality is not good.
- Adjust brightness and contrast in settings menu.
- Make sure there is no direct light source pointed at the monitor.
• The volume is too low. • Adjust the volume
- Connected gate opener does not work.
- Test the installation and the 12 V relay using wired control. Refer to the instruction manual of the gate opener.
- Connected gate opener and electric strike does not work.
- Use suitable accessories with 12 V, 500 mA specification. Only install lock having a mechanical storage system.
• Video and audio signal is too weak or with interference
- The monitor is installed too close to other electronic devices. Move other electrical devices away.
- Please check the distance between indoor unit with outdoor unit, and also check the thickness of the cables used,
• There is no sound coming from the outdoor unit.
• The microphone might be obstructed or stained. Clean it carefully with a soft moistened cloth.
7 Specifications
Monitor
Screen size 7"(Diagonal) inch
Color Configuration R.G.B.delta
Video System PAL/NTSC
Effective Pixels 800X3(RGB)X480
Consumption Current 450±200mA
Operation Temperature -1°C \~ +50°C
Operation Humidity 85%(Max)
Supply Voltage DC 15V 1A
8 Environment
This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you
contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.
Support
You can find all available information and spare parts at www.chbyron.eu
Please read manual before use, and store it carefully for future use and maintenance.
You can also check out our YouTube videos by scanning the QR code below with your phone!
9 Declaration of Conformity
Hereby, Smartwares Europe declares that the radio equipment type DIC-24102 is in compliance with Directive 2014/53/EU
The full text of the EU declaration of conformity is available at the following internet address: www.chbyron.eu/doc
