Product type	LED construction site floodlight
Brand	Festool
Model	SYSLITE DUO
Nominal voltage	220-240 V
Frequency	50/60 Hz
Maximum power	112 W
Luminous flux	8000 lm
Color temperature	5000 K
Color rendering (CRI)	> 80
Lifespan (L70)	> 10,000 h
Weight	3.4 kg
Protection rating	IP55
Energy efficiency class of the light source	E
Number of LEDs	80
Tilt angle	3 positions
Removable stand	Yes, with cable reel
Wall hook	Yes
Tripod compatibility	Festool ST DUO 200
Minimum distance to illuminated surfaces	0.2 m
Activation	Mains connection, automatic start
Thermal monitoring	Automatic power reduction and shutdown if necessary
Maintenance	Cleaning with a soft, dry cloth
Intended use	Construction site lighting, garages, workshops

Frequently Asked Questions - SYSLITE DUO FESTOOL

What is the maximum power of the SYSLITE DUO?

The maximum power is 112 W.

What is the luminous flux of the floodlight?

The luminous flux is 8000 lm.

Can this floodlight be used on a tripod?

Yes, only with the tripod Festool ST DUO 200. The total height must not exceed 2.0 m.

How to clean the device?

Clean the plastic disc with a soft, dry cloth. Do not use solvents.

What to do in case of overheating?

If the temperature exceeds the limit, the device reduces power then shuts off. Unplug the plug, clean the ventilation slots and plug back in.

Is the floodlight waterproof?

Yes, it has a protection rating IP55, suitable for harsh conditions on construction sites.

Can the device be mounted on the wall?

Yes, thanks to the integrated wall hook. Hang it on a nail or screw head.

Is the light source replaceable?

No, it must be replaced only by the manufacturer or an authorized service center.

What is the color temperature?

The color temperature is 5000 K (neutral white light).

What minimum distance should be observed from flammable surfaces?

A minimum distance of 0.2 m must be observed.

USER MANUAL SYSLITE DUO FESTOOL

Close-up of a dark blue and silver portable flash lamp with a glowing light source (no visible text or symbols)

1

2

2-1

3

20°

10°

Technical line drawing of a mechanical component with a 0° angle indicator (no text or symbols present)

Prohibition sign showing a hand holding a device against a wall, enclosed in a circle (no text or symbols)

4

4-1 1

4-2

Technical line drawing of a mechanical device with labeled parts and an arrow indicating assembly (no text or symbols present)

7-7/8"

4-3 3

Technical illustration of a mechanical device with labeled parts and an arrow indicating a specific component (no text or symbols present)

5 ST DUO 200 0,2m max. 2,00m

6 0,2m 7 0,2m min. 15 kg Ø10-12 mm 3 mm 7-1 RISTOL RISTOL

62031:2020+A11:2021, EN 62471:2008, EN IEC

55015:2019+A11:2020, EN 61000-3-2:2014,

EN 61000-3-3:2013, EN 61547:2009, EN IEC

63000:2018

Signed on behalf of and in name of/

Head of Research & Development Products

i.v. Liu Wang

Tim Weber

Head of Product Compliance

We as the manufacturer declare under our sole responsibility that the product(s) fulfill(s) all the relevant provisions of the following UK Regulations and are manufactured in accordance with the following designated standards:

S.I. 2016/1101 Electrical Equipment (Safety) Regulations 2016

S.I. 2016/1091 Electromagnetic Compatibility Regulations 2016

S.I. 2021/422 Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2021

BS EN IEC 60598-1:2021+A11:2022

BS EN 60598-2-4:2018

BS EN 60598-2-24:2013

BS EN IEC 62031:2020+A11:2021

BS EN 62471:2008

BS EN IEC 55015:2019+A11:2020

BS EN IEC 61000-3-2:2019+A1:2021

BS EN 61000-3-3:2013+A2:2021

BS EN 61547:2009

BS EN IEC 63000:2018

Signed on behalf of and in name of

Festool GmbH

Wertstr. 20, 73240 Wendlingen, GERMANY

Place and date of declaration: Wendlingen, 2023-09-28

Head of Research & Development Products

i.v. Tm Law

Tim Weber

Head of Product Compliance

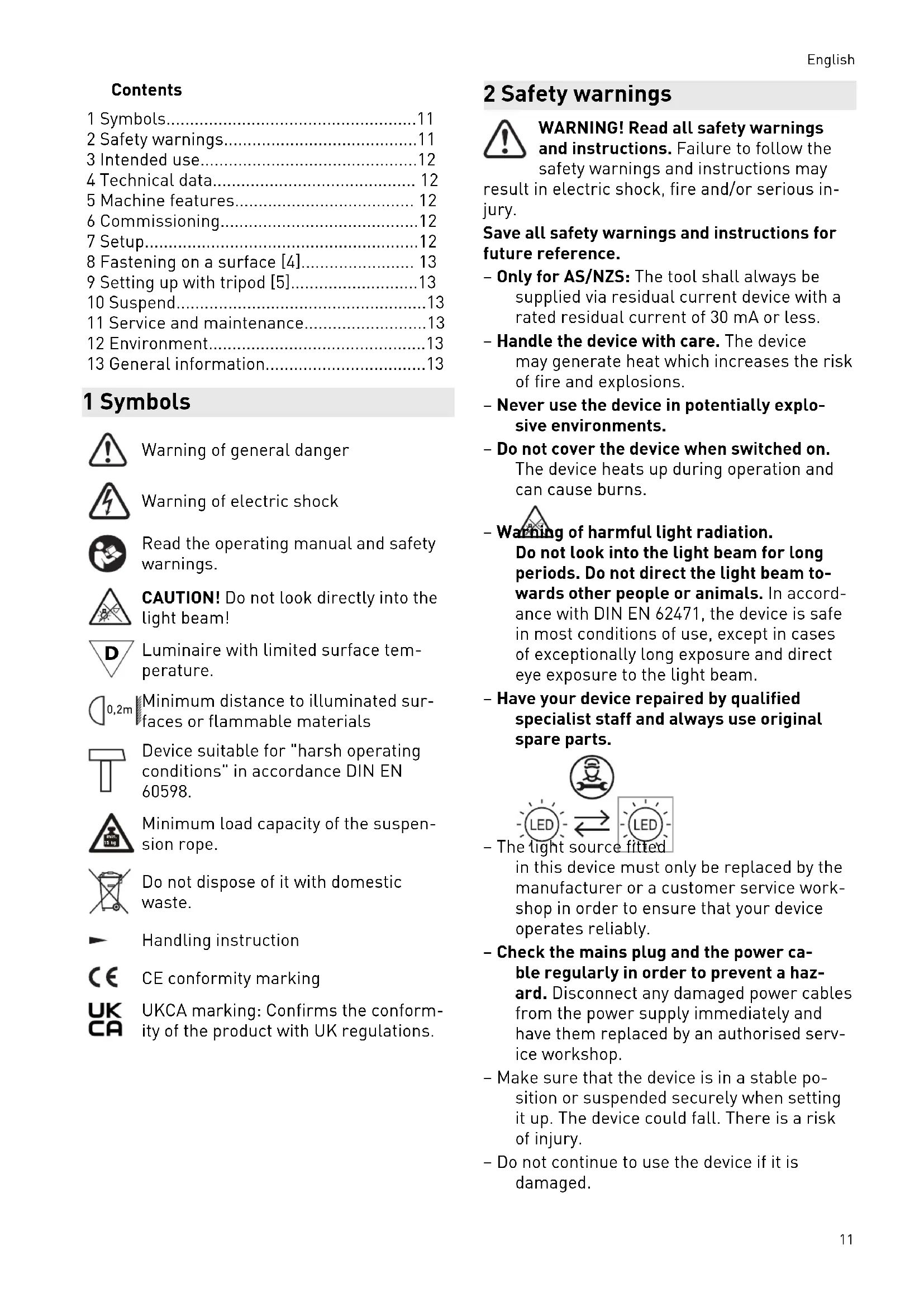

Inhaltsverzeichnis

1 Symbols....11
2 Safety warnings....11
3 Intended use....12
4 Technical data.... 12
5 Machine features.... 12
6 Commissioning....12
7 Setup....12
8 Fastening on a surface [4].... 13
9 Setting up with tripod [5]....13
10 Suspend....13
11 Service and maintenance....13
12 Environment....13
13 General information....13

1 Symbols

Warning of general danger

Warning of electric shock

Read the operating manual and safety warnings.

CAUTION! Do not look directly into the light beam!

Luminaire with limited surface temperature.

Minimum distance to illuminated surfaces or flammable materials

Device suitable for "harsh operating conditions" in accordance DIN EN 60598.

Minimum load capacity of the suspension rope.

Do not dispose of it with domestic waste.

Handling instruction

CE conformity marking

UKCA marking: Confirms the conformity of the product with UK regulations.

2 Safety warnings

WARNING! Read all safety warnings and instructions. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.

Save all safety warnings and instructions for future reference.

• Only for AS/NZS: The tool shall always be supplied via residual current device with a rated residual current of 30 mA or less.
• Handle the device with care. The device may generate heat which increases the risk of fire and explosions.
• Never use the device in potentially explosive environments.
• Do not cover the device when switched on. The device heats up during operation and can cause burns.
• Warning of harmful light radiation. Do not look into the light beam for long periods. Do not direct the light beam towards other people or animals. In accordance with DIN EN 62471, the device is safe in most conditions of use, except in cases of exceptionally long exposure and direct eye exposure to the light beam.
• Have your device repaired by qualified specialist staff and always use original spare parts.
• The light source fitted in this device must only be replaced by the manufacturer or a customer service workshop in order to ensure that your device operates reliably.
• Check the mains plug and the power cable regularly in order to prevent a hazard. Disconnect any damaged power cables from the power supply immediately and have them replaced by an authorised service workshop.
• Make sure that the device is in a stable position or suspended securely when setting it up. The device could fall. There is a risk of injury.
• Do not continue to use the device if it is damaged.

e light source fitted

English

• The device is not a toy! Keep the device away from children.
• The working light is intended for use in an environment in which deposits of non-conductive dust on the light can be expected.

3 Intended use

Floodlight is intended for illumination of construction sites, work areas, garages and the like. The electrical safety of the power source must be safeguarded.

The device is not suitable for illuminating rooms in residential buildings.

The user is liable for improper or non-in-tended use.

NOTICE Some states have additional regulations for using electrical equipment on construction sites. These national regulations may restrict the use of the working light or impose additional requirements. Observe the valid national regulations.

4 Technical data

Flood light SYSLITE DUO

Nominal voltage 220 - 240 V

Frequency 50/60 Hz

Illuminant 80 x 1,4 W Power LED

Max. power 112 Watt

Light current 8000 lm

Light color 5000 K

Color rendering index >80

Lifespan (L70) >10.000h

Weight 3,4 kg

Protection type IP 55

This tool has a light source of energy efficiency class E.

5 Machine features

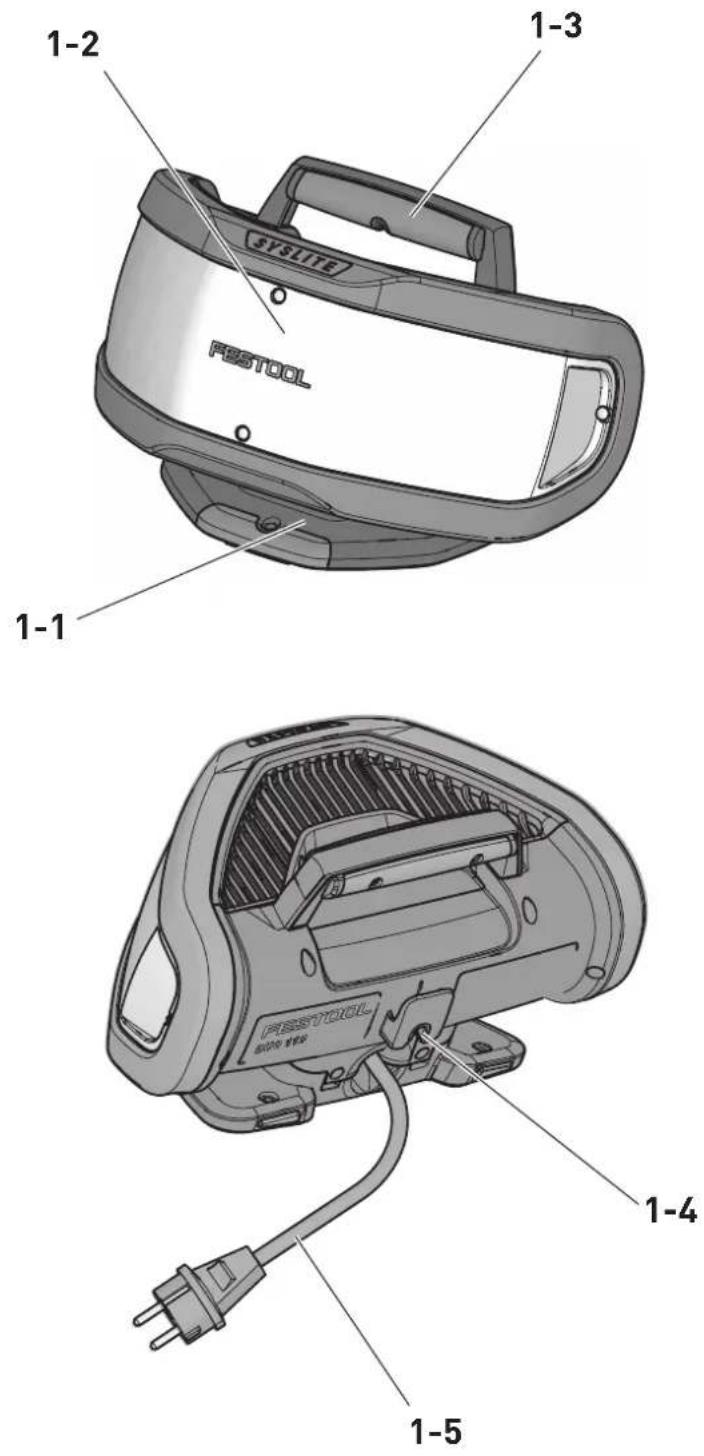

[1-1] Detachable stand, cable spool
[1-2] Luminous area
[1-3] Handle
[1-4] Wall peg, cable clam
[1-5] Mains power cable

The specified illustrations appear at the beginning of the Operating Instructions.

6 Commissioning

WARNING

Unauthorised voltage or frequency!

Risk of accidents

• Observe the specifications on the machine's name plate.
  ▶ Observe country-specific regulations.

6.1 Switching on/off

Switching on

The device's mains plug must not be inserted in moist environments as it does not have the corresponding protection against moisture.

▶ Insert the mains plug.

The light cone appears automatically.

Switching off

▶ Pull out the mains plug.
Wind up the mains power cable on the base [1-1]. The cable end can be hooked onto the provided clamp [2-1].

6.2 Temperature surveillance

When exceeding the temperature limit, the device automatically reduces luminosity. If device continually exceeds temperature limits, power is cut off completely.

Measures for restoring luminosity:

▶ Pull mains plug,
- remove cause of overtemperature (i. e. obstructed air vents),
▶ reinsert mains plug.

Full luminosity is restored.

7 Setup

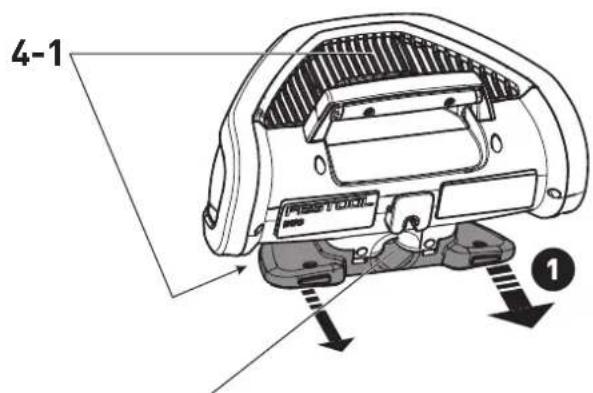

Always set up device with stand to keep air vents air accessible [4-1].

Place on dry, even and stable surface. Do not suspend device from its power cord. Electrical hazards by overstraining the power cord may occur. Prevent obstruction of the cooling slits on top and bottom of the device.

Minimum distance to illuminated surfaces and combustible materials 0,2 m.

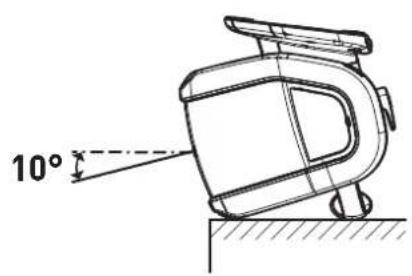

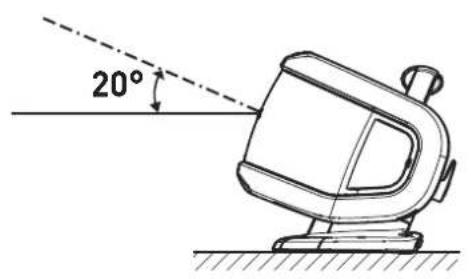

7.1 Set-up angle [3]

The device can be set up in three different angles.

8 Fastening on a surface [4]

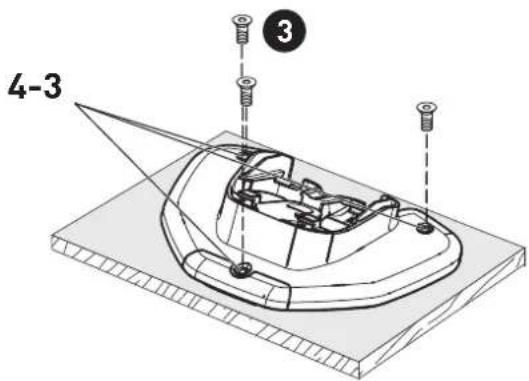

For better fixing, the pedestal [4-2] is removable and equipped with openings [4-3] for screwing down on the surface or ceiling.

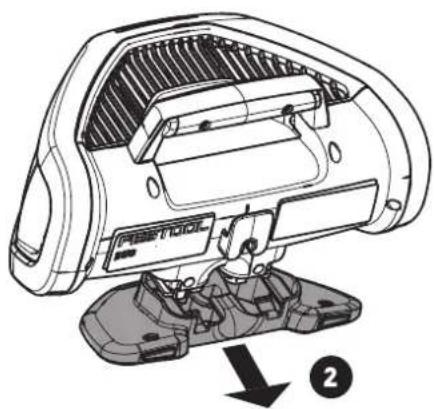

• Remove the pedestal, initially pulling more strongly on one side when doing so.

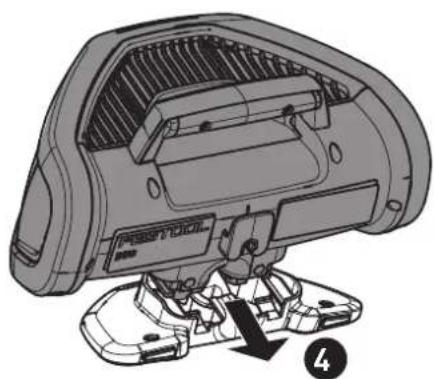

  ▶ Remove the pedestal evenly.
  ▶ Screw the pedestal down on the surface.

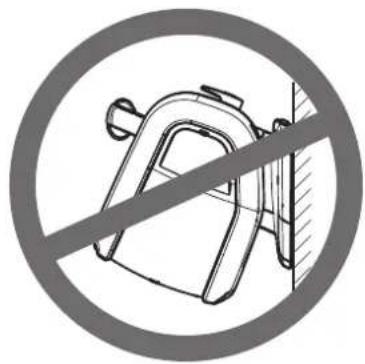

Do not attach the device to vertical surfaces (walls, etc.), as otherwise the cooling rmance of the vents is affected.

▶ Attach the working light.

WARNING! To reduce the risk of strangulation, fasten the mains power cable of the device securely to the wall if the mains power cable is within reach.

9 Setting up with tripod [5]

Use the device only with a Festool ST DUO 200 tripod. The total height of the tripod must not exceed 2.0 m. Please follow the instructions contained in the operating manual for the tripod.

▶ Fold out the tripod to the limit stop [5].
▶ Attach the working light.
▶ Turn the attached working light until it clicks into place.

10 Suspend

10.1 On the wall [6]

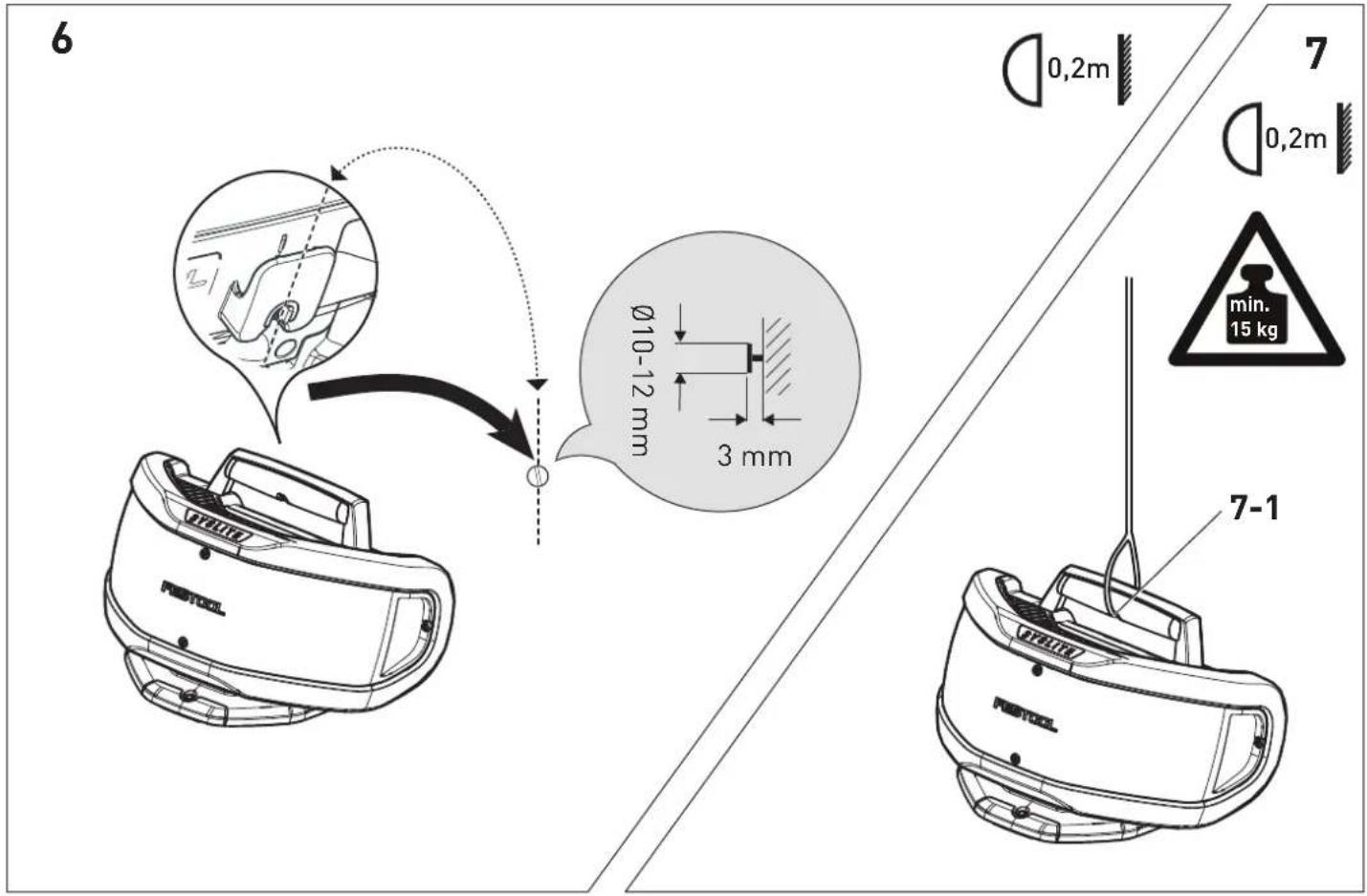

Hang the device backwards on the wall hook intended for this [2-1]. Attach the wall hook to a nailhead or screwhead that is embedded into the wall.

10.2 On a rope [7]

The device can be hung on a rope, on the guide groove [7-1] in the centre of the handle.

11 Service and maintenance

WARNING

Risk of injury, electric shock

▶ Always pull the mains plug from the socket before performing any servicing and maintenance work.
▶ All maintenance and repair work which requires the motor housing to be opened should always be carried out by an authorised service workshop.

Customer service and repairs must only be carried out by the manufacturer or service workshops. Find the nearest address at: www.festool.co.uk/service

Always use original Festool spare parts. Order no. at: www.festool.co.uk/service

▶ To ensure constant air circulation, always keep the cooling air openings on the device clean and free of blockages.
▶ Only clean the plastic cover on the device with a soft, dry cloth to prevent damage. Do not use solvents.

12 Environment

Do not dispose of the device in the household waste! Recycle devices, accessories and packaging. Observe applicable national regulations.

In accordance with the European Directive on waste electrical and electronic equipment and implementation in national law, used power tools must be collected separately and handed in for environmentally friendly recycling.

Information on collection points for proper disposal can be found at www.festool.co.uk/recycling.

Information on REACH: www.festool.co.uk/reach

13 General information

Imported into the UK by

Festool UK Ltd

1 Anglo Saxon Way

Bury St Edmunds

IP30 9XH

Great Britain
