USER MANUAL KM 3898 SEVERIN

2. Mixer arm release lever

6. Covers for containers for accessories, which can be

7. Power cord with plug

8. Nameplate (appliance underside)

13. LED for illuminating the mixing bowl

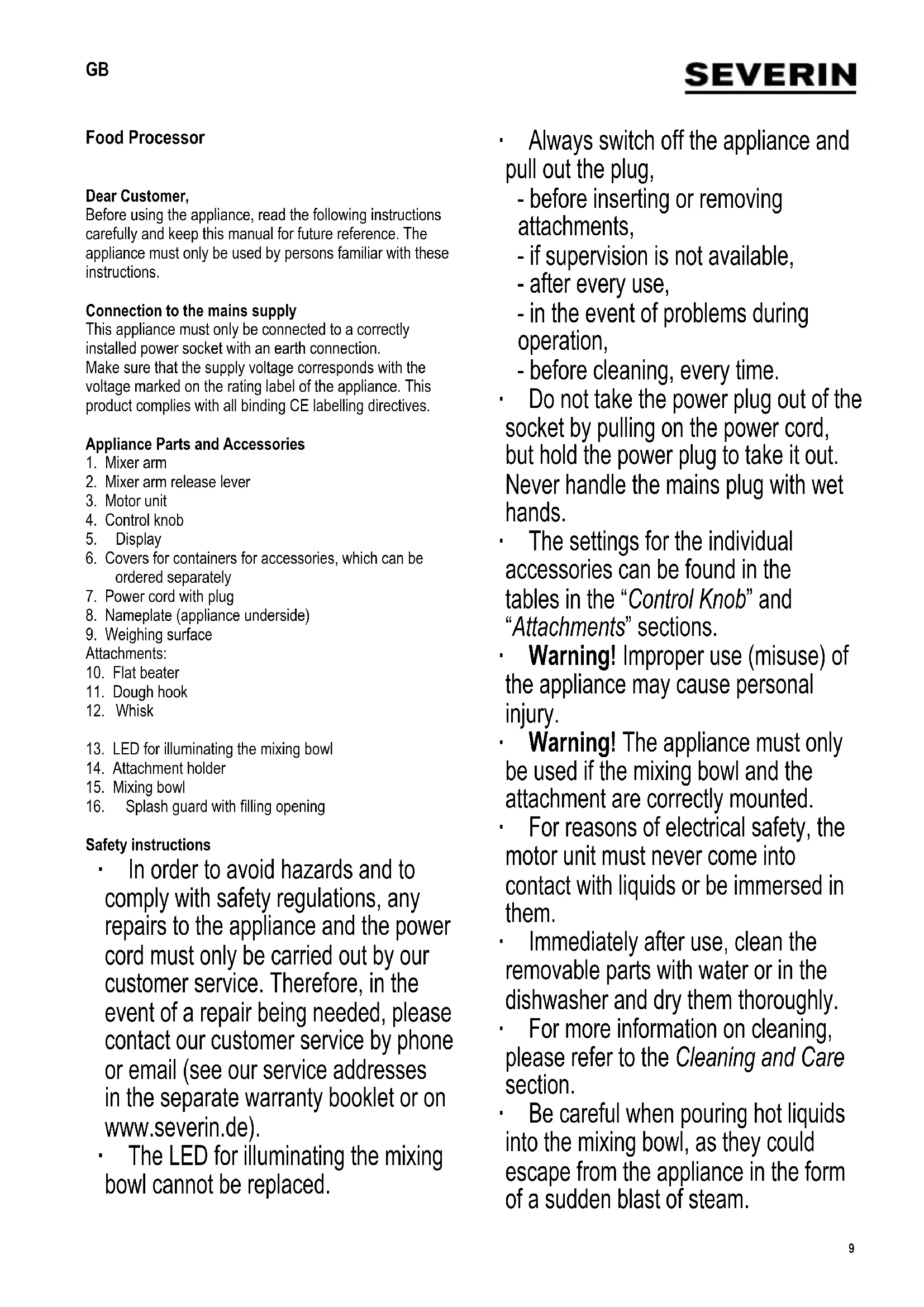

Safety instructions ∙ In order to avoid hazards and to comply with safety regulations, any repairs to the appliance and the power cord must only be carried out by our customer service. Therefore, in the event of a repair being needed, please contact our customer service by phone or email (see our service addresses in the separate warranty booklet or on www.severin.de). ∙ The LED for illuminating the mixing bowl cannot be replaced. ∙ Always switch off the appliance and pull out the plug, - before inserting or removing attachments, - if supervision is not available, - after every use, - in the event of problems during operation, - before cleaning, every time. ∙ Do not take the power plug out of the socket by pulling on the power cord, but hold the power plug to take it out. Never handle the mains plug with wet hands. ∙ The settings for the individual accessories can be found in the tables in the “Control Knob” and “Attachments” sections. ∙ Warning! Improper use (misuse) of the appliance may cause personal injury. ∙ Warning! The appliance must only be used if the mixing bowl and the attachment are correctly mounted. ∙ For reasons of electrical safety, the motor unit must never come into contact with liquids or be immersed in them. ∙ Immediately after use, clean the removable parts with water or in the dishwasher and dry them thoroughly. ∙ For more information on cleaning, please refer to the Cleaning and Care section. ∙ Be careful when pouring hot liquids into the mixing bowl, as they could escape from the appliance in the form of a sudden blast of steam. GB10 142 x 208 mm ∙ This appliance is intended for household use and similar applications, such as - in kitchens used by employees inshops,ofcesandsimilarwork environments, - in agricultural settings, - by customers in hotels, motels and other typical residential environments, - in establishments offering bed and breakfast. ∙ In the event that this appliance is to be used by persons with reduced physical, sensory or mental capabilities or with lack of experience or knowledge, the user must be supervised or instructed regarding the safe use of the appliance and must have an understanding of the consequent potential risks of danger. ∙ This appliance must not be used by children. This appliance and its power cord must be kept out of the reach of children. ∙ Children must not play with this appliance. ∙ Keep all packaging material out of the reach of children. There is a risk of suffocation! ∙ Before commissioning, check the whole appliance, including the power cord and any accessories, to ensure that there are no defects or damage, which could impair the functional safety of the appliance. For example, if theappliancehasfallenontotheoor,orthepowercord has been pulled, there may be damage that cannot be seen from the outside. In such cases, do not operate the appliance. ∙ Alwayspositiontheapplianceonaatstablesurface. ∙ Never leave the power cord dangling downwards. ∙ Never allow the appliance or the power cord to be exposed to any external source of heat. ∙ Neverputyourngersoranobject(doughscraper, wooden spoon or similar) into the attachments while they are running. ∙ Before plugging the machine in, make sure that the control knob is set to the “0” position. ∙ After switching off, wait for the motor to stop running, before removing the splash guard or raising the mixer arm! Do not touch any part of the appliance whilst still in motion! Intended Use ∙ The food processor is intended for weighing and stirring food and, when using various accessories, for mixing and chopping food. ∙ The scale is a household appliance that is not intended for medical or commercial use. The appliance has no ofcialcerticateofcalibration. ∙ The scale has a maximum capacity of up to 7.5 kg. ∙ The appliance must only be operated with the original attachments/accessories and only for the intended purpose as described. ∙ Any other use not stated in the instructions (misuse) is considered as not intended and can cause severe personal injury or damage to the appliance. ∙ If the appliance is operated incorrectly or used for purposes other than the intended use, no liability can be accepted for any damage that may occur. Additional Accessories ∙ Thefoodprocessorcanbettedwithdifferent attachments that are available separately. ∙ Mincer ZB 5591 Vegetable grater ZB 5592 Stand mixer attachment ZB 5593 Spare mixing bowl ZB 5595 Pasta attachment ZB 5594 Youcanndup-to-dateinformationaboutother attachments at any time on our homepage. Before using for the rst time ∙ Unpack the appliance completely and remove any remaining packaging material and stickers. Do not remove the nameplate! ∙ Clean the removable parts as described in the Cleaning and Care section. Short operation This appliance is designed with a short operating time (10 mins), i.e. you can use it for a maximum of 10 minutes in one go. Then the unit needs to be switched off for 20 minutes to cool down. Automatic shutdown ∙ After running for 10 minutes the appliance switches off automatically. It then needs to cool for 20 minutes. ∙ If the appliance is not in use for about 2 minutes, the display switches off. ∙ As soon as the mixer arm is raised, the appliance is also switched off and will need to be started again after the mixer arm has been lowered.11 142 x 208 mm Overheating protection The appliance has a built-in overheating protection, which switches it off in the event of overheating. Allow the appliance to cool down to room temperature before using it again. Light ring and illumination of the mixing bowl ThelightringonthecontrolknobandtheLEDforilluminatingthemixingbowlappearashingwhentheapplianceiswaiting for input. They remain permanently lit during the mixing operation. Display The display shows the selected functions, weight and running times. You can also select the running time and unit of weight. Symbol Function Mixing Weighing and taring display Remaining time or mixing time display

Weight in the weighing process Selection of the mixing time

Selection of the units of weight (kg, g, lb, and oz) in the weighing process Control Knob The control knob can be used to select speed settings between 0 and 8, or to select the Pulse function. Speed setting Designation Use 0 Off Before every change of attachment, after use 1 Lowest speed For slow mixing, initial mixing together of ingredients, kneading 2-3 Low speed For whisking, folding in and mixing in of ingredients, kneading 4-6 Medium speed For all mixing tasks 7-8 High speed For beating egg white and whipping cream P Pulse For short bursts of mixing at the highest speed setting Attachments Select attachments in accordance with the table below. For slow mixing of ingredients, always start on speed setting 1. Attachment Symbol Use Recommended speed Flat beater Light soft mixes, e.g. batters, cakes and puddings 1-6 Whisk Cream, egg white and mousse 7-8 Dough hook Heavier doughs, e.g. bread dough, pizza dough, yeast dough 1-312 142 x 208 mm Operation ∙ The appliance must be switched off and unplugged before attachments are inserted, changed, removed or cleaned. ∙ Check that the mixing bowl is locked in place before starting the mixing operation! ∙ After switching off, wait for the motor to stop running! Do not touch any part of the appliance whilst still in motion. Inserting the mixing bowl and lling it with ingredients ∙ Plug the appliance in. ∙ Youwillhearbeeps,andthelightringandLEDwillash. ∙ Pull the release lever upwards. The mixer arm automatically moves upwards. Press with your hands until you hear a click. The button lights up, and the display shows kg and 0.000. ∙ Place the mixing bowl such that the protrusions on the bowltintotherecessesoftheappliance. ∙ Press the button once to tare the scale. ∙ Fill the mixing bowl with the ingredients until the desired amount is displayed. ∙ Care should be taken to ensure that no dough runs out of the bowl onto the weighing surface. ∙ Turn the mixing bowl clockwise to lock it in place. Tip! You can weigh other ingredients during cooking by switching off the appliance, removing the splash guard and pulling the release lever upwards to release the mixer arm. Unlock the mixing bowl, press the button and weigh the ingredients. Inserting an attachment ∙ Select an attachment. ∙ Insert the attachment into the mixer arm so that the pin on the mixer arm engages in the recess in the attachment. Slide the attachment upwards as far as possible. Turn the attachment anti-clockwise to lock into place.Checkthatitisrmlyattached. ∙ To lower the mixer arm, pull the release lever upwards and press the mixer arm downwards until you hear a click. ∙ The button lights up, and the display shows 00:00. ∙ Place the splash guard on the mixing bowl from the left side. Operation ∙ Turn the control knob slowly to the required speed setting. ∙ Always start mixing at speed setting 1 to mix the ingredients together. Tip! Timer ∙ As soon as the appliance is switched on, the display shows the operational timer setting. ∙ If, before switching the appliance on, the required mixing time is set using the buttons in 10 second increments, the appliance will stop after this time has elapsed. You will hear beeps and the light ringashes. ∙ To start the appliance again after the time has elapsed,thecontrolknobmustrstbesetto0. ∙ You can add other ingredients during the mixing or kneading operation without weighing them by adding themthroughthellingopeninginthesplashguard. ∙ Ingredients may sometimes stick to the edge of the mixing bowl and be missed by the movement of the attachment. If this happens, switch the appliance off and scrape the ingredients off the edge. After use ∙ Switch off the appliance and unplug the power cord. Wait for the motor to stop running. ∙ Remove the splash guard. ∙ Pull the release lever upwards. The mixer arm automatically moves upwards. Press with your hands until you hear a click. ∙ Turn the attachment clockwise and take it out. ∙ Turn the mixing bowl anti-clockwise to take it off. ∙ After cooking, remove the food from the mixing bowl. ∙ Clean individual parts as described in the Cleaning and Care section. Recipe for testing institutes Mix1925gourand1386gwateratthehighestspeed setting for 8 minutes.13 142 x 208 mm Cleaning and Care ∙ Before cleaning the appliance, every time, switch it off, unplug the power cord and wait for the motor to stop running. ∙ Do not use any sharp or abrasive cleaning materials. ∙ For reasons of electrical safety, the motor unit must never come into contact with water or be immersed in it. ∙ When cleaning the motor unit, only use a soft damp cloth. ∙ Always ensure that the weighing surface on the motor unit is clean. Use a damp cloth to remove dough residues on and around the weighing surface. ∙ Remove the splash guard, the attachments and the mixing bowl and clean them immediately after use, using hot water with some washing-up liquid in. The parts can also be cleaned in a dishwasher. ∙ Note: If cleaning them in a dishwasher, there may be some change in the colour of the whisk coupling. This does not constitute a defect and the whisk can continue to be used as before. ∙ If required, remove the attachment holder cover at the head of the mixer arm for cleaning. To do this, take hold of the gap in the underside of the cover and take the coveroff.Putthecoverbackonsothatthelines(−−) are positioned opposite each other. ∙ You can also remove the attachment holder cover on the lower section of the mixer arm. Disposal Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.14 142 x 208 mm Robot de cuisine Chère cliente, Cher client, Avant d’utiliser cet appareil, veuillez lire soigneusement les instructions suivantes et conserver ce manuel pour future référence. L’appareil doit être utilisé exclusivement par des personnes familiarisées avec les présentes instructions. Branchement au secteur Branchez l’appareil uniquement à une prise de courant correctement installée et reliée à la terre. Assurez-vous que la tension d’alimentation correspond à latensionindiquéesurlachesignalétiquedel’appareil. Ce produit est conforme à toutes les directives relatives au marquage “CE”. Structure de l’appareil et accessoires
