USER MANUAL Flowmax 10200 7604 HOZELOCK

3 - Technical characteristics and

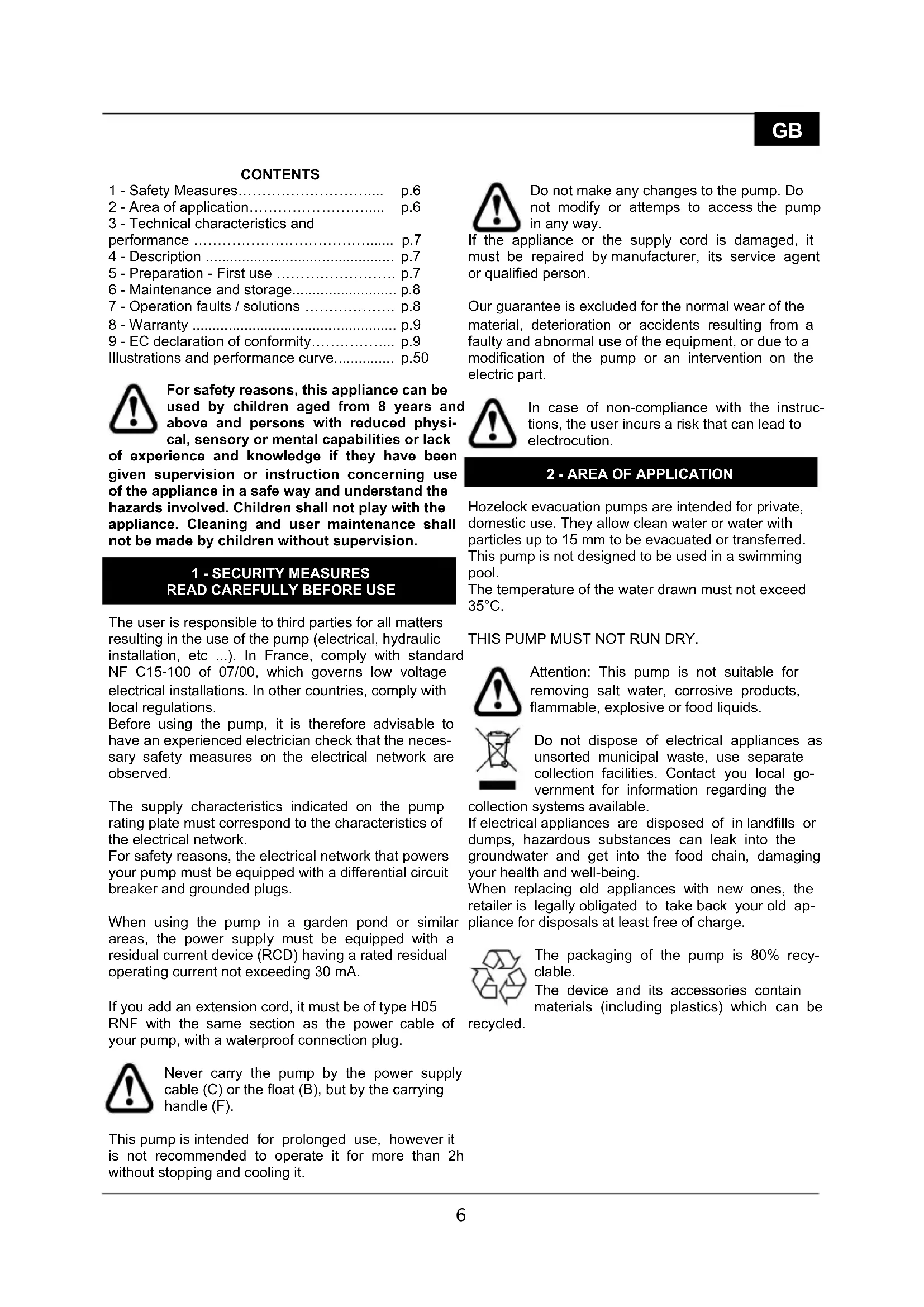

Illustrations and performance curve............... p.50 For safety reasons, this appliance can be used by children aged from 8 years and above and persons with reduced physi- cal, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

The user is responsible to third parties for all matters resulting in the use of the pump (electrical, hydraulic installation, etc ...). In France, comply with standard NF C15-100 of 07/00, which governs low voltage electrical installations. In other countries, comply with local regulations. Before using the pump, it is therefore advisable to have an experienced electrician check that the neces- sary safety measures on the electrical network are observed. The supply characteristics indicated on the pump rating plate must correspond to the characteristics of the electrical network. For safety reasons, the electrical network that powers your pump must be equipped with a differential circuit breaker and grounded plugs. When using the pump in a garden pond or similar areas, the power supply must be equipped with a residual current device (RCD) having a rated residual operating current not exceeding 30 mA. If you add an extension cord, it must be of type H05 RNF with the same section as the power cable of your pump, with a waterproof connection plug. Never carry the pump by the power supply cable (C) or the float (B), but by the carrying handle (F). This pump is intended for prolonged use, however it is not recommended to operate it for more than 2h without stopping and cooling it. Do not make any changes to the pump. Do not modify or attemps to access the pump in any way. If the appliance or the supply cord is damaged, it must be repaired by manufacturer, its service agent or qualified person. Our guarantee is excluded for the normal wear of the material, deterioration or accidents resulting from a faulty and abnormal use of the equipment, or due to a modification of the pump or an intervention on the electric part. In case of non-compliance with the instruc- tions, the user incurs a risk that can lead to electrocution.

2 - AREA OF APPLICATION

Hozelock evacuation pumps are intended for private, domestic use. They allow clean water or water with particles up to 15 mm to be evacuated or transferred. This pump is not designed to be used in a swimming pool. The temperature of the water drawn must not exceed 35°C. THIS PUMP MUST NOT RUN DRY. Attention: This pump is not suitable for removing salt water, corrosive products, flammable, explosive or food liquids. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local go- vernment for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old ap- pliance for disposals at least free of charge. The packaging of the pump is 80% recy- clable. The device and its accessories contain materials (including plastics) which can be recycled.7

4 - DESCRIPTION (fig.1)

A - Pump Body B - Adjustable switch C - Power cable D - Switch support E - Outlet port (G 1¼") F - Carry handle G - Multistage straight connector H - User manual I - Reversible base J - Base fixing screw K - High flow coupling L - Cable support

5 - PREPARATION - FIRST USE

- Connection of the discharge hose: Ensure that gasket is fitted Screw the multi-stage straight connector (G) onto the outlet (E), not forgetting the flat gasket supplied. The stepped discharge connection (G) allows (fig.2): - The fitting of hoses 25 mm and 32 mm in diameter, - Or the screwing of a 1” female tap nose and the quick connection of suitable hose fittings, - Or the use of a supplied high-speed connection (K). Cut off the end of the unused fitting (Fig.2). - Adjustment of the switch (Fig.3): The switch (B) can be moved vertically in its bracket (D), and be positioned in one of the 2 following zones: - Manual (3.1): the pump can be switched on or off continuously when the switch is in this zone. The pump is not intended for continuous extended use or for dry running. Otherwise, the pump may overheat and may cause injury to the user. Do not leave unattended.

- Automatic (3.2): Throughout this zone, it is possible to adjust the water level from which the pump is trig- gered. When the water level is higher than the height of the switch, the pump is switched on; it cuts out when the water level is below it.

- Installation: Depending on the nature of the drained water, posi- tion the reversible base (I) in the dirty water position (Fig.4.1) or in the clean water position (Fig.4.2). To do this, unscrew the 2 screws (J) using a suitable tool, then position the base in the desired position (this is also indicated on the base itself), and reattach it using screws. If necessary, lower the pump using a rope attached to the carrying handle (never using the power cable), and position it in the area to be emptied. - Starting up: Make sure nothing restricts the backflow of water from the pump (for example, kinked hose). Connect the pump to the power supply after making sure that the safety measures are followed. If the switch is in the "Automatic" zone, the pump starts automatically once the required water level is achieved (water level above the height of the switch) and stops when water is low enough (water level below the height of the switch), depending on the setting made previously (fig.3). If the switch is in the "Manual" zone, the user directly controls the shutdown and start of the pump. The priming height depends on the position of the reversible base. In the "clean water" position, this height can be lowered thanks to the presence of a non-return valve. Simply fill the pump via the drain hose (pump off), or run once to allow priming with 5 mm of residual water.

See performance curve (page 51) Values are given ±10% GB8

Before working on the pump, unplug it. In the event of an obstruction, unscrew the reversible base (I, fig.4) to access the suction chamber, rinse it with clean water and reassemble. In the dirty water position, also check that nothing is blocking the drain hose. Do not let the pump freeze. Incidents Causes Solutions A - The pump will not start.

1- The water level has not reached

the trigger level of the pump.

3- Dirt is stuck in the housing of the

1- Ability to adjust the switch (B) to adjust

the trigger level of the pump.

2- Check that the plug is well inserted into

the socket. Check the circuit breakers and electrical connections outside the pump. Check the condition of the cables.

3- Disconnect the pump, disassemble the

reversible base and clean the suction cham- ber. b- The pump is running but will not flow, or flow is reduced

1- Dirt is stuck in the housing of the

2- The discharge hose is blocked.

3- A pocket of air has occurred:

- Because of the float setting, the stop level is too low, so the pump sucks in air. - When diving the device.

1- Disconnect the pump, disassemble the

reversible base and clean the suction cham- ber.

2- Remove the discharge hose and unblock

3 - Adjust the float, so that the stop level is

above the level of the turbine. - Open the discharge hose (or remove anything that is blocking the air outlet), then immerse the pump by tilting and shaking it. - Check that the water level is sufficient to start aspiration. c- The pump stops during the operation (the thermal circuit breaker has stopped the pump after it over- heated).

1- The power supply is not consis-

tent with the motor data of the pump.

2- A solid body has blocked the

3- The pump worked with too hot

4- The pump has worked dry.

5 - The pump has worked too long

without interruption. Disconnect the pump, remove any blockage, wait for the pump to cool down and connect it again.

7 - OPERATING ANOMALIES / SOLUTIONS

For any other anomaly, contact our after-sales service. For safety reasons, only the Hozelock-Exel after-sales service is entitled to disassemble the pump.9

Extended Contractual Warranty We guarantee our products for a period stated on the product from their date of purchase (Mandatory Con- tractual Warranty cover extended to 2 years + Exten- sion of our Contractual Warranty). In the event of failure to present proof of the product date of purchase, the Warranty is effective from the product date of manufacture (stated on the product). Contractual warranty exclusions The contractual warranty does not apply in the follo- wing cases: -The normal wear parts: seals, mechanical seals, -The products that are used in violation of the techni- cal recommendations, - Products used improperly, - Products that are not regularly maintained - Damage to products (impacts, drops, crushing, etc.) caused due to negligence, improper maintenance, improper or abnormal use of the product, - Replacement of a component following a loss. Warranty activation Please keep your proof of purchase (invoice or legible till receipt), as this will be required in the event of a claim under the Contractual Warranty. A product under warranty that has been repaired or replaced, remains guaranteed for the remaining dura- tion and under the original terms of the Contractual Warranty granted at the time of purchase. All returned products become the property of HOZELOCK-EXEL when replaced by a new product. The Contractual Warranty, the terms of which are described above, does not replace the Legal Warran- ty.

I, the undersigned, Philippe MAREY – Quality Mana- ger - hereby certify that the product Type: Drain pump Brand: HOZELOCK Model: 10200 Flowmax Ref: 7604 1240 Was developed, designed and manufactured in ac- cordance with all relevant provisions of the following directives: - LVD Directive 2014/35/EU - EMC Directive 2014/30/EU - ROHS directive 2011/65/EU Signed in Villefranche, 21/12/201710
