Jet 3500 K7 Automatic 7608 - Water pump HOZELOCK - Free user manual and instructions

Product type	Automatic surface water pump
Brand	Hozelock
Model	Jet 3500 K7 Automatic 7608
Power supply	230 V ~ 50 Hz, 800 W
Max flow rate	3500 l/h
Max pressure	4 bar
Max head	40 m
Max suction height	7 m
Cable length	1.5 m (H07 RNF)
Protection rating	IPX4
Priming	Automatic, without filling the hose
Automatic functions	Automatic start/stop when tap opens/closes; dry-run protection (Failure indicator); motor thermal protection
Supplied connections	1" and 1¼" fittings, multi-step elbow fitting, high-flow fitting, non-return valve, filter
Suction hose	7 m with strainer
Max water temperature	35 °C
Ambient temperature	5 °C to 40 °C
Recyclable materials	80% of packaging recyclable; device and accessories recyclable
Maintenance	Drain before storage; clean filter; protect from frost
Safety	Residual current device 10 or 30 mA required; grounded sockets; do not use dry; do not immerse
Warranty	Contractual warranty (2 years + extension depending on product); legal warranty 2 years
Repairability	Repair only by Hozelock-Exel after-sales service; do not disassemble yourself

Frequently Asked Questions - Jet 3500 K7 Automatic 7608 HOZELOCK

How to prime the Jet 3500 K7 Automatic pump?

Fill the suction chamber via the filling opening (K) with clean water. The pump is self-priming: it can prime without filling the suction hose. Make sure all connections are tight and the suction hose is immersed at least 150 mm.

What to do if the pump does not deliver water?

Check that the suction hose is not blocked, connections are tight, the strainer is immersed and clean. If air is present, repeat the priming procedure. Ensure the suction height does not exceed 7 m.

How to reset the pump after a dry run?

If the pump stopped automatically due to lack of water, the Failure indicator lights up. Restore the circuit (suction hose in water), then press the Reset button on the control panel (O) before restarting the pump.

Why is the pump making a lot of noise?

During priming, the pump contains a mixture of air and water, which reduces flow and increases noise. Once primed, the noise decreases. If the noise persists, check for air leaks on the suction side or that the hose is not kinked.

What is the maximum water temperature accepted?

The pump can draw water up to 35 °C. Do not use with hot water beyond this temperature.

Can I use the pump with a rainwater tank?

Yes, but before first use, empty and clean the tank to remove sediments and debris. Ensure the filter does not touch the bottom and that there is at least 30 cm of water above the bottom.

How to store the pump in winter?

To protect from frost, disconnect the hoses and drain remaining water by unscrewing the drain nut (M). Store the pump in a frost-free place at an ambient temperature between 5 °C and 40 °C.

What electrical precautions must be observed?

The installation must comply with standard NF C15-100. Use a residual current device of 10 or 30 mA and sockets with earth connection. If using an extension cord, it must be type H07 RNF with identical cross-section and a waterproof plug.

Is the pump under warranty?

Yes, the pump comes with a contractual warranty of 2 years (extendable depending on product) and the legal warranty of 2 years. Keep your proof of purchase. The warranty does not cover normal wear (seals, gaskets) nor damage due to improper use.

Can I connect the pump directly to a sprinkler?

Yes, use the provided multi-step elbow fitting (G) or high-flow fitting (H). The pump starts and stops automatically when the tap or gun is opened/closed. Ensure the outlet hose is free when starting.

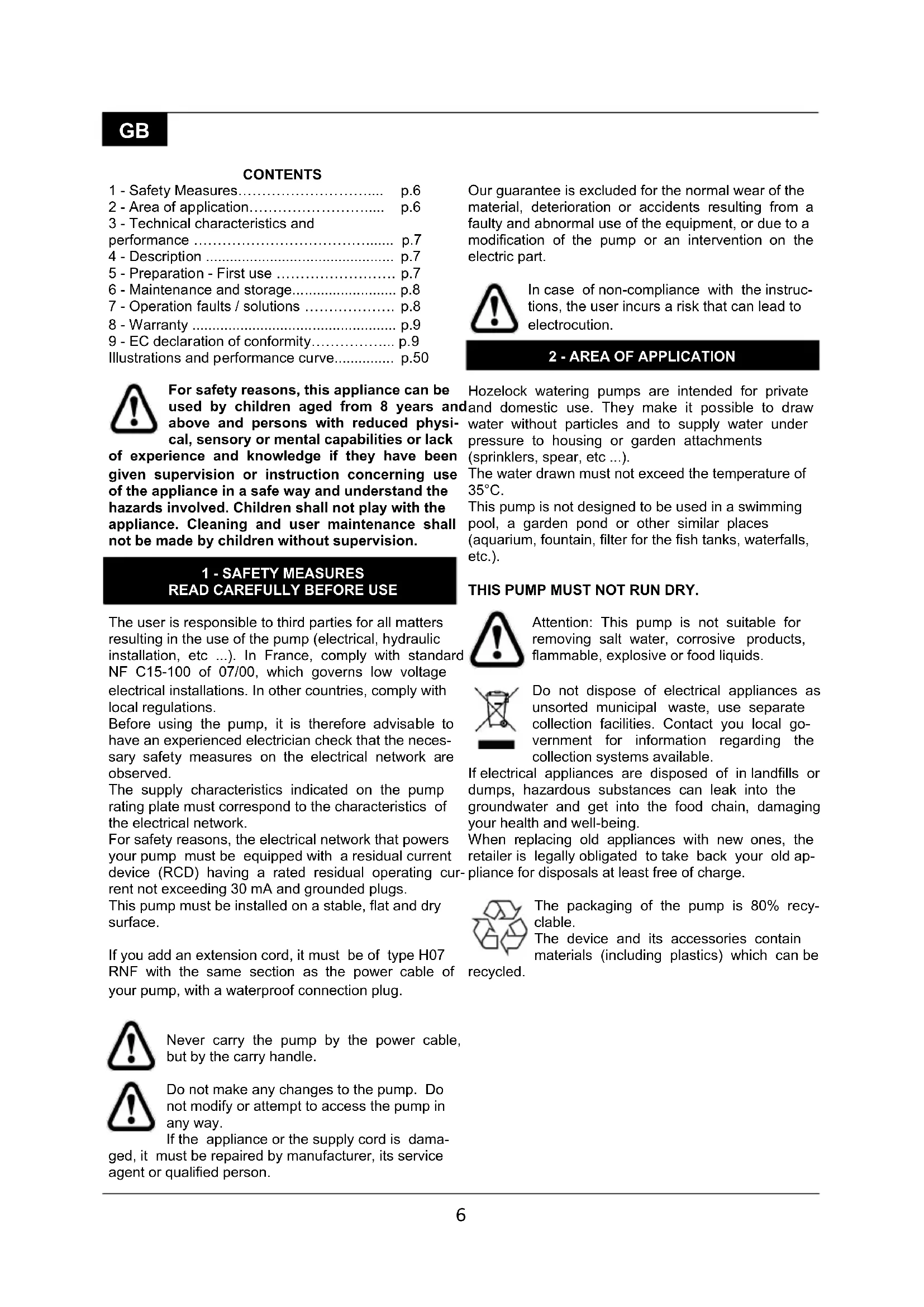

USER MANUAL Jet 3500 K7 Automatic 7608 HOZELOCK

Technical line drawing of a mechanical pump assembly (no text or labels)

In case of doubt, french instructions are the reference

Special warning, read carefully
Précautions particulères, lire attentivement

- Directive ROHS 2011/65/EU

For safety reasons, this appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1 - SAFETY MEASURES READ CAREFULLY BEFORE USE

The user is responsible to third parties for all matters resulting in the use of the pump (electrical, hydraulic installation, etc ...). In France, comply with standard NF C15-100 of 07/00, which governs low voltage electrical installations. In other countries, comply with local regulations.

Before using the pump, it is therefore advisable to have an experienced electrician check that the necessary safety measures on the electrical network are observed.

The supply characteristics indicated on the pump rating plate must correspond to the characteristics of the electrical network.

For safety reasons, the electrical network that powers your pump must be equipped with a residual current device (RCD) having a rated residual operating current not exceeding 30 mA and grounded plugs.

This pump must be installed on a stable, flat and dry surface.

If you add an extension cord, it must be of type H07 RNF with the same section as the power cable of your pump, with a waterproof connection plug.

Our guarantee is excluded for the normal wear of the material, deterioration or accidents resulting from a faulty and abnormal use of the equipment, or due to a modification of the pump or an intervention on the electric part.

In case of non-compliance with the instructions, the user incurs a risk that can lead to electrocution.

2 - AREA OF APPLICATION

Hozelock watering pumps are intended for private land domestic use. They make it possible to draw water without particles and to supply water under pressure to housing or garden attachments (sprinklers, spear, etc ...).

The water drawn must not exceed the temperature of 35^ C.

This pump is not designed to be used in a swimming pool, a garden pond or other similar places (aquarium, fountain, filter for the fish tanks, waterfalls, etc.).

THIS PUMP MUST NOT RUN DRY.

Attention: This pump is not suitable for removing salt water, corrosive products, flammable, explosive or food liquids.

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.

The packaging of the pump is 80% recyclable.

recycled.

The device and its accessories contain materials (including plastics) which can be

Never carry the pump by the power cable, but by the carry handle.

Do not make any changes to the pump. Do not modify or attempt to access the pump in any way.

If the appliance or the supply cord is damaged, it must be repaired by manufacturer, its service agent or qualified person.

3 - TECHNICAL SPECIFICATIONS AND PERFORMANCE

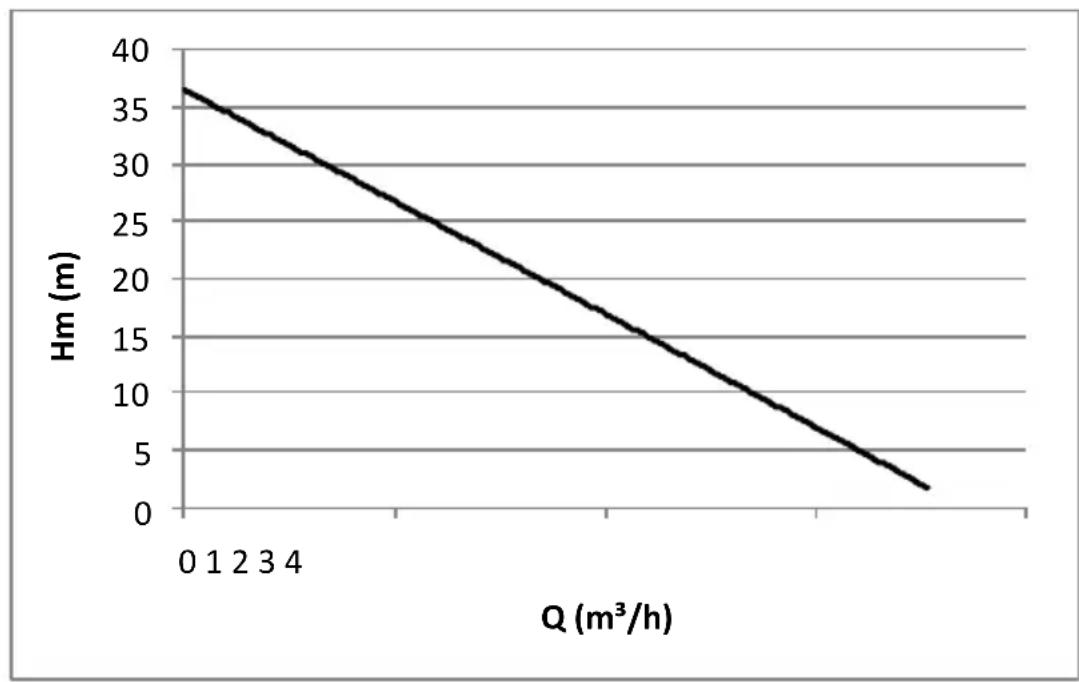

See performance curve (page 52)

Values are given ±10%

Electrical data

Max. flow 3500 l/h (min.)

Max.pressure 4 bar (min.)

Min. / Max. head 2 m / 40 m (min.)

Max. suction height 7 m

Level of protection IPX4

Jet 3500 K7 Automatic

220-240V\~ - 50Hz - 800 W (max.)

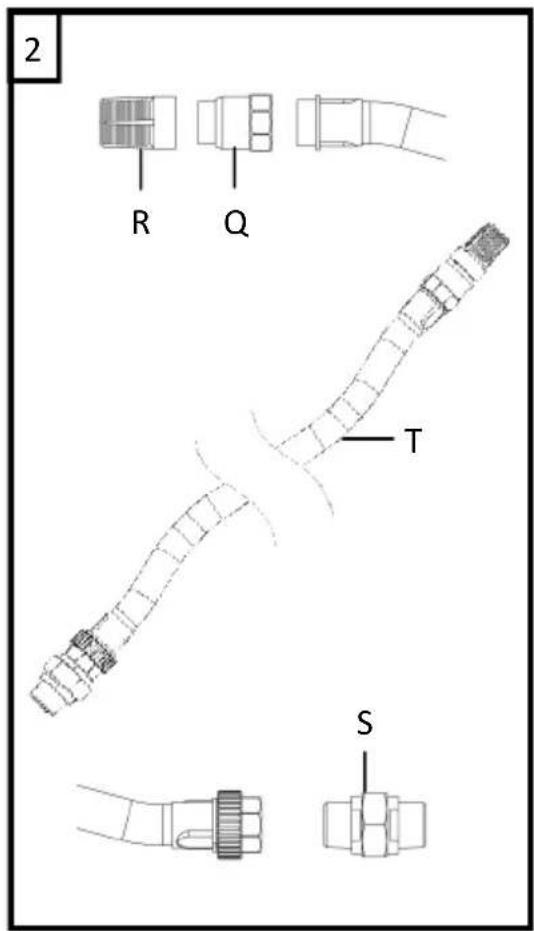

4 - DESCRIPTION (Fig.1-2)

A - Pump Body

B - Power cable (socket depending on country)

C - Carry handle

D - Outlet port

E - Coupler 1"/1¼" male/male

F - Nut for fitting

G - Multistage curved connector

H - High flow coupling

I - Filling cap

J- Filter

K - Water fill

L - Entry port

M - Drain cap

N - User manual

O - Control panel

P - Spanner

Q - Non-return valve

R - Filter

S - Coupler 1"/1" male/male

T - Suction hose (7m)

5 - PREPARATION- FIRST USE

- Connection of the hoses:

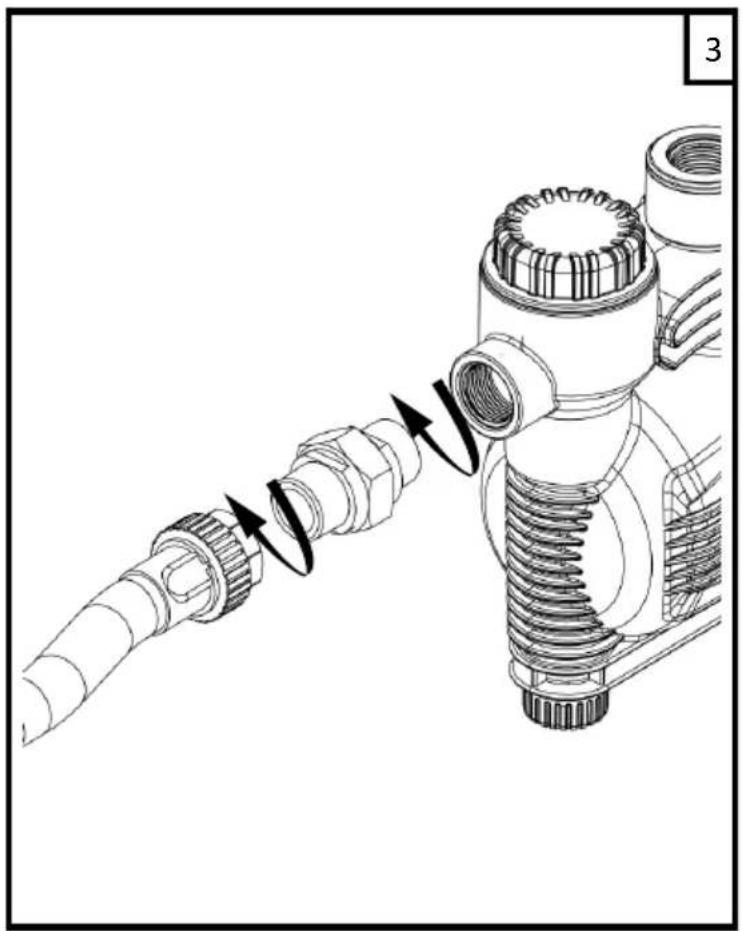

Screw the male/male fitting (s) onto the inlet (L), then the suction hose (R+S+T, Fig.3).

Screw the discharge fitting (G) (taking care to place the flat gasket properly) using the nut provided (F).

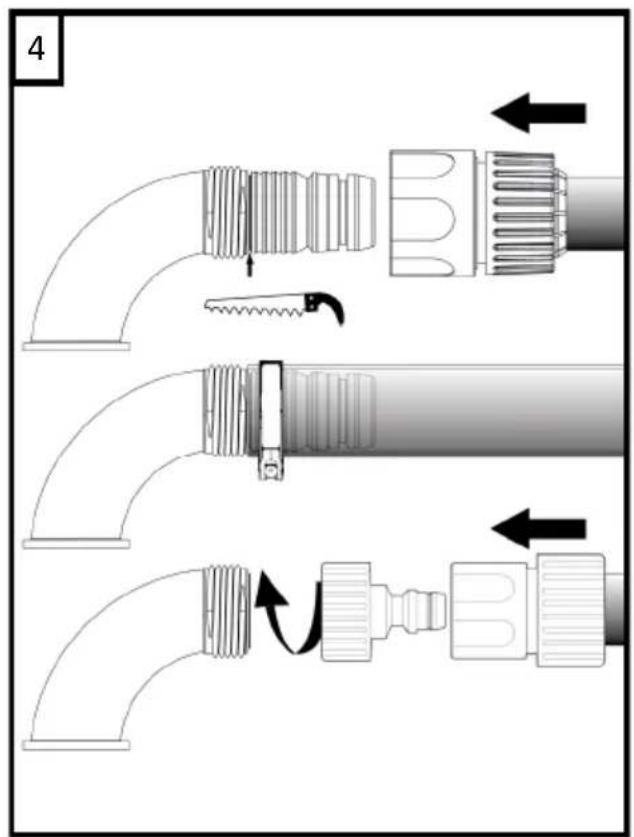

The stepped discharge connection (G) allows (fig.4):

- The fitting of hoses with a diameter 25 mm and 32 mm,

- Or the screwing of a 1" female tap nose and the quick connection of suitable hose fittings

- Or the use of a supplied high-speed connection (H) Cut off the end of the unused fitting (Fig.4).

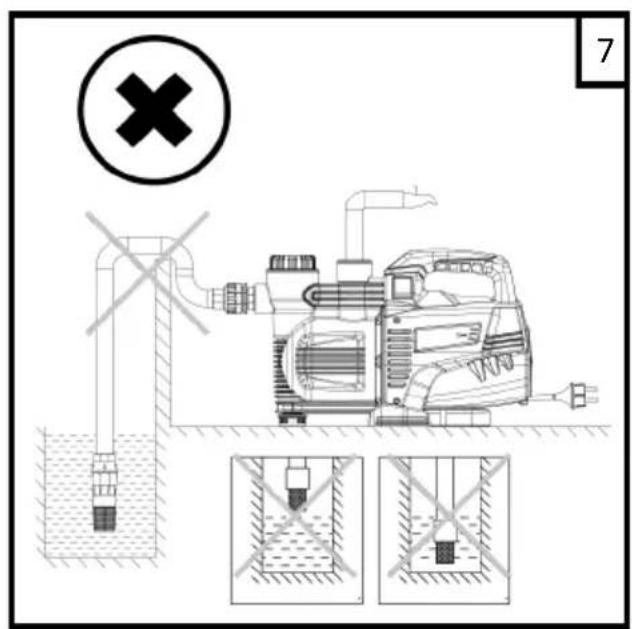

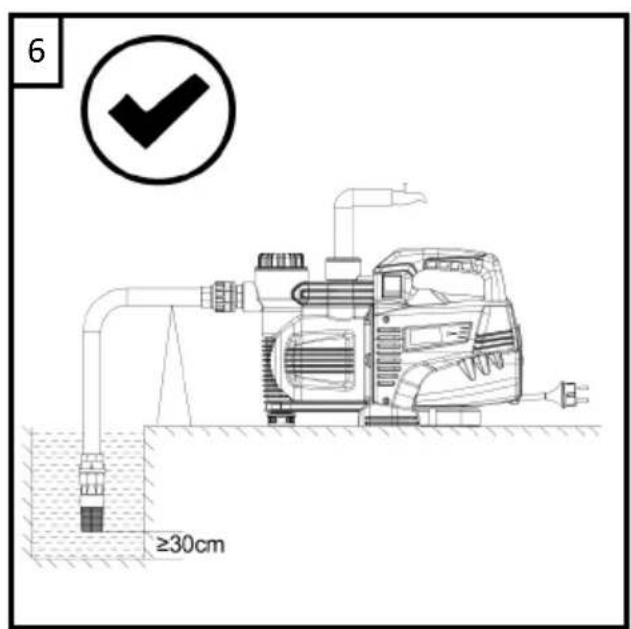

- Installation: (Fig.6-7)

Before installation and each time the pump is used, always disconnect it from the power supply.

To avoid accidents, never put your fingers in the

mouth of the pump.

Use the handle provided to transport or lift the pump. When using for the first time with a water collector, make sure that the water collector is emptied and cleaned of all accumulated sediment, leaves and debris.

- Verify that the inlet of the suction hose is at least 150 mm below the surface of the water. If necessary, retain the end of the hose with a brick. It is advisable to prevent the filter from touching the bottom of the tank (at least 30 cm of water above the bottom) to avoid sucking up any residues. It is vital that all seals are present and that all connections are airtight.

The suction hose should not bend or kink as this may affect its performance.

The installation must comply with the restrictions related to the technical data of the pump.

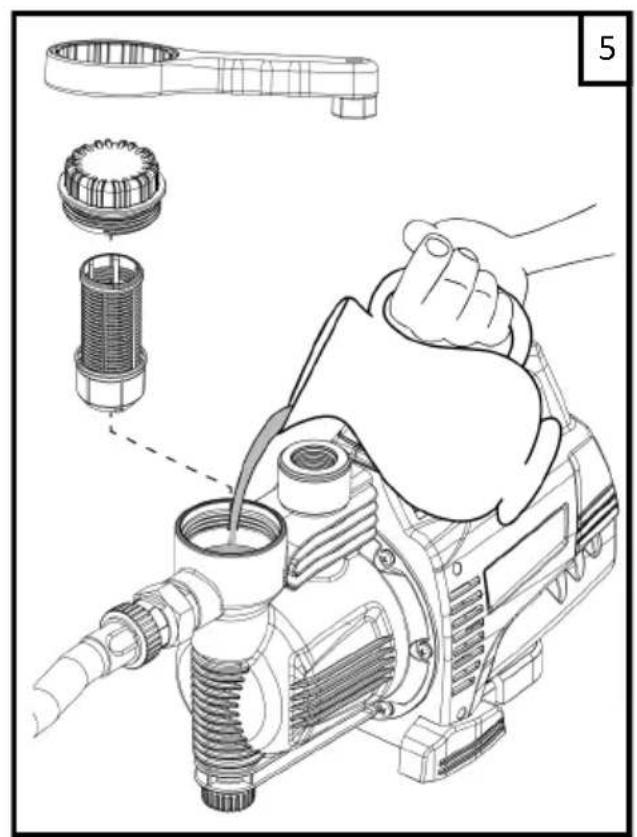

- Unscrew the filler cap (I) using the supplied spanner (P). Fill the suction chamber via the filling hole (K) with clean water (fig.5).

Hozelock pumps are self-priming; therefore, they can be primed without having to fill the suction hose.

- Connect the watering hose to the outlet, ensuring that the other end of the watering hose is open and that water can drain freely when the pump is turned on.

- Starting up:

-Connect the pump to a suitable power supply. The "Power On" indicator must light up.

- At each power up, while the suction hose is empty, the pump will start priming. This operation may take several minutes. During the priming, the pump contains a mixture of air and water, which greatly reduces the flow and makes some noise.

- When the pump is primed and ready to be used, the noise level drops, and the flow and pressure are maximized.

If one of the seals or fittings is missing, or is too tight or loose, the pump will not prime.

If the pump is not primed after 5 minutes - stop it. Check the condition of the seals and fittings, and repeat the previous steps.

GB

- Use:

The pump starts and stops automatically by opening or closing the hose end fitting (valve, pistol, etc.).

When the pump is running, the "Pump On" indicator on the control panel (O) must be on.

The pump is also cuts off automatically if there is no water in the suction. In this case, the "Failure" indicator will come on, and the pump must be reset after the circuit is restored by pressing the "RESET" key on the control panel (O).

The pump is also protected against overheating of the motor, which will stop operating in the event of overheating.

If these safeguards are faulty, the pump may overheat and may burn the user.

6 - MAINTENANCE AND STORAGE

Before working on the pump, unplug it.

Do not let the pump freeze.

Before storing the pump under cover, remove the hoses and empty the remaining water by unscrewing the drain nut (M).

7 - OPERATING ANOMALIES / SOLUTIONS

Incidents	Causes Solution
a- The pump will not start.	1- No power supply.	1- Check that the plug is well inserted into the socket. Check the circuit breakers and electrical connections outside the pump. Check the condition of the cables.
b- The pump is running but will not flow, or flow is reduced	1- The body of the pump is filled with air2- The discharge hose is blocked.3- Air is trapped in the supply hose, or it is clogged	1- Check that the connections on the supply hose are tight.- Put the suction hose as straight as possible.-Repeat the priming procedure.2- Remove the discharge hose and unblock it.3 - Check that the strainer is well immersed.- Check the suction height- Clean the strainer and/or the valve
c- The pump stops during operation	1- The power supply is not consistent with the motor data of the pump.2- A solid body has blocked the hydraulic system.3- The pump worked with too hot water.4- The pump has run dry	Disconnect the pump, remove any blockage, wait for the pump to cool down and connect it again.4 - Return the circuit (suction hose in a sufficient volume of water), then press the "RESET" button on the control panel (O) before restarting it.

For any other anomaly, contact our after-sales service. For safety reasons, only the Hozelock-Exel after-sales service is entitled to disassemble the pump.

8 - GUARANTEE

Extended Contractual Warranty

We guarantee our products for a period stated on the product from their date of purchase (Mandatory Contractual Warranty cover extended to 2 years + Extension of our Contractual Warranty).

In the event of failure to present proof of the product date of purchase, the Warranty is effective from the product date of manufacture (stated on the product).

Contractual warranty exclusions

The contractual warranty does not apply in the following cases:

-The normal wear parts: seals, mechanical seals,
-The products that are used in violation of the technical recommendations,
- Products used improperly,
- Products that are not regularly maintained
- Damage to products (impacts, drops, crushing, etc.) caused due to negligence, improper maintenance, improper or abnormal use of the product,
- Replacement of a component following a loss.

Warranty activation

Please keep your proof of purchase (invoice or legible till receipt), as this will be required in the event of a claim under the Contractual Warranty.

A product under warranty that has been repaired or replaced, remains guaranteed for the remaining duration and under the original terms of the Contractual Warranty granted at the time of purchase. All returned products become the property of HOZELOCK-EXEL when replaced by a new product.

The Contractual Warranty, the terms of which are described above, does not replace the Legal Warranty.

9 - EC DECLARATION

I, the undersigned, Philippe MAREY – Quality Manager - hereby certify that the product

Type: Watering pump

Brand: HOZELOCK

Model: Jet 3500 K7 Automatic

Ref: 7608 1240

Was developed, designed and manufactured in accordance with all relevant provisions of the following directives:

• LVD Directive 2014/35/EU
• EMC Directive 2014/30/EU
• ROHS directive 2011/65/EU

Signed in Villefranche, 21/12/2017

Maver

D

INHALT

- Installation: (Abb. 6-7)

4 - BESCHRIJVING (fig.1-2)

A - Pomplichaam

INNEHÄLLSFÖRTECKNING

- Installation: (Fig. 6-7)

6 - VEDLIKEHOLD OG OPPBEVARING

3 - TEKNISET OMINAISUUDET JA TOIMINNOT

1 G H O F I E J C D K L A P B M N

2 R Q T S

Technical line drawing of a mechanical assembly with threaded components and directional arrows indicating motion (no text or symbols)

4

Technical illustration of a mechanical assembly with a hand operating a motor, showing internal components and a close-up of the tool (no text or symbols present)

6 ≥30cm

Technical diagram showing a mechanical device with crosshair symbol and two labeled diagrams below illustrating inspection or testing conditions.
