USER MANUAL Ion Edge BUSHNELL

Contents Page #
Care and Maintenance 3
Charging the Battery 3
Buttons and Functions 4
Home Screen 4
Settings Menu Items 5-6
Connecting to mobile devise and Bushnell Golf App 6
Using the Play Golf Menu / Golf Menu Items 7
Hazard Glossary 8
Accessing Updated Golf Course Data 9
Warranty Information 9
Français 10-16
Español 17-23
Deusche 24-30
Italiano 31-37
Portuguese	38-44
Swedish	45-51
Danish	52-58
Indonesia	59-65
Chinese 中文	66-72
Korean 한국어	73-79
Japanese 日本語	80-86

Care and Maintenance

To help ensure reliable operation, the following care and maintenance guidelines are recommended:

• Avoid exposing the unit to extreme environmental conditions for a prolonged period of time. The unit is IPX7 rated; it is water resistant, but not waterproof. Unit should not be submerged in any liquids.
• Avoid severe impacts on the unit.
• You may clean the unit occasionally with a soft, damp cloth.
• DO NOT expose the unit to strong chemicals such as gasoline and alcohol, as they will damage the unit.
• Store the unit in a dry place when it is not in use.

WARNING

Do not attempt to open the lon Edge.

Unit contains a lithium ion battery.

• Do not attempt to open, disassemble or service the internal battery. The battery is not replaceable.
• Do not crush, puncture or short the battery's external contacts.
• Do not expose to temperatures above 140 °F (60°C). Do not charge battery when temperature is over 113°F (45°C). Do not store unit in temperatures above 113°F (45°C) or below 32°F (0°C).
• Properly recycle or dispose of the battery. Do not dispose in fire or water.

Legal Disclaimer

By using this product, you agree that Bushnell Outdoor Products will not be held legally responsible for any injury or damage to you or any person or property caused by the user's improper operation and/or poor judgment while using this product.

Note: See Limited Warranty for other limitations to our liability.

Additional Information

The Global Positioning System (GPS), a network of 32 satellites orbiting Earth, is operated and maintained by the U.S. government. This GPS device requires at least 3 satellites to be acquired to accurately determine your position. Any change made to the system by the government could affect the accuracy and performance of this product.

Bushnell Golf Website

www.bushnellgolf.com is the best online resource for all Bushnell Golf product owners, including product support, FAQs, etc.

CHARGING THE BATTERY

The rechargeable battery of the Ion Edge is long lasting and provides up to 15+ hrs (3+ rounds of golf typically) on a charge. However, battery life may be reduced due to a variety of factors (external temperature, etc). All rechargeable batteries lose their effective charge length over time.

To check your remaining battery life, select "Battery" from the SETTINGS menu. To recharge the battery, plug the (standard) USB plug to your computer or other charging port. Set the Ion Edge on top of the magnetic charging pins. If the battery is charging successfully, you will see the sections of circle around the battery symbol blink (see below). The Ion Edge is compatible with all USB ports, including iPhone/other smartphone USB chargers. Once connected, tap the battery icon and the display will show the battery icon charging. When the Ion Edge is fully charged (about 3.5 hrs from totally discharged state, less if partial charge remains) and ready to use when a full circle is displayed around the battery icon (select Battery in the Setting menu to check charge status if not displayed).

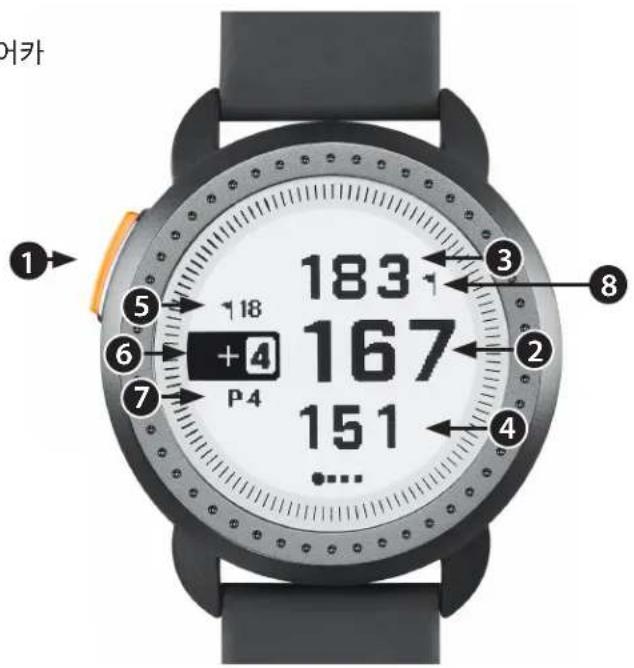

Controls/Parts, Home, and Play Golf Screens Guide

1. POWER/MENU BUTTON - Press and hold to turn device on/off. Swipe right or left to cycle through Time Screen, Play Golf Screen, Bluetooth Connection, & Scorecard List.

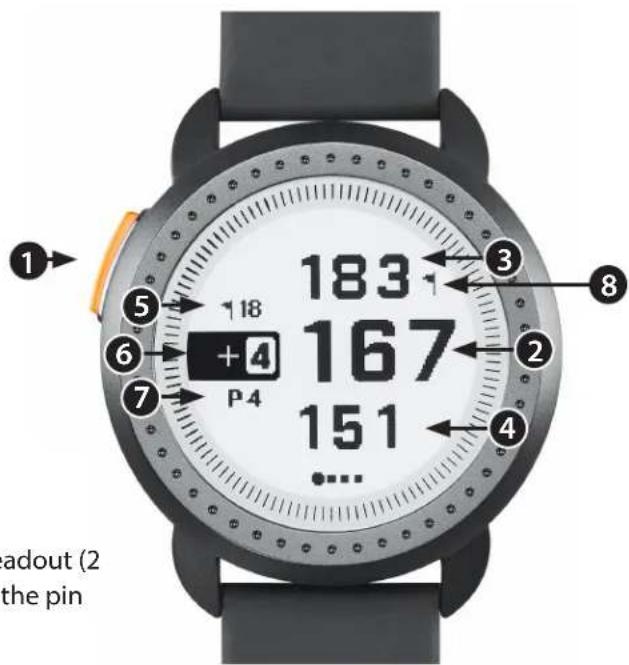

Play Golf Screen Details

1. CENTER DISTANCE - Distance to center of the green (or pin if you moved it).

2. BACK DISTANCE - Distance to back of the green or pin, if selected.

3. FRONT DISTANCE - Distance to front of the green.

4. HOLE - Current hole number.

5. SCORE - User's current total score for the round.

6. PAR - Par for the current hole.

7. When the flag icon appears, this indicates that the center distance readout (2 is the distance to the pin, not the center of the green. You can change the pin placement on the green with the Greenview feature. (see page 7)

8. Charging Pins

Close-up of a smartwatch with a circular dial and labeled sensor points (no readable text or symbols beyond the number 9)

Play Golf Front/Center/Back Screen

Quick Start Operation

1. Charge the ION EDGE's internal battery, by connecting the charger to the back of the device and plug the USB Side into computer or wall.

2. Press and hold the Power button (1) to turn on the device. Time Screen will be displayed.

3. To Play Golf, swipe left to the Play Golf screen and tap the Screen on the Play Golf icon. The Ion Edge will connect to the satellites faster while being outside with a clear view of the sky.

4. Choose your course, swiping up/down and tapping on your selected course. The Play Golf (Front/Center/Back) screen is displayed.

5. The ION EDGE has an Auto Hole advance feature, however, to change holes manually, Swipe Up/Down on touchscreen

6. To cycle through mode/menu screens for Play Gold Mode (Front/Center/Back > Greenview > Hazards and Layup points > Time > Front/Center/Back), swipe Left/Right.

Home Screen

To cycle through Home Screen Options (Time > Play Golf > Bluetooth Connection > Scorecard List), swipe Left/Right.

THE SETTINGS MENU

1. From the Home Screen, press the orange Power/Menu button (1) to access the SETTINGS MENU. (if you are in PLAY GOLF mode, press Power/Menu button (1) and select EXIT ROUND to go to the Home Screen and press the Power/Menu button (1))
2. Select item from menu by swiping Up and Down on the list.
3. Press Power/Menu button to return to previous menu screen.

SETTINGS MENU ITEMS

- ALARM: Use the Alarm to remind you about Tee Times or other important reminders. Swipe up or down on the Hour and Minutes to set what time the alarm will sound. Go to Sound, further down in the Settings Menu to turn the alarm sound on or off.

- SCORECARD LIST: The Scorecard List will be a list of the ten most recent scorecards played.

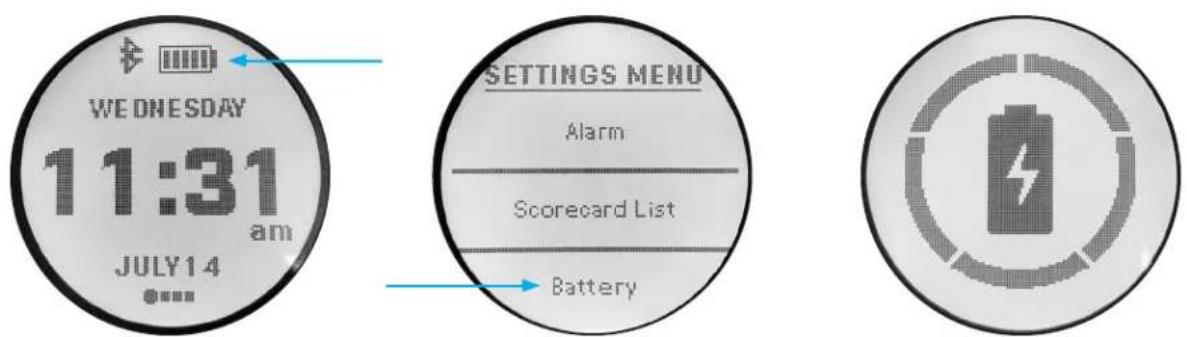

• BATTERY*: Select Battery to check battery condition (% of charge on battery). (*also provided in the PLAY GOLF Menu)

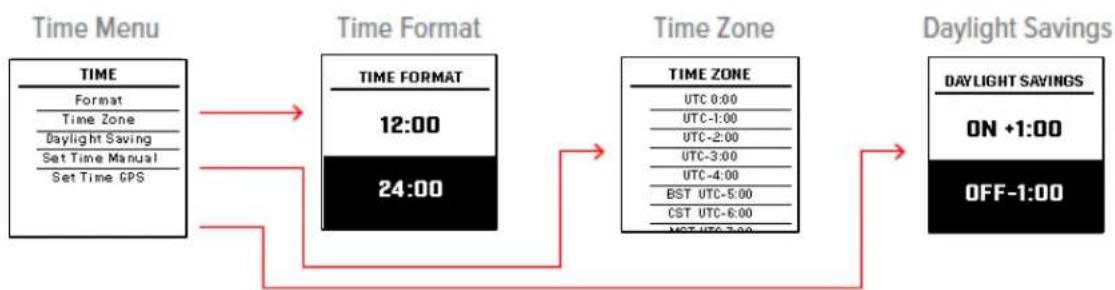

• TIME: Tap any of the following choices in the TIME Menu then highlight and select from these time/date related settings:

1) FORMAT: tap your preference for time display format:

• 12 HOUR
• 24 HOUR

2) TIME ZONE: tap on your time zone preference and time display format:

• US Eastern Time Zone = UTC -5
• US Central Time Zone = UTC - 6
• US Mountain Time Zone = UTC -7
• US Pacific Time Zone = UTC - 8

3) DAYLIGHT SAVING: tap current daylight savings time status for your location:

• DST ON +1
• DST OFF -1

3) SET TIME MANUAL:

• Swipe up and down on the Hour and Minutes to enter the correct current time and date.
  Choose 12 or 24 or format. If clock is in 12 hr. format AM/PM will need to be selected by scrolling past 12:00.

4) SET TIME GPS:

- Tap the screen to automatically set the time based on your current GPS location.

    subgraph Time_Timing
        E["TIME"]
        F["Format"]
        G["Time Zone"]
        H["Daylight Saving"]
        I["Set Time Manual"]
        J["Set Time GPS"]
    end

    subgraph Time_Format
        K["TIME FORMAT"]
        L["12:00"]
        M["24:00"]
    end

    subgraph Time_Zone
        N["TIME ZONE"]
        O["UTC 0:00"]
        P["UTC-1:00"]
        Q["UTC-2:00"]
        R["UTC-3:00"]
        S["UTC-4:00"]
        T["BST UTC-5:00"]
        U["CST UTC-6:00"]
        V["MST UTC-7:00"]
    end

    subgraph Daylight_Savings
        W["DAYLIGHT SAVINGS"]
        X["ON +1:00"]
        Y["OFF-1:00"]
    end

- SET UNITS*: tap on your selection. The solid (filled in) check box indicates the current setting (default=YARDS). To change how distances are displayed, highlight YARDS or METERS, tap to change. (*also provided in the PLAY GOLF Menu)

- BACKGROUND: tap to select the display white with black text (default) or black with white text.

- LANGUAGE: The Ion Edge features 12 menu language settings (ENGLISH, SPANISH, FRENCH, GERMAN, ITALIAN, PORTUGUESE, SWEDISH, DANISH, INDONESIAN, CHINESE, KOREAN AND JAPANESE.). By default, the user interface is in English. Swipe up and down to scroll between options on the Language menu, then tap the screen to confirm and set all menus to your preferred (highlighted) language.

- ABOUT: tap to display your unit's firmware version, FCC ID and IC#.

- RESET DEVICE: to restore the unit to all of its original factory settings, tap on reset, then select DEFAULT SETTINGS and confirm you want to do this. This will only reset the settings, not the firmware or course data stored in the device.

Language List

LANGUAGE

English

Español

Français

Deutsch

Italiano

Português

Svenska

Dansk

Indonesia

中文

한국어

日本語

CONNECTING YOUR ION EDGE TO YOUR MOBILE DEVICE & BUSHNELL GOLF MOBILE APP

Connecting your Ion Edge with the app allows you to:

• Control Ion Edge's Settings from the app.
• Wireless single course updates.
- Scorecard syncing, with tons of round data for your game improvement.

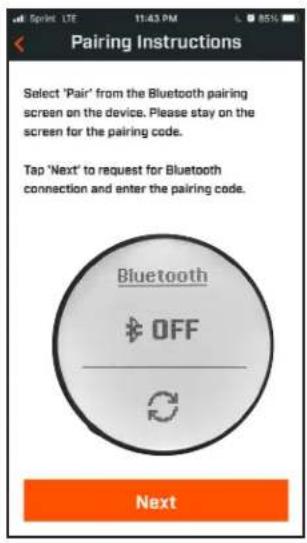

To connect your Ion Edge to your phone and the Bushnell Golf Mobile app:

• Download the Bushnell Golf Mobile app at app.bushnellgolf.com/install or scan the QR code below.

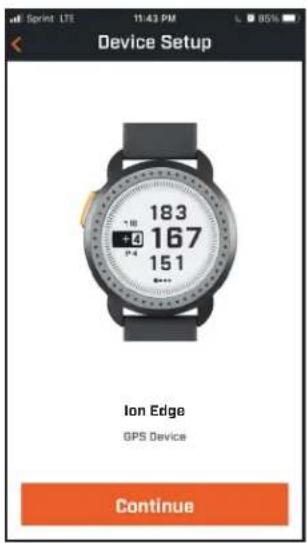

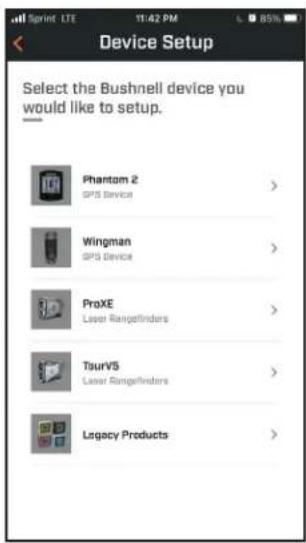

• If you are new to the app you will be asked to setup a device after registration, select Ion Edge.

- if you are a returning user to the app, select "See All" from the "My Devices Section", click "Add Device", and select Ion Edge.

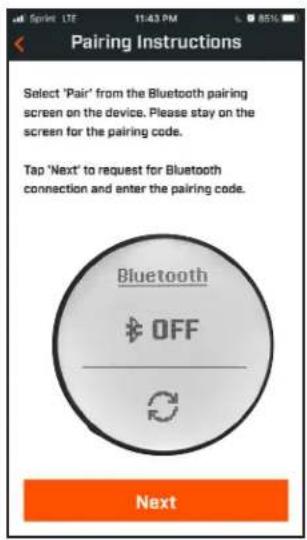

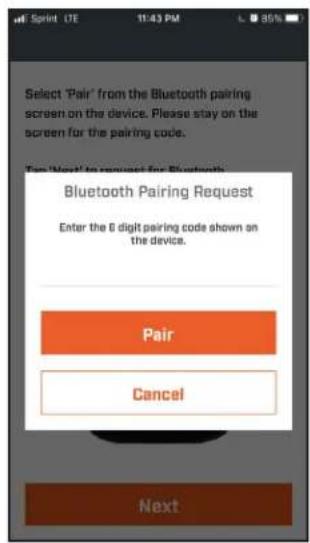

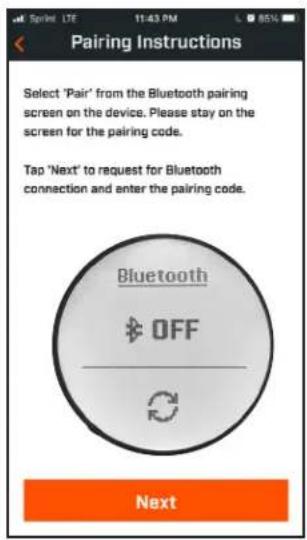

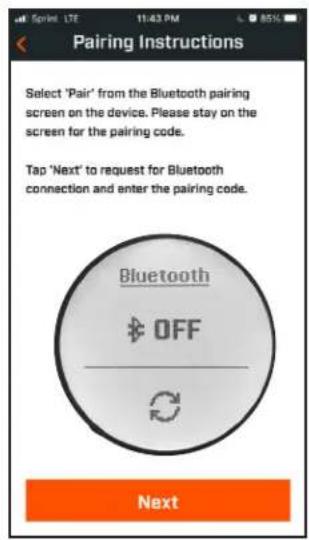

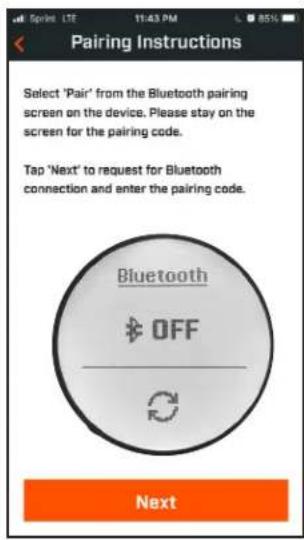

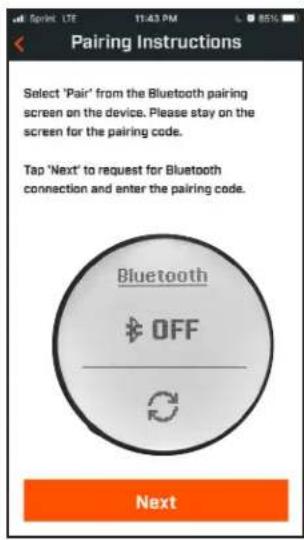

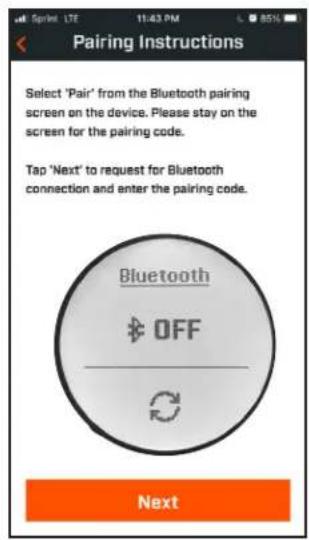

- Follow the on screen instructions in the app to pair and connect your Ion Edge

Note: After paired, once powered up the Bluetooth on/off state will be the last set state.

Scan the code to download the Bushnell Golf app and register your Ion Edge Golf GPS.

Screen image of Ion Edge actively pairing.

app.bushnellgolf.com/install

PLAY GOLF MODE

1. Make sure you are outdoors, with an unobstructed view of the sky. Tap PLAY GOLF to start or continue the round of golf. Display will show the GPS Search Screen as the Ion Edge looks for multiple available GPS satellite signals and locks onto them. This can take several minutes the first time you use the Ion Edge but will be faster when used in the same general area in the future.
2. You will be asked if you wish to continue a game that is active. Make your choice. If you are continuing a game, you will be sent to the Front Center Back (FCB) screen. If you select no, the device will connect to GPS and a list of nearest courses will appear.

Play Golf Screen

Circular icon with a satellite, Wi-Fi signal, and clock symbol (no text or numbers)

GPS Search Screen Available Course List Front/Center/Back GreenView Hazard and Layup Points Time

1. Swipe Up and Down to select the course you want to play from the list of nearby courses (closest course at top of list).
2. The display then shows Front/Center/Back Distance Screen: current hole # (Fig. 1), game score (Fig. 2), par for the hole (Fig. 3), distance to the center/pin (Fig. 4), distance to the front of the green (Fig. 5) and distance to the back of green (Fig. 6).

To cycle through mode/menu screens (Front/Center/Back > GreenView > Hazards and Layup points > Time), swipe left or right.

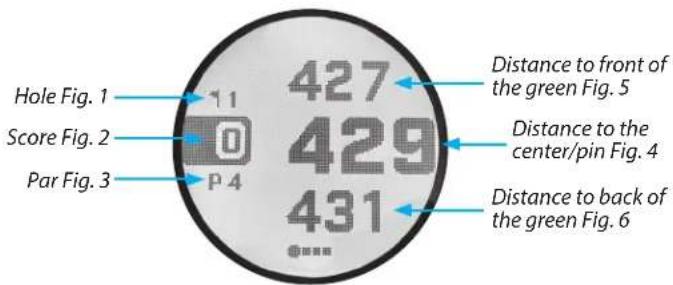

Front/Center/Back Screen

The Front/Center/Back Distance screen, see diagram to right.

Tap on Score (Fig. 2) to go to the Score Input Sequence.

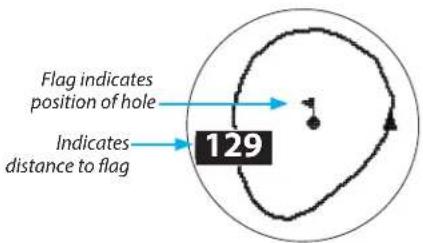

GreenView

The Ion Edge's GreenView Screens will allow you to select the pin placement on the green to provide you with distance to the pin instead of the center of green distance. Do this by tapping anywhere on the green that best represents the location of the pin/hole. When done, swipe either right or left to save pin location, or the page will timeout after 1 min and return to the FCB screen.

● = Nearest Green Point = Farthest Green Point

Hazard & Layup Points

Tap to view Hazard callouts per hole, variable depending on the most significant hazards located near a specific hole on the current course. Hazard screen will time out after one minute and return to the FCB screen. (see above) If there are no Hazards, "No Obstacle Data" will be on screen. See "Hazard Glossary" on page 8 for a list of all abbreviations used to designate various hazards.

Score Entry

To enter your score, in Play Golf Mode, tap the score on the FCB Screen or by clicking the Power/Menu button and selecting Scorecard View and clicking on the hole you'd like to input a score. Swipe Up or Down to select the number of Strokes (Fig. 7). Swipe Left and enter the number of Putts (Fig. 8). Swipe Left to enter the Fairway Hit direction (Fig. 9). After entering information on all three screens, your score will be saved and will move to the next hole and the Front/Center/Back screen. *Note: to enter Putts and Fairways Hit, the device needs to be in Advanced Score mode.

Fig. 7

Fig. 8

Fig. 9

GOLF MENU

If you are in Play Golf mode and wish to go to the Golf Menu, click the power/menu button and the Golf menu will appear.

GOLF MENU

Scorecard View

Exit Round

Shot Distance

Units

Score

Score Format

Battery

Bluetooth

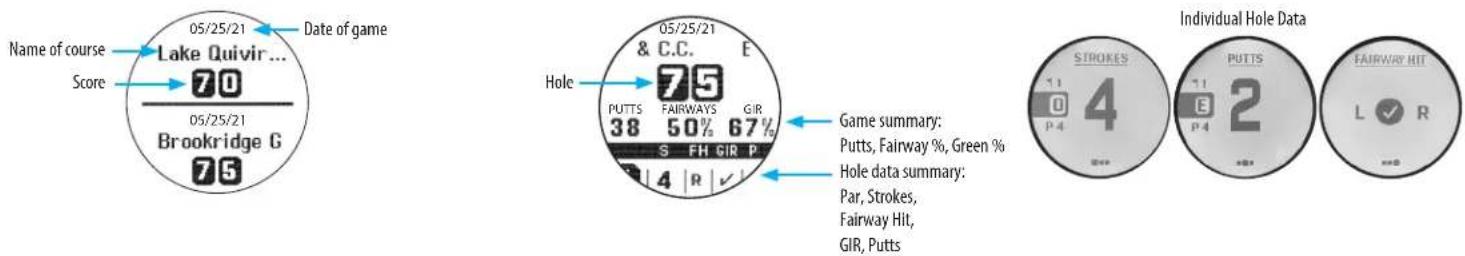

Scorecard View: select to go to Scorecard screen (Fig. 10)

Exit Round: select to end round and go to the Round Summary (Fig. 11) (You can also exit a round by simply holding the Power/Menu button when in Play Golf Mode.)

Shot Distance: Measures your shot distance.

Units: Choose Yards or Meters

Score: Choose OFF, BASIC or ADVANCED

Score Format: Choose Strokes, Stableford, or Modified Stableford format

Battery: Shows the current battery life on the Ion Edge

Bluetooth: Choose to enter into Bluetooth mode and Pair to your portable device to play with the Bushnell Golf App. (see Connecting to Bluetooth on page 6)

Hazard Glossary:

L To Layup point (i.e 75L=To 75yd Layup point,

100L = To 100 yard Layup point)

M To Marker (i.e. 250M = To 250 Marker

Bnk To # Bunker (i.e. T1Bk = To 1st Bunker)

CBK To # Center Bunker (i.e. 2CBk = To 2nd Center Bunker)

Fwy To #Fairway

GBk To # Grass Bunker

LBk To # Left Bunker

RBK To # Right Bunker

Wtr To # Water Hazard

Bnkr To Bunker

C#Bk Carry to # Bunker (i.e.C1BK = Carry 1st Bunker)

C#LB Carry to # Left Bunker (i.e C2LB = Carry 2nd Left Bunker)

C#RB Carry to # Right Bunker (i.e. C3RB = Carry 3rd Right Bunker

C#Wt Carry # Water Hazard (i.e. C2Wt = Carry 2nd Water Hazard)

CBnk To Center Bunker

CCBK Carry Center Bunker

CDch To Center Ditch

CFwy To Center Fairway

Frwy To Fairway

CFyB Carry Fairway Bunker

CHzd Carry Hazard

CLBk Carry Left Bunker

CLHz Carry Left Hazard

Clif To Cliff

CLWs Carry Left Waste Area

CLWt Carry Left Water Hazard

CPth Carry Path

CRBk Carry Right Bunker

CRHz Carry Right Hazard

Crst To Crest

CRWt Carry Right Water Hazard

CWst Carry Waste Area

CWtr Carry Water Hazard

Dtch To Ditch

EFwy To End of Fairway

ELFy To End of Left Fairway

ELoF To End of Lower Fairway

ERFy To End of Right Fairway

EWst To End of Waste Area

GBnk To Grass Bunker

Gorg To Gorge

Hzrd To Hazard

LBnk To Left Bunker

LDth To Left Ditch

LFwy To Left Fairway

LGBk To Left Grass Bunker

LndA To Landing Area

LWst To Left Waste Area

LWtr To Left Water

Path To Path

PotB To Pot Bunker

RBnk To Right Bunker

Rdge To Ridge

RDch To Right Ditch

RFwy To Right Fairway

RGBk To Right Grass Bunker

RHzd To Right Hazard

Road To Road

RWst To Right Waste Area

RWtr To Right Water

ThFy Through Fairway

ThRF Through Right Fairway

Wter To Water Hazard

WstA To Waste Area

WstB To Waste Bunker

WstE Waste Area End

CGrg Carry Gorge

RvrB To River Bed

Wall To Wall

ACCESSING UPDATED GOLF COURSE DATA

Your Ion Edge is pre-loaded with data for over 38,000 courses located worldwide. It is ready to use right out of the box, with no need to download software or pay any membership fees.

To Update a single course file. Connect the Device to the Bushnell Golf Mobile via Bluetooth. Select Ion Edge from your device List. Select Course Update. Follow the instructions on the Bushnell Golf Mobile App to search for your course and update your device.

To Update multiple courses. Please visit the Bushnell Golf Update Manager at https://appsupport.bushnellgolf.com in Google Chrome and follow the instructions.

ONE YEAR LIMITED WARRANTY

Your Bushnell ^® Ion Edge is warranted to be free of defects in materials and workmanship for one year after the date of purchase. In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid. This warranty does not cover damages caused by misuse, improper handling, installation, or maintenance provided by someone other than a Bushnell Authorized Service Department.

Go to https://www.bushnellgolf.com/contact and fill out the contact form for any questions or warranty information.

This warranty gives you specific legal rights. You may have other rights which vary from country to country.

©2021 Bushnell Outdoor Products Customer Service: [phone] www.bushnellgolf.com

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Shielded interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules. Specifications and designs are subject to change without any notice or obligation on the part of the manufacturer.

Industry Canada Statement :

This device complies with ISED's license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device complies with the Industry Canada portable RF exposure limit set forth for an uncontrolled environment and is safe for the intended operation as described in this manual. Further RF exposure reduction can be achieved if the product can be kept as far as possible from the user's body or if the device is set to a lower output power if such function is available.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries. Other names may be trademarks of their respective owners.

FCC ID: 2ASQI-36213

IC: 24886-36213

Disposal of Electric and Electronic Equipment

(Applicable in the EU and other European countries with separate collection systems)

This equipment contains electric and/or electronic parts and must therefore not be disposed of as normal household waste. Instead, it should be disposed at the respective collection points for recycling provided by the communities. For you, this is free of charge.

If the equipment contains exchangeable (rechargeable) batteries, these too must be removed before and, if necessary, in turn be disposed of according to the relevant regulations (see also the respective comments in this unit's instructions).

Further information about the subject is available at your community administration, your local waste collection company, or in the store where you purchased this equipment.

Close-up of a smartwatch with a circular dial and indicator lights, showing no visible text or symbols on the device itself.

Circular icon with a medical cross symbol and Wi-Fi signal, no text or numbers present.

GOLF MENU

Scorecard View

Exit Round

Shot Distance

Units

Score

Score Format

Battery

Bluetooth

Shot Distance: Measures your shot distance.

GARANTIE LIMITÉE D'UN AN

©2021 Bushnell Outdoor Products

Service Clients: [phone]

www.bushnellgolf.com

This device complies with ISED's license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device complies with the Industry Canada portable RF exposure limit set forth for an uncontrolled environment and is safe for the intended operation as described in this manual. Further RF exposure reduction can be achieved if the product can be kept as far as possible from the user's body or if the device is set to a lower output power if such function is available.

Close-up of a smartwatch with a circular dial and numbered sensor (no visible text or symbols)

Pantalla Play Golf (Parte delantera/Centro/Parte trasera)

EL MENÚ DE AJUSTES

Circular icon with satellite and Wi-Fi symbol, no text or numbers present

GOLF MENU

Scorecard View

Exit Round

Shot Distance

Units

Score

Score Format

Battery

Bluetooth

CBnk Al bunker central

© 2021 Bushnell Outdoor Products

Close-up of a smartwatch with a circular dial and indicator lights, showing no readable text or symbols.

Circular icon with a stylized camera and signal wave symbol, no text or numbers present.

CFyB Carry Fairwaybunker

CHzd Carry Hindernis

CLBk Carry Bunker links

CLHz Carry Hindemis links

Clif Zur Klippe

CLWs Carry Waste Area links

CLWt Carry Wasserhindernis links

CPth Carry-Weg

CRBk Carry Bunker rechts

CWst Carry Waste Area

CWtr Carry Wasserhindernis

Dtch Zum Graben

LBnk Zum Bunker links

LFwy Zum Fairway links

LGBk Zum Grasbunker links

LndA Zur Landezone

LWst Zur Waste Area links

©2021 Bushnell Outdoor Products

Kundendienst: [phone]

www.bushnellgolf.com

FCC-Erklärung

Close-up of a black smartwatch with a circular dial and sensor buttons, no visible text or symbols on the device itself.

Schermata Gioca a golf Anteriore/Centro/Posteriore

Avvio rapido

MENU IMPOSTAZIONI

• US Eastern Time Zone = UTC -5
• US Central Time Zone = UTC - 6
• US Mountain Time Zone = UTC -7
• US Pacific Time Zone = UTC - 8

Circular icon with a satellite and signal symbol inside, no text or numbers present.

GOLF MENU

Scorecard View

Exit Round

Shot Distance

Units

Score

Score Format

Battery

Bluetooth

©2021 Bushnell Outdoor Products

Close-up of a black smartwatch with a circular dial and indicator lights, showing no visible text or symbols.

Circular icon with a satellite, Wi-Fi signal, and clock symbol (no text or numbers)

GOLF MENU

Scorecard View

Exit Round

Shot Distance

Units

Score

Score Format

Battery

Bluetooth

BnkC Para bunker central

CCBK Carregar bunker central

CV Para centro da vala

FwyC Para fairway central

Frwy Para fairway

CBFy Carregar bunker fairway

CR Carregar risco

CBkE Carregar bunker à esquerda

©2021 Bushnell Outdoor Products

Declaração da FCC

Close-up of a smartwatch with a circular dial and indicator lights, no visible text or symbols on the device itself.

Spela golf-skärmen framkant/mitten/bakkant

Snabbstart

INSTÄLLNINGSMENYN

• US Eastern Time = UTC -5
• US Central Time = UTC - 6
• US Mountain Time = UTC -7
• US Pacific Time = UTC - 8

Circular icon with a satellite, Wi-Fi signal, and clock symbol (no text or numbers)

GOLF MENU

Scorecard View

Exit Round

Shot Distance

Units

Score

Score Format

Battery

Bluetooth

©2021 Bushnell Outdoor Products

Customer Service: [phone]

www.bushnellgolf.com

FCC-meddelande

Close-up of a black smartwatch with a circular dial and indicator lights, showing no visible text or symbols.

Spil Golf Front-/Center-/Bagkant-skærm

Hurtig start

INDSTILLINGSMENUEN

4) INDSTIL TID MANUELT:

Circular icon with a stylized clock and signal symbol inside, no text or numbers present.

Foran/i midten/bagsiden

Forhindringer & Layup-point

GOLF MENU

Scorecard View

Exit Round

Shot Distance

Units

Score

Score Format

Battery

Bluetooth

L Til Layup-point (dvs. 75L= Til 75yd Layup-point, 100L = Til 100 yard Layup-point)

CBK Til # Center Bunker (dvs. 2CBk = Til 2. Center Bunker)

Fwy Til # Fairway

C#Wt Carry # Vandforhindring (dvs. C2Wt = Carry 2. Vandforhindring)

CBnk Til Center Bunker

CCBK Carry Center Bunker

CDch Til Center Grøft

CFwy Til Center Fairway

Frwy Til Fairway

CFyB Carry Fairway Bunker

CHzd Carry Forhindring

CLBk Carry Venste Bunker

CLHz Carry Venstre Forhindring

Clif Til Klippe

CLWs Carry Venste Affaldsområde

CLWt Carry Venstre Vandforhindring

CPth Carry Sti

CWtr Carry Vandforhindring

Dtch Til Grøft

Wter Til Vandforhindring

© 2021 Bushnell Outdoor Products Customer Service: [phone] www.bushnellgolf.com

FCC-erklæring

Detail Layar Main Golf

Close-up of a smartwatch with a circular dial and labeled sensor points (no readable text or symbols beyond the number 9)

Layar Main Golf Depan/Tengah/Belakang

Panduan Cepat

MENU SETELAN

• WMP ON +1
• WMP OFF +1

4) MENYETELWAKTUMANUAL:

Circular icon with a satellite, Wi-Fi signal, and clock symbol (no text or numbers)

GOLF MENU

Scorecard View

Exit Round

Shot Distance

Units

Score

Score Format

Battery

Bluetooth

L Ke titik Layup (misal 75L=Ke 75 yard titik Layup, 100L=Ke 100 yard titik Layup)

M Ke Marker (misal 250M = Ke 250 Marker)

BnK Ke # Bunker (misal T1Bk = Ke Bunker pertama)

LFwy Ke Kiri Fairway

LGBk Ke Kiri Bunker Rumput

LndA Ke Area Pendaratan

LWst Ke Kiri Waste Area

LWtr Ke Kiri Air

Path Ke Path

PotB Ke Pot Bunker

RBnk Ke Kanan Bunker

Rdge Ke Punggung Bukit

RDch Ke Kanan Parit

RFwy Ke Kanan Fairway

RGBk Ke Kanan Bunker Rumput

RHzd Ke Kanan Rintangan

Road Ke Road

RWst Ke Kanan Waste Area

RWtr Ke Kanan Air

ThFy Melalui Fairway

ThRF Melalui Kanan Fairway

Wter Ke Rintangan Air

WstA Ke Waste Area

WstB Ke Waste Bunker

CGrg Pindah ke Tebing

RvrB Ke Dasar Sungai

Wall Ke Dinding

MENGAKSES DATA LAPANGAN GOLF YANG DIPERBARUI

Close-up of a smartwatch with a circular dial and sensor interface (no visible text or symbols)

打高尔夫前/中/后屏幕

快速入门操作

设置菜单

扫描二维码可以下载

Bushnell Golf应用并注册您

的Ion Edge高尔夫GPS。

Ion Edge活动配对的屏幕画面。

app.bushnellgolf.com/install

打高尔夫模式

Circular icon with a central plus sign, wireless signal, and clock symbol (no text or numbers)

GOLF MENU

Scorecard View

Exit Round

Shot Distance

Units

Score

Score Format

Battery

Bluetooth

Close-up of a smartwatch with a circular dial and indicator lights (no readable text or symbols)

골프 플레이 전면/중앙/후면 화면

퀴스타트 작동

설정 메뉴

Circular icon with a satellite, Wi-Fi, and clock symbol (no text or numbers)

Fig. 9

골프 메뉴

Close-up of a smartwatch with a circular dial and labeled sensor points (no readable text or symbols beyond the number 9)

SETTINGS] （設定）メニュー

Circular icon with a medical cross symbol and Wi-Fi signal, no text or numbers present.

GPS検索画面

利用可能なコース リスト

フロント/センター / バック

GreenView

[Front/Center/Back Distance] (

GOLF MENU

Scorecard View

Exit Round

Shot Distance

Units

Score

Score Format

Battery

Bluetooth

©2021 Bushnell Outdoor Products
