PHSA 20-Li B2 - Cordless electric hedge trimmer PARKSIDE - Free user manual and instructions

Product type	Cordless hedge trimmer
Brand	Parkside
Model	PHSA 20-Li B2
Rated voltage	20 V
No-load speed	1 300 min⁻¹
Cutting length	Approx. 510 mm
Max tooth spacing	Approx. 16 mm
Weight	2.32 kg
Battery type	Lithium-ion (X 20 V Team series)
Battery capacity	2.0 Ah or 4.0 Ah (not included)
Charging time (2 Ah)	Approx. 35 min
Charging time (4 Ah)	Approx. 60 min
Sound pressure level	77.50 dB(A)
Guaranteed sound power level	87 dB(A)
Vibration (front handle)	1.602 m/s²
Vibration (rear handle)	1.090 m/s²
Intended use	Trimming hedges, bushes and shrubs (domestic)
Package contents	Hedge trimmer, protective sheath, instruction manual
Safety	Safety switch, double switch, protective stop
Maintenance	Regular cleaning, lubrication of cutting bar, sharpening
Warranty	3 years
Charger protection class	II (double insulation)

Frequently Asked Questions - PHSA 20-Li B2 PARKSIDE

How to turn the hedge trimmer on and off?

To turn on, simultaneously press the safety switch (front handle) and the on/off switch (rear handle). To turn off, release either switch.

How to insert or remove the battery?

Insert the battery by aligning it with the guide rail and pushing it until it clicks. To remove, press the battery release button and pull.

What type of battery to use?

Only use batteries from the Parkside X 20 V Team series (e.g., PAP 20 B1 or PAP 20 B3). Using other batteries may cause injury or fire.

How to check the battery charge level?

Press the button on the battery. The charge level LEDs will light up: red (low), orange (medium), green (full).

What protective equipment should I wear?

Always wear protective gloves, safety goggles, hearing protection, and non-slip safety shoes to prevent injuries.

How to maintain the cutting bar?

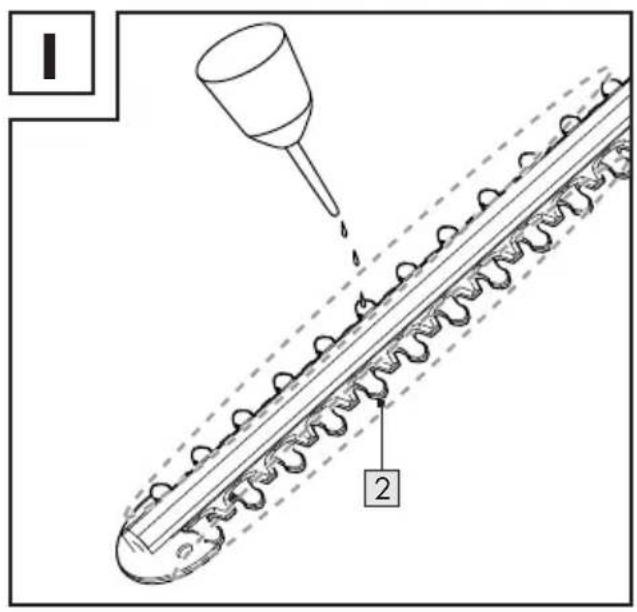

Clean the cutting bar after each use with an oiled cloth. Regularly apply oil (oil can or spray) to the bar. Sharpen small irregularities with a sharpener. For replacement, consult a specialist.

What if the hedge trimmer does not start?

Check that the battery is charged and correctly inserted (must click). Make sure to press the safety switch and the on/off switch simultaneously.

How to store the hedge trimmer?

Turn off the device, remove the battery, clean it, and put the protective sheath on the blade. Hang it on the wall by the motor block or sheath suspension. Store in a dry, frost-free place out of reach of children.

What is the warranty period?

The warranty is 3 years from the date of purchase. Keep the receipt as proof of purchase. The warranty covers material and manufacturing defects.

Can the hedge trimmer be used in the rain?

No, never expose the hedge trimmer to rain or humidity. Water can penetrate the device and increase the risk of electric shock or damage the tool.

USER MANUAL PHSA 20-Li B2 PARKSIDE

PDF ONLINE www.lidl-service.com

AKKU-HECKENSCHERE 20 V / CORDLESS HEDGE TRIMMER 20 V / TAILLE-HAIES SANS FIL 20 V PHSA 20-Li B2

DE AT CH

AKKU-HECKENSCHERE 20 V

Operation and safety notes

Translation of the original instructions

FR BE

TAILLE-HAIES SANS FIL 20 V

GB/IE Operation and safety notes Page 26

Illustration of a hand using a tool to trim a leafy plant, showing a circular motion arrow (no text or symbols)

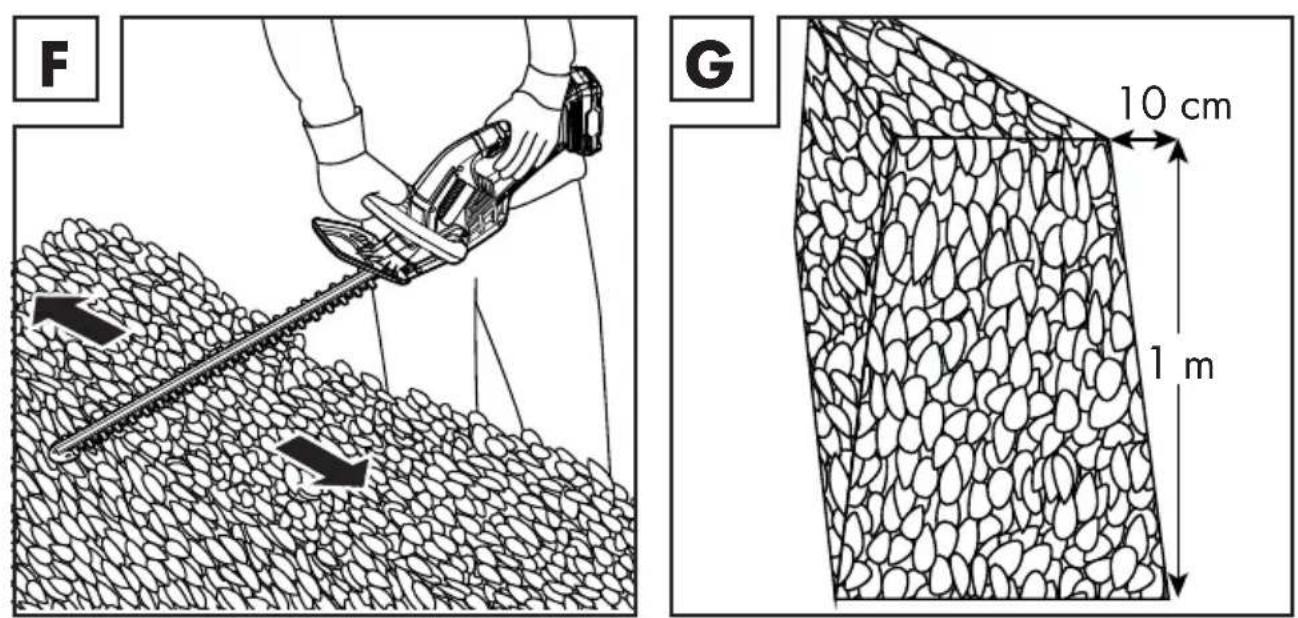

F G 10 cm 1 m

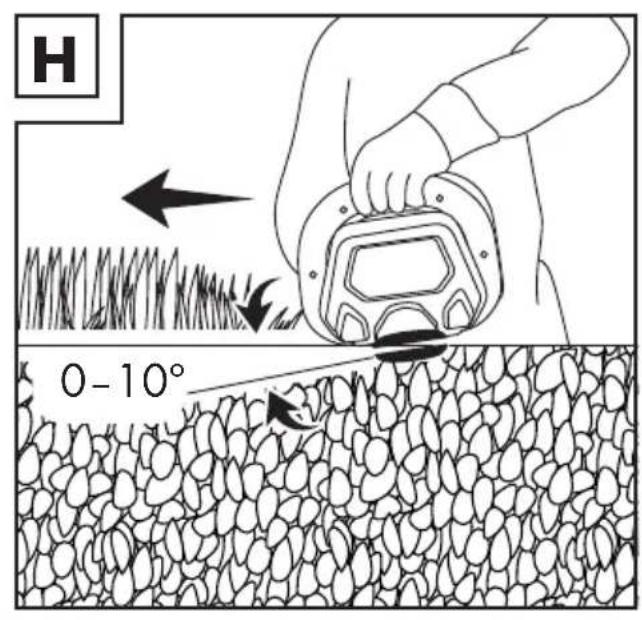

H 0-10°

Technical diagram showing a mechanical component with labeled parts and a dropper tip, likely illustrating a process or assembly.

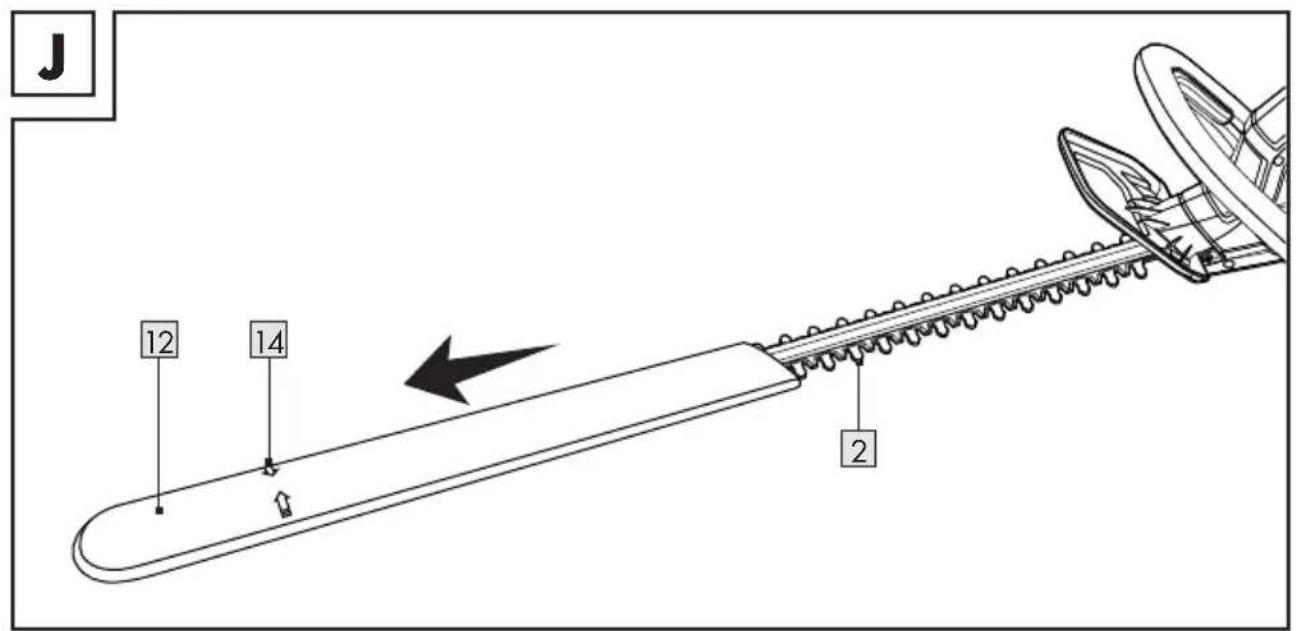

J 12 14 2

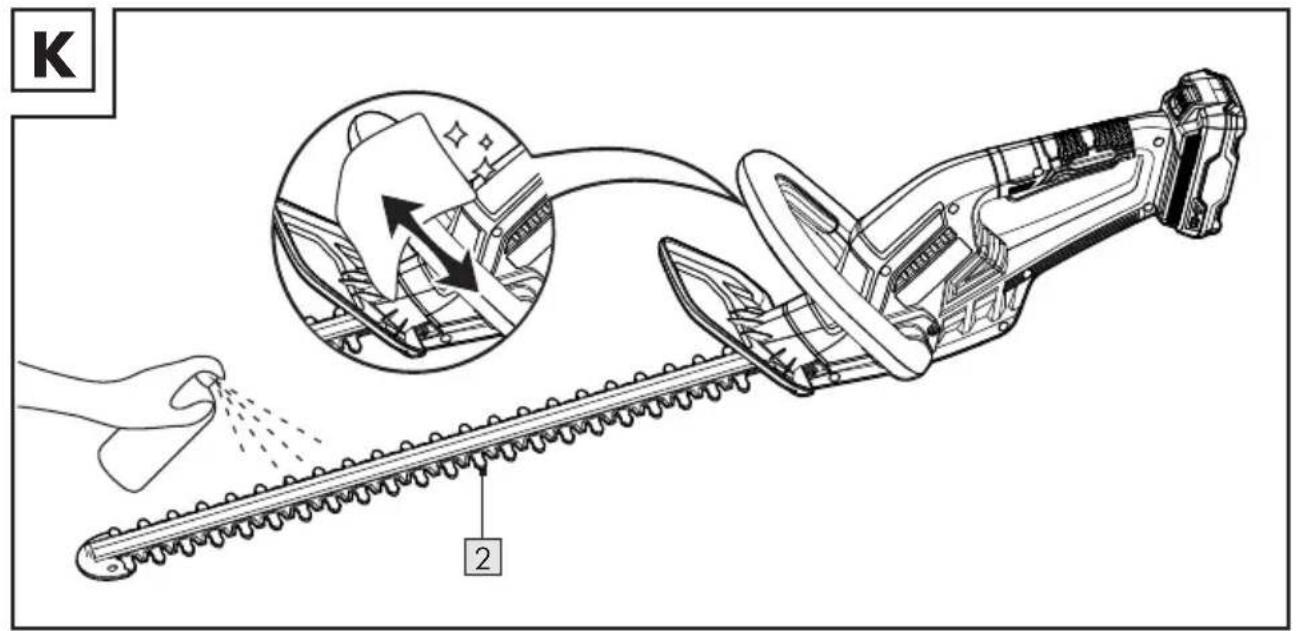

K 2

PARKSIDE 201TEAM

AKKU-HECKENSCHERE 20 V

PHSA 20-Li B2

Einleitung

Warnings and symbols used Page 27

Introduction Page 28

Intended use. Page 28

Scope of delivery.... Page 28

Parts description.... Page 28

Technical data Page 29

Safety instructions.... Page 30

General power tool safety warnings Page 30

Special safety directions for hedge trimmers.... Page 34

Further safety directions Page 35

Vibration and noise reduction Page 35

Behaviour in emergency situations. Page 36

Residual risks Page 36

Battery charger safety warnings Page 37

Before use Page 38

Accessories Page 38

Unpacking Page 38

Attaching/removing the battery pack Page 38

Checking the battery pack charging level.... Page 38

Charging the battery pack. Page 38

Operation...... Page 39

Switching the product on/off Page 39

Working instructions Page 40

Cutting techniques.... Page 40

Cleaning and care Page 41

Cleaning. Page 41

Maintenance Page 42

Troubleshooting Page 42

Storage Page 43

Transportation Page 43

Disposal Page 44

Warranty Page 45

Warranty claim procedure.... Page 45

Service Page 45

EU Declaration of conformity Page 46

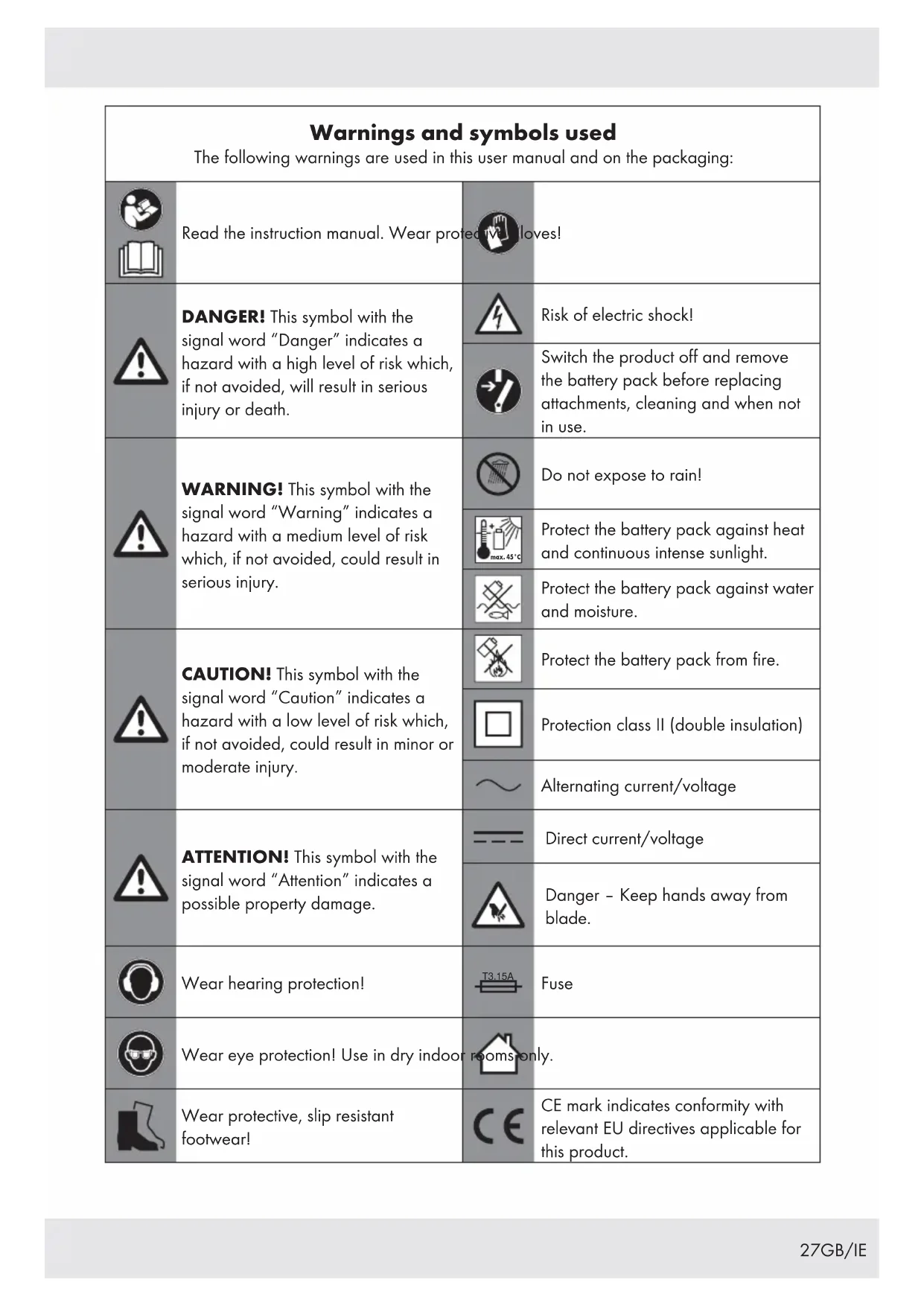

Warnings and symbols usedThe following warnings are used in this user manual and on the packaging:
	Read the instruction manual. Wear prote	oves!
	DANGER! This symbol with the signal word “Danger” indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.		Risk of electric shock!
			Switch the product off and remove the battery pack before replacing attachments, cleaning and when not in use.
	WARNING! This symbol with the signal word “Warning” indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury.		Do not expose to rain!
			Protect the battery pack against heat and continuous intense sunlight.
			Protect the battery pack against water and moisture.
	CAUTION! This symbol with the signal word “Caution” indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.		Protect the battery pack from fire.
			Protection class II (double insulation)
			Alternating current/voltage
	ATTENTION! This symbol with the signal word “Attention” indicates a possible property damage.		Direct current/voltage
			Danger - Keep hands away from blade.
	Wear hearing protection!		Fuse
	Wear eye protection! Use in dry indoor	only.
	Wear protective, slip resistant footwear!		CE mark indicates conformity with relevant EU directives applicable for this product.

CORDLESS HEDGE TRIMMER

20 V PHSA 20-Li B2

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This cordless hedge trimmer (hereinafter "product" or "power tool") is intended for cutting and trimming hedges, bushes and ornamental shrubs.

Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage. The manufacturer is not liable for any damages caused by improper use.

This product is designed for domestic use and similar applications. The product is not suitable for commercial use.

The product is designed for use by adults. Adolescents over the age of 16 may use the product only under supervision. The operator or user is responsible for accidents or damage to other people or their property.

The product is part of the Parkside X 20 V Team series. The product must be used with batteries from the Parkside X 20 V Team series.

- Scope of delivery

m WARNING!

The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

1 Cordless hedge trimmer
1 Blade guard
1 Instruction manual

Parts description

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the product.

Figure A

1	Strike guard
2	Safety knife bar
3	Hand protection
4	Safety switch
5	Front handle
6	Ventilation slots
7	On/off switch
8	Rear handle
9	Battery guide track
10	Motor housing
11	Suspension/motor housing
12	Blade guard
13	Suspension/blade guard
14	→Press ← "Unlock" marking

Figure B and C

15	Battery pack *
16	button (charging level)
17	Charging level LEDs (red/orange/green)
18	Release button for battery pack
19	Battery charger (rapid battery charger) *
20	Charging control LED - Red
21	Charging control LED - Green
22	Power cord with power plug

* Battery pack and battery charger (rapid battery charger) are not included

- Technical data

Cordless hedge

trimmer 20 V PHSA 20-Li-B2

Motor voltage U: 20 V ---

Idling speed n_0 : 1300 min ^-1

Cutting length: approx. 510 mm

Max. cutting capacity: approx. 16 mm

Weight: 2.32 kg

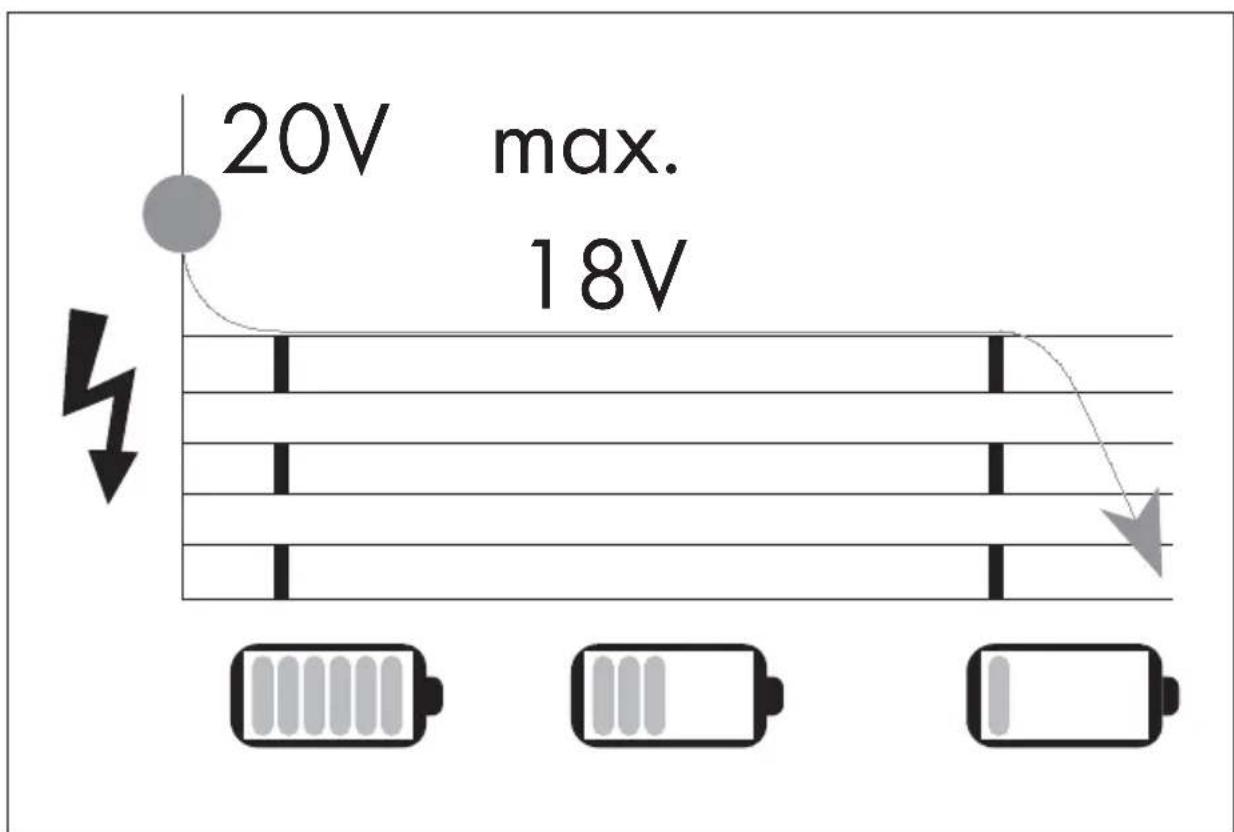

Battery pack PAP 20 B1 \*

Type: Lithium-Ion

Rated voltage: 20 V ——max.

Capacity: 2.0 Ah

Energy value: 40 Wh

Number of cells: 5

Battery pack PAP 20 B3 \*

Type: Lithium-Ion

Rated voltage: 20 V —— max.

Capacity: 4.0 Ah

Energy value: 80 Wh

Number of cells: 10

Rapid battery charger PLG 20 B3 \*

Input:

Rated voltage: 230-240 V \~

Rated frequency: 50 Hz

Rated power: 120 W

Fuse (internal): 3.15 A / T3.15A

Output:

Rated voltage: 21.5 V ---

Charging current: 4.5 A

Protection class: II / ☐

* Battery pack and battery charger (rapid battery charger) are not included.

Charging PAP 20 B1 PAP 20 B3 times

PLG 20 B3 35 min 60 min

Recommended ambient temperature:

Overall maximum

temperature: +45 °C

While charging: +4 to +40 °C

During operation: +4 to +40 °C

During storage: +20 to +26 °C

Noise emission value

The measured values have been determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows:

Sound pressure level L_pA : 77.50 dB(A)

Uncertainty K_pA : 2.57 dB

Sound power level L_WA

guaranteed : 87.00 dB(A)

measured : 83.90 dB(A)

Uncertainty K_WA : 2.57 dB

Vibration emission value

Vibration total values (triaxial vector sum) determined according to EN 62841:

Front handle a_h : 1.602 m/s ^2

Uncertainty K : 1.5 m/s ^4

Rear handle a_h : 1.090 m/s ^2

Uncertainty K : 1.5 m/s ^4

m WARNING!

Wear ear protection!

NOTE

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared total vibration value and the declared noise emission value may also be used for a preliminary assessment of exposure.

m WARNING!

The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the manner in which the tool is used, especially what kind of workpiece is processed.
It is necessary to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Safety instructions

● General power tool safety warnings

m WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

1) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

1) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
2) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
4) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
5) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

6) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

1) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.

2) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

3) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

4) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
5) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
6) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
8) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

1) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
3) Disconnect the plug from the power source and / or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
4) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

5) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
6) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
7) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
8) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

1) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
2) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
3) When a battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
4) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
5) Do not use a battery pack for tool that is damaged or modified. Damaged or modified batteries exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
6) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.

7) Follow all charging instruction and do not charge the battery pack or tool outside the temperature range specified in the instruction. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of the fire.

Service

1) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

2) Never service damaged battery packs. Service of battery packs should be only be performed by the manufactured or authorized service providers.

● Special safety directions for hedge trimmers

1) Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

2) Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades.

3) When transporting or storing the hedge trimmer, always fit the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades.

4) When clearing jammed material or servicing the unit, make sure all power switches are off and the battery pack is removed or disconnected. Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury.

5) Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring. Blades contacting a "live" wire may make exposed metal parts of the hedge trimmer "live" and could give the operator an electric shock.

6) Keep all power cords and cables away from cutting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade.

7) Do not use the hedge trimmer in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.

8) Before the work, search the hedge for concealed objects, e.g. wire fences, cable etc. In this way you avoid damage to the appliance.

9) Hold the hedge trimmer correctly, e.g. with both hands on the handles, if there are two handles. Loss of control of the equipment may result in injuries.

● Further safety directions

1) The appliance is designed for trimming hedges. Do not use to cut twigs, hard wood or other objects. This could damage the appliance.
2) Do not attempt to release a blocked/jammed blade safety bar before turning off the power and removing the battery. There is a risk of injury.
3) When operating the appliance, always hold it well with both hands and at some distance away from your body. This enables better control of the power tool in unexpected situations.
4) Do not use the tool in the vicinity of flammable liquids or gasses. Fire- and explosion risk exist in the event of a short circuit.
5) The blades have to be checked for wear in regular intervals and re-sharpened. Blunt blades will overload the machine. Resulting damages are not covered by warranty.

6) Do not attempt to repair the tool yourself, unless you are schooled in this field. All works, which are not described in this manual, may only be performed by our Service-Centre. Many accidents are caused by poorly maintained equipment.
7) Do not use any accessories that are not recommended by PARKSIDE. This can result in electric shock or fire.
8) Work standing on the ground and keep your balance. Do not work while standing on unstable support.

● Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimise the vibration and noise exposure risks:

■ Only use the product as intended by its design and these instructions.
- Ensure that the product is in good condition and well maintained.
■ Use correct accessory tools for the product and ensure they are in good condition.
- Keep tight grip on the handles/grip surface.
- Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).

Plan your work schedule to spread any high vibration tool use across a longer period of time.

● Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

■ Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
- Switch the product off and disconnect it from the mains if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

Residual risks

Even if properly operating and handling the product, some residual risks will remain. Due to its construction and build, the product may present the following hazards:

-Cuts
—Hearing loss if working without hearing protection.
–Damage caused to your health resulting from hand/arm vibrations if the power tool is used over a longer period of time or if it is not properly used and maintained.

NOTE

This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

● Battery charger safety warnings

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

- Do not charge non-rechargeable batteries.

Disregarding this instruction is hazardous.

If the supply cord is damaged

it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Protect the electrical parts against moisture. Do not immerse such parts in water or other liquids to avoid electrical shock. Never hold the appliance under running water. Pay attention to the instructions provided for cleaning, maintenance and repair.

■ The appliance is suitable for indoor use only.

m ATTENTION! This charger is only designed for charging the battery pack types:

Parkside 20 V battery pack

PAP 20 B1 2 Ah 5 cells

PAP 20 B3 4 Ah 10 cells

An up-to-date list of battery compatibility can be found at www.lidl.de/akku.

Suitable battery packs and chargers

Battery pack:

Parkside X 20 V Team

Charger:

Parkside X 20 V Team

Before use

Accessories

To operate this product safely and correctly, always wear suitable personal protective equipment.

This includes:

-Safety goggles
-Hearing protection
-Protective gloves
-Protective footwear

Unpacking

• Open the packaging and remove the product carefully.
  ■ Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the product for transport damage.

m WARNING!

The product and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

- Attaching/removing the battery pack

Attaching the battery pack: Align the battery pack 15 to the battery guide track 9 and push it in until it locks in place.
Removing the battery pack: Press the release button 18 on the battery pack 15. Pull the battery pack out.

- Checking the battery pack charging level

(Fig. B)

■ Press → 16. The charging level LEDs 17 light up:

LED 17

Charging level

Red/orange/green Maximum

Red/orange Medium

Red Low

● Charging the battery pack

(Fig. C)

m WARNING! RISK OF INJURY!

Always unplug the battery charger 19 from the mains before removing the battery pack 15 from the charger or inserting the battery pack.

NOTE

The battery pack 15 may be charged at any time without reducing its life.
Interrupting the charging process does not damage the battery pack 15.

• Charge the battery pack 15 before operation when it is at medium or low charging level.
  The charging control LEDs (red 20 and green 21) indicate the status of the charger 19 and the battery pack 15:

LED Status
Red LED lights up Battery pack charges

Green LED lights up	Battery pack fully charged
Green and red LED flashing	Battery pack defective
Red LED flashing	Battery pack too cold or too warm

Green LED lights up (without battery pack)

Charger ready

- Insert the battery pack 15 into the charger 19.

Connect the power cord with power plug 22 of the charger 19 to a socket-outlet.

■ When the battery pack 15 is fully charged:

• Disconnect the power plug 22 of the charger 19 from the socket-outlet.
• Remove the battery pack 15 from the charger 19.

Operation

m WARNING! RISK OF INJURY!

Wear protective gloves!

Wear hearing protection!

Wear safety goggles!

Wear protective, slip resistant footwear!

m ATTENTION!

▶ Check the product for wear and tear before each use.
The product will be switched ON when the on/off switch 7 and the safety switch 4 are held simultaneously. When either one of the switches is released the product will be switched OFF. Should one of the two switches be damaged, stop working with the product.

- Switching the product on/off

m WARNING! RISK OF INJURY!

Firmly hold the product with both hands while directing the product away from the body (Fig. D). Check that the product is not in contact with other objects before switching on.

Removing the blade guard

■ Unlock the blade guard 12: Press and hold →Press ← 14.
Pull the blade guard 12 off the safety knife bar 2 (Fig. J).

Switching the product on

☐ Check that the battery pack 15 is in place (see "Attaching/removing the battery pack").
☐ Press and hold the safety switch 4 at the front handle 5.
Press and hold the on/off switch 7. The product runs at top speed by default.

Switching the product off

☐ Release the safety switch 4 or the on/off switch 7.

z Working instructions

m WARNING! RISK OF INJURY!

When operating the product, do not make contact with solid objects, e.g. wire fences or main plant stems. You could otherwise loose control over the product.
If the safety knife bar 2 gets jammed by solid objects: Turn the product off immediately and remove the battery-pack 15. Only then should you remove the object.
Avoid overstraining the product during work.

m CAUTION! RISK OF PRODUCT DAMAGE!

Before use, check that the edge of the safety knife bar 2 is sharp. A blunt edge can overstress and damage the product. Damages caused by cutting with a blunt edge are not covered by the warranty (see "Maintenance").

z Cutting techniques

Before operating the product: Use branch clippers to cut away thick branches.
☐ The safety knife bar 2 enables cutting in both directions.
☐ Vertical cutting: Move the product uniformly forward or up and down (Fig. E).
Horizontal cutting:
-Tilt the product so that the safety blade shaft 2 is pointing downwards by approx. 0 to 10^ in cutting direction. With the product in this position, move the product horizontally - not downwards (Fig. H).
—Move the product in a sickle-shaped movement to the edge of the hedge, so that cut branches fall to the ground.
To produce long straight lines: Place guiding cords as an aid for orientation.

Cutting shaped hedges

Cut hedges in a trapezoidal shape, in order to prevent stripping off the lower branches (Fig. G). This corresponds to natural plant growth and allows the hedge to thrive. When cutting, only reduce new annual growth. This facilitates a dense branching.
Cut the sides of a hedge first. To do this, move the product in the direction of growth from bottom to top. If you cut down from the top, the thinner branches will move out, which may result in some areas having sparse growth or holes.
☐ Cut the top edge, according to taste, in a flat shape, roof shape or rounded shape (Fig. F).

When trimming young plants to the required shape: The main growth should remain undamaged until the hedge has reached the planned height.

Cutting free-growing hedges

- Trim the hedge regularly so that it grows densely and does not become too high.

● Cleaning and care

m WARNING! RISK OF INJURY!

Always switch the product off, remove the battery pack 15 and let the product cool down before performing inspection, maintenance or cleaning works and before storage and transportation.

m WARNING! RISK OF ELECTRIC SHOCK!

Do not spray the product with water. Do not immerse the product in water.

m CAUTION! RISK OF INJURY!

Wear gloves when handling the safety knife bar 2 to protect against cuts.

Cleaning

NOTE

Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

■ Never let fluids get into the motor housing 10.
The product must always be kept clean, dry and free from oil or grease. Remove debris from the product after each use and before storage.
■ Clean after each use.

Parts Cleaning method

2 Safety knife bar

■ Apply oil with an oil can or spray (Fig. I and Fig. K).

■ Clean with an oily cloth.

5 Front handle 6 Ventilation slots 8 Rear handle 10 Motor housing

■ Wipe down with a damp cloth (Fig. K).

■ Clean with a brush.

Maintenance

Before any maintenance:

-Switch the product off.

- Remove the battery pack 15.

- Let the product cool down.

Before every use: Check the product for defects such as loose, worn or damaged parts.

■ Apply oil to the safety knife bar 2 by oil can or spray (Fig. I and Fig. K).

- Check that the screws in the safety knife bar 2 are tight.

- Check covers and safety devices for damages and correct installation. Replace as necessary.

Use a knife grinder to sharpen and smooth out minor nudges on the cutting edge of the safety knife bar 2.

Contact a specialist to have a blunt, bent or damaged safety knife bar 2 replaced.

m WARNING! RISK OF INJURY!

Do not try to install a safety knife bar 2 yourself. Installing a knife safety bar shall only be done by a specialist.

■ Any maintenance and repair other than described in this manual: Contact an authorised service centre or a similarly qualified person to check or repair the product. Only use original parts.

Troubleshooting

Problem Possible cause Action

Product does not start.	Battery pack 15 is empty.Battery pack 15 is not properly inserted.Safety switch 4 not pressed properly.	Charge battery pack 15 (see “Charging the battery pack”).Insert battery pack 15 correctly (see “Removing/inserting the battery pack”).Switch the product on correctly (see “Switching the product on/off”).
Intermittent operation	Internal wiring is defective.The on/off switch 7 is defective.	Send the product to Service Centre for repair.
Safety knife bar 2 gets too hot.	Too much friction due to lack of lubrication.	Oil the safety knife bar 2.
The product cuts poorly.	Too much friction due to lack of lubrication.The safety knife bar 2 is dirty.Suboptimal cutting technique.	Oil the safety knife bar 2.Clean the safety knife bar 2.Adjust cutting technique (see “Working instructions”).

Storage

Before storage, always:

• Switch the product off, remove the battery pack 15 and let the product cool down.
• Clean the product (see "Cleaning and care").
• Secure the safety knife bar 2 in the blade guard 12.
• Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
  ■ Always store the product in a place that is inaccessible to children.
  The ideal long term storage (longer than 3 months) temperature is between +20 and +26 °C.

Short term storage: Suspending the product from the wall

m WARNING! RISK OF ELECTRIC SHOCK!

When drilling, be careful not to damage any supply lines. Use suitable search devices to find these or consult an installation plan for guidance.

Contact with electrical cables can lead to electric shock and fire.

Contact with a gas pipe can result in an explosion.

■ Using the motor housing suspension 11:

-Fix a screw with a screw head diameter of 8 to 10mm at the desired position on a suitable wall.
- If the wall consist of bricks, stone or a similar material: Use a dowel to secure the screw.
- Let the screw head protrude from the wall by approx. 10 mm.

- Slide the motor housing suspension 11 over the screw to suspend the product.

■ Using the blade guard suspension 13:

-Fix 2 screws with a screw head diameter of 5 to 6mm at the desired position on a suitable wall.
The center to center distance between the 2 screws should be 17 mm.
- If the wall consist of bricks, stone or a similar material: Use dowels to secure the screws.
—Let the screw heads protrude from the wall by approx. 10 mm.
- Slide the blade guard suspension 13 over the screws to suspend the product.

Battery pack advice

Only store the battery pack 15 partially charged. The battery pack should be charged to 40 to 60 % before storing for extended periods.
- Check the battery pack 15 charge about every 3 months when storing for extended periods. Recharge as necessary.

Transportation

Before transportation:

-Switch the product off.
- Remove the battery pack 15.
—Let the product cool down.
- Fit the blade guard 12.

• Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
• Secure the product to prevent it from slipping or falling over.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Remove the batteries / battery pack from the product before disposal.

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 385568_2107) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

EU DECLARATION OF CONFORMITY

IAN: 385568_2107

Product identification: Parkside Cordless Hedge Trimmer 20V

Model Number: HG09099

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2000/14/EC

Directive 2005/88/EC

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 62841-1:2015

EN 62841-4-2:2019

Directive 2014/30/EU

EN 55014-1:2017/A11:2020

EN IEC 55014-1:2021

EN 55014-2:2015

EN IEC 55014-2:2021

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N° / Parts

Directive 2011/65/EU

EN IEC 63000:2018

Conformity Assessment procedure / name&adress notified body where appropriate:

Annex V

Measured sound power level on an equipment representative for this type:83,9 dB(A)

Guaranteed sound power level for this equipment: 87 dB(A)

Keeper of the technical documentation: OWIM GmbH & Co.KG

Signed for and on behalf of:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Original declaration of conformity

Neckarsulm

Place

21.12.2021

Date

Benjamin Steeb

Managing Director

Rea. F. duon

ppa. Jen's/Buchheim

Authorised Signatory

DÉCLARATION UE DE CONFORMITÉ

IAN: 385568_2107

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2000/14/EC

Directive 2005/88/EC

Authorised Signatory

Transport 86 P a gina

Motorspanning U: 20 V ---

Toerental onbelast n_0 : 1300 min ^-1

m WAARSCHUWING! RISICO OP LETSEL!

m WAARSCHUWING! RISICO OP LETSEL!

m WAARSCHUWING! RISICO OP LETSEL!

m WAARSCHUWING! RISICO OP LETSEL!

m WAARSCHUWING! RISICO OP LETSEL!

m WAARSCHUWING! RISICO OP LETSEL!

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2000/14/EC

Directive 2005/88/EC

Authorised Signatory

NL

Akumulator PAP 20 B1 \*

Typ: Litowo-jonowy

Akumulator: Parkside X 20 V Team

Ładowarka: Parkside X 20 V Team

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2000/14/EC

Directive 2005/88/EC

Authorised Signatory

PL

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2000/14/EC

Directive 2005/88/EC

Authorised Signatory

CZ

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2000/14/EC

Directive 2005/88/EC

Benjamin Steeb Managing Director

88a. Budan

ppa. Jen's/Buchheim Authorised Signatory

SK

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2000/14/EC

Directive 2005/88/EC

Authorised Signatory

ES

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2000/14/EC

Directive 2005/88/EC

Authorised Signatory

DK

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2000/14/EC

Directive 2005/88/EC

Authorised Signatory

IT

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2000/14/EC

Directive 2005/88/EC

Benjamin Steeb Managing Director

ppa. Budra ppa. Jeff Buchheim

Authorised Signatory

HU

Uporabljena opozorila in simboli .... Stran 238

Uvod.... Stran 239

Predvidena uporaba.... Stran 239

Obseg dobave. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S tran 239

Opis delov.... Stran 239

Tehnični podatki. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S tran 2 4 0

Varnostni napotki .... Stran 241

Nazivna napetost: 20 V maks. ---

Zmogljivost: 2,0 Ah

Pooblaščeni serviser:

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

NEMČIJA

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2000/14/EC

Directive 2005/88/EC

Sklicevanja na uporabljene harmonizirane standarde ali sklicevanja na druge tehnične specifikacije v zvezi s skladnostjo, ki je navedena v izjavi:

St. / deli

Directive 2006/42/EC

EN 62841-1:2015

EN 62841-4-2:2019

Directive 2014/30/EU

EN 55014-1:2017/A11:2020

EN IEC 55014-1:2021

EN 55014-2:2015

EN IEC 55014-2:2021

Authorised Signatory

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

GERMANY

Model No.: HG09099

Version: 01/2022

IAN 385568_2107

8=
