| Brand | Parkside |
| Model | PTHSA 20Li B3 |
| Product Type | Cordless telescopic hedge trimmer |
| Nominal Voltage | 20 V (direct current) |
| No-load Speed | 1150 min⁻¹ |
| Working Angle | -60° to +90° (11 positions) |
| Cutting Length | Approx. 410 mm |
| Tooth Spacing | 15 mm |
| Operational Weight | Approx. 3.7 kg |
| Battery Type | Lithium-Ion (20 V, 4 Ah / 80 Wh) – not included |
| Compatible Charger | PLG 20 A1/A4/C1, PLG 20 A2/C2, PLG 20 A3/C3, PDSLG 20 A1 – not included |
| Sound Pressure Level | 71.7 dB(A) (K=3 dB) |
| Guaranteed Sound Power Level | 88 dB(A) |
| Vibration (emission value) | < 2.5 m/s² (K=1.5 m/s²) |
| Telescopic Pole | Continuous adjustment (quick-release) |
| Scope of Delivery | Motor head, pole, shoulder strap, protective cover, 4 mm Allen key, instruction manual |
| Intended Use | Domestic: trimming and pruning hedges, bushes, shrubs |
| Safety | Safety lock, On/Off switch, blade guard, shoulder strap |
| Maintenance | Clean regularly, oil the cutting bar, store in a dry place with cover |
| Warranty | 3 years (terms apply) |
| After-sales service France | 0800 919270 |
| After-sales service Belgium | 070 270 171 (0.15 EUR/min) |
Frequently Asked Questions - PTHSA 20Li B3 PARKSIDE
User questions about PTHSA 20Li B3 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cordless electric hedge trimmer in PDF format for free! Find your manual PTHSA 20Li B3 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PTHSA 20Li B3 by PARKSIDE.
USER MANUAL PTHSA 20Li B3 PARKSIDE
CORDLESS EXTENDABLE HEDGE TRIMMER 20V /AKKU-TELESKOP-HECKENSCHERE 20 V /TAILLE-HAIES TÉLESCOPIQUE SANS FIL 20 V PTHSA 20-Li B3
GB
CORDLESS EXTENDABLE HEDGE TRIMMER 20V
Translation of the original instructions
FR
TAILLE-HAIES TÉLESCOPIQUE SANS FIL 20 V
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE
GB Translation of the original instructions Page 1
Intended use 2
Features 2
Package contents 2
Technical specifications 3
General power tool safety warnings 4
1.Work area safety 4
2. Electrical safety 4
3. Personal safety 5
4. Power tool use and care 5
5. Use and handling of the cordless electrical power tool. 6
6. Service 6
Appliance-specific safety instructions for hedge trimmers. 7
Supplementary safety instructions for hedge trimmers 8
RESIDUAL RISKS 8
Additional safety instructions 9
Before use 9
Charge battery pack (see fig. B) 9
Checking the battery charge level 10
Inserting/removing the battery pack 10
Fixing/attaching the shoulder strap 10
Mounting the motor head on the telescopic handle 10
Adjusting the telescopic handle 10
Adjusting the cutting angle 10
Use 11
Switching on/off 11
Working with the hedge trimmer 11
Use of the machine 11
Cutting techniques 11
Transport 11
Maintenance and cleaning 11
Storage 11
Troubleshooting: hedge trimmer 12
Maintenance intervals: hedge trimmer 12
Disposal 12
Replacement parts 12
Kompernass Handels GmbH warranty 13
Service 14
Importer
Original declaration of conformity 15

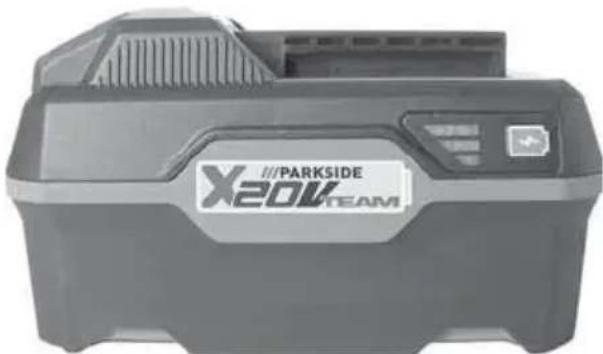

Ordering a replacement battery 16
Telephone ordering 16
CORDLESS EXTENDABLE HEDGE TRIMMER 20V PTHSA 20-Li B3
Introduction
Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified range of applications. Please also pass these operating instructions on to any future owner.
Intended use
This appliance is intended for cutting and trimming hedges, bushes and flowering shrubs in the home garden. This is a hand-held appliance with an integrated motor unit with linear reciprocating cutting blades. The appliance may only be used as described and for the specified application areas. The appliance is not intended for commercial use. The appliance is designed for use by adults. This appliance is not intended for use by anyone (including children) with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge. The use of the appliance in rain or in humid environments is prohibited. Any other usage or modification of the appliance is deemed to be improper and
carries a significant risk of accidents. The manufacturer accepts no responsibility for damage attributable to misuse.
WARNING!
Hedge trimmers are not suitable for use by children.
Features
Overview
1 Blade guard
Cutter bar
3 Motor head
4 Release button
5 Connecting piece
6 Telescopic handle
Quick release
8 Handle
9 Carrying lug
10 Safety lock-out
On/Off switch
12 Hex key
Shoulder strap
Fig. B
14 Battery pack*
Release button for the battery pack
16 High-speed charger*
17 Battery display LED
18 Battery charge level button
19 Red charge control LED
20 Green charge control LED
Package contents
1 cordless extendable hedge trimmer 20V
1 motor head
1 shoulder strap
1 blade guard
1 4 mm hex key
1 set of operating instructions
Technical specifications
Rated voltage 20V (DC)
Idle stroke speed 1150 rpm
Working angle -60° to +90°
Cutting length 410 mm
Tooth spacing 15 mm
Weight (ready for use) approx. 3.7kg
Battery PAP 20 B3*
Type LITHIUM ION
Rated voltage 20V (DC)
Capacity 4
Cells 10
High-speed battery charger PLG 20 C3* INPUT
Rated voltage 230-240 V\~,50 Hz (AC)
Rated power consumption 120 W
Fuse (internal) 3.15 A
OUTPUT
Rated voltage 21.5V (DC)
Rated current 4.5 A
Charging time approx. 60 min
Protection class II/ (double insulation)
- BATTERY AND CHARGER ARE NOT SUPPLIED
Noise and vibration data
Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically:
Sound pressure level L PA = 71.7 dB (A)
Uncertainty K= 3 dB
Sound power level L WA= 84 dB (A)
Guaranteed sound
power level L_WA = 88 dB (A)
Uncertainty K = 2.05 dB
Vibration values (vector total of three directions) determined in accordance with EN 62841:
Vibration emission value a_h < 2.5 m/s^2
Uncertainty K = 1.5 m/s^2
Wear ear muffs!
NOTE
The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.
WARNING!
Depending on the manner in which the power tool is being used, and in particular the kind of workpiece being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.
Try to keep the vibration load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).
Explanation of the symbols on the appliance
Read the operating instructions and safety advice before initial operation!
Wear protective gloves!
Wear safety shoes!
Wear ear muffs!
Wear a hard hat!
Wear safety goggles!
Keep bystanders away from the appliance!
Protect the appliance from rain and moisture!
Risk of fatal electrical shock! Keep at least 10 m away from overhead power lines.
Attention! Falling objects. Especially when cutting above head height.
Attention! Risk of injury due to running blades.
Sound power level LWA data in dB.
General power tool safety warnings
ARNING!
Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When working outdoors with an electrical power tool always use extension cords that are also suitable for use outdoors. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not allow yourself to get lulled into a false sense of security and do not ignore the safety rules for power tools, even if you are familiar with the power tool after repeated use. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children. and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and accessory tools, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Use and handling of the cordless electrical power tool
a) Charge a rechargeable battery using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.
c) When they are not being used, store rechargeable battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.
d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.
e) Do not use a damaged or modified battery. Damaged or modified batteries may behave unexpectedly and cause fires, explosions or pose a risk of injury.
f) Do not expose a battery to fire or excessively high temperatures. Fire or temperatures in excess of 130^ (265^) can cause an explosion.
g) Follow all instructions regarding charging and never charge the battery or the cordless tool outside of the temperature range given in the operating instructions. Incorrect charging or charging outside of the permissible temperature range can destroy the battery and increase the risk of fire.
CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries.
Protect the recharge
able battery from heat (for example, from continuous exposure to sunlight), fire, water and moisture. There is a risk of explosion.
6. Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never try to repair damaged batteries. Batteries should only be maintained by the manufacturer or an approved customer service centre.
Appliance-specific safety instructions for hedge trimmers
- Keep your hands away from the cutting blades. Do not attempt to clear clippings or hold onto the material being cut while the blades are still in motion. The blades keep moving after the switch has been moved to the off position. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
- Carry the hedge trimmer by the handle with the blade at a standstill and be careful not to operate the switch. Carrying the hedge trimmer correctly will reduce the risk of accidental activation and any resulting injury from the blade.
Hold the hedge trimmer only by the insulated grips as the blade could come into contact with hidden power lines. Contact between the blade and a live wire may make exposed metal parts of the power tool live and could give the operator an electric shock. - Keep all mains cables away from the cutting area. Cables can be hidden in hedges and bushes and be cut accidentally by the blade.
When transporting or storing the hedge trimmer, always pull the protective cover over the blades. Proper handling of the hedge trimmer will reduce the risk of injury from the blades.
Make sure that all switches are turned off and the battery has been removed before removing trapped clippings or servicing the machine. Unexpected activation of the hedge trimmer when removing trapped material can cause serious injury.
Do not use the hedge trimmer in bad weather, especially if there is a risk of a thunderstorm. This reduces the risk of being struck by lightning. Reduce the risk of a fatal electric shock by never using the extended hedge trimmer near electrical wires. Contact with or use near power lines can cause serious injuries and/or a fatal electric shock.
Always operate the extended hedge trimmer with both hands. Hold the extended hedge trimmer with both hands to prevent any loss of control.
Wear a hard hat when working overhead with the extended hedge trimmer. Falling fragments can result in serious injury.
Inspect the surface to be cut carefully and remove any wires or other obstructions.
NOTE
Illustrations showing the usage of the hedge trimmer and its operating controls can be found on the fold-out page.
Notes and diagrams of the settings, maintenance and lubrication by the user can be found in these instructions.
Notes on the working position (see fold-out page).
Notes on the control elements (see fold-out page).
Notes on exchange and repair (see section Maintenance and cleaning/Service).
Explanation of all graphical symbols used on the hedge trimmer and technical data can be found in these instructions.
The features of the hedge trimmer can be found in the technical data.
- Blocked tool: remove the jammed material from the cutter bar ②.
CA
In the event of imminent danger or in an emergency, switch off the motor immediately and remove the battery.
Supplementary safety instructions for hedge trimmers
Preparation
a) THE HEDGE TRIMMER CAN CAUSE SERIOUS INJURIES! Read the instructions on correct hand ling, preparation, maintenance, starting and stopping the hedge trimmer very carefully. Familiarise yourself with all manual controls and the proper use of the hedge trimmer.
b) Children may never use the hedge trimmer.
c) Beware of above-ground power lines.
d) Do not use the hedge trimmer while anyone, especially children, is in the vicinity.
e) Wear suitable clothing! Do not wear loose clothing or jewellery which could get caught in moving parts. We recommend wearing heavy-duty gloves, non-slip footwear and goggles.
f) If the cutting unit comes in contact with a foreign object or if the operating noise increases or the hedge trimmer starts to vibrate abnormally, stop the motor and allow the hedge trimmer to come to a standstill. Take the following measures:
- check for damage;
- check for loose parts and secure all the loose parts;
- replace damaged parts with equivalent parts or have them repaired.
g)
Wear ear muffs!
h)
Wear safety goggles!
i) To stop the hedge trimmer in an emergency, remove the battery.
Operation
a) Remove the battery from the appliance before:
- cleaning or removal of a blockage;
- inspection, maintenance or work on the hedge trimmer;
- setting the working position of the cutting unit;
- if the hedge trimmer is to be left unattended.
b) Always make sure that the hedge trimmer is in the proper working position and the tool head is properly engaged before the motor is started.
c) When operating the hedge trimmer, always ensure that you have a firm footing, especially when using steps or a ladder.
d) Do not use the hedge trimmer if it has a defective or badly worn cutting unit.
e) Ensure that all supplied handles and safety guards are mounted when operating the hedge trimmer. Never attempt to operate an incompletely assembled hedge trimmer or a hedge trimmer with non-approved modifications.
f) Hold the hedge trimmer firmly with both hands using the handles provided.
g) Always familiarise yourself with your environment and be aware of potential dangers that you may not be able to hear because of the noise of the hedge trimmer.
Maintenance and storage
a) If the hedge trimmer is shut down for maintenance, inspection or storage, switch off the motor and make sure that all rotating parts have come to a standstill. Allow the machine to cool down before carrying out an inspection, making adjustments, etc.
b) Always allow the hedge trimmer to cool down before storage.
c) When transporting or storing the hedge trimmer, cover the cutting unit with the protective cover for the cutting unit.
RESIDUAL RISKS
Even if you operate this power tool properly, there will still be residual risks. The following risks can occur in relation to the power tool's design and structure:
a) Cuts
b) Hearing damage, if no suitable hearing protection is worn.
c) Damage to health caused by hand-arm vibrations if the appliance is used for extended periods or is not properly used and maintained.
Use only the additional equipment and accessories specified in the operating instructions. Using attachments or accessory tools other than those recommended in the operating instructions can lead to a risk of injury.
Additional safety instructions
Make sure that there are no bystanders or animals within a radius of 15 metres when using the tool. The operator is responsible for third parties within the working area.
- Keep the appliance, the cutting mechanism and the blade guard in good condition to prevent injury.
Children must be supervised to make sure that they do not play with the appliance.
Do not use the appliance until you have familiarised yourself with its use.
Do not work with a damaged or incomplete appliance or an appliance that has been modified without the consent of the manufacturer. Never use the appliance with defective protective equipment. Do not use the appliance if it has a defective on/off switch. Before use, check the safety condition of the appliance, especially the blade and the saw chain. If the appliance has been dropped, check for significant damage or defects.
Never start the appliance before it is correctly assembled.
When starting and operating the appliance, ensure that it does not come into contact with the ground, stones, wire or other foreign material. Switch off the appliance before you put it down.
The appliance is designed for two-handed operation. Never work with one hand. Make sure that the appliance is switched off when relocating the appliance and that you cannot accidentally touch the on/off switch. Carry the appliance with the blade facing backwards. Fit the blade guard during transportation.
Before use
Charge battery pack (see fig. B)
CAUTION!
Always unplug the appliance before you remove the battery pack from or connect the battery pack to the charger.
NOTE
Never charge the battery pack at an ambient temperature of below 10^ or above 40^ . If a lithium-ion battery is going to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80% . The storage climate should be cool and dry and the ambient temperature should be between 0^ and 50^ .
Connect the battery pack 14 to the high-speed battery charger 16 (see fig. B).
Insert the power plug into the socket. The green charge control LED 20 lights up briefly, then the red control LED 19 lights up.
The green charge control LED 20 indicates that charging is complete and the battery pack 14 is ready for use.
CAUTION!
If the red control LED 19 flashes, this means that the battery pack 14 has overheated and cannot be charged.
If the red and green control LEDs 19/20 both flash, this means that the battery pack 14 is defective.
Push the battery pack 14 into the appliance.
Switch off the charger for at least 15 minutes between successive charging sessions. Also disconnect the power plug from the mains power socket.
Checking the battery charge level
Press the battery charge level button to check the status of the battery (see also main diagram). The status will be shown on the battery display LED as follows: RED/ORANGE/GREEN = maximum charge RED/ORANGE = medium charge RED = low charge - charge the battery
Inserting/removing the battery pack
Inserting the battery pack
Push the battery pack 14 into the handle until it clicks into place.
Removing the battery pack
Press the release button 15 and remove the battery pack 14.
WARNING!RISKOFINJURY！
Before any work on the appliance, remove the battery. Risk of electric shock!
Fixing/attaching the shoulder strap
Hook the shoulder strap 13 into the carrying lug 9.
Adjust the length of the shoulder strap to your size so that the carrying lug is at hip height when the strap is hooked in place.
Mounting the motor head on the telescopichandle
Undo the quick release ⑦ by pressing it in the direction of the arrow. Pull out the telescopic handle until the black plastic ring is exposed.
Place the lower end of the motor head 3 on the upper end of the telescopic handle 6 so that the motor head 3 can be pushed through as far as the black plastic ring. Make sure that the groove and the recess interlock with each other.
Tighten the red connecting piece 5 by turning it towards the symbol on the motor head 3.
Adjusting the telescopic handle
The telescopic handle 6 can be adjusted continuously by means of the quick release 7.
Undo the quick release by pressing it in the direction of the arrow and adjust the length by pushing or pulling as required.
Close the quick release again 7 to fix the desired working length of the telescopic handle 6.
If the screws on the quick-release 7 have loosened, tighten them again with the hex key 12.
Adjusting the cutting angle
NOTE
The cutting angle can be adjusted in 11 stages.
Remove the battery pack 14 from the appliance.
Press the release button 4.
Adjust the angle of the motor unit to the required position.
Let go of the release button and the motor unit will click into place.
Insert the battery pack 14 back into the appliance.
Use
NOTE
Comply with regulations regarding noise protection and local rules. Using the appliance on certain days (e.g. on Sundays and public holidays), during certain times (midday, night time) or in certain locations (e.g. health resorts, clinics, etc.) may be restricted or prohibited.
Switching on/off
Turn on
Press the safety lock-out 10 and keep it pressed and then press the On/Off switch 11. You can now release the safety lock-out 10.
Switching off
Release the On/Off switch 11.
Working with the hedge trimmer
Use of the machine
NOTE
Please note that legal restrictions in your country may limit your use of the hedge trimmer.
Inspect the hedge trimmer daily before every use. Also check the appliance after knocks and drops to identify any significant damage or defects.
Wear sturdy shoes and snug-fitting clothing to reduce the risk of accidents. Stand firmly on the ground, pay attention to your balance and always use the supplied shoulder strap!
For the sake of your health, take regular breaks while working. Physical fatigue increases the risk of injury!
WARNING!
- Never use the appliance when you are tired or ill or under the influence of alcohol or other drugs or medications.
Cutting techniques
See fold-out page (figure A).
NOTE
- Remove thicker branches with a branch cutter.
Transport
Use the blade guard 1 when transporting the appliance.
Ensure that the appliance cannot switch on during transport.
Maintenance and cleaning
The motor unit must always be kept clean, dry and free from oil or grease.
The hedge trimmer must be cleaned of sawdust at regular intervals.
Use a soft, dry cloth to clean the housing.
Check the hedge trimmer for loose screws on the cutter bar 2 and tighten them if necessary.
Remove stuck cuttings.
Maintain the cutter bar 2 using a spray oil or an oil can.
Storage
Always clean the appliance thoroughly before storing.
Store the appliance in the supplied blade guard 1 in a dry place and out of the reach of children.
Store the appliance horizontally or secured against falling.
Troubleshooting: hedge trimmer
| Problem | Possible cause Troubleshooting | |
| Motor will not start. | Motor head not mounted correctly | Check assembly |
| Battery not inserted or not charged | Charge and/or insert battery | |
Maintenance intervals: hedge trimmer
The figures given here are based on normal operating conditions. In the event of more difficult conditions, such as strong dust generation and longer daily working hours, the given intervals are to be reduced correspondingly.
| Before starting work | After completion of work | As required | ||
| Appliance part | Action | |||
| Cutting blade | Visual inspection X | |||
| Cleaning XX | ||||
Disposal
The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant. The appliance and its accessories
are made from various materials, such as metal and plastic.
Your local community or municipal authorities can provide information on how to dispose of the worn-out appliance.
Environmental protection
Dispose of contaminated maintenance material and consumables at a collection point provided for this purpose.
Do not dispose of power tools in your normal domestic waste!
According to the European Directive 2012/19/EU, used power tools must
be collected separately and recycled in an environmentally sound manner.
Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for
disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.
Your local community or municipal authorities can provide information on how to dispose of the worn-out product.
The product is recyclable, subject to extended producer responsibility and is collected separately.
Replacement parts
Replacement parts can be ordered directly from the Service Centre. Please provide the following details when making an order: machine type and part number.
KompernassHandelsGmbH warranty
Dear Customer,
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).
This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
X 12 V and X 20 V Team Series battery packs come with a 3-year warranty valid from the date of purchase.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
The warranty period does not apply to
Normal reduction of the battery capacity over time
Commercial use of the product
Damage to or alteration of the product by the customer
Non-compliance with safety and maintenance instructions, operating errors
Damage caused by natural hazards
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (IAN) 373422_2104 available as proof of purchase.
You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.
This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 373422_2104.
NOTE
For Parkside tools, please send us only the defective item without the accessories (e.g. battery, storage case, assembly tools, etc.).
WARNING!
Have your tools repaired by the Service Centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.
Always ensure that the power plug and power cord are replaced only by the manufacturer of the appliance or the company's customer service. This will ensure that the safety of the appliance is maintained.
Service
GB Service Great Britain Tel.:08004047657 E-Mail: kompernass@lidl.co
IE Servicelreland Tel.:1890 930 034 (0,08 EUR / Min., (peak)) (0,06 EUR / Min., (off peak)) E-Mail: kompernass@lidl.ie IAN 373422_2104
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Original declaration of conformity
We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:
Machinery Directive (2006/42/EC)
EMC (Electromagnetic Compatibility) (2014/30/EU)
Directives on noise emission 2000/14/EC, 2005/88/EC
Notified body no. 0036
TÜV SÜD Industrie Service GmbH, Westendstrasse 199, 80686 Munich, Germany
Evaluation procedure for conformity as per appendix V.
Sound power level LWA: measured 84 dB (A), guaranteed 88 dB (A)
RoHS Directive (2011/65/EU)*
- The manufacturer bears the full responsibility for compliance with this conformity declaration. The subject of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
Applied harmonised standards
EN 62841-1:2015
EN 62841-4-2:2019
EN 55014-1:2017/A11:2020
EN 55014-2:2015
ENIEC63000:2018
Type/appliance designation: Cordless Extendable Hedge Trimmer 20V PTHSA 20-Li B3
Year of manufacture: 11-2021
Serial number: IAN 373422_2104
Bochum, 05/10/2021
Semi Uguzlu
- Quality Manager -
We reserve the right to make technical changes in the context of further product development.
Ordering a replacement battery
If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone.
Due to limited stocks, this item may sell out in a relatively short time.
NOTE
- Online ordering of replacement parts is not possible in all countries. If this is the case, please contact the Service Hotline.
Telephone ordering
GB Service Great Britain Tel.: 0800 404 7657
IE Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., peak · 0,06 EUR/Min., off peak)
To ensure fast processing of your order, have the article number of your appliance to hand (IAN 373422_2104) in case of questions.
Inhaltsverzeichnis
Einleitung 18
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
(Courant alternative)
Puisssance nominale
absorbée 120W
Fusible (interne) 3,15 A T3.15A
SORTIE/output
Tension nominale 21,5V (courant
continu)
Courant nominal 4,5 A
Chere cliente, cher client,
Chere cliente, cher client,
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALLEMAGNE
www.kompernass.com
Directive relative aux machines (2006/42/CE)
Directive RoHS (2011/65/EU)*
Klik het.Accupack 14 vast in de handgreep.
Accupack uithetapparaathalen
WAARSCHUWING! LETSELGEVAAR!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DUITSLAND
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
Akumulator PAP 20 B3*
Typ
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NIEMCY
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867BOCHUM
NEMECKO
www.kompernass.com
Originalne vyhlasenie o zhode
My, spolocnost' KOMPERNASS HANDELS GMBH, osoba zodpovedna za dokumentaciu: pán Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, DEUTSCHLAND/NEMECKO vyhlasujeme,Že tento vyrobok je v sulade s nasledujucimi normami, normativnymi dokumentmi a smernicami ES:
Smernica o strojovych zariadeniach (2006/42/EC)
Elettromagneticka kompatibilita (2014/30/EU)
Smernica pre emisie hluku 2000/14/EC, 2005/88/EC
Uvedené miestoč. 0036
TÜV SÜD Industrie Service GmbH, Westendstraße 199, 80686 München, Deutschland/Nemecko
Postup hodnotenia konformity podl'α prilohy V.
Hladina akustického vykonu LWA: nameraná 84 dB (A), zarucená 88 dB (A)
Sernica RoHS (2011/65/EU)*
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALEMANIA
www.kompernass.com
Bestilling of reservebatteri 158
Telefonisk bestilling 158
BATTERIDREVEN TELESKOP-HÆKKEKLIPPER 20 V PTHSA 20-Li B3
Indledning
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
TYSKLAND
www.kompernass.com
Bestilling of reservebatteri
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie
Stav informaci · Stan informaci · Stav informaci · Estado de las informaciones · Tilstand af information:
10/2021·Ident.-No.: PTHSA20-LiB3-102021-1
IAN 373422_2104
