USER MANUAL Zonder Robo Vision Zeegma

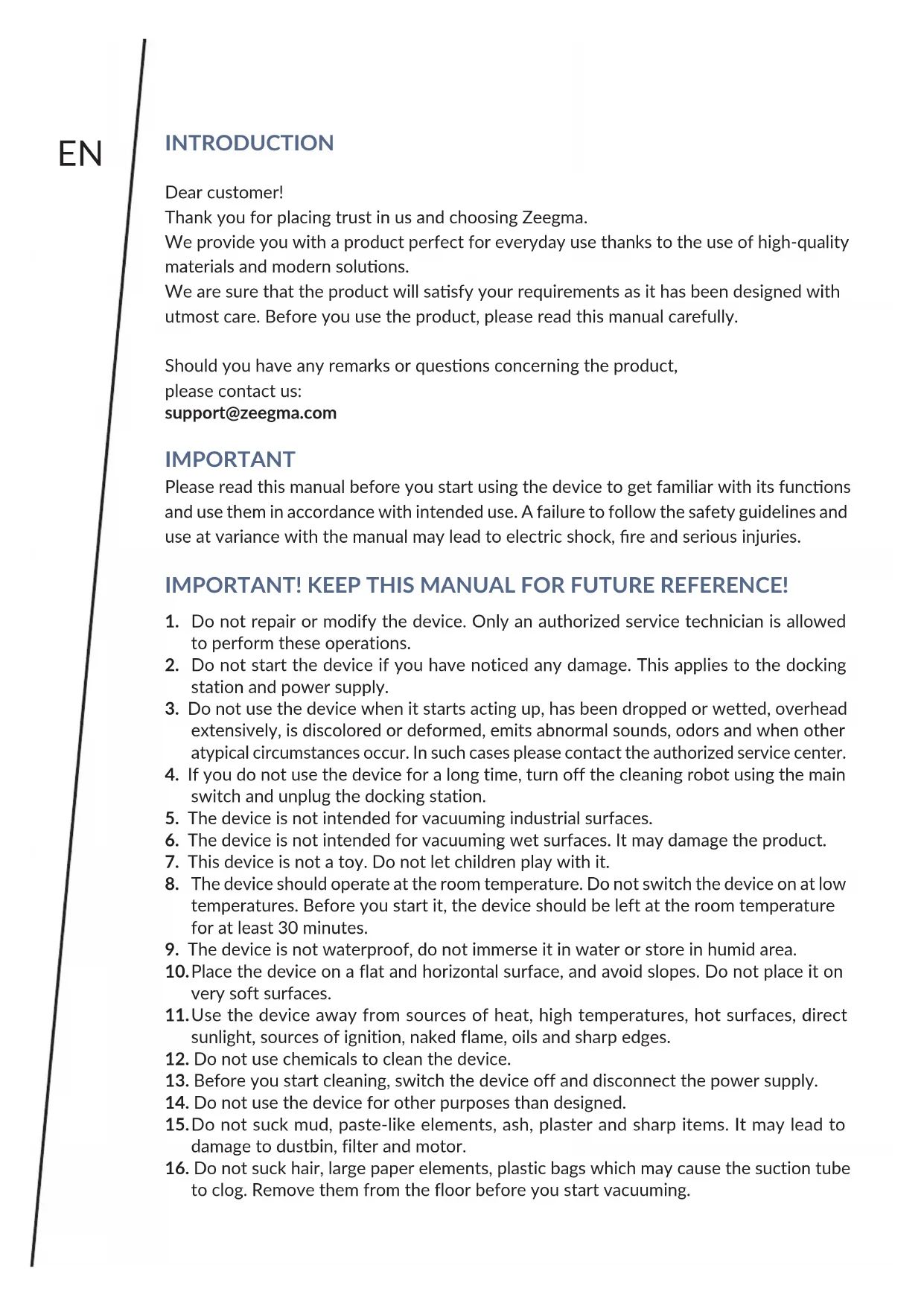

24EN INTRODUCTION Dear customer! Thank you for placing trust in us and choosing Zeegma. We provide you with a product perfect for everyday use thanks to the use of high-quality materials and modern soluons. We are sure that the product will sasfy your requirements as it has been designed with utmost care. Before you use the product, please read this manual carefully. Should you have any remarks or quesons concerning the product, please contact us: [e-mail] IMPORTANT Please read this manual before you start using the device to get familiar with its funcons and use them in accordance with intended use. A failure to follow the safety guidelines and use at variance with the manual may lead to electric shock, re and serious injuries. IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE!

Do not repair or modify the device. Only an authorized service technician is allowed to perform these operations.

Do not start the device if you have noticed any damage. This applies to the docking station and power supply.

3. Do not use the device when it starts acting up, has been dropped or wetted, overhead

extensively, is discolored or deformed, emits abnormal sounds, odors and when other atypical circumstances occur. In such cases please contact the authorized service center.

4. If you do not use the device for a long time, turn off the cleaning robot using the main

switch and unplug the docking station.

5. The device is not intended for vacuuming industrial surfaces.

6. The device is not intended for vacuuming wet surfaces. It may damage the product.

7. This device is not a toy. Do not let children play with it.

The device should operate at the room temperature. Do not switch the device on at low temperatures. Before you start it, the device should be left at the room temperature for at least 30 minutes.

9. The device is not waterproof, do not immerse it in water or store in humid area.

10. Place the device on a flat and horizontal surface, and avoid slopes. Do not place it on

Use the device away from sources of heat, high temperatures, hot surfaces, direct sunlight, sources of ignition, naked flame, oils and sharp edges.

12. Do not use chemicals to clean the device.

13. Before you start cleaning, switch the device off and disconnect the power supply.

14. Do not use the device for other purposes than designed.

Do not suck mud, paste-like elements, ash, plaster and sharp items. It may lead to damage to dustbin, filter and motor.

16. Do not suck hair, large paper elements, plastic bags which may cause the suction tube

to clog. Remove them from the floor before you start vacuuming.EN

Do not obstruct the air inlet at the back of the vacuum cleaner. It may lead to overheating and damage the product.

18. Do not place any items on the vacuum cleaner.

WARNING: To charge the battery, use only the original power adapter or charging station.

20. Do not use the vacuum cleaner without filters and dustbin.

21. The vacuum cleaner is intended for vacuuming short-hair floors and carpets.

22. Do not drag the power supply cable through sharp edges of walls and furniture, do not

trap it in doors and do not wrap too tight after use.

23. The manufacturer shall not be held responsible for all damage arising from misuse and

use at variance with the device manual.

24. This appliance can be used by children aged from 8 years and above and persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

25. Cleaning and user maintenance shall not be made by children without supervision.

26. WARNING: This appliance contains a UV emitter. Do not stare at the light source.

27. Note: do not lift or move the machine while it is operating. It may disturb cleaning and

lead to problems with finding the docking station or cause the apartment map to reset.

1. Description of parts in the box (see fig. 1):

A. Vacuum cleaner B. Docking staon C. Power supply D. Remote control E. Side cover of dustbin F. Dustbin G. Cleaning brush H. HEPA lter (x2)

External part of the vacuum cleaner (see fig. 2):

Internal part of the vacuum cleaner (see fig. 3):

15. Charging port (charging in docking

5. Correct tank assembly sensor

6. Side cover for tank emptying

Docking station (see fig. 5):

18. Sucon power adjustment

3. How to assemble (see fig. 7):

• Fix the side cover for dust bin emptying: Firmly press the side cover and adapt to two fasteners.

• Close the side cover for dust bin emptying.

• Install the dustbin in the relevant place of the vacuum cleaner.

• Before you use the product, remove the protective strip.

How to place and charge:

• Place the docking station by the wall, on a flat surface. Leave some free space around the station, that is 0,5m to the left and right, and 1,5m before the station (see fig. 8).

• Supply power to the docking station and plug in (see fig. 8).

• Fix side brushes, left and right (L/R) (see fig. 9).

• Activate the main switch of the product. „I” stands for ON, and „O” means OFF (see fig. 9). Two ways of charging (see fig. 9):

1. Place the product on the docking station.

2. For charging, use the power supply (when charging, the signaling light flashes, when

charging is over, it turns green).EN

When the battery goes flat during cleaning, the product automatically switches into charging mode and goes to the docking station to initiate charging.

Activate the charging mode with the return-to-docking-station key on the remote control or via the application. Charging notes:

1. The docking station must not be used in a direct sunlight.

2. Before you start using the product, remember to fully charge it. Charging takes 4 hours.

3. When charging, do not fix the water tank in the product to make sure the charging is safe.

Description of vacuuming modes and functions:

1. Automatic vacuuming: activate the main switch of the product. When the control light

goes on, the product is active. Press start/pause key on the cleaner or remote control and the cleaner will start vacuuming automatically.

2. Spot vacuuming: press the spot vacuuming on the remote control to start cleaning.

3. Edge vacuuming: press the edge vacuuming key on the remote control to start cleaning.

4. Manual control: use remote control keys to choose direction of cleaner’s movements

(forward, backward, left and right).

Suction power adjustment: choose 1 of 3 suction powers. Press the suction power adjustment key on the remote control or in the application, every time you press the key, you change the aforesaid power. Options:

Pause: when the cleaner operates, press start/pause key on the cleaner, remote control or in the application to stop its operation.

• „Wake up”: The cleaner will go to sleep if it remains inactive for 10 minutes. To „wake it up”, press any key on the cleaner, remote control or in the application.

• Deactivation: to switch the cleaner off, press start/pause key and hold for a couple of seconds or deactivate the main switch on the product.

• When the work is done, direct the vacuum cleaner into the docking station to charge it. 4a. How to install the water tank: Description of parts (see fig. 10):

How to use water tank (see fig. 11):

1. Open the tank and pour water into the water inlet hole.

2. Close the water tank and fix the mop on the dedicated external surface.

3. Fix the water tank and install in the cleaner.

4. Press the start/pause key to make the cleaner start wet-cleaning.

How to adjust water consumption for wet cleaning, depending on surface: Press the suction power adjustment key on the remote control or in the application and cho- ose 1 of 3 suction powers. Every press changes the water consumption to low/medium/high. How to clean and empty the water tank and mop (see fig. 12):

1. Remove the water tank.

2. Pour water out of the tank.

4. Clean the water tank.

5. Clean and dry the mop.

6. Dry the water tank.

2. Remove the bin and open the side cover for emptying the dustbin.

3. Empty the dustbin, dispose of rubbish into a rubbish bin.

4. Open the cover and remove HEPA filter and preliminary filter.

5. It is not advisable to wash HEPA filter under running water, gently remove dust.

6. Wash the preliminary filter under running water.

7. Next you can clean the interior with a wet cloth.

8. Do not wash the entire dustbin under running water.

9. Dry the bin and filter before another use. Do not expose filters to direct sunlight.

10. Wash the preliminary filter every 15-30 days, the life of HEPA filter is about 3 months.

11. Make sure the filters are dry before you reinstall them.

12. Close the dustbin emptying cover and install the bin in the cleaner.

6. How to clean side brushes and central brush (see fig. 14):

1. To remove the central brush, remove the cover and brush.

2. Use the cleaning brush to remove remains on the brush.

3. Detach side brushes and wipe with a dry cloth.EN

7. How to clean sensors and wheels (see fig. 15):

• Clean a charging port of the docking station, all sensors, central wheel and side wheels with a dry cloth.

If you do not use the vacuum cleaner for a long me, fully charge it before storing. Charge the device every 3 months to prevent extensive deterioraon of baery life.

PROBLEM POTENTIAL CAUSE SOLUTION

The vacuum cleaner does not charge. No connecon with the docking staon. Make sure charging ports of the vacuum cleaner and docking staon are properly connected. Try to place the product on the docking staon manually. The baery does not charge. Make sure the docking staon is plugged in. If you have not used the vacuum cleaner for a long me and baery does not charge, place the cleaner on the docking staon and charge for 3 minutes, then stop charging. Repeat 3 mes and then start charging the vacuum cleaner normally. The vacuum cleaner has dicules in vacuuming. The vacuum cleaner wraps in elements of the room (cables, drapes, etc.). The vacuum cleaner tries to steer clear of obstacles. If it is impossible, remove obstacles before you start another vacuuming. The vacuum cleaner returns to the docking staon automacally. Low baery. This operaon is normal. End of work me. This operaon is normal. The vacuum cleaner does not acvate during scheduled vacuuming. Vacuum cleaner is o Switch the vacuum cleaner on. Low baery Charge the baery. Dustbin is clogged or other elements are obstructed. Switch the device o and clean the dustbin and lters. Remote control does not work Baeries in remote control are at. Replace baeries in the remote control. The vacuum cleaner is o or baery is low. Switch the device on and/or charge the baery. Infrared signal is not received by the device. Clean the infrared sensor on the device and remote control. Check the space between the remote control and device for any obstacles blocking the signal and other items eming infrared signal (e.g. TV remote control). APPLICATION

• Enter the applicaon, enter your phone number or e-mail address. Enter your password to receive the vericaon code. Next read and accept the Privacy Policy.

• Enter the vericaon code in the empty eld. Go further.

• Next log in the applicaon by entering the correct phone number or e-mail address and password.

3. Scan the vacuum cleaner with QR code (see g. 18)

• Log in the applicaon, click „+”, scan QR code on mobile device and click „enter manually”.

4. Connect to Wi-Fi network (see g. 19)

The product supports Wi-Fi 2.4 GHz only, it does not support Wi-Fi 5 GHz. Before you congure Wi-Fi, set router parameters. Wi-Fi password must not include special characters.

• Make sure the router and vacuum cleaner are close to each other to allow fast conguraon of the device.

• Select the device and enter correct password, next click „next”. Wait for connecon to Wi-Fi network.

5. How to reset device (see g. 20)

• Press the main switch on the device to turn the cleaner o.

• Restart the device, press start/pause key and hold for 3-5 seconds.

• The device is properly reseed if you can hear a sound.

6. If connecon to Wi-Fi network fails

• Select „compliance mode” and enter phone Wi-Fi sengs site, connect to hot spot robot###, return to applicaon and keep waing for connecon.

• You can follow the instrucons displayed to nd the cause of lack of connecon and try again.

9. How to prepare rooms for vacuuming

1. Remove cables and other items which may get tangled in the vacuum cleaner from the

2. The vacuum cleaner is intended to clean oors and thin short-hair carpets. Do not use

the cleaner on long-hair carpets (g. 23).

3. Posion the furniture in a way that the vacuum cleaner cannot get stuck (g. 24).

4. Remove all obstacles from narrow areas (g. 25).
