Zonder Base - Vacuum Cleaner Zeegma - Free user manual and instructions

Brand	Zeegma
Model	Zonder Base
Device type	Bagless vacuum cleaner
Power supply	Mains electric (power cable)
Use	Domestic, dry dusting
Compatible surfaces	Hard floors, rugs, carpets, sofas, armchairs, crevices, grilles, keyboards
Included nozzles	5 nozzles: hard floor/rug, soft surfaces, crevice, brush, narrow crevice
Filter type	Water-washable filter (air-dry)
Tank capacity	Approximately 1.5 L (level mark)
Power adjustment	Yes, via regulator on the flexible hose handle
Cable length	Approximately 5 m (yellow and red markings)
Cable rewinding	Automatic (rewind button)
Dimensions (approx.)	30 x 30 x 45 cm
Weight (approx.)	4 kg
Noise level	Approximately 75 dB
Safety	Unplug after each use; do not vacuum liquids, ashes, sharp objects; do not block the air outlet
Maintenance	Regular emptying of the tank, cleaning the filter with water
Repairability	Repairs by authorized service only
Customer service	[e-mail]
Compliance	EU directives (WEEE 2012/19/EU)
Warranty	2 years parts and labor

Frequently Asked Questions - Zonder Base Zeegma

How to assemble the Zonder Base vacuum cleaner?

To install the flexible hose, press the two buttons and insert it until it locks. Connect the tube by screwing the larger end into the hose support. For the nozzles, screw the small end of the tube into the chosen nozzle.

How to adjust the suction power?

The suction power is adjusted by changing the position of the regulator located on the flexible hose handle.

How to empty the dust tank?

Press the button on the handle to remove the tank, then press the lock button to open the tank and pour out the contents.

How to clean the filter?

Open the top part of the tank, remove the filters, rinse them under running water, wipe with a paper towel and air-dry (avoid hair dryer).

What should not be vacuumed with this vacuum?

Do not vacuum liquids, ashes, mud, sharp objects, hair, or large papers to avoid damaging the tank, filter, and motor.

What to do if the power cable is damaged?

Do not use the vacuum cleaner if the cable is damaged. Immediately contact the authorized service of the manufacturer to have it replaced.

Can I use the vacuum on wet surfaces?

No, the vacuum is not suitable for dusting wet surfaces. This may damage the appliance.

How to rewind the cable after use?

First unplug the cable from the outlet, then press the rewind button located on the vacuum to store the cable automatically.

Can the vacuum be used by children?

Yes, by children over 8 years old under supervision. Persons with reduced capabilities may use it if they have received safety instructions and understand the risks.

Where to find spare parts?

Contact customer service at [e-mail] to obtain spare parts such as the flexible hose, nozzles, or filters.

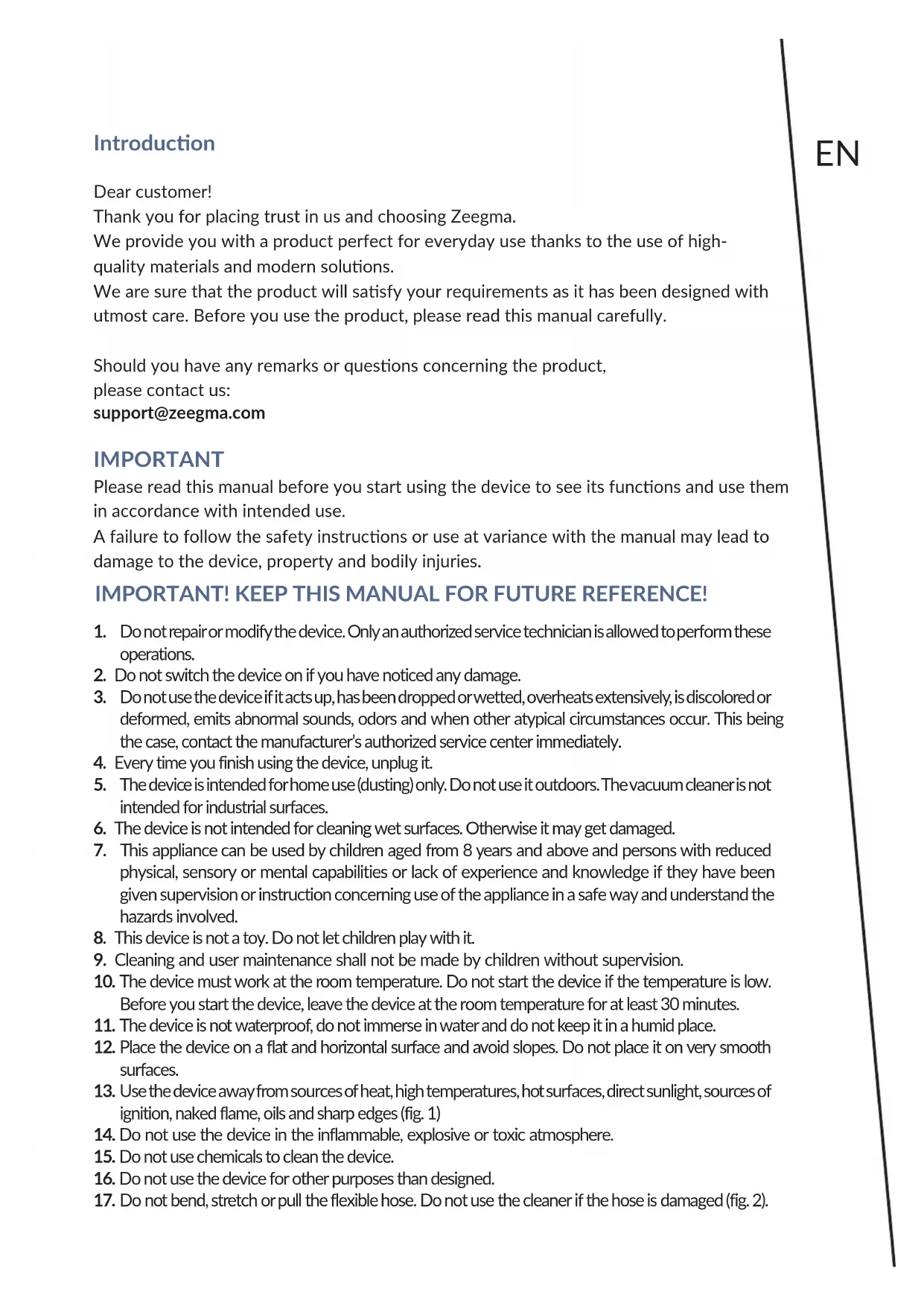

USER MANUAL Zonder Base Zeegma

Thank you for placing trust in us and choosing Zeegma.

We provide you with a product perfect for everyday use thanks to the use of high-quality materials and modern solutions.

We are sure that the product will satisfy your requirements as it has been designed with utmost care. Before you use the product, please read this manual carefully.

Should you have any remarks or questions concerning the product,

please contact us:

[e-mail]

IMPORTANT

Please read this manual before you start using the device to see its functions and use them in accordance with intended use.

A failure to follow the safety instructions or use at variance with the manual may lead to damage to the device, property and bodily injuries.

IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE!

1. Do not repair or modify the device. Only an authorized service technician is allowed to perform these operations.
2. Do not switch the device on if you have noticed any damage.
3. Do not use the device if it acts up, has been dropped or wetted, overheats extensively, is discolored or deformed, emits abnormal sounds, odors and when other atypical circumstances occur. This being the case, contact the manufacturer's authorized service center immediately.
4. Every time you finish using the device, unplug it.
5. The device is intended for home use (dusting) only. Do not use it outdoors. The vacuum cleaner is not intended for industrial surfaces.
6. The device is not intended for cleaning wet surfaces. Otherwise it may get damaged.
7. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
8. This device is not a toy. Do not let children play with it.
9. Cleaning and user maintenance shall not be made by children without supervision.
10. The device must work at the room temperature. Do not start the device if the temperature is low. Before you start the device, leave the device at the room temperature for at least 30 minutes.
11. The device is not waterproof, do not immerse in water and do not keep it in a humid place.
12. Place the device on a flat and horizontal surface and avoid slopes. Do not place it on very smooth surfaces.
13. Use the device away from sources of heat, high temperatures, hot surfaces, direct sunlight, sources of ignition, naked flame, oils and sharp edges (fig. 1)
14. Do not use the device in the inflammable, explosive or toxic atmosphere.
15. Do not use chemicals to clean the device.
16. Do not use the device for other purposes than designed.
17. Do not bend, stretch or pull the flexible hose. Do not use the cleaner if the hose is damaged (fig. 2).

EN

1. Unplug the device after every use. To unplug, grab the plug, not a wire (fig. 3).
2. Do not suck mud, paste-like elements, ash, plaster and sharp items. It may damage the dust tank, filter and motor (fig. 4).
3. Do not suck hair, large paper, plastic bags which may clog suction tube (fig. 5).
4. Do not block air outlet located at the back of the device. It may cause the device to overheat and damage (fig. 6).
5. Do not use the cleaner when the feeder is damaged.
6. Do not grab a cable to pull or move the device. Do not place any items on it. Do not pull it through sharp edges of walls and furniture and do not wrap it too tight.
7. Do not use the device and do not touch the plug if your hands are wet.

1. To assemble the vacuum cleaner hose, press two buttons and insert the hose until it locks in place.
2. To take the hose out, press two buttons and remove it.
3. When connecting the tube with a hose, insert he larger tube tip to the hose handle and turn to make a strong connection.
4. To connect the tube with nozzles, insert the smaller pipe tip to the nozzle and turn to make the strong connection

HOW TO USE

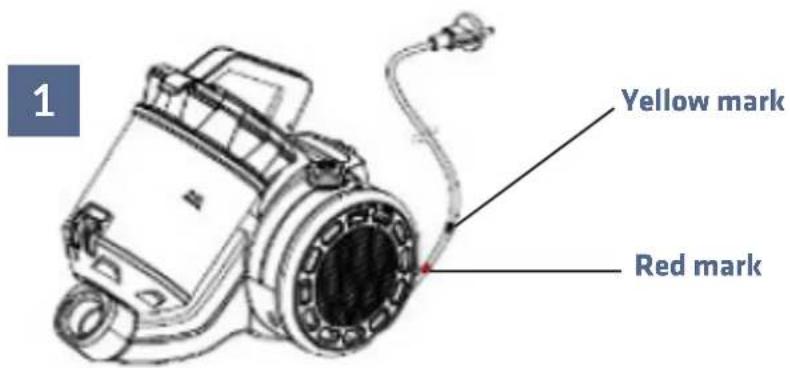

1. Uncoil the feeder to reach the yellow mark. It is forbidden to cross the red mark when uncoiling.

1. Once you have inserted the plug, press the on/off switch

EN

1. You can adjust the suction power by shifting the adjuster on the hose handle.

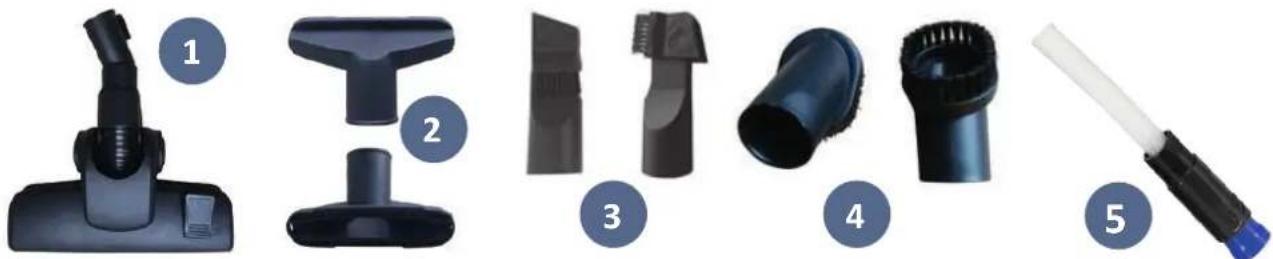

VACUUM CLEANER NOZZLES

1 A nozzle for hard and soft floors (carpets, padding).
A nozzle intended to clean soft surfaces, such as sofas, armchairs, upholstered chairs.
3 Hollow nozzle for hard-accessible places.
4 Round nozzle with horsehair intended for irregular surfaces.
Sucti on nozzle for narrow crevices and collecting dust in hard-to-reach places (e.g. grilles, venti lati on holes, keyboards, door frames, drawers, blinds, blinds).

HOW TO EMPTY DUST TANK AND FILTER

When the dust reaches the mark in the tank, empty it and clean the fi Iter. To empty the tank and clean the fi Iter:

1. Press the butt on the handle and remove the tank from the vacuum cleaner.

1. Press the interlock butt on to open the tank and empty out the content.

1. Open the top part of the tank and remove filters.

2. Clean the filter in water and dry it outdoors.

3. To clean the air outlet filter, remove it from the vacuum cleaner and rinse in running water. Wipe the filter with a paper towel and dry outdoors

Warning: Avoid drying the filter with warm or hot air (e.g. dryer).

HOW TO ROLL UP AND STORE CABLE

1. To roll up the cable, unplug it and press the roll-up button.

2. To store the vacuum cleaner, insert the floor and carpet pad into the vacuum cleaner handle.

The pictures are for reference only. The real design of the products may differ from the pictures presented.

Einleitung

EN: The product complies with requirements of EU directives.

Pursuant to the Directive 2012/19/EU, this product is subject to selective collection. The product must not be disposed of along with domestic waste as it may pose a threat to the environment and human health. The worn-out product must be handed over to the electrics and electronics recycling center.
