Product type	Canister vacuum cleaner
Brand	Zeegma
Model	Zonder Base Jet
Power supply	Mains (power cable with rewind button)
Dust container	Removable, with level indicator
Included nozzles	Hard/soft floor nozzle, soft surface nozzle, crevice nozzle, round bristle nozzle, turbo brush
Telescopic tube	Yes
Flexible hose	With suction power regulator
Speed control	Speed control dial
Filter	Washable in water, air dry
Air inlet filter	Washable under running water
Maintenance	Emptying the container and regular filter cleaning
Safety	Do not use on wet surfaces, do not vacuum hard objects or liquids
Use	Domestic, dry dusting only
Repairability	Only by an authorized service center

Frequently Asked Questions - Zonder Base Jet Zeegma

How to assemble the vacuum cleaner?

To install the flexible hose, press the two buttons and insert it until it locks. Connect the telescopic tube to the hose by screwing the larger end. Then, attach the desired nozzle to the end of the tube by screwing.

How to empty the dust container?

Press the button on the handle to remove the container. Press the lock button to open the container and empty the contents. Then clean the filters if necessary.

How to clean the filter?

Remove the main filter from the container and rinse it with water. Dry it completely in the open air. For the air inlet filter, remove it, rinse under running water, wipe with a paper towel, and let it air dry. Do not use hot air (hair dryer) to dry the filters.

Can I vacuum water with this vacuum cleaner?

No, this vacuum cleaner is designed only for dry dusting. Vacuuming liquids may damage the appliance. Do not use on wet surfaces.

What to do if the vacuum cleaner overheats?

If the vacuum cleaner overheats, unplug it immediately and let it cool down. Check that the air outlet is not blocked and that the container is not full. If the problem persists, contact an authorized service center.

How to rewind the power cord?

Unplug the vacuum cleaner, then press the cord rewind button located on the appliance. Do not pull the cord manually.

Which nozzles are supplied with the vacuum cleaner?

The vacuum cleaner comes with five nozzles: a hard/soft floor nozzle, a soft surface nozzle (sofas, armchairs), a crevice nozzle, a round bristle nozzle for uneven surfaces, and a turbo brush.

How to adjust the suction power?

The suction power is adjusted using the regulator located on the flexible hose holder. You can also use the speed control dial on the appliance to adjust the power.

Can I use the vacuum cleaner on carpets?

Yes, use the hard/soft floor nozzle or the turbo brush to clean carpets and rugs. Make sure the nozzle is suitable.

How to store the vacuum cleaner after use?

After use, unplug the appliance and rewind the cord using the rewind button. Place the nozzles in their holder. For storage, you can attach the floor and carpet cloth (if supplied) to the handle.

USER MANUAL Zonder Base Jet Zeegma

Thank you for placing trust in us and choosing Zeegma.

We provide you with a product perfect for everyday use thanks to the use of high-quality materials and modern solutions.

We are sure that the product will satisfy your requirements as it has been designed with utmost care. Before you use the product, please read this manual carefully.

Should you have any remarks or questions concerning the product,

please contact us:

[e-mail]

IMPORTANT

Please read this manual before you start using the device to see its functions and use them in accordance with intended use.

A failure to follow the safety instructions or use at variance with the manual may lead to damage to the device, property and bodily injuries.

IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE!

1. Do not repair or modify the device. Only an authorized service technician is allowed to perform these operations.
2. Do not switch the device on if you have noticed any damage.

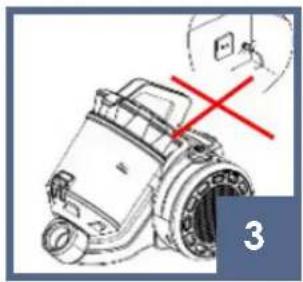

3. Do not use the device if it acts up, has been dropped or wetted, overheats extensively, is discolored or deformed, emits abnormal sounds, odors and when other atypical circumstances occur. This being the case, contact the manufacturer's authorized service center immediately.
4. Every time you finish using the device, unplug it.
5. The device is intended for home use (dusting) only. Do not use it outdoors. The vacuum cleaner is not intended for industrial surfaces.

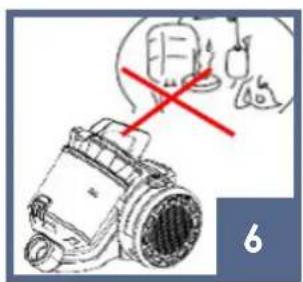

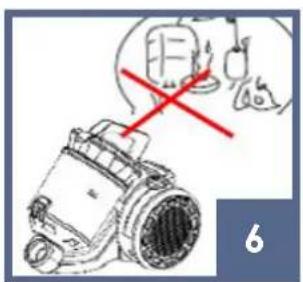

6. The device is not intended for cleaning wet surfaces. Otherwise it may get damaged.
7. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
8. This device is not a toy. Do not let children play with it.
9. Cleaning and user maintenance shall not be made by children without supervision.
10. The device must work at the room temperature. Do not start the device if the temperature is low. Before you start the device, leave the device at the room temperature for at least 30 minutes.
11. The device is not waterproof, do not immerse in water and do not keep it in a humid place.
12. Place the device on a flat and horizontal surface and avoid slopes. Do not place it on very smooth surfaces.
13. Use the device away from sources of heat, high temperatures, hot surfaces, direct sunlight, sources of ignition, naked flame, oils and sharp edges (fig. 1)
14. Do not use the device in the inflammable, explosive or toxic atmosphere.
15. Do not use chemicals to clean the device.
16. Do not use the device for other purposes than designed.
17. Do not bend, stretch or pull the flexible hose. Do not use the cleaner if the hose is damaged (fig. 2).

18. Unplug the device after every use. To unplug, grab the plug, not a wire (fig. 3).

19. Do not suck mud, paste-like elements, ash, plaster and sharp items. It may damage the dust tank, filter and motor (fig. 4).

20. Do not suck hair, large paper, plastic bags which may clog suction tube (fig. 5).
21. Do not block air outlet located at the back of the device. It may cause the device to overheat and damage (fig. 6).
22. Do not use the cleaner when the feeder is damaged.
23. Do not grab a cable to pull or move the device. Do not place any items on it. Do not pull it through sharp edges of walls and furniture and do not wrap it too tight.
24. Do not use the device and do not touch the plug if your hands are wet.

Technical illustration of a mechanical component with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a mop with red X marks on a surface, no text or symbols present

Illustration of a mechanical device with a red X mark and a magnified inset showing internal components (no text or symbols)

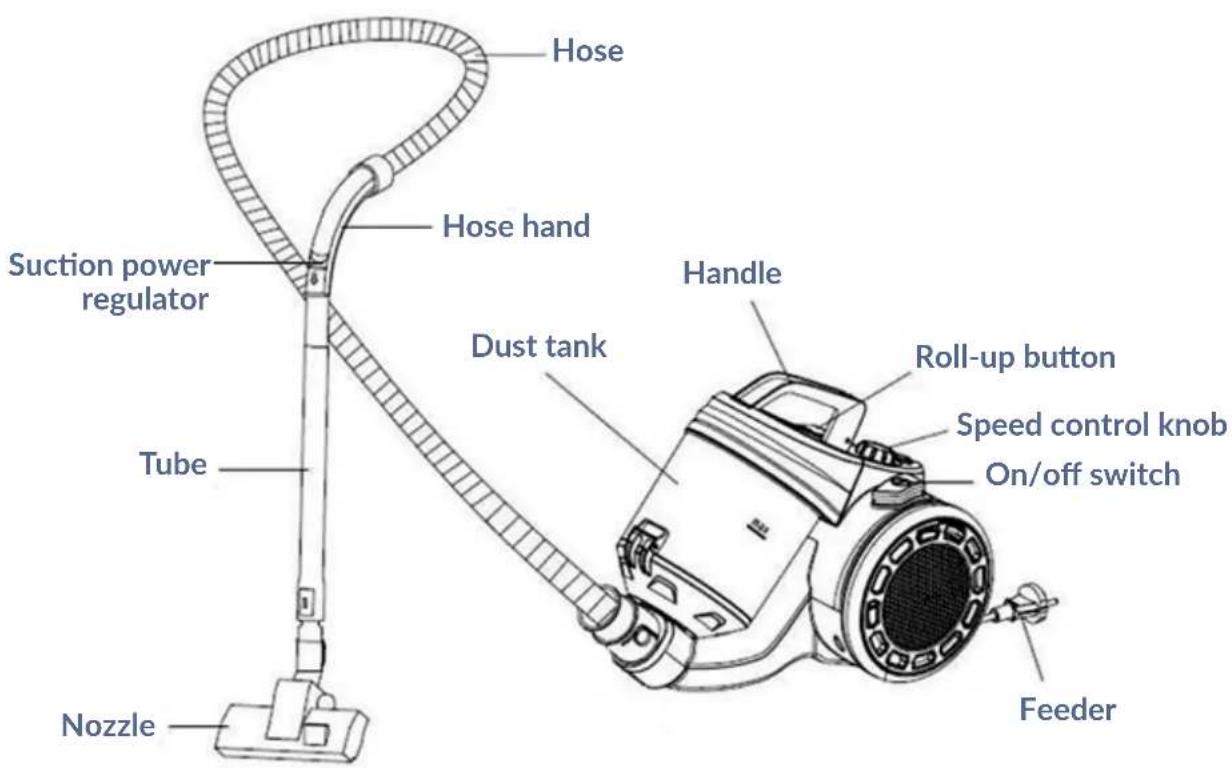

VACUUM CLEANER OUTLINE

EN

HOW TO ASSEMBLE

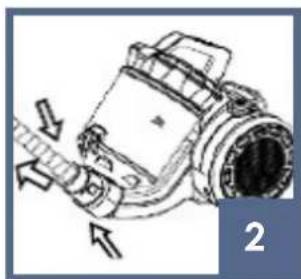

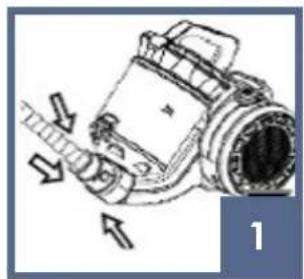

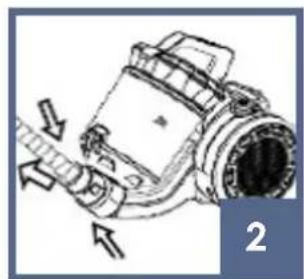

1. To assemble the vacuum cleaner hose, press two buttons and insert the hose until it locks in place.

2. To take the hose out, press two buttons and remove it.

3. When connecting the tube with a hose, insert he larger tube tip to the hose handle and turn to make a strong connection.

4. To connect the tube with nozzles, insert the smaller pipe tip to the nozzle and turn to make the strong connection

HOW TO USE

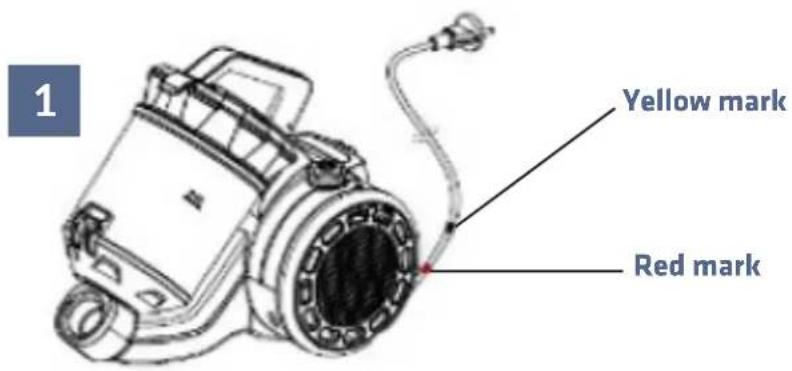

1. Uncoil the feeder to reach the yellow mark. It is forbidden to cross the red mark when uncoiling.

Diagram of a camera with directional arrows indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Line drawing of a medical catheter or tube with a curved arc and attached tubing (no text or symbols)

1. Once you have inserted the plug, press the on/off switch

2

1. You can adjust the suction power by shifting the adjuster on the hose handle.

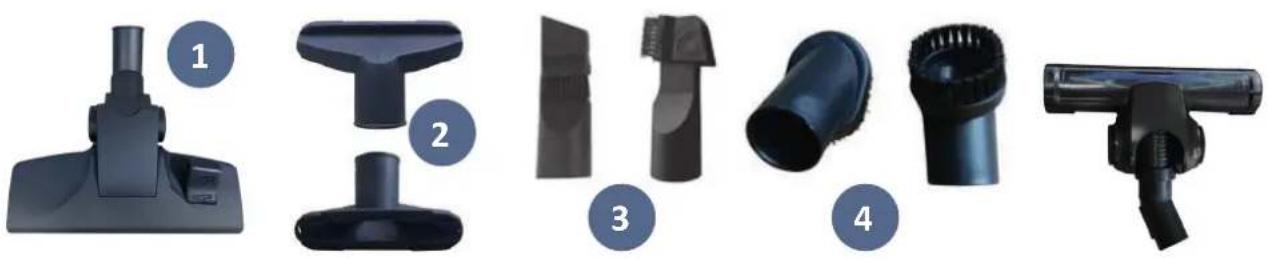

VACUUM CLEANER NOZZLES

Five different types of hair accessories with numbered labels (1 to 5), no visible text or symbols on the products themselves.

1 A nozzle for hard and soft floors (carpets, padding).
2 A nozzle intended to clean soft surfaces, such as sofas, armchairs, upholstered chairs.
3 Hollow nozzle for hard-accessible places.
4 Round nozzle with horsehair intended for irregular surfaces.
5 Turbo brush for hard and soft floors.

HOW TO EMPTY DUST TANK AND FILTER

When the dust reaches the mark in the tank, empty it and clean the fi Iter. To empty the tank and clean the fi Iter:

1. Press the butt on the handle and remove the tank from the vacuum cleaner.
2. Press the interlock butt on to open the tank and empty out the content.

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Illustration of two portable steamers with different internal designs, one standing upright and one lying down (no text or symbols)

EN

1. Open the top part of the tank and remove filters.

2. Clean the filter in water and dry it outdoors.

3. To clean the air outlet filter, remove it from the vacuum cleaner and rinse in running water. Wipe the filter with a paper towel and dry outdoors

Warning: Avoid drying the filter with warm or hot air (e.g. dryer).

HOW TO ROLL UP AND STORE CABLE

1. To roll up the cable, unplug it and press the roll-up button.

2. To store the vacuum cleaner, insert the floor and carpet pad into the vacuum cleaner handle.

Illustration of two portable steamers with upward arrows indicating motion (no text or symbols)

Simple line drawings of four abstract shapes: a stick, a plane, a ring, and a curved object (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

The pictures are for reference only. The real design of the products may differ from the pictures presented.

Einleitung

Technical illustration of a mechanical component with a magnified view showing internal features (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a mop with red cross mark and arrows indicating force or movement (no text or symbols)

Simple line drawing of a mop with a red X mark on a piece of paper, no text or symbols present

Technical line drawing of a mechanical device with a red X mark and a magnified inset showing internal components (no text or symbols)

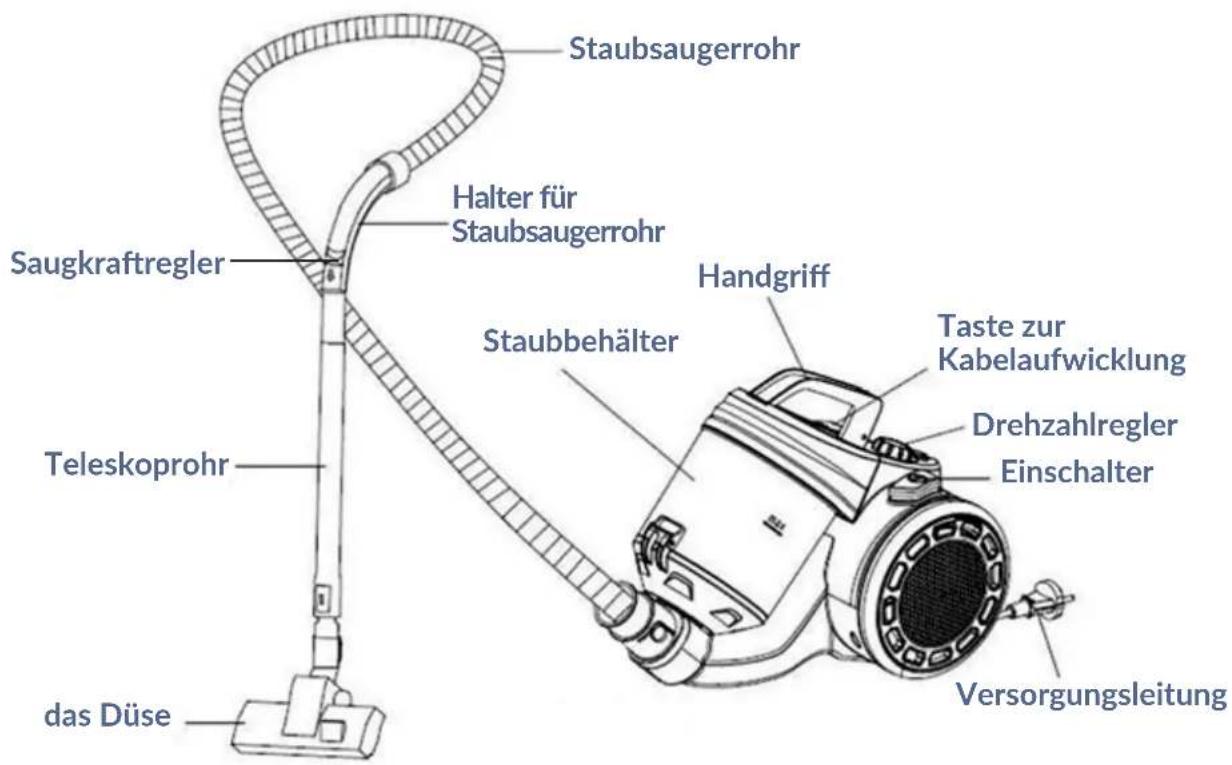

SCHEMA DES STAUBSAUGERS

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Mechanical component diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Simple line drawing of a curved mechanical or medical device with no visible text or symbols

DE

Product catalog illustration of a black vacuum cleaner, showing labeled parts from 1 to 5 (no text or symbols on the main objects)

Technical illustration of a mechanical device with a labeled component (no text or symbols present)

Illustration of two portable steamers with different internal designs, one standing upright and one lying down (no text or symbols)

Illustration of two portable kitchen units with heat transfer arrows indicating process flow (no text or symbols)

Simple line drawings of four different objects or symbols, including a stick figure, a bird, a birdhouse, and a ring (no text or labels)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical illustration of a mechanical component with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with a red X mark and a small inset showing a component (no text or symbols)

Simple line drawing of a mop with a red X mark on a surface, no text or symbols present

Technical line drawing of a mechanical device with a red X mark and a magnified inset showing internal components (no text or symbols)

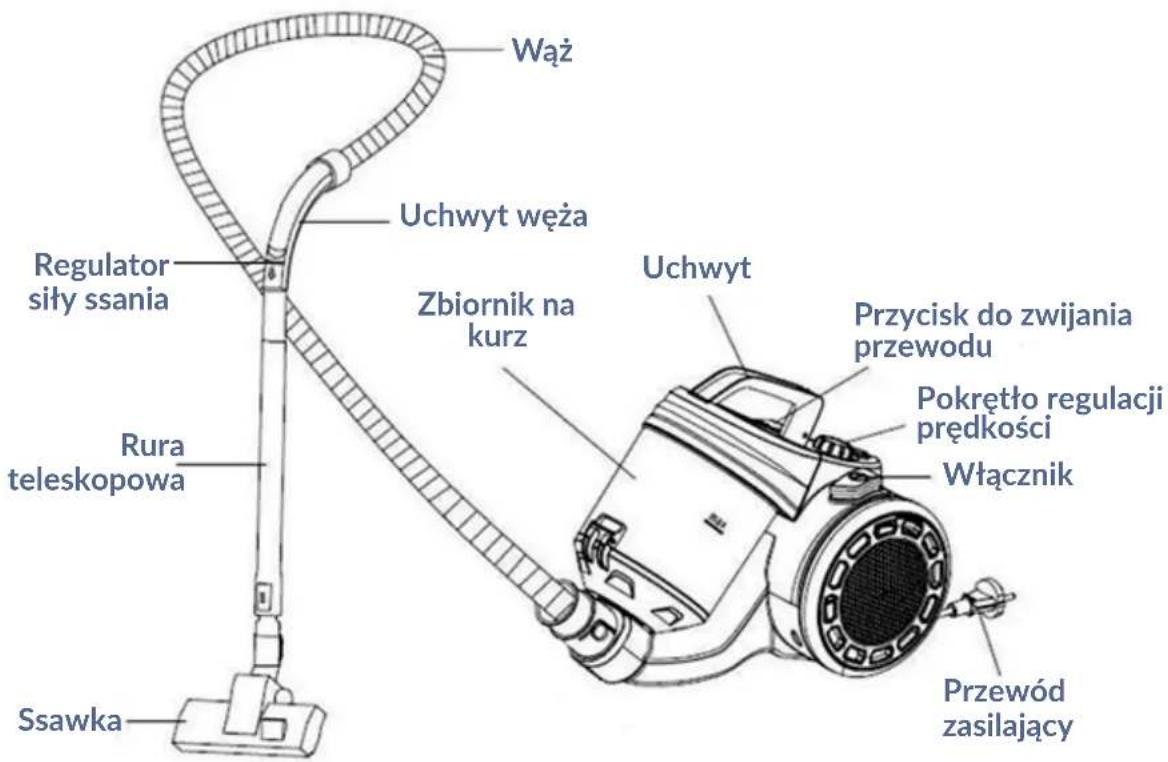

SCHEMAT ODKURZACZA

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating movement (no text or symbols)

Simple line drawing of a medical catheter or tube with a curved tube and attached tubing (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

ącznik

2

Five different types of hair accessories with numbered labels (1 to 5), no visible text or symbols on the products themselves.

Mechanical device component with no visible text or symbols

Two hand-drawn illustrations of a portable blender with a lid and lid removed, placed above a container (no text or symbols visible)

PL

Illustration of two portable steamers with upward arrows indicating motion (no text or symbols)

Simple line drawings of four different objects: a stick, a ring, a hand, and a hanging ring (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with a magnified circular detail showing internal features (no text or symbols)

Technical line drawing of a mechanical device with a red X mark and a small inset showing a component (no text or symbols)

Simple line drawing of a mop with a red X mark on a surface, no text or symbols present

Illustration of a mechanical device with a red X mark and a magnified inset showing internal components (no text or symbols)

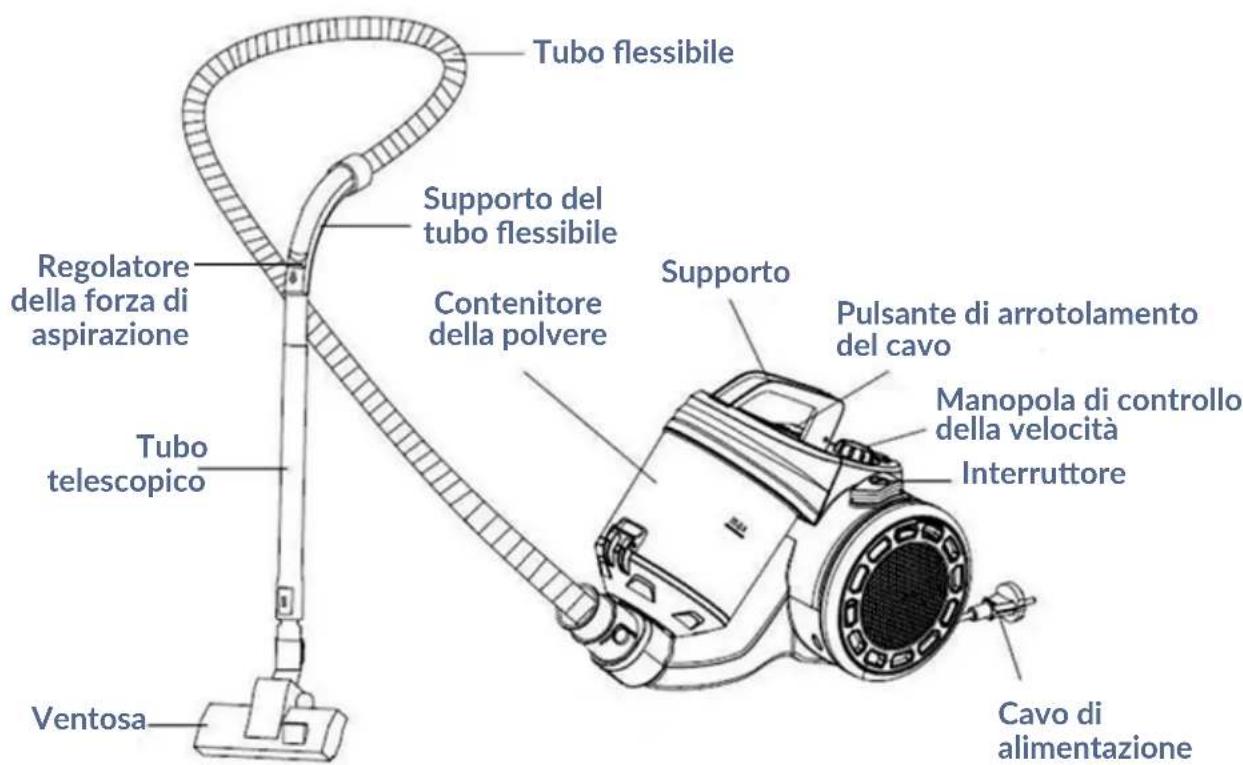

SCHEMA DELL'ASPIRAPOLVERE

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Mechanical component diagram showing a pipe connection with arrows indicating motion (no text or symbols)

Simple line drawing of a curved medical or surgical instrument with no visible text or symbols

Five black hairdryer accessories labeled 1 to 5, shown in a grid layout without any text or symbols.

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Two industrial filter units with different internal structures, one standing upright and one vertically inserted into a container (no text or symbols visible)

Illustration of two steamer machines with arrows indicating rotation and assembly (no text or symbols)

Simple line drawings of four abstract shapes or objects, no text or symbols present

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical illustration of a mechanical component with a magnified view showing internal features (no text or symbols)

Technical line drawing of a mechanical device with a red X mark and a small inset showing a component (no text or symbols)

Simple line drawing of a mop with a red X mark on a surface, no text or symbols present

Technical line drawing of a mechanical device with a red X mark and a magnified inset showing internal components (no text or symbols)

SCHÉMA DE L'ASPIRATEUR

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Line drawing of a medical catheter or tube with a curved arc and attached tubing (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a medical or surgical tool with a numbered label (3) and no visible text or symbols.

SUCEURS DE L'ASPIRATEUR

Five types of hairbrushes with numbered labels, shown from different angles (no text or symbols on parts)

Technical line drawing of a mechanical device with an arrow pointing to a component (no text or symbols present)

Two handwashers with different designs, one open and one filled with granular material (no text or symbols visible)

ES

Illustration of two portable steamers with upward arrows indicating motion (no text or symbols)

Simple line drawings of four abstract shapes: a stick, a plane, a ring, and a curved object (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

ENROULEMENT DU CÂBLE ET STOCKAGE

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical illustration of a mechanical component with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a mop and a red X mark on a surface, no text or symbols present

Illustration of a mechanical device with a red X mark and a circular symbol above it, no readable text or labels present.

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Mechanical component diagram showing a pipe connection with arrows indicating motion (no text or symbols)

Simple line drawing of a curved medical or surgical device with a looped handle and a small attached component (no text or symbols)

Product catalog illustration of a black vacuum cleaner, showing labeled parts from 1 to 5 (no text or symbols on the main objects)

Technical line drawing of a mechanical device with no visible text or symbols

Two handbought industrial machines with different internal designs, one emitting a valve and the other holding a textured surface (no text or symbols visible)

Illustration of two portable steamers with different internal compartments and directional arrows indicating process flow (no text or symbols)

Simple line drawings of four different objects or objects, possibly a lamp, fan, and ring, arranged vertically (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical illustration of a mechanical device with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with a red X mark and a small inset showing a component (no text or symbols)

Simple line drawing of a mop with a red X mark on a surface, no text or symbols present

Technical illustration of a mechanical device with a red X mark and a magnified inset showing internal components (no text or symbols)

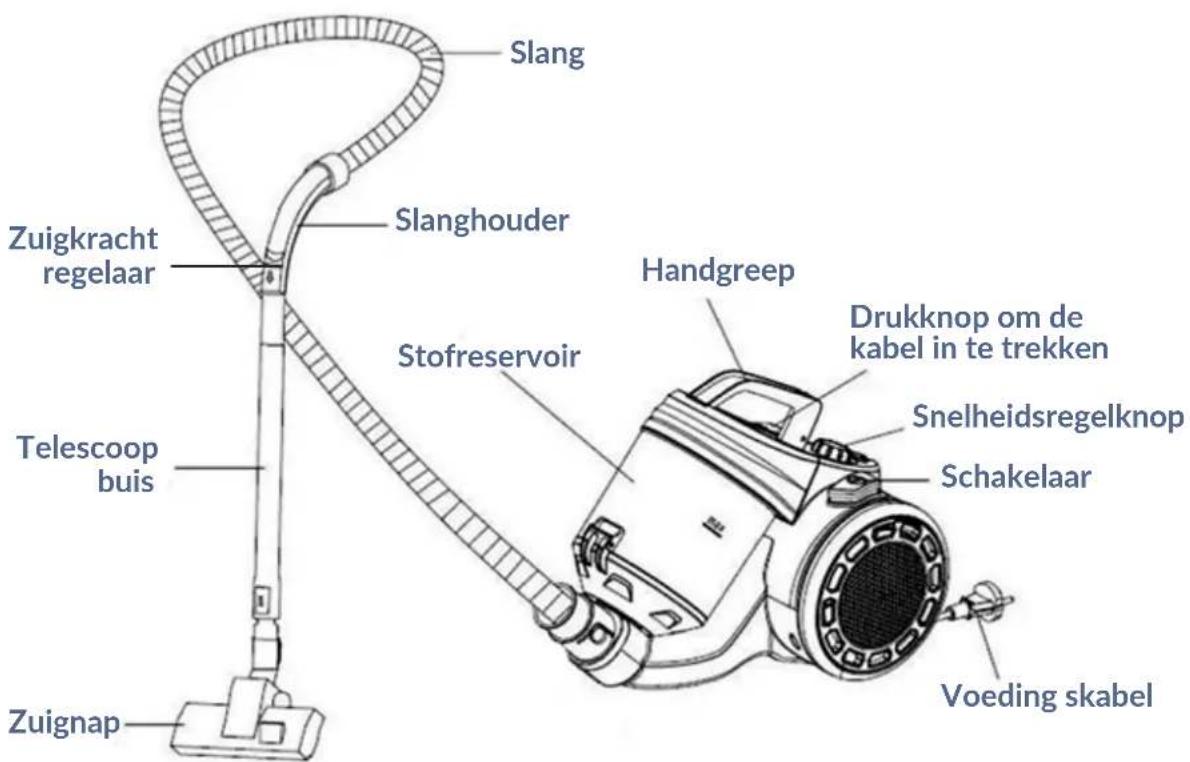

STOFZUIGERSCHEMA

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Line drawing of a medical catheter or tube with a curved arc and attached tubing (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Schakelaar

2

Product catalog illustration of a black vacuum cleaner, showing labeled parts from 1 to 5 (no text or symbols on the main objects)

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of two portable steam purifiers with different internal designs, one with a handle and the other with mesh insulation (no text or symbols)

NL

Illustration of two portable steamers with upward arrows indicating motion (no text or symbols)

Simple line drawings of three objects: a stick, a bowl with liquid, and a ring (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Illustration of a mechanical device with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with a red X mark and blue page number 3 (no text or symbols on the device itself)

Simple line drawing of a mop with a red X mark on a surface, no text or symbols present

Illustration of a mechanical device with a red X mark and a magnified inset showing a device (no text or symbols present)

СХЕМА ПИЛОСОСА

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Mechanical component diagram showing a pipe connection with arrows indicating motion (no text or symbols)

Simple line drawing of a curved medical or surgical device with no visible text or symbols

Product catalog illustration of a black vacuum cleaner, showing exploded view with numbered parts (no text or symbols on the main image)

Mechanical device with a cylindrical housing and mounting bracket, labeled '1' (no text or symbols on the device itself)

Illustration of two kitchen appliances with a side view showing their packaging and contents (no text or symbols)

Illustration of two portable steamers with different internal compartments and directional arrows indicating motion (no text or symbols)

Simple line drawings of four different objects or objects, possibly a lamp, fan, and ring, arranged vertically (no text or symbols)

Technical line drawing of a mechanical device with a circular component and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with a downward arrow indicating motion (no text or symbols present)

Technical illustration of a mechanical component with a magnified inset showing internal features (no text or symbols)

Technical line drawing of a mechanical device with a red X mark and label '3' (no readable text or symbols)

Illustration of a mop with a red X mark on a surface, no text or symbols present

Illustration of a mechanical device with a red X mark and a magnified inset showing internal components (no text or symbols)

VAKUUMINIO VALIKLIO SCHEMA

Mechanical component diagram showing fluid flow direction with arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Simple line drawing of a medical catheter or tube with a curved tube and attached tubing (no text or symbols)

Mechanical component diagram showing a cylindrical assembly with a downward arrow and label '1' (no text or symbols on the object itself)

Two industrial machines side by side, one with a handle and the other with a meshed base (no text or symbols visible)

LT

Illustration of two portable steamers with upward arrows indicating process flow (no text or symbols)

Simple line drawings of three abstract shapes: a stick, a bowl with liquid, and a ring (no text or symbols)

Technical line drawing of a mechanical device with a circular component and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Uvod

Poštovani!

Technical illustration of a mechanical component with a red cross mark and circular detail (no text or symbols)

Technical line drawing of a mechanical device with a red X mark and label '3' (no readable text or symbols)

Diagram of a mop with a red cross mark indicating a point, showing force application (no text or symbols)

Simple line drawing of a mop with a red X mark on a surface, no text or symbols present

Technical line drawing of a mechanical device with a red X mark and a circular symbol above it (no readable text or labels)

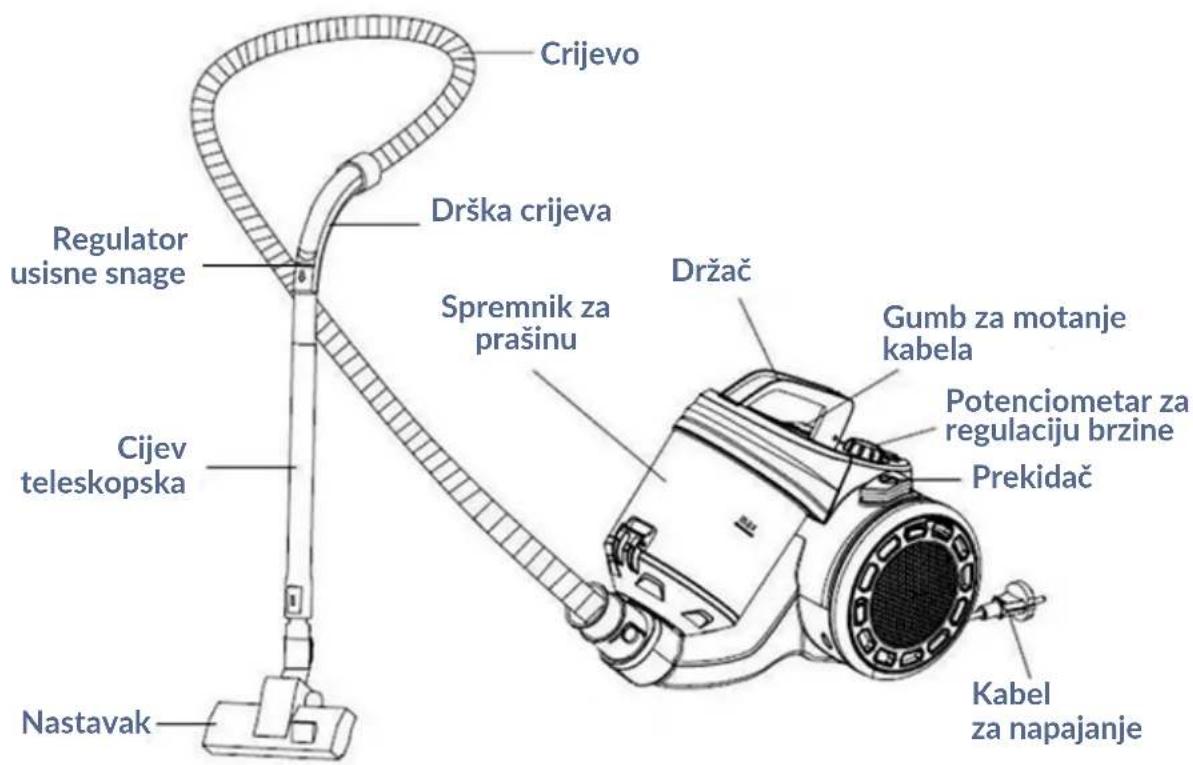

NACRT USISIVAČA

MONTAŽA

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Mechanical component diagram showing a lever and shaft assembly (no text or symbols)

Simple line drawing of a curved mechanical or medical device with no visible text or symbols

HR

1. Usisnu snagu je moguće kontrolirati putem promjene položaja regulatora na dršci crijeva.

NASTAVCI USISIVAČA

Set of six black hairdryer accessories with numbered labels (1–4), no visible text or symbols on the products themselves.

Technical line drawing of a mechanical device with no visible text or symbols

Two types of portable devices with different internal structures, one showing a handle and the other a textured surface (no text or symbols visible)

Illustration of two steamer machines with arrows indicating rotation and assembly (no text or symbols)

Simple line drawings of four different objects or objects, possibly a lamp, fan, and ring, arranged vertically (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols present)

Slike imaju ilustrativni karakter, stvarni izgled proizvoda može se razlikovati od prikazanog na slikama.

CE

EN: The product complies with requirements of EU directives.

Pursuant to the Directive 2012/19/EU, this product is subject to selective collection. The product must not be disposed of along with domestic waste as it may pose a threat to the environment and human health. The worn-out product must be handed over to the electrics and electronics recycling center.

BrandLine Group Service – Support

List of Authorized Service Centers: Liste der Autorisierten Herstellerservicezentren: Lista autoryzowanych centrów serwisowych: Elenco dei centri di assistenza autorizzati: Liste des centres de service autorisés: Lista de centros de servicio autorizados: Lijst met erkende servicecentra: Список уповноважених сервісних центрів: Igaliotų aptarnavimo centrų sąrašas: Popis ovlaštenih servisnih centara:

www.zeegma.com/en/service
