Product Type	Rechargeable LED Work Light
Brand	Vonroc
Model	S_WL503DC
Rated Voltage	20 V
Power	10 W (mode I) / 20 W (mode II)
Luminous Flux	900 lm (I) / 1800 lm (II)
Color Temperature	6500 K (daylight)
Light Source	LED (non-replaceable)
Compatible Batteries	CD801AA (20 V, 2 Ah) or CD803AA (20 V, 4 Ah) – VPOWER 20 V platform
Compatible Charger	CD802AA (fast charger 21 V, 2.5 A)
Battery Life	2 Ah battery: 4 h (I) / 2 h (II); 4 Ah battery: 8 h (I) / 4 h (II)
Charging Time	2 Ah battery: 60 min; 4 Ah battery: 120 min
Weight (without battery)	1.0 kg
Body Rotation Angle	300° (adjustable)
Suspension Hook	Yes, integrated into base
Use	Indoor only (temporary mobile light source)
Cleaning	Soft slightly damp cloth and mild soap solution; no solvents
Warranty	Statutory warranty for defects (parts and labor)
Certifications	CE

Frequently Asked Questions - S_WL503DC Vonroc

Which batteries are compatible with the Vonroc S_WL503DC light?

Only batteries from the Vonroc VPOWER 20 V platform are compatible: models CD801AA (20 V, 2 Ah) and CD803AA (20 V, 4 Ah). Using other batteries may damage the device or cause injury.

How to charge the battery of the light?

Remove the battery from the light, fully insert it into the CD802AA charger (recommended), then plug the charger into a power outlet. The indicators show the charging status: solid red = charging, solid green = fully charged. A 2 Ah battery charges in about 60 minutes, a 4 Ah battery in 120 minutes.

How to adjust the direction of the light?

Loosen the locking knobs (4) on each side of the lamp head (2), tilt the head to the desired position (300° rotation), then retighten the knobs to lock.

Can the light be used outdoors?

No. The light is designed for indoor use only as a temporary mobile light source. It is not approved for road use and must not be exposed to rain.

What is the light output and battery life per mode?

Mode I: 10 W, 900 lm; Mode II: 20 W, 1800 lm. With a 2 Ah battery: life of 4 h (I) or 2 h (II). With a 4 Ah battery: 8 h (I) or 4 h (II).

What to do if the light does not turn on?

First check that the battery is charged (press the LED button on the battery). If the battery is empty, recharge it. Ensure the battery is properly inserted. If the problem persists, contact Vonroc after-sales service.

How to clean the light?

Use a soft cloth slightly dampened with mild soapy water. Never use solvents such as gasoline, alcohol, or ammonia which could damage the synthetic components.

Is the LED replaceable?

No, the LED light source is not replaceable. At the end of its life, the light must be disposed of according to electronic waste regulations.

What is the warranty period?

The warranty covers defects in parts and labor for the legal duration (usually 2 years from date of purchase). Damage from normal wear, misuse, or unauthorized repairs is excluded.

Can I use the light with a charger other than the CD802AA?

It is strongly recommended to use only the CD802AA charger intended for VPOWER 20 V batteries. Using another charger may damage the battery or pose a safety risk.

USER MANUAL S_WL503DC Vonroc

White megaphone icon with radiating lines on black background (no text or symbols)

EN Original Instructions 04

Labeled diagram of a portable lighting fixture with numbered parts for identification

B 7

C 2 4

D

10 1 2 7 8

E

8 12 11 9 13 13

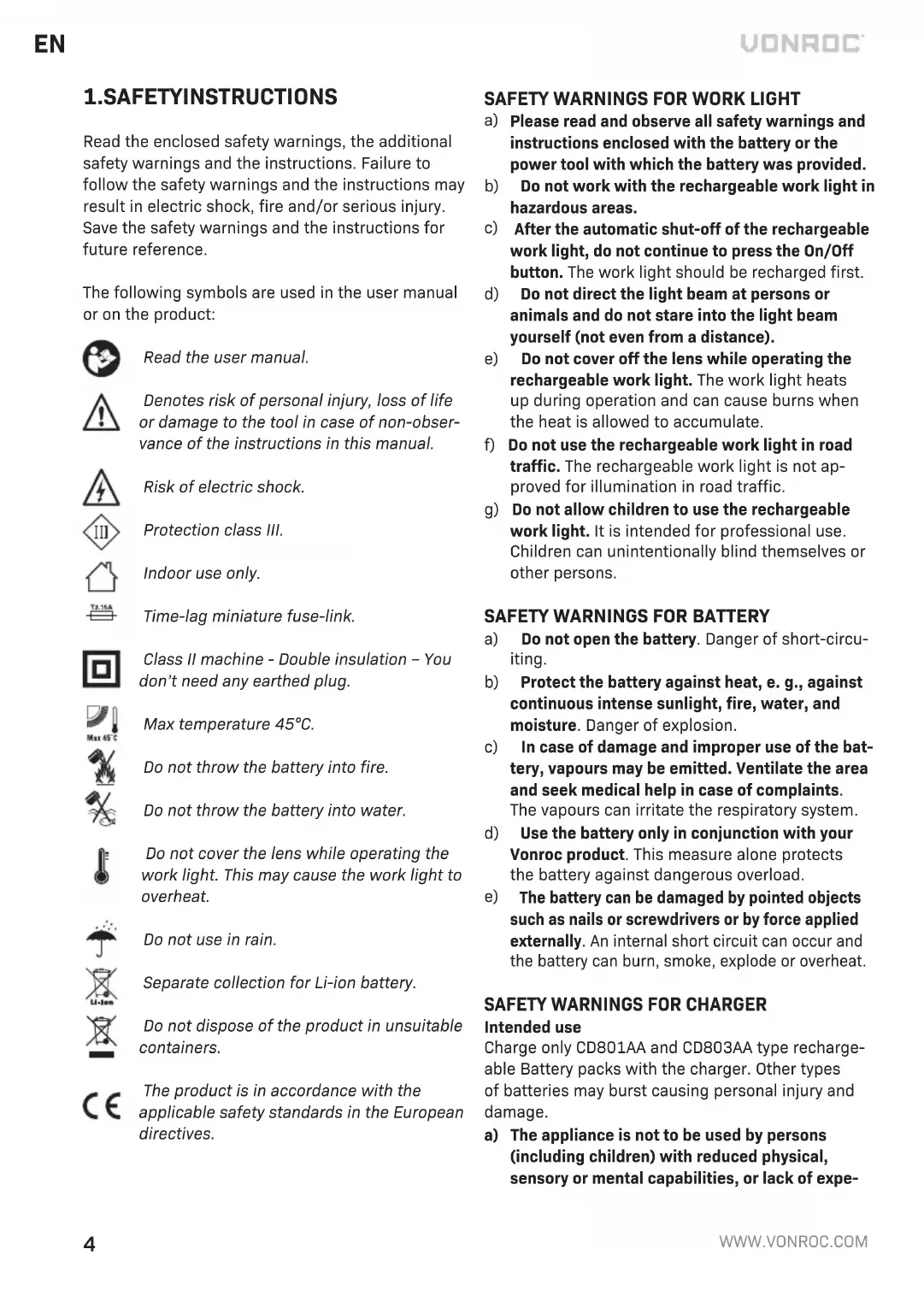

1.SAFETYINSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Risk of electric shock.

Protection class III.

Indoor use only.

Time-lag miniature fuse-link.

Class II machine - Double insulation - You don't need any earthed plug.

Max temperature 45°C.

Do not throw the battery into fire.

Do not throw the battery into water.

Do not cover the lens while operating the work light. This may cause the work light to overheat.

Do not use in rain.

Separate collection for Li-ion battery.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

SAFETY WARNINGS FOR WORK LIGHT

a) Please read and observe all safety warnings and instructions enclosed with the battery or the power tool with which the battery was provided.

b) Do not work with the rechargeable work light in hazardous areas.

c) After the automatic shut-off of the rechargeable work light, do not continue to press the On/Off button. The work light should be recharged first.

d) Do not direct the light beam at persons or animals and do not stare into the light beam yourself (not even from a distance).

e) Do not cover off the lens while operating the rechargeable work light. The work light heats up during operation and can cause burns when the heat is allowed to accumulate.

f) Do not use the rechargeable work light in road traffic. The rechargeable work light is not approved for illumination in road traffic.

g) Do not allow children to use the rechargeable work light. It is intended for professional use. Children can unintentionally blind themselves or other persons.

SAFETY WARNINGS FOR BATTERY

a) Do not open the battery. Danger of short-circuiting.

b) Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

c) In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.

d) Use the battery only in conjunction with your Vonroc product. This measure alone protects the battery against dangerous overload.

e) The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.

SAFETY WARNINGS FOR CHARGER

Intended use

Charge only CD801AA and CD803AA type rechargeable Battery packs with the charger. Other types of batteries may burst causing personal injury and damage.

a) The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of expe-

rience and knowledge, unless they have been given supervision or instruction.

b) Children being supervised not to play with the appliance.
c) Do not recharging non-rechargeable batteries!
d) During charging, batteries must be placed in the well ventilated area!

2.MACHINEINFORMATION

Intended use

The work light is intended as mobile illumination for temporary use in dry indoor areas. It is not suitable for permanent room lighting.

TECHNICAL SPECIFICATIONS

This manual has been drawn up for different sets / article numbers. Check the corresponding article number in below specifications table for the correct composition and contents of your set.

Model No.	Batteries included	Chargers included
WL503DC	-	-
S_WL503DC	CD801AA CD802AA
S2_WL503DC	2 x CD801AA CD802AA
S3_WL503DC	CD803AA CD802AA

Machine information
Voltage 20V	---
Power (I) 10W
Power (II) 20W
Luminous flux (I) 900lm
Luminous flux (II) 1800lm
Colour temperature	6500K
Weight	1.0kg

Model No.	CD801AA
Battery Type	Lithium-Ion
Voltage	20V---
Capacity	2.0 Ah
Recommended charger	CD802AA
Weight	0.3 kg

Model No.	CD802AA
Charger input	220-240V, 50Hz 0.4A
Charger output	21V = 2.5A
Charging time 2Ah battery	60 minutes
Charging time 4Ah battery	120 minutes
Recommended batteries	CD801AA, CD803AA
Weight	0.36 kg

Model No.	CD803AA
Battery Type	Lithium-Ion
Voltage	20V=
Capacity	4.0 Ah
Recommended charger	CD802AA
Weight	0.65 kg

Only use the following batteries of the VONROC VPOWER 20V battery platform. Using any other batteries could cause serious injury or damage the tool.

CD801AA 20V, 2Ah Lithium-Ion

CD803AA 20V, 4Ah Lithium-Ion

The following charger of the can be used to charge these batteries.

CD802AA Quick charger

The batteries of the VONROC VPOWER 20V battery platform are interchangeable with all the VONROC VPOWER 20V battery platform tools.

DESCRIPTION

The numbers in the text refer to the diagrams on page 2-3.

1. Carryinghandle
2. Lamp body
3. Lamp cover
4. Locking knob
5. Lamp base
6. Hanging hook
7. On/Off switch
8. Battery
9. Battery charger
10. Battery release button
11. Battery LED button
12. Battery LED indicators
13. Charger LED indicators

3.ASEMBLY

Before any work on the power tool, remove the battery.

The battery must be charged before first use.

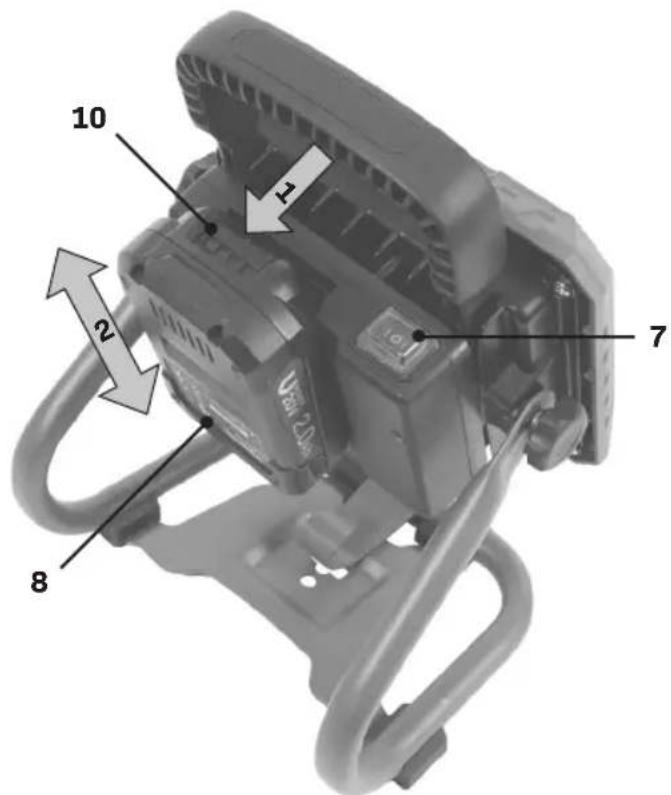

Inserting the battery into the machine (Fig. D)

Ensure that the exterior of the battery is clean and dry before connecting to the charger or machine.

1. Insert the battery (8) into the base of the machine as shown in Fig. D.
2. Push the battery forward until t clicks into place.

Removing the battery from the machine (Fig. D)

1. Push the battery unlock button (10)
2. Pull the battery out of the machine as shown in Fig. D.

Checking the battery charging status (Fig. E)

• To check the battery charge status, push the button (11) on the battery shortly.
• The battery has 3 LED lights indicating the charge level.
• When none of the indicators light up the battery is empty and must be charged immediately.

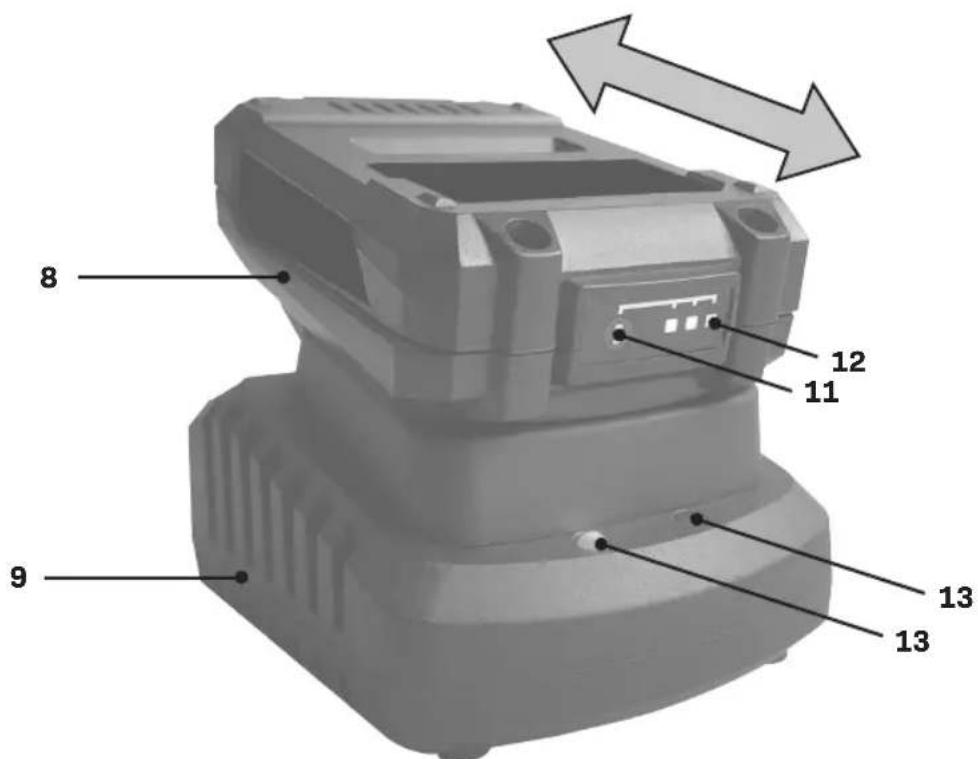

Charging the battery with the charger (Fig. E)

1. Remove the battery (8) from the machine.
2. Turn the battery (8) to upside down position and slide it onto the charger (9) as shown in Fig. E.
3. Make sure that the battery (8) is fully inserted into the slot.
4. Plug the charger into an electrical outlet. After a short while the LED indicators on the charger (13) will light up to show the charger status.

The charger has 2 LED indicators (13) which indicate the status of the charging process

Red LED Status	Green LED status	Charger status
Off Off No power
Off On		Standby mode:- No battery is inserted or,- Battery inserted but charging has finished
On Off		Battery charging in progress

• Fully charging a 2Ah battery may take up to 60 minutes.
• Fully charging a 4Ah battery may take up to 120 minutes.

After the battery is fully charged remove the charger plug from the outlet and remove the battery from the charger.

When the machine is not being used over a longer period of time it is best to store the battery in charged condition.

4. OPERATION

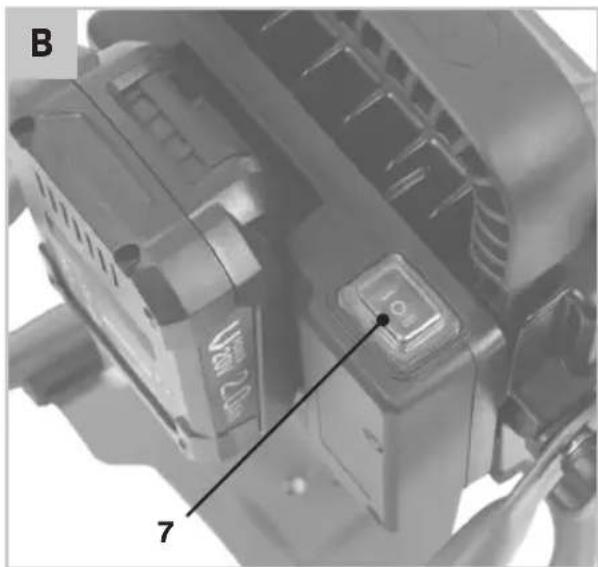

On/Off switch (Fig. B)

• To turn on the work light, select the desired operating mode (I / II) using the On/Off switch (7).
• To switch the work light off, select '0' using the On/Off switch (7).

Operating mode	Power	Luminous flux	Runtime (2Ah battery)	Runtime (4Ah battery)
I 10W 900lm	4 hours	8 hours
II	20W 1800lm	2 hours	4 hours

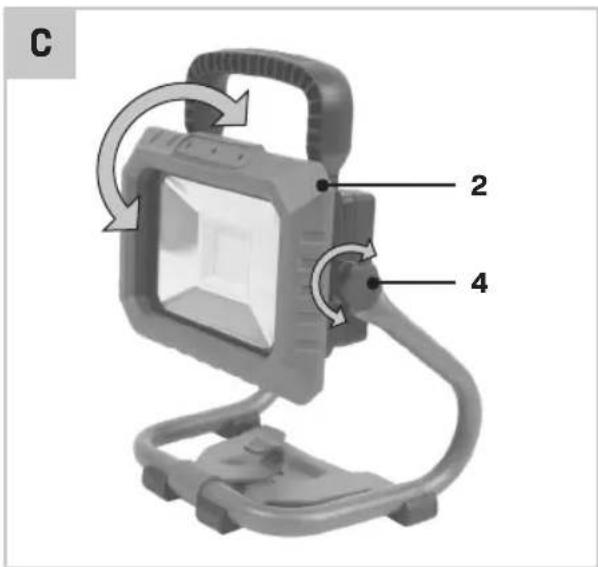

Adjusting the lamp body (Fig. C)

The position of the lamp body (2) may be adjusted over a 300^ range by swiveling up and down.

1. Release the locking knobs (4) on both sides of the lamp body (2)
2. Adjust the lamp body (2) to the desired position
3. Secure the lamp body (2) in place by tightening the locking knobs (4) on both sides.

Hanging hook (Fig. A)

The lamp base (5) is equipped with a hanging hook (6). The hanging hook may be used to hang the lamp upside down to light your work area from above. When not in use, the hanging hook (6) should be folded back into its initial position on the lamp base (5).

5.MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the battery pack from the machine.

Replace the light in case the glass covers become damaged. Damaged lights can not be repaired and must be disposed of.

The LED light source in this lamp is not replaceable. When the LED light source has reached the end of its life the light must be disposed of.

Cleaning

Clean the machine exterior regularly with a soft cloth, preferably after each use. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components of the work light.

ENVIRONMENT

ulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any

failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
• Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.
