Product type	Electric saw (jigsaw)
Brand	Einhell
Model	ST 350
Rated voltage	230 V ~ 50 Hz
Power consumption	350 W
Cycles per minute	max. 3000
Stroke	18 mm
Cutting depth (wood)	55 mm
Cutting depth (plastic)	10 mm
Cutting depth (iron)	6 mm
Bevel cut	max. 45° (left and right)
Sound pressure level LPA	89 dB(A)
Sound power level LWA	99.6 dB(A)
Warranty	6 months from date of purchase
Power supply	Mains with cable
Eye protection	Provided (safety goggles)
Adjustable saw shoe	Yes, tilts up to 45° on both sides
Chip extraction	Yes, connection for vacuum cleaner at the rear
Blade replacement	Easy with provided allen key

Frequently Asked Questions - ST 350 EINHELL

How to turn on the ST 350 saw?

For impulse operation, push the ON/OFF switch (3). To release it, release the switch. For continuous operation, push the switch and lock it with the stop button (2). To stop, push and release the switch.

How to replace the saw blade?

First unplug the device. Loosen the two screws on the slide with the provided allen key. Slide the new blade into the guide groove up to the stop, making sure the teeth are facing the cutting direction. Tighten the two screws. Check that the blade is properly seated in the groove of the roller and the rod.

How to adjust the shoe for bevel cutting?

Loosen the two screws under the shoe (Fig. 4). Tilt the shoe to the desired angle (max. 45° left or right). The positions 15°, 30° and 45° are marked with lines. Retighten the screws. You can also slide the shoe backwards for cutting close to edges.

How to connect a vacuum cleaner to the saw?

The saw is equipped with a vacuum cleaner connection at the rear. Connect any vacuum cleaner to the suction port. If you need a specific adapter, contact your vacuum cleaner manufacturer.

What are the maximum cutting depths?

Wood: 55 mm, plastic: 10 mm, iron: 6 mm. The blade stroke is 18 mm.

What safety precautions should I take?

Always wear safety goggles, gloves and ear protection. Use a respirator for dusty work. Check the device before each use. Disconnect the plug before any maintenance. Do not use the device in rain or damp conditions.

How to clean the ST 350 saw?

Unplug the device. Clean external parts with a damp cloth. Do not use aggressive solvents. Ensure the ventilation openings are clear. For chip extraction, empty the vacuum cleaner bag regularly.

What to do if the blade jams during cutting?

Immediately release the switch and unplug the device. Check if the blade is damaged or incorrectly inserted. Ensure the workpiece is properly secured. Use a blade suitable for the material. Too rapid feed can also cause jamming.

What is the warranty of the Einhell ST 350 saw?

The warranty period is 6 months from the date of purchase. It covers material and manufacturing defects. Spare parts and labor are not charged during this period. Consequential damages are not covered.

How to cut a chipboard panel without drilling a pilot hole?

Use a thin saw blade. Place the saw shoe in an uncovered area. Set a low feed force. Press the saw firmly against the workpiece support and advance slowly in the cutting direction.

USER MANUAL ST 350 EINHELL

Technical line drawing of a mechanical device with no visible text or symbols

ST 350

©Bitte Seite 2-3 ausklappen
GBPlease pull out pages 2-3
⑤Veuillez ouvrir les pages 2 à 3
NLGelieve bladzijden 2-3 te ontvouven
EDesdoble las páginas 2 a 3
©Desdobre as páginas 2-3
⑤Fäll upp sidorna 2-3
SF Käännä sivut 2-3 auki
©Slå opp på side 2-3
©Παρακαλούμε ξεδιπλώσετε τις σελίδες 2-3.
①Aprire le pagine dalle 2 alla 3
DKFold siderne 2-3 ud

1

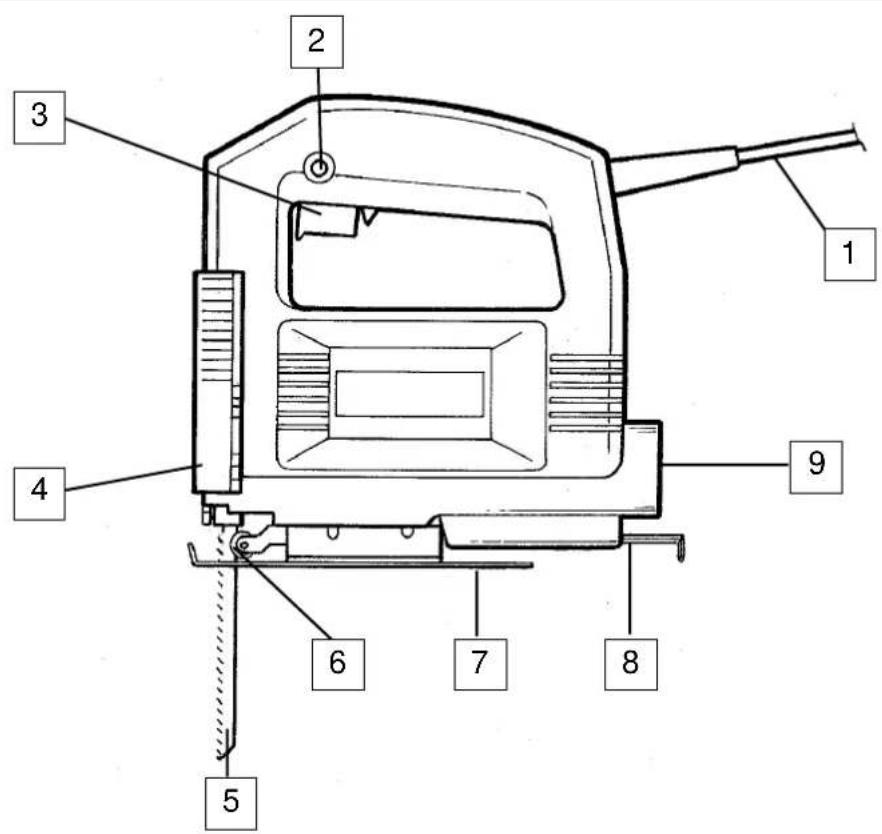

1 2 3 4 5 6 7 8 9

D

Beschreibung

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

General safety and accident prevention regulations

To work safely with this machine and to prevent accidents it is imperative to read the following safety regulations and operating instructions in full and to put all the information into practice.

●Always check the machine, the power cable and the plug before use. Only ever use the machine if it is in perfect, undamaged condition. Damaged parts are to be repaired or replaced immediately by a qualified electrician.
●Always pull the plug out of the power socket before carrying out any work on the machine, before changing the tool and in periods of non-use.
●Always run the power cable away from the back of the machine to guard it from damage.
- For outdoors work use only suitably approved extension cables with a minimum conductor cross section of 1.5 ~mm^2 . The plug connectors must have earthing contacts and be rain-water-proof.
- Keep the machine in a safe place and out of the reach of children.
●Always wear goggles, safety gloves and ear muffs when grinding, brushing and cutting. Wear a breathing mask on dusty jobs.
●Never leave any tool keys or adjustment spanners in position on the machine. Before switching on, check that all keys and adjustment spanners have been removed.
- Secure the workpiece (with a clamp) so that it cannot slip.
- It is imperative to use a dust extractor when working on stone (cutting or grinding). Make sure the dust extractor is approved for stone dust.
●It is prohibited to use the machine on asbestos materials. Please note the accident prevention regulations in force in your country.

●Use only original spare parts.
●Repairs are to be carried out by qualified electricians only.
●The level of noise at the workplace may exceed 85 dB(A). In this case you will need to introduce noise protection measures for the user. The noise produced by this electric tool is measured in accordance with IEC 59 CO 11, IEC 704, DIN 45635 Part 21, NFS 31-031 (84/537/EEC).

●Make sure of your footing. Avoid abnormal working positions.

- Keep your electric tool out of the rain. Never use electric tools in wet or damp conditions, and never use them near inflammable liquids.

●Never carry the machine by its power cable. Keep the power cable safe from damage. Oil, solvent and sharp edges can damage cables.

- Keep your workplace tidy.

●Make sure the power switch is off before inserting the plug in the socket.

●Wear suitable clothing. Never wear loose-fitting clothes or jewelry. Use a hair-net on long hair.

- For your own safety, use only the manufacturer's accessories and attachments.

- Use only sharp saw blades that are in perfect condition. Replace bent and cracked saw blades immediately.

●After switching off the jigsaw, do not press against the side of the blade to bring it to a halt.

●Always cut at a steady rate of progress. This will prevent accidents and prolong the life of your jigsaw and the blade.

GB

Operating instructions for the ST 350 electric jigsaw

STARTING UP

Instant response operation (Figure 3)

Switching on: Press the On/Off switch

Switching off: Release the On/Off switch

Continuous operation

Switching on: Press the On/Off switch, keep pres sed and lock with the locking button

Switching off: Press the On/Off switch and release

Changing the saw blade (Figure 2)

Switch off the jigsaw and remove the plug from the power socket before changing the blade or carrying out any other work on the jigsaw.

Use the supplied hexagon-socket spanner to undo the two screws on the ram (Figure 2). Slide the saw blade into the guide slot and up to the stop between the piston rod and the retention clip. Use the supplied hexagon-socket spanner to tighten the two screws. The teeth of the saw blade must face in cutting direction. Make sure that the saw blade sits properly in the guide slot of the ram and roller.

Adjusting the base

(for mitering and sawing near edges, Figure 4) For mitre and bevel cuts you can swivel the base by up to 45^ in either direction after undoing the two screws on the bottom. The angles 15^ , 30^ and 45^ are marked but you can adjust the saw to any angle between these markings as required.

To adjust the cutting angle, undo the two screws (Figure 4) until you can just about move the blade. Adjust to the required angle and re-tighten the two screws.

To enable you to saw right up to the edge, the base can be pushed backward. To do so, undo the two screws underneath (Figure 4) and push the base to the back. Re-tighten the two screws.

Dust extraction

The jigsaw is equipped with a dust extractor socket. Any vacuum cleaner can be connected to the socket at the rear of the jigsaw. If you require a special adapter, please contact the manufacturer of your vacuum cleaner.

TECHNICAL DATA

Nominal voltage: 230 V ~ 50 Hz

Power consumption: 350 W

Cutting rate: max. 3000 strokes/min.

Stroke height: 18 mm

Cutting depth in wood: 55 mm

Cutting depth in plastic: 10 mm

Cutting depth in iron: 6 mm

Mitre cuts: up to 45° (left and right)

Sound pressure level LPA: 89 dB(A)

Sound power level LWA: 99.6 dB(A)

GB

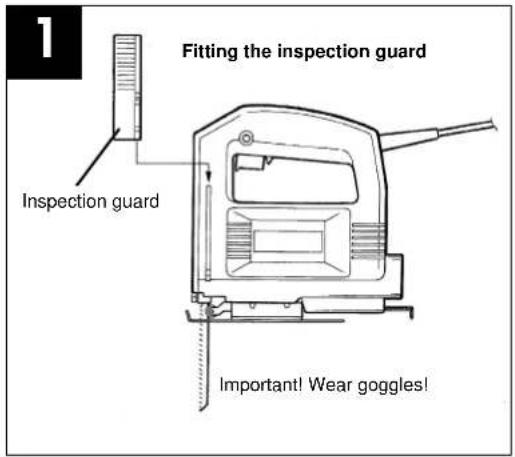

1 Fitting the inspection guard Inspection guard Important! Wear goggles!

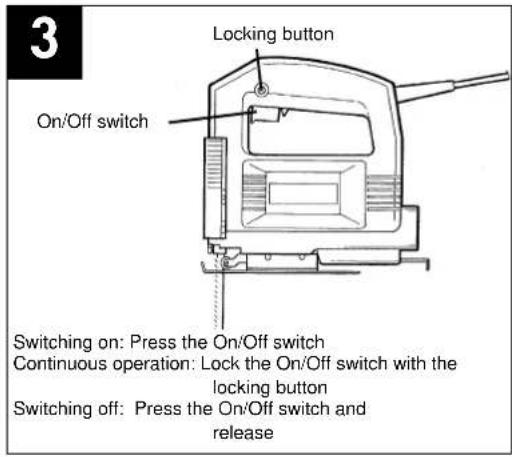

3 Locking button On/Off switch Switching on: Press the On/Off switch Continuous operation: Lock the On/Off switch with the locking button Switching off: Press the On/Off switch and release

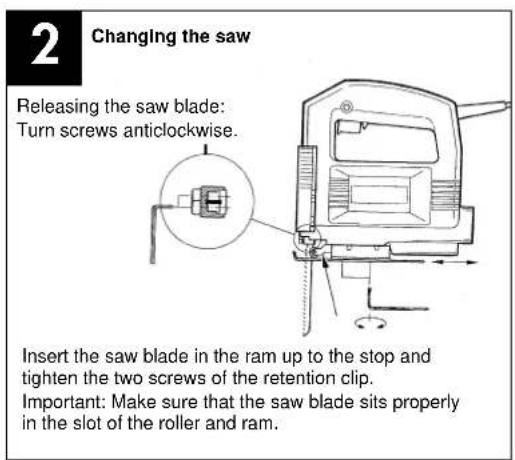

2 Changing the saw Releasing the saw blade: Turn screws anticlockwise. Insert the saw blade in the ram up to the stop and tighten the two screws of the retention clip. Important: Make sure that the saw blade sits properly in the slot of the roller and ram.

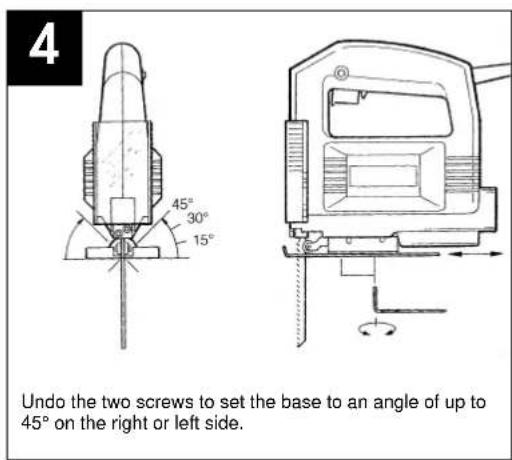

4 45° 30° 15° Undo the two screws to set the base to an angle of up to 45° on the right or left side.

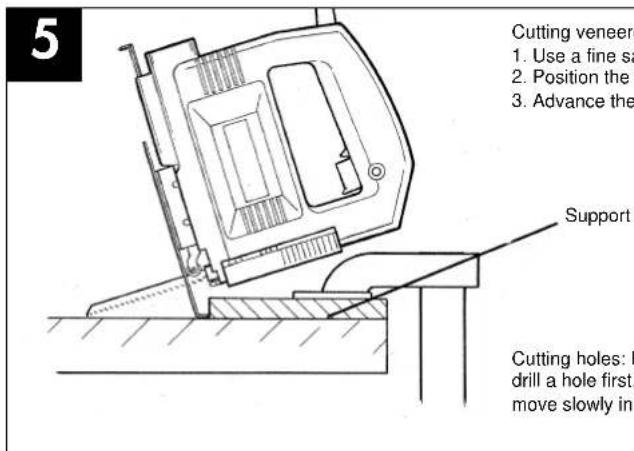

5 Cutting veneere 1. Use a fine sa 2. Position the 3. Advance the Support Cutting holes: P drill a hole first. move slowly in

F

Description

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Conector/ Desconnect

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with a tool inserted, showing no text or symbols

Corte de placas folheadas de aglomerado de madeira:

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with a tool and base, no visible text or symbols

Technical line drawing of a mechanical device with a lever and base, no visible text or symbols

Exploded view diagram of a mechanical assembly with numbered parts for identification

⑤ EINHELL GARANTIBEVIS

The guarantee period begins on the sales date and is valid for 1 year.

Responsibility is assumed for faulty construction or material or functional defects.

Any necessary replacement parts an necessary repair work are free of charge.

We do not assume responsibility for consequential damage.

Your customer service partner

NL EINHELL-GARANTIE

DK EINHELL GARANTIBEVIS

Eschenstraße 6 · D-94405 Landau/Isar (Germany)

15 Warwick House Ind. Park, Banbury Road,

Sautham, Warwickshire CV 33 OPS

Technical changes subject to change
