POWX07583 - Saw PowerPlus - Free user manual and instructions

Product type	Combined upper table mitre saw (mitre saw and sawing bench)
Brand	PowerPlus
Model	POWX07583
Table dimensions	480 x 290 mm
Net weight	16 kg
Gross weight	19 kg
Supply voltage	230-240 V ~ 50 Hz
Power consumption	2000 W
Blade rotation speed	4800 min⁻¹
Saw blade	254 x 30 x 2.8 mm, 36 teeth (TCT)
Insulation class	II (double insulation)
Cutting capacity (table circular saw)	50 mm max. thickness
Cutting capacity (mitre saw 90°x90°)	H75 x W125 mm
Cutting capacity (mitre saw 45°x90° left)	H75 x W80 mm
Cutting capacity (mitre saw 45°x90° right)	H75 x W65 mm
Cutting capacity (mitre saw 90°x45°)	H50 x W125 mm
Cutting capacity (mitre saw 45°x45° left)	H50 x W30 mm
Cutting capacity (mitre saw 45°x45° right)	H50 x W65 mm
Table rotation angle	-45° to +45° with stops at 0°, 15°, 22.5°, 31.6°, 45°
Bevel angle	0° to 45° left
Sound pressure level	103 dB(A) (K=3)
Sound power level	116 dB(A) (K=3)
Safety features	Restart protection, upper and lower blade guard, riving knife, blade brake (not mentioned but typical)
Laser	Class 2 (EN 60825-1:2014)
Lighting	Work light powered by 3 AAA batteries (1.5 V)
Package contents	Parallel guide, push stick, clamp, hex keys, dust bag, upper blade guard, instruction manual, blade, side extensions, AAA batteries, pin wrench
Warranty	36 months (excluding normal wear and accessories)

Frequently Asked Questions - POWX07583 PowerPlus

Where can I download the user manual for the PowerPlus POWX07583 saw?

You can download the manual for free in PDF format on the notice-facile.com website by searching for the model POWX07583 from the brand PowerPlus.

How to convert the saw from mitre saw mode to sawing bench mode?

To switch to sawing bench mode, set the table to 90° and the bevel angle to 90°. Tighten the locks, hold the handle and press the switch. Push the handle all the way in and insert the saw mode locking button. Pull the locking pin, lower the upper table and release the pin.

What safety precautions should be taken with the integrated laser?

The laser is class 2 (EN 60825-1:2014). Never look directly into the laser beam and do not point it at people or reflective surfaces. If damaged, have the device repaired by an authorized technician.

How to replace the saw blade on the POWX07583 model?

First disconnect the tool. Set the saw to mitre saw mode. Use the S6 hex key to unscrew the blade fixing screw (turn clockwise). Remove the outer flange and the old blade. Clean the shaft and flange, then install the new blade in reverse order. Ensure the blade is properly aligned.

What is the maximum cutting capacity in sawing bench mode?

In sawing bench mode, the maximum thickness of the workpiece is 50 mm.

How to maintain and clean the PowerPlus saw?

Always disconnect the tool before maintenance. Regularly clean the ventilation slots, adjustment mechanisms and area under the table with a brush or vacuum. Use a soft damp cloth with soapy water for stubborn dirt. Never use solvents.

Can I use the saw to cut metal or plastic?

Yes, the saw is designed for cutting wood, metal and plastic. Use only blades suitable for the material and follow safety instructions. It is not suitable for professional use.

How to install the dust bag and connect it to a vacuum?

The dust bag (28) attaches to the extraction port (27) and the table port (30). For an external vacuum, use a 31 mm diameter adapter. The airflow must be ≥ 550 m³/h and suction ≥ 740 Pa. Empty the bag when it is half full.

What is the warranty period of the POWX07583 saw?

The warranty is 36 months from the date of purchase by the first user. It covers material and manufacturing defects, but not normal wear, accessories, damage due to misuse or transport costs.

Can the saw be used without the upper blade guard?

No, never. The upper blade guard and riving knife must always be in place during cutting, except for specific operations requiring temporary removal. Replace them immediately after. A defective blade guard must be repaired before any use.

USER MANUAL POWX07583 PowerPlus

Close-up of a power tool with yellow clamps and a measuring scale, no visible text or symbols on the main subject.

i

NL NEDERLANDS VERTAALDE VERSIE VAN DE ORIGINELE HANDLEIDING

FR FRANÇAIS TRADUCTION DU MODE D'EMPLOI D'ORIGINE

EN ENGLISH ORIGINAL INSTRUCTION MANUAL

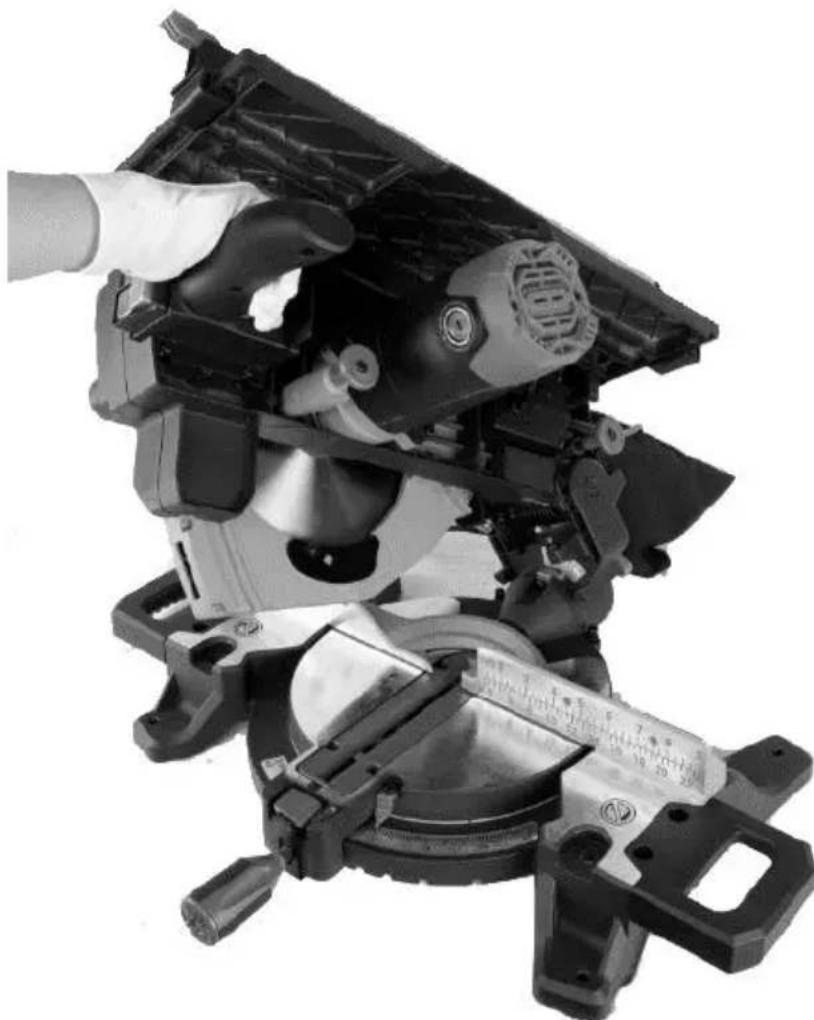

Technical procedure images showing mechanical assembly steps with labeled components and directional arrows

Fig. 1

Fig. 2

Fig. 3

POWERPLUS® HIGH QUALITY TOOLS
POWX07583

Close-up of a mechanical assembly with red arrows indicating a process or motion direction (no visible text or symbols)

Fig. 4

Close-up of a gloved hand holding a printer case with a paper clip (no visible text or symbols)

Fig. 5

Mechanical assembly with black components and red directional arrow indicating motion (no text or symbols)

Fig. 6

Close-up of hands holding a metal cutting tool with a ruler, no visible text or symbols

Fig. 7

Close-up of a sewing machine's clamping mechanism with a black fabric being opened, showing a red arrow indicating motion (no text or symbols present)

Fig. 8

Close-up of mechanical components with yellow circular components and a ruler for size measurement (no visible text or symbols)

Fig. 9

Close-up of a mechanical assembly with a poweractus and a 'POWERPLUS' logo (no readable text beyond branding)

Fig. 10

Close-up of a powerplush tool with yellow clamping mechanism and measurement scale (no readable text or symbols)

Fig. 11

Close-up of a mechanical clamp with a ruler measuring the part, no visible text or symbols

Fig. 12

Three-panel black-and-white photo showing a hand operating a mechanical device with a ruler for scale (no visible text or symbols)

Fig. 13

Close-up of a mechanical measuring tool with a protractor and caliper, showing measurement markings (no readable text or symbols)

Fig. 14

Close-up of hands operating a mechanical cutting tool with a metal workpiece (no visible text or symbols)

Fig. 15

Close-up of a mechanical assembly with hands operating a tool, no visible text or symbols

Fig. 16

Close-up of a mechanical workbench with a hand adjusting the base (no visible text or symbols)

Fig. 17

Close-up of a mechanical device with black and white components, no visible text or symbols

Fig. 18

WAARSCHUWING! GEVAAR!

Simple line drawing of a rounded rectangular shape with a small circular mark on top (no text or symbols)

Philippe Vankerkhove

Regelgevings- en compliancemanager

22/12/2022, Lier - Belgium

13.4 Entreposage/stockage

DANGER!

18 DÉCLARATION DE CONFORMITÉ

VARO N.V. - Vic. Van Rompuy N.V. Joseph Van Instraat 9 - BE2500 Lier - BELGIQUE, déclare seulement que :

Simple hand-drawn sketch of a rounded rectangular shape with a small circle on top (no text or symbols)

Philippe Vankerkhove

5 GENERAL SAFETY WARNINGS .... 4

5.1 Working area....4

5.2 Electrical safety....4

5.3 Personal safety 4

5.4 Power tool use and care....5

5.5 Service....5

6 ADDITIONAL SAFETY INSTRUCTIONS FOR CROSS-CUT AND TABLE SAWS 6

7 ELECTRICAL SAFETY 7

8 ADDITIONAL SAFETY INSTRUCTIONS FOR LASERS......7

9 SPECIAL PRODUCT CHARACTERISTICS....8

10 INSTALLATION AND TRANSPORT 8

10.1 Installation....8

10.2 Transport....8

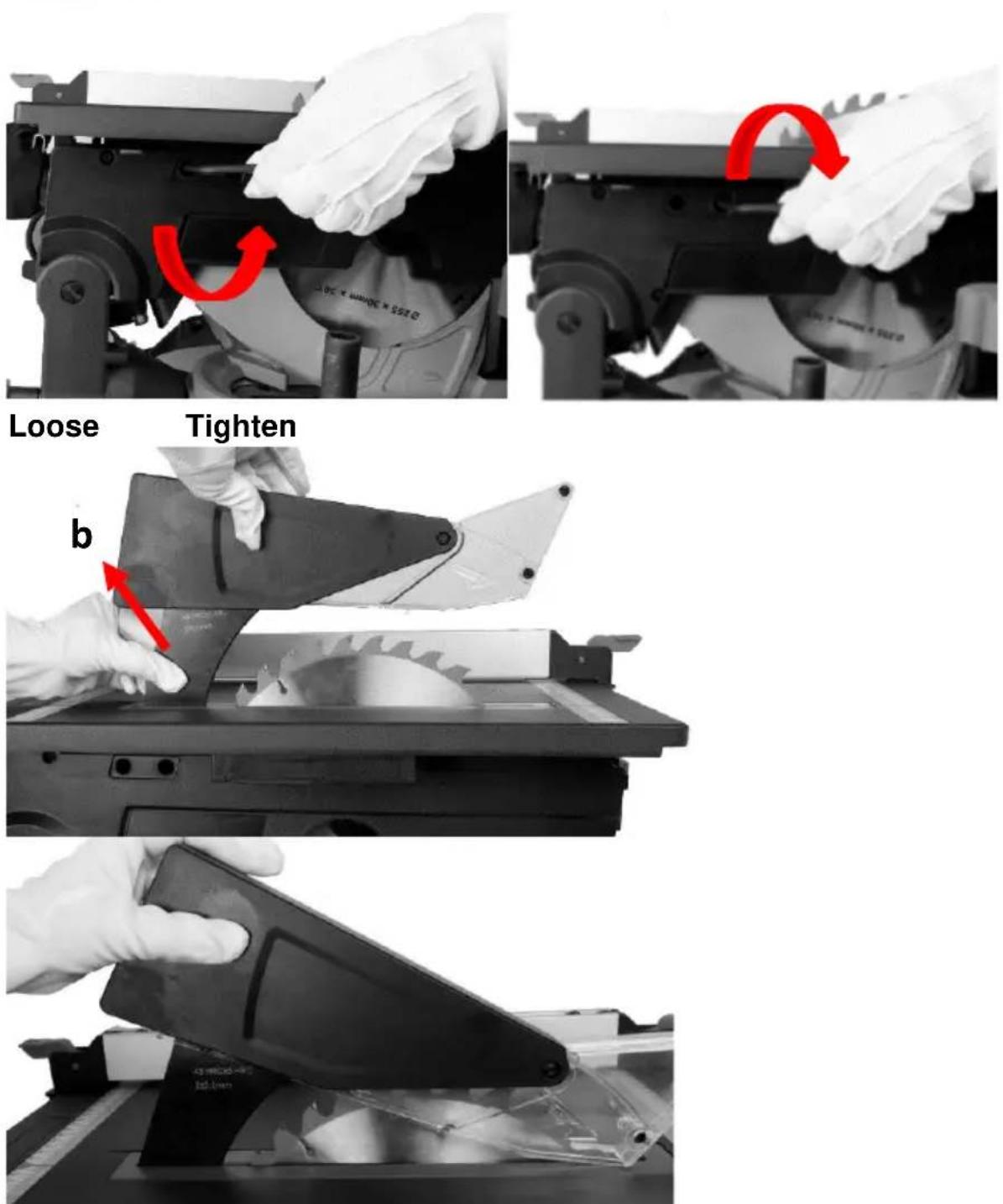

10.2.1 Replacing the saw blade (Fig. 1)....9

10.2.2 Mounting upper blade guard (Fig. 2)....9

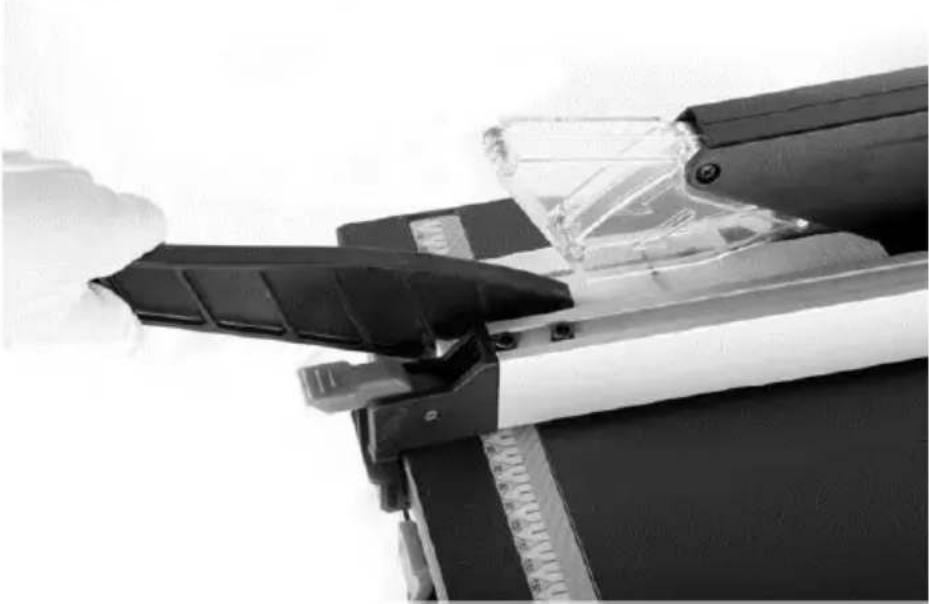

11 FUNCTIONS....9

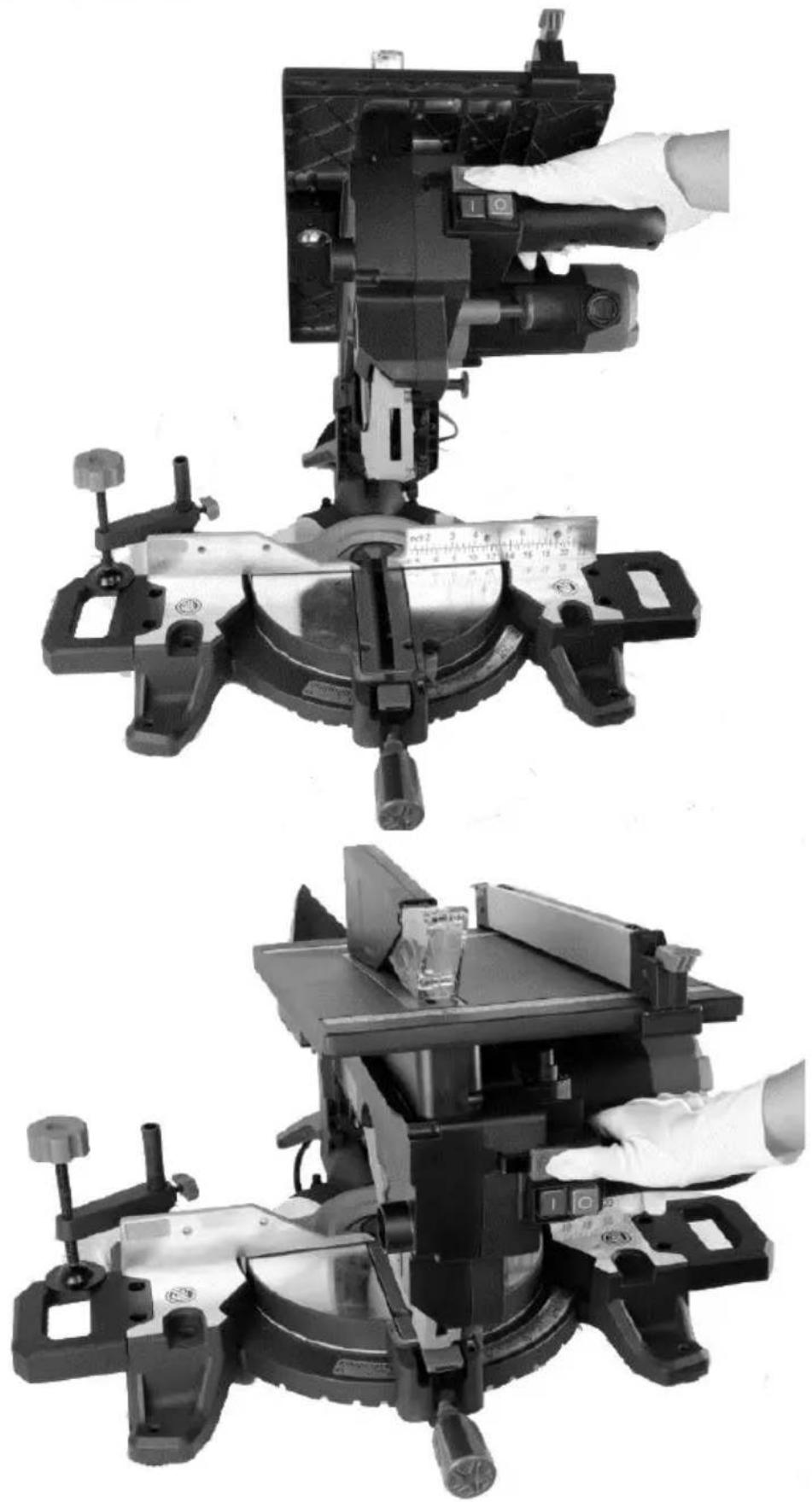

11.1 Converting the saw from table to mitre saw for Cross-cut and mitre saw mode (Fig.3)....9

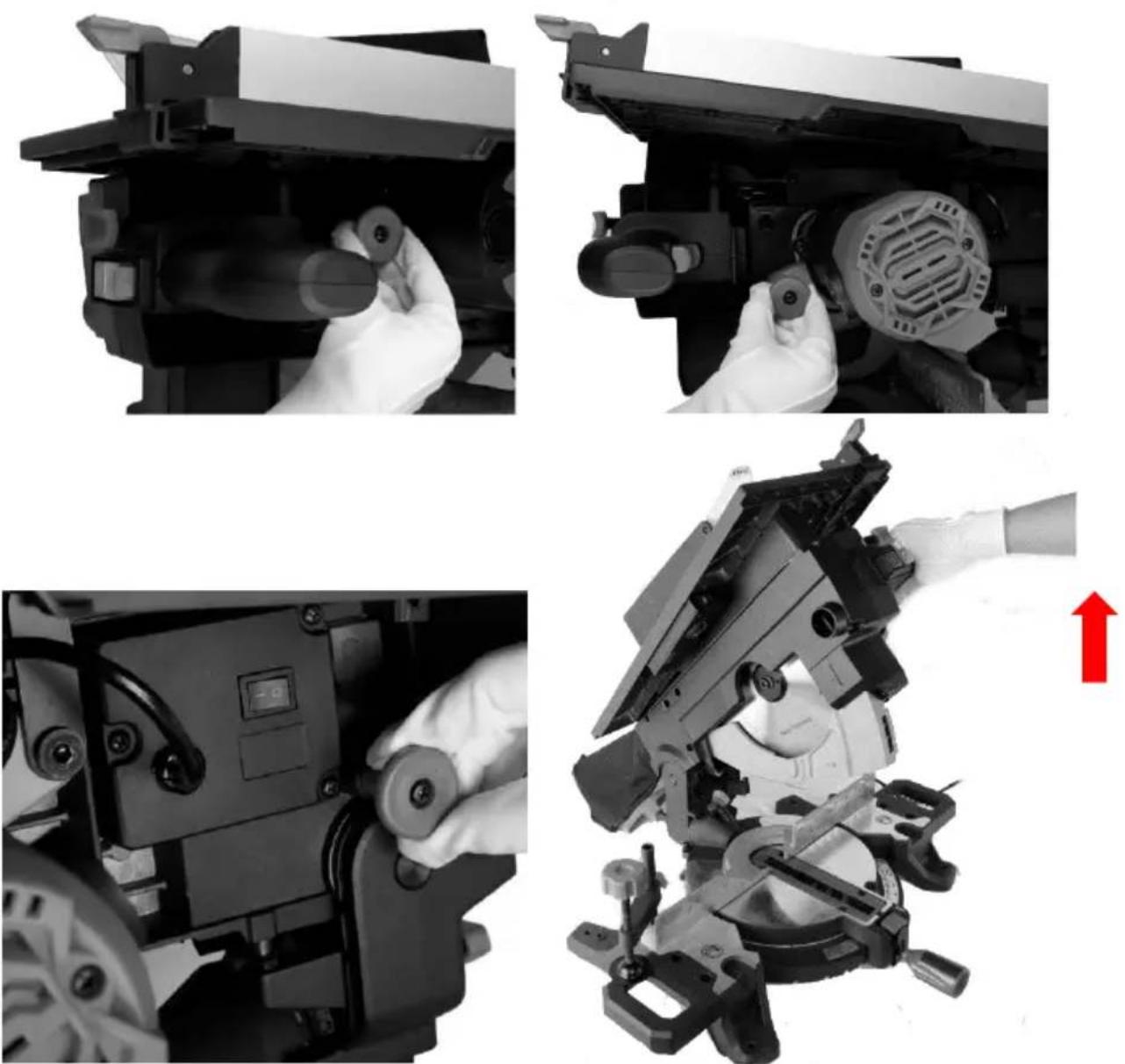

11.2 Converting the saw from mitre to table saw operating mode (Fig. 4)....9

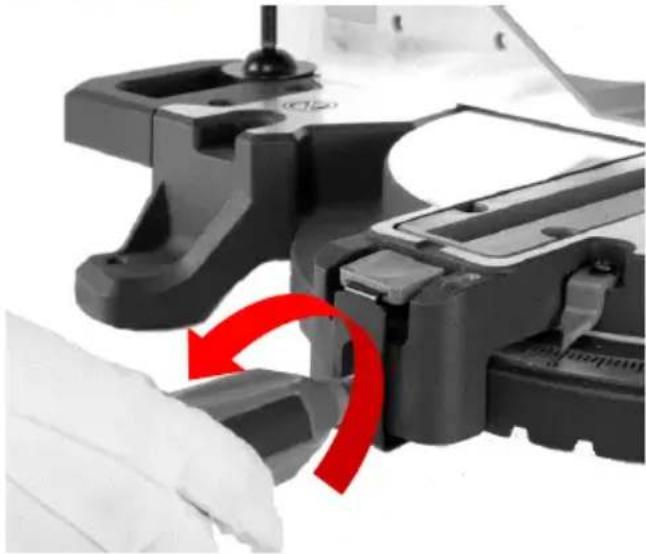

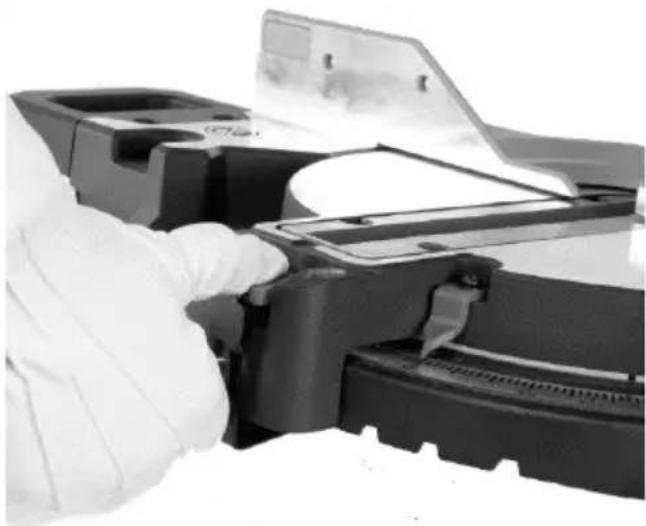

11.3 Adjustment of the turntable (Fig. 4-5)....10

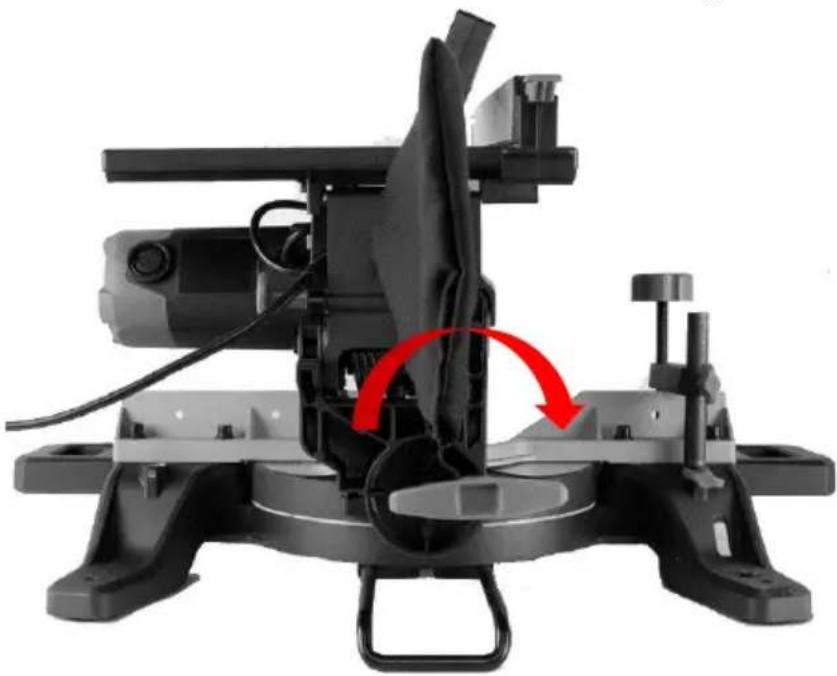

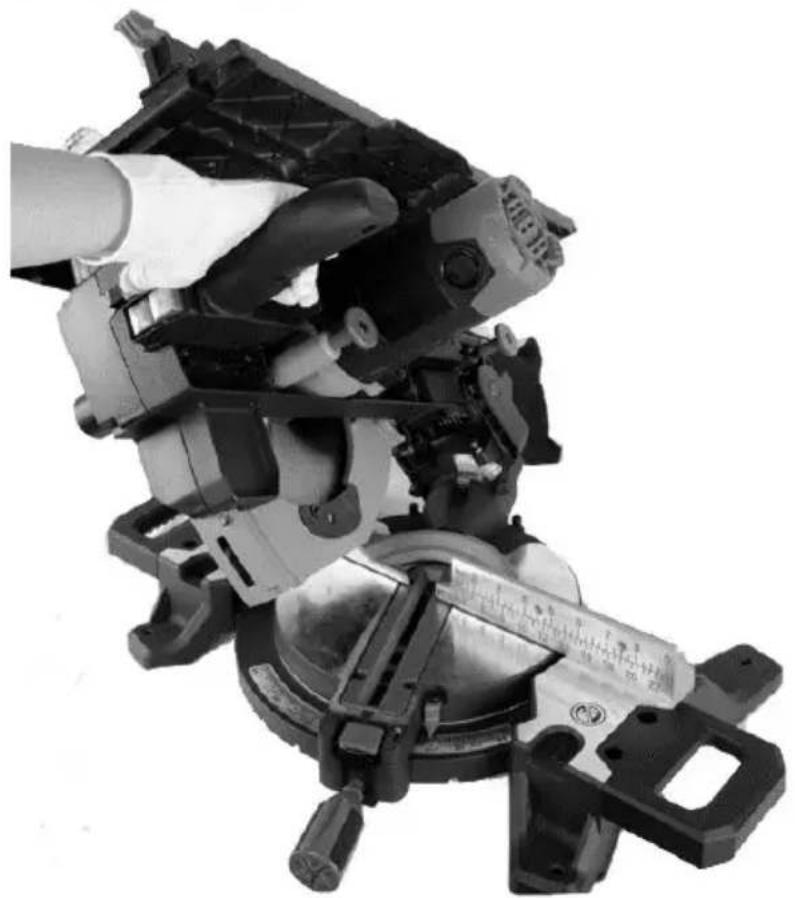

11.4 Adjustment of the bevelling angle (Fig. 6)....10

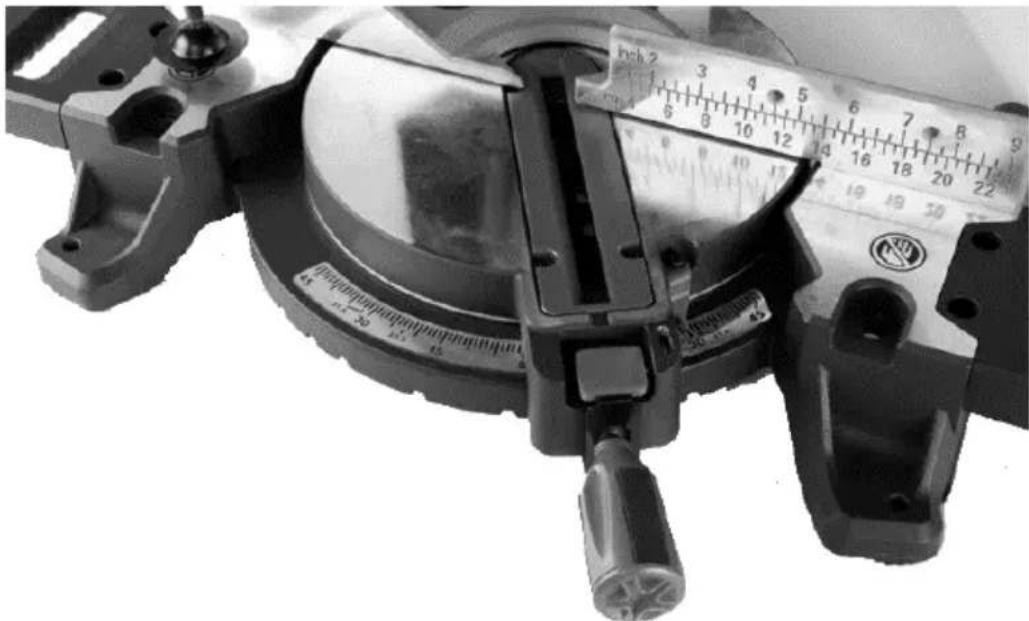

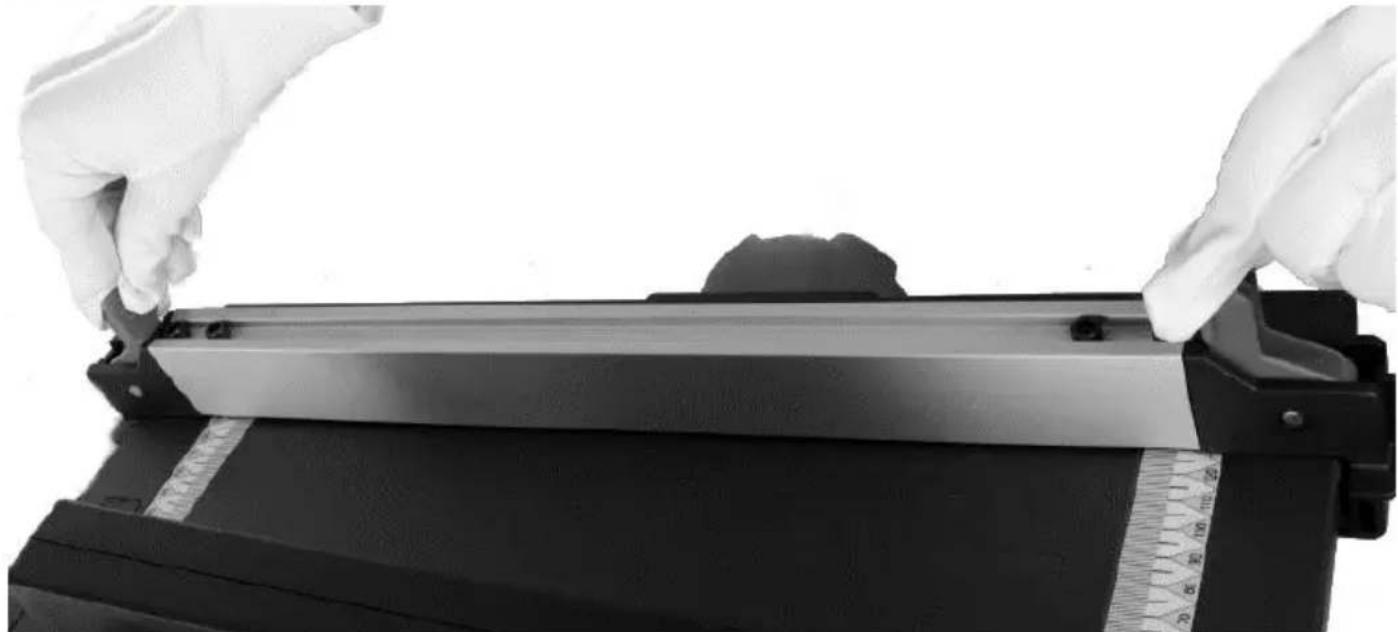

11.5 Adjusting options table parallel fence (Fig. 7)....10

11.6 Connection to a dust collector.... 10

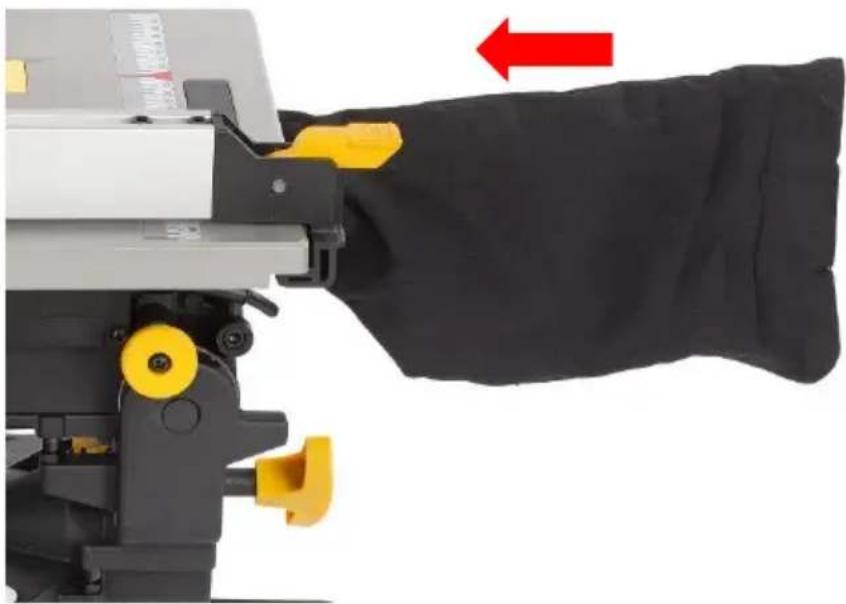

11.7 Assembly of dust bag (Fig.8)....10

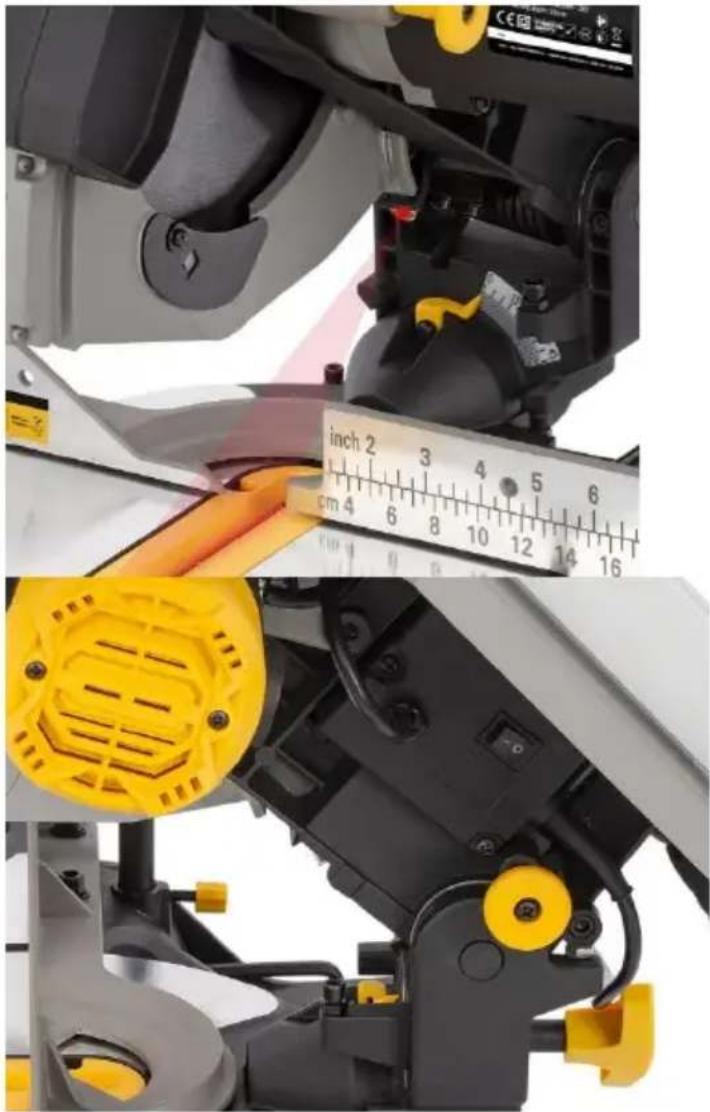

11.8 Laser line (Fig.9) 10

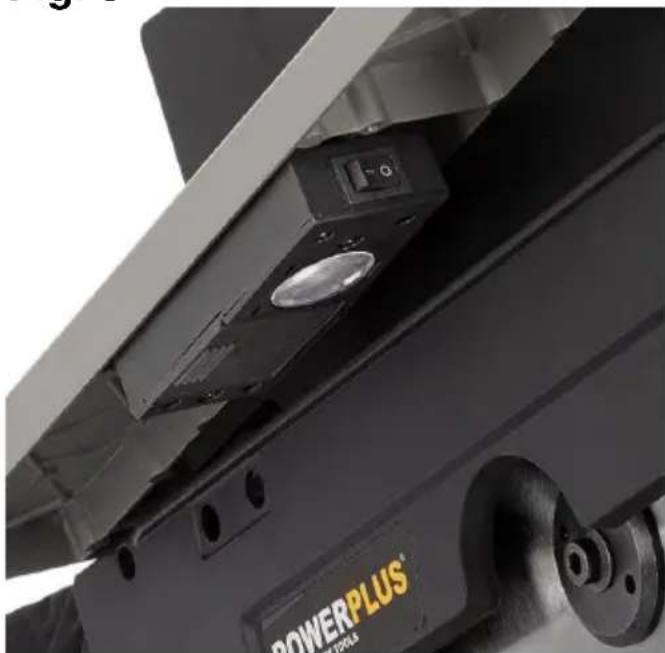

11.9 Work-light (Fig. 10)....10

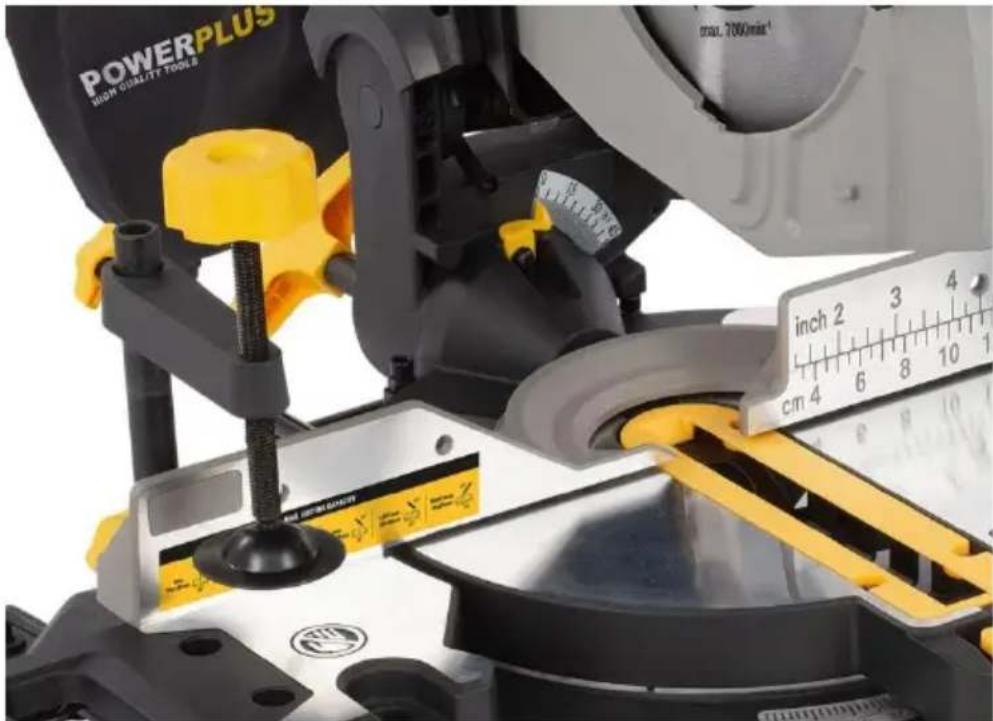

11.10 Install vertical clamping device (Fig. 11)....11

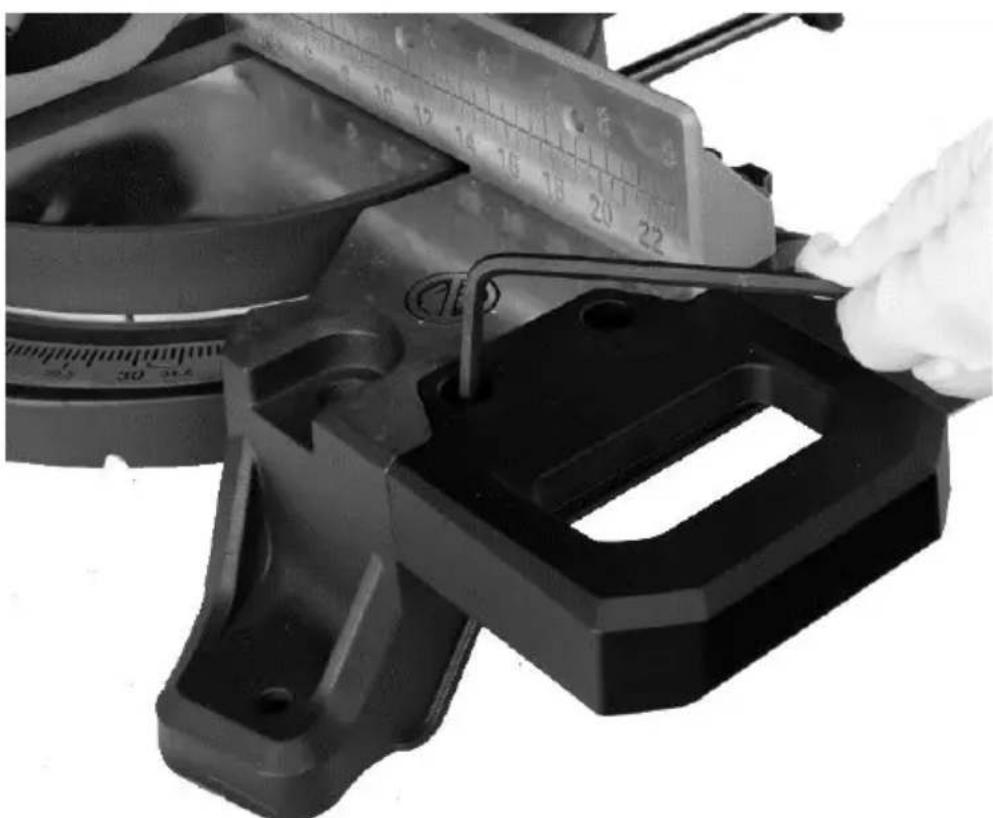

11.11 Mounting the side extensions (Fig. 12)....11
11.11.1 Connection to AC power 11
12 OPERATIONS .... 11
12.1 Cross-cut sawing mode....12
12.1.1 Settings....12
12.1.2 Mitre 90° and turntable 90° (Fig. 13)....12
12.1.3 Mitre 90° and turntable 90°-45° (Fig. 14)....12
12.1.4 Mitre cut 90°- 45° and turntable 90° (Fig. 15)....12
12.1.5 Mitre cut 90°-45° and turntable 90°-45° (Fig. 16)....12
12.2 Table saw mode....13

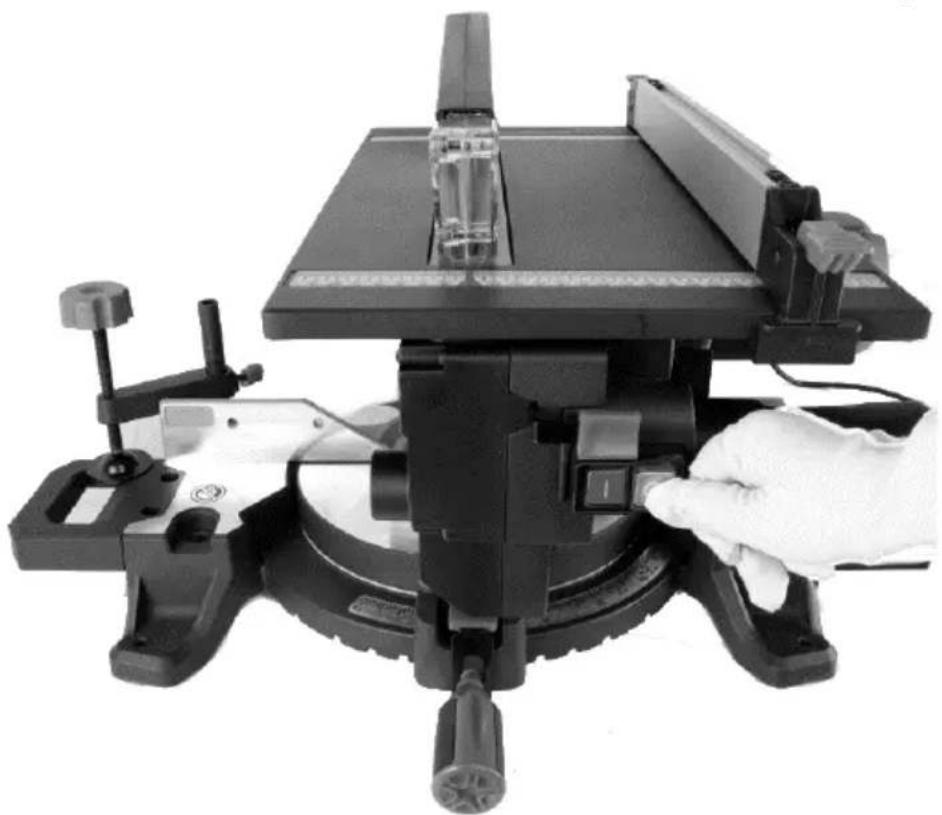

12.2.1 ON/OFF switch (Fig. 17)....13
12.2.2 Sawing (Fig. 18)....13
13 CLEANING AND MAINTENANCE....13
13.1 Cleaning 13
13.2 Maintenance....14
13.3 Cleaning 14
13.4 Storage....14
14 TECHNICAL DATA 14
15 NOISE....14
16 WARRANTY 15
17 ENVIRONMENT 15
18 DECLARATION OF CONFORMITY 16

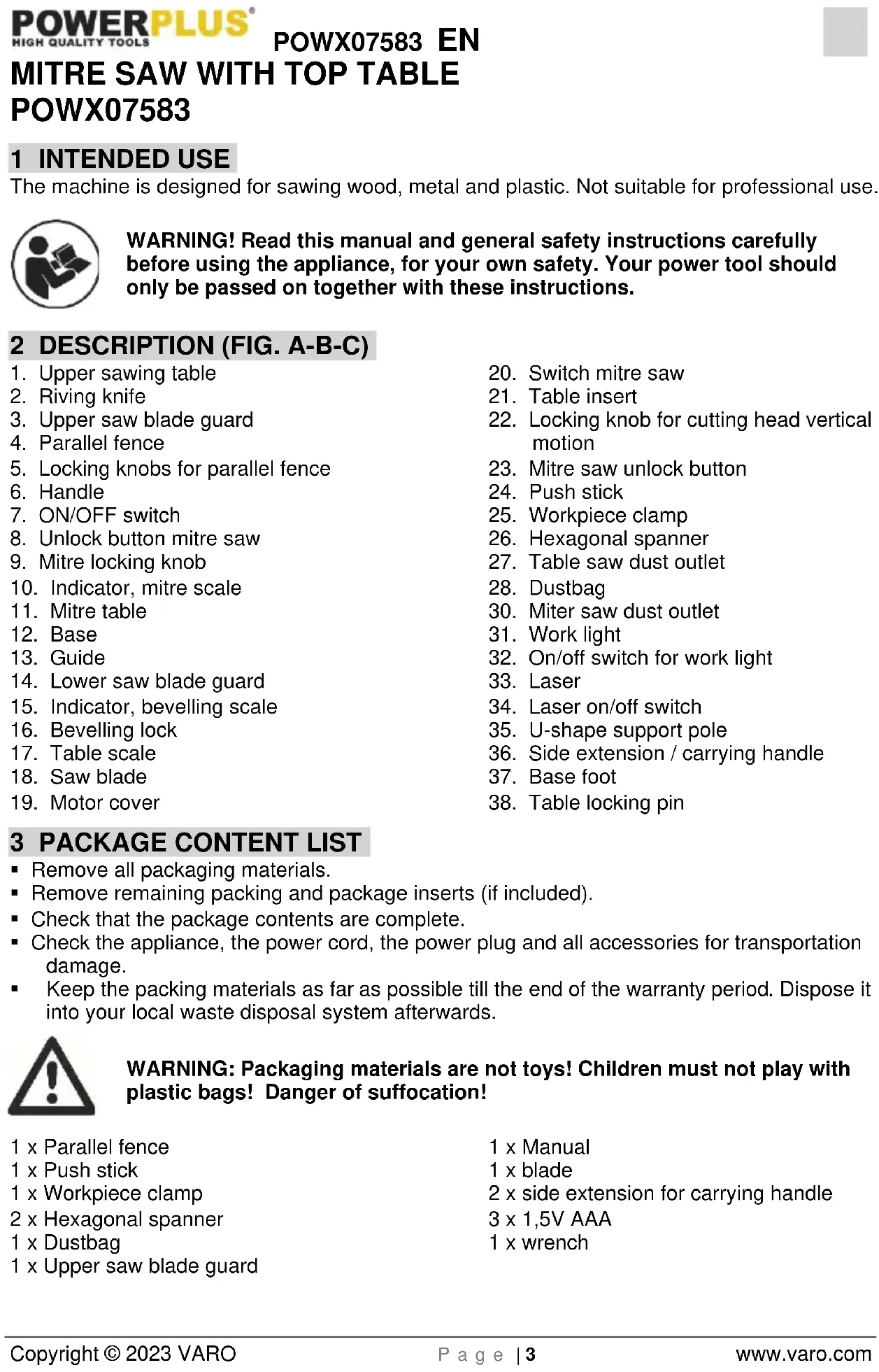

MITRE SAW WITH TOP TABLE POWX07583

1 INTENDED USE

The machine is designed for sawing wood, metal and plastic. Not suitable for professional use.

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION (FIG. A-B-C)

1. Upper sawing table
2. Riving knife
3. Upper saw blade guard
4. Parallel fence
5. Locking knobs for parallel fence
6. Handle
7. ON/OFF switch
8. Unlock button mitre saw
9. Mitre locking knob
10. Indicator, mitre scale
11. Mitre table
12. Base
13. Guide
14. Lower saw blade guard
15. Indicator, bevelling scale
16. Bevelling lock
17. Table scale
18. Saw blade
19. Motor cover
20. Switch mitre saw
21. Table insert
22. Locking knob for cutting head vertical motion
23. Mitre saw unlock button
24. Push stick
25. Workpiece clamp
26. Hexagonal spanner
27. Table saw dust outlet
28. Dustbag
29. Miter saw dust outlet
30. Work light
31. On/off switch for work light
32. Laser
33. Laser on/off switch
34. U-shape support pole
35. Side extension / carrying handle
36. Base foot
37. Table locking pin

3 PACKAGE CONTENT LIST

■ Remove all packaging materials.
- Remove remaining packing and package inserts (if included).
- Check that the package contents are complete.
- Check the appliance, the power cord, the power plug and all accessories for transportation damage.
- Keep the packing materials as far as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.

WARNING: Packaging materials are not toys! Children must not play with plastic bags! Danger of suffocation!

1 x Parallel fence
1 x Push stick
1 x Workpiece clamp
2 x Hexagonal spanner
1 x Dustbag
1 x Upper saw blade guard
1 x Manual
1 x blade
2 x side extension for carrying handle
3 × 1,5V AAA
1 x wrench

If any parts are missing or damaged, please contact your dealer

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

		Denotes risk of personal injury or damage to the tool.		In accordance with essential requirements of the European directive(s)
		Read manual before use		"Class II - The machine is double insulated; Earthing wire is therefore not necessary
		Wear eye protection		Wear gloves
		Do not touch a turning saw blade.

5 GENERAL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

5.1 Working area

• Keep working area clean and well lit. Untidy and dark areas can lead to accidents.
• Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of a lethal electric shock.
• Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of a lethal electric shock if your body is earthed.
• Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of a lethal electric shock.
• Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of a lethal electric shock.
• When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of a lethal electric shock.

- If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of a lethal electric shock.

5.3 Personal safety

- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.

- Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.

- Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.

- Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury.

- Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations.

- Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.

- If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

- Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.

- Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.

- Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

- Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.

- Maintenance. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.

- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.

- Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

5.5 Service

- Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.

- Damaged switches must be replaced by our after-sales service department.

- If the connecting cable (or mains plug) is damaged, it must be replaced by a special connecting cable which is available from our service department. Replacement of the

connecting cable should only be carried out by our service department (see last page) or by a qualified specialist (qualified electrician).

6 ADDITIONAL SAFETY INSTRUCTIONS FOR CROSS-CUT AND TABLE SAWS

■ Always wear eye protectors.
- Never use the equipment in the presence of flammable liquids or gases.
- NEVER use the equipment when a cutting disc (and not a saw disc) has been attached.
- Before each use, check the saw blade for small cracks or damages. Replace a cracked or damaged blade immediately.
- Never use saw blades made of high-speed steel (HSS).
- Only use saw blades that are recommended by the manufacturer and that fulfil the EN847-1 standard. Also make sure the riving knife is not thicker than the width of the saw cut, and that it is not thinner than the body of the saw blade.
- Always use the accessories that are recommended by this manual.
- Select the correct saw blade for the material must be sawn.
- To reduce the generation of noise, always make sure that the blade is sharp and clean.
- Only use correctly sharpened saw blades. Never exceed the maximum speed that is indicated on the saw blade.
■ Before installing the saw blade, clean the axle, the flanges (especially the assembly surfaces) and the hexagonal nut. Incorrect mounting can lead to vibrations/knocking or slipping of the saw blade.
- Wherever possible, use the upper saw blade guard and the riving knife with every type of application, also when sawing material in two. Always mount the saw blade guard according to the instructions in this manual. Cutting operations are those where the saw blade cuts completely through the workpiece, such as for instance when doing longitudinal cuts or shortening workpieces. NEVER use the equipment with a defective saw blade guard, and never tie up a saw blade guard with a rope or cord. Every irregularity in the operation of the saw guard must be immediately corrected.
- Immediately replace the upper saw blade guard and the riving knife, after a process has been completed that required their removal.
- Prevent that the saw comes into contact with metals, such as nails and screws. Search for and remove all nails, screws and other foreign materials from the workpiece, before you start to work.
- Remove spanners, cut off pieces and the other items from the saw table, before turning on the switch.
- NEVER wear gloves while working; the wearing of gloves is only recommended while cutting tools are being replaced.
■ Make sure that your hands stay clear of the cutting line of the saw blade.
- NEVER stand in the cutting line of the saw blade and NEVER let anyone else stand in that position.
- Make sure that the saw blade does not touch the riving knife or the workpiece, before you turn on the switch.
- Let the saw run for a few moments before inserting a workpiece. Listen for vibrations or knocking of the saw blade, which can indicate improper mounting or balancing of the blade.
- The equipment may not be used for making grooves or recesses.
- Replace the table insert when it is worn out.
- NEVER make any adjustments on the machine while it is turning. Remove the plug from the socket before making any adjustments.
- If necessary, use a push block. A push block MUST be used for longitudinal sawing of smaller workpieces, so that your hands and fingers are kept well away from the saw blade.
- Always store your push block, whenever it is not in use.

- Pay special attention to the instructions that help to reduce the hazard of KICK BACK. KICK BACK is a sudden reaction to a jammed, bent or badly aligned saw blade. KICK BACK causes the workpiece to be thrown back in the direction of the operator. KICK BACK can lead to serious injuries. KICK BACK can be avoided by keeping your saw blade sharp, by keeping the rip fence parallel to the saw blade, by maintaining the riving knife and the upper saw blade guard in good condition and in the right position, by keeping a good grip on the workpiece until you have pushed it completely past the saw blade, and by not sawing any twisted or skewed wood pieces, or pieces that do not have a straight edge for moving along the rip fence, in a longitudinal direction.

- Do not carry out any free-hand operations. Free-hand means that you use your hands for supporting the workpiece, or for leading it with your hands, instead of using the rip fence or the mitre block.

- NEVER bend over or around the saw blade. NEVER reach for a workpiece, before the saw blade has come to a complete stop.

- Avoid a sudden or too quick infeed of a workpiece. Workpieces made of hard material should be fed in as slowly as possible. Never fold or turn a workpiece while feeding it into the saw. If the saw blade jams or ceases to turn while the workpiece is being fed in, turn the equipment off immediately. Remove the plug from the socket. Remove the piece that is blocking the saw.

- NEVER try to remove sawed off chips, and never touch a saw blade guard, as long as the saw blade is turning.

- Remove all lose knots from the workpiece, BEFORE starting to saw.

- Do not maltreat the cable. Never pull on the cable, for removing the plug from the socket. Do not expose the cable to heat, oil, water or sharp edges.

- Some types of dust that is generated while working with the saw may contain chemicals, which can cause cancer, birth defects or other genetic damages. Some examples of these substances are:

- Lead derived from paints containing lead;

- Arsenic and chrome from chemically treated wood.

- The hazard to your health from such exposures is dependent on how frequently you do this kind of work.

- Measures for reducing your exposure to such chemicals: Always work in well-ventilated surroundings and with certified safety equipment, such as dust masks that have been specially designed for filtering out microscopic particles.

- For sawing operations, connect the equipment to a dust exhaust system.

- The saw blade guard may be lifted up while positioning a workpiece, or for easier access during maintenance works. Make sure that the saw blade guard has been lowered and is positioned flat against the sawing table, before connecting your tool to the mains supply.

7 ELECTRICAL SAFETY

Check the voltage that is documented on the type plate of the machine, to make sure that it corresponds to the locally available mains voltage. Safety class II.

8 ADDITIONAL SAFETY INSTRUCTIONS FOR LASERS

Laser beam warning.

Laser beam characteristics.

• Warning! The laser beam potentially causes severe eye damage. Never look or stare directly into the laser beam.
• During use, do not point the laser beam at people, directly or indirectly through reflecting surfaces.
  This laser complies with class 2 according to EN 60825-1:2014. The unit includes no servicing components. Do not open the housing for any reason. If the unit is damaged, have the damage repaired by an authorized repair agent.

9 SPECIAL PRODUCT CHARACTERISTICS

• Quick change-over between cross-cut and table saw mode.
• 45° sawing range for beveling. (45° left)
• 90° sawing range for bevelling (45° left or 45° right) with five preset stops
  ■ Perfectly suited for mobile use, due to its low weight and small dimensions
  ■ TCT saw blade
  ■ Installation of additional guides possible
• After an interruption of the power supply, a restart protection prevents that the machine starts up again when the power supply is restored.

10 INSTALLATION AND TRANSPORT

Do not carry the machine on the handgrip; the handgrip is not designed to carry the full weight of the machine. For carrying the machine, hold it on both edges of the base (12).

10.1 Installation

• Get help from another person for lifting the machine out of the box.
  ■ Turn the turntable into the 90° position and tighten up the mitre locks.
• Note: If the machine must be mounted on a workbench, then the rubber feet should NOT be installed.

You run the risk of injury, if you handle the machine incorrectly when lifting or turning it. Always hold the machine firmly by the base (12).

■ Position the machine on a suitable surface:
- All 4 feet must rest firmly on the surface.
- The ideal height of the surface is approximately 800 mm.
- The saw must stand firmly in position, even when larger workpieces are being sawn.
- You can keep the packaging for future use, or you can dispose of it separately, based on the type of material, and it in an environmentally friendly manner.

10.2 Transport

• Push the table saw downwards and at the same time pull out the locking knob (22) to lift the table saw upwards.
• Position the lower saw blade guard (14) over the saw guide piece (21) and push backwards until you hear a click, and until the lower saw blade guard is positioned at the black line on the saw guide piece.
• Lower the saw head by pushing in the safety lock (6) and activate the locking pin (22).
  ■ Position the mitre guide (4) over the lower saw blade guard and fasten it.
• Lift the machine up by grasping both sides of the base (12).

Note:

• The essential operating components of the machine are presented in this section.
  ■ Make sure to read this section, before you use the machine for the first time.

10.2.1 Replacing the saw blade (Fig. 1)

• Set the saw to crosscut and mitre saw mode.
• Place the blade spanner on the outer flange and undo the saw blade screw (a) by turning it in a clockwise direction using the Hex key S6. Remove the saw blade screw (a) and the outer flange.
• Remove the saw blade (18) from the inner flange carefully. Lift the lower blade guard (14) upwards by pressing switch A,
• Thoroughly clean the motor shaft and flange before you fit and secure the new saw blade.
  ■ Fit and fasten the new saw blade in reverse order.

WARNING: The work to change and align the saw blade must be carried out correctly.

10.2.2 Mounting upper blade guard (Fig. 2)

• Loose the two screws slightly by turning them in a counter-clockwise direction using the Hex key S5.
• Hold the upper blade guard (3) with one hand and the other hand hold the left lower metal board (b).
• Align the two sector gap on the metal board with two screws near the work-light, then insert the metal board along the table liner slot.
• Control the space between the knife Head and the metal board between 3\~8 mm.
• Tighten the two Screws by turning them in a clockwise direction using the Hex key S5 (26).

CAUTION: Controlling the space between the knife head and the metal board can prevent the saw blade from cutting to the upper blade guard (3), thus preventing accidents when operating the machine.

11 FUNCTIONS

11.1 Converting the saw from table to mitre saw for Cross-cut and mitre saw mode (Fig.3)

• Tighten the turntable locking knob (9) and beveling lock (16) by turning them clockwise.
• Pull the table locking pin (38), push up the upper table (1). Pull the locking knob-(22), then lift the saw table so that it moves into the highest position.
  ■ The saw has now been set to Cross-cut and mitre saw mode.
• Switch A-(7) and the trigger switch (20) are used for starting/stopping the mitre saw.

11.2 Converting the saw from mitre to table saw operating mode (Fig. 4)

■ Move the turntable to the 90° position, bevel angle at 90° position.
- Tighten the turntable locking knob (9) and the beveling lock (16).
■ Hold the cutting handle (6) and press switch (7)
- Push down the cutting handle to the end and plug in the saw mode locking pin (22) at the same time
- Pull the table locking pin (38), at the same time pull down the upper sawing table (1) to the lowest position and release the locking pin (38) once the upper table is in the lowest position.
■ The saw has now been set to table saw mode.
- The ON/OFF switch (7) and the handle trigger (20) is used for starting/stopping the table saw.

11.3 Adjustment of the turntable (Fig. 4-5)

• Turn the turntable locking knob (9) approx. 2 turns counter-clockwise, then adjust the turntable (11) by pressing the angle adjustment control button (23).
• The turntable (11) has locking points at angles of 0°, 15°, 22.5°, 31.6° and 45°. Once the turntable (11) is engaged, the setting must also be secured by turning the turntable locking knob (9) clockwise.
• If different angle settings are required, the turntable (11) may be secured in position using only the turntable locking knob (9).

11.4 Adjustment of the bevelling angle (Fig. 6)

The support arm can be tilted vertically and in an angle of 45^ to the left. To be able to tilt the support arm, the bevel lock (16) must be released.

To prevent the bevel angle from changing while sawing, the locking knob of the support arm must be tightened.

11.5 Adjusting options table parallel fence (Fig. 7)

• The table parallel fence (4) is mounted on the top saw table. The table parallel fence locking knobs (5) must both point towards the outside of the machine.
• The location of table parallel fence decides the cutting width. When the table parallel fence is installed, you must always make sure that the fence is fastened with the locking knobs (5).
• Once the locking knobs are released, the table parallel fence (4) can be removed.

11.6 Connection to a dust collector

The dust of some types of wood (such as for instance beech, oak and ash) can be hazardous if inhaled. Always use a dust collector:

• If the saw is set up in an enclosed space;
• Whenever the saw is being used for longer periods of time (more than a half hour per day);
• When sawing oak-, beech- or ashwood.
• The dust collector must conform to the following requirements:
• The diameter of the dust exhaust pipe must fit properly (31 mm);
• The air flow volume must exceed 550m^3/h ;
  ■ The vacuum at the dust exhaust exit must be ≥ 740 Pa;
  ■ The air speed at the dust exhaust exit must be ≥ 20 m/s;
  ■ Follow the user instructions for the dust collector.

11.7 Assembly of dust bag (Fig.8)

• The dust bag (28) fits the mitre saw dust hole (27) and the table saw dust outlet (30).. To ensure efficient operation, empty the dust bag when it is half-full.
• Never use the machine without the suction function. Regularly check and clean the suction channels.

11.8 Laser line (Fig.9)

- Operate the ON/OFF switch for the laser light (34) during operation.

11.9 Work-light (Fig. 10)

• The combination saw is equipped with a work-light (31) under the top saw table, powered by 3pcs AAA batteries.
• To switch the work-light on, press the ON/OFF switch for work-light (32) marked "I";
• To switch the work-light off, press the ON/OFF switch for work-light (32) marked "O"

11.10 Install vertical clamping device (Fig. 11)

■ Find out the vertical clamping device set (25).
- Insert the iron bar of the vertical clamping device set into the back hole of the reference ruler (13).
- Adjustable Wing Screws to select height as required. Control the adjustable height of the wing screw.
- There are two round holes on the left and right sides behind the reference ruler (13), which can be used to locate the vertical clamping device according to the work needs.

NOTE: Place the vertical clamping device on the right side of mitre saw table when the machine is used to make bevel cuts.

11.11 Mounting the side extensions (Fig. 12)

• Loosen right / left sides setscrew by turning it in a counter-clockwise direction using the Hex key S5 (26) and remove setscrew away.
• Insert the right / left side extension carrying handles (36) in the mounts provided on both sides and tighten the setscrew by Hex Key S5 (26).

11.11.1 Connection to AC power

High-voltage!

• Only operate this machine in dry surroundings.
• This machine may only be connected to a power source that fulfils the following requirements (also see the section "Technical data"):
• The mains voltage and the system frequency must conform to the voltage and frequency that is indicated on the technical data sheet of the machine;
  –Fusing protection with a residual current device (RCD), protects all lines from short-circuits and overloading.

• Sockets must be properly installed, earthed and tested.

• Position a power cable in such a way that it does not hinder the work and cannot be damaged.

• Protect the power cable against heat, aggressive fluids and sharp edges.
• Only use rubber-coated extension cables with a sufficient wire cross-section (3 x 1.5 mm ^2 ).
• Do not use the power cable for pulling the plug out of the socket.

12 OPERATIONS

This saw can be used as a:

■ Cross-cut saw/ miter saw
Table saw

Before making any changes in the settings of this machine, always remove the plug from the socket.

12.1 Cross-cut sawing mode

12.1.1 Settings

• When the bevel lock (16) is loosened, you can tilt the machine head to the left by up to 45°.
• The turntable (11) can be adjusted from -45^ to +45^ by undoing the turntable locking knob (9).
• Start the saw by pressing the trigger switch (20) and switch A (8). The switch A (8) must remain pressed during the sawing work.

12.1.2 Mitre 90° and turntable 90° (Fig. 13)

• Important! Place the work-piece for sawing firmly on the machine surface and secure it with the clamp (25) to prevent it from moving during the sawing process.
• When you have switched on the saw, wait until the saw blade (18) has reached maximum speed.
• Press switch A (8) and trigger switch (20), using the cutting handle (6), apply steady and light downward pressure to move the machine head through the work-piece.
• After the cutting process is finished, bring the machine head back to its upper (home) position and release trigger switch (20).
• Important. The integral resetting springs will automatically lift the machine head.
• Do not simply let go of the handle (6) after cutting, but allow the machine head to rise slowly, applying slight counter pressure as it does so.

12.1.3 Mitre 90° and turntable 90°-45° (Fig. 14)

The crosscut and mitre saw with table can be used to make right and left angular cuts of 90^-45^ in relation to the saw guide (21).

■ Move the machine head to its upper position.
■ Release the turntable (11) by slackening the turntable locking knob (9).
- Set the turntable (11) to the desired angle, i.e. the marking on the turntable must coincide with the desired angular setting on the base plate (1).
- Retighten the turntable locking knob (9) to secure the turntable (11) in place.

12.1.4 Mitre cut 90°-45° and turntable 90° (Fig. 15)

The crosscut and mitre saw with table can be used to make mitre cuts of 90^ - 45^ in relation to the work face.

■ Move the machine head to its upper position.
■ Fasten the turntable (11) in 90° position.
- Undo the bevel lock (16) and use the cutting handle (6) to tilt the machine head to the left until the pointer coincides with the required angle value.
■ Retighten the bevel lock (16) and make the cut.

12.1.5 Mitre cut 90°-45° and turntable 90°-45° (Fig. 16)

The crosscut and mitre saw with table can be used to make mitre cuts to the left of 90^-45^ in relation to the work face and, at the same time, 90^-45^ in relation to the saw guide (21) (double mitre cut).

■ Move the machine head to its upper position.
■ Release the turntable (11) by slackening the turntable locking knob (9).
- Adjust the turntable (11) to the angle required
- Retighten the turntable locking knob (9) in order to secure the turntable in place.

- Undo the bevel lock (16) and use the cutting handle (6) to tilt the machine head to the left until it coincides with the required angle value.

■ Screw the bevel lock (16) back down again.

12.2 Table saw mode

12.2.1 ON/OFF switch (Fig. 17)

• The saw can be switched on by pressing the green pushbutton (I). Wait for the blade (18) to reach its maximum speed before starting the cut.
• The red pushbutton (0) has to be pressed to switch off the saw.

12.2.2 Sawing (Fig. 18)

■ Undo the table parallel fence lock knob (5).
- Set the table parallel fence (4) to the required dimension using the scale on the top saw table and secure it with the locking knob (5).
■ Switch on the saw by pressing the green button (I).
- Slide the work-piece slowly and precisely along the table parallel fence (4) to the saw blade (18).
- The upper blade guard (3) will open automatically and the work-piece moves forward.
- Important: For work-piece widths below 120 mm a push stick (24) must be used in the area near the saw blade (18). For work-piece widths below 30 mm a push stick (24) must be used to move the work-piece.
- After completing the cut, the upper blade guard (3) will close again automatically to cover the saw blade (18).
■ Switch off the saw.

WARNING: The thickness of work-piece can't overstep 50mm in table saw mode.

NOTE: Check that the “table parallel fence” is locked in position and is parallel to the saw blade. Check that riving knife is properly aligned with the saw blade.

NOTE: Secure long work-pieces against falling off at the end of the cut, add an additional support to prevent the remaining part from falling down to cause accidental risk.

13 CLEANING AND MAINTENANCE

Attention! Before performing any work on the equipment, pull the power plug.

13.1 Cleaning

• Keep the ventilation slots of the machine clean to prevent overheating of the engine.
• Regularly clean the machine housing with a soft cloth, preferably after each use.
• Keep the ventilation slots free from dust and dirt.
• If the dirt does not come off use a soft cloth moistened with soapy water.
• Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

13.2 Maintenance

- Our machines have been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

13.3 Cleaning

Use a brush, a dust cloth or vacuum cleaner, to remove all wood chips and sawdust from:

• The adjustment facilities
• The operating components
  – The motor ventilation openings
• The space under the table gap.

13.4 Storage

HAZARD!

• Thoroughly clean the whole machine and its accessories.
• Store it out of the reach of children, in a stable and secure position, in a cool and dry place, avoid too high and too low temperatures.
• Protect it from exposure to direct sunlight. Keep it in the dark, if possible.
• Don't keep it in plastic bags to avoid humidity build-up.

14 TECHNICAL DATA

Mains voltage	230-240 V ~ 50Hz
Power	2000 W
Saw blade rpm	4800 min ^-1
Saw blade dimensions	254 x 30 x 2,8 mm - 36T
Cutting capacity:
As Table saw:	50 mm
As mitre saw:90° x 90°	H75 x W125 mm
45°(L) x 90°	H75 x W80 mm
45° (R) x 90°	H75 x W65 mm
90° x 45°	H50 x W125 mm
45°(L) x 45°	H50 x W30 mm
45°(R) x 45°	H50 x W65 mm
Machine dimensions:	480x290mm
Insulation class	II
Weight gross/net	19 kg / 16 kg

15 NOISE

Noise values measured according to relevant standard. (K=3)

Acoustic pressure level LpA	103 dB(A)
Acoustic power level LwA	116 dB(A)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

aw (Vibration)

1,7 m/s²

K = 1,5 ~m / s^2

16 WARRANTY

- This product is warranted for a 36-month period effective from the date of purchase by the first user.

- This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.

- We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.

- Repairs may only be carried out by an authorised customer service centre for Powerplus tools.

- You can always obtain more information at the number 00 32 3 292 92 90.

- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.

- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.

- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.

- Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.

- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

- Your purchase receipt must be kept as proof of date of purchase.

- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

17 ENVIRONMENT

Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

VARO N.V. - Vic. Van Rompuy N.V. Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, solely declares that,

Product: Mitre saw with top table

Trade mark: PowerPlus

Model: POWX07583

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives / Regulations, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives / Regulations (including, if applicable, their amendments up to the date of signature):

2011/65/EU

2006/42/EC

2014/30/EU

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN61029-1:2009

EN61029-2-11:2012

EN55014-1:2017

EN55014-2:2015

EN IEC 61000-3-2:2019

EN IEC 61000-3-11:2019

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Simple hand-drawn sketch of a rounded rectangular shape with a small protrusion (no text or symbols)

Philippe Vankerkhove

Regulatory Affairs – Compliance Manager

22/12//2022, Lier - Belgium

Simple hand-drawn outline of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

22/12/2022, Lier - Belgium

1 USO PREVISTO 3

22/12/2022, Lier - Belgium

1 USO PREVISTO 3

2 DESCRIZIONE (FIG. A-B-C)....3

3 DISTINTA DEI COMPONENTI....3

4 SIMBOLI 4

5 NORME GENERALI DI SICUREZZA....4

Simple hand-drawn sketch of a rounded rectangle with a small circle inside, no text or symbols present.

Simple hand-drawn sketch of a rounded rectangular shape with a small circle on top (no text or symbols)

Philippe Vankerkhove

22/12/2022, Lier - Belgium

1 TILTENKT BRUK 3

2 BESKRIVELSE (FIG. A-B-C)......3

3 PAKKENS INNHOLD....3

4 SYMBOLFORKLARING .... 4

5 GENERELLE SIKKERHETSADVARSLER ....4

GJÆRINGSSAG MED BORDTOPP POWX07583

1 TILTENKT BRUK

Simple hand-drawn sketch of a rounded rectangular shape with a small circle on top (no text or symbols)

Philippe Vankerkhove

Regulatoriske saker – Samsvarsleder

22/12/2022, Lier - Belgia

1 TILSIGTET BRUG....3

2 BESKRIVELSE (FIG. A-B-C)......3

3 MEDF∅LGENDE INDHOLD 3

4 SYMBOLER....4

5 GENERELLE SIKKERHEDSFORSKRIFTER ....4

10.1 Installation....8

10.2 Transport....9

GERINGSSAV MED BORD POWX07583

1 TILSIGTET BRUG

Simple hand-drawn sketch of a rounded rectangle with a small square on top (no text or symbols)

Philippe Vankerkhove

Regulatory Affairs (afdelingen for juridiske anliggender) - Compliance Manager 22/12/2022, Lier - Belgium

1 AVSEDD ANVÄNDNING 3

2 BESKRIVNING (FIG. A-B-C) 3

3 FÖRPACKNINGSINNEHÅLL 3

4 SYMBOLER....4

5 ALLMÄNNA SÄKERHETSANVISNINGAR FÖR ELEKTRISKA VERKTYG....4

10.1 Installation....8

10.2 Transport....8

3 FÖRPACKNINGSINNEHÅLL

Simple hand-drawn sketch of a rounded rectangular shape with a curved line on the left (no text or symbols)

Philippe Vankerkhove

Simple hand-drawn sketch of a rounded rectangular shape with a small protrusion (no text or symbols)

Philippe Vankerkhove

22/12/2022, Lier - Belgium

Simple hand-drawn outline of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

22/12/2022, Lier - Belgium

1 NAMJENA 3

2 OPIS (SLIKA A-B-C) 3

3 POPIS SADRŽAJA PAKIRANJA .... 3

4 SIMBOLI 4

5 OPĆA UPOZORENJA O ELEKTRIČNIM ALATIMA....4

8 ODATNE SIGURNOSNE UPUTE ZA LASERE....8

9 POSEBNE ZNAČAJKE PROIZVODA 8

10 MONTAŽA I TRANSPORT 8

Simple hand-drawn sketch of a rounded rectangular shape with a small circle on top (no text or symbols)

Philippe Vankerkhove

Regulatorni poslovi – direktor službe osiguranja usklađenosti 22/12/2022, Lier - Belgija

1 NAMENJENA UPOTREBA....3

2 OPIS (SL. A-B-C) 3

3 LISTA SADRŽAJA PAKETA....3

4 SIMBOLI 4

5 OPŠTA BEZBEDNOSNA UPUTSTVA ZA ELEKTRIČNE ALATE .4

5.1 Radna oblast 4

Simple hand-drawn sketch of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

22/12/2022, Lier - Belgium

1 ZAMÝŠLENÉ POUŽITÍ ...... 3

2 POPIS (OBRÁZKY A-B-C) 3

3 OBSAH BALENÍ....3

4 SYMBOLY 4

5 OBECNÁ BEZPEČNOSTNÍ UPOZORNĚNÍ PRO ELEKTRICKÉ STROJE....4

Simple hand-drawn sketch of a rounded rectangular shape with a small circle on top (no text or symbols)

Philippe Vankerkhove

Simple hand-drawn sketch of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

Simple hand-drawn sketch of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

Oddelek za zakonodajne zadeve – vodja za certificiranje

22/12/2022, Lier - Belgium

1 UTILIZARE PREVĂZUTĂ 3

2 DESCRIERE (FIG. A-B-C) 3

3 CONTINUTUL PACHETULUI 3

4 SIMBOLURI....4

5 AVERTISMENTE GENERALE DE SIGURANTĂ PRIVIND APARATUL ELECTRIC ....4

5.1 Zona de lucru 4

Simple hand-drawn sketch of a rounded rectangular shape with a small circular mark on top (no text or symbols)

Philippe Vankerkhove Divizia de reglementare – Director de conformitate 22/12/2022, Lier - Belgia

1 PRZEZNACZENIE 3

2 OPIS (RYC. A-B-C) 3

3 LISTA ELEMENTÓW W OPAKOWANIU .... 3

4 SYMBOLE 4

5 OGÓLNE ZASADY BEZPIECZNEJ PRACY ELEKTRONARZĘDZIAMI 4

Simple hand-drawn sketch of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

Simple hand-drawn sketch of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

22/12/2022, Lier - Belgium

Simple hand-drawn sketch of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

22/12/2022, Lier - Belgium

1 ПРЕДНАЗНАЧЕНИЕ НА УПОТРЕБАТА....3

Simple hand-drawn sketch of a rounded rectangular shape with a small circular mark on the top right corner (no text or symbols)

Philippe Vankerkhove

22/12/2022, Lier - Belgium

Mechanical assembly with yellow and black components, no visible text or symbols

varo

WWW.VARO.COM

DESIGNED AND MARKETED BY VARO

©copyright by varo
