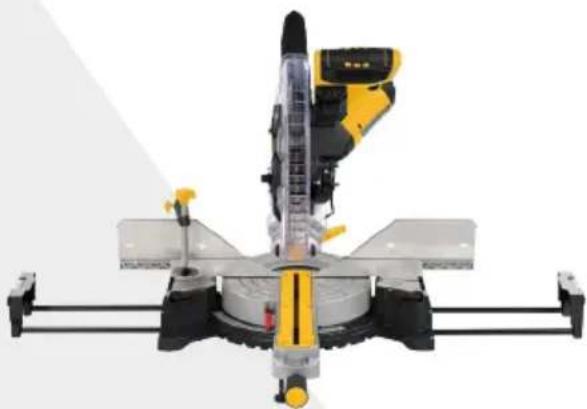

USER MANUAL POWX075750DB PowerPlus

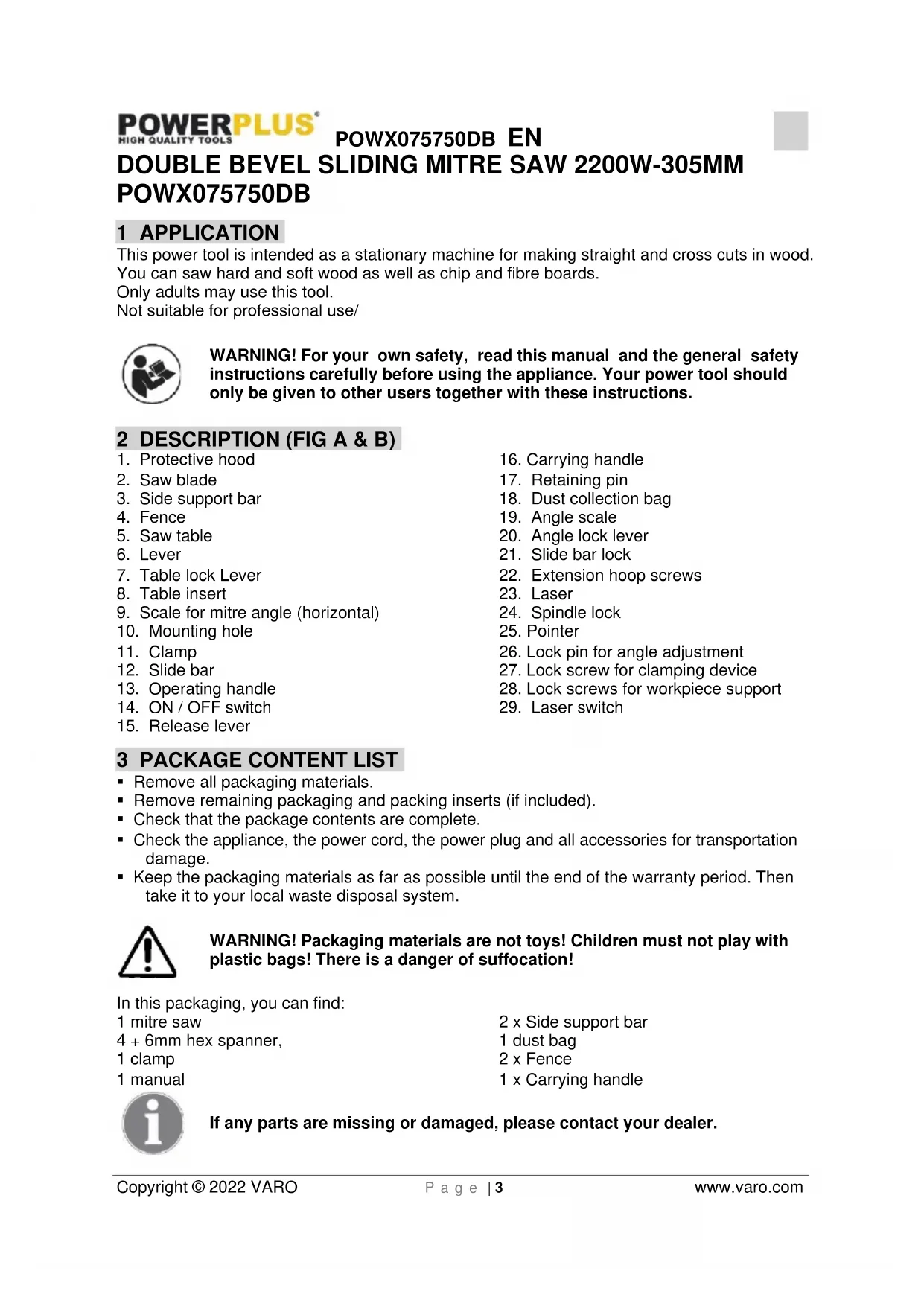

Copyright © 2022 VARO P a g e | 3 www.varo.com DOUBLE BEVEL SLIDING MITRE SAW 2200W-305MM POWX075750DB 1 APPLICATION This power tool is intended as a stationary machine for making straight and cross cuts in wood. You can saw hard and soft wood as well as chip and fibre boards. Only adults may use this tool. Not suitable for professional use/ WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions. 2 DESCRIPTION (FIG A & B)

26. Lock pin for angle adjustment

27. Lock screw for clamping device

28. Lock screws for workpiece support

• Remove all packaging materials.

• Remove remaining packaging and packing inserts (if included).

• Check that the package contents are complete.

• Check the appliance, the power cord, the power plug and all accessories for transportation damage.

• Keep the packaging materials as far as possible until the end of the warranty period. Then take it to your local waste disposal system. WARNING! Packaging materials are not toys! Children must not play with plastic bags! There is a danger of suffocation! In this packaging, you can find: 1 mitre saw 4 + 6mm hex spanner, 1 clamp 1 manual 2 x Side support bar 1 dust bag 2 x Fence 1 x Carrying handle If any parts are missing or damaged, please contact your dealer.POWX075750DB EN Copyright © 2022 VARO P a g e | 4 www.varo.com 4 SYMBOLS The following symbols are used in this manual and/or on the machine:

Denotes risk of personal injury or damage to the tool.

Read manual before use.

In accordance with essential requirements of the European directive(s)

Class II - The machine is double insulated; Earthing wire is therefore not necessary.

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains- operated (corded) power tool or battery- operated (cordless) power tool.

• Keep working area clean and well lit. Untidy and dark areas can lead to accidents.

• Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of an electric shock.

• Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of an electric shock.

• Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of an electric shock.

• When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of an electric shock.

• If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of an electric shock.

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.POWX075750DB EN Copyright © 2022 VARO P a g e | 5 www.varo.com

• Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.

• Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.

• Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury.

• Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.

• If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tools use and care

• Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.

• Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.

• Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.

• Maintain power tools. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.

• Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.

6 ADDITIONAL SAFETY INSTRUCTIONS

• Always wear eye protectors.

• Never use the equipment in the presence of flammable liquids or gases.

• NEVER use the equipment when a cutting disc (and not a saw disc) has been attached.

• Before each use, check the saw blade for small cracks or damages. Replace a cracked or damaged blade immediately.

• Only use saw blades that are recommended by the manufacturer and that fulfil the EN847- 1 standard.

• Always use the accessories that are recommended by this manual.

• Select the correct saw blade for the material must be sawn.

• To reduce the generation of noise, always make sure that the blade is sharp and clean.POWX075750DB EN Copyright © 2022 VARO P a g e | 6 www.varo.com

• Only use correctly sharpened saw blades. Never exceed the maximum speed that is indicated on the saw blade.

• Before installing the saw blade, clean the axle, the flanges (especially the assembly surfaces) and the hexagonal nut. Incorrect mounting can lead to vibrations/knocking or slipping of the saw blade.

• Prevent that the saw comes into contact with metals, such as nails and screws. Search for and remove all nails, screws and other foreign materials from the workpiece, before you start to work.

• Remove spanners, cut off pieces and the other items from the saw table, before turning on the switch.

• NEVER wear gloves while working; the wearing of gloves is only recommended while cutting tools are being replaced.

• Make sure that your hands stay clear of the cutting line of the saw blade.

• NEVER stand in the cutting line of the saw blade and NEVER let anyone else stand in that position.

• Let the saw run for a few moments before inserting a workpiece. Listen for vibrations or knocking of the saw blade, which can indicate improper mounting or balancing of the blade.

• The equipment may not be used for making grooves or recesses.

• Replace the table insert when it is worn out.

• NEVER make any adjustments on the machine while it is turning. Remove the plug from the socket before making any adjustments.

• If necessary, use a push block. A push block MUST be used for longitudinal sawing of smaller workpieces, so that your hands and fingers are kept well away from the saw blade.

• Always store your push block, whenever it is not in use.

• Pay special attention to the instructions that help to reduce the hazard of KICK BACK. KICK BACK is a sudden reaction to a jammed, bent or badly aligned saw blade. KICK BACK causes the workpiece to be thrown back in the direction of the operator. KICK BACK can lead to serious injuries. KICK BACK can be avoided by keeping your saw blade sharp, by keeping the rip fence parallel to the saw blade, by maintaining the riving knife and the saw guard in good condition and in the right position, by keeping a good grip on the workpiece until you have pushed it completely past the saw blade, and by not sawing any twisted or skewed wood pieces, or pieces that do not have a straight edge for moving along the rip fence, in a longitudinal direction.

• Do not carry out any free-hand operations. Free-hand means that you use your hands for supporting the workpiece, or for leading it with your hands, instead of using the rip fence or the mitre block.

• NEVER bend over or around the saw blade. NEVER reach for a workpiece, before the saw blade has come to a complete stop.

• Avoid a sudden or too quick infeed of a workpiece. Workpieces made of hard material should be fed in as slowly as possible. Never fold or turn a workpiece while feeding it into the saw. If the saw blade jams or ceases to turn while the workpiece is being fed in, turn the equipment off immediately. Remove the plug from the socket. Remove the piece that is blocking the saw.

• NEVER try to remove sawed off chips, and never touch the saw guard, as long as the saw blade is turning.

• Remove all lose knots from the workpiece, BEFORE starting to saw.

• Do not maltreat the cable. Never pull on the cable, for removing the plug from the socket. Do not expose the cable to heat, oil, water or sharp edges.

• Some types of dust that is generated while working with the saw may contain chemicals, which can cause cancer, birth defects or other genetic damages. Some examples of these substances are:

• Lead derived from paints containing lead;POWX075750DB EN Copyright © 2022 VARO P a g e | 7 www.varo.com

• Arsenic and chrome from chemically treated wood.

• The hazard to your health from such exposures is dependent on how frequently you do this kind of work.

• Measures for reducing your exposure to such chemicals: Always work in well-ventilated surroundings and with certified safety equipment, such as dust masks that have been specially designed for filtering out microscopic particles.

• For sawing operations, connect the equipment to a dust exhaust system.

• The guard may be lifted up while positioning a workpiece, or for easier access during maintenance works. Make sure that the saw guard has been lowered and is positioned flat against the sawing table, before connecting your tool to the mains supply.

7 ADDITIONAL SAFETY INSTRUCTIONS FOR LASERS

Warning! The laser beam potentially causes eye damage. Do not look or stare into the laser beam.

• During use, do not point the laser beam at people, directly or indirectly through reflecting surfaces.

• This laser complies with class 2 according to the relevant standard. The unit includes no servicing components. Do not open the housing for any reason. If the unit is damaged, have the damage repaired by an authorized repair agent.

• Laser viewing glasses are not protective glasses against laser radiation. 8 ASSEMBLY Disconnect the power plug before carrying out any adjustments or maintenance. Do not operate this mitre saw until it has been fully assembled and correctly prepared for use in accordance with this instruction manual.

8.1 Assembling the side support bars

• Remove the screw and place the side support bars into the positioning holes.

• Secure the side support bars with the screw to prevent them sliding out of position.

8.2 Assembling the clamp

The clamp (11) can be installed on either left or right side of the guide fence. Insert the vise rod into the hole in the guide fence and fasten with locking screw 9 OPERATING INSTRUCTIONS

9.1 Transporting the mitre saw

To transport the power tool, use the retaining pin (17). Pull the mitre saw downwards and lock it in the lowered position by pull, twist and push in the retaining pin. That way, the saw is secured. Pull the sawblade to the front and block by tightening slide bar lock (21).POWX075750DB EN Copyright © 2022 VARO P a g e | 8 www.varo.com

9.2 Dust and chip extraction

For integrated dust extraction, place the dust bag (18) on the sawdust outlet. For external dust, you can use a vacuum cleaner hose. The dust bag is only for a partial dust removal! It is designed to break the dust extraction.

9.3 Clamping the work piece

Make sure the work piece can’t be catapulted. The clamp (11) is the most perfect gadget to avoid this.

• Press the work piece against the fence (4) and between the clamp

• Tighten the clamp (11) clockwise to secure the work piece.

9.4 Horizontal mitre angle

The horizontal mitre angle can be set in the range from -45° to 45°. The horizontal mitre angle scale shows the currently set in degrees.

• Loosen the locking knob (6).

• Pull the table lock lever (7) up and Rotate the saw table (5) to the required angle ( to the right or to the left). The required angle can be read of the scale flute (9).

• Tighten the locking knob (6) clockwise.

9.5 Adjustment of the cutting angle (fig. 1a – b))

It is recommended to let a trained technician adjust the blade angle.

• Position yourself at the back of the miter saw.

• Loosen the angle lock lever (20) by turning it anti clockwise.

• Make sure the lock pin (26) is in the closed position as shown in FIG1a.

• Turn the 4mm hex spanner clockwise to tilt the cutting blade to the right until the blade is at an 90° angle relative to the cutting table using a right angle. (FIG1b)

• Or if needed turn the 4mm hex spanner counter clockwise to tilt the cutting blade to the left, you will need to push the blade to the left manually to until the blade is at an 90° angle relative to the cutting table using a right angle. (FIG1b)

• There must be full contact between the blade and right angle(not included).

9.6 Dual bevel (Fig. 2)

The mitre saw can be used to make cuts to the left and right side at an angle of 45° to -45°

• Lift the machine head to its top position

• Release the turntable by loosening the locking handle (7)

• Adjust the turntable by its handle to the required angle

• Re-tighten the locking handle (7) to fix the turn table in position

• Undo the lock knob (20), lock pin (26) and hold the handle (13), tilt the machine head to the left or right, to the required angle scale (19)

• Re-tighten the lock know (20), lock pin (26) and make the cut

9.7 Slide lock adjustment

When not a complete cut through the work piece is desired, use the depth stop bolt to control the depth of cut. Only adjust the front bolt. The rear bolt is used to prevent the blade from cutting the table during normal cutting. Do not adjust the rear bolt.POWX075750DB EN Copyright © 2022 VARO P a g e | 9 www.varo.com

• Unlock the retaining pin.

• Raise the saw head assembly.

• Push the depth stop to the left to use the depth stop bolt settings.

• Pull down on the saw head to check the current setting.

• To change the setting, first loosen the knurled depth stop nut on the depth stop bolt. Turn the depth stop bolt clockwise to decrease depth and counterclockwise to increase depth. Tighten the depth stop nut after adjustment.

• If needed, push the depth stop to the right to temporarily disable it.

9.9 Switching ON / OFF

For your safety use both hands to switch the power tool on and off.

• Connect the power tool to the power supply.

• To turn the machine on, simultaneously press the main switch (14) and locking button (24).

• When you want to turn off the machine, you have to release the on/off switch (14).

• Important! Place the material you want to saw flat on the machine surface and secure with the clamping device (11) so that the material cannot move while you are cutting.

• After switching on the saw, wait for the blade (2) to reach its maximum speed.

• Press the release lever (15) sideways and, using the handle (13), apply steady and light downward pressure to move the machine head through the workpiece.

• When the cut is completed, return the machine to its top parking position and let go of the On/Off switch. Caution! A return spring causes the machine head to rise automatically at the end of the cut. Do not let go of the handle (13) as soon as the cut is completed but steady the machine head and allow it to rise slowly.

• You can switch the laser ON and OFF with the switch (29)

• The laser (22) directs a beam onto the workpiece

• Extremely precise cuts can be made using the laser function.

To attach the dust bag (18), fit it onto the dust extraction adapter. When the dust bag is about half full, remove the dust bag from the tool and empty it.

Make sure the saw blade doesn’t block while you are sawing. It causes damage to and burning of the motor. If there is a blockade of the saw blade, please loosen the switch immediately to prevent damage at the motor.

• Clamp the work piece firmly.

• Set the required horizontal mitre angle or the required vertical bevel angle.

• Switch on the power tool.

• Move the handle (13) slowly downwards.

• For long workpieces you should use the slide; loosen the locking knob for this purpose.

• Saw trough the work piece.

• Switch off the power tool.

• Wait until the saw blade (2) has come to a complete standstill before removing the work piece.POWX075750DB EN Copyright © 2022 VARO P a g e | 10 www.varo.com

9.13 Sawing special work pieces

Curved or round work pieces need to be secured against slipping. Make sure there is no gap between the work piece and the fence (4) or the saw table (5).

9.14 Replacing the saw blade (Fig. 4)

Disconnect the tool from the outlet before working on the saw blade. Wait a while before touching the saw blade. It can be very hot. The teeth of the saw blade are very sharp.

• Swing the machine head upwards.

• Loosen the cover plate screw (A), but do not remove this screw from the tool.

• Lift and hold up the lower blade guard to expose the threaded blade bolt

• Press the spindle lock knob (23) to activate it, turn the saw blade (2) by hand until it locked.

• Loosen the blade lock bolt by turning it clockwise using the Allan key (d).

• Remove the lock bolt, outer flange (a), saw blade (b)

• Remove the chips or sawdust from around the spindle and flanges.

• Fit the new saw blade, flanges and lock bolt. Check that the blade rotation direction complies with that of the motor.

• Check to make sure that all safety devices are properly mounted and in good working condition before you begin working with the saw again. Important! Every time that you change the saw blade, check to see that it spins freely in the table insert (8) in both perpendicular and 45° angle settings. When replacing the saw blade, you can tighten the slide bar with the locking knob (20).

10 CLEANING AND MAINTENANCE

Before performing any work on the equipment, pull the power plug.

• Regularly clean the machine housing with a soft cloth, preferably after each use.

• If the dirt does not come off use a soft cloth moistened with soapy water.

• Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts. Make sure no water can reach the inside of the power tool!

10.2 Connecting cable

If the connecting cable (or mains plug) is damaged, it must be replaced. Replacement of the connecting cable should only be carried out by a qualified specialist (qualified electrician).POWX075750DB EN Copyright © 2022 VARO P a g e | 11 www.varo.com 11 TECHNICAL DATA Nominal Voltage 220-240V ~ 50 Hz Power rating 2200 W (S6 25%) No load speed 5000 min-1 Protection class

• Thoroughly clean the whole machine and its accessories.

• Store it out of the reach of children, in a stable and secure position, in a cool and dry place, avoid too high and too low temperatures.

• Protect it from exposure to direct sunlight. Keep it in the dark, if possible.

• Don’t keep it in plastic bags to avoid humidity build-up. 15 TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Motor does not run. No electricity arrives at the machine. The motor is overloaded or overheated. Check the power supply and the power line. Allow the machine to run idle for about 2 minutes to cool down. Vibrations are too strong. Screws or parts are loose. The mitre saw is not correctly mounted. Work piece is not properly supported. Tighten all screws. Mount the mitre saw correctly. Secure the work piece.POWX075750DB EN Copyright © 2022 VARO P a g e | 12 www.varo.com 16 WARRANTY

• This product is warranted for a 36-month period effective from the date of purchase by the first user.

• This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

• Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.

• We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.

• Repairs may only be carried out by an authorized customer service centre for Powerplus tools.

• You can always obtain more information at the number 00 32 3 292 92 90.

• Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.

• At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.

• Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneus net voltage. This list is not exhaustive.

• Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.

• Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.

• We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

• Your purchase receipt must be kept as proof of date of purchase.

• Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase. 17 ENVIRONMENT Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.POWX075750DB EN Copyright © 2022 VARO P a g e | 13 www.varo.com

18 DECLARATION OF CONFORMITY

VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that, product: Double Bevel Sliding Mitre Saw trade mark: POWERplus model: POWX075750DB is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration. European Directives (including, if applicable, their amendments up to the date of signature); 2011/65/EU 2006/42/EC 2014/30/EU European harmonized standards (including, if applicable, their amendments up to the date of signature); EN62841-1 : 2015 EN62841-3-9 : 2015

26. Lock pin for angle adjustment

27. Lock screw for clamping device

28. Lock screws for workpiece support

8.1 Assembling the side support bars

• Remove the screw and place the side support bars into the positioning holes.

• Secure the side support bars with the screw to prevent them sliding out of position.

9.5 Adjustment of the cutting angle (fig. 1a – b))

It is recommended to let a trained technician adjust the blade angle.

• Position yourself at the back of the miter saw.

• Loosen the angle lock lever (20) by turning it anti clockwise.

• Make sure the lock pin (26) is in the closed position as shown in FIG1a.

• Turn the 4mm hex spanner clockwise to tilt the cutting blade to the right until the blade is at an 90° angle relative to the cutting table using a right angle. (FIG1b)

• Or if needed turn the 4mm hex spanner counter clockwise to tilt the cutting blade to the left, you will need to push the blade to the left manually to until the blade is at an 90° angle relative to the cutting table using a right angle. (FIG1b)

• There must be full contact between the blade and right angle(not included).

9.6 Dual bevel (joonis. 2)

The mitre saw can be used to make cuts to the left and right side at an angle of 45° to -45°

• Lift the machine head to its top position

• Release the turntable by loosening the locking handle (7)

• Adjust the turntable by its handle to the required angle

• Re-tighten the locking handle (7) to fix the turn table in position

• Undo the lock knob (20), lock pin (26) and hold the handle (13), tilt the machine head to the left or right, to the required angle scale (19)

• Re-tighten the lock know (20), lock pin (26) and make the cut

• You can switch the laser ON and OFF with the switch (29)

• The laser (22) directs a beam onto the workpiece Extremely precise cuts can be made using the laser function.

• Swing the machine head upwards.

• Loosen the cover plate screw (A), but do not remove this screw from the tool.

• Lift and hold up the lower blade guard to expose the threaded blade bolt

• Press the spindle lock knob (23) to activate it, turn the saw blade (2) by hand until it locked.

• Loosen the blade lock bolt by turning it clockwise using the Allan key (d).

• Remove the lock bolt, outer flange (a), saw blade (b)

• Remove the chips or sawdust from around the spindle and flanges.

• Fit the new saw blade, flanges and lock bolt. Check that the blade rotation direction complies with that of the motor.

• Check to make sure that all safety devices are properly mounted and in good working condition before you begin working with the saw again. Important! Every time that you change the saw blade, check to see that it spins freely in the table insert (8) in both perpendicular and 45° angle settings. Saeketta asendamisel saate liuglati pingutada lukustusnupuga (23).
