Product type	Food processor
Brand	Wilfa
Model	Essential FP1B-1000
Main functions	Chop, mix, purée, knead, juice citrus fruits, julienne, slice, make french fries
Bowl capacity	Approximately 1.5 L (estimate)
Speeds	Continuous variable with presets (pulse, knife, citrus juicer)
Blade material	Stainless steel and plastic
Power supply	Mains 220-240 V (estimate)
Safety	Safety lock switch between base, bowl, and lid; automatic shut-off if not locked
Cleaning	Housing: damp cloth; accessories: soapy water; do not immerse motor; do not put in dishwasher
Warranty	5 years
Included accessories	Stainless steel blade, plastic knife, julienne disc, slicing disc, french fry disc, citrus juicer, pusher
Spare parts	Use only genuine Wilfa parts
Recycling	Compliant with WEEE directive – do not dispose with household waste
Maximum continuous use	2 minutes per cycle, then 30 minutes cooling

Frequently Asked Questions - Essential FP1B-1000 WILFA

The appliance does not start, what to do?

Check that the bowl and lid are properly locked in place. The appliance has a safety lock switch that prevents starting if the parts are not securely attached.

Which speed to use for chopping onions?

To chop onions, cut them into 4 pieces and use pulse mode or the knife preset for 30 to 60 seconds.

Can I put the accessories in the dishwasher?

No, the accessories are not dishwasher safe. Clean them with soapy water and dry them completely before reassembling.

How long can I use the food processor continuously?

Do not exceed 2 minutes of continuous use. Then let the appliance cool down for at least 30 minutes before using again.

The bread dough is too dry, how to fix it?

Run the machine and add water through the feed tube, 1 tablespoon at a time, until the dough cleans the inside of the bowl.

The motor slows down when chopping meat, why?

This may be due to too large a quantity. Remove half of the meat and process it in two batches. For best results, remove fat before chopping.

How to use the citrus juicer?

Turn the knob to the left and press the citrus juicer button. Press the citrus fruits applying vertical and lateral pressure for better yield.

The appliance vibrates or moves during use, what to do?

Clean and dry the rubber feet under the appliance. Make sure not to exceed the maximum load capacity.

What is the warranty of this food processor?

Wilfa offers a 5-year warranty from the date of purchase, valid for domestic use. Keep your purchase receipt.

Where to find spare parts?

Use only genuine Wilfa spare parts. Visit wilfa.com or contact customer service to order them.

USER MANUAL Essential FP1B-1000 WILFA

Black Wilfa kitchen blender with clear glass casing and control panel (no visible text or symbols)

ESSENTIAL

FOOD PROCESSOR FP1B-1000

EN . Instruction manual

NO . Bruksanvisning

SE . Bruksanvisning

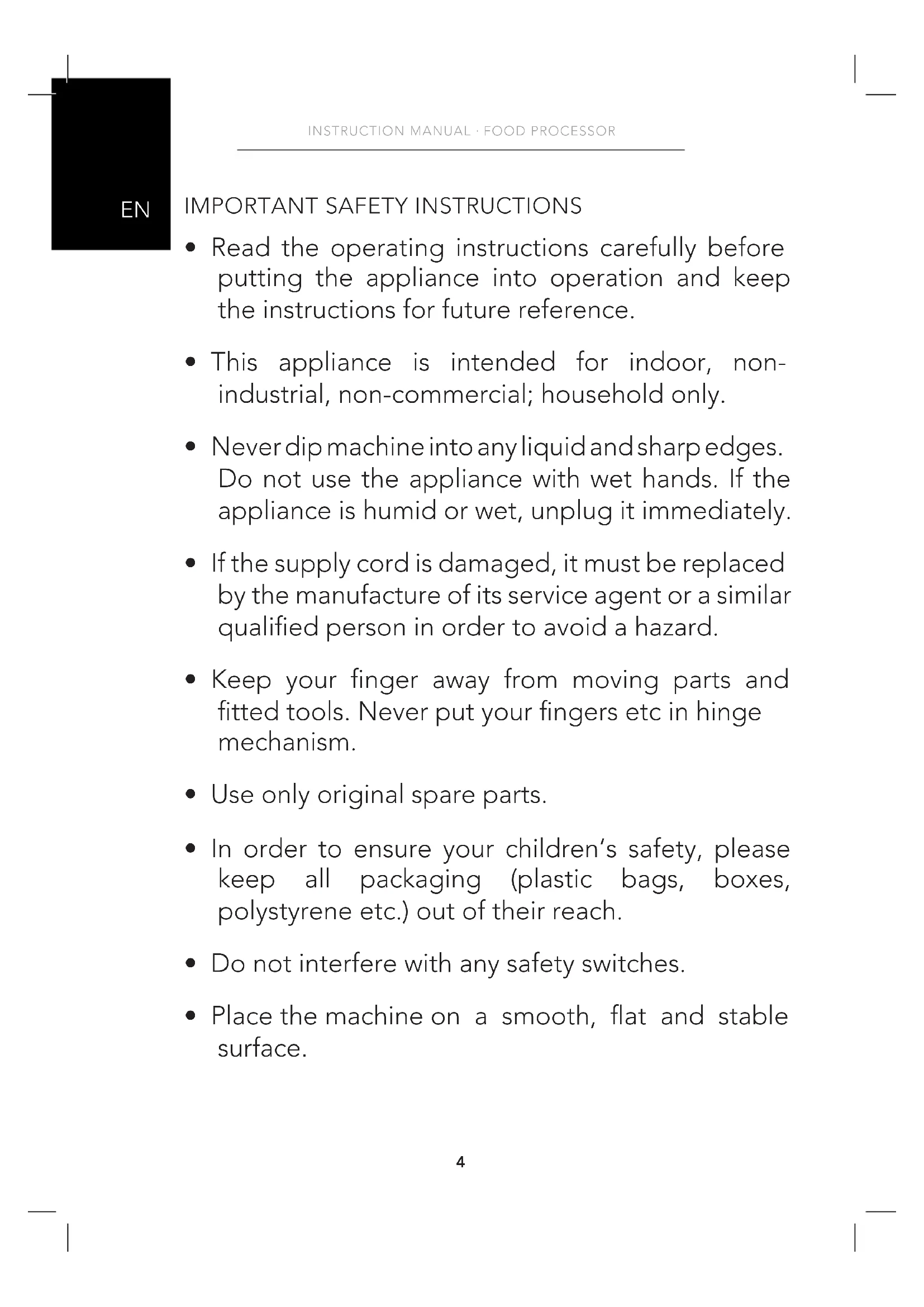

IMPORTANT SAFETY INSTRUCTIONS

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions for future reference.
• This appliance is intended for indoor, non-industrial, non-commercial; household only.
• Never dip machine into any liquid and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• If the supply cord is damaged, it must be replaced by the manufacture of its service agent or a similar qualified person in order to avoid a hazard.
• Keep your finger away from moving parts and fitted tools. Never put your fingers etc in hinge mechanism.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
• Do not interfere with any safety switches.

• Place the machine on a smooth, flat and stable surface.

• Be very careful when you handle the blades or inserts. Be especially careful when you remove them from machine, their cutting edges are very sharp.

• Wait until moving parts stop running before you remove the lid of machine.
• Do not exceed the maximum content indicated on the accessories.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
  • Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

EN

BEFORE USING

• Before connecting the appliance to the power, recheck the type of supply and the mains voltage match with the details given on the rating label on the appliance.
• Using for the first time, rip off all wrapping paper and plastic bags. Clean the fittings.

STEPLESS SPEED REGULATOR AND PRESETS

• After installing the parts you need, turn the knob to the left to choose a preset, or to the right to control the speed manually.
• To use the presets; Pulse, knife blade or juicer, turn the knob to the left before pressing the desired preset-button.

USING THE KNIFE BLADES

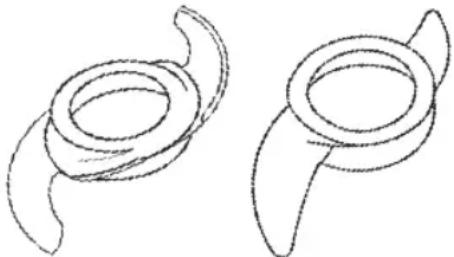

Two line drawings of a mechanical component with curved ends, resembling a knuckle or knuckle (no text or symbols)

STAINLESS STEEL KNIFE

Use the stainless-steel knife to chop, mix and purée.

• Before processing, cut the food into pusher size pieces.
• Do not use the food processor more than 2 minutes continuously. Unplug the appliance and allow to cool down for 30 minutes.
• For coarser foods, turn the knob to the left, and press the pulse button.

Food Processing size Quantity ProcessingtimeSpeed

Onion Cut into 4 pcs without skin	500 g approx.30-60 sec.	Pulse/ knife button
Garlic Without skin 500 g approx.		Pulse/ knife button
	30-60 sec.
Carrot Cut into pieces < 2x2 cm	500 g approx.30-60 sec.	High speed / Pulse/ knife button
Meat Pieces of < 2x2 cm without bone	500 g approx.30-60 sec.	High speed / Pulse/ knife button

PLASTIC KNIFE

- Use the plastic knife when making pasta dough, pizza dough, bread, pie dough etc.

- Do not use the food processor more than 2 minutes continuously. Unplug the appliance and allow to cool down for 30 minutes.

Food Suggested quantity Processing time Speed

Flour/Water	FlourWater	500 g285 g	Approx. 90 seconds	Low speed /pulse
Mixing of cake batter	EggsMargarineSugarFlourBaking powder	4 pcs200 g200 g200 g4 g	Approx. 2 min Low speed /pulse

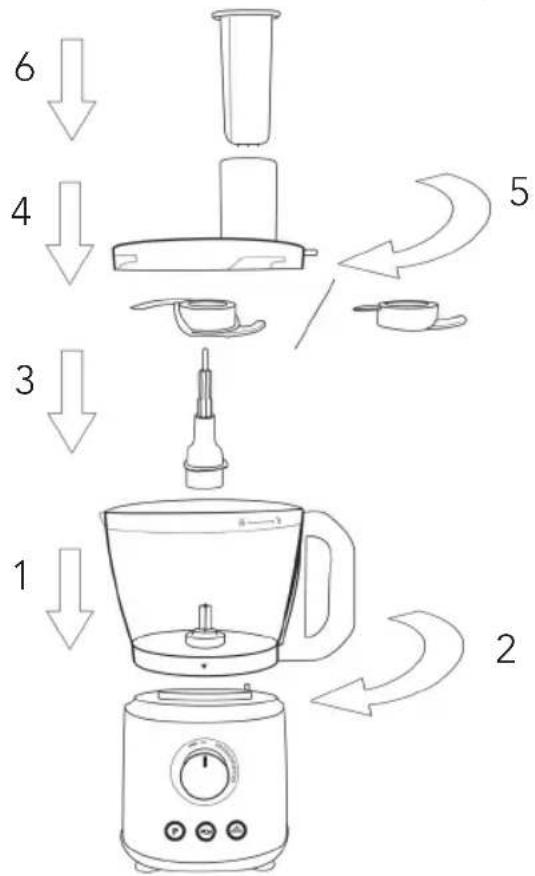

• Follow below flow pictured step by step to assemble machine.
• Ensure the bowl in step 2 and the lid in step 5 are locked, or the machine will not work. In step 3, Stainless Steel knife blade or Plastic knife could be placed.
• After using the appliance, you can disassemble machine by opposite flow and direction.
• Only open the lid when blades have completely stopped.

EN

USING THE BLADE DISCS

• Please pay attention to the capacity line of container. Once the food approaches the max line on the container, please stop operation and pour out food.
• Switch the appliance on, and put the food into the feed tube, and push it down evenly with the pusher - never put your fingers in the feed tube.
• Do not use the food processor more than 2 minutes continuously. Unplug the appliance and allow to cool down for 30 minutes.

Four circular diagrams showing abstract patterns with radial lines and dots, no text or symbols present.

BLADE DISC DETAILS

Shredder Disc

French Fry/Julienne Disc

2 in 1 blade: Fine Slicer & Julienne Disc

2 in 1 blade: Rough Slicer & Julienne Disc

Food Suggest quantity	Processing time	Speeds
		Julienne Disc	Slicer Disc French Fried Potato Disc
Carrot 500 g approx.	1 min.	Low speed	High speed N/A
Potato 500 g approx.	1 min.	N/A	N/A High speed
Zucchini 500 g approx.	1 min.	N/A	High speed N/A
Leek 500 g approx.	1 min.	N/A	High speed N/A
Beetroot without skin	500 g approx.	N/A	High speed N/A
	1 min.
Cheese 500 g approx.	1 min.	N/A	High speed N/A

EN

To get the best performance, follow above suggestion on the pusher size chosen and the speeds.

• For Julienne Disc, it is suggested on low speed.
• For Slicer Disc, it is suggested on high speed.
• For French Fried Potato Disc, it is suggested on high speed.

• For Shredder disk, it is suggested on low speed.

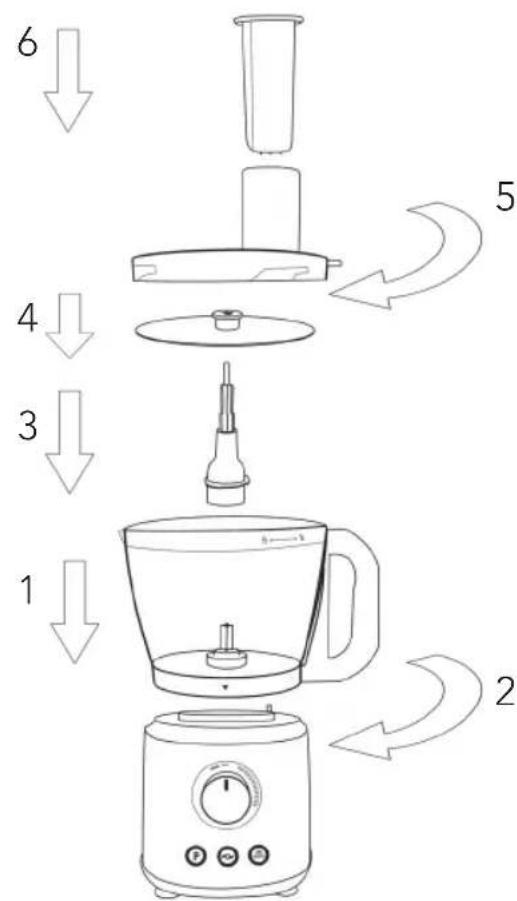

• Follow the flow pictured step by step to assemble machine.

• Ensure the bowl in step 2 and the lid in step 5 are locked, or the machine will not work.
• In step 4 make sure the blade disc is fixed well on shaft.
• After operation, you can disassemble machine by opposite flow and direction.
• Always be careful when handling the stainless-steel blade as they are very sharp.
• Only open the lid when the blades are completely stopped.

6 4 3 1 2 5 1

EN

USING THE CITRUS JUICER

Use the citrus juicer to squeeze the juice from citrus fruits (e.g. lemons/oranges).

• Pay attention to the capacity line. Once the liquid approaches the max line on the container, please stop operation and pour out food.
• Turn the knob to the left and press the citrus juicer-button.
• Do not work more than 2 min., Allow the motor to cool before the next operation at least 30 min.

• To get the best performance, press the orange not only vertical by also on left or right side.

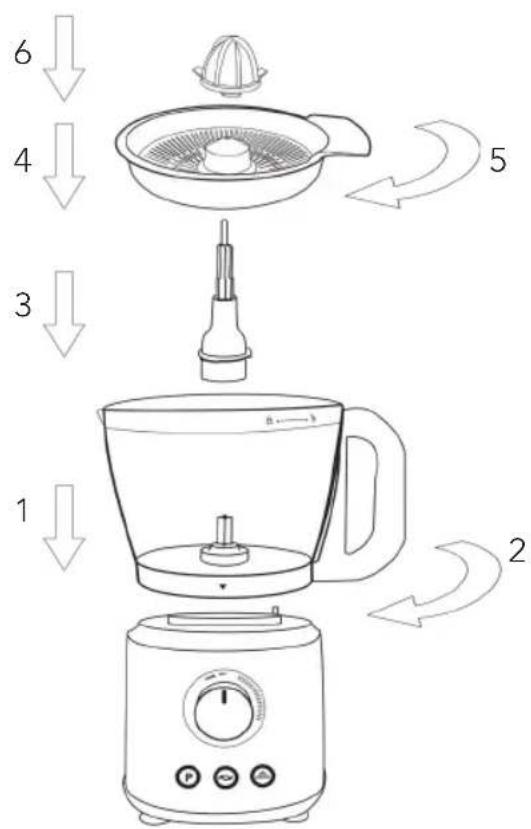

• Follow the flow pictured step by step to assemble machine.

• Ensure the bowl in step 2 and the juicer in step 5 are locked, or the machine will not work.
• After operation, you can disassemble machine by opposite flow and direction.
• Only take the juicer from the machine when the juicer is completely stopped.

6 4 3 1 2 5 1

CLEANING

• Remove the power cord from the socket before cleaning.
• Do not immerse the housing with motor in water.
• Do not use any abrasive detergents.
• Please only use a damp to clean the outside of the housing.
• Components that have come into contact with food can be cleaned in soapy water.
• Do not use dishwasher.
• To clean it efficiently pour hot water and a few drops of soap into the bowl (do not exceed max line) and press the pulse button to clean the bowl and the attached accessory.
• Allow the parts to dry thoroughly before reassembling the device.

TROUBLESHOOTING

Problem Solutions
Machine does not work	- There is a safety interlock switch between base, bowl and lid. Make sure the bowl and lid are securely locked into position. It will not start if the lid or/and bowl are not locked into place.- If the motor still will not start, check the power cord and power outlet.
French Fried Potato Julienne Disk	- Always clear any blocked potato from the chipper disc before processing more potatoes.
Some food remains on the disc after processing	- It is normal for small pieces to remain after processing.
Motor slows down when mixing dough	- Amount of dough may exceed maximum capacity. Remove half and process in two batches.
Dough is too dry -	Run machine and add water through feed cube, 1 tablespoon at a time until dough cleans the inside of the processing bowl.
Dough is too wet -	Run machine and add flour through feed tube, 1 tablespoon at a time until the dough looks dry enough.
Motor slow down when chopping blade	- Amount of meat may be too much. Remove half and process in two batches.- For the best result, trim the meat of fat before processing.
Vibrates/moves during processing	- Clean and dry the rubber feet at the bottom of the unit.- Also make sure that the maximum load capacity is not being exceeded.

EN

BEYOND EXPECTATIONS 5 SINCE 1948 YEAR GUARANTEE

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
• Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)

Instructions manual is also available at our website wilfa.com

PRODUCT SPECIFICATIONS

Voltage: 220V\~240V\~50 Hz

1000W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or

contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOLD

18 VIKTIGE SIKKERHETSANVISNINGER
20 F∅R BRUK
20 BRUKE KNIVBLADENE
25 RENGJ∅RING
26 PROBLEML∅SNING
28 GARANTI
29 PRODUKTSPESIFIKASJONER
29 SUPPORT OG RESERVEDELER
29 GJENVINNING

NO

VIKTIGE SIKKERHETSANVISNINGER

Two abstract line drawings of a coiled or knotted object with curved ends, no text or symbols present.

KNIV I RUSTFRITT STÅL

Two hand-drawn diagrams of a mechanical component with curved arms, no text or symbols present.

KNIVBLAD I ROSTFRITT STÅL

Two line drawings of a mechanical component with curved blades, no text or symbols present

KNIV I RUSTFRI STÅL

Brug kniven i rustfrit stål til at hakke, røre eller blende.

Two hand-drawn diagrams of a mechanical component with curved blades, no text or symbols present.

TERÄ RUOSTUMATONTA TERÄSTÄ

Two hand-drawn diagrams of a mechanical component with curved arms (no text or symbols)

EDELSTAHLMESSER

Two hand-drawn diagrams of a mechanical component with curved arms, no text or symbols present.

ROESTVRIJSTALEN MESSEN

Four circular diagrams showing different types of mechanical or electrical components, no text or symbols present.

DETAILS MESSCHIJF

Versnipperen

Frieten/Julienne

Two hand-drawn diagrams of a propeller or fan component, no text or symbols present

Four circular diagrams showing different types of mechanical or biological structures, possibly turbine or gear components (no text or labels)

SZCZEGÓŁY TARCZY TNĄCEJ

Two hand-drawn diagrams of a mechanical component with curved arms (no text or symbols)

LAME EN ACIER INOXYDABLE

Four circular diagrams showing different types of mechanical or electrical components, no text or symbols present.

INFORMATIONS SUR LES DISQUES DE COUPE

Disque à émincer

CARACTÉRISTIQUES DU PRODUIT

Tension : 220 V\~240 V\~50 Hz

1000W

ASSISTANCE ET PIÈCES DÉTACHÉES

Two hand-painted diagrams of a mechanical component, possibly a knuckle or knuckle (no text or symbols)

COLTELLO IN ACCIAIO INOSSIDABILE

Four circular diagrams showing abstract patterns with radial lines and dots, no text or symbols present.

DETTAGLI DISCO LAME

Disco trituratore

Patatine fritte/disco julienne

Two hand-drawn diagrams of a propeller or fan component, no text or symbols present
