USER MANUAL Easy FP2-1000W WILFA

White kitchen blender with clear glass casing and handle, no visible text or symbols on the device itself.

EASY

FOOD PROCESSOR FP2-1000W

EN · Instruction manual

NO · Bruksanvisning

SE · Bruksanvisning

IMPORTANT SAFETY INSTRUCTIONS

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions for future reference.
• This appliance is intended for indoor, non-industrial, non-commercial; household only.
• Never dip machine into any liquid and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• If the supply cord is damaged, it must be replaced by the manufacture of its service agent or a similar qualified person in order to avoid a hazard.
• Keep your finger away from moving parts and fitted tools. Never put your fingers etc in hinge mechanism.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
• Do not interfere with any safety switches.

• Place the machine on a smooth, flat and stable surface.

• Be very careful when you handle the blades or inserts. Be especially careful when you remove them from machine, their cutting edges are very sharp.

• Wait until moving parts stop running before you remove the lid of machine.
• Do not exceed the maximum content indicated on the accessories.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
  • Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

EN

BEFORE USING

• Before connecting the appliance to the power, recheck the type of supply and the mains voltage match with the details given on the rating label on the appliance.
• Using for the first time, rip off all wrapping paper and plastic bags. Clean the fittings.

STEPLESS SPEED REGULATOR AND PRESETS

• After installing the parts you need, turn the knob clockwise to either 1 or 2.
- To use the pulse function you need to turn the knob anti clockwise to P, and hold for as long as needed.

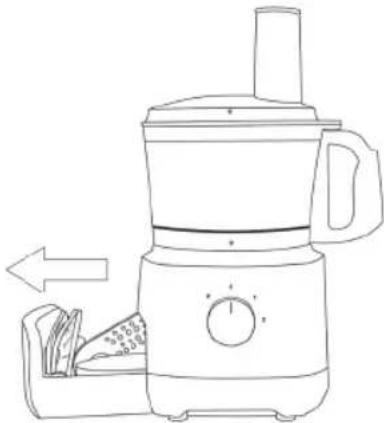

STORAGE DRAWER

A drawer on the left side of the food processor can be pulled out, and you can store the blades, and the plastic knife in it.

Line drawing of a blender with a side panel and lid, showing no text or symbols

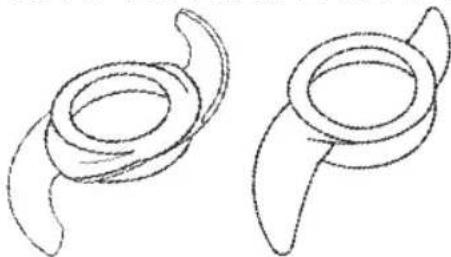

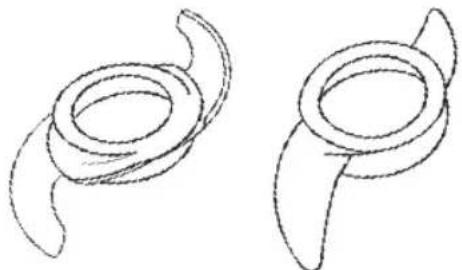

USING THE KNIFE BLADES

Two hand-drawn diagrams of a mechanical component with curved arms (no text or symbols)

PLASTIC KNIFE

• Use the plastic knife when making pasta dough, pizza dough, bread, pie dough etc.
• Do not use the food processor more than 2 minutes continuously. Unplug the appliance and allow to cool down for 30 minutes.
• The amount of flour in recipes can't exceed 200g.

STAINLESS STEEL KNIFE

Use the stainless-steel knife to chop, mix and purée.

• Before processing, cut the food into pusher size pieces.
• Do not use the food processor more than 2 minutes continuously. Unplug the appliance and allow to cool down for 30 minutes.
• For coarser foods, turn the knob to the left, and press the pulse button.

Food Processing size Quantity Processing time Speed

Onion Cut into 4 pcs without skin	250 g approx.30-60 sec.	Pulse
Garlic Without skin 250 g approx.		Pulse
	30-60 sec.
Carrot Cut into pieces < 2x2 cm	250 g approx.30-60 sec.	Speed 2 / Pulse
Meat Pieces of < 2x2 cm without bone	250 g approx.30-60 sec.	Speed 2/ Pulse

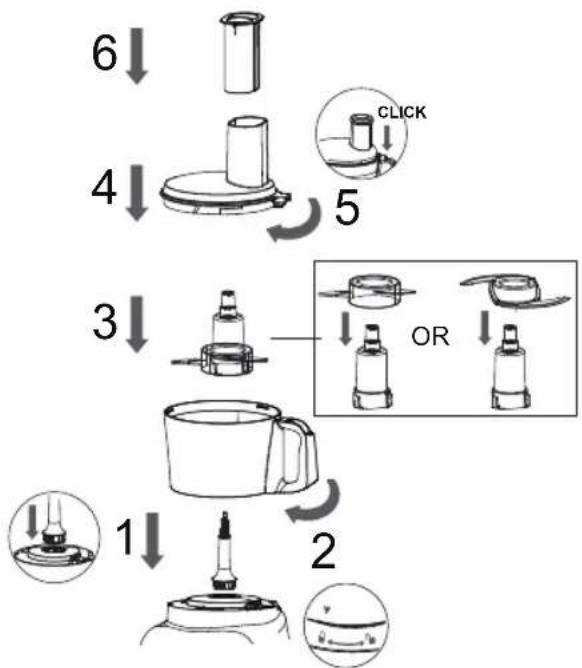

• Follow below flow pictured step by step to assemble machine.
• Ensure the bowl in step 2 and the lid in step 5 are locked, or the machine will not work. In step 3, Stainless Steel knife blade or Plastic knife could be placed.
• After using the appliance, you can disassemble machine by opposite flow and direction.
• Only open the lid when blades have completely stopped.

EN

USING THE BLADE DISCS

• Please pay attention to the capacity line of container. Once the food approaches the max line on the container, please stop operation and pour out the food.
• Switch the appliance on, and put the food into the feed tube, and push it down evenly with the pusher - never put your fingers in the feed tube.
• Do not use the food processor more than 3 minutes continuously. Unplug the appliance and allow to cool down for 30 minutes.

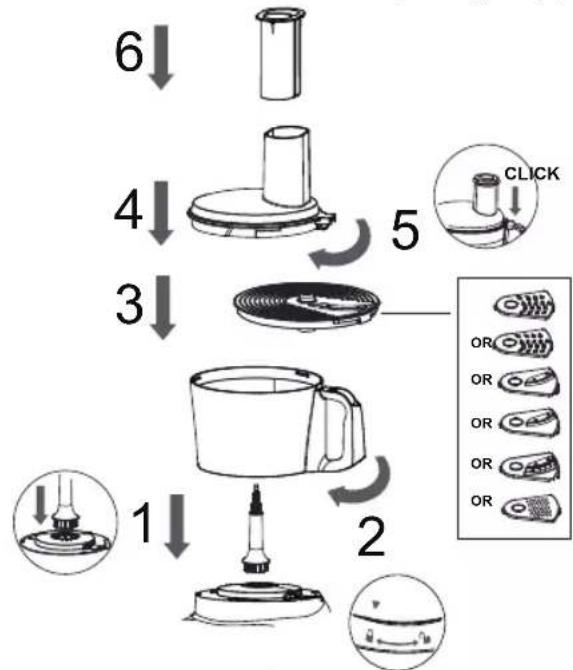

ASSEMBLY THE BLADES

• Choose your preferred blade for your ingredient.
• Press down the blade into the holder. Be careful, the blades are sharp!
  • To get the best results use speed 2.

1 2

1. Follow the flow pictured step by step to assemble machine.
2. Ensure the bowl in step 2 and the lid in step 5 are locked, or the machine will not work.
3. In step 4 make sure the blade disc is fixed well on shaft.
4. After operation, you can disassemble machine by opposite flow and direction.
5. Always be careful when handling the stainless-steel blade as they are very sharp.
6. Only open the lid when the blades are completely stopped.

DISASSEMBLE THE BLADE DISC

- After use, flip the holder over and press the head of the disc to release it from the holder. Be careful when removing the blade, they are sharp!

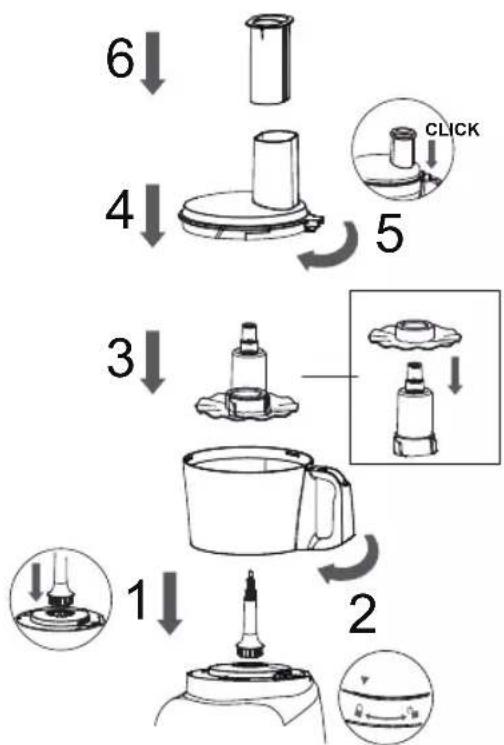

USING THE EMULSIFYING DISC

• Recommended to use for aioli, mayonnaise, whipping cream, whisking eggs, egg whites, and sponge cake mixtures.
• For egg white whisking, please use room temperature eggs. Please ensure the bowl and emulsifying disc is dry and free from grease.
• Clean the emulsifying disc after each use.
• For the best results, use speed 2.

Food Quantity Processing time Speed

Whipped cream 200ml approx.

Speed 2

30-60 sec.

EN

CLEANING

• Remove the power cord from the socket before cleaning.
• Do not immerse the housing with motor in water.
• Do not use any abrasive detergents.
• Please only use a damp to clean the outside of the housing.
• Components that have come into contact with food can be cleaned in soapy water.
• Do not use dishwasher.
• To clean it efficiently pour hot water and a few drops of soap into the bowl (do not exceed max line) and press the pulse button to clean the bowl and the attached accessory.
• Allow the parts to dry thoroughly before reassembling the device.

TROUBLESHOOTING

Problem Solutions

Machine does not work	- There is a safety interlock switch between base, bowl and lid. Make sure the bowl and lid are securely locked into position. It will not start if the lid or/and bowl are not locked into place.- If the motor still will not start, check the power cord and power outlet.
French Fried Potato Julienne Disk	- Always clear any blocked potato from the disc before processing more potatoes.
Some food remains on the disc after processing	- It is normal for small pieces to remain after processing.
Motor slows down when mixing dough	- Amount of dough may exceed maximum capacity. Remove half and process in two batches.
Dough is too dry -	Run machine and add water through feed cube, 1 tablespoon at a time until dough cleans the inside of the processing bowl.
Dough is too wet -	Run machine and add flour through feed tube, 1 tablespoon at a time until the dough looks dry enough.
Motor slow down when chopping blade	- Amount of meat may be too much. Remove half and process in two batches.- For the best result, trim the meat of fat before processing.
Vibrates/moves during processing	- Clean and dry the rubber feet at the bottom of the unit.- Also make sure that the maximum load capacity is not being exceeded.

BEYOND EXPECTATIONS 5 SINCE 1948 YEAR GUARANTEE

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
- Parts which are normally worn down
- Parts you can expect being replaced regularly

Instructions manual is also available at our website wilfa.com

PRODUCT SPECIFICATIONS

Voltage: 220V-240V\~50/60 Hz

1000W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or

contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOLD

16 VIKTIGE SIKKERHETSANVISNINGER
18 F∅R BRUK
18 BRUKE KNIVBLADENE
22 RENGJ∅RING
23 PROBLEML∅SNING
24 GARANTI
25 PRODUKTSPESIFIKASJONER
25 SUPPORT OG RESERVEDELER
25 GJENVINNING

NO

VIKTIGE SIKKERHETSANVISNINGER

Line drawing of a kitchen blender with a side panel and lid, showing no text or symbols

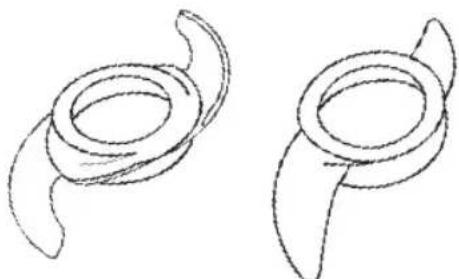

BRUKE KNIVBLADENE

Two hand-drawn diagrams of a mechanical component with curved arms, no text or symbols present.

KNIV I RUSTFRITT STÅL

DEMONTERE BLADSKIVEN

Line drawing of a blender with a side panel and lid, showing no text or symbols

ANVÄNDA KNIVBLADEN

Simple line drawing of a coiled spring or rope (no text or symbols)

Simple line drawing of a three-bladed propeller or fan (no text or symbols)

PLASTKNIV

KNIVBLAD I ROSTFRITT STÅL

ANVÄNDA SKIVORNA

DEMONTERING AV SKIVENHETEN:

RENGÖRING

Line drawing of a kitchen blender with a side panel and lid, showing no text or symbols.

BRUG AF KNIVBLADE

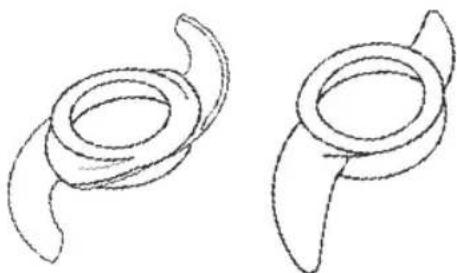

Two line drawings of a mechanical component with curved blades, no text or symbols present

PLASTKNIV

BRUG AF SKIVER

DEMONTERING AF KNIVE

RENG∅RING

Line drawing of a kitchen blender with a side dish and menu, no text or symbols present

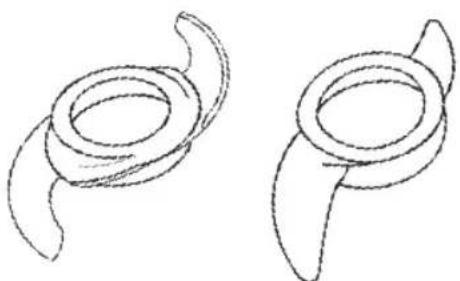

TERIEN KÄYTTÖ

Two line drawings of a mechanical component with curved blades (no text or symbols)

TERÄ RUOSTUMATONTA TERÄSTÄ

TERÄLEVYN IRROTUS

PUHDISTAMINEN

Line drawing of a blender with a side panel showing food items (no text or symbols)

Two hand-drawn diagrams of a mechanical component with curved blades, no text or symbols present.

EDELSTAHLMESSER

DE

86 PROBLEEMOPLOSSING

88 GARANTIE

89 PRODUCTSPECIFICATIES

89 ONDERSTEUNING EN RESERVEONDERDELEN

89 RECYCLING

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Line drawing of a blender with a side panel and lid, showing no text or symbols

DE MESBLADEN GEBRUIKEN

Two abstract line drawings of a coiled or knotted object, resembling mechanical or electrical components (no text or symbols)

ROESTVRIJSTALEN MESSEN
    A["1: Cooker with brush, 2: Cooker with brush, 3: Cooker with brush, 4: Cooker with blender, 5: Click with blender"]
    B["2: Cooker with brush, 3: Cooker with blender, 4: Cooker with blender, 5: Click with blender"]
    C["6: Cooker with blender, 1: Cooker with blender, 2: Cooker with blender, 3: Cooker with blender, 4: Cooker with blender, 5: Click with blender"]
    D["OR"] --> E["OR"]
    F["OR"] --> G["OR"]
    H["OR"] --> I["OR"]

Two hand-drawn diagrams of a propeller or turbine blade, no text or symbols present

KORZYSTANIE Z TARCZ TNĄCYCH

Two hand-drawn diagrams of a mechanical component with curved arms (no text or symbols)

LAME EN ACIER INOXYDABLE

NETTOYAGE

CARACTÉRISTIQUES DU PRODUIT

Tension : 220V-240V\~50/60 Hz 1000W

ASSISTANCE ET PIÈCES DÉTACHÉES

Two hand-drawn diagrams of a mechanical component with curved blades, no text or symbols present.

COLTELLO IN ACCIAIO INOSSIDABILE

Line drawing of a blender with a side panel and food item, no text or symbols present

Two hand-drawn spiral-shaped objects with curved ends, resembling mechanical or electrical components (no text or symbols)

LIMPIEZA

FSC www.fsc.org 100% From well- managed forests FSC® C000000

FP2-1000W_20_01
