USER MANUAL TK 700200 EINHELL

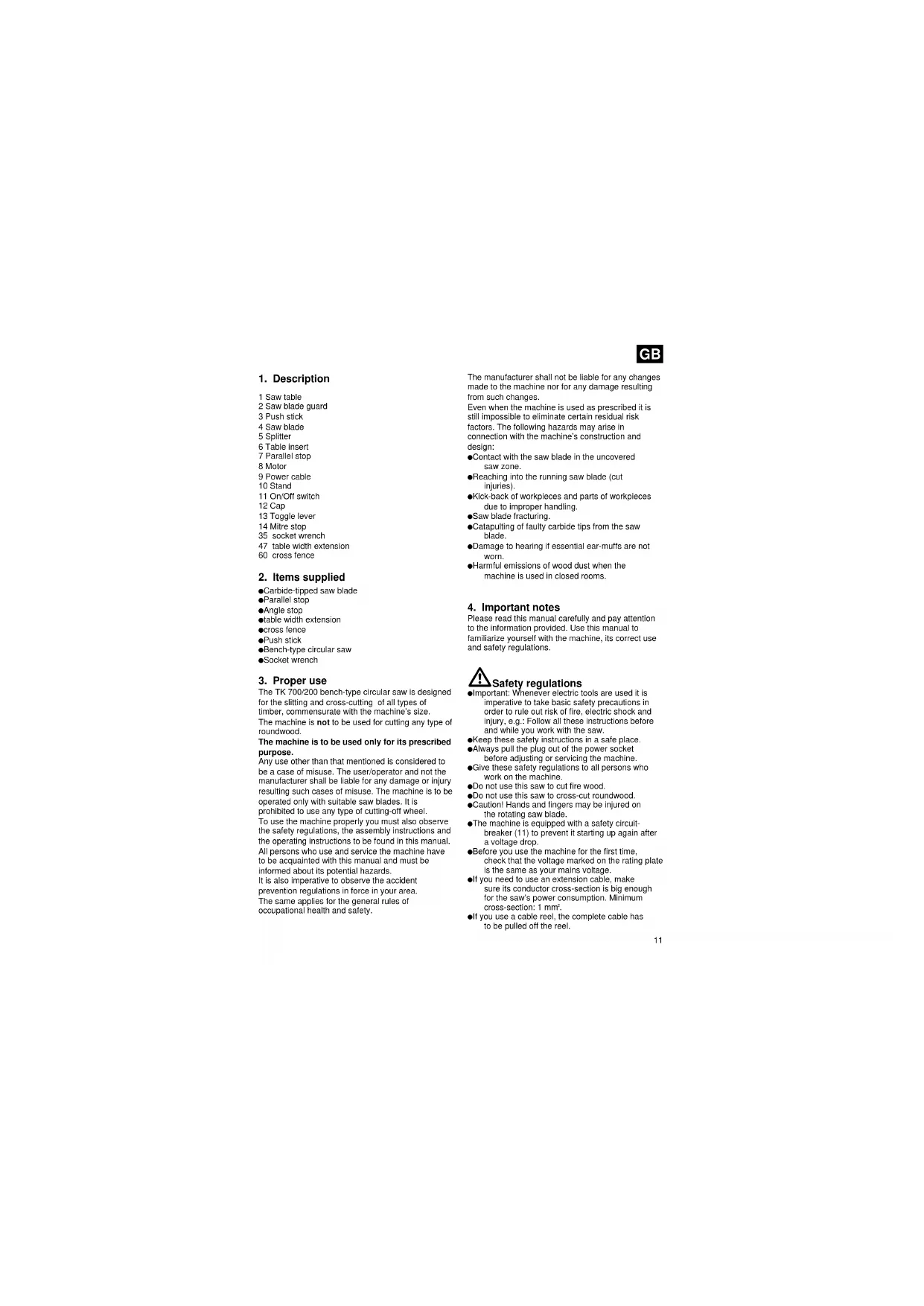

Carbide-tipped saw blade Parallel stop Angle stop table width extension cross fence Push stick Bench-type circular saw Socket wrench

The TK 700/200 bench-type circular saw is designed for the slitting and cross-cutting of all types of timber, commensurate with the machine’s size. The machine is not to be used for cutting any type of roundwood. The machine is to be used only for its prescribed purpose. Any use other than that mentioned is considered to be a case of misuse. The user/operator and not the manufacturer shall be liable for any damage or injury resulting such cases of misuse. The machine is to be operated only with suitable saw blades. It is prohibited to use any type of cutting-off wheel. To use the machine properly you must also observe the safety regulations, the assembly instructions and the operating instructions to be found in this manual. All persons who use and service the machine have to be acquainted with this manual and must be informed about its potential hazards. It is also imperative to observe the accident prevention regulations in force in your area. The same applies for the general rules of occupational health and safety. The manufacturer shall not be liable for any changes made to the machine nor for any damage resulting from such changes. Even when the machine is used as prescribed it is still impossible to eliminate certain residual risk factors. The following hazards may arise in connection with the machine’s construction and design: Contact with the saw blade in the uncovered saw zone. Reaching into the running saw blade (cut injuries). Kick-back of workpieces and parts of workpieces due to improper handling. Saw blade fracturing. Catapulting of faulty carbide tips from the saw blade. Damage to hearing if essential ear-muffs are not worn. Harmful emissions of wood dust when the machine is used in closed rooms.

Please read this manual carefully and pay attention to the information provided. Use this manual to familiarize yourself with the machine, its correct use and safety regulations. Safety regulations Important: Whenever electric tools are used it is imperative to take basic safety precautions in order to rule out risk of fire, electric shock and injury, e.g.: Follow all these instructions before and while you work with the saw. Keep these safety instructions in a safe place. Always pull the plug out of the power socket before adjusting or servicing the machine. Give these safety regulations to all persons who work on the machine. Do not use this saw to cut fire wood. Do not use this saw to cross-cut roundwood. Caution! Hands and fingers may be injured on the rotating saw blade. The machine is equipped with a safety circuit- breaker (11) to prevent it starting up again after a voltage drop. Before you use the machine for the first time, check that the voltage marked on the rating plate is the same as your mains voltage. If you need to use an extension cable, make sure its conductor cross-section is big enough for the saw’s power consumption. Minimum cross-section: 1 mm

If you use a cable reel, the complete cable has to be pulled off the reel.GB

Do not carry the machine by ist power cable. Check the power cable (9). Never use a faulty or damaged power cable. Never remove the plug from the socket-outlet by pulling the cable. Protect the cable from heat, oil and sharp edges. Do not leave the saw in the rain and never use it in damp or wet conditions. Provide good lighting. Never saw near combustible liquids or gases. Wear suitable work clothes! Loose garments or jewellery may become caught up in the rotating saw blade. If you have long hair, wear a hair-net. Avoid abnormal postures. Operators have to be at least 18 years of age. Trainees of at least 16 years of age are allowed to use the machine under supervision. Do not allow other persons, particularly children, to touch the tool or the power cable. Keep them away from your workplace. Keep children away from the machine when it is connected to the power supply. Keep your workplace clean of wood scrap and any unnecessary objects. Persons working on the machine should not be distracted. Note the direction of rotation of the motor and saw blade. After you have switched off the motor, never slow down the saw blade (4) by applying pressure to its side. Fit only blades (4) which are well sharpened and have no cracks or deformations. Use only circular saw blades (4) made of high- alloy high-speed steel (HSS). The machine is to be operated only with tools which conform with prEN 847-1: 1966. Faulty saw blades (4) have to be replaced immediately. Never use saw blades which do not comply with the data specified in this manual. It is imperative to make sure that all devices (2, 15) which cover the saw blade are in good working order. Never wedge the hinged guard hood (2) in open position. Never dismantle the machine’s safety devices (2, 5) or put them out of operation. Damaged or faulty safety devices have to be replaced immediately. The splitter (5) is an important safety device. Not only does it guide the workpiece, it also prevents the kerf closing behind the blade so that there is no kickback from the workpiece. Note the thickness of the splitter. The splitter should never be thinner than the saw blade body or thicker than the width of its kerf. The guard hood (2) has to be lowered over the workpiece for each cut. Be sure to use a push stick (3) when slitting narrow workpieces (smaller than 120 mm in width). Never cut workpieces which are too small to hold securely in your hand. The parallel stop has to be clamped on the right-hand side of the saw blade when cutting narrow workpieces. Important: This saw is not to be used for plunge cutting. Always stand to the side of the saw blade when working with the saw. Never load the machine so much that it cuts out. Always press the workpiece firmly against the saw table (1). Make sure that off-cuts do not catch on the saw blade crown. Risk of catapulting! Never remove loose splinters, chips or jammed pieces of wood when the saw blade is running. To rectify faults or remove jammed pieces of wood, always switch off the machine first. - Pull out the power plug! - If the sawing gap is worn, replace the table insert (6). - Pull out the power plug! - Conversions, adjustments, measurements and cleaning jobs are to be performed only when the motor is switched off. - Pull out the power plug! - Before you switch on the machine, check that all wrenches and adjustment tools have been removed. When you leave your workplace, switch off the motor and pull out the power plug. Electric installation work, repairs and maintenance are to be carried out only by specialists. All guards and safety devices have to be refitted immediately after completion of any repairs or maintenance. It is imperative to observe the manufacturer’s safety, operating and maintenance instructions as well as the dimensions quoted in the technical data. It is imperative to observe the accident prevention regulations in force in your area as well as all other generally recognized rules of safety. Note the information published by your professional associations (VBG 7j). Switch on the dust extraction system each time you use the machine. Use the saw only with a suitable vacuum extraction system or a standard industrial vacuum cleaner in order to prevent injuries caused by flying pieces of wood. Wear goggles Wear ear-muffs Wear a breathing mask Noise emission values The saw’s noise is measured in accordance with DIN EN ISO 3744; 11/95, E DIN EN 31201; 6/93,ISO 7960 Annex A; 2/95. The machine may exceed 85 dB(A) at the workplace. In this case, noise protection measures need to be introduced for the user (ear-muffs). Cutting Idling Sound pressure level LPA 88 dB(A) 74 dB(A) Sound power level LWA 97 dB(A) 83 dB(A) „The quoted values are emission values and not necessarily reliable workplace values. Although there is a correlation between emission and immission levels it is impossible to draw any certain conclusions as to the need for additional precautions. Factors with a potential influence on the actual immision level at the workplace include the duration of impact, the type of room, and other sources of noise etc., e.g. the number of machines and other neighbouring operations. Reliable workplace values may also vary from country to country. With this information the user should at least be able to make a better assessment of the dangers and risks involved.“

Asynchronous motor 230 V 50 Hz Power rating 700 W Temporary operation S3 50% Idle speed n0 2800 rpm Carbide saw blade 200 x 30 x 2.5 mm Number of teeth 20 Table size 500 x 420 mm Table width extension 500 x 215 mm Cutting height max. 43 mm / 90° 26 mm / 45° Height adjustment infinite 0 - 43 mm Table tilt infinite 0 - 45° Connector for dust extractor dia. 35 mm Size, complete 500 x 641 x 211 mm Packaging 512 x 444 x 290 mm Weight 17 kg Intermittent periodic duty (S3) means that cooling intervals (OFF periods) are necessary during operation. The OFF period has to be long enough to prevent the machine from overheating but does not require the motor to cool to room temperature. The ON period and the OFF period together add up to the cycle duty time. According to the standard the cycle duty time equals 10 minutes, i.e. a load factor of S3 50% corresponds to an ON period of 5 minutes and an OFF period of 5 minutes.

6. Before putting the machine into

operation The machine has to be set up where it can stand firmly, e.g. on a work bench, or it must be bolted to a strong stand. All the covers and safety devices have to be properly fitted before the machine is switched on. It must be possible for the saw blade to run freely. When working with wood that has been processed before, watch out for foreign bodies such as nails or screws etc. Before you actuate the On/Off switch, make sure that the saw blade is correctly fitted and that the machine’s moving parts run smoothly. Before you connect the machine to the power supply, make sure the data on the rating plate is the same as that for your mains.

Cation! Always pull out the power plug before carrying out any maintenance or conversion work.

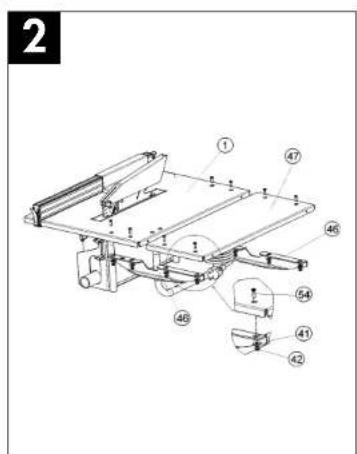

Use the supplied screws (54), U-washers (41) and nuts (42) to fasten the two table supports (46) to the saw table. Place the extension table (47) on the table supports (46) and use the supplied fasteners to bolt it to the table supports. Important: When fastening the table width extension make sure that the slide (45) of the cross fence can be moved smoothly between the saw table and the table width extension.

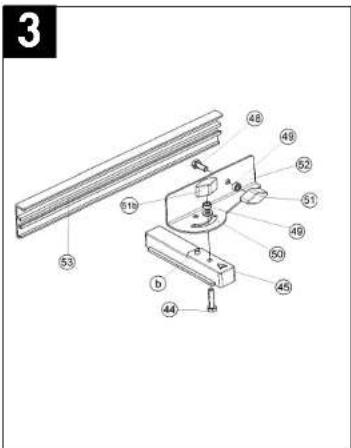

7.2 Assembling the cross fence (Fig. 3)

Use the hex screw (44) and the wing nut (51b) to fasten the slide (45) to the guide bracket (52). Make sure that the pin (b) of the slide engages in the hole of the guide bracket (52). Fit the U-washer (50) and the sleeve (49) as shown in the drawing. Slide a hex screw (48) into the middle slot of the fence rail (53) and insert it through the guide bracket (52). Push the sleeve (49) over the hex screw (48) and fasten with the wing screw (51).

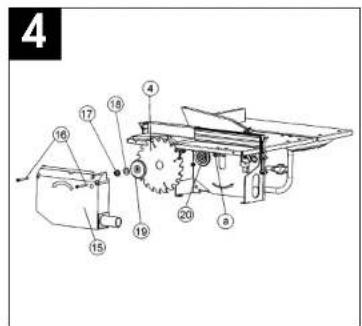

7.3 Fitting the saw blade (Fig. 4)

Caution! Pull out the power plug. Raise the saw table (1) to its top position (see 8.3). Undo the two hex screws (16). Take off the chip box (15). Undo the nut (17) with a size 19 wrench on the nut itself and a second fork wrench (size 8) on the motor shaft (a) to apply counter-pressure. Caution! Turn the nut in the direction of rotation of the saw blade (4). Take off the outer flange (19) and pull the old saw blade (4) off the inner flange (20) by dropping the blade at an angle. Clean the mounting flange (19 / 20). Fit the new saw blade in reverse order. Caution! Note the direction of rotation (see arrow on the saw blade).

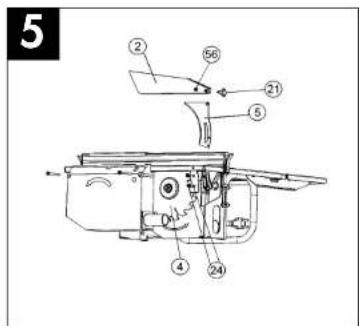

7.4 Adjusting the splitter (Fig. 5)

Setting for covered cuts: Lower the table (1) to its bottom position. Undo the thumb screw (21) and remove the saw blade guard (2). Slacken the two hexagon socket-head screws (24) with the supplied socket wrench (35). Move the splitter (5) to its bottom position. Adjust the splitter (5) so that the distance between the saw blade (4) and the splitter (5) equals 3 - 5 mm. The tip of the splitter has to be 0,5 - 1 mm below the tip of the top saw tooth. Tighten the two hexagon socket-head screws (24). Important! After making a covered cut it is imperative to return the splitter to its top position and to refit the guard hood. The splitter has to be adjusted each time the saw blade is changed.

7.5 Fitting the saw blade guard (Fig. 5)

Move the splitter (5) to its top position. Take the thumb screw (21) out of the saw blade guard (2). Mount the saw blade guard (2) on the splitter (5) and align. Use the thumb screw (21) and the nut (56) to fasten the saw blade guard (2) to the splitter (5).

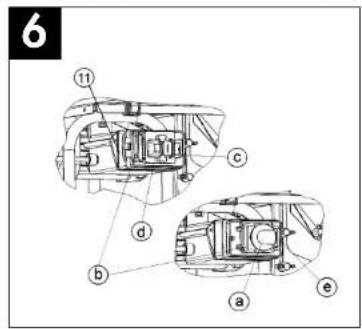

8.1 Switching on and off (Fig. 6)

Slide the locking button (a) to the left. Swing open the cover (b). The saw can be switched on by pressing the green pushbutton (c). Wait for the saw blade to reach its maximum speed before beginning to saw. The red pushbutton (d) has to be pressed to switch off the saw. The outer cover (b) can be closed and secured with a padlock to prevent the saw from being switched on without permission (e) (child guard).

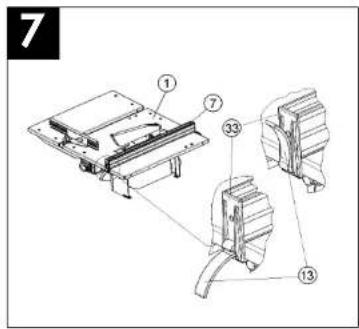

8.2 Parallel stop (Fig. 7)

The parallel stop (7) has to be used when slitting wood pieces. Slide the parallel stop (7) to the right or left side of the saw table (1). Important: The parallel stop has to be clamped on the right-hand side of the saw blade when cutting narrow workpieces. Make sure that the lugs of the clamping device (33) latch in place underneath the saw table (1), and check that the two toggle levers (13) are in their bottom positions. The parallel stop (7) can be set to the required dimension with the help of the scale engraved on the saw table (1). Important: Please note that the scale is adjusted to the centre of the saw blade, i.e.

1.3 mm have to be deducted from the value

indicated on the engraved scale. To fix the parallel stop (7) on the saw table (1), push the two toggle levers (13) upwards.

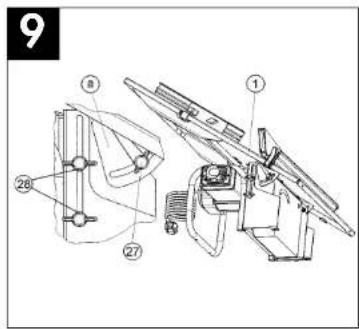

8.3 Adjusting the cutting height (Fig. 8/9)

Slacken the four thumb screws (28). The saw table (1) can be raised or lowered to adjust it to the required cutting height. The cutting height can be read off the scale (x) of the splitter (5). Fix the saw table (1) with the thumb screws (28). Important: Always tighten the thumb screws securely to prevent the saw table dropping accidentally.

Undo the two thumb screws (27). Swing the saw table (1) to the right and tilt to the required angle using the scale on the angle support (a). Re-tighten the two thumb screws (27). Important: Always tighten the thumb screws securely to prevent the saw table dropping accidentally.

9. Sawing operations

After each new adjustment it is advisable to carry out a trial cut in order to check the set dimensions.

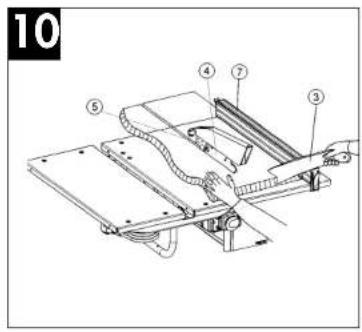

9.1 Cutting narrow workpieces

(width less than 120 mm) (Fig. 10) Adjust the parallel stop (7) to the width of workpiece you require. Feed in the workpiece with two hands. Always use the push stick (3) in the area of the saw blade (4). (A push stick is supplied with the saw!) Always push the workpiece through to the end of the splitter (5). Secure long workpieces against falling off at the end of the cut (e.g. with a roller stand etc.) Caution! With short workpieces, use the push stick from the beginning.

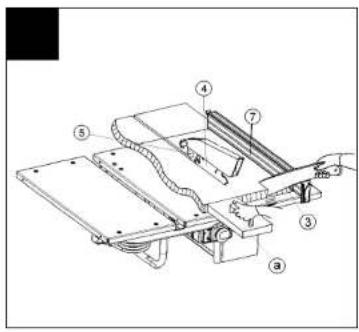

9.2 Cutting extremely narrow workpieces

(width less than 30 mm) (Fig. 11) Adjust the parallel stop (7) to the width of workpiece you require. Use a push block (a) and a push stick (3) to push the workpiece until its rear end arrives in the splitter zone (5). Secure long workpieces against falling off at the end of the cut (e.g. with a roller stand etc.) There is no push block supplied with the saw!

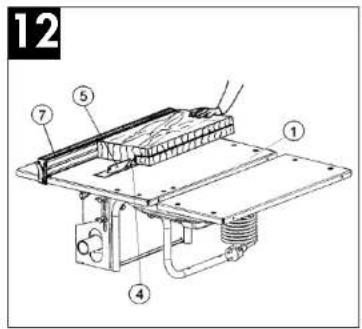

9.3 Making covered cuts (Fig. 12)

The removable saw blade guard and the infinitely adjustable cutting height from 0 to 43 mm means that the machine can be used to produce covered cuts and grooves. Undo the clamping screws (21) and remove the saw blade guard (2). Adjust the splitter (5) to a position approx.

0.5 - 1 mm lower than the top tooth on the saw

blade. Set the required cutting depth (8.3). Adjust the parallel stop (7) to the required width. Push the workpiece against the saw blade (4), making sure that the workpiece lies firmly on the saw table (1). Select the cutting sequence so that the cut strip drops off on the left-hand side of the saw blade in order to prevent it becoming jammed between the parallel stop (7) and the saw blade (4) (risk of kick-back).

Always use the parallel stop (7) when cutting bevels. Fix the saw table in the required angle position (see 8.4). Move the workpiece along the parallel stop (7). In this connection see also section 9.1 or 9.2, depending on the width of the workpiece.

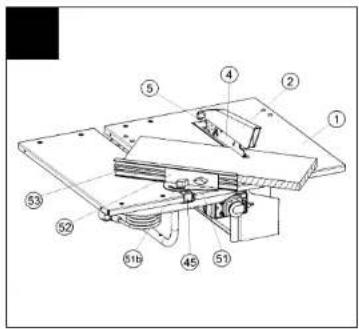

9.5 Cutting with the cross fence (Fig. 13)

Place the cross fence in the runner slot between the saw table and the table width extension. Slacken the wing screw (51b) and set the required angle by turning the guide bracket. Re-tighten (51 b) the wing screw. Slide the cross fence forward as far as the saw blade. Slacken the wing screw (51) and slide the fence rail forward until the distance between the saw blade and the fence rail is approx. 2 cm. Re-tighten (51) the wing screw. Slide the cross fence back again and place a piece of wood against the fence rail (53). Switch on the saw. Press the piece of wood firmly against the fence rail (53) and slide the cross fence toward the saw blade to make the cut. When you have completed the cut, switch off the saw again.

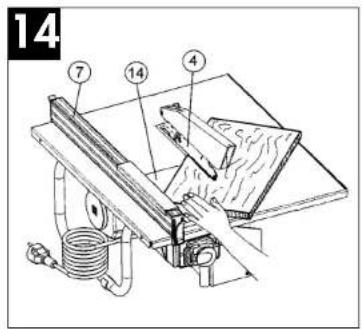

9.6 45°-cuts on small workpieces (Fig. 14)

You must always use the parallel stop (7) and the angle stop (14) when making 45° cuts. Mount the angle stop (14) on the parallel stop (7). Adjust the parallel stop (7) to the required length of the workpiece and clamp securely. Insert the workpiece in the angle stop (14). Switch on the saw and slide the angle stop (14) along the parallel stop (7) against the saw blade (4). Switch off the saw when the cut is completed.

Remove dust and dirt regularly from the machine. Cleaning is best done with compressed air or a rag. Never use caustic agents to clean plastic parts.

11. Ordering replacement parts

Please quote the following data when ordering replacement parts: Type of machine Article number of the machine Identification number of the machine Replacement part number of the part required
