Product type	Air Fryer
Brand	Taurus
Model	Air Fry Digital Duo
Number of baskets	2 (independent cooking zones)
Preset programs	12 programs: preheat, fries, meats, chicken wings, steak, pastry, prawns, fish, pizza, vegetables, reheat, dehydrate
Special functions	Sync Finish, Dual Cook (identical cooking in both baskets)
Display	Digital touch screen
Temperature adjustment	Adjustable in 5°C increments
Time adjustment	Adjustable in 1-minute increments
Default temperature and time	180°C and 15 minutes
Material of baskets and trays	Non-stick coating
Cleaning baskets and trays	Dishwasher safe
Cleaning the exterior	Damp cloth with mild detergent
Maintenance	Do not immerse in water, do not use metal utensils
Safety	Automatic shut-off at end of cooking, audible beep, post-cooking ventilation
Power supply	Mains (power cord with storage compartment)
Included accessories	2 baskets, 2 non-stick trays, 2 handles
Warranty	Complies with current legislation (see Taurus technical service)

Frequently Asked Questions - Air Fry Digital Duo TAURUS

How to use the Air Fry Digital Duo for the first time?

Before first use, remove all packaging, wash the baskets and trays with water and detergent, rinse and dry. Plug in the appliance, select a basket, a program or set temperature/time, then press Start/Pause.

What preset programs are available?

The appliance offers 12 programs: preheat, fries, meats, chicken wings, steak, pastry, prawns, fish, pizza, vegetables, reheat and dehydrate.

How to synchronize the end of cooking for both baskets?

Use the Sync Finish function (button 13). First press Sync Finish, then configure each zone. Cooking will adjust so that both baskets finish at the same time.

What to do if food is not cooked evenly?

Shake or stir the food halfway through cooking by removing the basket. Avoid overfilling the basket (do not exceed the MAX mark). Also check that the temperature is suitable (see cooking guide).

Can I wash the baskets and trays in the dishwasher?

Yes, the baskets and trays are dishwasher safe. Make sure to place them properly for drying. Never wash the appliance body in the dishwasher.

How to clean the exterior of the appliance?

Unplug the appliance and wait for it to cool. Clean with a damp cloth moistened with a few drops of mild detergent. Never immerse in water or use abrasive products.

Why is white smoke coming out?

This may be due to grease residue from a previous use in the drum, or food high in oil. Clean the drum well after each use and avoid adding too much oil.

Can I use metal utensils in the baskets?

No, to preserve the non-stick coating, use only utensils made of wood, silicone or heat-resistant plastic.

How to adjust temperature and time manually?

First select the basket (button 1 or 5), then use the +/- buttons for temperature (2) and time (4). Temperature changes in 5°C increments, time in 1-minute increments.

What to do if the appliance does not turn on?

Check that the appliance is plugged in and the cord is fully unwound. Ensure the timer is set (press On/Off then select a time). If the problem persists, contact Taurus technical service.

USER MANUAL Air Fry Digital Duo TAURUS

Black taurus air fryer with digital display and control buttons (no visible text or symbols on the device itself)

EN. Instructions for use

FR. Mode d'emploi

Downloaded by: pd-oliana on 04-04-2023 15:19 CEST

POLLO

Pechugas de pollo	2 pechugas4 pechugas	Con huesoSin hueso	CepilladoBrushedwith oil	200	25-30 mins22-24 mins	25-30 mins22-24 mins
Muslos de pollo	2 muslos4 muslos	Con huesoSin hueso	Cepilladoscon aceiteCepilladoscon aceite	200	22-28 mins18-22 mins	22-28 mins18-22 mins
Alitas de pollo 1000 g		Alitas con o sincondimentar	1 Cda 200	18-22 mins 18-22 mins

PESCADO Y MARISCOS

Tortas de cangrejo	2 tortas (170-220 g cada)	-	Cepilladas con aceite	200 5-10 mins	5-10 mins
Colas de langosta	4 colas (85-110 g cada)	Entera - 200 5-8 mins	5-8 mins
Filetes de salmón	3 filetes (110 g cada)	-	Cepillados con aceite	200 7-12 mins	7-12 mins
Gambas 500 g		Enteras, peladas, con cola.	1 Cda 200	7-10 mins	7-10 mins

VACUNO

Hamburguesa	2 hamburguesas de cuarto de libra ,80% magras	1-1,5 cm de grosor	Cepillada con aceite	200 8-10mins	10-13mins
Bistec	2 filetes (220 g cada)	Entero	Cepillada con aceite	200 10-20mins	14-18mins

CERDO

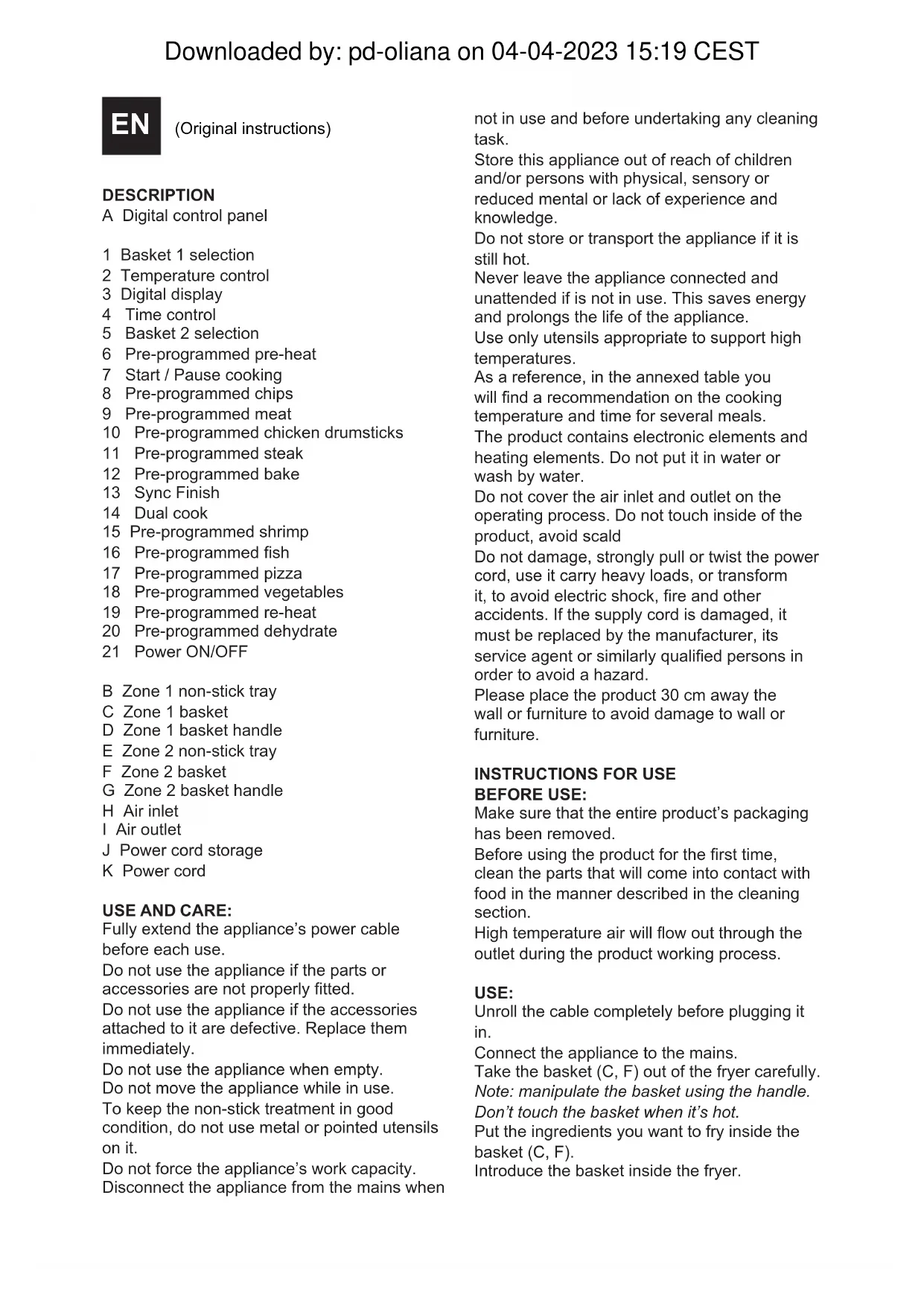

(Original instructions)

DESCRIPTION

A Digital control panel

1 Basket 1 selection
2 Temperature control
3 Digital display
4 Time control
5 Basket 2 selection
6 Pre-programmed pre-heat
7 Start / Pause cooking
8 Pre-programmed chips
9 Pre-programmed meat
10 Pre-programmed chicken drumsticks
11 Pre-programmed steak
12 Pre-programmed bake
13 Sync Finish
14 Dual cook
15 Pre-programmed shrimp
16 Pre-programmed fish
17 Pre-programmed pizza
18 Pre-programmed vegetables
19 Pre-programmed re-heat
20 Pre-programmed dehydrate
21 Power ON/OFF

B Zone 1 non-stick tray
C Zone 1 basket
D Zone 1 basket handle
E Zone 2 non-stick tray
F Zone 2 basket
G Zone 2 basket handle
H Air inlet
I Air outlet
J Power cord storage
K Power cord

USE AND CARE:

Fully extend the appliance's power cable before each use.

Do not use the appliance if the parts or accessories are not properly fitted.

Do not use the appliance if the accessories attached to it are defective. Replace them immediately.

Do not use the appliance when empty.

Do not move the appliance while in use.

To keep the non-stick treatment in good condition, do not use metal or pointed utensils on it.

Do not force the appliance's work capacity.

Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.

Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

Do not store or transport the appliance if it is still hot.

Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

Use only utensils appropriate to support high temperatures.

As a reference, in the annexed table you will find a recommendation on the cooking temperature and time for several meals.

The product contains electronic elements and heating elements. Do not put it in water or wash by water.

Do not cover the air inlet and outlet on the operating process. Do not touch inside of the product, avoid scald

Do not damage, strongly pull or twist the power cord, use it carry heavy loads, or transform it, to avoid electric shock, fire and other accidents. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Please place the product 30 cm away the wall or furniture to avoid damage to wall or furniture.

INSTRUCTIONS FOR USE

BEFORE USE:

Make sure that the entire product's packaging has been removed.

Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

High temperature air will flow out through the outlet during the product working process.

USE:

Unroll the cable completely before plugging it in.

Connect the appliance to the mains.

Take the basket (C, F) out of the fryer carefully.

Note: manipulate the basket using the handle.

Don't touch the basket when it's hot.

Put the ingredients you want to fry inside the basket (C, F).

Introduce the basket inside the fryer.

Turn on the appliance (21).

Select the basket with the corresponding buttons (1,5)

Select one of the 12 preset programs and adjust the temperature and time with the corresponding buttons if necessary (2,4). If you want the cooking process of both baskets to end at the same time, you can select “Sync Finish” (13). For this function to be effective, both baskets must be used. First press the button (13) and then set both zones. If you want to use both baskets for the same type of food, you can select “Dual Cook” (14), and the same program will be used for both zones. For this function, press the button (14) and then the desired program.

Press Start / Pause button (7) to start cooking. The timer will start running.

Note: Have in mind that if the appliance is cool, you should add 3 minutes to the cooking time.

Note: If you want to shake the ingredients, pull the basket out of the appliance by the handle and shake it. This will not significantly affect the process.

CAUTION: Basket, tray and food will be very HOT.

Place the basket over a plain surface able to work with high temperatures.

Turn the basket to take off the food, avoiding the risk of burns.

TIME AND TEMPERATURE

You can change the time and temperature using the +/- symbols according to the buttons. (2,4) The timer changes 1 minute up or down for each press. The temperature changes 5°C up or down for each press.

PRESET PROGRAMS

This appliance has 12 pre-set programs.

To select a program, press the according symbol.

If you wish you can also change the temperature and time settings for the pre-set programs.

Once the program has been selected, press the start button (7) to start heating. The timer will start running.

To change any settings while cooking, first pause, modify and then resume.

NOTE: During the cooking phase, you can press the pause button (7) to stop the appliance, the timer will also stop and display whatever time remains. Press this button again to resume the cooking phase.

The fryer will beep when the cooking time has finished. The timer will show "00", the heating element will stop but the fan will continue running for about 1 minute, thereafter the hot air fryer will beep (around 11 times) and will go onto standby mode.

Check to see that the food is cooked.

If it is not, you only have to put the container back in the fryer and program the timer to cook for a few more minutes.

Once cooking has finished, take the whole basket out of the appliance.

NOTE: If you don't want to use the preset programs, you can adjust the temperature and time with the corresponding buttons (2, 4), after you select the basket with the corresponding buttons (1, 5). The preset temperature and time are 180^ and 15mins.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

Unplug the appliance from the mains.

Let to cool down.

Clean the appliance as it is explained on the cleaning section.

CLEANING

Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

Never submerge the appliance in water or any other liquid or place it under running water. It is advisable to clean the appliance regularly and remove any food remains.

If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

Only the baskets and its tray are suitable for cleaning in the dishwasher.

The draining/drying position of the articles washable in the dishwasher or in the sink must allow the water to drain away easily.

Then dry all parts before its assembly and storage.

RECOMENDATION TABLE

Here you can find our recommendation on the time and temperature for frying different meals.

NOTE: these settings are merely indicative.

Foodstuffs can vary in origin, size, shape and brand, so we cannot guarantee the best settings for any specific food.

COOKING GUIDE

INGREDIENT

AMOUNT PER ZONE

PREPARATION

TOSS IN OIL

TEMP. (°C)

SINGLE ZONE

DUALZONE

VEGETABLES

Asparagus 1 bunch		Whole, stems trimmed	2 Tbsp 200 8-12 mins 20-25 mins
Beets 6-7 small Whole - 200 30-35 mins 35-40 mins
Bell peppers (for roasting)	3 small peppers	Whole - 200 10-15 mins 15-20 mins
Broccoli 1 head		Cut in 2,5 cm florets	1 Tbsp 200 8-10 mins 15-17 mins
Brussels sprouts 500 g		Cut in half, stem removed	1 Tbsp 200 15-20 mins 20-25 mins
Brussels squash 750 g		Cut in 2,5 – 5 cm pieces	1 Tbsp 200 20-25 mins 35-40 mins
Carrots 500 g		Peeled, cut in 2,5 -5 cm pieces	1 Tbsp 200 13-16 mins 25-30 mins
Cauliflower 1 head		Cut in 2,5 cm florets	2 Tbsp 200 17-20 mins 20-25 mins
Corn on the cob	2 ears, cut in half	Husks removed 1 Tbsp 200 12-15 mins 18-20 mins
Green beans	1 bag	Trimmed	1 Tbsp	200	8-10 mins	10-15 mins
Kale (for chips)	5 cups, packed	Torn in pieces, stem removed	None	200	7-9 mins	15-20 mins
Mushrooms 220 g		Rinsed, cut in quarters	1 Tbsp 200 7-9 mins		13-15 mins
Potatoes, russet	750 g	Cut in 2,5 cm wedges	1 Tbsp
	500 g	Hand-cut fries*, thin	1/2-3	200	20-22 mins	35-38 mins
	500 g	Hand-cut fries*, thick	Tbsp, 1/2-3	200	20-24 mins	30-35 mins
	3 whole (170-220 g)	Pierced with fork 3 times	Tbsp, -	200	19-24 mins	35-40 mins
				200	30-35 mins	37-40 mins
Potatoes, sweet	750 g	Cut in 1-inch chunks	1 Tbsp	200	15-20 mins	30-35 mins
	3 whole (170-220 g)	Pierced with fork 3 times	None	200	36-42 mins	40-45 mins
Zucchini 500 g		Cut in quarters lengthwise, then cut in 2,5 cm pieces	1 Tbsp 200 15-18 mins 25-28 mins

POULTRY

Chicken breasts	2 breasts4 breasts	Bone inBoneless	Brushedwith oilBrushedwith oil	200	25-30 mins22-24 mins	30-35 mins25-28 mins
Chicken thighs	2 thighs4 thighs	Bone inBoneless	Brushedwith oilBrushedwith oil	200	22-28 mins18-22 mins	26-29 mins25-28 mins
Chicken wings	1000 g	Drumettes & flats	1 Tbsp	200	18-22 mins	43-47 mins
FISH&SEAFOOD
Crab cakes	2 cakes (170-220 g each)	-	Brushed with oil	200 5-10 mins	10-13 mins
Lobster tails	4 tails (85-110 g each)	Whole - 200 5-8 mins	15-18 mins
Salmon fillets	3 fillets (110 g each)	-	Brushed with oil	200 7-12 mins	13-17 mins
Shrimp 500 g		Whole, peeled, tails	1 Tbsp	200 7-10 mins	10-13 mins
BEEF
Burgers	2 quarter-pound patties,80% lean	1/2 inch thick	Brushed with oil	200 8-10mins	10-13mins
Steaks	2 steaks (8 oz each)	Whole	Brushed with oil	200 10-20mins	14-18mins
PORK
Bacon	3 strips, cut in half	-- 170 8-10mins	9-12mins
Pork chops	2 thick-cut, bone-in chops (10-12 oz each)2 boneless chops (8 oz each)	Bone in Boneless	Brushed with oilBrushed with oil	200200	15-17mins14-17mins	23-27mins17-20mins
Pork tenderloins	1 lb	-	Brushed with oil	190 15-20mins	20-25mins
Sausages 5 sausages		-- 200 7-10mins	17-22mins
FROZEN FOODS
Chicken cutlets	3 cutlets	-- 200 18-21mins	20-25mins
Chicken nuggets 1 box (12 oz) -- 200 10-13mins	1 box (6 fillets)	-	-	200	14-16mins	17-22mins
Fish fillets	1 box (6 fillets)	-	-	200	14-16mins	17-22mins
Fish sticks	18 fish sticks (11 oz)	-- 200 10-13mins	16-19mins
French fries	1 lb	-	-	200	18-22mins	28-32mins
French fries	1 lbs	-	-	200	32-36mins	50-55mins
Mozzarella sticks	1 box (11 oz)	-	-	190	8-10mins	10-12mins
Pot stickers	2 bags (10.5 oz)	-	1 Tbsp	200 12-14mins	16-18mins
Pizza rolls	1 bag (20 oz,40 count)	-- 200 12-15mins		15-18mins
Popcorn shrimp	1 box (14-16 oz)	-- 200 9-11mins		14-18mins
Sweet potato fries	1 lb	-	-	200	20-22mins	30-32mins

PROBLEM POSSIBLE CAUSE		SOLUTION
The AIR FRYER does not work.	The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	You have not set the Timer.	Press the according button to the required cooking time to switch on the appliance.
The foods fried with are not done.	The quantity of food in the basket is too much.	Put smaller batches of food in the basket. Smaller batches are fried more evenly.
	The set temperature is too low.	Press the temperature buttons until you reach the desired temperature.Temperature setting - refer to the cooking guide for reference.
The food is fried unevenly in the AIR FRYER.	Certain food types need to be shaken halfway through the cooking time.	Food that lie on top of or across each other (e.g. fries) need to be shaken halfway through the cooking time.
Fried snacks are not crispy when they come out of the AIR FRYER.	Incorrect food type used. Refer food manufactures cooking instructions.
	Basket over-loaded.	Do not fill the basket beyond the MAX indication.
I cannot slide the pan / basket into the appliance.	The basket is not placed in the pan correctly.	Push the basket down into the pan until you hear a click.
White smoke Comes out from the Appliance.	Food with high oil content has been used.Oil has been added to the food.	Do not use food groups with high oil content or add extra oil that is not required.An air fryer uses technology where low or no oil is required.
	The pan still contains grease residues from previous use.	White smoke is caused by grease heating up in the pan.Make sure you clean the pan correctly after each use.

FR

Downloaded by: pd-oliana on 04-04-2023 15:19 CEST

Downloaded by: pd-oliana on 04-04-2023 15:19 CEST

POLLO

Downloaded by: pd-oliana on 04-04-2023 15:19 CEST

Patates dolces	500 g3 senceres(170-220 g)	Tallades atrossos de 2,5cmPerforades ambuna forquilla 3vegades	1cullerades-	200200	15-20min36-42min	15-20min36-42min
Carbassons 500	g	Tallats a quartsal llarg, després tallats a trossosde 2,5 cm	1 cullerada	200	15-18min	15-18min

POLLASTRE

Pits de pollastre	2 pits4 pits	Amb osSense os	UntatUntat amb oli	200	25-30min22-24min	25-30min22-24min
Cuixes de pollastre	2 cuixes4 cuixes	Amb osSense os	Untadesamb oliUntadesamb oli	200	22-28min18-22min	22-28min18-22min
Aletes de pollastre	1000 g	Aletes ambcondiment osense	1 cullerada	200	18-22min	18-22min

PEIX I MARISC

Downloaded by: pd-oliana on 04-04-2023 15:19 CEST

Downloaded by: pd-oliana on 04-04-2023 15:19 CEST

Downloaded by: pd-oliana on 04-04-2023 15:19 CEST

Downloaded by: pd-oliana on 04-04-2023 15:19 CEST

Downloaded by: pd-oliana on 04-04-2023 15:19 CEST

Downloaded by: pd-oliana on 04-04-2023 15:19 CEST

Downloaded by: pd-oliana on 04-04-2023 15:19 CEST

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/

Français

GARANTIE ET ASSISTANCE TECHNIQUE

COUNTRY ADDRESS PHONE

Algeria Zone d'Activite, N° 62, Constantine 213770777756
Argentina Av. del Libertador 1298,(B1638BEY), Vicente López (Pcia. Buenos Aires)		541153685223
Belgium Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Bulgaria	265,Okolovrasten Pat, Mladost 4, 1766, Sofia	35929211120 / 35929211193
Congo (Republic of) 98 Blvd General Charles de Gaulle, Pointe Noire 242066776656
Cyprus 20, Bethlehem Str. / P.O.Box 20430, 2033, Strovolos		35722711300
Czech Republic Milady Horakove 357/4, 568 02, Svitavy 420 461 540 130
Equatorial Guinea	SN Av Patricio Lumumba y C/ Jesus B, Bata	00240 333 082958 / 00240 333 082453
Equatorial Guinea	Calle de las Naciones Unidas, PO box 762, Malabo	240333082958 / 240333082453
España	Avda Barcelona, S/N, 25790 Oliana (Lleida) [e-mail]	902 118 050
France	Za les bas musats 18, 89100, Malay-le-Grand	03 86 83 90 90
Ghana	Ederick Place, Accra-Ghana	302682448 / 302682404
Gibraltar	11 Horse Barrack Lane, 54000, Gibraltar	00350 200 75397 / 00350 200 41023
Greece Sapfous 7-9, 10553, Athens [phone]
Hong Kong	Unit H,13/F., World Tech Centre, Hong kong	(852) 2448 0116 / 9197 3519
Hungary	Késmárk utca 11-13, 1158, Budapest	[phone]
India	C-175, Sector-63, Noida, Gautam Budh Nagar - 201301, Delhi	([phone]
Ivory Coast 01 Rue Des Carrossiers-Zone 3, B.P 3747, Abidjan 01 (RCI)		22521251820 / 225 21 353494
Luxembourg Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Marruecos Big distribution society 4 Rue 13 Lot. Smara Oulfa, Casablanca		([phone]
Mauritania 134 Avenue Gamal Abdener Ilot D, Nouakchott 2225254469 / 2225251258
Mexico Rosas Moreno N° 4-203 Colonia de San Rafael C.P. 06470 – Delegación Cuauhtémoc, Ciudad de México		([phone]
Montenegro Rastovac bb, 81400, Niksic [phone]
Netherlands Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Nigeria 8, Isaac; John Str,G.R.A Ikeja Lagos 23408023360099
Paraguay Denis Roa 155 c/ Guido Spano, Asunción 21665100
Peru Calle los Negocios 428, Surquillo, Lima [phone]
Portugal	Avenida Rainha D. Amélia, n°12-B, 1600-677, Lisboa	[phone]
Romania	Dudesti Pantelimon 23, 410554, Bucharest	031.805.49.58
Serbia	Rastovac bb, 81400, Niksic [phone]
Slovakia	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Southafrica	Unit 25 & 26, San Croy Office Park, Die Agora Road, Croydon, Kempton Park, 1619, Johannesburg	([phone]
Tunisia	2, Rue de Turquie, Tunis	21671333066
Ukraine	Block 6, Ap Housing Estate Topol-2, B, 49000, Dnepropetrovsk	380563704161 / 380563704161
Uruguay	Luis Alberto de Herrera 3468, 11600, Montevideo	598 2209 28 00
Vietnam	Lot 7 Ind. Zone for, Ha Noi	84437658111 / 84437658110

taurus

www.taurus-home.com
