Product type	Column fan
Brand	CasaFan
Model	SPEED2PROTECT
Dimensions (Ø × H × L)	540 × 1215-1500 × 485 mm
Weight	14.2 kg
Rated voltage	220-240 V, 50 Hz
Power consumption	120 W
Protection class	I
Protection rating (IP)	IP54
Number of speeds	3
Sound power level (min./max.)	67.5 / 72.0 dB(A)
Sound pressure level at 3 m (min./max.)	46.5 / 49.9 dB(A)
Usage	Indoor and outdoor (follow safety instructions)
Material	Metal and plastic
Protective grille	Yes
Oscillation function	Yes (directional)
Installation type	Floor-standing (simple assembly)
Cleaning	Dry cloth and soft brush; unplug before
Annual maintenance	Recommended by a professional
Warranty	See manufacturer's terms
Standards	EU Directive 2012/19/EC (WEEE)
Package contents	Fan, base, screws, washers, manual

Frequently Asked Questions - SPEED2PROTECT CasaFan

How to assemble the SPEED2PROTECT fan?

Unpack the device and check that it is complete (see illustration). Assemble the fan following figures fig.1 and fig.2 in the manual. Tighten the screws firmly. Place it on a stable and flat floor before use.

What are the risks of incorrect installation?

Installation on an unstable or sloping floor may cause the device to tip over, resulting in injury or damage. Ensure a distance of at least 30 cm between the back of the fan and the wall to prevent overheating.

How to clean the fan safely?

Before any cleaning, unplug the power cord. Use a dry cloth and a soft brush for the housing surface and protective grille. Never use gasoline or flammable products. After cleaning, fully reassemble the device.

What to do in case of abnormal noise or excessive vibrations?

Immediately turn off the device, unplug it, and prevent any restart. Do not reuse the fan until a qualified electrician has eliminated the cause of the problem and authorized restart.

Can the fan be used outdoors?

Yes, because it benefits from IP54 protection against water splashes and dust. However, do not expose it to direct rain or a water jet, and avoid negative ambient conditions such as strong solar radiation.

How to adjust the fan speed?

Turn on the device with the main switch (1). Then use switch (2) to select one of the 3 available speeds. To turn off, set the main switch back to '0'.

What to do if the power cord is damaged?

Never use the device with a damaged cable. Replacement must be carried out by the manufacturer, its after-sales service, or a qualified person, as special tools are required.

What is the adjustable height of the fan?

The height can be adjusted from 1215 mm (minimum) to 1500 mm (maximum), as indicated in the technical specifications (dimensions ∅ × H × L: 540 × 1215-1500 × 485 mm).

Is the fan suitable for children?

Yes, from 8 years old under supervision. Children should not play with the device and cleaning or maintenance operations should not be performed by children without supervision.

How to dispose of the packaging and the device at end of life?

Dispose of the packaging in an eco-friendly manner and out of reach of children (choking hazard). At end of life, take the device to a selective collection center for electronic waste (WEEE) or to the retailer when purchasing a new device.

USER MANUAL SPEED2PROTECT CasaFan

Line drawing of a standard open fan with visible blades and mounting base (no text or symbols)

SPEED2PROTECT

CE

IP54

GB Contents of the packaging

Data according EU Commission Regulation No 206/2012

	Reference parameter	Unit of measurement	Value SPEED2PROTECT (SL)
Maximum fan flow rate F m3/min 178.34
Fan power input P W 120
Service value SV (m3/min)W 1.43
Fan sound power level L	WA	dB(A) 72.0
Standby power consumption P	SB	W 0.0
Max. air velocity C m/sec 3.88
Measurement standards for service value	IEC 60879:1986; EN50564:2011; EN60704-2-7:1998; EN 60704-1:2010+A11:2012
Contact details for obtaining more information	CasaFan GmbH, Senefelderstr. 8, 63594 Hasselroth, Germany

Sicherheitshinweise

Translation of Original instructions

- The voltage indicated on the nameplate must correspond to the available mains voltage. The domestic electrical system must be earthed and properly fused.

- Only operate the unit when completely assembled!

- Position the mains cable such that no danger of tripping is possible in order to avoid throwing the unit.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard

- The unit may only be operated on level, stable ground. Do not place on tables or similar.

- Do no push objects through the guard. Any loose objects which could be sucked in are to be removed from the suction area before switching the fan on. Keep loose clothing, such as scarves with fringes, away from the guard.

- The units are never be touched when having wet or moist hands. The units are never be used if you are barefooted.

- Do not expose the fan to a direct water jet.

- Never immerse an electrical device in water or other liquids.

- Extension cords must be tested by a qualified technician and be suitable for the specified performance.

- Do not expose the device to harmful environmental influences (rain, strong sunlight, etc.).

- To unplug the power cord from the outlet, pull on the plug and not the cord.

- Switch off the device and pull the plug when not in use, prior to cleaning, and when moving the fan to a different location.

- Do not use the device in locations where it could fall or be knocked into water. Never reach for the device if it falls into water. Turn off the power at the circuit breaker immediately and then pull the plug.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understands the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Dispose of the packaging material in an environmentally friendly manner and inaccessible to children. There is a danger of suffocation, e.g. by swallowing!

About this operating instructions

Before using the CasaFan fan, read the operating instructions carefully. Keep the operating instructions within reach. Never pass the fan onto another person without the operating instructions.

Explanation of symbols:
Warning:Dangerous electric voltage	Caution:	Important:
Warns the user of the danger to the life an health due to electrical voltage.	Indicates risks to your health and possible injury risks.	Warns of environmental and material damage.

Intended use: The fan is for circulating room air. It can be used indoors and outdoors in compliance with the technical data and safety instructions.Improper use: The use in machines, in garages and in rooms at risk of fire and explosion is not permitted. Modifications to the device are not permitted.
Technical data:
	SPEED2PROTECT (SL)
Mains voltage: 220 - 240 V, 50 Hz
Power: 120 W
Insulation class/Protection rating: I / IP 54
No of speeds: 3
Sound power level: min.: 67.5, max.: 72.0
Sound pressure level: (-3 m under freefield cond.):	min.: 46.5, max.: 49.9
Dimensions ∅ x H (mm) 540 x 1215-1500 x 485
Weight (kg): 14,2

Mounting (page 62 - 63)

• Unpack the CasaFan fan, check if everything is present and for visible signs of damage.

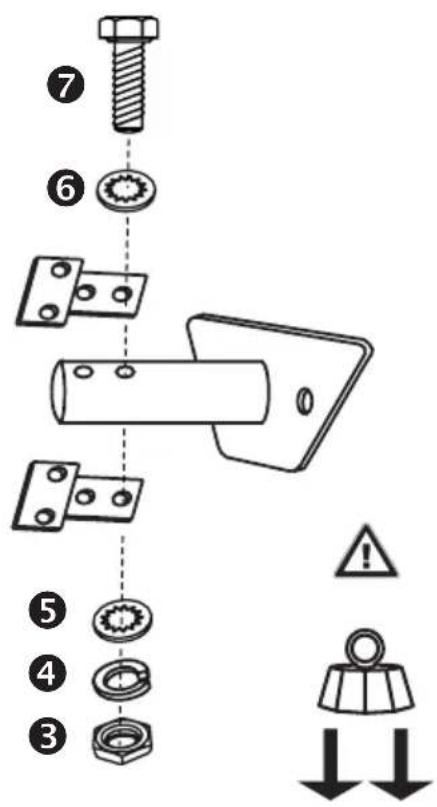

• Mount the fan as shown in the figures fig.1 - fig.2.
• Tighten the screws firmly.

Operation (Page 64)

Warning: Risk of injury and fire! Check the mains cable and the mains plug for damage regularly, but absolutely before each use. If damage is visible, do not use the device again.

Caution: Tip over Hazard! Only place the fan on a stable, level floor. Do not place on tables or similar.

Important: Risk of overheating! Always leave at least 30 cm distance from the rear of the fan to the wall.

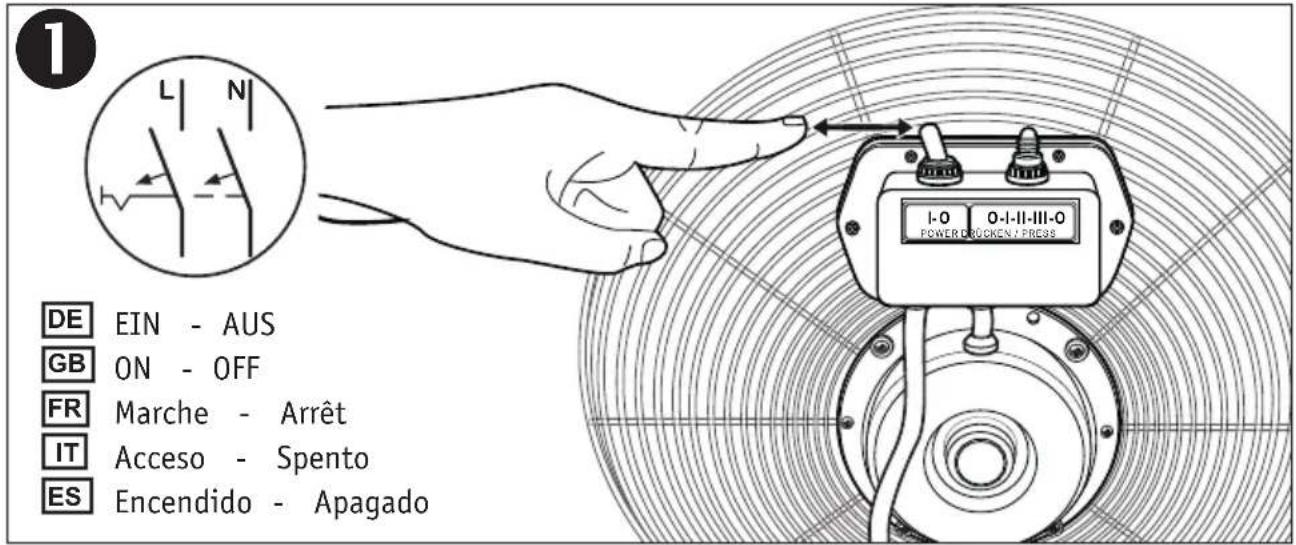

• After plugging in the mains plug, switch on the device at the main switch (1, page 64).

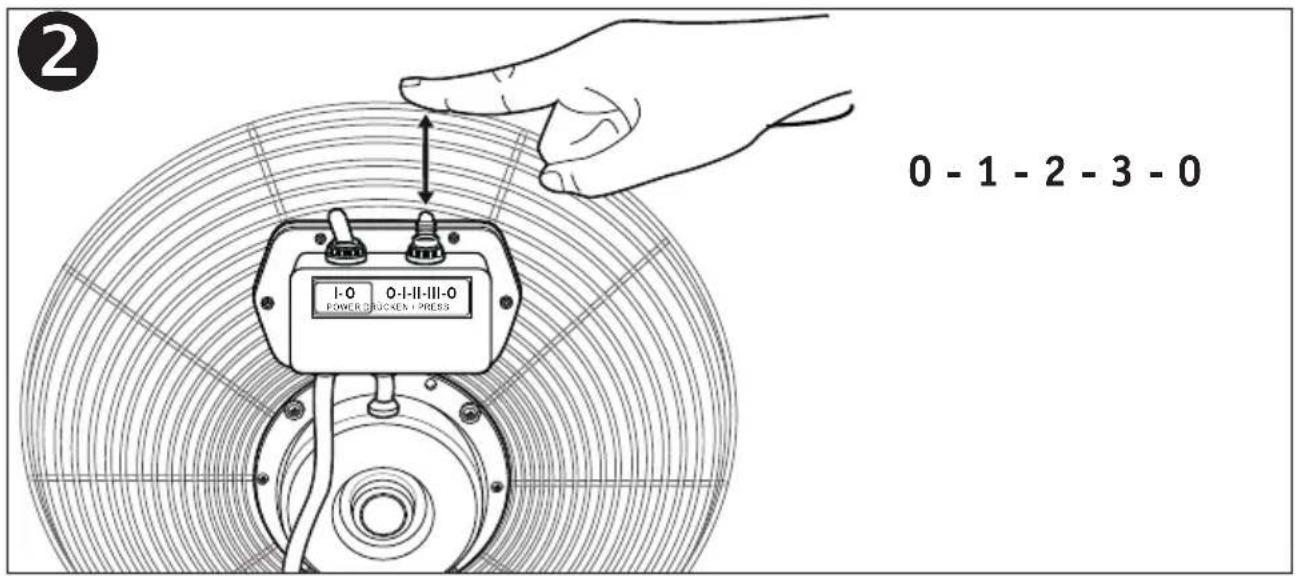

• Select the desired operating speed at the speed switch (2) by pressing it down.
• After use, switch off the power to the unit at the main switch (1).
• If you do not use the unit for a longer period of time, be sure to unplug it from the mains.

Behaviour in an emergency

Warning: Risk of injury! Switch off the device immediately in case of visible damage, unusual noise, strong vibration and/or malfunction.

1. Pull the mains plug from the socket in an emergency.
2. Take persons out of the danger area.
3. Secure the fan against start-up.
4. The fan must not be put back into operation until a qualified electrician has eliminated the cause of the fault and released it for reuse.

Maintenance/cleaning instructions

Warning: Disconnect the appliance from the mains supply by unplugging the plug or switching off the electrical system before carrying out any cleaning or maintenance work.

• Routine maintenance must be carried out once a year, earlier if it is very dirty.
• Disconnect the plug from the wall outlet so that the operator can be sure that the plug is unplugged at all times and in all locations.
• Check the mains cable and the mains plug for damage regularly, but absolutely before each use. If damage is visible, do not use the device again.
• Clean the surface of the housing and the protective grille with a dry cloth and a soft brush. Do not use petrol or a similarly inflammable cleaning agent.
• After cleaning, the fan must be completely reassembled.

Storage

• If you are not going to use the fan for a long time, keep it in a dry room.
• You can also cover your unit to protect it from dust or dirt deposits.

Help with faultsWarning: Never use a damaged appliance or an appliance with a damaged power cord.
Fault Cause Remedy
Blade does not turn.	Main switch setting „OFF“. Switch on main switch.
	Speed setting to „0“. Switch on unit.
	Mains plug not correctly inserted.	Insert mains plug.
	Household fuse blown/trip defective.	Check household fuse/trip.
	Motor overheating protection tripped.	Pull the mains plug out of the socket. Let the appliance cool down.
If the fault cannot be rectified by the means listed above, take the device to an authorised service centre for repair.

Repair

Warning: Repairs may only be carried out by qualified personnel a qualified electrician. Improperly repaired devices pose a great danger to the health and life of the users of the device.

- If the mains cable to this unit is damaged, then it can only be repaired by a repair workshop named by the manufacturer.

Disposal

Important: Environmental damage due to improper disposal!

- Follow the disposal instructions on page 65.

GB Contents of the packaging

GB The screws and washers are already screwed into the product.

Technical line drawing of a mechanical device with internal components and a handle (no text or symbols)

min. 30 kg !

DE Bedienung

FR Fonctionnement

GB Operation

IT Funzionamento

ES Funcionamiento Operation

CZ Ovládání

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

DE ACHTUNG

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncollected waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collect system or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. This product conforms to EU Directive 2012/19/EC. This appliance bears the symbol of the barred waste bin. This indicates that, at the end of its useful life, it must not be disposed of as domestic waste, but must be taken to a collection centre for waste electrical and electronic equipment, or returned to a retailer on purchase of a replacement. It is the user's responsibility to dispose of this appliance through the appropriate channels at the end of its useful life. Failure to do so may incur the penalties established by laws governing waste disposal. Proper differential collection, and the subsequent recycling, processing and environmentally compatible disposal of waste equipment avoids unnecessary damage to the environment and possible related health risks, and also promotes recycling of the materials sed in the appliance. For further information on waste collection and disposal, contact your local waste disposal service, or the shop from which you purchased the appliance. Manufacturers and importers fulfil their responsibilities for recycling, processing and environmentally compatible disposal either directly or by participating in collective systems.

FR ATTENTION

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

SE WARNING

EU Declaration of Conformity

Wir, die Firma

CasaFan GmbH

We, the company Senefelderstr. 8

Hasselroth, 63594

Germany

declare under our sole responsibility that the following product

Geräteart/ type of product:

Tischventilator/Bodenventilator/Standventilator

Handelsmarke/ trademark:

CasaFan

meets the essential requirements of the following EU-Directives:

2006/42/EC Machinery Directive

2014/30/EU Directive on Electromagnetic Compatibility

2011/65/EU Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment

2009/125/EC Directive for the setting of ecodesign requirements for energy-related products

Authorized person for technical documentation:

Name/ name, Position: Wolfgang Kissling,

Hasselroth, 3.01.2020

Datum/ Date
