Airos Eco Classic SV

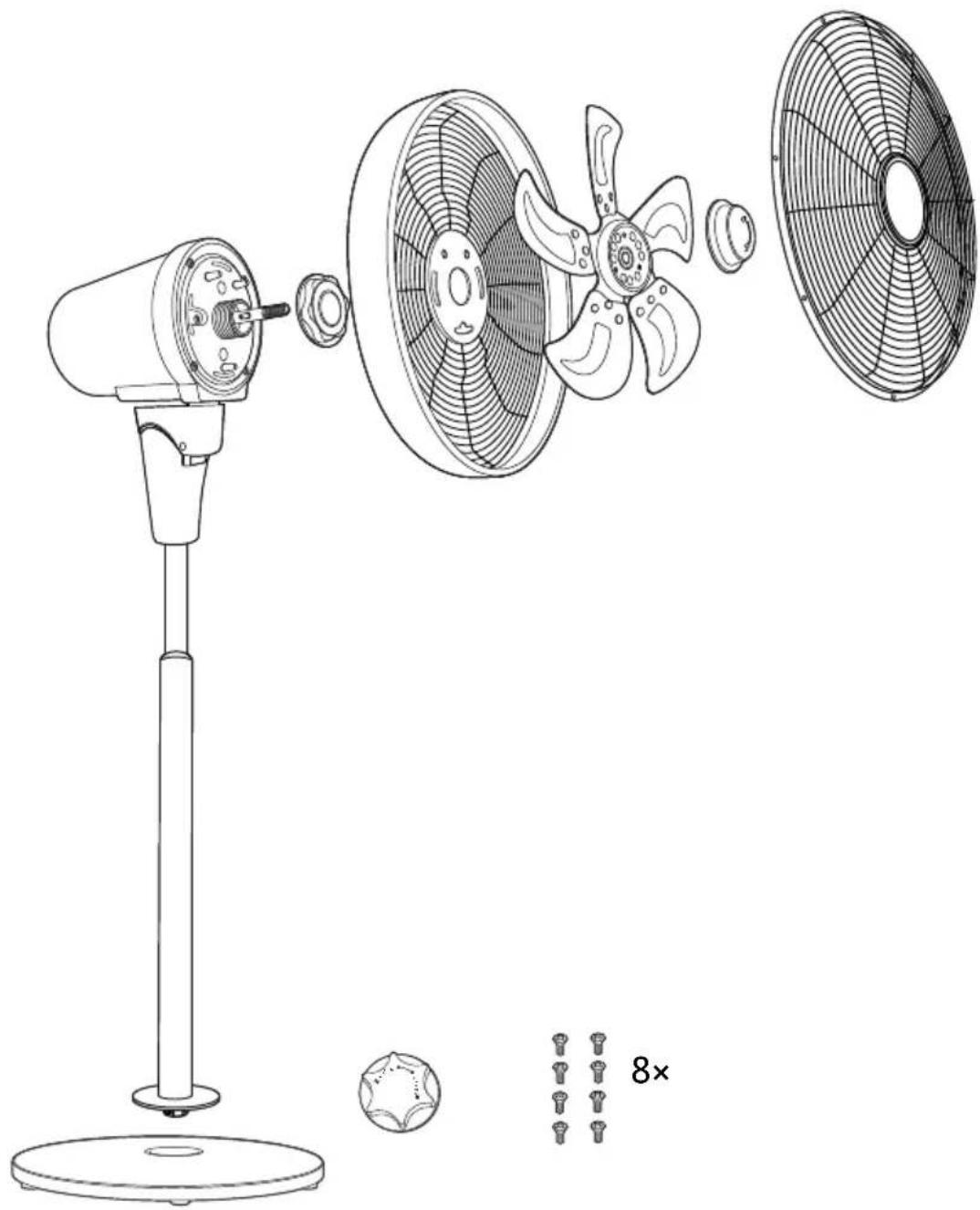

DE	Inhalt der Verpackung	GB	Contents of packing	FR	Contenu de l'emballage
IT	Contenuto dell'imballo	ES	Contenido del embalaje	PT	Conteúdo da embalagem
DK	Pakkeindhold	SE	Paketinnehåll	FI	Pakkauksen sisältö
NO	Innholdet i pakken	EE	Pakendi sisu	SI	Vsebina pakiranja
SK	Obsah balenia	PL	Zawartość opakowania	CZ	Obsah balení
HU	Csomag tartalma	NL	Inhoud verpakking	RU	Содержание пакета

Line drawing of a desktop fan with components including a stroller, fan blade, and fan blade (no text or symbols)

Data according EU Commission Regulation No 206/2012

	Reference parameter	Unit of measurement	ValueAiros Eco Classic SV
Maximum fan flow rate F m3/min 41.0
Fan power input P W 16.8
Service value SV (m3/min)W 2.4
Fan sound power level L	WA	dB(A) 60
Standby power consumption P	SB	W 0.4
Max. air velocity C m/sec	4.0
Measurement standards for service value	EN 50564:2011, EN IEC 60879:2019, EN IEC 60704-1:2021, EN IEC 604-2-7:2020
Contact details for obtaining more information	CASAFAN GmbH,Senefelderstr. 8, 63594 Hasselroth, Germany, www.CASAFAN.de

SICHERHEITSHINWEISE

• The voltage indicated on the nameplate must correspond to the available mains voltage. The mains socket at which the fan is operated must be earthed and properly fused.
• Operate the fan only when it is fully assembled with the safety grill in place.
• Always place the fan on a level, stable surface. Never place it on a table or similar object.
• Position the power cord to avoid tripping hazards.
• Do no push objects through the guard. Any loose objects which could be sucked in are to be removed from the suction area before switching the fan on. Keep loose clothing away from the safety grill.
• Avoid touching the fan with wet or damp hands.
• Do not expose the fan to direct water sprays or submerge it in water or other liquids.
• WATER MUST NEVER ENTER THE FAN! If the unit has become wet, immediately pull out the mains plug. Have the fan checked by a qualified electrician before using it again.
• Do not expose the fan to extreme environmental influences (e.g. high levels of dust, strong sunlight, etc.).
• To unplug the power cord from the outlet, pull on the plug and not the cord.
• Switch off the device and pull the plug when not in use, prior to cleaning, and when moving the fan to a different location.
• Do not use the fan in locations where it could fall into water.
• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understands the hazards involved.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children shall not play with the device.
• If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.

About this operating instructions

Before using the CASAFAN fan, read the operating instructions carefully. Keep the operating instructions within reach. Never pass the fan onto another person without the operating instructions.

Explanation of symbols
WARNING: Electric voltage!	CAUTION
Warns of death or serious injury from electric shock.	Indicates risks to your health and possible injury risks.

Intended useThe fan is designed exclusively for circulating dry indoor air. Do not use it in machinery or in damp, wet, corrosive, fire- or explosion-hazardous areas.This product is suitable for use in the commercial in accordance with the degree of protection (IPX0).
Technical specifications
Type Pedestal Fan - Airos	Eco Classic SV
Mains voltage 220-240 V,	50-60 Hz
Power motor max. 18 W
Protection class/rating II	/ IP X0
No of speeds 6
Sound power level max. 60.0 dB(A)
Dimensions W × H × D	400 × 930-1200 × 400 mm
Wight	5,3 kg

Mounting

Unpack the CASAFAN fan, check if everything is present and for visible signs of damage.

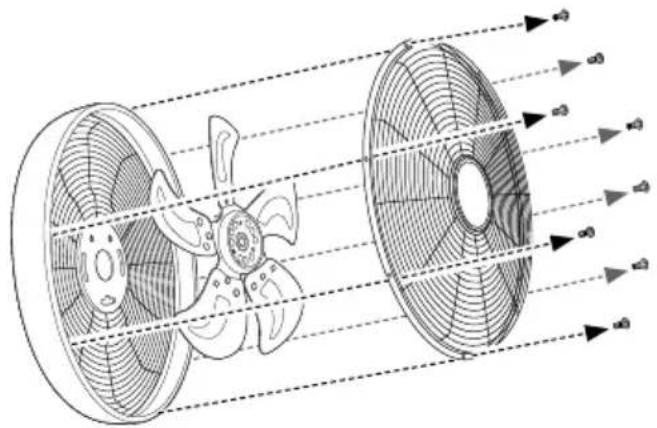

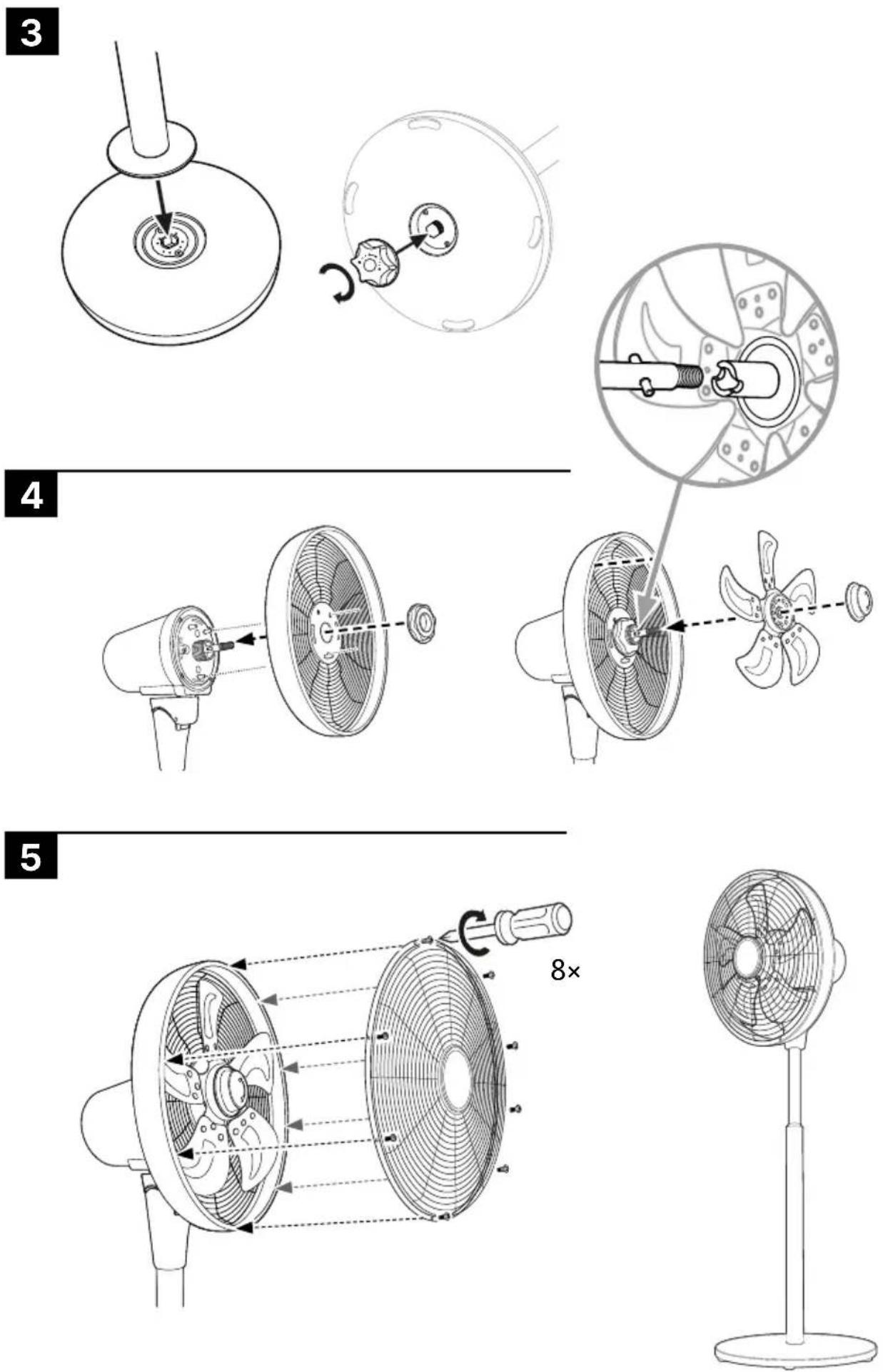

• Mount the fan as shown in the figures 1 - 5 (see page 59-60).
• Dispose of packaging taking the environment into account and keep out of the reach of children.

Operation

WARNING: Risk of injury and fire! Check the mains cable and the mains plug for damage regularly, but absolutely before each use. If damage is visible, do not use the device again.

• Switch on the appliance at the main switch ( ⏻ see page 58).
• If you do not use the unit for a longer period of time, be sure to unplug it from the mains.

Behaviour in an emergency

CAUTION: Risk of injury! Switch off the device immediately in case of visible damage, unusual noise, strong vibration and/or malfunction.

1. Pull the mains plug from the socket in an emergency.
2. Take persons out of the danger area.
3. Secure the fan against start-up.

- The fan must not be put back into operation until a qualified electrician has eliminated the cause of the fault and released it for reuse.

Maintenance/cleaning instructions

WARNING: Disconnect the device from the mains supply by unplugging the plug or switching off the electrical system before carrying out any cleaning or maintenance work.

• Routine maintenance must be carried out once a year, earlier if it is very dirty.
• Clean the surface of the housing and the protective grille with a dry cloth and a soft brush. Do not use petrol or a similarly inflammable cleaning agent.
• The device is otherwise maintenance-free.

Storage

• If you are not going to use the fan for a long time, keep it in a dry room.
• You can also cover your unit to protect it from dust or dirt deposits.

Help with faults
Fault Cause Remedy
Blade does not turn	Speed setting to „0“ Switch on device
	Mains plug not correctly inserted Insert mains plug
	Household fuse blown/trip defective	Check household fuse/trip
	Motor overheating protection tripped	Pull the mains plug out of the socket. Replace device
If the fault cannot be rectified by the means listed above, take the device to an authorised service centre for repair.

Repair

WARNING: Repairs may only be carried out by qualified personnel a qualified electrician. Improperly repaired devices pose a great danger to the health and life of the users of the device.

- If the mains cable to this unit is damaged, then it can only be repaired by a repair workshop named by the manufacturer, due a special tool being needed.

Disposal

Meaning of the "Wheelie Bin" Symbol

Never dispose of the appliance in normal household waste. This product is subject to European Directive 2012/19/EU. This directive provides the framework for the EU-wide take-back and recycling of waste equipment.

- Dispose of packaging material, decommissioned appliances and used batteries in accordance with the current regulations in your country. Please refer to the information on page 61.

CONSIGNES DE SÉCURITÉ

Illustration of a hand inserting a plug into an electrical socket with an arrow indicating direction (no text or symbols)

ON

1× = →

OFF*

1× =

SPEED

1× = → = 1-2 3-4 5-6

2× = → = 1-2 3-4 5-6

5× = → → → = 1-2 3-4 5-6

6× = [ ] → → = 1-2 3-4 5-6

TIMER on

TIMER 2h

TIMER 3h

TIMER 4h

TIMER 5h

TIMER 6h

TIMER 7h

TIMER off

OSCILLATE left/right

1x =

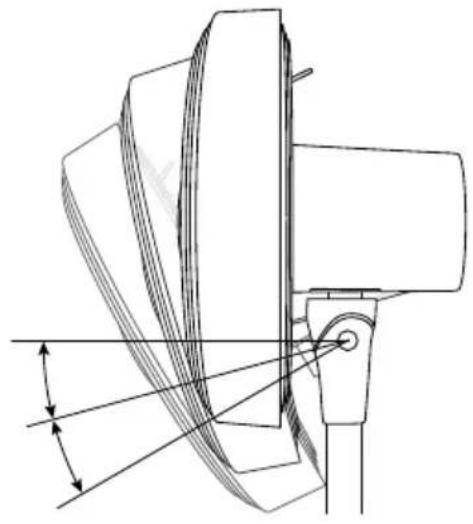

TILT ANGLE ADJUSTMENT

Technical line drawing of a mechanical component with angular measurement lines (no text or symbols)

GB Remains at the set speed level

Technical line drawing of a mechanical device with multiple circular components and a base, showing no text or symbols.

2

Technical diagram of a fan blade assembly with airflow lines indicating motion (no text or labels)

GB Protect our environment, the product and packaging materials are recyclable, dispose of them separately for better waste recycling.

Use the collection points provided for the disposal of used batteries and high-grade materials. By doing so, you are making your contribution to the reuse, recycling and other forms of recovery of waste electrical and electronic equipment.

Information on the available collection systems can be obtained from your municipal administration.

CASAFAN reserves the right to make any changes to the product without prior notice.
