Cordless Blower/Vac/Mulcher	EN	P08
Akku-Gebläse/Staubsauger/Mulcher	D	P17
Souffleur/aspirateur/broyeur sans fil	F	P27
Soffiatore a batteria/Aspiratore/trinciatrice	I	P37
Soplador/aspirador/triturador inalámbrico	ES	P47
Soprador/Aspirador/Triturador Sem Fio	PT	P57
Draadloze blazer/stofzuiger/Mulcher	NL	P66
Trådløs Blæsere/Vac/Mulcher	DK	P76
Trådløs blåser/Vac/Mulcher	NOR	P84
Trådløs Blås/Vac/Mulcher (marktäckning)	SV	P93
Dmuchawa/odkurzacz/rozdrabniacz bezprzewodowy	PL	P101
Ασύρματος φυσητήρας/αναρροφητήρας/θρυμματιστής	GR	P111
Akkumulátoros fúvó/Vákuum/Mulcher	HU	P122
Aspirator fără fir cu funcție de suflare/Aspirator/Mulcher	RO	P132
Bezdrátové dmychadlo/Vysavač/Mulčer	CZ	P141
Bezšnúrových Dúchadlá/Vac/Mulcher	SK	P150
Brezžični pihalnik/Sesalnik/Mulčnik	SL	P159

Original instructions	EN
Originalbetriebsanleitung	D
Notice originale	F
Istruzioni originali	I
Manual original	ES
Manual original	PT
Oorspronkelijke gebruiksaanwijzing	NL
Original brugsanvisning	DK
Opprinnelige Instruksjonene	NOR
Bruksanvisning i original	SV
Instrukcja oryginalna	PL
ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ	GR
Eredeti használati utasítás	HU
Instrucțiuni originale	RO
Původní návod k používání	CZ
Pôvodný návod na použitie	SK
Izvirna navodila	SL

WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK WORK

A 100% 0%

B !

C 14

D 15

E1 Click!Click!

STOP WORK

E3 STOP ② Click! ①

F !

G

Safety warning and cleaning guidelines for a car, showing hazard, hazard symbol, and proper actions like cleaning or dust removal.

I1 ① ② STOP WORK

12 STOP ① ②

J1 i ck!/ quez!/ click!

STOP ① ② Click!

J3 STOP ck!/ c! Click! ① VORX

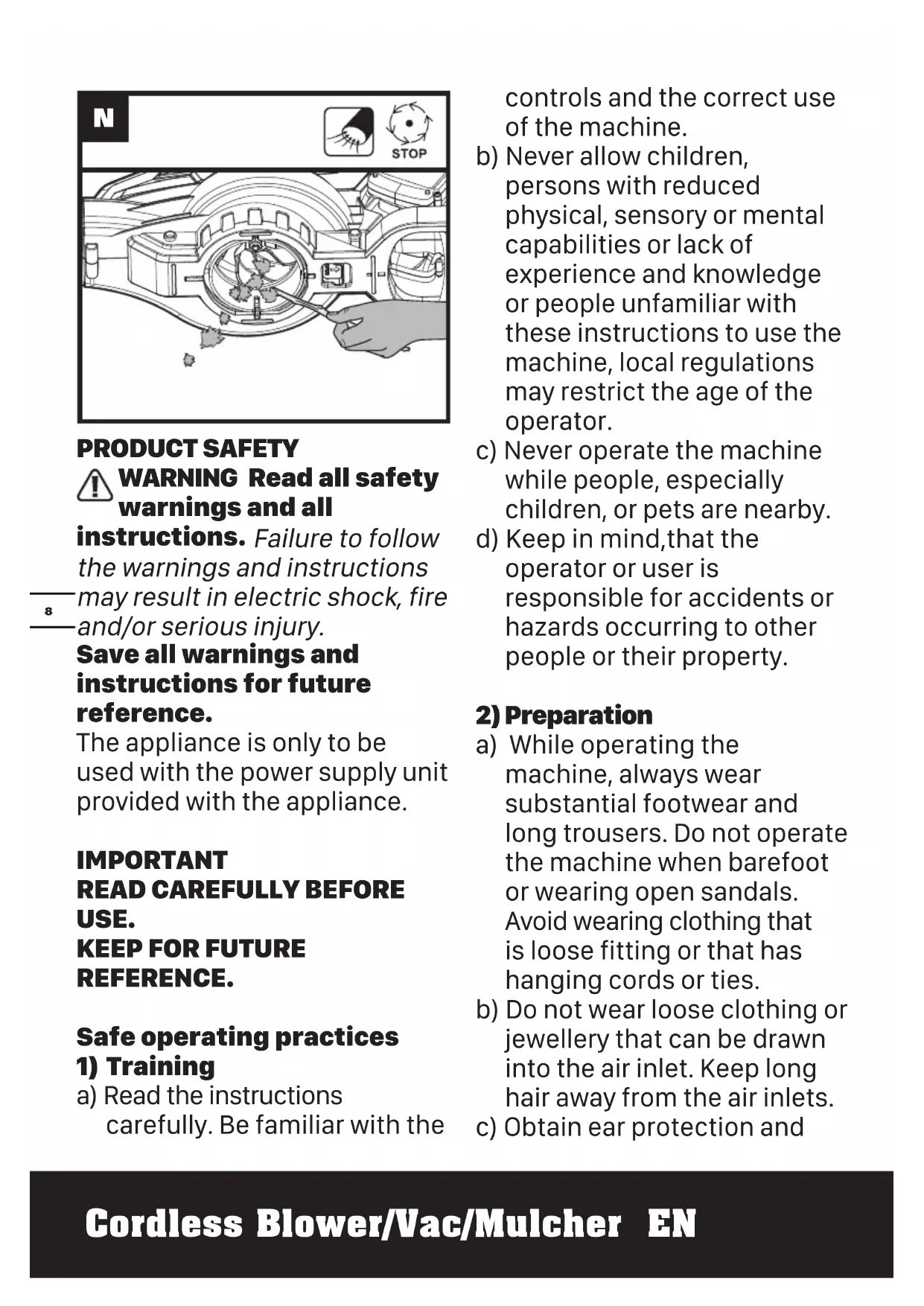

N STOP

PRODUCT SAFETY

WARNING Read all safety warnings and all

instructions. Failure to follow the warnings and instructions

— may result in electric shock, fire — and/or serious injury.

Save all warnings and instructions for future reference.

The appliance is only to be used with the power supply unit provided with the appliance.

IMPORTANT

READ CAREFULLY BEFORE USE.

KEEP FOR FUTURE REFERENCE.

Safe operating practices 1) Training

a) Read the instructions carefully. Be familiar with the

controls and the correct use of the machine.

b) Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator.

c) Never operate the machine while people, especially children, or pets are nearby.

d) Keep in mind, that the operator or user is responsible for accidents or hazards occurring to other people or their property.

2) Preparation

a) While operating the machine, always wear substantial footwear and long trousers. Do not operate the machine when barefoot or wearing open sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties.

b) Do not wear loose clothing or jewellery that can be drawn into the air inlet. Keep long hair away from the air inlets.

c) Obtain ear protection and

safety glasses. Wear them at all times while operating the machine.

d) Operate the machine in a recommended position and only on a firm, level surface.

e) Do not operate the machine on a paved or gravel surface where ejected material could cause injury.

f) Before using, always visually inspect to see, that the shredding means, shredding means bolts and other fasteners are secure, the housing is undamaged and that guards and screens are in place.

Replace worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels.

3) Operation

a) Before starting the machine, make certain that the feeding chamber is empty.

b) Keep your face and body away from the feed intake opening.

c) Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute,

or near any moving part.

d) Keep proper balance and footing at all times. Do not overreach. Never stand at a higher level than the base of the machine when feeding material into it.

e) Always stand clear of the discharge zone when operating this machine.

f) When feeding material into the machine be extremely careful that pieces of metal, rocks, bottles, cans or other foreign objects are not included.

g) If the cutting mechanism strikes any foreign objects or if the machine should start making any unusual noise or vibration, immediately shut off the power source and allow the machine to stop. Remove the battery pack from the machine and take the following steps before restarting and operating the machine:

i) inspect for damage;

ii) replace or repair any damaged parts;

iii) check for and tighten any loose parts.

h) Do not allow processed material to build up in the

discharge zone; this may prevent proper discharge and can result in kickback of material through the intake opening.

i) If the machine becomes clogged, shut-off the power source and remove the battery pack from the machine before cleaning debris.

j) Never operate the machine with defective guards or shields, or without safety devices, for example debris collector in place.

k) Keep the power source clean of debris and other accumulations to prevent damage to the power source or possible fire.

I) Do not transport this machine while the power source is running.

m) Always disconnect the machine from the power supply (e.g. remove the battery pack from the machine)

• whenever you leave the machine,
• before clearing blockages or unclogging chute,
• before checking, cleaning or working on the machine.
  n) Avoid using the machine

in bad weather conditions especially when there is a risk of lightning.

4) Maintenance and storage

a) keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition.
b) Check the debris collector frequently for wear or deterioration.
c) Replace worn or damaged parts.
d) Use only genuine replacement parts and accessories.
e) Store the machine in a dry place out of the reach of children.
f) When the machine is stopped for servicing, inspection, or storage, or to change an accessory, shut off the power source, disconnect the machine from the supply and make sure that all moving parts are come to a complete stop. Allow the machine to cool before making any inspections, adjustments, etc. Maintain the machine with care and keep it clean.
g) Store the machine in a dry place out of the reach of

children.

h) Always allow the machine to cool before storing.
i) When servicing the shredding means be aware that, even though the power source is switched off due to the interlock feature of the guard, the shredding means can still be moved.
j) Never attempt to override the interlocked feature of the guard.
5) Additional safety instructions for units with bagging attachments

Switch-off the machine before attaching or removing the bag.

BATTERY SAFETY SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by

conductive materials.

When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Keep battery pack clean and dry.
g) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
h) Battery pack needs to be charged before use. Always refer to this

instruction and use the correct charging procedure.

i) Do not maintain battery pack on charge when not in use.
j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
k) Recharge only with the charger specified by Worx. Do not use any charger other than that specifically provided for use with the equipment.
I) Do not use any battery pack which is not designed for use with the equipment.
m) Keep battery pack out of the reach of children.
n) Retain the original product literature for future reference.
o) Remove the battery from the equipment when not in use.
p) Dispose of properly.
q) Do not mix cells of different manufacture, capacity, size or type within a device.

r) Keep the battery away from microwaves and high pressure.

SYMBOL

	Read the operator's manual
	Wear eye protection
	Wear ear protection
	Do not expose to rain
	Warning of hazard
	Keep bystanders away
	Blow mode
	Vacuum mode
	Impeller continues to rotate after the machine is switched off. Wait until all machine components have completely stopped before touching them.
	Make sure the battery is removed prior to changing accessories.
	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
	Do not burn
	Li-Ion battery This product has been marked with a symbol relating to 'separate collection' for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

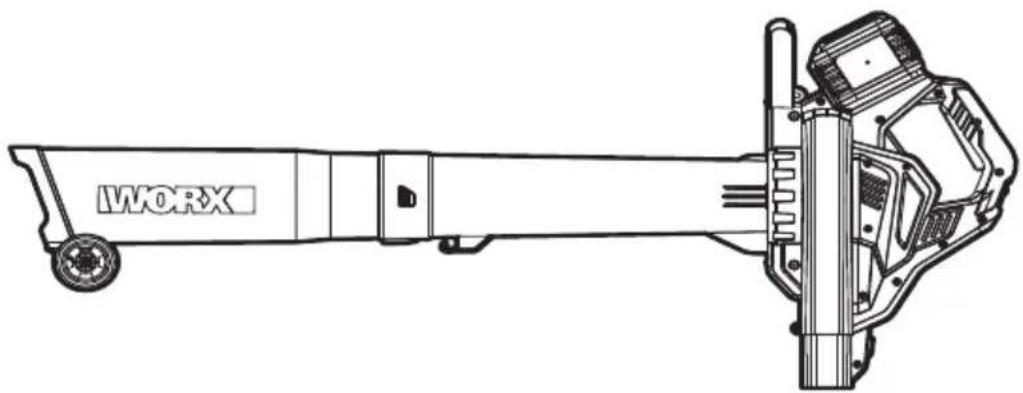

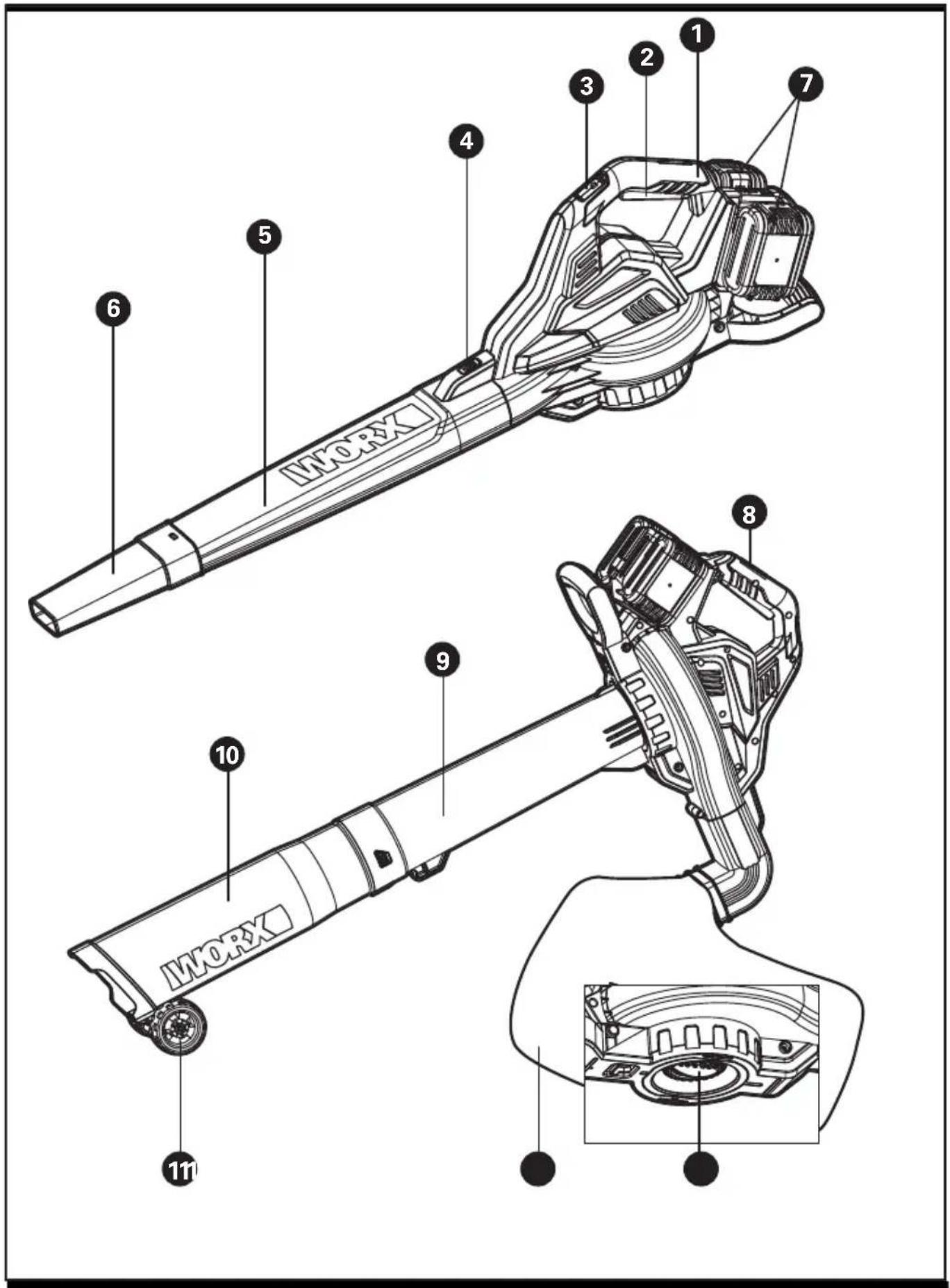

COMPONENT LIST

1. HANDLE

2. ON/OFF SWITCH

3. HIGH/LOW SPEED CONTROL BUTTON

4. TUBE RELEASE BUTTON

5. BLOWER TUBE

6. BLOWER TUBE NOZZLE

7. BATTERY PACKS\*

8. ANTI-STATIC STRIP

9. UPPER VACUUM TUBE

10. LOWER VACUUM TUBE

11. WHEELS

12. LEAF COLLECTION BAG

13. FAN HOUSING COVER

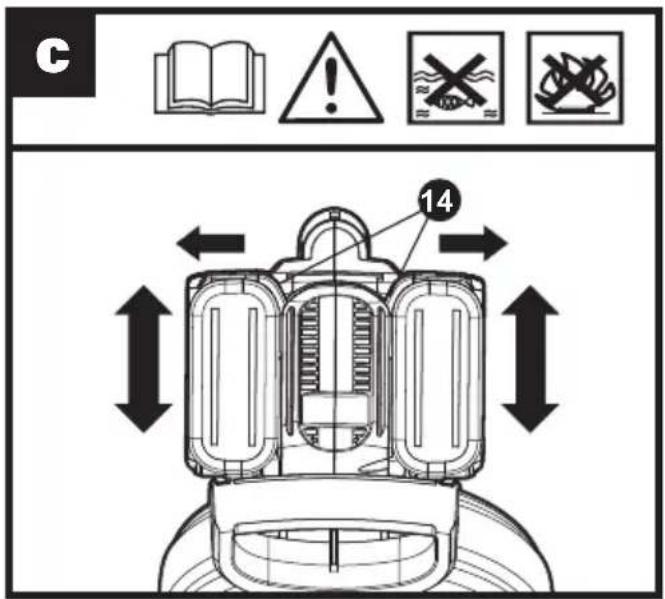

14. BATTERY PACK RELEASE BUTTON \* (SEE FIG. C)

15. BATTERY INDICATOR LIGHT (SEE FIG.D)

*Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Type WG583E WG583E.9 (5-designation of machinery, representative of Cordless Blower)

	WG583E WG5	83E.9
Rated voltage 40 V	MAX(2x20VMAX)**
Blow speed Max. 335 km/h
Vacuum capacity Max. 575 m	^3/h
Mulching ratio 12:1
Collection bag capacity	35 L
Battery type Lithium-ion /
Battery capacity 4.0 Ah (WA3553) /
Charger model	WA3883 /
Charger rating	Input: 100-240 V~50-60 HzOutput 1: 20 V---,2.0 A ***Output 2: 20 V---2.0 A ***	/
Charging time (approx.)Battery pack:4.0 Ah (1 pc)4.0 Ah (2 pcs)	1 hr2 hrs	/
Machine weight	4.2 kg (Blow)5.1 kg (Vac)	2.9 kg (Blow)3.8 kg (Vac)

**Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

*** Charger output 1 and output 2 mean two ports with the same output voltage and current.

ACCESSORIES

	WG583E WG583E.9
Battery pack	2 (WA3553) /
Charger	1 (WA3883) /

We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice

NOISE INFORMATION

A weighted sound pressure L	_pA : 84.7 dB(A)
A weighted sound power L	_wA : 99.7 dB(A)
K_pA & K_wA : 3.0 dB(A)

Wear ear protection

VIBRATION INFORMATION

Typical weighted vibration a	_h <2.5 m/s^2
Uncertainty	K=1.5

The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can differ from the

declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained. Using the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use

should also take account of all parts of the operating cycle such as the times when the tool is switched off

and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimise your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration accessories.

Plan your work schedule to spread any high vibration tool use across a number of days.

OPERATION

INTENDED USE:

The blower & Vac is intended for residential use only. Use the blower outdoors to move or vacuum yard debris as needed.

ASSEMBLY AND OPERATION

ACTION FIGURE
BEFORE OPERATION

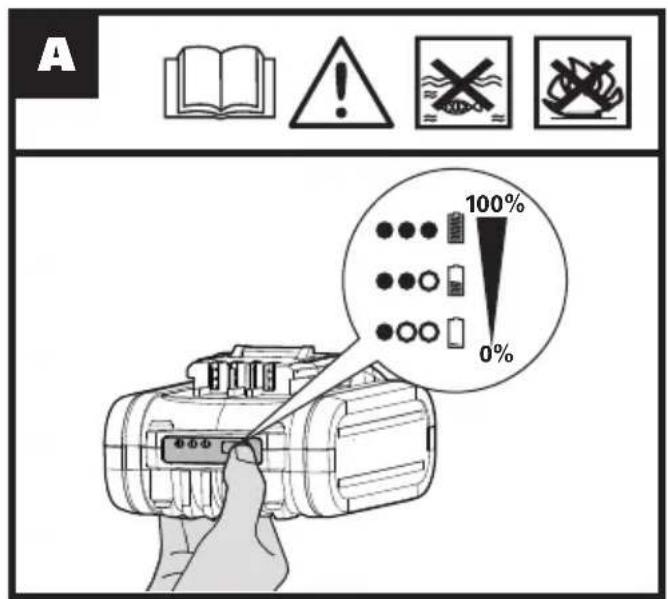

Checking the battery conditionNOTE: Fig. A only applies for the battery pack with battery indicator light.	See Fig. A

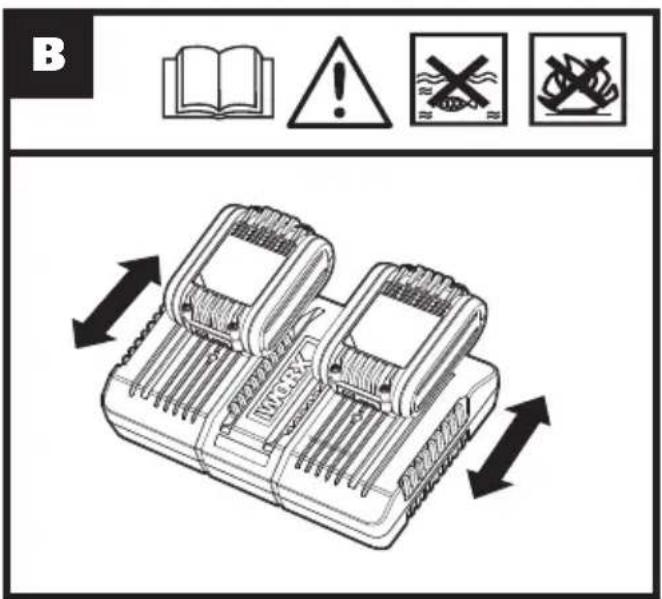

Charging the battery packNOTE:The batteries are shipped un-charged. Each battery must be fully charged before the first use.Always fully charge the two batteries at same time. More details can be found in charger's manual.WARNING! The charger and battery pack are specially designed to work together, so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections because of an electrical failure and hazard will occur.	See Fig. B
Installing and Removing the battery packNOTE:This machine will only run when 2 batteries are installed. It is recommended to use the same two batteries and charge the two batteries at the same time.When you use two batteries with different power,the machine will only run to the level of the lowest charged battery	See Fig.C
Battery indicator lightSee details in BATTERY STATUS partIMPORTANT:When only one light is illuminated, your battery is overly discharged, even though the machine may still be capable to work. Continuing to operate your machine with the battery in this discharged condition may reduce the life and performance of your battery.When no light is illuminated, at least one battery is not fully installed or battery may be defective, please double check the batteries are fully seated into position.	See Fig. D
OPERATION
Blow mode

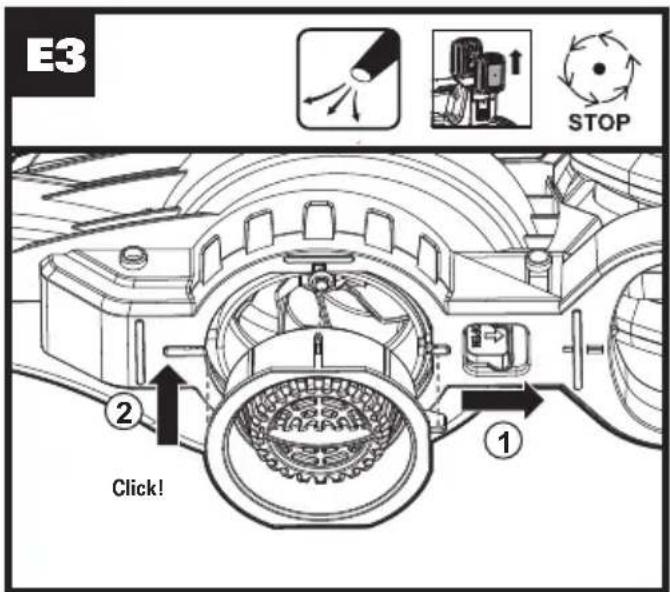

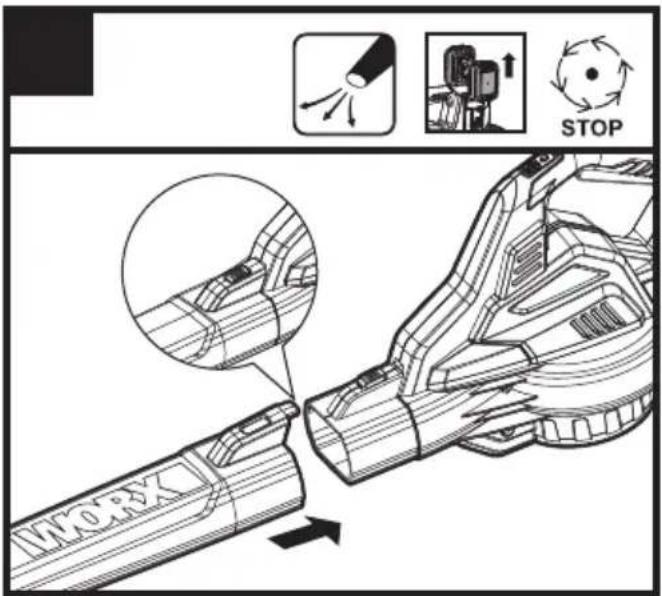

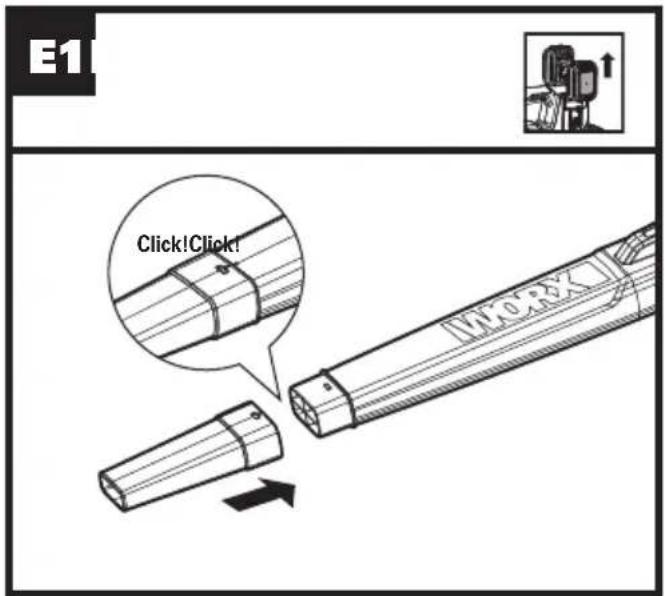

Assembling the Blower Tube and fan housing cover	See Fig.E1,E2,E3

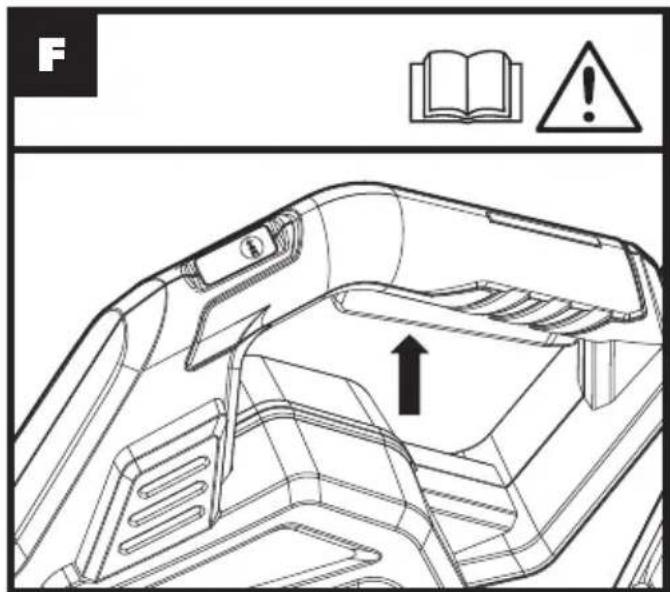

On/Off SwitchWARNING! The tool runs for a few seconds after it has been switched off.Let the motor come to a complete standstill before setting the tool down.	See Fig. F

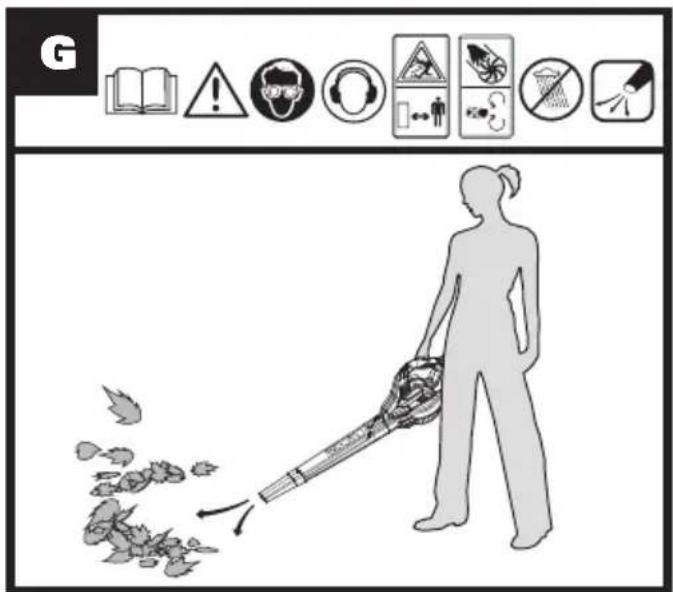

Using the BlowerUSERTIPS-Hold the blow tube approximately 8" above the ground when operating the tool.- Use a sweeping motion from side to side. Advance slowly keeping the accumulated debris/leaves in front of you.Caution!Do not blow hard objects such as nails, bolts, or rocks.	See Fig.G

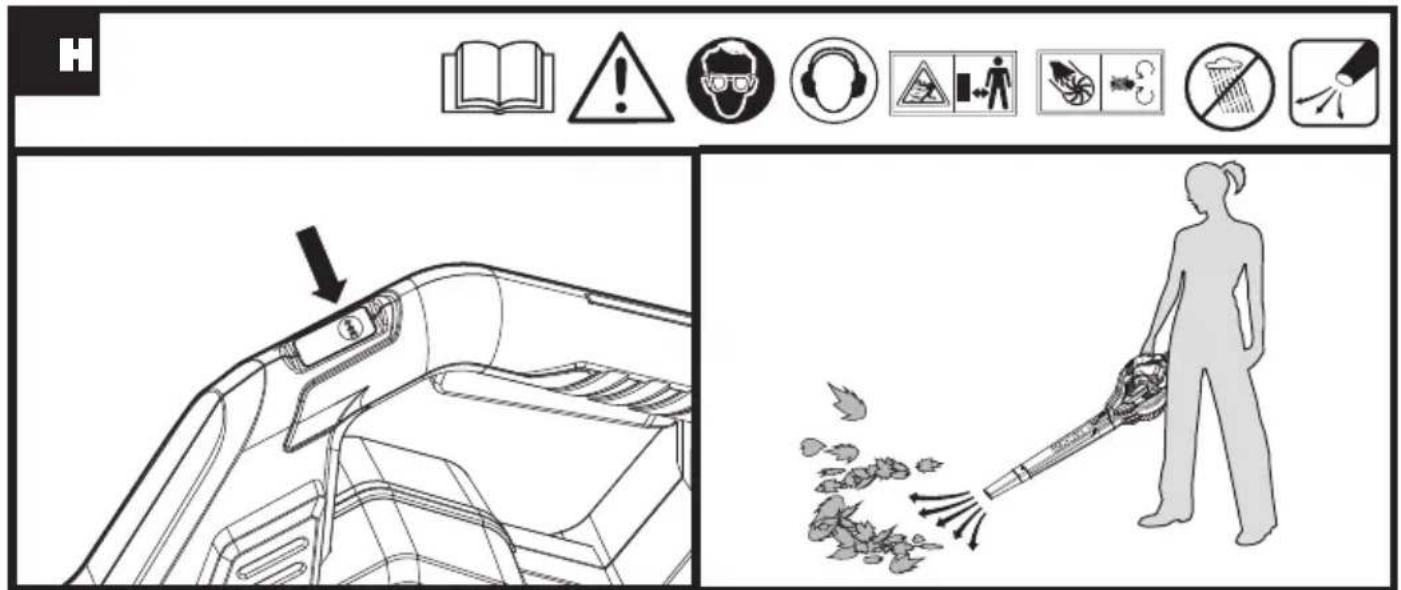

Adjusting the blowing speedNOTE:the speed your tool keeps each time you turn it on is the speed when you turned it off last time. If necessary, please readjust the speed.	See Fig.H
Vacuum mode

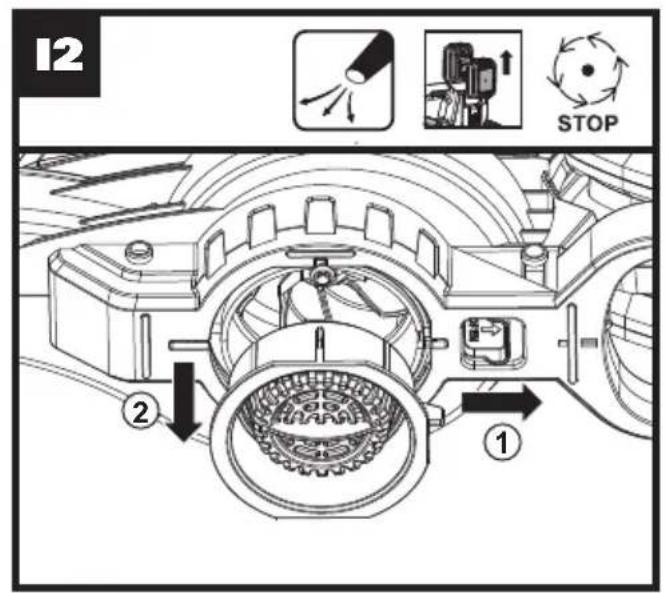

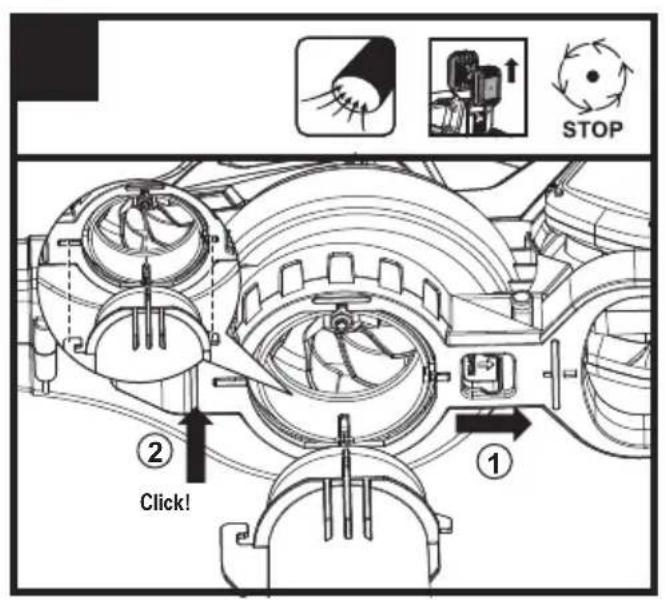

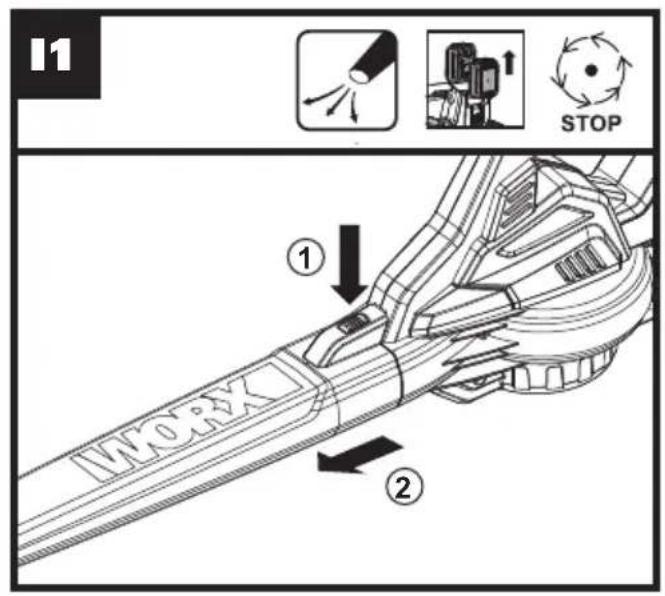

Disassembling the blower tube and fan housing cover	See Fig. I1,I2
Assembling the vacuum Tube and wheel	See Fig.J1,J2

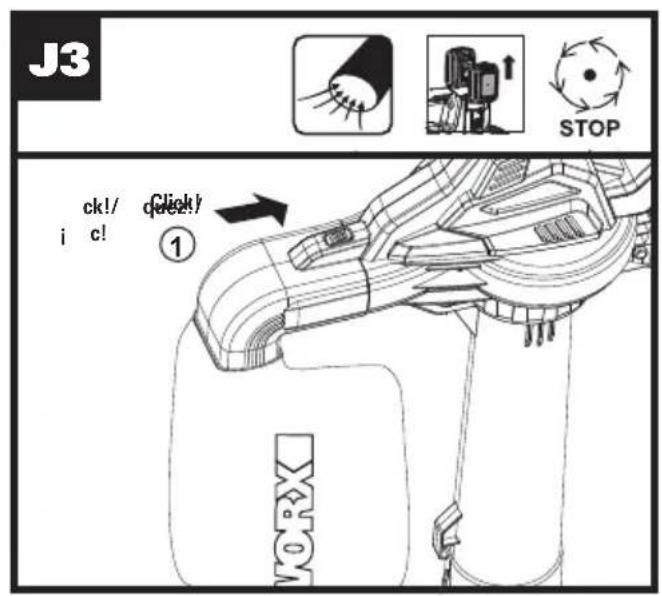

Assembling he Leaf Collection Bag See Fig. J3

On/Off SwitchWARNING! The tool runs for a few seconds after it has been switched off.Let the motor come to a complete standstill before setting the tool down.	See Fig.F
Using the VacuumNOTE:It is recommended to use high speed for best vacuum performance.	See Fig. K

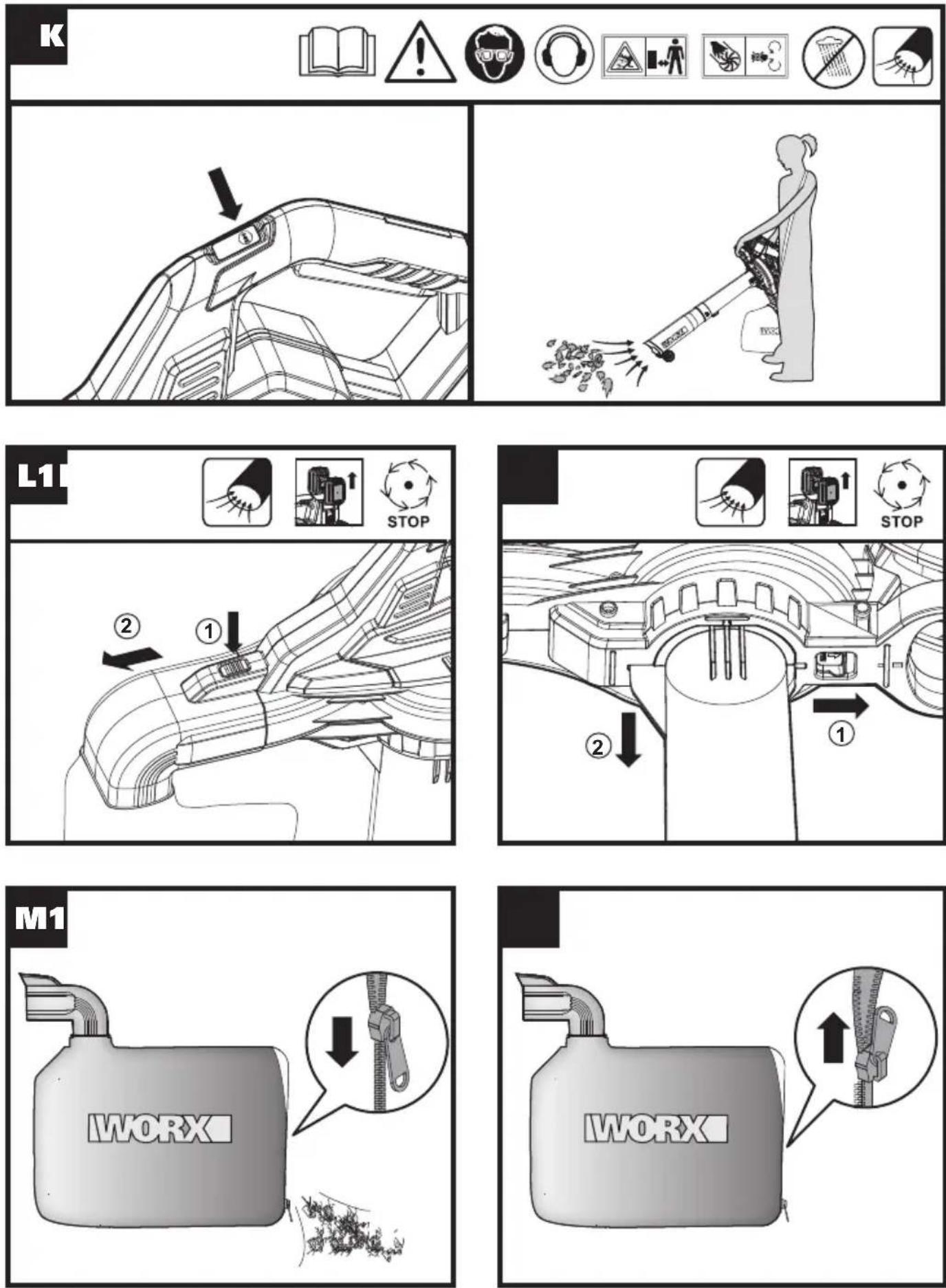

Disassembling the vacuum Tube and the Leaf Collection Bag	See Fig.L1,L2
Emptying the Leaf Collection Bag	See Fig.M1,M2

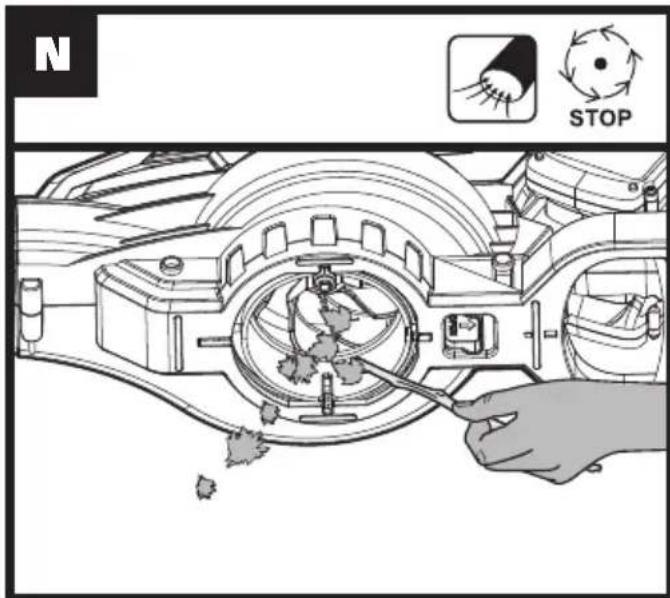

Removing Clogged Debris from the Impeller(no tool included)NOTE: Ensure to remove the batteries before attempting to clear any debris.	See Fig. N

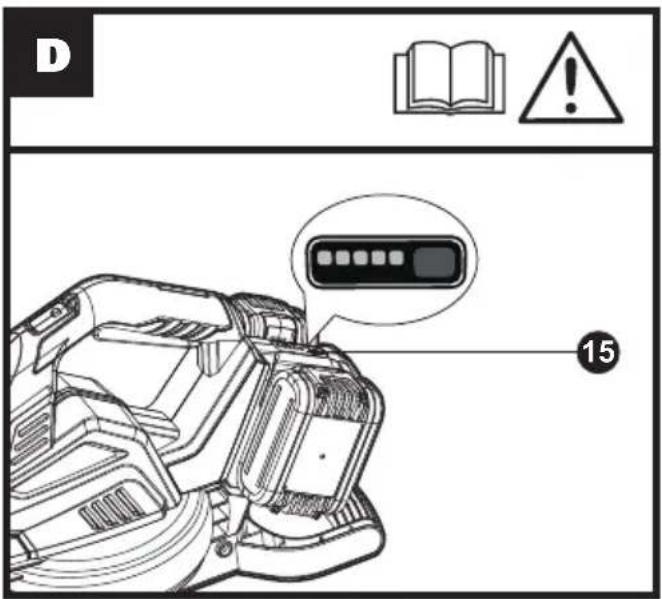

BATTERY STATUS (See Fig. D)

• Before starting or after use, press the button beside the power indicator light on the machine to check the battery capacity.
• During operation, the battery capacity will be indicated automatically by the battery power indicator. The indicator constantly senses and displays the battery condition as follows.
• For the machine with 2 battery packs with different power, the power indicator light displays the battery condition with the lower one of the two batteries.

Battery indicator light status	Battery condition
Five green lights (■■■■■) are illuminated.	The two batteries are in a highly charged condition.
Two, three or four green lights are illuminated.	The two batteries have a remaining charge. The more lights are illuminated, the more battery capacity.
Only one green light (■□□□□) is illuminated.	The battery level of at least one battery pack is very low. Please check and charge the battery pack.
No light is illuminated.	At least one battery is not fully installed or battery may be defective.
Only one light is flashing twice per cycle.	At least one battery is over discharged (please refer to the battery charge condition), please recharge the two batteries at once before use again or storage.
Only one light is flashing three times per cycle.	At least one battery is hot, wait for them cool down before start again.
Only one light is flashing four times per cycle.	The machine is over load. Remove tool from blowing area and try again.

STORAGE

Store the Blower/Vacuum indoors, in a cool dry location, out of reach of children and animals.

CLEANING THE TOOL

Clean the tool regularly.

Warning! Keep your product dry. Under no circumstances spray with water.

• To clean the tool, use only mild soap and a damp cloth.
• Do not use any type of detergent, cleaner or solvent which may contain chemicals that could seriously damage the plastic.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Grüner Weg 10, 50825 Cologne, Germany

Declare that the product

Description Battery-operated Blower Vacuum

Type WG583E WG583E.9 (5-designation of machinery, representative of battery-operated Blower Vacuum)

Function blowing and picking up debris into a debris collector

Complies with the following Directives:

2006/42/EC, 2014/30/EU

2011/65/EU&(EU)2015/863

2000/14/EC amended by 2005/88/EC

2000/14/EC amended by 2005/88/EC:

• Conformity Assessment Procedure as per Annex V
• Measured Sound Power Level 99.7 dB(A)
• Declared Guaranteed Sound Power Level 103 dB(A)

Standards conform to:

EN 60335-1, EN 50636-2-100, EN 62233, EN ISO 3744, EN 55014-1, EN 55014-2

The person authorized to compile the technical file,

Name Marcel Filz

Address Positec Germany GmbH

Grüner Weg 10, 50825 Cologne, Germany

M A

2021/04/12

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUKTSICHERHEIT

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SÉCURITÉ DU PRODUIT

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SICUREZZA DEL PRODOTTO AVVISI GENERALI PER LA SICUREZZA

ATTENZIONE! È

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SEGURANÇA DO PRODUTO

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUCTVEILIGHEID

WAARSCHUWING! Lees alle instructies

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUKTSIKKERHED

Switch-off the machine before attaching or removing the bag.

BATTERISIKKERHED SIKKERHEDSFORSKRIFTER TIL BATTERISÄET

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUKTSIKKERHET

Rutiner for trygg bruk 1) Rutiner for trygg bruk

4) VEDLIKEHOLD OG OPPBEVARING

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUKTSÄKERHET

WARNING! Läs alla

Complies with the following Directives:

2006/42/EC, 2014/30/EU

2011/65/EU&(EU)2015/863

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BEZPIECZEŃSTWO PRODUKTU

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BIZTONSÁGOS TERMÉKHASZNÁLAT

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SECURITATEA PRODUSULUI

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BEZPEČNOST VÝROBKU

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BEZPEČNOST VÝROBKU

Complies with the following Directives:

2006/42/EC, 2014/30/EU

2011/65/EU&(EU)2015/863

2000/14/EC v novelizácii 2005/88/EC

2000/14/EC v novelizácii 2005/88/EC:

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

VARNOSTNA NAVODILA

OPOZORILO Preberite vsa varnostna opozorila in

SHRANITE ZA KASNEJŠO UPORABO

Varna uporaba 1) Training

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

WORX

it's your nature

www.worx.com

Copyright © 2021, Positec. All Rights Reserved.
